Objects365数据集提取类别及标签转化为Yolo格式

Objects365数据集提取类别及标签转化为Yolo格式

一、目的

在深度学习过程中，有些类别在现有数据集中就已经有了，因此可以直接利用现有数据集进行提取目标类别。Objects365数据集包含365中类别数据。

二、代码及文件夹摆放

1.文件夹摆放

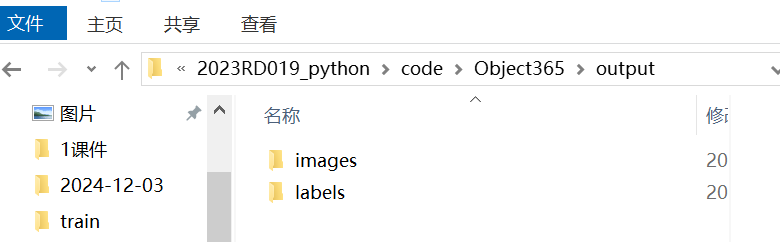

output文件夹

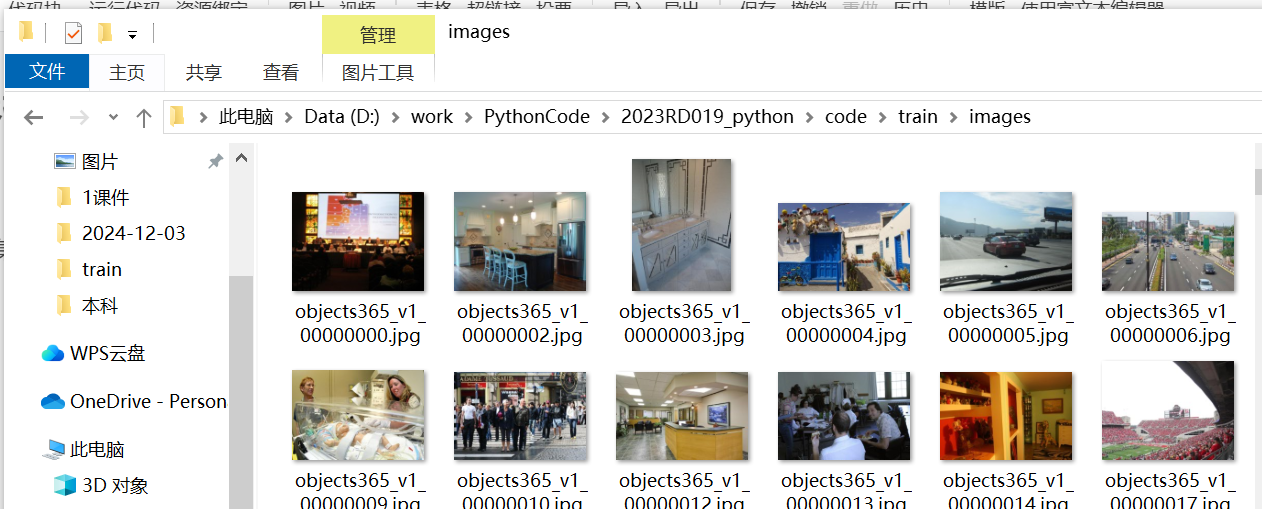

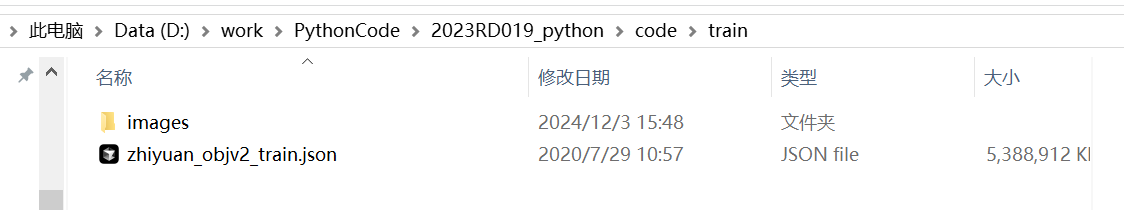

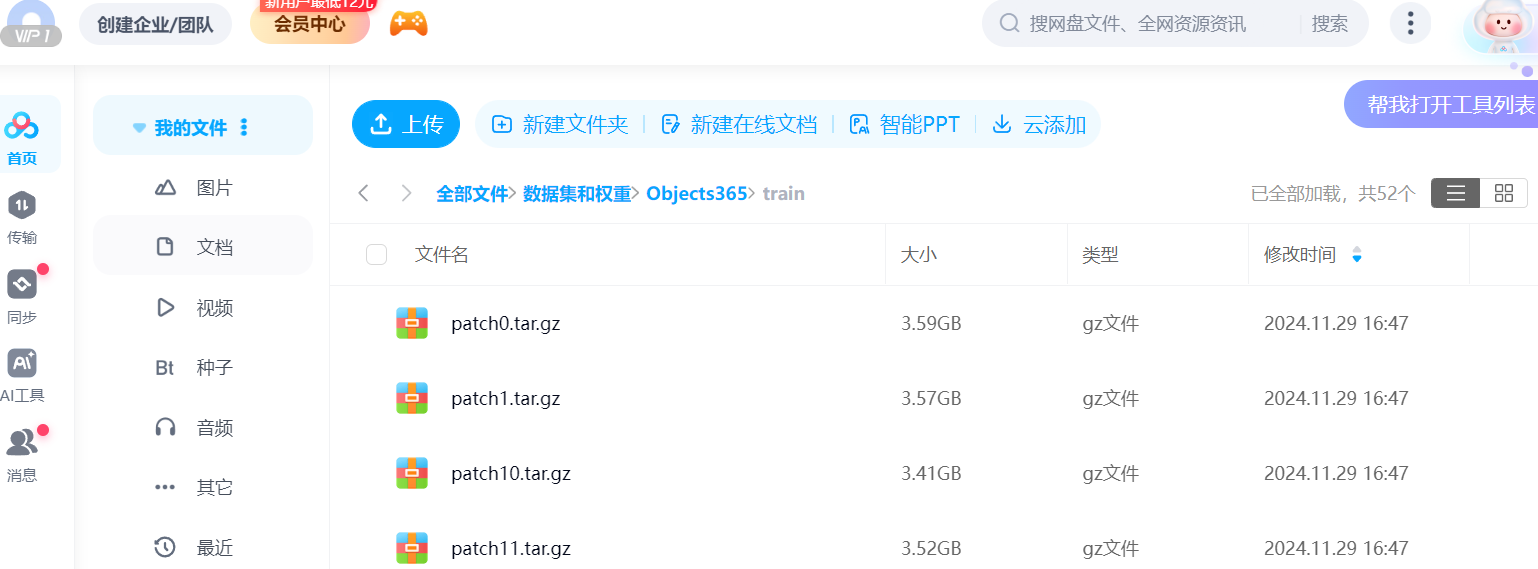

在train文件夹中，新建images文件夹，images文件夹中的图像实际是我将数据集train文件夹中的patch0.tar.gz解压后放入的图像。因为这个数据集太大了，只能一个一个小压缩包处理。

2.代码

按照上述文件夹摆放数据后，修改成自己的路径。

import os
import json
import shutil

def save_annotations(anno_file_path, imgs_file_path, output_dir, objects_2_my_classes):
    with open(anno_file_path, 'r') as f:
        data = json.load(f)
        print("anno count:", len(data["annotations"]))
        print("image count:", len(data["images"]))
        img_map = {}
        img_2_anno = {}
        name_2_id = {}
        images_in_dir = set(os.listdir(imgs_file_path))
        for i in data["images"]:
            i["file_name"] = i["file_name"].split('/')[-1]
            if i["file_name"] in images_in_dir:
                img_map[i["id"]] = i
                img_2_anno[i["id"]] = []
                name_2_id[i["file_name"]] = i["id"]
        for anno in data["annotations"]:
            if anno["image_id"] in img_map.keys() and anno["category_id"] in objects_2_my_classes.keys():
                anno["category_id"] = objects_2_my_classes[anno["category_id"]]
                img_2_anno[anno["image_id"]].append(anno)
        for _, id in enumerate(img_2_anno):
            annos = img_2_anno[id]
            if len(annos) > 0:
                img = img_map[id]
                img_width = img["width"]
                img_height = img["height"]
                objs = []
                for anno in annos:
                    bbox = anno["bbox"]
                    x = min(max(bbox[0] + bbox[2] / 2, 0) / img_width, 1)
                    y = min(max(bbox[1] + bbox[3] / 2, 0) / img_height, 1)
                    w = min(max(bbox[2] / img_width, 0), 1)
                    h = min(max(bbox[3] / img_height, 0), 1)
                    my_class_id = anno["category_id"]
                    obj = [my_class_id, x, y, w, h]
                    objs.append(obj)
                shutil.copy(os.path.join(imgs_file_path, img_map[id]['file_name']), os.path.join(output_dir, "images", 'train'))
                write_txt(output_dir, img_map[id]['file_name'], objs)
    print("conversion is done")

def write_txt(output_dir, img_name, objs):
    img_name = img_name[:-4]
    list_name = os.path.join(output_dir, "labels", 'train', img_name) + ".txt"
    with open(list_name, 'w', encoding='utf-8') as list_fs:
        for line in objs:
            line = str(int(line[0])) + " " + str(line[1])[:6] + " " + str(line[2])[:6] + " " + str(line[3])[:6] + " " + str(line[4])[:6] + "\n"
            list_fs.write(line)

def main_object365(classes, input_dir, output_dir):
    object_2_my_classes = {classes[i]: i for i in range(len(classes))}
    anno_file_path = os.path.join(input_dir, "zhiyuan_objv2_train.json")
    imgs_file_path = os.path.join(input_dir, "images")
    save_annotations(anno_file_path, imgs_file_path, output_dir, object_2_my_classes)

def main():
    input_dir = "D:/work/PythonCode/2023RD019_python/code/train"
    classes = [84]  # object365_dict.txt里面的类
    output_dir = "D:/work/PythonCode/2023RD019_python/code/Object365/output"
    main_object365(classes, input_dir, output_dir)

if __name__ == '__main__':
    main()

三、结果

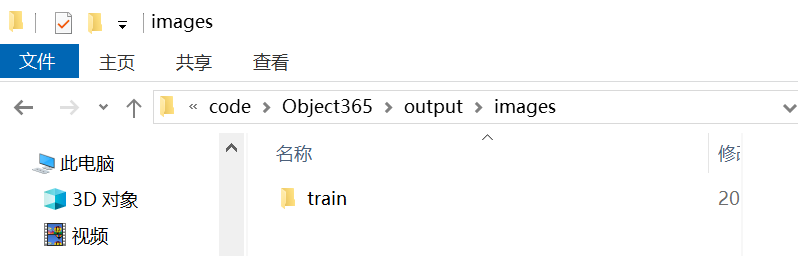

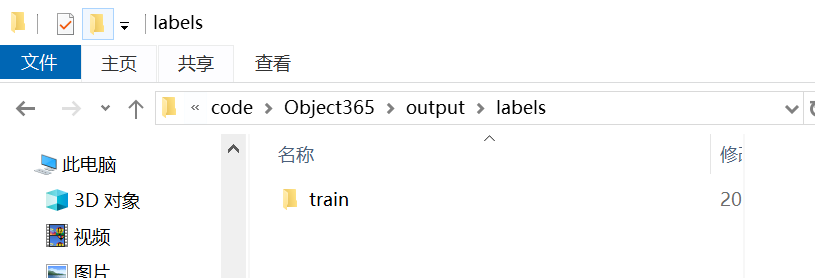

在output文件夹中，将会保存处理结果。类别会从0开始。
labelImg打开后可以查看效果如下：
