aws(学习笔记第三十七课) lambda调用rekognition(名人视频分析)

aws(学习笔记第三十六课) lambda调用rekognition(名人视频分析AI)

• 使用lambda调用rekognition(名人视频分析)

学习内容：

• 使用rekognition(名人视频分析)

1. 整体架构

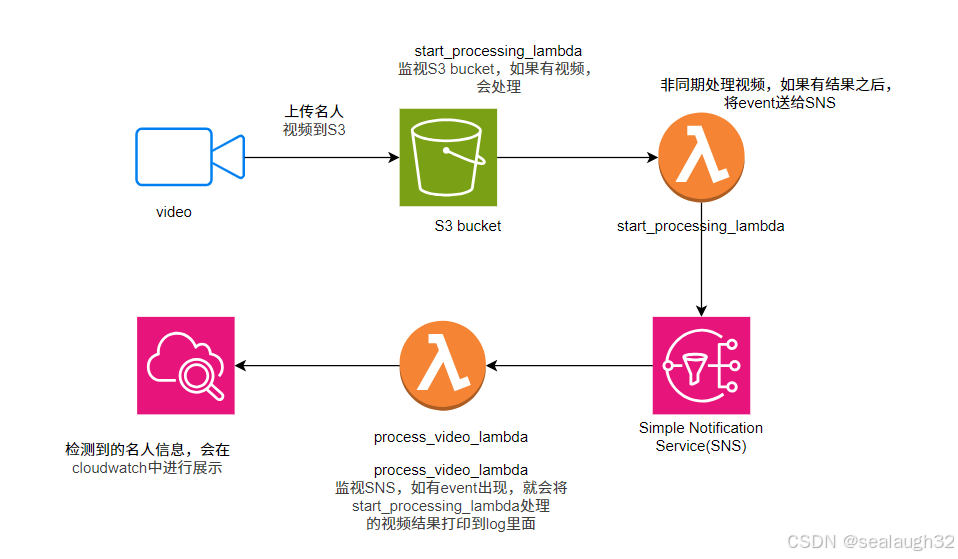

1.1 全体处理架构

1.2 代码链接

代码链接(rekognition-video-processor)

1.3 代码修改

在源代码中，进行结果输出都是采用print语句，这导致cloudwatch中不能正常进行输出。对lambda的代码部分，做如下对应。

• 加入如下代码

  import logging

  logging.getLogger().setLevel(logging.INFO)
  logger = logging.getLogger(__name__)


• 将print的部分改成logger.info

2. 代码分析

2.1 创建上传video的S3 bucket

         # S3 bucket to store videos
        video_bucket = s3.Bucket(
            self,
            "S3Bucket",
            removal_policy=RemovalPolicy.DESTROY,
        )

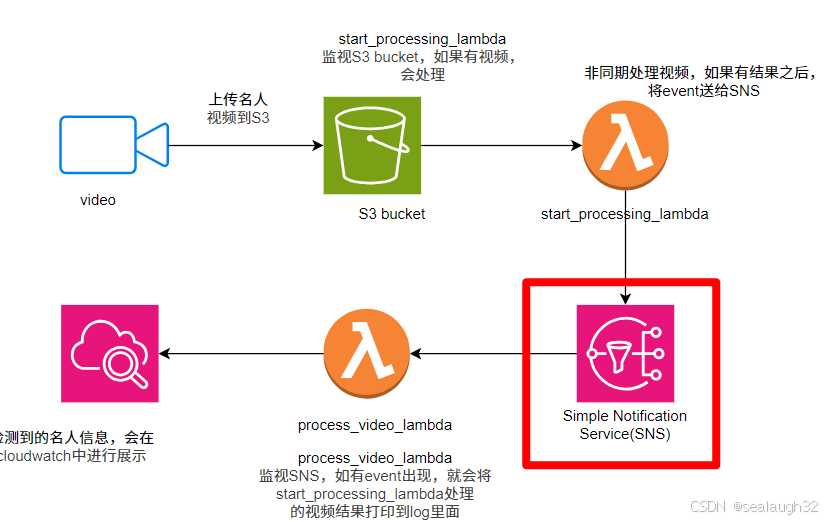

2.2 创建SNS topic

        # SNS
        rekognition_sns_topic = sns.Topic(
            self,
            "RekognitionSnsTopic",
            display_name="Rekognition Job Completion SNS Topic",
        )

这里，如果process complete之后，通过SNS topic通知结果，之后lambda进行处理。

2.3 创建start_processing_lambda需要的role

2.3.1 AmazonSNSFullAccess权限

        rekognition_role = iam.Role(
            self,
            "RekognitionRole",
            assumed_by=iam.ServicePrincipal("rekognition.amazonaws.com"),
            managed_policies=[
                iam.ManagedPolicy.from_aws_managed_policy_name("AmazonSNSFullAccess"),
            ],
        )

因为要video处理完成后要发布SNS event，所以对start_processing_lambda准备访问AmazonSNSFullAccess的policy。

2.3.2 S3 bucket权限

        # Define IAM permissions needed
        s3_lambda_policy = iam.PolicyStatement(
            actions=["s3:GetObject"],
            resources=[video_bucket.bucket_arn, video_bucket.bucket_arn + "/*"],
            effect=iam.Effect.ALLOW,
        )

这里需要访问S3 bucket，所以需要S3 bucket权限。

2.3.3 rekognition权限

        rekognition_lambda_policy = iam.PolicyStatement(
            actions=["rekognition:*"],
            resources=["*"],
            effect=iam.Effect.ALLOW,
        )

需要执行视频分析的rekognition，所以赋予rekognition权限。

2.3.4 PassRole权限

        pass_role_lambda_policy =iam.PolicyStatement(
                actions=["iam:PassRole"],
                resources=[
                    rekognition_role.role_arn
                ],
            )

这里，当video processing结束的时候，需要publish event到SNS，所以需要PassRole。

2.4 创建start_rekognition_lambda

        # Lambda which detects when a video has been uploaded to the S3 bucket and starts the video processing with Rekognition
        start_processing_lambda_function = lambda_.Function(
            self,
            "LambdaFunction",
            function_name="start-processing-rekognition-demo-lambda",
            runtime=lambda_.Runtime.PYTHON_3_10,
            handler="index.lambda_handler",
            code=lambda_.Code.from_asset("lambdas/start_processing"),
            environment={
                "SNS_TOPIC_ARN": rekognition_sns_topic.topic_arn,
                "SNS_ROLE_ARN": rekognition_role.role_arn,
            },
        )

这里，environment传递两个参数

• 一个是SNS topic arn，用来当process complete的时候，发布SNS event，通知process_video_lambda进行处理。
• 另一个是rekognition_role的arn。

2.5 创建process_video_lambda

        # Lambda which detects when a video has been processed by reckognition. It stracts the data of each celebrity identified
        process_video_lambda = lambda_.Function(
            self,
            "RekognitionLambda",
            function_name="process-video-rekognition-demo-lambda",
            runtime=lambda_.Runtime.PYTHON_3_10,
            handler="index.lambda_handler",
            code=lambda_.Code.from_asset("lambdas/process_video"),
        )

这个lambda不进行真正的video processing，它就是进行start_rekognition_lambda的结果输出。

2.6 赋予权限给start_rekognition_lambda和process_video_lambda

2.6.1 赋予权限给start_rekognition_lambda

        # Grant permissions to the lambdas defined
        start_processing_lambda_function.add_to_role_policy(s3_lambda_policy)
        start_processing_lambda_function.add_to_role_policy(rekognition_lambda_policy)
        start_processing_lambda_function.add_to_role_policy(pass_role_lambda_policy)

2.6.2 赋予权限给process_video_lambda

        process_video_lambda.add_to_role_policy(rekognition_lambda_policy)

2.7 process_video_lambda订阅SNS event

        rekognition_sns_topic.grant_publish(process_video_lambda)
        rekognition_sns_topic.add_subscription(sns_subs.LambdaSubscription(process_video_lambda))

这样，video_process_complete event就能被process_video_lambda检知到。

2.8 对start_rekognition_lambda加入trigger

        # Automatically trigger lambda when new image is uploaded to S3
        start_processing_lambda_function.add_event_source(
            aws_lambda_event_sources.S3EventSource(
                video_bucket, events=[s3.EventType.OBJECT_CREATED]
            )
        )

特定的video_bucket只要上传了mp4文件，都会触发start_rekognition_lambda。

2.9 lambda代码解析

2.9.1 start_rekognition_lambda代码

import boto3
import os
import logging

logging.getLogger().setLevel(logging.INFO)
logger = logging.getLogger(__name__)


rekognition = boto3.client("rekognition")
s3 = boto3.client("s3")

SNS_TOPIC_ARN = os.environ["SNS_TOPIC_ARN"]
SNS_ROLE_ARN = os.environ["SNS_ROLE_ARN"]


def lambda_handler(event, context):
    key = event["Records"][0]["s3"]["object"]["key"]
    bucket_name = event["Records"][0]["s3"]["bucket"]["name"]
    file_extension = os.path.splitext(key)[1]
    logger.info("key is " + key)
    logger.info("file_extension is " + file_extension)

    if file_extension == ".mp4":
        response = rekognition.start_celebrity_recognition(
            Video={"S3Object": {"Bucket": bucket_name, "Name": key}},
            NotificationChannel={
                "SNSTopicArn": SNS_TOPIC_ARN,
                "RoleArn": SNS_ROLE_ARN,
            },
        )
        logger.info("recognition has been started.")
        recognition = rekognition.get_celebrity_recognition(JobId=response["JobId"])

        return {"statusCode": 200, "body": "Rekognition job started!"}

    return {"statusCode": 200, "body": "No video uploaded"}

注意，这里，print的地方都改成了logger.info，因为cloudwatch输出的场合，print不起作用。

2.9.2 process_video_lambda代码

import json
import boto3

sns = boto3.client("sns")
rekognition = boto3.client("rekognition")
import logging

logging.getLogger().setLevel(logging.INFO)
logger = logging.getLogger(__name__)

def lambda_handler(event, context):
    logger.info("received event.")
    for record in event["Records"]:
        # Get the Rekognition job status and job ID from the SNS message
        sns_message = json.loads(record["Sns"]["Message"])
        rekognition_job_status = sns_message["Status"]
        logger.info("rekognition job status is " + rekognition_job_status )
        rekognition_job_id = sns_message["JobId"]

        if rekognition_job_status == "SUCCEEDED":
            try:
                # Get celebrity recognition results based on the job ID
                celebrity_recognition_result = rekognition.get_celebrity_recognition(
                    JobId=rekognition_job_id
                )
                # Process celebrity recognition results
                celebrities = celebrity_recognition_result["Celebrities"]
                for celebrity in celebrities:
                    celebrity_name = celebrity["Celebrity"]["Name"]
                    confidence = celebrity["Celebrity"]["Confidence"]
                    logger.info(
                        f"Celebrity Name: {celebrity_name}, Confidence: {confidence}%"
                    )

            except Exception as e:
                logger.info(f"Error processing celebrity recognition results: {str(e)}")

        elif rekognition_job_status == "FAILED":
            # Handle the case where the Rekognition job failed
            logger.info(f"Rekognition job {rekognition_job_id} failed.")

        else:
            # Handle other job status or ignore it as needed
            logger.info(
                f"Rekognition job {rekognition_job_id} is in status: {rekognition_job_status}"
            )

3.部署执行

3.1 测试video

这里找了一个trump的测试视频。

3.2 开始部署

cdk --require-approval never deploy

3.3 视频分析

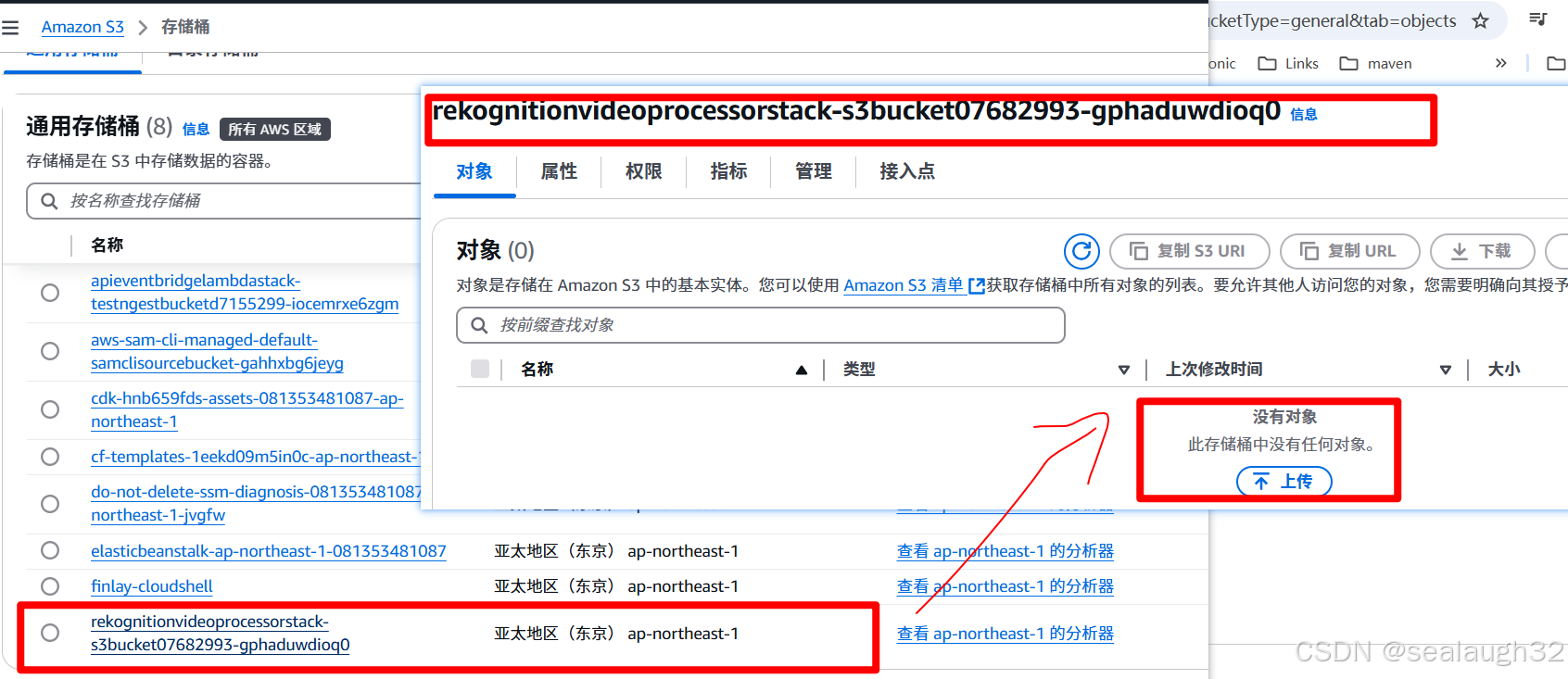

3.3.1 上传视频

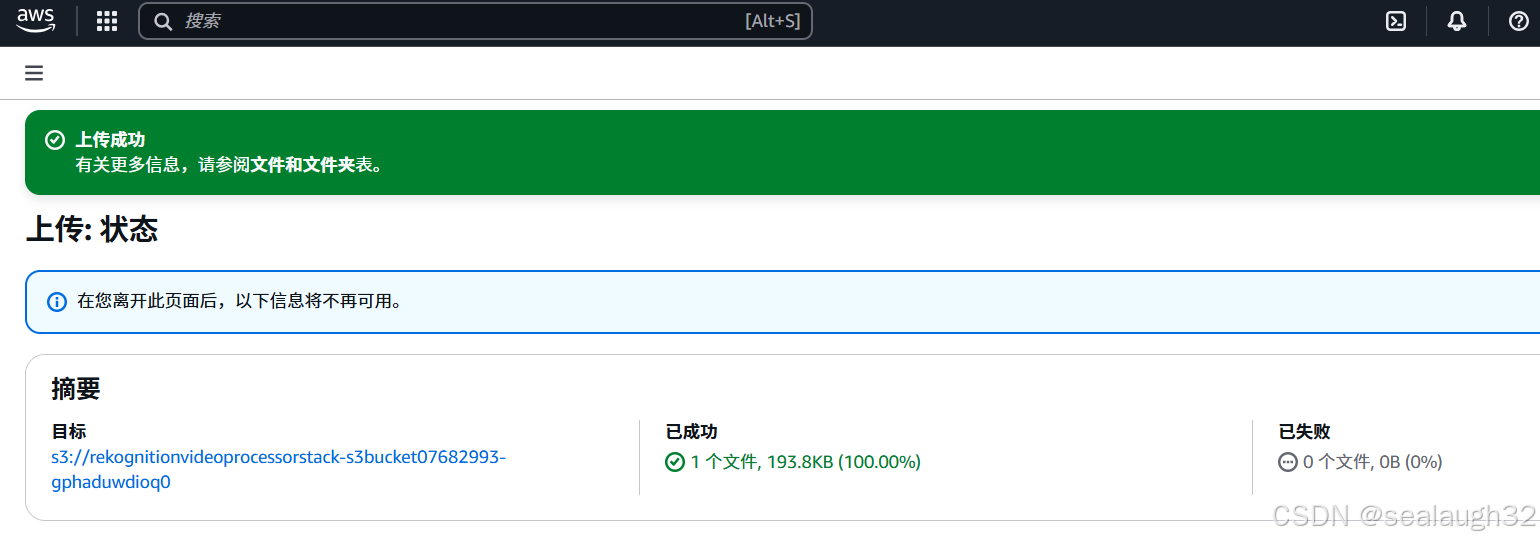

上传视频。–>测试视频。

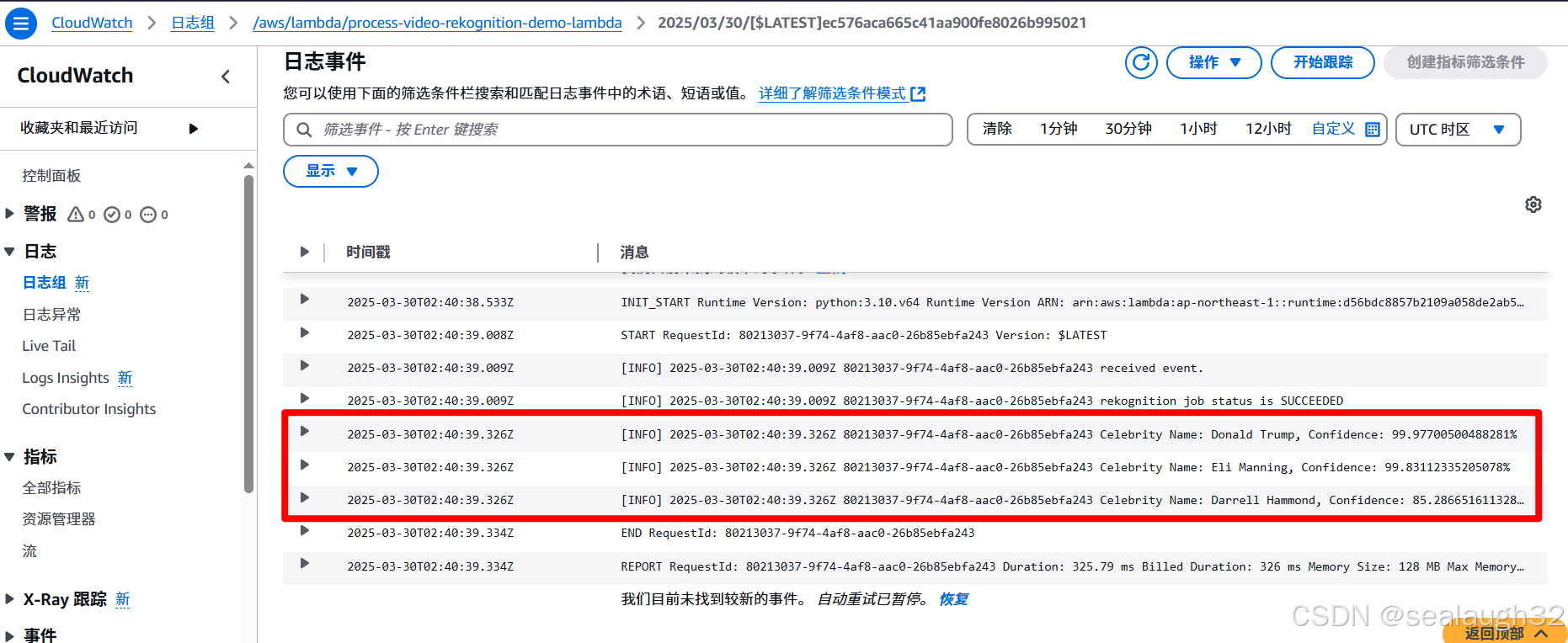

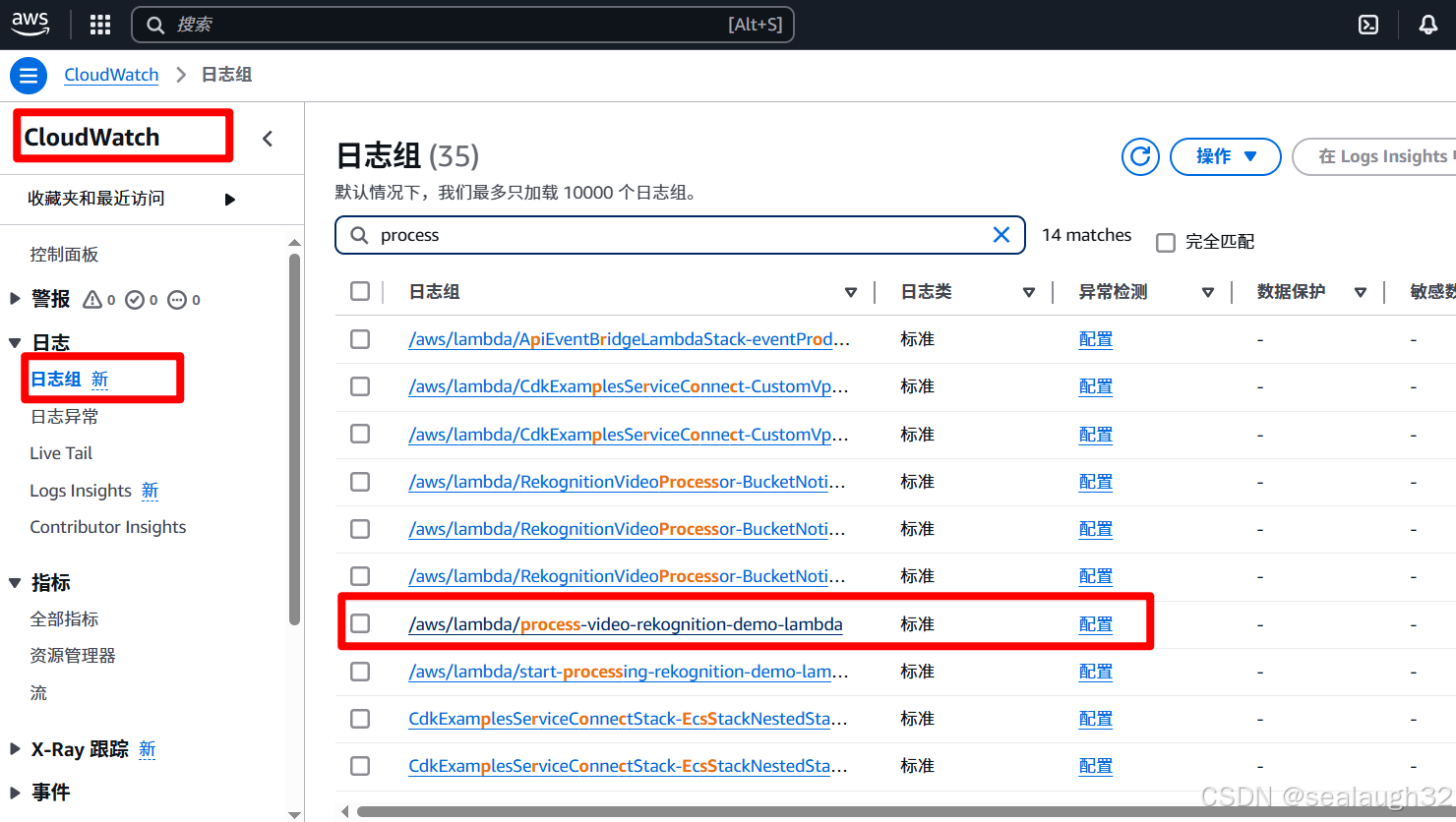

3.3.3 检查cloudwatch上的结果

这里，解析出了三个名人：

• Donald Trump, Confidence: 99.97700500488281%
• Eli Manning, Confidence: 99.83112335205078%
• Darrell Hammond, Confidence: 85.286651611328%


3.3.4 cleanup stack

• 删除S3 bucket的文件
• clean stack

  cdk destroy
