prism WPF 区域

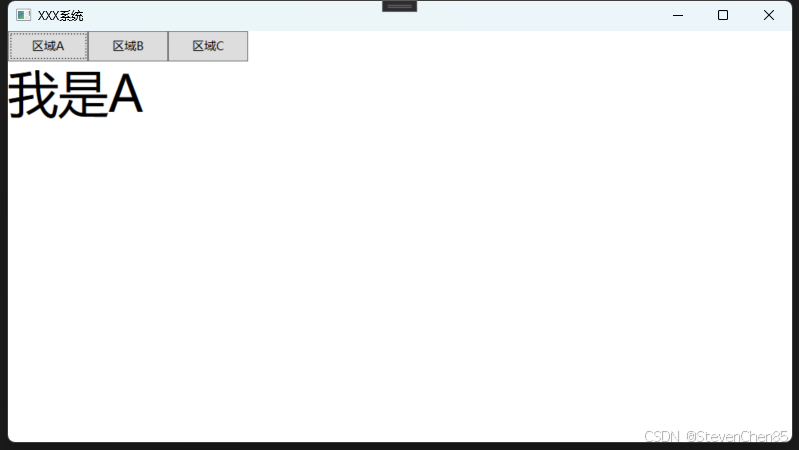

看效果可以用来做成根据菜单切换下面的内容区域

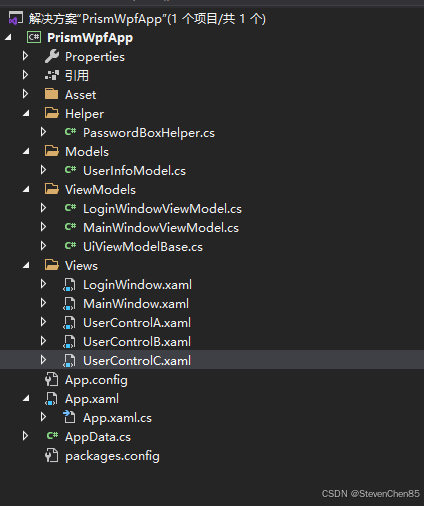

项目结构

代码

UI层

MainWindow.xaml

<Window x:Class="PrismWpfApp.Views.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:PrismWpfApp"
        xmlns:prism="http://prismlibrary.com/"
        prism:ViewModelLocator.AutoWireViewModel="True"
        mc:Ignorable="d"
        Title="{Binding Title}" Height="450" Width="800">
    <Grid>
        <!--<TextBlock Text="{Binding Title}"/>-->
        <Grid.RowDefinitions>
            <RowDefinition Height="30"></RowDefinition>
            <RowDefinition ></RowDefinition>
        </Grid.RowDefinitions>
        <StackPanel Grid.Row="0" Orientation="Horizontal">
            <Button Content="区域A" Width="80" Height="30" Command="{Binding ShowContentCommand}" CommandParameter="UserControlA" ></Button>
            <Button Content="区域B" Width="80" Height="30" Command="{Binding ShowContentCommand}" CommandParameter="UserControlB" ></Button>
            <Button Content="区域C" Width="80" Height="30" Command="{Binding ShowContentCommand}" CommandParameter="UserControlC" ></Button>
        </StackPanel>

        <ContentControl Grid.Row="1" prism:RegionManager.RegionName="ContentRegions"></ContentControl>
    </Grid>
</Window>

UserControlA.xaml

<UserControl x:Class="PrismWpfApp.Views.UserControlA"
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
             xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
             xmlns:local="clr-namespace:PrismWpfApp.Views"
             mc:Ignorable="d"
             d:DesignHeight="450" d:DesignWidth="800">
    <Grid>
        <TextBlock Text="我是A" FontSize="50"/>
    </Grid>
</UserControl>

B和C都是一样的内容

UiViewModelBase.cs

using Prism.Commands;
using Prism.Mvvm;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows;

namespace PrismWpfApp.ViewModels
{
    /// <summary>
    /// UI 层的 ViewModelBase 基类
    /// </summary>
    public abstract class UiViewModelBase : BindableBase
    {
        public UiViewModelBase()
        {
            AppDataInstance = AppData.Instance;
            initCommand();
        }

        public AppData _appDataInstance;
        /// <summary>
        /// 公共数据
        /// </summary>
        public AppData AppDataInstance
        {
            get { return _appDataInstance; }
            set
            {
                SetProperty(ref _appDataInstance, value);
            }
        }

        private string _systemName = "一体针焊接系统";
        /// <summary>
        /// 系统名称
        /// </summary>
        public string SystemName
        {
            get { return _systemName; }
            set
            {
                SetProperty(ref _systemName, value);
            }
        }

        private string _title = "标题";
        /// <summary>
        /// 标题
        /// </summary>
        public string Title
        {
            get { return _title; }
            set
            {
                SetProperty(ref _title, value);
            }
        }
        private void initCommand()
        {
            CloseCommand = new DelegateCommand<Window>(close);
        }

        /// <summary>
        /// 关闭(取消) 命令
        /// </summary>
        public DelegateCommand<Window> CloseCommand { get; set; }

        /// <summary>
        /// 关闭(取消) 方法
        /// </summary>
        public void close(Window window)
        {
            if (window != null)
            {
                window.Close();
            }
        }

        /// <summary>
        /// 根据名称获取开关的值
        /// </summary>
        /// <param name="name">名称</param>
        /// <returns>是否开启</returns>
        public bool GetOnOffByName(string name)
        {
            var isOn = false;
            //if (!string.IsNullOrEmpty(name))
            //{
            //    isOn = _serviceSysConfig.GetOnOffByName(name);
            //}
            return isOn;
        }

        /// <summary>
        /// 保存开关配置
        /// </summary>
        /// <param name="connfigName">配置名称</param>
        /// <param name="value">是否开启</param>
        /// <returns>是否成功</returns>
        public bool SaveOnOff(string connfigName, bool value)
        {
            var isOk = false;
            if (!string.IsNullOrEmpty(connfigName))
            {
                //isOk = _serviceSysConfig.SaveModelByName(new SysConfigModel()
                //{
                //    Name = connfigName,
                //    ValueStr = value.ToString(),
                //    UpdatedBy = "ADMIN",
                //    UpdatedOn = DateTime.Now
                //});
            }
            return isOk;
        }
    }
}

MainWindowViewModel.cs

using Prism.Commands;
using Prism.Regions;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace PrismWpfApp.ViewModels
{
    public class MainWindowViewModel : UiViewModelBase
    {
        /// <summary>
        /// Prism 提供 区域管理接口
        /// </summary>
        private readonly IRegionManager _regionManager;

        public MainWindowViewModel(IRegionManager regionManager)
        {
            this.Title = "XXX系统";
            _regionManager = regionManager;
        }

        /// <summary>
        /// 显示区域内容
        /// </summary>
        public DelegateCommand<string> ShowContentCommand
        {
            get
            {
                return new DelegateCommand<string>((arg) =>
                {
                    //
                    _regionManager.Regions["ContentRegions"].RequestNavigate(arg);
                });
            }
        }
    }
}

App.xaml.cs

重点 注册 导航 RegisterForNavigation

using Prism.Ioc;
using Prism.Unity;
using PrismWpfApp.ViewModels;
using PrismWpfApp.Views;
using System;
using System.Collections.Generic;
using System.Configuration;
using System.Data;
using System.Linq;
using System.Threading.Tasks;
using System.Windows;

namespace PrismWpfApp
{
    /// <summary>
    /// App.xaml 的交互逻辑
    /// </summary>
    public partial class App : PrismApplication
    {
        /// <summary>
        /// 提供主窗口的对象
        /// </summary>
        /// <returns></returns>
        /// <exception cref="NotImplementedException"></exception>
        protected override Window CreateShell()
        {
            //打开第一个窗口
            return Container.Resolve<MainWindow>();
            //return new MainWindow();
        }

        /// <summary>
        /// 业务中所有需要注入的对象，在这个方法里注册
        /// </summary>
        /// <param name="containerRegistry"></param>
        /// <exception cref="NotImplementedException"></exception>
        protected override void RegisterTypes(IContainerRegistry containerRegistry)
        {
            //注册 导航 RegisterForNavigation
            containerRegistry.RegisterForNavigation<UserControlA>();
            containerRegistry.RegisterForNavigation<UserControlB>();
            containerRegistry.RegisterForNavigation<UserControlC>();
        }

        //protected override void OnStartup(StartupEventArgs e)
        //{
        //    base.OnStartup(e);

        //    if (new LoginWindow().ShowDialog() == true)
        //    {
        //        new MainWindow().ShowDialog();
        //    }
        //    Application.Current.Shutdown();
        //}
    }
}
