项目介绍
Tiny Renderer or how OpenGL works: software rendering in 500 lines of code
项目地址：https://github.com/ssloy/tinyrenderer
In this series of articles, I want to show how OpenGL works by writing its clone (a much simplified one). Surprisingly enough, I often meet people who cannot overcome the initial hurdle of learning OpenGL / DirectX. Thus, I have prepared a short series of lectures, after which my students show quite good renderers.
So, the task is formulated as follows: using no third-party libraries (especially graphic ones), get something like this picture:

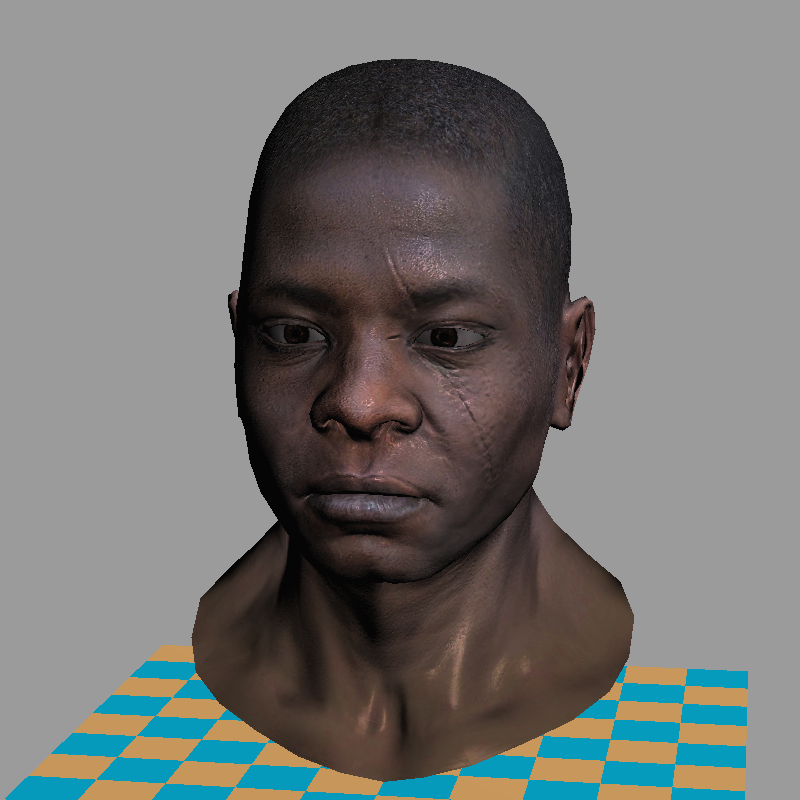

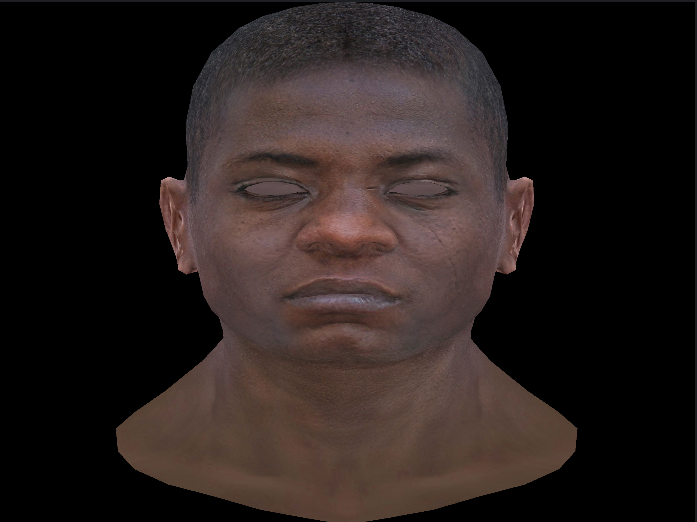

所以学习最终目标是不使用第三方代码，得到下面这种图，建议学完games101后来复习，不过过程很详细，作为入门也是不错的
环境搭建
虽然项目旨在不使用第三方库，但提供了图片读取、保存、设置像素点颜色的代码
tagimage.h
#pragma once
#include <cstdint>
#include <fstream>
#include <vector>
#pragma pack(push,1)
struct TGAHeader {
std::uint8_t idlength{};
std::uint8_t colormaptype{};
std::uint8_t datatypecode{};
std::uint16_t colormaporigin{};
std::uint16_t colormaplength{};
std::uint8_t colormapdepth{};
std::uint16_t x_origin{};
std::uint16_t y_origin{};
std::uint16_t width{};
std::uint16_t height{};
std::uint8_t bitsperpixel{};
std::uint8_t imagedescriptor{};
};
#pragma pack(pop)
struct TGAColor {
std::uint8_t bgra[4] = {0,0,0,0};
std::uint8_t bytespp = {0};
TGAColor() = default;
TGAColor(const std::uint8_t R, const std::uint8_t G, const std::uint8_t B, const std::uint8_t A=255) : bgra{B,G,R,A}, bytespp(4) { }
TGAColor(const std::uint8_t *p, const std::uint8_t bpp) : bytespp(bpp) {
for (int i=bpp; i--; bgra[i] = p[i]);
}
std::uint8_t& operator[](const int i) { return bgra[i]; }
};
struct TGAImage {
enum Format { GRAYSCALE=1, RGB=3, RGBA=4 };
TGAImage() = default;
TGAImage(const int w, const int h, const int bpp);
bool read_tga_file(const std::string filename);
bool write_tga_file(const std::string filename, const bool vflip=true, const bool rle=true) const;
void flip_horizontally();
void flip_vertically();
TGAColor get(const int x, const int y) const;
void set(const int x, const int y, const TGAColor &c);
int width() const;
int height() const;
private:
bool load_rle_data(std::ifstream &in);
bool unload_rle_data(std::ofstream &out) const;
int w = 0;
int h = 0;
int bpp = 0;
std::vector<std::uint8_t> data = {};
};
tgaimage.cpp
#include <iostream>
#include <cstring>
#include "tgaimage.h"
TGAImage::TGAImage(const int w, const int h, const int bpp) : w(w), h(h), bpp(bpp), data(w*h*bpp, 0) {}
bool TGAImage::read_tga_file(const std::string filename) {
std::ifstream in;
in.open (filename, std::ios::binary);
if (!in.is_open()) {
std::cerr << "can't open file " << filename << "\n";
in.close();
return false;
}
TGAHeader header;
in.read(reinterpret_cast<char *>(&header), sizeof(header));
if (!in.good()) {
in.close();
std::cerr << "an error occured while reading the header\n";
return false;
}
w = header.width;
h = header.height;
bpp = header.bitsperpixel>>3;
if (w<=0 || h<=0 || (bpp!=GRAYSCALE && bpp!=RGB && bpp!=RGBA)) {
in.close();
std::cerr << "bad bpp (or width/height) value\n";
return false;
}
size_t nbytes = bpp*w*h;
data = std::vector<std::uint8_t>(nbytes, 0);
if (3==header.datatypecode || 2==header.datatypecode) {
in.read(reinterpret_cast<char *>(data.data()), nbytes);
if (!in.good()) {
in.close();
std::cerr << "an error occured while reading the data\n";
return false;
}
} else if (10==header.datatypecode||11==header.datatypecode) {
if (!load_rle_data(in)) {
in.close();
std::cerr << "an error occured while reading the data\n";
return false;
}
} else {
in.close();
std::cerr << "unknown file format " << (int)header.datatypecode << "\n";
return false;
}
if (!(header.imagedescriptor & 0x20))
flip_vertically();
if (header.imagedescriptor & 0x10)
flip_horizontally();
std::cerr << w << "x" << h << "/" << bpp*8 << "\n";
in.close();
return true;
}
bool TGAImage::load_rle_data(std::ifstream &in) {
size_t pixelcount = w*h;
size_t currentpixel = 0;
size_t currentbyte = 0;
TGAColor colorbuffer;
do {
std::uint8_t chunkheader = 0;
chunkheader = in.get();
if (!in.good()) {
std::cerr << "an error occured while reading the data\n";
return false;
}
if (chunkheader<128) {
chunkheader++;
for (int i=0; i<chunkheader; i++) {
in.read(reinterpret_cast<char *>(colorbuffer.bgra), bpp);
if (!in.good()) {
std::cerr << "an error occured while reading the header\n";
return false;
}
for (int t=0; t<bpp; t++)
data[currentbyte++] = colorbuffer.bgra[t];
currentpixel++;
if (currentpixel>pixelcount) {
std::cerr << "Too many pixels read\n";
return false;
}
}
} else {
chunkheader -= 127;
in.read(reinterpret_cast<char *>(colorbuffer.bgra), bpp);
if (!in.good()) {
std::cerr << "an error occured while reading the header\n";
return false;
}
for (int i=0; i<chunkheader; i++) {
for (int t=0; t<bpp; t++)
data[currentbyte++] = colorbuffer.bgra[t];
currentpixel++;
if (currentpixel>pixelcount) {
std::cerr << "Too many pixels read\n";
return false;
}
}
}
} while (currentpixel < pixelcount);
return true;
}
bool TGAImage::write_tga_file(const std::string filename, const bool vflip, const bool rle) const {
constexpr std::uint8_t developer_area_ref[4] = {0, 0, 0, 0};
constexpr std::uint8_t extension_area_ref[4] = {0, 0, 0, 0};
constexpr std::uint8_t footer[18] = {'T','R','U','E','V','I','S','I','O','N','-','X','F','I','L','E','.','\0'};
std::ofstream out;
out.open (filename, std::ios::binary);
if (!out.is_open()) {
std::cerr << "can't open file " << filename << "\n";
out.close();
return false;
}
TGAHeader header;
header.bitsperpixel = bpp<<3;
header.width = w;
header.height = h;
header.datatypecode = (bpp==GRAYSCALE?(rle?11:3):(rle?10:2));
header.imagedescriptor = vflip ? 0x00 : 0x20; // top-left or bottom-left origin
out.write(reinterpret_cast<const char *>(&header), sizeof(header));
if (!out.good()) {
out.close();
std::cerr << "can't dump the tga file\n";
return false;
}
if (!rle) {
out.write(reinterpret_cast<const char *>(data.data()), w*h*bpp);
if (!out.good()) {
std::cerr << "can't unload raw data\n";
out.close();
return false;
}
} else if (!unload_rle_data(out)) {
out.close();
std::cerr << "can't unload rle data\n";
return false;
}
out.write(reinterpret_cast<const char *>(developer_area_ref), sizeof(developer_area_ref));
if (!out.good()) {
std::cerr << "can't dump the tga file\n";
out.close();
return false;
}
out.write(reinterpret_cast<const char *>(extension_area_ref), sizeof(extension_area_ref));
if (!out.good()) {
std::cerr << "can't dump the tga file\n";
out.close();
return false;
}
out.write(reinterpret_cast<const char *>(footer), sizeof(footer));
if (!out.good()) {
std::cerr << "can't dump the tga file\n";
out.close();
return false;
}
out.close();
return true;
}
// TODO: it is not necessary to break a raw chunk for two equal pixels (for the matter of the resulting size)
bool TGAImage::unload_rle_data(std::ofstream &out) const {
const std::uint8_t max_chunk_length = 128;
size_t npixels = w*h;
size_t curpix = 0;
while (curpix<npixels) {
size_t chunkstart = curpix*bpp;
size_t curbyte = curpix*bpp;
std::uint8_t run_length = 1;
bool raw = true;
while (curpix+run_length<npixels && run_length<max_chunk_length) {
bool succ_eq = true;
for (int t=0; succ_eq && t<bpp; t++)
succ_eq = (data[curbyte+t]==data[curbyte+t+bpp]);
curbyte += bpp;
if (1==run_length)
raw = !succ_eq;
if (raw && succ_eq) {
run_length--;
break;
}
if (!raw && !succ_eq)
break;
run_length++;
}
curpix += run_length;
out.put(raw?run_length-1:run_length+127);
if (!out.good()) {
std::cerr << "can't dump the tga file\n";
return false;
}
out.write(reinterpret_cast<const char *>(data.data()+chunkstart), (raw?run_length*bpp:bpp));
if (!out.good()) {
std::cerr << "can't dump the tga file\n";
return false;
}
}
return true;
}
TGAColor TGAImage::get(const int x, const int y) const {
if (!data.size() || x<0 || y<0 || x>=w || y>=h)
return {};
return TGAColor(data.data()+(x+y*w)*bpp, bpp);
}
void TGAImage::set(int x, int y, const TGAColor &c) {
if (!data.size() || x<0 || y<0 || x>=w || y>=h) return;
memcpy(data.data()+(x+y*w)*bpp, c.bgra, bpp);
}
void TGAImage::flip_horizontally() {
int half = w>>1;
for (int i=0; i<half; i++)
for (int j=0; j<h; j++)
for (int b=0; b<bpp; b++)
std::swap(data[(i+j*w)*bpp+b], data[(w-1-i+j*w)*bpp+b]);
}
void TGAImage::flip_vertically() {
int half = h>>1;
for (int i=0; i<w; i++)
for (int j=0; j<half; j++)
for (int b=0; b<bpp; b++)
std::swap(data[(i+j*w)*bpp+b], data[(i+(h-1-j)*w)*bpp+b]);
}
int TGAImage::width() const {
return w;
}
int TGAImage::height() const {
return h;
}
写一个测试来确保环境正常
#include "tgaimage.h"
const TGAColor white = TGAColor(255, 255, 255, 255);
const TGAColor red = TGAColor(255, 0, 0, 255);
int main(int argc, char** argv) {
TGAImage image(100, 100, TGAImage::RGB);
image.set(52, 41, red);
image.flip_vertically(); // 垂直方向翻转图片，反转y坐标，作者解释是希望图片的原点在左下角，但很多库原点都在左上角
image.write_tga_file("output.tga");
return 0;
}

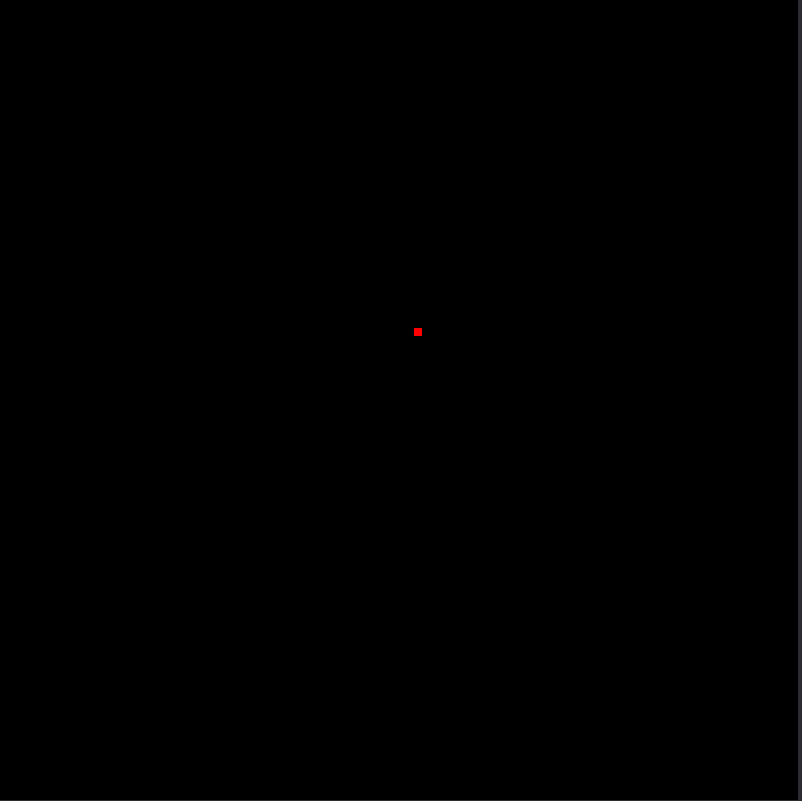

运行后图片如下
Lesson 1: Bresenham’s Line Drawing Algorithm（画线算法）
首先进行初始化，在图上标记三个位置
#include "tgaimage.h"
constexpr TGAColor white = {255, 255, 255, 255}; // attention, BGRA order
constexpr TGAColor green = { 0, 255, 0, 255};
constexpr TGAColor red = { 255, 0, 0, 255};
constexpr TGAColor blue = {255, 128, 64, 255};
constexpr TGAColor yellow = { 0, 200, 255, 255};
int main(int argc, char** argv) {
constexpr int width = 64;
constexpr int height = 64;
TGAImage framebuffer(width, height, TGAImage::RGB);
int ax = 7, ay = 3;
int bx = 12, by = 37;
int cx = 62, cy = 53;
framebuffer.set(ax, ay, white);
framebuffer.set(bx, by, white);
framebuffer.set(cx, cy, white);
framebuffer.write_tga_file("framebuffer.tga");
return 0;
}
得到结果如下
首先来学习下如何在像素上画一条线
第一次尝试：想象用参数t来表示的一个在 x a 和 x b x_a和x_b xa和xb之间的点 ( x ( t ) , y ( t ) ) (x(t),y(t)) (x(t),y(t))
{ x ( t ) = a x + t ⋅ ( b x − a x ) y ( t ) = a y + t ⋅ ( b y − a y ) \begin{cases} x(t) = a_x + t \cdot (b_x - a_x) \\ y(t) = a_y + t \cdot (b_y - a_y) \end{cases} {x(t)=ax+t⋅(bx−ax)y(t)=ay+t⋅(by−ay)
如果我们变换一下形式就会发现，这就是插值的公式
{ x ( t ) = ( 1 − t ) ⋅ a x + t ⋅ b x y ( t ) = ( 1 − t ) ⋅ a y + t ⋅ b y \begin{cases} x(t) = (1-t) \cdot a_x + t \cdot b_x \\ y(t) = (1-t) \cdot a_y + t \cdot b_y \end{cases} {x(t)=(1−t)⋅ax+t⋅bxy(t)=(1−t)⋅ay+t⋅by
下面来尝试一下通过控制t来绘制这条直线
void drawLine_first(int x1,int y1,int x2,int y2,TGAImage &img,TGAColor color){
for(float t = 0;t<=1;t+=0.02){
int x = std::round(x1 + t * (x2-x1)); // round会进行四舍五入
int y = std::round(y1 + t * (y2-y1));
img.set(x,y,color);
}
}
考虑左下角的a点和右上角的c点，如果我从a向c绘制一次，再从c向a绘制一次，结果如下

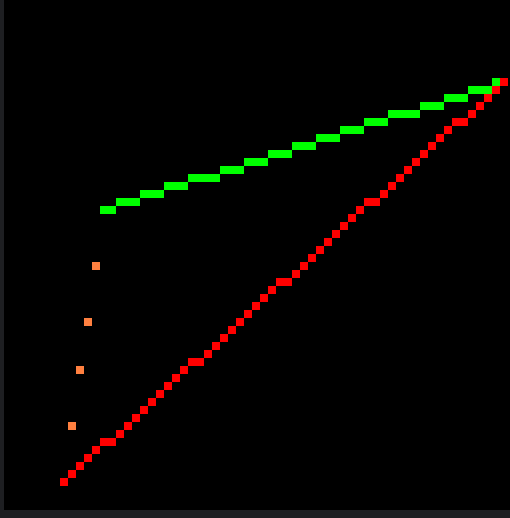

图中能明显看出问题，一是在x上有缝隙，二是不同的绘制方向结果是不同的，
第三另外t步长的设置也不容易控制
接下来看第二种尝试，代码的改变写在了注释中
void drawLine_Second(int ax, int ay, int bx, int by, TGAImage &img, TGAColor color){
for (int x = ax ; x<= bx; x++) { // 不再以t控制，而是以x的进行进行控制，保证了水平方向上不会有空隙
// 如果不加强制转换，当分子分母都是整数时，计算结果的小数部分会被截断
float t = (x-ax)/static_cast<float>(bx-ax); // 变换了形式，表示出当x移动一格时，t是多少，
int y = std::round( ay + (by-ay)*t );
img.set(x, y, color);
}
}
这里碰到了Cpp的static_cast，顺便学习一下是什么
隐式转换（Implicit Conversion）：编译器或解释器自动完成的类型转换，无需程序员显式指定。
显式转换（Explicit Conversion）：程序员主动指定的类型转换，通常通过语法或函数强制实现。
static_cast是 C++ 中一种显式类型转换操作符，用于在编译时进行类型转换，适用场景：明确的、安全的类型转换（如基本类型转换、向上转换、void* 转换），不用c语言风格的强制转换是为了规避风险。

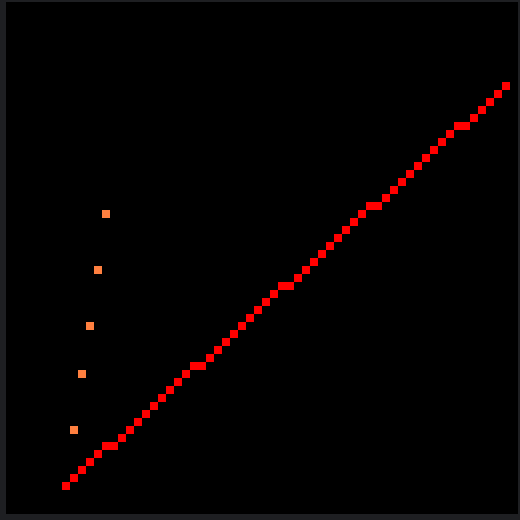

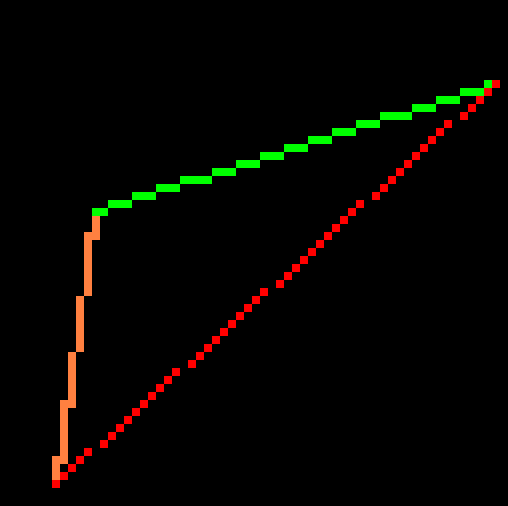

从下图看到问题2，3已经解决了，原本有的问题1空隙也没有了，但是出现了新的很大的空隙，甚至一条线直接消失了
线消失比较好解决，原因就是从右上角向左下角画线，if就进不去
void drawLine_Second(int ax, int ay, int bx, int by, TGAImage &img, TGAColor color){
if (ax>bx) { // make it left−to−right
std::swap(ax, bx);
std::swap(ay, by);
}
for (int x = ax ; x<= bx; x++) { // 不再以t控制，而是以x的进行进行控制，保证了水平方向上不会有空隙
// 如果不加强制转换，当分子分母都是整数时，计算结果的小数部分会被截断
float t = (x-ax)/static_cast<float>(bx-ax); // 变换了形式，表示出当x移动一格时，t是多少，
int y = std::round( ay + (by-ay)*t );
img.set(x, y, color);
}
}

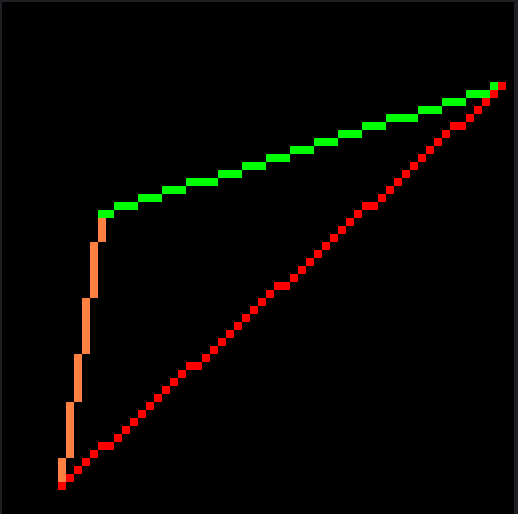

下面就要解决a->b这么大空隙了，这个问题就是斜率大的线段的采样不足，因为x只走了几步就到了，也就只会画出几个点
接下来进行第三次尝试，解决思路就是如果斜率太大，就从y进行for，而不是x，教程中的解决思路十分巧妙，如果斜率太大，就交换x坐标和y坐标，同时绘制时绘制坐标变成 ( y , x ) (y,x) (y,x)
// 最终版本
void drawLine(int ax, int ay, int bx, int by, TGAImage &framebuffer, TGAColor color) {
bool steep = std::abs(ax-bx) < std::abs(ay-by);
if (steep) { // if the drawLine is steep, we transpose the image
std::swap(ax, ay);
std::swap(bx, by);
}
if (ax>bx) { // make it left−to−right
std::swap(ax, bx);
std::swap(ay, by);
}
int y = ay;
int ierror = 0;
for (int x=ax; x<=bx; x++) {
if (steep) // if transposed, de−transpose
framebuffer.set(y, x, color);
else
framebuffer.set(x, y, color);
ierror += 2 * std::abs(by-ay);
y += (by > ay ? 1 : -1) * (ierror > bx - ax);
ierror -= 2 * (bx-ax) * (ierror > bx - ax);
}
}
至此就完成了比较好的效果的直线绘制，第四次尝试是如何优化算法的运行速度，这里就不说了，直接上他最终的优化代码作为后续使用，但是走样（锯齿）问题没有解决，这里不详细说，后边课程肯定会涉及到。
Lesson 2: Triangle rasterization 三角形光栅化
本节课目的是画一个实心的三角形（上节课只画了边）
首先提供一个画线框三角形的代码
constexpr int width = 128;
constexpr int height = 128;
// 绘制一个三角形
void drawTriangle(int ax, int ay, int bx, int by, int cx, int cy, TGAImage &framebuffer, TGAColor color) {
drawLine(ax, ay, bx, by, framebuffer, color);
drawLine(bx, by, cx, cy, framebuffer, color);
drawLine(cx, cy, ax, ay, framebuffer, color);
}
// 绘制三个三角形进行测试
int main(int argc, char** argv) {
TGAImage framebuffer(width, height, TGAImage::RGB);

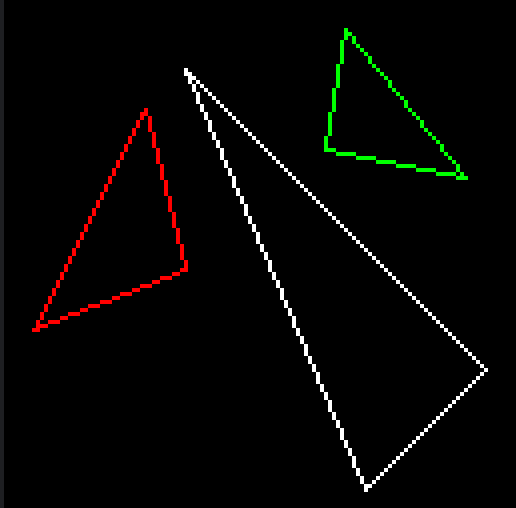

drawTriangle( 7, 45, 35, 100, 45, 60, framebuffer, red);
drawTriangle(120, 35, 90, 5, 45, 110, framebuffer, white);
drawTriangle(115, 83, 80, 90, 85, 120, framebuffer, green);
framebuffer.write_tga_file("framebuffer.tga");
return 0;
}
填充三角形需要做的事情：
- 它应该简单快捷
- 它应该是对称的 —— 输出不应该依赖于传递给函数的顶点顺序
- 如果两个三角形共享两个顶点，由于光栅化舍入误差，它们之间不应该有间隙
Scanline rendering 线性扫描
这块不是很想实现，因为学过games101后，已经知道更好的方法是什么了😂，这里参考别的博客看看原理是啥吧。
https://blog.csdn.net/qq_42987967/article/details/124831459
思路就是先对顶点y坐标进行排序，并从中间顶点水平切一刀，这样扫描时比例变化是正常的不会突然反向，交点A沿t0到t2的主斜边移动，B沿t0到t1的侧边移动，移动过程中填充内部的像素
void triangle(Vec2i t0, Vec2i t1, Vec2i t2, TGAImage &image, TGAColor color) {
// sort the vertices, t0, t1, t2 lower−to−upper (bubblesort yay!)
if (t0.y>t1.y) std::swap(t0, t1);
if (t0.y>t2.y) std::swap(t0, t2);
if (t1.y>t2.y) std::swap(t1, t2);
int total_height = t2.y-t0.y;
for (int y=t0.y; y<=t1.y; y++) {
int segment_height = t1.y-t0.y+1;
float alpha = (float)(y-t0.y)/total_height;
float beta = (float)(y-t0.y)/segment_height; // be careful with divisions by zero
Vec2i A = t0 + (t2-t0)*alpha;
Vec2i B = t0 + (t1-t0)*beta;
if (A.x>B.x) std::swap(A, B);
for (int j=A.x; j<=B.x; j++) {
image.set(j, y, color); // attention, due to int casts t0.y+i != A.y
}
}
for (int y=t1.y; y<=t2.y; y++) {
int segment_height = t2.y-t1.y+1;
float alpha = (float)(y-t0.y)/total_height;
float beta = (float)(y-t1.y)/segment_height; // be careful with divisions by zero
Vec2i A = t0 + (t2-t0)*alpha;
Vec2i B = t1 + (t2-t1)*beta;
if (A.x>B.x) std::swap(A, B);
for (int j=A.x; j<=B.x; j++) {
image.set(j, y, color); // attention, due to int casts t0.y+i != A.y
}
}
}
Modern rasterization approach 现代栅格化方法
基本思路就是用包围盒围住三角形，减少需要遍历的三角形数量，之后遍历盒子中每个像素，判断是否在三角形内部，伪代码如下
triangle(vec2 points[3]) {
vec2 bbox[2] = find_bounding_box(points);
for (each pixel in the bounding box) {
if (inside(points, pixel)) {
put_pixel(pixel);
}
}
}
首先是包围盒的建立，其实就找三个顶点的最大值和最小值，就能画出一个围住三角形最小的矩形
int bbminx = std::min(std::min(ax, bx), cx); // bounding box for the triangle
int bbminy = std::min(std::min(ay, by), cy); // defined by its top left and bottom right corners
int bbmaxx = std::max(std::max(ax, bx), cx);
int bbmaxy = std::max(std::max(ay, by), cy);
之后就是剔除不在三角形内部的像素，在games101提供的方法是用像素坐标叉乘三条边顺序组成的向量，如果叉乘结果都在一个方向，那这个像素点就在三角形内部，在这个教程中并不是这样做的，它是利用重心坐标，计算出一个点对于这个三角形的重心坐标 ( α , β , γ ) (\alpha,\beta,\gamma) (α,β,γ)，只要有一个是负数，就表示不再三角形内，那就用他这种方法吧。重心坐标反映的是划分为三个小三角形的面积比，如果点在三角形外，那面积算出来就成负数了。
首先提供一个算三角形面积的函数
double signed_triangle_area(int ax, int ay, int bx, int by, int cx, int cy) {
return .5*((by-ay)*(bx+ax) + (cy-by)*(cx+bx) + (ay-cy)*(ax+cx));
}
下来就可以用面积比来求重心坐标了
#pragma omp parallel for
for (int x=bbminx; x<=bbmaxx; x++) {
for (int y=bbminy; y<=bbmaxy; y++) {
double alpha = signed_triangle_area(x, y, bx, by, cx, cy) / total_area;
double beta = signed_triangle_area(x, y, cx, cy, ax, ay) / total_area;
double gamma = signed_triangle_area(x, y, ax, ay, bx, by) / total_area;
if (alpha<0 || beta<0 || gamma<0) continue; // negative barycentric coordinate => the pixel is outside the triangle
framebuffer.set(x, y, color);
}
}
}
#pragma omp parallel for是OpenMP中的一个指令，用于并行化for循环。OpenMP是一种并行编程模型，可以在支持OpenMP的编译器上使用
最终的三角形绘制如下
// 绘制一个三角形
void drawTriangle(int ax, int ay, int bx, int by, int cx, int cy, TGAImage &framebuffer, TGAColor color) {
int bbminx = std::min(std::min(ax, bx), cx); // bounding box for the triangle
int bbminy = std::min(std::min(ay, by), cy); // defined by its top left and bottom right corners
int bbmaxx = std::max(std::max(ax, bx), cx);
int bbmaxy = std::max(std::max(ay, by), cy);
double total_area = signed_triangle_area(ax, ay, bx, by, cx, cy);
#pragma omp parallel for
for (int x=bbminx; x<=bbmaxx; x++) {
for (int y=bbminy; y<=bbmaxy; y++) {
double alpha = signed_triangle_area(x, y, bx, by, cx, cy) / total_area;
double beta = signed_triangle_area(x, y, cx, cy, ax, ay) / total_area;
double gamma = signed_triangle_area(x, y, ax, ay, bx, by) / total_area;
if (alpha<0 || beta<0 || gamma<0) continue; // negative barycentric coordinate => the pixel is outside the triangle
framebuffer.set(x, y, color);
}
}
}
back-face culling 背面剔除
一般来说法线背对相机或光线方向的平面可认为是没用的，可以不用绘制将其剔除以减少运算量。原理是如果正面的三角形都是顺时针，那背面的都是逆时针，另外一种方法是计算三角形法向量与摄像机的点乘，小于0说明它是背对的。
在第2课中使用的是计算三角形的面积，下面这个代码是带符号的，所以负的面积说明三角形是背对的。
double signed_triangle_area(int ax, int ay, int bx, int by, int cx, int cy) {
return .5*((by-ay)*(bx+ax) + (cy-by)*(cx+bx) + (ay-cy)*(ax+cx));
}
在这里引入向量和模型导入的函数
vector.h
生成下图，可以看出来把所有三角形全画出来，脸部轮廓都不见了
修改三角形绘制函数，如果计算出来的三角形面积是负数，就直接不绘制了，这里设置小于1，是把面积太小的三角形直接省略了
void drawTriangle(int ax, int ay, int bx, int by, int cx, int cy, TGAImage &framebuffer, TGAColor color) {
int bbminx = std::min(std::min(ax, bx), cx);
int bbminy = std::min(std::min(ay, by), cy);
int bbmaxx = std::max(std::max(ax, bx), cx);
int bbmaxy = std::max(std::max(ay, by), cy);
double total_area = signed_triangle_area(ax, ay, bx, by, cx, cy);
if (total_area<1) return;
#pragma omp parallel for
for (int x=bbminx; x<=bbmaxx; x++) {
for (int y=bbminy; y<=bbmaxy; y++) {
double alpha = signed_triangle_area(x, y, bx, by, cx, cy) / total_area;
double beta = signed_triangle_area(x, y, cx, cy, ax, ay) / total_area;
double gamma = signed_triangle_area(x, y, ax, ay, bx, by) / total_area;
if (alpha<0 || beta<0 || gamma<0) continue;
framebuffer.set(x, y, color);
}
}
}

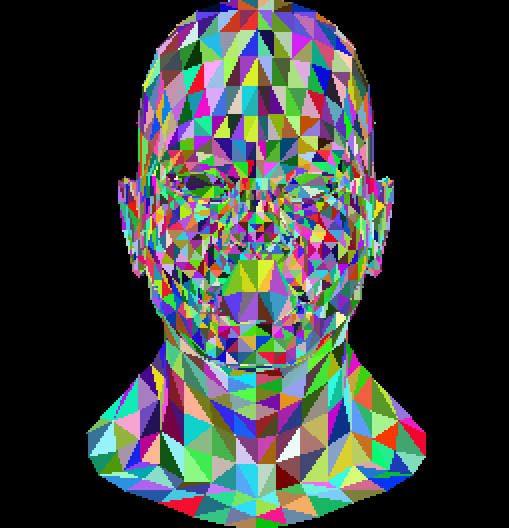

修改后明显可以看出脸部轮廓出来了

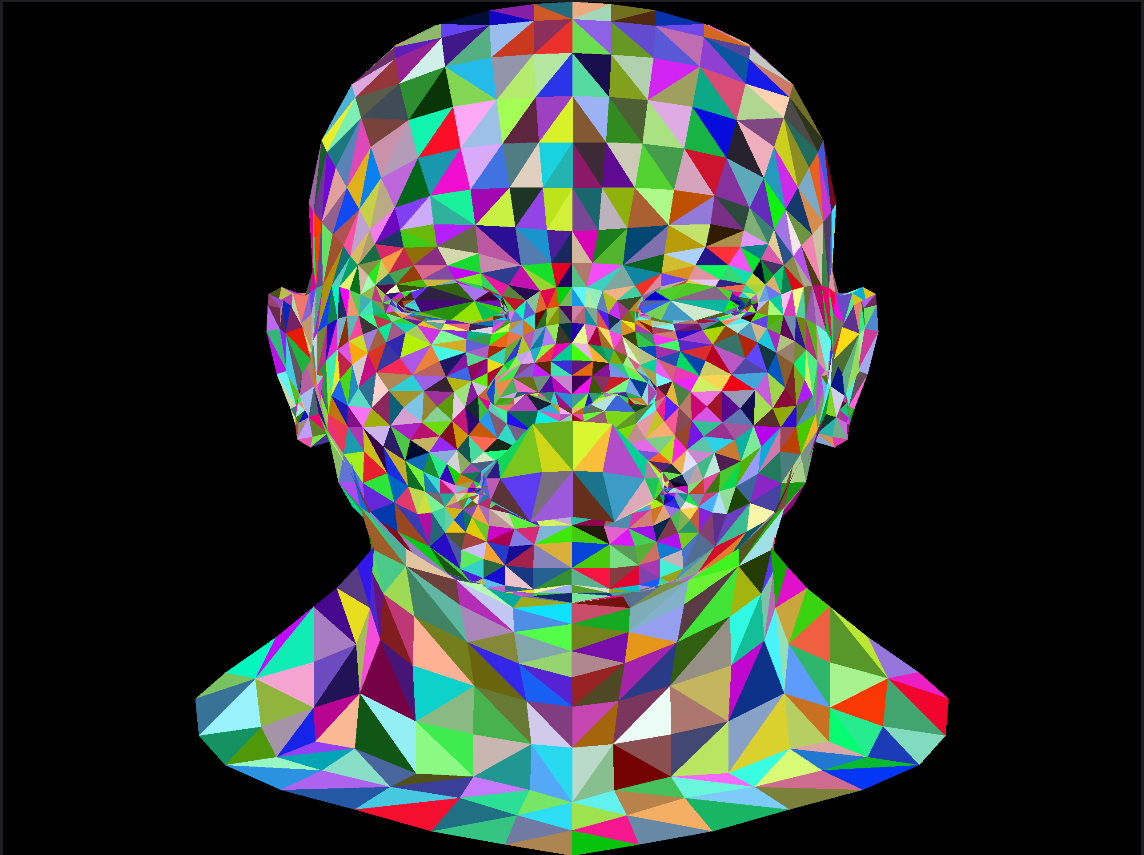

使用2k分辨率，效果更好了
Lesson 3: Hidden faces removal (z buffer)
首先介绍一下代码变动
模型获取使用开源库
//
// Created by LEI XU on 4/28/19.
//
//
// This loader is created by Robert Smith.
// https://github.com/Bly7/OBJ-Loader
// Use the MIT license.
#ifndef RASTERIZER_OBJ_LOADER_H
#define RASTERIZER_OBJ_LOADER_H
#pragma once
#include <iostream>
#include <vector>
#include <string>
#include <fstream>
#include <math.h>
// Print progress to console while loading (large models)
#define OBJL_CONSOLE_OUTPUT
// Namespace: OBJL
//
// Description: The namespace that holds eveyrthing that
// is needed and used for the OBJ Model Loader
namespace objl
{
// Structure: Vector2
//
// Description: A 2D Vector that Holds Positional Data
struct Vector2
{
// Default Constructor
Vector2()
{
X = 0.0f;
Y = 0.0f;
}
// Variable Set Constructor
Vector2(float X_, float Y_)
{
X = X_;
Y = Y_;
}
// Bool Equals Operator Overload
bool operator==(const Vector2& other) const
{
return (this->X == other.X && this->Y == other.Y);
}
// Bool Not Equals Operator Overload
bool operator!=(const Vector2& other) const
{
return !(this->X == other.X && this->Y == other.Y);
}
// Addition Operator Overload
Vector2 operator+(const Vector2& right) const
{
return Vector2(this->X + right.X, this->Y + right.Y);
}
// Subtraction Operator Overload
Vector2 operator-(const Vector2& right) const
{
return Vector2(this->X - right.X, this->Y - right.Y);
}
// Float Multiplication Operator Overload
Vector2 operator*(const float& other) const
{
return Vector2(this->X *other, this->Y * other);
}
// Positional Variables
float X;
float Y;
};
// Structure: Vector3
//
// Description: A 3D Vector that Holds Positional Data
struct Vector3
{
// Default Constructor
Vector3()
{
X = 0.0f;
Y = 0.0f;
Z = 0.0f;
}
// Variable Set Constructor
Vector3(float X_, float Y_, float Z_)
{
X = X_;
Y = Y_;
Z = Z_;
}
// Bool Equals Operator Overload
bool operator==(const Vector3& other) const
{
return (this->X == other.X && this->Y == other.Y && this->Z == other.Z);
}
// Bool Not Equals Operator Overload
bool operator!=(const Vector3& other) const
{
return !(this->X == other.X && this->Y == other.Y && this->Z == other.Z);
}
// Addition Operator Overload
Vector3 operator+(const Vector3& right) const
{
return Vector3(this->X + right.X, this->Y + right.Y, this->Z + right.Z);
}
// Subtraction Operator Overload
Vector3 operator-(const Vector3& right) const
{
return Vector3(this->X - right.X, this->Y - right.Y, this->Z - right.Z);
}
// Float Multiplication Operator Overload
Vector3 operator*(const float& other) const
{
return Vector3(this->X * other, this->Y * other, this->Z * other);
}
// Float Division Operator Overload
Vector3 operator/(const float& other) const
{
return Vector3(this->X / other, this->Y / other, this->Z / other);
}
// Positional Variables
float X;
float Y;
float Z;
};
// Structure: Vertex
//
// Description: Model Vertex object that holds
// a Position, Normal, and Texture Coordinate
struct Vertex
{
// Position Vector
Vector3 Position;
// Normal Vector
Vector3 Normal;
// Texture Coordinate Vector
Vector2 TextureCoordinate;
};
struct Material
{
Material()
{
name;
Ns = 0.0f;
Ni = 0.0f;
d = 0.0f;
illum = 0;
}
// Material Name
std::string name;
// Ambient Color
Vector3 Ka;
// Diffuse Color
Vector3 Kd;
// Specular Color
Vector3 Ks;
// Specular Exponent
float Ns;
// Optical Density
float Ni;
// Dissolve
float d;
// Illumination
int illum;
// Ambient Texture Map
std::string map_Ka;
// Diffuse Texture Map
std::string map_Kd;
// Specular Texture Map
std::string map_Ks;
// Specular Hightlight Map
std::string map_Ns;
// Alpha Texture Map
std::string map_d;
// Bump Map
std::string map_bump;
};
// Structure: Mesh
//
// Description: A Simple Mesh Object that holds
// a name, a vertex list, and an index list
struct Mesh
{
// Default Constructor
Mesh()
{
}
// Variable Set Constructor
Mesh(std::vector<Vertex>& _Vertices, std::vector<unsigned int>& _Indices)
{
Vertices = _Vertices;
Indices = _Indices;
}
// Mesh Name
std::string MeshName;
// Vertex List
std::vector<Vertex> Vertices;
// Index List
std::vector<unsigned int> Indices;
// Material
Material MeshMaterial;
};
// Namespace: Math
//
// Description: The namespace that holds all of the math
// functions need for OBJL
namespace math
{
// Vector3 Cross Product
Vector3 CrossV3(const Vector3 a, const Vector3 b)
{
return Vector3(a.Y * b.Z - a.Z * b.Y,
a.Z * b.X - a.X * b.Z,
a.X * b.Y - a.Y * b.X);
}
// Vector3 Magnitude Calculation
float MagnitudeV3(const Vector3 in)
{
return (sqrtf(powf(in.X, 2) + powf(in.Y, 2) + powf(in.Z, 2)));
}
// Vector3 DotProduct
float DotV3(const Vector3 a, const Vector3 b)
{
return (a.X * b.X) + (a.Y * b.Y) + (a.Z * b.Z);
}
// Angle between 2 Vector3 Objects
float AngleBetweenV3(const Vector3 a, const Vector3 b)
{
float angle = DotV3(a, b);
angle /= (MagnitudeV3(a) * MagnitudeV3(b));
return angle = acosf(angle);
}
// Projection Calculation of a onto b
Vector3 ProjV3(const Vector3 a, const Vector3 b)
{
Vector3 bn = b / MagnitudeV3(b);
return bn * DotV3(a, bn);
}
}
// Namespace: Algorithm
//
// Description: The namespace that holds all of the
// Algorithms needed for OBJL
namespace algorithm
{
// Vector3 Multiplication Opertor Overload
Vector3 operator*(const float& left, const Vector3& right)
{
return Vector3(right.X * left, right.Y * left, right.Z * left);
}
// A test to see if P1 is on the same side as P2 of a line segment ab
bool SameSide(Vector3 p1, Vector3 p2, Vector3 a, Vector3 b)
{
Vector3 cp1 = math::CrossV3(b - a, p1 - a);
Vector3 cp2 = math::CrossV3(b - a, p2 - a);
if (math::DotV3(cp1, cp2) >= 0)
return true;
else
return false;
}
// Generate a cross produect normal for a triangle
Vector3 GenTriNormal(Vector3 t1, Vector3 t2, Vector3 t3)
{
Vector3 u = t2 - t1;
Vector3 v = t3 - t1;
Vector3 normal = math::CrossV3(u,v);
return normal;
}
// Check to see if a Vector3 Point is within a 3 Vector3 Triangle
bool inTriangle(Vector3 point, Vector3 tri1, Vector3 tri2, Vector3 tri3)
{
// Test to see if it is within an infinite prism that the triangle outlines.
bool within_tri_prisim = SameSide(point, tri1, tri2, tri3) && SameSide(point, tri2, tri1, tri3)
&& SameSide(point, tri3, tri1, tri2);
// If it isn't it will never be on the triangle
if (!within_tri_prisim)
return false;
// Calulate Triangle's Normal
Vector3 n = GenTriNormal(tri1, tri2, tri3);
// Project the point onto this normal
Vector3 proj = math::ProjV3(point, n);
// If the distance from the triangle to the point is 0
// it lies on the triangle
if (math::MagnitudeV3(proj) == 0)
return true;
else
return false;
}
// Split a String into a string array at a given token
inline void split(const std::string &in,
std::vector<std::string> &out,
std::string token)
{
out.clear();
std::string temp;
for (int i = 0; i < int(in.size()); i++)
{
std::string test = in.substr(i, token.size());
if (test == token)
{
if (!temp.empty())
{
out.push_back(temp);
temp.clear();
i += (int)token.size() - 1;
}
else
{
out.push_back("");
}
}
else if (i + token.size() >= in.size())
{
temp += in.substr(i, token.size());
out.push_back(temp);
break;
}
else
{
temp += in[i];
}
}
}
// Get tail of string after first token and possibly following spaces
inline std::string tail(const std::string &in)
{
size_t token_start = in.find_first_not_of(" \t");
size_t space_start = in.find_first_of(" \t", token_start);
size_t tail_start = in.find_first_not_of(" \t", space_start);
size_t tail_end = in.find_last_not_of(" \t");
if (tail_start != std::string::npos && tail_end != std::string::npos)
{
return in.substr(tail_start, tail_end - tail_start + 1);
}
else if (tail_start != std::string::npos)
{
return in.substr(tail_start);
}
return "";
}
// Get first token of string
inline std::string firstToken(const std::string &in)
{
if (!in.empty())
{
size_t token_start = in.find_first_not_of(" \t");
size_t token_end = in.find_first_of(" \t", token_start);
if (token_start != std::string::npos && token_end != std::string::npos)
{
return in.substr(token_start, token_end - token_start);
}
else if (token_start != std::string::npos)
{
return in.substr(token_start);
}
}
return "";
}
// Get element at given index position
template <class T>
inline const T & getElement(const std::vector<T> &elements, std::string &index)
{
int idx = std::stoi(index);
if (idx < 0)
idx = int(elements.size()) + idx;
else
idx--;
return elements[idx];
}
}
// Class: Loader
//
// Description: The OBJ Model Loader
class Loader
{
public:
// Default Constructor
Loader()
{
}
~Loader()
{
LoadedMeshes.clear();
}
// Load a file into the loader
//
// If file is loaded return true
//
// If the file is unable to be found
// or unable to be loaded return false
bool LoadFile(std::string Path)
{
// If the file is not an .obj file return false
if (Path.substr(Path.size() - 4, 4) != ".obj")
return false;
std::ifstream file(Path);
if (!file.is_open())
return false;
LoadedMeshes.clear();
LoadedVertices.clear();
LoadedIndices.clear();
std::vector<Vector3> Positions;
std::vector<Vector2> TCoords;
std::vector<Vector3> Normals;
std::vector<Vertex> Vertices;
std::vector<unsigned int> Indices;
std::vector<std::string> MeshMatNames;
bool listening = false;
std::string meshname;
Mesh tempMesh;
#ifdef OBJL_CONSOLE_OUTPUT
const unsigned int outputEveryNth = 1000;
unsigned int outputIndicator = outputEveryNth;
#endif
std::string curline;
while (std::getline(file, curline))
{
#ifdef OBJL_CONSOLE_OUTPUT
if ((outputIndicator = ((outputIndicator + 1) % outputEveryNth)) == 1)
{
if (!meshname.empty())
{
std::cout
<< "\r- " << meshname
<< "\t| vertices > " << Positions.size()
<< "\t| texcoords > " << TCoords.size()
<< "\t| normals > " << Normals.size()
<< "\t| triangles > " << (Vertices.size() / 3)
<< (!MeshMatNames.empty() ? "\t| material: " + MeshMatNames.back() : "");
}
}
#endif
// Generate a Mesh Object or Prepare for an object to be created
if (algorithm::firstToken(curline) == "o" || algorithm::firstToken(curline) == "g" || curline[0] == 'g')
{
if (!listening)
{
listening = true;
if (algorithm::firstToken(curline) == "o" || algorithm::firstToken(curline) == "g")
{
meshname = algorithm::tail(curline);
}
else
{
meshname = "unnamed";
}
}
else
{
// Generate the mesh to put into the array
if (!Indices.empty() && !Vertices.empty())
{
// Create Mesh
tempMesh = Mesh(Vertices, Indices);
tempMesh.MeshName = meshname;
// Insert Mesh
LoadedMeshes.push_back(tempMesh);
// Cleanup
Vertices.clear();
Indices.clear();
meshname.clear();
meshname = algorithm::tail(curline);
}
else
{
if (algorithm::firstToken(curline) == "o" || algorithm::firstToken(curline) == "g")
{
meshname = algorithm::tail(curline);
}
else
{
meshname = "unnamed";
}
}
}
#ifdef OBJL_CONSOLE_OUTPUT
std::cout << std::endl;
outputIndicator = 0;
#endif
}
// Generate a Vertex Position
if (algorithm::firstToken(curline) == "v")
{
std::vector<std::string> spos;
Vector3 vpos;
algorithm::split(algorithm::tail(curline), spos, " ");
vpos.X = std::stof(spos[0]);
vpos.Y = std::stof(spos[1]);
vpos.Z = std::stof(spos[2]);
Positions.push_back(vpos);
}
// Generate a Vertex Texture Coordinate
if (algorithm::firstToken(curline) == "vt")
{
std::vector<std::string> stex;
Vector2 vtex;
algorithm::split(algorithm::tail(curline), stex, " ");
vtex.X = std::stof(stex[0]);
vtex.Y = std::stof(stex[1]);
TCoords.push_back(vtex);
}
// Generate a Vertex Normal;
if (algorithm::firstToken(curline) == "vn")
{
std::vector<std::string> snor;
Vector3 vnor;
algorithm::split(algorithm::tail(curline), snor, " ");
vnor.X = std::stof(snor[0]);
vnor.Y = std::stof(snor[1]);
vnor.Z = std::stof(snor[2]);
Normals.push_back(vnor);
}
// Generate a Face (vertices & indices)
if (algorithm::firstToken(curline) == "f")
{
// Generate the vertices
std::vector<Vertex> vVerts;
GenVerticesFromRawOBJ(vVerts, Positions, TCoords, Normals, curline);
// Add Vertices
for (int i = 0; i < int(vVerts.size()); i++)
{
Vertices.push_back(vVerts[i]);
LoadedVertices.push_back(vVerts[i]);
}
std::vector<unsigned int> iIndices;
VertexTriangluation(iIndices, vVerts);
// Add Indices
for (int i = 0; i < int(iIndices.size()); i++)
{
unsigned int indnum = (unsigned int)((Vertices.size()) - vVerts.size()) + iIndices[i];
Indices.push_back(indnum);
indnum = (unsigned int)((LoadedVertices.size()) - vVerts.size()) + iIndices[i];
LoadedIndices.push_back(indnum);
}
}
// Get Mesh Material Name
if (algorithm::firstToken(curline) == "usemtl")
{
MeshMatNames.push_back(algorithm::tail(curline));
// Create new Mesh, if Material changes within a group
if (!Indices.empty() && !Vertices.empty())
{
// Create Mesh
tempMesh = Mesh(Vertices, Indices);
tempMesh.MeshName = meshname;
int i = 2;
while(1) {
tempMesh.MeshName = meshname + "_" + std::to_string(i);
for (auto &m : LoadedMeshes)
if (m.MeshName == tempMesh.MeshName)
continue;
break;
}
// Insert Mesh
LoadedMeshes.push_back(tempMesh);
// Cleanup
Vertices.clear();
Indices.clear();
}
#ifdef OBJL_CONSOLE_OUTPUT
outputIndicator = 0;
#endif
}
// Load Materials
if (algorithm::firstToken(curline) == "mtllib")
{
// Generate LoadedMaterial
// Generate a path to the material file
std::vector<std::string> temp;
algorithm::split(Path, temp, "/");
std::string pathtomat = "";
if (temp.size() != 1)
{
for (int i = 0; i < temp.size() - 1; i++)
{
pathtomat += temp[i] + "/";
}
}
pathtomat += algorithm::tail(curline);
#ifdef OBJL_CONSOLE_OUTPUT
std::cout << std::endl << "- find materials in: " << pathtomat << std::endl;
#endif
// Load Materials
LoadMaterials(pathtomat);
}
}
#ifdef OBJL_CONSOLE_OUTPUT
std::cout << std::endl;
#endif
// Deal with last mesh
if (!Indices.empty() && !Vertices.empty())
{
// Create Mesh
tempMesh = Mesh(Vertices, Indices);
tempMesh.MeshName = meshname;
// Insert Mesh
LoadedMeshes.push_back(tempMesh);
}
file.close();
// Set Materials for each Mesh
for (int i = 0; i < MeshMatNames.size(); i++)
{
std::string matname = MeshMatNames[i];
// Find corresponding material name in loaded materials
// when found copy material variables into mesh material
for (int j = 0; j < LoadedMaterials.size(); j++)
{
if (LoadedMaterials[j].name == matname)
{
LoadedMeshes[i].MeshMaterial = LoadedMaterials[j];
break;
}
}
}
if (LoadedMeshes.empty() && LoadedVertices.empty() && LoadedIndices.empty())
{
return false;
}
else
{
return true;
}
}
// Loaded Mesh Objects
std::vector<Mesh> LoadedMeshes;
// Loaded Vertex Objects
std::vector<Vertex> LoadedVertices;
// Loaded Index Positions
std::vector<unsigned int> LoadedIndices;
// Loaded Material Objects
std::vector<Material> LoadedMaterials;
private:
// Generate vertices from a list of positions,
// tcoords, normals and a face line
void GenVerticesFromRawOBJ(std::vector<Vertex>& oVerts,
const std::vector<Vector3>& iPositions,
const std::vector<Vector2>& iTCoords,
const std::vector<Vector3>& iNormals,
std::string icurline)
{
std::vector<std::string> sface, svert;
Vertex vVert;
algorithm::split(algorithm::tail(icurline), sface, " ");
bool noNormal = false;
// For every given vertex do this
for (int i = 0; i < int(sface.size()); i++)
{
// See What type the vertex is.
int vtype;
algorithm::split(sface[i], svert, "/");
// Check for just position - v1
if (svert.size() == 1)
{
// Only position
vtype = 1;
}
// Check for position & texture - v1/vt1
if (svert.size() == 2)
{
// Position & Texture
vtype = 2;
}
// Check for Position, Texture and Normal - v1/vt1/vn1
// or if Position and Normal - v1//vn1
if (svert.size() == 3)
{
if (svert[1] != "")
{
// Position, Texture, and Normal
vtype = 4;
}
else
{
// Position & Normal
vtype = 3;
}
}
// Calculate and store the vertex
switch (vtype)
{
case 1: // P
{
vVert.Position = algorithm::getElement(iPositions, svert[0]);
vVert.TextureCoordinate = Vector2(0, 0);
noNormal = true;
oVerts.push_back(vVert);
break;
}
case 2: // P/T
{
vVert.Position = algorithm::getElement(iPositions, svert[0]);
vVert.TextureCoordinate = algorithm::getElement(iTCoords, svert[1]);
noNormal = true;
oVerts.push_back(vVert);
break;
}
case 3: // P//N
{
vVert.Position = algorithm::getElement(iPositions, svert[0]);
vVert.TextureCoordinate = Vector2(0, 0);
vVert.Normal = algorithm::getElement(iNormals, svert[2]);
oVerts.push_back(vVert);
break;
}
case 4: // P/T/N
{
vVert.Position = algorithm::getElement(iPositions, svert[0]);
vVert.TextureCoordinate = algorithm::getElement(iTCoords, svert[1]);
vVert.Normal = algorithm::getElement(iNormals, svert[2]);
oVerts.push_back(vVert);
break;
}
default:
{
break;
}
}
}
// take care of missing normals
// these may not be truly acurate but it is the
// best they get for not compiling a mesh with normals
if (noNormal)
{
Vector3 A = oVerts[0].Position - oVerts[1].Position;
Vector3 B = oVerts[2].Position - oVerts[1].Position;
Vector3 normal = math::CrossV3(A, B);
for (int i = 0; i < int(oVerts.size()); i++)
{
oVerts[i].Normal = normal;
}
}
}
// Triangulate a list of vertices into a face by printing
// inducies corresponding with triangles within it
void VertexTriangluation(std::vector<unsigned int>& oIndices,
const std::vector<Vertex>& iVerts)
{
// If there are 2 or less verts,
// no triangle can be created,
// so exit
if (iVerts.size() < 3)
{
return;
}
// If it is a triangle no need to calculate it
if (iVerts.size() == 3)
{
oIndices.push_back(0);
oIndices.push_back(1);
oIndices.push_back(2);
return;
}
// Create a list of vertices
std::vector<Vertex> tVerts = iVerts;
while (true)
{
// For every vertex
for (int i = 0; i < int(tVerts.size()); i++)
{
// pPrev = the previous vertex in the list
Vertex pPrev;
if (i == 0)
{
pPrev = tVerts[tVerts.size() - 1];
}
else
{
pPrev = tVerts[i - 1];
}
// pCur = the current vertex;
Vertex pCur = tVerts[i];
// pNext = the next vertex in the list
Vertex pNext;
if (i == tVerts.size() - 1)
{
pNext = tVerts[0];
}
else
{
pNext = tVerts[i + 1];
}
// Check to see if there are only 3 verts left
// if so this is the last triangle
if (tVerts.size() == 3)
{
// Create a triangle from pCur, pPrev, pNext
for (int j = 0; j < int(tVerts.size()); j++)
{
if (iVerts[j].Position == pCur.Position)
oIndices.push_back(j);
if (iVerts[j].Position == pPrev.Position)
oIndices.push_back(j);
if (iVerts[j].Position == pNext.Position)
oIndices.push_back(j);
}
tVerts.clear();
break;
}
if (tVerts.size() == 4)
{
// Create a triangle from pCur, pPrev, pNext
for (int j = 0; j < int(iVerts.size()); j++)
{
if (iVerts[j].Position == pCur.Position)
oIndices.push_back(j);
if (iVerts[j].Position == pPrev.Position)
oIndices.push_back(j);
if (iVerts[j].Position == pNext.Position)
oIndices.push_back(j);
}
Vector3 tempVec;
for (int j = 0; j < int(tVerts.size()); j++)
{
if (tVerts[j].Position != pCur.Position
&& tVerts[j].Position != pPrev.Position
&& tVerts[j].Position != pNext.Position)
{
tempVec = tVerts[j].Position;
break;
}
}
// Create a triangle from pCur, pPrev, pNext
for (int j = 0; j < int(iVerts.size()); j++)
{
if (iVerts[j].Position == pPrev.Position)
oIndices.push_back(j);
if (iVerts[j].Position == pNext.Position)
oIndices.push_back(j);
if (iVerts[j].Position == tempVec)
oIndices.push_back(j);
}
tVerts.clear();
break;
}
// If Vertex is not an interior vertex
float angle = math::AngleBetweenV3(pPrev.Position - pCur.Position, pNext.Position - pCur.Position) * (180 / 3.14159265359);
if (angle <= 0 && angle >= 180)
continue;
// If any vertices are within this triangle
bool inTri = false;
for (int j = 0; j < int(iVerts.size()); j++)
{
if (algorithm::inTriangle(iVerts[j].Position, pPrev.Position, pCur.Position, pNext.Position)
&& iVerts[j].Position != pPrev.Position
&& iVerts[j].Position != pCur.Position
&& iVerts[j].Position != pNext.Position)
{
inTri = true;
break;
}
}
if (inTri)
continue;
// Create a triangle from pCur, pPrev, pNext
for (int j = 0; j < int(iVerts.size()); j++)
{
if (iVerts[j].Position == pCur.Position)
oIndices.push_back(j);
if (iVerts[j].Position == pPrev.Position)
oIndices.push_back(j);
if (iVerts[j].Position == pNext.Position)
oIndices.push_back(j);
}
// Delete pCur from the list
for (int j = 0; j < int(tVerts.size()); j++)
{
if (tVerts[j].Position == pCur.Position)
{
tVerts.erase(tVerts.begin() + j);
break;
}
}
// reset i to the start
// -1 since loop will add 1 to it
i = -1;
}
// if no triangles were created
if (oIndices.size() == 0)
break;
// if no more vertices
if (tVerts.size() == 0)
break;
}
}
// Load Materials from .mtl file
bool LoadMaterials(std::string path)
{
// If the file is not a material file return false
if (path.substr(path.size() - 4, path.size()) != ".mtl")
return false;
std::ifstream file(path);
// If the file is not found return false
if (!file.is_open())
return false;
Material tempMaterial;
bool listening = false;
// Go through each line looking for material variables
std::string curline;
while (std::getline(file, curline))
{
// new material and material name
if (algorithm::firstToken(curline) == "newmtl")
{
if (!listening)
{
listening = true;
if (curline.size() > 7)
{
tempMaterial.name = algorithm::tail(curline);
}
else
{
tempMaterial.name = "none";
}
}
else
{
// Generate the material
// Push Back loaded Material
LoadedMaterials.push_back(tempMaterial);
// Clear Loaded Material
tempMaterial = Material();
if (curline.size() > 7)
{
tempMaterial.name = algorithm::tail(curline);
}
else
{
tempMaterial.name = "none";
}
}
}
// Ambient Color
if (algorithm::firstToken(curline) == "Ka")
{
std::vector<std::string> temp;
algorithm::split(algorithm::tail(curline), temp, " ");
if (temp.size() != 3)
continue;
tempMaterial.Ka.X = std::stof(temp[0]);
tempMaterial.Ka.Y = std::stof(temp[1]);
tempMaterial.Ka.Z = std::stof(temp[2]);
}
// Diffuse Color
if (algorithm::firstToken(curline) == "Kd")
{
std::vector<std::string> temp;
algorithm::split(algorithm::tail(curline), temp, " ");
if (temp.size() != 3)
continue;
tempMaterial.Kd.X = std::stof(temp[0]);
tempMaterial.Kd.Y = std::stof(temp[1]);
tempMaterial.Kd.Z = std::stof(temp[2]);
}
// Specular Color
if (algorithm::firstToken(curline) == "Ks")
{
std::vector<std::string> temp;
algorithm::split(algorithm::tail(curline), temp, " ");
if (temp.size() != 3)
continue;
tempMaterial.Ks.X = std::stof(temp[0]);
tempMaterial.Ks.Y = std::stof(temp[1]);
tempMaterial.Ks.Z = std::stof(temp[2]);
}
// Specular Exponent
if (algorithm::firstToken(curline) == "Ns")
{
tempMaterial.Ns = std::stof(algorithm::tail(curline));
}
// Optical Density
if (algorithm::firstToken(curline) == "Ni")
{
tempMaterial.Ni = std::stof(algorithm::tail(curline));
}
// Dissolve
if (algorithm::firstToken(curline) == "d")
{
tempMaterial.d = std::stof(algorithm::tail(curline));
}
// Illumination
if (algorithm::firstToken(curline) == "illum")
{
tempMaterial.illum = std::stoi(algorithm::tail(curline));
}
// Ambient Texture Map
if (algorithm::firstToken(curline) == "map_Ka")
{
tempMaterial.map_Ka = algorithm::tail(curline);
}
// Diffuse Texture Map
if (algorithm::firstToken(curline) == "map_Kd")
{
tempMaterial.map_Kd = algorithm::tail(curline);
}
// Specular Texture Map
if (algorithm::firstToken(curline) == "map_Ks")
{
tempMaterial.map_Ks = algorithm::tail(curline);
}
// Specular Hightlight Map
if (algorithm::firstToken(curline) == "map_Ns")
{
tempMaterial.map_Ns = algorithm::tail(curline);
}
// Alpha Texture Map
if (algorithm::firstToken(curline) == "map_d")
{
tempMaterial.map_d = algorithm::tail(curline);
}
// Bump Map
if (algorithm::firstToken(curline) == "map_Bump" || algorithm::firstToken(curline) == "map_bump" || algorithm::firstToken(curline) == "bump")
{
tempMaterial.map_bump = algorithm::tail(curline);
}
}
// Deal with last material
// Push Back loaded Material
LoadedMaterials.push_back(tempMaterial);
// Test to see if anything was loaded
// If not return false
if (LoadedMaterials.empty())
return false;
// If so return true
else
return true;
}
};
}
#endif //RASTERIZER_OBJ_LOADER_H
线性代数使用Eigen库
三角形类
#ifndef TINYRENDERER_TRIANGLE_H
#define TINYRENDERER_TRIANGLE_H
#include <Eigen/Eigen>
using namespace Eigen;
class Triangle{
public:
Eigen::Vector4f globalCoords[3];
Eigen::Vector3f color[3];
Eigen::Vector2f texCoords[3];
Eigen::Vector3f normal[3];
Eigen::Vector3f screenCoords[3];
Triangle();
void setGlobalCoords(int ind, Eigen::Vector4f ver);
void setNormal(int ind, Eigen::Vector3f n);
void setTexCoord(int ind,Eigen::Vector2f uv);
void setScreenCoord(int ind,int width,int height);
};
#endif //TINYRENDERER_TRIANGLE_H
#include "Triangle.h"
Triangle::Triangle() {
globalCoords[0] << 0,0,0,1;
globalCoords[1] << 0,0,0,1;
globalCoords[2] << 0,0,0,1;
color[0] << 0.0, 0.0, 0.0;
color[1] << 0.0, 0.0, 0.0;
color[2] << 0.0, 0.0, 0.0;
texCoords[0] << 0.0, 0.0;
texCoords[1] << 0.0, 0.0;
texCoords[2] << 0.0, 0.0;
}
void Triangle::setGlobalCoords(int ind, Vector4f ver){
globalCoords[ind] = ver;
}
void Triangle::setNormal(int ind, Vector3f n){
normal[ind] = n;
}
void Triangle::setTexCoord(int ind, Vector2f uv) {
texCoords[ind] = uv;
}
// 简单实现正交投影
Vector3f world2screen(Vector4f globalCoord,int width,int height) {
return Vector3f(int((globalCoord.x()+1.)*width/2.+.5), int((globalCoord.y()+1.)*height/2.+.5), globalCoord.z());
}
void Triangle::setScreenCoord(int ind,int width,int height) {
screenCoords[ind] = world2screen(this->globalCoords[ind],width,height);
}
模型类
#ifndef __MODEL_H__
#define __MODEL_H__
#include <vector>
#include <Eigen/Eigen>
#include "Triangle.h"
class Model {
private:
public:
explicit Model(const char *filename);
~Model();
std::vector<Triangle> triangleList;
};
#endif //__MODEL_H__
#include "model.h"
#include "thirdParty/OBJ_Loader.h"
// 加载模型就直接用教程的代码了！
Model::Model(const char *filename) {
objl::Loader Loader;
Loader.LoadFile(filename);
std::cout << "?";
for (const auto &mesh: Loader.LoadedMeshes){
for(int i=0;i<mesh.Vertices.size();i+=3)
{
Triangle * t = new Triangle;
for(int j=0;j<3;j++)
{
t->setGlobalCoords(j, Vector4f(mesh.Vertices[i + j].Position.X, mesh.Vertices[i + j].Position.Y,mesh.Vertices[i + j].Position.Z, 1.0));
t->setNormal(j,Vector3f(mesh.Vertices[i+j].Normal.X,mesh.Vertices[i+j].Normal.Y,mesh.Vertices[i+j].Normal.Z));
t->setTexCoord(j,Vector2f(mesh.Vertices[i+j].TextureCoordinate.X, mesh.Vertices[i+j].TextureCoordinate.Y));
}
this->triangleList.push_back(*t);
}
}
}
Model::~Model() {
}
已经告诉了使用zbuffer，其实就是把处于后边的物体就不需要渲染了，在背面剔除后，删掉了不需要处理的三角形，但是在像素层面，位于前面的颜色应该把后边的颜色挡住
首先来定义一个zbuffer，我没有使用教程中的一位数组表示，因为我不希望代码理解起来过于复杂
// 定义一个zbuffer，并设置为无穷小
std::unique_ptr<std::vector<std::vector<float>>> zBuffer = std::make_unique<std::vector<std::vector<float>>>(width, std::vector<float>(height));
auto * zBuffer = new std::vector<std::vector<float>>(width, std::vector<float>(std::numeric_limits<float>::lowest()));
在这种情况下，绘制像素前要先判断当前想要绘制的颜色是否被挡住，至于是大于号还是小于号，看如何定义，当前模型是z越大离屏幕越近
double alpha = signed_triangle_area(x, y, bx, by, cx, cy) / total_area;
double beta = signed_triangle_area(x, y, cx, cy, ax, ay) / total_area;
double gamma = signed_triangle_area(x, y, ax, ay, bx, by) / total_area;
if (alpha<0 || beta<0 || gamma<0) continue; // 说明当前像素不在三角形内部
float barycentricZ = alpha*triangle.screenCoords[0].z() + beta*triangle.screenCoords[1].z() + gamma*triangle.screenCoords[2].z();
// zbuffer中缓存的渲染物体距离小于当前渲染物体的距离时，才覆盖渲染
if (x<width && y < height && zBuffer->at(x).at(y) < barycentricZ){
zBuffer->at(x).at(y) = barycentricZ;
framebuffer.set(x,y,color);
}
当前的整体代码如下
#include "thirdParty/tgaimage.h"
#include "model.h"
#include <vector>
#include <cmath>
#include <iostream>
constexpr TGAColor white = {255, 255, 255, 255};
constexpr TGAColor green = { 0, 255, 0, 255};
constexpr TGAColor red = { 255, 0, 0, 255};
constexpr TGAColor blue = {255, 128, 64, 255};
constexpr TGAColor yellow = { 0, 200, 255, 255};
constexpr static int width = 2560;
constexpr static int height = 1920;
// 画线尝试1
void drawLine_first(int ax, int ay, int bx, int by, TGAImage &img, TGAColor color){
for(float t = 0;t<=1;t+=0.02){
int x = std::round(ax + t * (bx - ax)); // round会进行四舍五入
int y = std::round(ay + t * (by - ay));
img.set(x,y,color);
}
}
// 画线尝试2
void drawLine_second(int ax, int ay, int bx, int by, TGAImage &img, TGAColor color){
if (ax>bx) { // make it left−to−right
std::swap(ax, bx);
std::swap(ay, by);
}
for (int x = ax ; x<= bx; x++) { // 不再以t控制，而是以x的进行进行控制，保证了水平方向上不会有空隙
// 如果不加强制转换，当分子分母都是整数时，计算结果的小数部分会被截断
float t = (x-ax)/static_cast<float>(bx-ax); // 变换了形式，表示出当x移动一格时，t是多少，
int y = std::round( ay + (by-ay)*t );
img.set(x, y, color);
}
}
// 画线尝试3
void drawLine_third(int ax, int ay, int bx, int by, TGAImage &img, TGAColor color){
bool steep = std::abs(ax-bx) < std::abs(ay-by);
if (steep) { // if the drawLine is steep, we transpose the image
std::swap(ax, ay);
std::swap(bx, by);
}
if (ax>bx) { // make it left−to−right
std::swap(ax, bx);
std::swap(ay, by);
}
for (int x = ax ; x<= bx; x++) { // 不再以t控制，而是以x的进行进行控制，保证了水平方向上不会有空隙
// 如果不加强制转换，当分子分母都是整数时，计算结果的小数部分会被截断
float t = (x-ax)/static_cast<float>(bx-ax); // 变换了形式，表示出当x移动一格时，t是多少，
int y = std::round( ay + (by-ay)*t );
if (steep) // if transposed, de−transpose
img.set(y, x, color);
else
img.set(x, y, color);
}
}
// 最终版本 对计算进行了优化
void drawLine(int ax, int ay, int bx, int by, TGAImage &framebuffer, TGAColor color) {
bool steep = std::abs(ax-bx) < std::abs(ay-by);
if (steep) { // if the drawLine is steep, we transpose the image
std::swap(ax, ay);
std::swap(bx, by);
}
if (ax>bx) { // make it left−to−right
std::swap(ax, bx);
std::swap(ay, by);
}
int y = ay;
int ierror = 0;
for (int x=ax; x<=bx; x++) {
if (steep) // if transposed, de−transpose
framebuffer.set(y, x, color);
else
framebuffer.set(x, y, color);
ierror += 2 * std::abs(by-ay);
y += (by > ay ? 1 : -1) * (ierror > bx - ax);
ierror -= 2 * (bx-ax) * (ierror > bx - ax);
}
}
// 三角形面积，可能返回负数，表示背对屏幕
double signed_triangle_area(int ax, int ay, int bx, int by, int cx, int cy) {
return .5*((by-ay)*(bx+ax) + (cy-by)*(cx+bx) + (ay-cy)*(ax+cx));
}
// 绘制一个三角形
void drawTriangle(Triangle triangle, TGAImage &framebuffer, std::vector<std::vector<float>> * zBuffer,TGAColor color) {
float ax = triangle.screenCoords[0].x();
float ay = triangle.screenCoords[0].y();
float bx = triangle.screenCoords[1].x();
float by = triangle.screenCoords[1].y();
float cx = triangle.screenCoords[2].x();
float cy = triangle.screenCoords[2].y();
float bbminx = std::min(std::min(ax, bx), cx);
float bbminy = std::min(std::min(ay, by), cy);
float bbmaxx = std::max(std::max(ax, bx), cx);
float bbmaxy = std::max(std::max(ay, by), cy);
// 如果面积为负数，背对屏幕，被裁剪
double total_area = signed_triangle_area(ax, ay, bx, by, cx, cy);
if (total_area<1) return;
#pragma omp parallel for
for (int x=bbminx; x<=bbmaxx; x++) {
for (int y=bbminy; y<=bbmaxy; y++) {
double alpha = signed_triangle_area(x, y, bx, by, cx, cy) / total_area;
double beta = signed_triangle_area(x, y, cx, cy, ax, ay) / total_area;
double gamma = signed_triangle_area(x, y, ax, ay, bx, by) / total_area;
if (alpha<0 || beta<0 || gamma<0) continue; // 说明当前像素不在三角形内部
float barycentricZ = alpha*triangle.screenCoords[0].z() + beta*triangle.screenCoords[1].z() + gamma*triangle.screenCoords[2].z();
// zbuffer中缓存的渲染物体距离小于当前渲染物体的距离时，才覆盖渲染
if (x<width && y < height && zBuffer->at(x).at(y) < barycentricZ){
zBuffer->at(x).at(y) = barycentricZ;
framebuffer.set(x,y,color);
}
}
}
}
int main() {
auto * model = new Model("./obj/african_head/african_head.obj");
TGAImage framebuffer(width, height, TGAImage::RGB);
// 定义一个zBuffer,并设置全部数据为最小负数
auto * zBuffer = new std::vector<std::vector<float>>(width, std::vector<float>(height,std::numeric_limits<float>::lowest()));
// 遍历obj文件中的每个三角形
for (Triangle triangle : model->triangleList) {
// 将当前三角形的三个顶点都投影到屏幕
for (int i = 0; i < 3; ++i) triangle.setScreenCoord(i,width,height);
// 绘制三角形
drawTriangle(triangle, framebuffer, zBuffer, TGAColor(rand()%255, rand()%255, rand()%255, 255));
}
// framebuffer.flip_vertically();
framebuffer.write_tga_file("framebuffer.tga");
return 0;
}
下一步就是把材质贴上去，也就是设置颜色时不再使用随机颜色，而是根据三个顶点的纹理坐标进行插值，获得一个像素点的纹理坐标，从纹理图片对应位置获取颜色来设置
首先得有一个承载材质的类，我这里使用的是TGAImage来读取图片,并把材质类作为Model的成员
#ifndef TINYRENDERER_TEXTURE_H
#define TINYRENDERER_TEXTURE_H
#include <Eigen/Eigen>
#include "thirdParty/tgaimage.h"
class Texture{
private:
TGAImage texture;
public:
Texture(const std::string& name)
{
texture.read_tga_file("");
width = texture.width();
height = texture.height();
}
int width, height;
TGAColor getColor(float u, float v)
{
auto u_img = u * width;
auto v_img = (1 - v) * height;
TGAColor color = texture.get(v_img, u_img);
return color;
}
};
#endif //TINYRENDERER_TEXTURE_H
在main中首先对uv坐标进行插值，之后在设置像素颜色时，通过插值的uv坐标，到uv图中找对应位置的颜色
float texU = alpha*triangle.texCoords[0].x() + beta*triangle.texCoords[1].x() + gamma*triangle.texCoords[2].x();
float texV = alpha*triangle.texCoords[0].y() + beta*triangle.texCoords[1].y() + gamma*triangle.texCoords[2].y();
// zbuffer中缓存的渲染物体距离小于当前渲染物体的距离时，才覆盖渲染
if (x<width && y < height && zBuffer->at(x).at(y) < barycentricZ){
zBuffer->at(x).at(y) = barycentricZ;
framebuffer.set(x,y,texture.getColor(texU,texV));
}
生成效果如下图所示
到目前为止我自己的实现可以在github的分支结点中找到：https://github.com/sdpyy1/CppLearn/tree/56841b79fe7c74bce1d9210f1a42e2a3ca019768/tinyrenderer
Lesson 4: Perspective projection
这里我不希望只完成他课程的简单情况，我直接把MVP矩阵+视口变换全部封装了，详情可查看我的仓库，下边是主要代码
#include "model.h"
#include "thirdParty/OBJ_Loader.h"
Model::Model(const char * objFileName,const char * texFileName) : texture(texFileName){
objl::Loader Loader;
Loader.LoadFile(objFileName);
this->modelMatrix = Eigen::Matrix4f::Identity();
this->viewMatrix = Eigen::Matrix4f::Identity();
this->projectionMatrix = Eigen::Matrix4f::Identity();
for (const auto &mesh: Loader.LoadedMeshes){
for(int i=0;i<mesh.Vertices.size();i+=3)
{
Triangle t;
for(int j=0;j<3;j++)
{
// 此处设置每个三角形的属性
t.setGlobalCoord(j, Vector4f(mesh.Vertices[i + j].Position.X, mesh.Vertices[i + j].Position.Y,
mesh.Vertices[i + j].Position.Z, 1.0));
t.setNormal(j,Vector3f(mesh.Vertices[i+j].Normal.X,mesh.Vertices[i+j].Normal.Y,mesh.Vertices[i+j].Normal.Z));
t.setTexCoord(j,Vector2f(mesh.Vertices[i+j].TextureCoordinate.X, mesh.Vertices[i+j].TextureCoordinate.Y));
Matrix4f mvp = projectionMatrix * viewMatrix * modelMatrix;
}
this->triangleList.push_back(t);
}
}
}
// 将角度转换为弧度
constexpr float deg2rad(float degrees) {
return degrees * M_PI / 180.0f;
}
// 生成绕 x, y, z 轴旋转的变换矩阵
Eigen::Matrix4f rotation(float angleX, float angleY, float angleZ) {
// 分别计算绕 x, y, z 轴旋转的矩阵
Eigen::Matrix4f rotationX = Eigen::Matrix4f::Identity();
float radX = deg2rad(angleX);
rotationX(1, 1) = std::cos(radX);
rotationX(1, 2) = -std::sin(radX);
rotationX(2, 1) = std::sin(radX);
rotationX(2, 2) = std::cos(radX);
Eigen::Matrix4f rotationY = Eigen::Matrix4f::Identity();
float radY = deg2rad(angleY);
rotationY(0, 0) = std::cos(radY);
rotationY(0, 2) = std::sin(radY);
rotationY(2, 0) = -std::sin(radY);
rotationY(2, 2) = std::cos(radY);
Eigen::Matrix4f rotationZ = Eigen::Matrix4f::Identity();
float radZ = deg2rad(angleZ);
rotationZ(0, 0) = std::cos(radZ);
rotationZ(0, 1) = -std::sin(radZ);
rotationZ(1, 0) = std::sin(radZ);
rotationZ(1, 1) = std::cos(radZ);
// 组合三个旋转矩阵，这里假设旋转顺序为 Z -> Y -> X
Eigen::Matrix4f modelMatrix = rotationX * rotationY * rotationZ;
return modelMatrix;
}
// 生成平移变换矩阵
Eigen::Matrix4f translation(float tx, float ty, float tz) {
Eigen::Matrix4f translationMatrix = Eigen::Matrix4f::Identity();
translationMatrix(0, 3) = tx;
translationMatrix(1, 3) = ty;
translationMatrix(2, 3) = tz;
return translationMatrix;
}
// 生成缩放变换矩阵
Eigen::Matrix4f scaling(float sx, float sy, float sz) {
Eigen::Matrix4f scalingMatrix = Eigen::Matrix4f::Identity();
scalingMatrix(0, 0) = sx;
scalingMatrix(1, 1) = sy;
scalingMatrix(2, 2) = sz;
return scalingMatrix;
}
// 视图变换矩阵
Eigen::Matrix4f get_view_matrix(Eigen::Vector3f eye_pos, Eigen::Vector3f target, Eigen::Vector3f up) {
// TODO:还没理解怎么换的
// 观察方向
Vector3f z = (eye_pos - target).normalized();
// 叉乘得右方向
Vector3f r = z.cross(up).normalized();
// 叉乘得上方向
Vector3f u = z.cross(r).normalized();
Eigen::Matrix4f translate;
translate << r.x(),r.y(),r.z(),-r.dot(eye_pos),
u.x(),u.y(),u.z(),-u.dot(eye_pos),
-z.x(),-z.y(),-z.z(),z.dot(eye_pos),
0,0,0,1;
// 效果是将摄像机作为原点情况下各个点的坐标
return translate;
}
Eigen::Matrix4f get_projection_matrix(float eye_fov, float aspect_ratio, float n, float f) {
Eigen::Matrix4f projection = Eigen::Matrix4f::Identity();
float t = -tan((eye_fov/360)*M_PI)*(abs(n)); //top
float r = t/aspect_ratio;
Eigen::Matrix4f Mp;//透视矩阵
Mp <<
n, 0, 0, 0,
0, n, 0, 0,
0, 0, n+f, -n*f,
0, 0, 1, 0;
Eigen::Matrix4f Mo_tran;//平移矩阵
Mo_tran <<
1, 0, 0, 0,
0, 1, 0, 0, //b=-t;
0, 0, 1, -(n+f)/2 ,
0, 0, 0, 1;
Eigen::Matrix4f Mo_scale;//缩放矩阵
Mo_scale <<
1/r, 0, 0, 0,
0, 1/t, 0, 0,
0, 0, 2/(n-f), 0,
0, 0, 0, 1;
projection = (Mo_scale*Mo_tran)* Mp;//投影矩阵
//这里一定要注意顺序，先透视再正交;正交里面先平移再缩放；否则做出来会是一条直线！
return projection;
}
void Model::setModelTransformation(float angleX, float angleY, float angleZ, float tx, float ty, float tz, float sx, float sy, float sz){
if (triangleList.empty()){
std::cout << "模型未导入！"<<std::endl;
return;
}
Eigen::Matrix4f rotationMatrix = rotation(angleX, angleY, angleZ);
Eigen::Matrix4f translationMatrix = translation(tx, ty, tz);
Eigen::Matrix4f scalingMatrix = scaling(sx, sy, sz);
// 按缩放 -> 旋转 -> 平移的顺序组合变换矩阵
modelMatrix = translationMatrix * rotationMatrix * scalingMatrix;
}
// 应用视图变换的函数
void Model::setViewTransformation(Eigen::Vector3f eye_pos, Eigen::Vector3f target, Eigen::Vector3f up) {
viewMatrix = get_view_matrix(eye_pos,target,up);
}
// 应用透视变换的函数
void Model::setProjectionTransformation(float fovY, float aspectRatio, float near, float far) {
projectionMatrix = get_projection_matrix(fovY, aspectRatio, near, far);
}
Matrix4f Model::getMVP(){
return projectionMatrix * viewMatrix * modelMatrix;
}
Model::~Model() {
}
