项目开发中，需要java后端实现导出postgis空间数据几何对象shapefile文件，以便能直观查看数据详情。注意事项Shapefile 默认的几何字段名为 the_geom，若导出时未显式指定或字段名被修改，部分软件（如 ArcGIS、QGI）可能无法识别几何数据。
1.自定义几何对象构造器
package com.otitan.gz.bozhouly.forestry.industry.geotools;
import org.geotools.geojson.geom.GeometryJSON;
import org.locationtech.jts.geom.*;
import org.locationtech.jts.io.ParseException;
import org.locationtech.jts.io.WKTReader;
import java.io.StringReader;
import java.io.StringWriter;
import java.util.List;
/**
* <p>自定义几何对象构造器</p>
* @author carter
* @blob https://blog.csdn.net/qq_21480329
* @date
*/
public class GeometryCreator {
private static GeometryCreator geometryCreator = null;
private static GeometryFactory geometryFactory = new GeometryFactory();
/**
* 设置保留6位小数，否则GeometryJSON默认保留4位小数
*/
private static GeometryJSON geometryJson = new GeometryJSON(6);
private GeometryCreator() {
}
/**
* 返回本类的唯一实例
* @return
*/
public static GeometryCreator getInstance() {
if (geometryCreator == null) {
return new GeometryCreator();
}
return geometryCreator;
}
/**
* 1.1根据X，Y坐标构建一个几何对象： 点 【Point】
* @param x
* @param y
* @return
*/
public Point createPoint(double x,double y){
Coordinate coord = new Coordinate(x, y);
return geometryFactory.createPoint(coord);
}
/**
* 1.2根据几何对象的WKT描述【String】创建几何对象： 点 【Point】
* @return
* @throws ParseException
*/
public Point createPointByWKT(String PointWKT) throws ParseException {
WKTReader reader = new WKTReader(geometryFactory);
return (Point) reader.read(PointWKT);
}
/**
* 1.3根据几何对象的WKT描述【String】创建几何对象：多点 【MultiPoint】
* @return
* @throws ParseException
*/
public MultiPoint createMulPointByWKT(String MPointWKT)throws ParseException{
WKTReader reader = new WKTReader( geometryFactory );
return (MultiPoint) reader.read(MPointWKT);
}
/**
* 2.1根据两点 创建几何对象：线 【LineString】
* @param ax 第一个点的x坐标
* @param ay 第一个点的y坐标
* @param bx 第二个点的x坐标
* @param by 第二个点的y坐标
* @return
*/
public LineString createLine(double ax,double ay,double bx,double by){
Coordinate[] coords = new Coordinate[] {new Coordinate(ax, ay), new Coordinate(bx, by)};
return geometryFactory.createLineString(coords);
}
/**
* 2.2根据线的WKT描述创建几何对象：线 【LineString】
* @param LineStringWKT
* @return
* @throws ParseException
*/
public LineString createLineByWKT(String LineStringWKT) throws ParseException{
WKTReader reader = new WKTReader( geometryFactory );
return (LineString) reader.read(LineStringWKT);
}
/**
* 2.3根据点组合的线数组，创建几何对象：多线 【MultiLineString】
* @param list
* @return
*/
public MultiLineString createMLine(List<Coordinate[]> list){
if(list == null){
return null;
}
LineString[] lineStrings = new LineString[list.size()];
int i = 0;
for (Coordinate[] coordinates : list) {
lineStrings[i] = geometryFactory.createLineString(coordinates);
}
return geometryFactory.createMultiLineString(lineStrings);
}
/**
* 2.4根据几何对象的WKT描述【String】创建几何对象 ： 多线【MultiLineString】
* @param MLineStringWKT
* @return
* @throws ParseException
*/
public MultiLineString createMLineByWKT(String MLineStringWKT)throws ParseException{
WKTReader reader = new WKTReader( geometryFactory );
return (MultiLineString) reader.read(MLineStringWKT);
}
/**
* 3.1 根据几何对象的WKT描述【String】创建几何对象：多边形 【Polygon】
* @param PolygonWKT
* @return
* @throws ParseException
*/
public Polygon createPolygonByWKT(String PolygonWKT) throws ParseException{
WKTReader reader = new WKTReader( geometryFactory );
return (Polygon) reader.read(PolygonWKT);
}
/**
* 3.2 根据几何对象的WKT描述【String】创建几何对象： 多多边形 【MultiPolygon】
* @param MPolygonWKT
* @return
* @throws ParseException
*/
public MultiPolygon createMulPolygonByWKT(String MPolygonWKT) throws ParseException{
WKTReader reader = new WKTReader( geometryFactory );
return (MultiPolygon) reader.read(MPolygonWKT);
}
/**
* 根据多边形数组 进行多多边形的创建
* @param polygons
* @return
* @throws ParseException
*/
public MultiPolygon createMulPolygonByPolygon(Polygon[] polygons) throws ParseException{
return geometryFactory.createMultiPolygon(polygons);
}
/**
* 4.1 根据几何对象数组，创建几何对象集合：【GeometryCollection】
* @return
* @throws ParseException
*/
public GeometryCollection createGeoCollect(Geometry[] geoArray) throws ParseException{
return geometryFactory.createGeometryCollection(geoArray);
}
/**
* 5.1 根据圆点以及半径创建几何对象：特殊的多边形--圆 【Polygon】
* @param x 圆点x坐标
* @param y 圆点y坐标
* @param radius 半径
* @return
*/
public Polygon createCircle(double x, double y, final double radius){
//圆上面的点个数
final int sides = 32;
Coordinate[] coords = new Coordinate[sides+1];
for( int i = 0; i < sides; i++){
double angle = ((double) i / (double) sides) * Math.PI * 2.0;
double dx = Math.cos( angle ) * radius;
double dy = Math.sin( angle ) * radius;
coords[i] = new Coordinate( (double) x + dx, (double) y + dy );
}
coords[sides] = coords[0];
//线性环
LinearRing ring = geometryFactory.createLinearRing(coords);
return geometryFactory.createPolygon(ring, null);
}
/**
* 6.1 根据WKT创建环
* @param ringWKT
* @return
* @throws ParseException
*/
public LinearRing createLinearRingByWKT(String ringWKT) throws ParseException{
WKTReader reader = new WKTReader( geometryFactory );
return (LinearRing) reader.read(ringWKT);
}
/**
* 几何对象转GeoJson对象
* @param geometry
* @return
* @throws Exception
*/
public static String geometryToGeoJson(Geometry geometry) throws Exception {
if (geometry == null) {
return null;
}
StringWriter writer = new StringWriter();
geometryJson.write(geometry, writer);
String geojson = writer.toString();
writer.close();
return geojson;
}
/**
* GeoJson转几何对象
* @param geojson
* @return
* @throws Exception
*/
public static Geometry geoJsonToGeometry(String geojson) throws Exception {
return geometryJson.read(new StringReader(geojson));
}
}
2.ShapeFile文件读写工具类
package com.otitan.gz.bozhouly.forestry.industry.geotools;
import com.otitan.gz.bozhouly.forestry.industry.IO.StringTokenReader;
import com.otitan.gz.bozhouly.forestry.industry.pojos.ShpDatas;
import com.otitan.gz.bozhouly.forestry.industry.pojos.ShpInfo;
import com.otitan.gz.bozhouly.forestry.industry.result.ResponseMessage;
import com.otitan.gz.bozhouly.forestry.industry.result.ResponseResult;
import org.geotools.data.*;
import org.geotools.data.shapefile.ShapefileDataStore;
import org.geotools.data.shapefile.ShapefileDataStoreFactory;
import org.geotools.data.simple.SimpleFeatureSource;
import org.geotools.feature.FeatureCollection;
import org.geotools.feature.FeatureIterator;
import org.geotools.feature.simple.SimpleFeatureTypeBuilder;
import org.geotools.geometry.jts.ReferencedEnvelope;
import org.geotools.map.FeatureLayer;
import org.geotools.map.Layer;
import org.geotools.map.MapContent;
import org.geotools.referencing.crs.DefaultGeographicCRS;
import org.geotools.renderer.lite.StreamingRenderer;
import org.geotools.styling.SLD;
import org.geotools.styling.Style;
import org.geotools.swing.JMapFrame;
import org.geotools.swing.data.JFileDataStoreChooser;
import org.locationtech.jts.geom.*;
import org.opengis.feature.Property;
import org.opengis.feature.simple.SimpleFeature;
import org.opengis.feature.simple.SimpleFeatureType;
import javax.imageio.ImageIO;
import javax.servlet.http.HttpServletResponse;
import java.awt.*;
import java.awt.image.BufferedImage;
import java.io.File;
import java.io.IOException;
import java.io.Serializable;
import java.nio.charset.Charset;
import java.nio.charset.StandardCharsets;
import java.text.SimpleDateFormat;
import java.util.Collection;
import java.util.HashMap;
import java.util.Map;
import java.util.TreeMap;
/**
* <p>ShapeFile文件读写工具类</p>
* @author carter
* @blob https://blog.csdn.net/qq_21480329
* @date
*/
public class ShpTools {
/**几何对象构造器【自定义的】*/
private static GeometryCreator gCreator = GeometryCreator.getInstance();
/**边界*/
private static ReferencedEnvelope bounds;
/**画布的宽度*/
private static final int IMAGE_WIDTH = 1280;
/**画布的高度*/
private static final int IMAGE_HEIGHT = 1200;
/**
* 通过shp文件路径，读取shp内容
* @param filePath 文件路径
*/
public static ShpDatas readShpByPath(String filePath,Integer limit) throws Exception {
// 一个数据存储实现，允许从Shapefiles读取和写入
ShapefileDataStore shpDataStore = new ShapefileDataStore(new File(filePath).toURI().toURL());
// 设置编码【防止中文乱码】
shpDataStore.setCharset(StandardCharsets.UTF_8);
// getTypeNames:获取所有地理图层，这里我只取第一个【如果是数据表，取出的就是表名】
String typeName = shpDataStore.getTypeNames()[0];
System.out.println("shp【图层】名称："+typeName);
FeatureCollection<SimpleFeatureType, SimpleFeature> result = getFeatures(shpDataStore, typeName);
// 迭代特征集合
FeatureIterator<SimpleFeature> iterator = result.features();
ShpDatas shpDatas = new ShpDatas();
shpDatas.setName(typeName);
shpDatas.setShpPath(filePath);
buildShpDatas(limit, iterator, shpDatas);
iterator.close();
return shpDatas;
}
/**
* 根据数据源及图层名称拿到特征集合
* @param shpDataStore shp数据存储对象
* @param typeName 图层名称
* @return FeatureCollection
*/
private static FeatureCollection<SimpleFeatureType, SimpleFeature> getFeatures(ShapefileDataStore shpDataStore, String typeName) throws IOException {
// 通过此接口可以引用单个shapefile、数据库表等。与数据存储进行比较和约束
FeatureSource<SimpleFeatureType, SimpleFeature> featureSource = shpDataStore.getFeatureSource(typeName);
// 一个用于处理FeatureCollection的实用工具类。提供一个获取FeatureCollection实例的机制
FeatureCollection<SimpleFeatureType, SimpleFeature> result = featureSource.getFeatures();
System.out.println("地理要素【记录】："+result.size()+"个");
System.out.println("==================================");
return result;
}
/**
* 构建shpDatas对象
* @param limit 要素查询限制数
* @param iterator 迭代器
* @param shpDatas shp封装的数据集
*/
private static void buildShpDatas(Integer limit, FeatureIterator<SimpleFeature> iterator, ShpDatas shpDatas) {
// 这里我们只迭代前limit个
int stop = 0;
while (iterator.hasNext()) {
if (stop > limit) {
break;
}
// 拿到一个特征
SimpleFeature feature = iterator.next();
// 取出特征里面的属性集合
Collection<Property> p = feature.getProperties();
// 遍历属性集合
Map<String,Object> prop = new HashMap<>();
for (Property pro : p) {
String key = pro.getName().toString();
String val;
if ("java.util.Date".equals(pro.getType().getBinding().getName())){
SimpleDateFormat dateFormat = new SimpleDateFormat("yyyy/MM/dd");
val = pro.getValue() ==null ? "" : dateFormat.format(pro.getValue());
}else{
val = pro.getValue()==null ?"":pro.getValue().toString();
}
prop.put(key, val);
System.out.println("key【字段】："+key+"\t||value【值】："+val);
}
System.out.println("\n============================ 序号："+stop+"\n");
shpDatas.addProp(prop);
stop++;
} // end 最外层 while
}
/**
* 将一个几何对象写进shapefile
* @param filePath 文件路径
* @param geometry 几何对象
*/
public static void writeShpByGeom(String filePath, Geometry geometry) throws Exception{
ShapefileDataStore ds = getshpDS(filePath, geometry);
FeatureWriter<SimpleFeatureType, SimpleFeature> writer = ds.getFeatureWriter(ds.getTypeNames()[0],
Transaction.AUTO_COMMIT);
// Interface SimpleFeature：一个由固定列表值以已知顺序组成的SimpleFeatureType实例。
SimpleFeature feature = writer.next();
feature.setAttribute("name", "XXXX名称");
feature.setAttribute("path", "./test");
feature.setAttribute("the_geom", geometry);
feature.setAttribute("id", 1010L);
feature.setAttribute("des", "XXXX描述");
System.out.println("========= 写入【"+geometry.getGeometryType()+"】成功 ！=========");
// 写入
writer.write();
// 关闭
writer.close();
// 释放资源
ds.dispose();
}
/**
* 将一个几何对象写进shapefile
* @param file 文件
* @param map 数据
*/
public static void writeShpByGeom(File file, Map<String, Object> map, Geometry geometry) throws Exception{
ShapefileDataStore ds = getshpDS(file, map, geometry);
FeatureWriter<SimpleFeatureType, SimpleFeature> writer = ds.getFeatureWriter(ds.getTypeNames()[0],
Transaction.AUTO_COMMIT);
// Interface SimpleFeature：一个由固定列表值以已知顺序组成的SimpleFeatureType实例。
SimpleFeature feature = writer.next();
// for (AttributeDescriptor attr : feature.getFeatureType().getAttributeDescriptors()) {
// System.out.println("Schema 字段: " + attr.getLocalName());
// }
Map<String, Object> sortedMap = new TreeMap<>(map);
sortedMap.forEach((k, v) -> {
// System.out.println(k + ":" + v);
feature.setAttribute(k, v);
});
// feature.setAttribute("the_geom", geometry);
// feature.setAttribute("name", "XXXX名称");
// feature.setAttribute("path", "./test");
// feature.setAttribute("the_geom", geometry);
// feature.setAttribute("id", 1010L);
// feature.setAttribute("des", "XXXX描述");
//
// System.out.println("========= 写入【"+geometry.getGeometryType()+"】成功 ！=========");
// 写入
writer.write();
// 关闭
writer.close();
// 释放资源
ds.dispose();
}
/**
* 将一个几何对象写进shapefile
* @param shpInfo shp信息
*/
public static ResponseResult writeShpByGeom(ShpInfo shpInfo) throws Exception{
// 特殊字符串解析器
StringTokenReader reader = new StringTokenReader();
// 根据几何对象的wkt字符串，反解【解析】成Geometry对象
Geometry geometry = reader.read(shpInfo.getGeom());
// 拿到shp对象所在的目录【文件夹】
String path = shpInfo.getPath();
File file = new File(path);
if(!file.exists()){
file.mkdir();
}
if(!file.isDirectory()){
return new ResponseResult(ResponseMessage.BAD_REQUEST,"path不是有效的文件夹" );
}
String filePath = shpInfo.getPath()+"/"+shpInfo.getName()+".shp";
ShapefileDataStore ds = getshpDS(filePath, geometry);
String typeName = ds.getTypeNames()[0];
FeatureWriter<SimpleFeatureType, SimpleFeature> writer ;
if(shpInfo.isAppendWrite()){
// 追加写几何对象
writer = ds.getFeatureWriterAppend(typeName, Transaction.AUTO_COMMIT);
}else{
// 覆盖写几何对象
writer = ds.getFeatureWriter(typeName, Transaction.AUTO_COMMIT);
}
// Interface SimpleFeature：一个由固定列表值以已知顺序组成的SimpleFeatureType实例。
SimpleFeature feature = writer.next();
feature.setAttribute("name", shpInfo.getName());
feature.setAttribute("path", shpInfo.getPath());
feature.setAttribute("the_geom", geometry);
feature.setAttribute("id", shpInfo.getId());
feature.setAttribute("des", shpInfo.getDes());
System.out.println("========= 写入【"+geometry.getGeometryType()+"】成功 ！=========");
// 写入
writer.write();
// 关闭
writer.close();
// 释放资源
ds.dispose();
// 返回创建成功后的shp文件路径
return new ResponseResult(ResponseMessage.OK,filePath);
}
/**
* 拿到配置好的DataStore
* @param file 文件
* @param geometry 几何对象
* @return ShapefileDataStore
*/
private static ShapefileDataStore getshpDS(File file, Map<String, Object> map, Geometry geometry) throws IOException {
Map<String, Serializable> params = new HashMap<>();
// 1. 获取父目录
File parentDir = file.getParentFile();
// 2. 检查父目录是否存在，若不存在则创建
if (parentDir != null && !parentDir.exists()) {
parentDir.mkdirs();
}
// 2、用于捕获参数需求的数据类 URLP:url to the .shp file.
params.put(ShapefileDataStoreFactory.URLP.key, file.toURI().toURL());
// 3、创建一个新的数据存储【如果存在，则不创建】
ShapefileDataStore ds = (ShapefileDataStore) new ShapefileDataStoreFactory().createNewDataStore(params);
// 4、定义图形信息和属性信息 -- SimpleFeatureTypeBuilder 构造简单特性类型的构造器
SimpleFeatureTypeBuilder tBuilder = new SimpleFeatureTypeBuilder();
// 5、设置 -- WGS84:一个二维地理坐标参考系统，使用WGS84数据
tBuilder.setCRS(DefaultGeographicCRS.WGS84);
tBuilder.setName("shapefile");
Map<String, Object> sortedMap = new TreeMap<>(map);
sortedMap.forEach((k, v) -> {
tBuilder.add(k, v.getClass());
// System.out.println(k + ":" + v.getClass());
});
// tBuilder.add("the_geom", geometry.getClass());
// map.forEach((k, v) -> {
// tBuilder.add(k, v.getClass());
// });
// 添加名称
// tBuilder.add("name", String.class);
// // 添加shp所在目录名称
// tBuilder.add("path", String.class);
// // 添加 一个几何对象
// tBuilder.add("the_geom", geometry.getClass());
// // 添加一个id
// tBuilder.add("id", Long.class);
// // 添加描述
// tBuilder.add("des", String.class);
// 设置此数据存储的特征类型
ds.createSchema(tBuilder.buildFeatureType());
// 设置编码
ds.setCharset(StandardCharsets.UTF_8);
return ds;
}
/**
* 拿到配置好的DataStore
* @param filePath 文件路径
* @param geometry 几何对象
* @return ShapefileDataStore
*/
private static ShapefileDataStore getshpDS(String filePath, Geometry geometry) throws IOException {
// 1.创建shape文件对象
File file = new File(filePath);
Map<String, Serializable> params = new HashMap<>();
// 2、用于捕获参数需求的数据类 URLP:url to the .shp file.
params.put(ShapefileDataStoreFactory.URLP.key, file.toURI().toURL());
// 3、创建一个新的数据存储【如果存在，则不创建】
ShapefileDataStore ds = (ShapefileDataStore) new ShapefileDataStoreFactory().createNewDataStore(params);
// 4、定义图形信息和属性信息 -- SimpleFeatureTypeBuilder 构造简单特性类型的构造器
SimpleFeatureTypeBuilder tBuilder = new SimpleFeatureTypeBuilder();
// 5、设置 -- WGS84:一个二维地理坐标参考系统，使用WGS84数据
tBuilder.setCRS(DefaultGeographicCRS.WGS84);
tBuilder.setName("shapefile");
// 添加名称
tBuilder.add("name", String.class);
// 添加shp所在目录名称
tBuilder.add("path", String.class);
// 添加 一个几何对象
tBuilder.add("the_geom", geometry.getClass());
// 添加一个id
tBuilder.add("id", Long.class);
// 添加描述
tBuilder.add("des", String.class);
// 设置此数据存储的特征类型
ds.createSchema(tBuilder.buildFeatureType());
// 设置编码
ds.setCharset(StandardCharsets.UTF_8);
return ds;
}
/**
* 打开shp文件,获取地图内容
* @param filePath 文件路径
* @param isOpenByChoose 是否自定义打开shp文件
* @throws Exception
*/
public static MapContent getMapContentByPath(String filePath,boolean isOpenByChoose,String color) throws Exception{
File file;
if(isOpenByChoose){
// 1.1、 数据源选择 shp扩展类型的
file = JFileDataStoreChooser.showOpenFile("shp", null);
}else{
// 1.2、根据路径拿到文件对象
file = new File(filePath);
}
if(file==null){
return null;
}
// 2、得到打开的文件的数据源
FileDataStore store = FileDataStoreFinder.getDataStore(file);
// 3、设置数据源的编码，防止中文乱码
((ShapefileDataStore)store).setCharset(Charset.forName("UTF-8"));
/**
* 使用FeatureSource管理要素数据
* 使用Style（SLD）管理样式
* 使用Layer管理显示
* 使用MapContent管理所有地图相关信息
*/
// 4、以java对象的方式访问地理信息 -- 简单地理要素
SimpleFeatureSource featureSource = store.getFeatureSource();
bounds = featureSource.getBounds();
// 5、创建映射内容，并将我们的shapfile添加进去
MapContent mapContent = new MapContent();
// 6、设置容器的标题
mapContent.setTitle("Appleyk's GeoTools");
Color color1;
if(color == null || "".equals(color.toLowerCase())){
color1 = Color.BLACK;
}else if("red".equals(color.toLowerCase())){
color1 = Color.RED;
}else if("green".equals(color.toLowerCase())){
color1 = Color.GREEN;
}else if("blue".equals(color.toLowerCase())){
color1 = Color.BLUE;
}else{
color1 = Color.getColor(color);
}
// 7、创建简单样式 【颜色填充】
Style style = SLD.createSimpleStyle(featureSource.getSchema(),color1);
// 8、显示【shapfile地理信息+样式】
Layer layer = new FeatureLayer(featureSource, style);
// 9、将显示添加进map容器
mapContent.addLayer(layer);
return mapContent;
}
public static void showMap(MapContent mapContent){
JMapFrame.showMap(mapContent);
}
/**
* shp文件转Image【格式定png】
* @param shpFilePath shp目标文件
* @param destImagePath 转成图片的文件 == 如果没有，转成的图片写进response输出流里
* @param response 响应流
* @throws Exception
*/
public static void shp2Image(String shpFilePath,String destImagePath,String color, HttpServletResponse response) throws Exception{
// 流渲染器
StreamingRenderer renderer = new StreamingRenderer();
MapContent mapContent = getMapContentByPath(shpFilePath,false,color );
renderer.setMapContent(mapContent);
Rectangle imageBounds = new Rectangle(0, 0, IMAGE_WIDTH, IMAGE_HEIGHT);
BufferedImage dumpImage = new BufferedImage(IMAGE_WIDTH, IMAGE_HEIGHT, BufferedImage.TYPE_INT_RGB);
Graphics2D g2d = dumpImage.createGraphics();
g2d.fillRect(0, 0, IMAGE_WIDTH, IMAGE_HEIGHT);
g2d.setRenderingHint(RenderingHints.KEY_ANTIALIASING, RenderingHints.VALUE_ANTIALIAS_ON);
renderer.paint(g2d, imageBounds, bounds);
g2d.dispose();
if(destImagePath == null || "".equals(destImagePath)){
ImageIO.write(dumpImage, "png", response.getOutputStream());
}else{
ImageIO.write(dumpImage, "png", new File(destImagePath));
}
}
public static void main(String[] args) throws Exception{
// File file = ResourceUtils.getFile("classpath:static/shpTest[Point]/dp_tl.shp");
// // 从shp文件里面读取属性信息
// readShpByPath(file.getAbsolutePath(),10);
System.out.println("=================下面开始往shp文件里面写几何对象===================");
// 先创建文件夹test
String filePath = "./test.shp";
// String pointWkt="POINT (120.76164848270959 31.22001141278534)";
// Point point = gCreator.createPointByWKT(pointWkt);
//
// // Polygon【面】
// String polygonWkt="POLYGON ((103.859188 34.695908, 103.85661 34.693788, 103.862027 34.69259, 103.863709 34.695078, 103.859188 34.695908))";
// Polygon polygon = gCreator.createPolygonByWKT(polygonWkt);
//
// // LineString【线】
// String linestringWkt="LINESTRING(113.511315990174 41.7274734296674,113.51492087909 41.7284983348307,113.516079593384 41.727649586406,113.515907932007 41.7262243043929,113.514019656861 41.7247989907606,113.512131381714 41.7250872589898,113.51138036319 41.7256637915682,113.511315990174 41.7274734296674)";
// LineString lineString = gCreator.createLineByWKT(linestringWkt);
// MultiPolygon【多面】
String multiPolyWkt = "MULTIPOLYGON(((101.870371 25.19228,101.873633 25.188183,101.880564 25.184416,101.886808 25.186028,101.892043 25.189969,101.896592 25.190163,101.903716 25.190785,101.905454 25.193464,101.899897 25.196202,101.894146 25.197911,101.891657 25.19826,101.886078 25.197658,101.884211145538 25.2007060137013,101.88172564506 25.1949712942389,101.87874 25.199619,101.874641 25.200998,101.868547 25.202415,101.863741 25.202415,101.85887 25.202842,101.854557 25.202182,101.852604 25.199736,101.852282 25.19628,101.854492 25.194183,101.855608 25.192668,101.863698 25.192105,101.870371 25.19228)))";
MultiPolygon multiPolygon = gCreator.createMulPolygonByWKT(multiPolyWkt);
// 几何对象的范围【矩形边界】
Envelope envelope = multiPolygon.getEnvelopeInternal();
System.out.println(envelope);
// 往shp文件里面写几何对象
writeShpByGeom(filePath,multiPolygon);
}
}

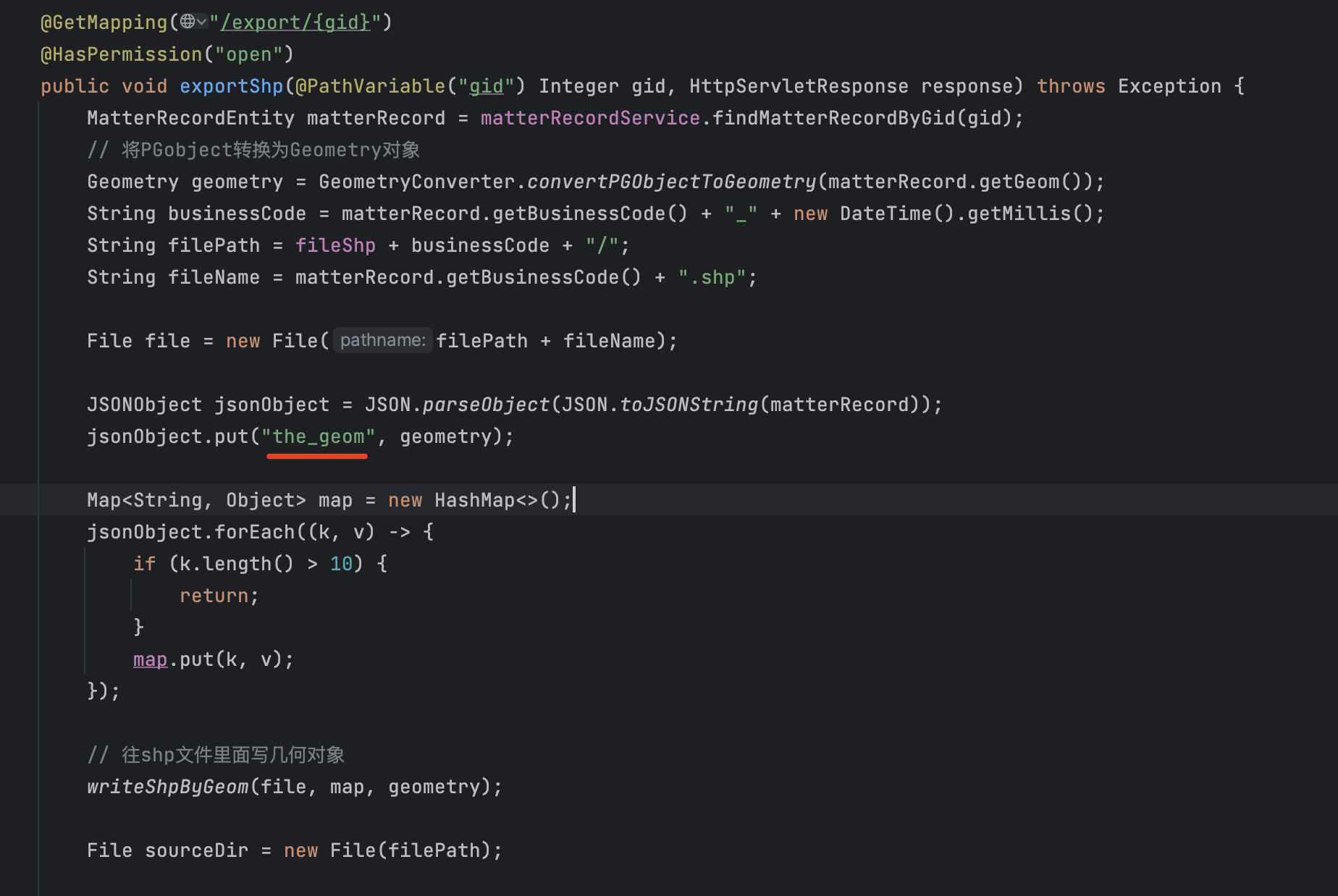

3.导出实现
@GetMapping("/export/{gid}")
public void exportShp(@PathVariable("gid") Integer gid, HttpServletResponse response) throws Exception {
MatterRecordEntity matterRecord = matterRecordService.findMatterRecordByGid(gid);
// 将PGobject转换为Geometry对象
Geometry geometry = GeometryConverter.convertPGObjectToGeometry(matterRecord.getGeom());
String businessCode = matterRecord.getBusinessCode() + "_" + new DateTime().getMillis();
String filePath = fileShp + businessCode + "/";
String fileName = matterRecord.getBusinessCode() + ".shp";
File file = new File(filePath + fileName);
JSONObject jsonObject = JSON.parseObject(JSON.toJSONString(matterRecord));
// Shapefile 默认的几何字段名为 the_geom，若导出时未显式指定或字段名被修改，部分软件（如 ArcGIS）可能无法识别几何数据
jsonObject.put("the_geom", geometry);
Map<String, Object> map = new HashMap<>();
jsonObject.forEach((k, v) -> {
if (k.length() > 10) {
return;
}
map.put(k, v);
});
// 往shp文件里面写几何对象
writeShpByGeom(file, map, geometry);
File sourceDir = new File(filePath);
// String fileNameZip = URLEncoder.encode(matterRecord.getBusinessCode() + ".zip", StandardCharsets.UTF_8.name());
// response.setContentType("application/zip");
// response.setHeader(HttpHeaders.CONTENT_DISPOSITION,
// "attachment; filename=" + fileNameZip);
// 获取Servlet的输出流，用于写入ZIP文件内容
ServletOutputStream outputStream = response.getOutputStream();
ZipOutputStream zos = new ZipOutputStream(outputStream);
// addDirectoryToZip(sourceDir, zos, sourceDir.getName());
compressDirFlat(sourceDir, zos);
String fileNameZip = URLEncoder.encode(businessCode + ".zip", StandardCharsets.UTF_8.name());
response.setContentType("application/zip");
response.setHeader(HttpHeaders.CONTENT_DISPOSITION,
"attachment; filename=" + fileNameZip);
zos.close(); // 关闭ZipOutputStream，这将触发所有缓冲的数据被写入输出流
outputStream.flush(); // 刷新输出流，确保所有数据都被发送
}
private void compressDirFlat(File dir, ZipOutputStream zos) throws IOException {
for (File file : dir.listFiles()) {
if (file.isHidden()) continue;
if (file.isDirectory()) {
compressDirFlat(file, zos); // 递归处理子目录
} else {
addFileEntry(file, zos);
}
}
}
private void addFileEntry(File file, ZipOutputStream zos) throws IOException {
try (FileInputStream fis = new FileInputStream(file)) {
// 仅保留文件名，忽略路径
ZipEntry entry = new ZipEntry(file.getName());
zos.putNextEntry(entry);
// 带缓冲的流复制
byte[] buffer = new byte[4096];
int len;
while ((len = fis.read(buffer)) > 0) {
zos.write(buffer, 0, len);
}
zos.closeEntry();
}
}
注意事项Shapefile 默认的几何字段名为 the_geom，若导出时未显式指定或字段名被修改，部分软件（如 ArcGIS、QGI）可能无法识别几何数据。

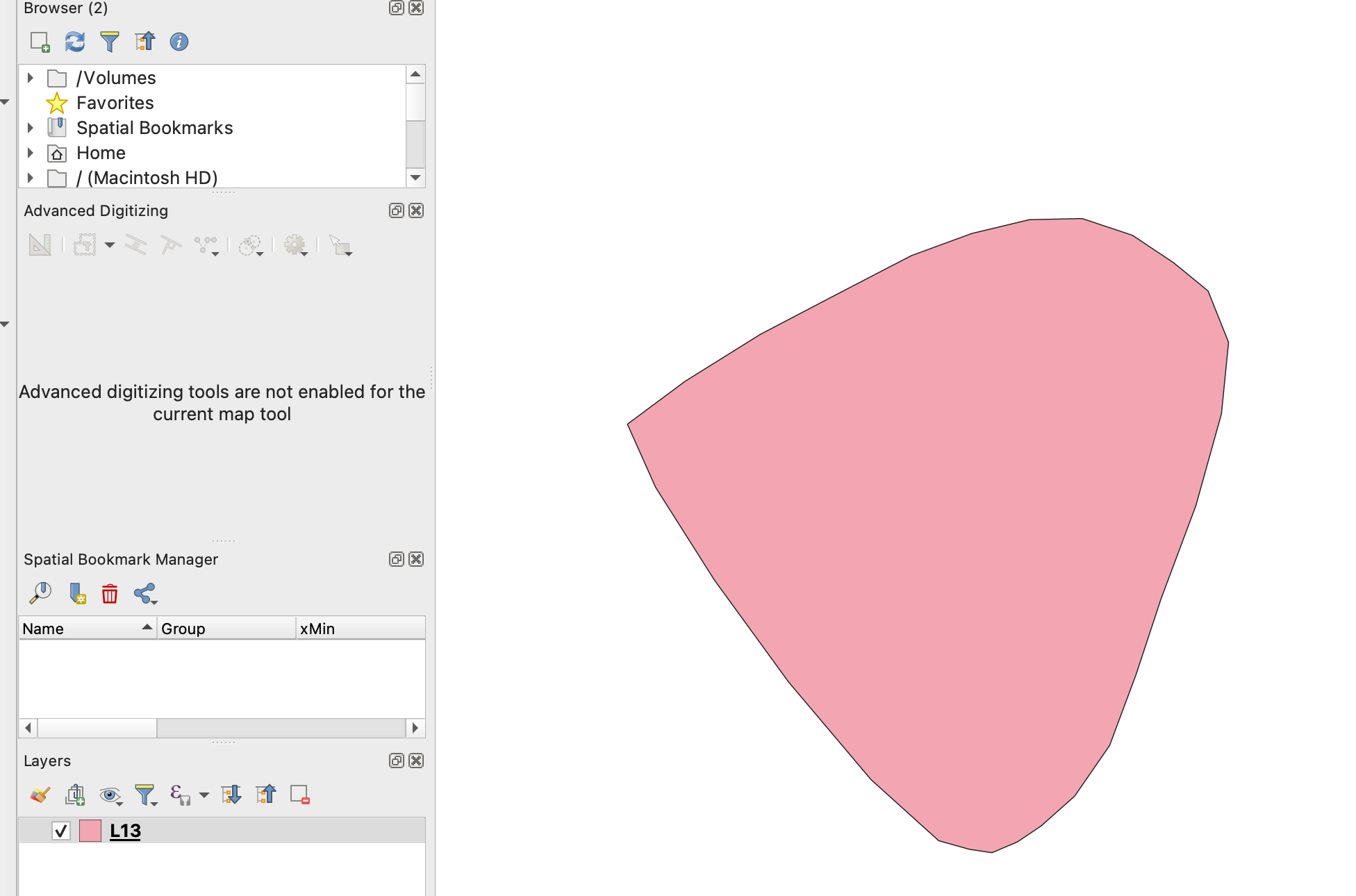

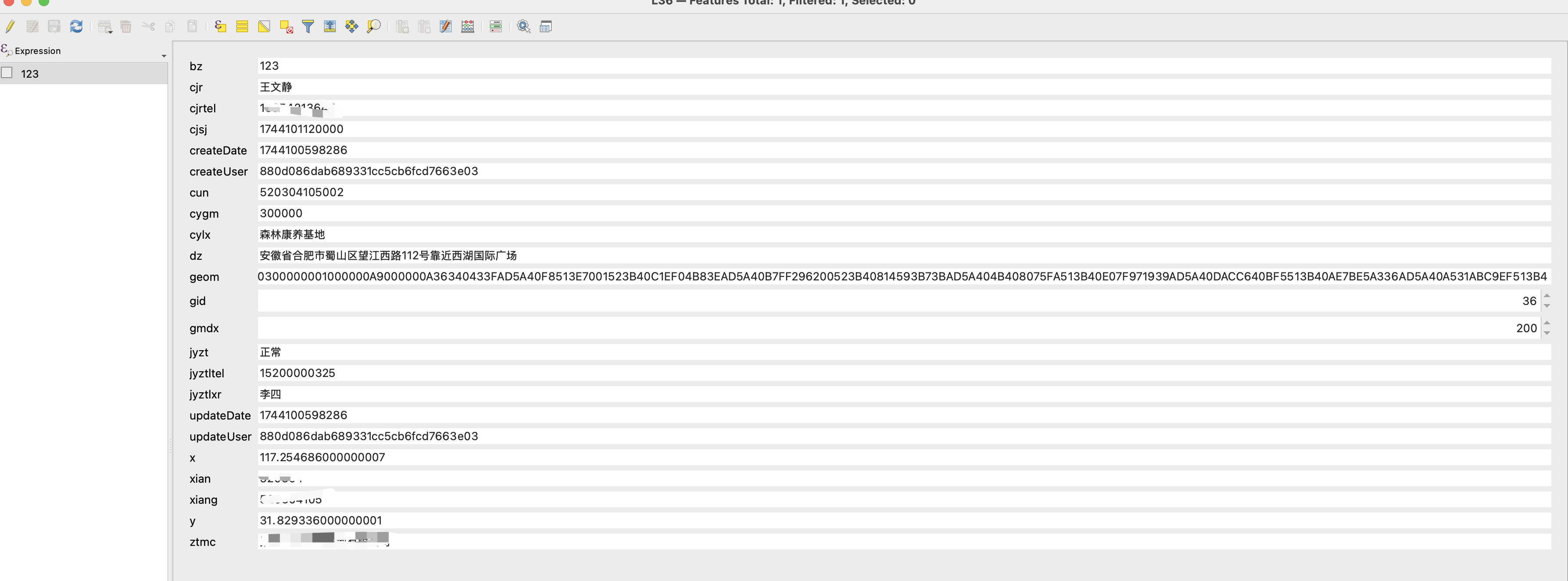

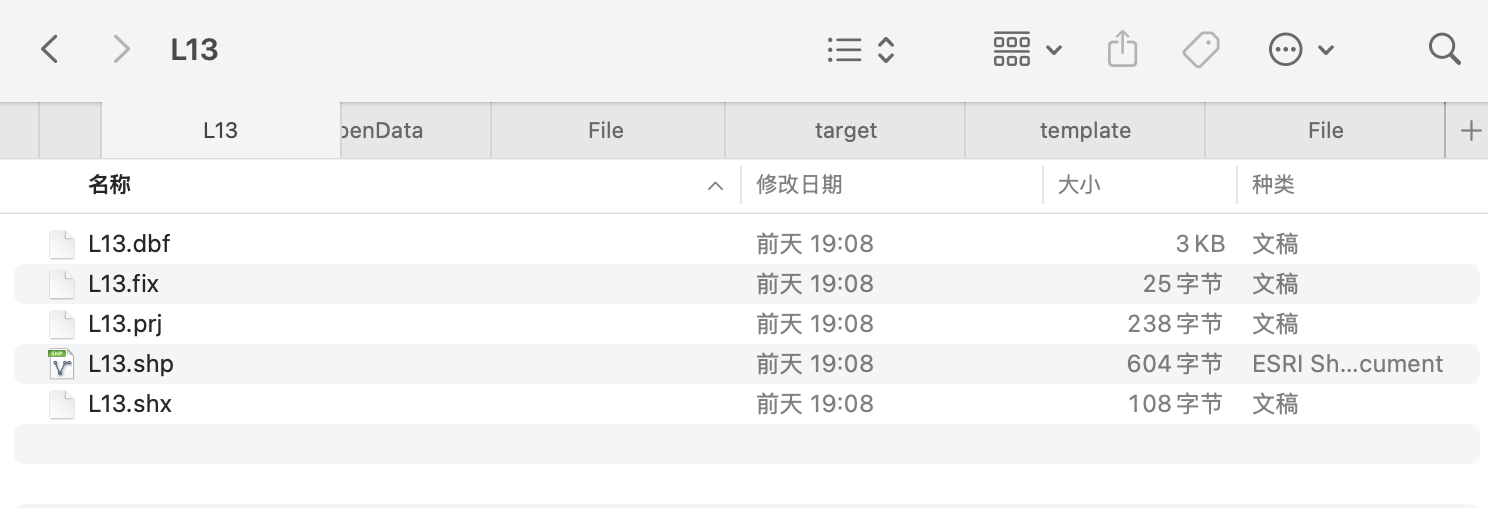

4.导出效果截图
5.相关大数据学习demo地址:
https://github.com/carteryh/big-data
