智慧水务项目（八）基于Django 5.1 版本PyScada详细安装实战

一、说明

PyScada，一个基于Python和Django框架的开源SCADA（数据采集与监视控制系统）系统，采用HTML5技术打造人机界面（HMI）。它兼容多种工业协议，如Modbus TCP/IP、RTU、ASCII等，并具备系统统计、文件操作、网络服务等多项功能。PyScada对服务器硬件要求不高，可灵活适用于各类工业环境。

SCADA系统的核心功能包括自动数据采集、智能分析、高效存储以及实时推送。这些功能使得它在电力、冶金、石油化工等多个领域发挥着重要作用。作为开源项目，PyScada赋予用户自由定制和修改源代码的权利，从而满足不同的工业需求。

尽管PyScada已相当完善，但仍有一些功能仍在开发中，如BACNet、OPC-UA和MeterBus等。详细的安装指南和项目文档可在其官方网站查阅。在云计算日益普及的今天，SCADA系统正不断演变，以适应新的信息技术和工业需求，特别是在数据处理能力、系统灵活性和可扩展性方面。

二、安装

1、安装说明

ubuntu版本为24.04.2 LTS，系统干净，如果以前玩过pyscada 需要删除

数据库使用mysql8，redis6 ， Gunicorn as WSGI HTTP Server and nginx as HTTP Server.

开发工具用vscode 直接远程连接测试服务器开发，

参考：https://blog.csdn.net/jiangkp/article/details/141328574?spm=1011.2415.3001.5331

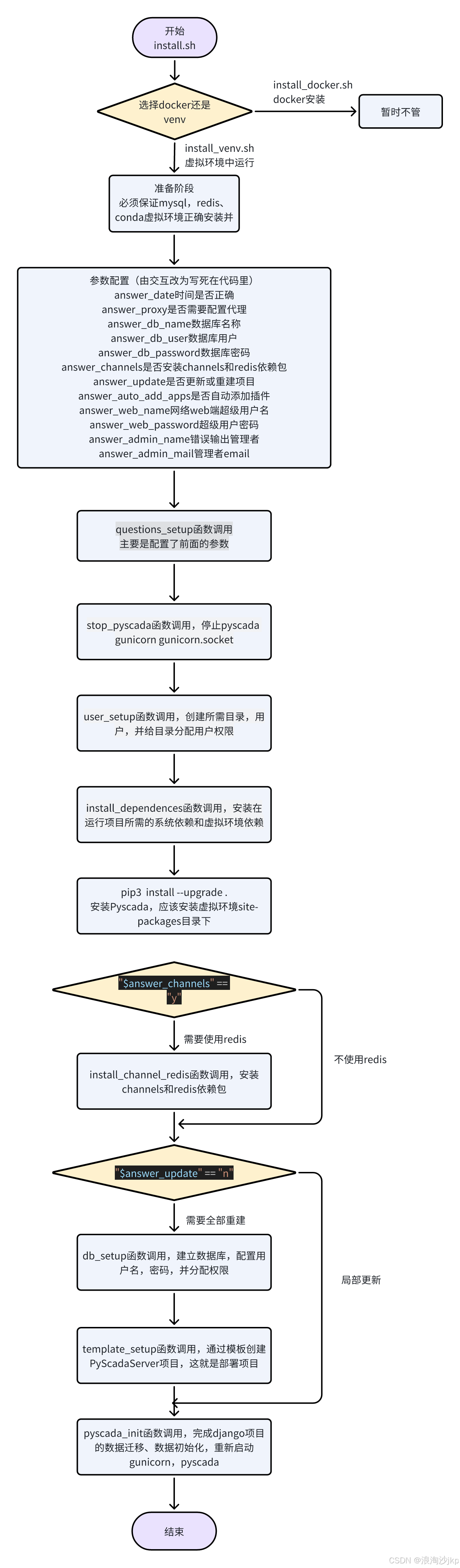

2、脚本选择

安装脚本选择，这个在执行install.sh时可以选择，我们选择system而不是docker，未来生产部署可以选择docker

根据脚本内容会调用install_system.sh，由于安装过程中发生了很多问题，所以我们做了一些更改，不过大致是差不多的

3、下载Pyscada源码

#确认安装了git
sudo apt install git
sudo mkdir -p /home/work
sudo chown  -R t400:t400 /home/work
cd /home/work
sudo git clone https://github.com/pyscada/PyScada.git
cd PyScada

4、打包PyScada

# 打包一般用不上
t400@t400:/home/work/PyScada$ python3 -V
Python 3.12.3

# 安装必要的包
sudo apt update
sudo apt upgrade
sudo apt install python3-venv

sudo python3 -m venv /home/work/PyScada/.venv

# 激活虚拟环境
source /home/work/PyScada/.venv/bin/activate

(.venv) t400@t400:/home/work/PyScada$ python -V
Python 3.12.3

# 安装打包工具
python -m pip install --upgrade pip setuptools wheel

# 打包命令
python setup.py sdist bdist_wheel

# 退出虚拟环境
(.venv) t400@t400:/home/work/PyScada$ deactivate
t400@t400:/home/work/PyScada$

5、安装mysql和redis

我们用docker和docker-compose安装mysql8，和redis6.2.7

参考

https://blog.csdn.net/jiangkp/article/details/145995259

6、安装Miniconda

由于服务器自带python版本不一样，比方ubuntu20 就是3.8 ubuntu 22好像还是3.8，ubuntu24 是3.12

所以我们安装了conda，保证python 版本一致

sudo apt update && sudo apt upgrade -y
wget https://repo.anaconda.com/miniconda/Miniconda3-latest-Linux-x86_64.sh
chmod +x Miniconda3-latest-Linux-x86_64.sh
./Miniconda3-latest-Linux-x86_64.sh

#安装过程交互
按回车查看许可协议，按 q 退出阅读。
输入 yes 同意协议。
设置安装路径（默认：/home/用户名/miniconda3，直接回车使用默认路径）。
提示是否初始化时，输入 yes（这会自动将conda添加到环境变量）

#激活与验证
source ~/.bashrc
conda --version  # 应显示版本号（如 `conda 24.5.0`）
conda list       # 查看已安装的包
# 配置国内源
conda config --add channels https://mirrors.tuna.tsinghua.edu.cn/anaconda/pkgs/main/
conda config --add channels https://mirrors.tuna.tsinghua.edu.cn/anaconda/pkgs/free/
conda config --set show_channel_urls yes
#安装虚拟环境
conda create -n myenv python=3.12  # 创建名为myenv的环境
conda activate myenv             # 激活环境
conda deactivate                 # 退出环境
conda env list                   # 列出所有环境

 7、install.sh说明

该文件就是选择venv安装还是docker安装，我们选择venv

#!/bin/bash

# check if the script is run from script directory
SOURCE=${BASH_SOURCE[0]}
while [ -L "$SOURCE" ]; do # resolve $SOURCE until the file is no longer a symlink
  DIR=$( cd -P "$( dirname "$SOURCE" )" >/dev/null 2>&1 && pwd )
  SOURCE=$(readlink "$SOURCE")
  [[ $SOURCE != /* ]] && SOURCE=$DIR/$SOURCE # if $SOURCE was a relative symlink, we need to resolve it relative to the path where the symlink file was located
done
DIR=$( cd -P "$( dirname "$SOURCE" )" >/dev/null 2>&1 && pwd )
# 以上从第4行到10行的代码作用就是获取本脚本存储位置的绝对路径，在前面加了这么多代码，
# 可以完美解决别名、链接、source、bash -c 等导致的问题

#判断上面得到的路径与当前目录是否一致，要保持一致
if [[ "$DIR" != "$PWD" ]]; then
  echo "You must run this script from $DIR"
  exit 1
fi

# Make sure only root can run our script
# 确保root运行
if [[ $EUID -ne 0 ]]; then
  echo "This script must be run as root" 1>&2
  exit 1
fi

# Choose the config method (venv or docker)
# 下面所有代码就完成一个任务，输入1 就是调用 install_venv.sh
# 输入2 调用install_docker.sh
answer_config=""
echo "choose your installation"

while [[ "$answer_config" == "" ]]; do

read -p "1: venv, 2: docker : " answer_config
  case $answer_config in
    "1")
    #remove logs file if exist (to avoid appending)
    if [ -f logs_install.txt ]; then
      rm logs_install.txt
    fi

      #execute the install_venv.sh script and output error in logs file
      source install_venv.sh 2>&1 | tee -a logs_install.txt 1>&2 | { while IFS= read -r line; do echo "$line"; done; }
      ;;
    "2")
    #remove logs file if exist (to avoid appending)
    if [ -f logs_docker.txt ]; then
      rm logs_docker.txt
    fi
      source install_docker.sh 2>&1 | tee -a logs_docker.txt 1>&2  | { while IFS= read -r line; do echo "$line"; done; }
      ;;
    *)
      echo "choose a valid configuration"
      answer_config=""
      ;;
  esac
  #statements
done

8、install_venv.sh说明以及修改

该文档包括了不少东西，我们在下面源码中注释

说明：

1、数据库我们不用mariadb，而是用mysql8 已经安装

2、redis6也已经安装

3、一些配置常量，有交互输入变为直接写死，主要是为了调试方便，也是为了保证输入的一致性

4、python 版本是3.12，保证conda activate myenv激活myenv

5、django 版本为5.1，老版本的Pyscada是4.2

#!/bin/bash

# todo : add inputs for django admin name, password

# check if the script is run from script directory
SOURCE=${BASH_SOURCE[0]}
while [ -L "$SOURCE" ]; do # resolve $SOURCE until the file is no longer a symlink
  DIR=$( cd -P "$( dirname "$SOURCE" )" >/dev/null 2>&1 && pwd )
  SOURCE=$(readlink "$SOURCE")
  [[ $SOURCE != /* ]] && SOURCE=$DIR/$SOURCE # if $SOURCE was a relative symlink, we need to resolve it relative to the path where the symlink file was located
done
DIR=$( cd -P "$( dirname "$SOURCE" )" >/dev/null 2>&1 && pwd )

if [[ "$DIR" != "$PWD" ]]; then
  echo "You must run this script from $DIR"
  exit 1
fi

# Make sure only root can run our script
if [[ $EUID -ne 0 ]]; then
  echo "This script must be run as root"
  exit 1
fi

#安装部署路径，服务器部署后台项目就在这里
INSTALL_ROOT=/var/www/pyscada
# log存放位置
log_file_dir="/var/log/pyscada/"
# 后面会建立一个django服务项目，放在这里，服务项目的名字也为PyScadaServer
SERVER_ROOT=$INSTALL_ROOT/PyScadaServer
# pyscada 存放文件的目录，包括虚拟环境
pyscada_home=/home/pyscada
# 安装虚拟环境路径
pyscada_venv=$pyscada_home/.venv

# VAR 变量，以前是交互，现在直接在这里修改，因为容易输错，所以写死
 # ubuntu设置时区
#  sudo cp /usr/share/zoneinfo/Asia/Shanghai /etc/localtime
 # 时间是否正确，主要是时区，如果设置为n，会退出，所以这里必须是y，所以必须先检查系统时间是否正常
answer_date="y"
# 代理配置，我们没有用这个
answer_proxy="n"
# 没有用到，这个已经在install.sh里选了
# answer_config=""
# 数据库的名字，默认是PyScada_db
answer_db_name="PyScada_db"
 # 数据库用户，会创建，默认PyScada-user，不是root，用户自己建立，并分配权限
answer_db_user="PyScada-user"
#数据库密码，用户设置的对应answer_db_user的密码
answer_db_password="PyScada-user-password"
#是否安装redis和channels，本来原始代码是在这里安装redis，但是因为redis还是要测试的，或者说也有可能会用外部的redis
# 所以我们这里redis的安装在运行这个脚本之前就安装好了，这里只是安装依赖包，注意和settings.py有所关联。
answer_channels="y"
# 是否全新安装还是更新安装
# 如果为n就是全新安装，为y就是更新一下项目
# 全新安装：
# 1、会重新要求输入这里这些常量，由于我们已经写死了，所以这个功能就没有了，我们就在这里改
# 2、会创建数据库，用户名或者密码，但是如果数据库名称没有变化那么改数据库存在，我们是没有删除后再建立数据库的，
#     就是说数据库还是第一次建立的数据库，这样数据库不会丢失，如果你想全部重建，改个数据库名称就行了
# 3、用户名密码是可以重新设置的，设置有效
# 4、我们知道PyScadaServer项目是一个用来部署的项目，如果这些和settings.py相关的配置变化了，PyScadaServer项目
#      是不会更新的，就算重建也不会更新，试过了，所以我们在重建时会全部删除掉PyScadaServer项目源码，然后再重建
# 5、如果需要更改配置文件，比方说配置email服务器，在这个脚本里没有设置项，那么就需要在模板文件
#     /home/work/PyScada/tests/project_template/project_name/settings.py-tpl 里修改，然后再重建PyScadaServer项目
#     这样就要重新运行install.sh
# 6、三遍提醒不要在PyScadaServer项目里修改代码，很危险，所以我们要修改模板，然后用模板重建，模板在./tests/project_template
# 7、数据库和redis必须安装并测试好，要不然安装项目会报错，在运行install.sh是后面会建立数据表，如果redis不用，可以不装
#   但是answer_channels需要配置为n，我们这里是把redis安装与依赖包安装分开，而在settings.py判断是否需要redis，就是根据是否安装了
#   channels来判断的，if util.find_spec('channels') is not None: 这条语句就是来查询channels的信息
answer_update="n"

# 为True就是自动安装，False就是手动安装
# 所谓自动安装就是你通过pip install或uninstall安装和卸载了插件，那么你在重新运行项目时，在加载settings.py里的配置时，
# 会通过【importlib.metadata.distributions()函数用于获取当前环境中所有已安装的Python包及其元数据信息】重新判断是否安装
# 哪些插件，具体代码在settings.py里
# 手动安装就是你你通过pip install或uninstall安装和卸载了插件，在settings.py不会自动判断你是否安装了插件，这时候需要你把安装的插件
# 添加在settings.py里，在下面数组里添加，
# INSTALLED_APPS = [
#   .......
#    'pyscada',
#    'pyscada.core',
#    'pyscada.hmi',
#    'pyscada.export',
#   #在这里添加或删除
#]

#其实这个就是如果你通过pip install或uninstall安装和卸载了插件，那么你重新运行pyscada ，gunicorn，否则需要自己到settings里去添加
answer_auto_add_apps="True"
# 错误输出到用户名，在settings.py中使用，需要配置邮件服务器才有效
answer_admin_name="jkp258"
# 错误输出到email
answer_admin_mail="jkp258@qq.com"
#这里是创建超级用户名
answer_web_name="superadmin"
# web interface admin password，这里是超级用户对应的密码
answer_web_password="123456"

echo -e "\nPyScada python packages will be installed in the virtual environment $pyscada_venv"

function debug(){
  message=$1
  echo ""
  echo $message 1>&2
  echo ""
}

# called in questions_setup
# 用正则表达式判断代理是否正确
function regex_proxy(){
  echo "regex_proxy" 1>&2
  regex='^(https?|ftp)://[0-9a-zA-Z.-]+:[0-9]+$';
  while true; do
    # read -p "Use proxy? [http://proxy:port or n]: " answer_proxy
    if [[ $answer_proxy == "n" || $answer_proxy =~ $regex ]]; then
      break
    else
      echo "Choose a valid proxy"
    fi
  done
  echo "regex_proxy end" 1>&2
}
# pip3 的代理，不用就相当于 pip3
function pip3_proxy(){
  if [[ "$answer_proxy" == "n" ]]; then
    pip3 $*
  else
    echo "pip3 using" $answer_proxy "for" $* > /dev/tty
    pip3 --proxy=$answer_proxy $*
  fi
}
# 安装有关
function pip3_proxy_not_rust(){
  if [[ "$answer_proxy" == "n" ]]; then
    CRYPTOGRAPHY_DONT_BUILD_RUST=1 pip3 install cryptography==3.4.6 --no-cache-dir
    pip3 $*
  else
    echo "pip3 using" $answer_proxy "for" $* > /dev/tty
    CRYPTOGRAPHY_DONT_BUILD_RUST=1 pip3 --proxy=$answer_proxy install cryptography==3.4.6 --no-cache-dir
    pip3 --proxy=$answer_proxy $*
  fi
}
# 不用代理，就是apt
function apt_proxy(){
  if [[ "$answer_proxy" == "n" ]]; then
    apt-get $*
  else
    echo "apt using" $answer_proxy "for" $* > /dev/tty
    export http_proxy=$answer_proxy
    apt-get $*
    unset http_proxy
  fi
}
# 正则判断email是否合规
# called in questions_clean_inst_setup
function regex_mail(){
  debug "regex_mail"

  regex='^[a-zA-Z0-9._%+-]+@[a-zA-Z0-9.-]+\.[a-zA-Z]{2,}$';
  while true; do
    # read -p "admin mail ? " answer_admin_mail
    if [[ $answer_admin_mail =~ $regex ]]; then
      break
    else
      echo "Choose a valid mail"
    fi
  done

  debug "regex_mail end"
}
# called in questions_clean_inst_setup
function admin_name_setup(){
  debug "admin_name_setup"

  while true; do
    # read -p "admin name ? " answer_admin_name
    if [[ "$answer_admin_name" == "" ]]; then
      echo "Choose a valid name"
    else
      break
    fi
  done

  debug "admin_name_setup end"
}

# called in questions_setup
function questions_clean_install_setup(){
  debug "questions_clean_install_setup"

#数据库名称密码用户名
  #read -p "DB name ? [PyScada_db]: " answer_db_name
  #read -p "DB user ? [PyScada-user]: " answer_db_user
  #read -sp "DB password ? [PyScada-user-password]: " answer_db_password
  #echo ""
  #  名称，就是后台管理系统的登录名 answer_admin_name，我们就叫noknow，就是现在忘了是哪里用了
  #admin_name_setup
  # email 就是noknow@qq.com
  regex_mail
  project_admins=$(echo "('${answer_admin_name}', '${answer_admin_mail}' )")
  echo $project_admins
  echo $answer_db_name

  #定义的超级用户，后面有用到
  #read -p "web interface admin name [pyscada]: " answer_web_name
  #read -p "web interface admin password [password]: " answer_web_password

  if [[ "$answer_db_name" == "" ]]; then
    answer_db_name="PyScada_db"
  fi
  if [[ "$answer_db_user" == "" ]]; then
    answer_db_user="PyScada-user"
  fi
  if [[ "$answer_db_password" == "" ]]; then
    answer_db_password="PyScada-user-password"
  fi

  if [[ "$answer_web_name" == "" ]]; then
    answer_web_name="pyscada"
  fi
  if [[ "$answer_web_password" == "" ]]; then
    answer_web_password="password"
  fi

  while true; do
    #read -p "Auto load pyscada plugins installed ? If False, you need to edit the settings.py file manually to load a plugin. [True/False]: " answer_auto_add_apps
    if [[ "$answer_auto_add_apps" == "True" ]]; then
      echo 'You need to restart pyscada and gunicorn after (un)installing any pyscada plugin.'
      break;
    elif [[ "$answer_auto_add_apps" == "False" ]]; then
      echo 'You need manually add a plugin to the django project settings and restart pyscada and gunicorn after (un)installing any pyscada plugin.'
      break;
    else
      echo "Please answer True or False."
    fi
  done

  debug "questions_clean_install_setup end"
}

# called in the core of the script
function questions_setup(){
  debug "questions_setup"

  # Date verification
  #时间是否正确，主要是时区
  echo 'date :'
  echo $(date)
  # read -p "Is the date and time correct ? [y/n]: " answer_date
  if [[ "$answer_date" != "y" ]]; then
    echo "please set the date correctly or enter 'y'"
    exit 1
  fi

  # Proxy setup
  regex_proxy

  # Channels and redis
  #read -p "Install channels and redis to speed up inter pyscada process communications ? [y/n]: " answer_channels

  # Clean installation or not
  # 这里是全新安装，就是更新
  while true; do
    #read -p "Update only : if 'y' it will not create DB, superuser, copy services, settings and urls... On a fresh install you should answer 'n' ? [y/n]: " answer_update
    if [[ "$answer_update" == "y" ]]; then
      break
    elif [[ "$answer_update" == "n" ]]; then
      break
    else
      echo "Please answer y or n."
    fi
  done

  if [[ "$answer_update" == "n" ]]; then
    questions_clean_install_setup
  fi

  debug "questions_setup end"
}

# called in the core of the script
# 安装依赖，有系统的，有虚拟环境的
function install_dependences(){
  debug "install_dependences"

  apt_proxy install -y python3-pip
  echo 'Some python3 packages installed:'
  # Install prerequisites
  # 这里去掉   mariadb-server,把libhdf5-103去掉

  DEB_TO_INSTALL="
    libatlas-base-dev
    libffi-dev
    libhdf5-dev
    libjpeg-dev
    libmariadb-dev
    libopenjp2-7
    nginx
    python3-dev
    python3-mysqldb
    python3-pip
    python3-venv
    zlib1g-dev
    pkg-config
  "
  apt_proxy install -y $DEB_TO_INSTALL

  # 删除virtual environment
  sudo rm -rf $pyscada_venv
  # Create virtual environment
  sudo -u pyscada python3 -m venv $pyscada_venv
  # activate
  source $pyscada_venv/bin/activate

  PIP_TO_INSTALL="
    cffi
    Cython
    docutils
    gunicorn
    lxml
    mysqlclient
    numpy
  "
  pip3_proxy install --upgrade $PIP_TO_INSTALL

  debug "install_dependences end"
}

# called in pyscada_init
function web_setup(){
  debug "web_setup"

  (
    cd $SERVER_ROOT
    # 创建了超级用户
  sudo -u pyscada -E env PATH=${PATH} python3 manage.py shell << EOF
try:
  from django.contrib.auth import get_user_model
  from django.db.utils import IntegrityError
  User = get_user_model()
  User.objects.create_superuser('$answer_web_name',
                                'team@pyscada.org',
                                '$answer_web_password')
except IntegrityError:
  print('User pyscada already exist')
EOF
  )
  # 前面已经安装了Nginx，这里做了配置，包括ssl，并且设置开机启动
  # Nginx
  cp extras/nginx_sample.conf /etc/nginx/sites-available/pyscada.conf
  ln -sf ../sites-available/pyscada.conf /etc/nginx/sites-enabled/
  rm -f /etc/nginx/sites-enabled/default
  mkdir -p /etc/nginx/ssl
  # the certificate will be valid for 5 Years,
  openssl req -x509 -nodes -days 1780 -newkey rsa:2048 -keyout /etc/nginx/ssl/pyscada_server.key -out /etc/nginx/ssl/pyscada_server.crt -subj '/CN=www.mydom.com/O=My Company Name LTD./C=US'
  systemctl enable nginx.service # enable autostart on boot
  systemctl restart nginx

  #配置了两个服务gunicorn和pyscada两个服务
  # Gunicorn and PyScada as systemd units
  cp extras/service/systemd/{gunicorn.{socket,service},pyscada_daemon.service} /etc/systemd/system
  # Rename PyScada service file
  mv /etc/systemd/system/pyscada_daemon.service /etc/systemd/system/pyscada.service

  # Fix if gunicorn installed in /usr/bin and not /usr/local/bin -> create symbolic link
  if [[ $(which gunicorn) != /usr/local/bin/gunicorn ]] && [[ ! -f /usr/local/bin/gunicorn ]] && [[ -f /usr/bin/gunicorn ]]; then
      echo "Creating symcolic link to gunicorn" ;
      ln -s /usr/bin/gunicorn /usr/local/bin/gunicorn;
  fi

  debug "web_setup end"
}

# called in the core of the script
#安装redis，redis不用装，但是依耐包还是要装的，注释掉apt_proxy -y install redis-server
function install_channel_redis(){
  debug "install_channel_redis"

  #apt_proxy -y install redis-server
  if grep -R "Raspberry Pi 3"  "/proc/device-tree/model" ; then
    echo "Don't install Rust for RPI3"
    pip3_proxy_not_rust install --upgrade channels channels-redis asgiref
  else
    pip3_proxy install --upgrade cryptography==3.4.6 channels channels-redis asgiref
  fi

  debug "install_channel_redis end"
}

# called in the core of the script
function pyscada_init(){
  debug "pyscada_init"

  (
      cd $SERVER_ROOT
      # Migration and static files，数据迁移
      sudo -u pyscada -E env PATH=${PATH} python3 manage.py migrate
      #收集静态数据，staic目录下
      sudo -u pyscada -E env PATH=${PATH} python3 manage.py collectstatic --noinput
      #收集静态数据，staic目录下
      # Load fixtures with default configuration for chart lin colors and units
      sudo -u pyscada -E env PATH=${PATH} python3 manage.py loaddata color
      sudo -u pyscada -E env PATH=${PATH} python3 manage.py loaddata units

      # Initialize the background service system of pyscada，后台服务
      sudo -u pyscada -E env PATH=${PATH} python3 manage.py pyscada_daemon init
  )

  if [[ "$answer_update" == "n" ]]; then
    web_setup
  fi

  # enable the services for autostart
  systemctl enable gunicorn
  systemctl restart gunicorn
  systemctl enable pyscada
  systemctl restart pyscada
  sleep 1
  systemctl --quiet is-active pyscada
  if [ $? != 0 ] ; then
      echo "Can't start pyscada systemd service." > /dev/stderr
      exit 1
  fi

  if [[ "$answer_update" == "n" ]]; then
    echo "PyScada installed"
    echo "Connect to http://127.0.0.1 using :"
    echo "username : $answer_web_name"
    echo "password : $answer_web_password"
  else
    echo "PyScada updated"
  fi

  debug "pyscada_init end"
}

# called in the core of the script
# 创建数据库，已经为改数据库创建用户及权限，这里不是安装数据库，我们用docker-compose单独装了
function db_setup(){
  debug "db_setup"
  # CREATE DATABASE IF NOT EXISTS testtest CHARACTER SET utf8;
  # Create DB
  sudo docker exec -i mysql8 mysql -u root -p123456 << EOF
    CREATE DATABASE IF NOT EXISTS ${answer_db_name} CHARACTER SET utf8mb4;
    CREATE USER '${answer_db_user}'@'%' IDENTIFIED BY '${answer_db_password}';
    GRANT ALL PRIVILEGES ON ${answer_db_name}.* TO '${answer_db_user}'@'%';
    FLUSH PRIVILEGES;
EOF

  debug "db_setup end"
}

#called in the core of the script
# 利用模板创建PyScadaServer，部署运行就是靠这个，Pyscada只是他其中的一个，就当是插件
function template_setup(){
  debug "template_setup"

  # add db informations to django template
  rm -r ./tests/project_template_tmp/
  cp -r ./tests/project_template ./tests/project_template_tmp/
  chmod a+w ./tests/project_template_tmp/project_name/settings.py-tpl
  sudo -u pyscada -E env PATH=${PATH} python3 << EOF
import django
from django.conf import settings
from django.template.loader import render_to_string

settings.configure(
    TEMPLATES=[{
        'BACKEND': 'django.template.backends.django.DjangoTemplates',
        'DIRS': ['./'],  # script dir
  'OPTIONS': {'string_if_invalid': '{{ %s }}'}, # prevents the other template tags to be replaced by ''
    }]
)

django.setup()
from django.template import Template, Context
with open("./tests/project_template_tmp/project_name/settings.py-tpl", "r+") as f:
  template = Template(f.read())
  context = Context({
                "db_name": "${answer_db_name}",
                "db_user": "${answer_db_user}",
                "db_password": "${answer_db_password}",
                "project_root": "${INSTALL_ROOT}",
                "pyscada_home": "${pyscada_home}",
                "log_file_dir": "${log_file_dir}",
                "project_admins": "${project_admins}",
                "auto_add_apps": "${answer_auto_add_apps}",
                "additional_apps": "",
                "additional_settings": "",
                })
  f.seek(0)
  f.write(template.render(context))
  f.truncate()
EOF
  # 先删除，不然修改了，也不变啊
  sudo -u pyscada rm -rf $SERVER_ROOT
  sudo -u pyscada mkdir -p $SERVER_ROOT
  sudo -u pyscada -E env PATH=${PATH} django-admin startproject PyScadaServer $SERVER_ROOT --template ./tests/project_template_tmp
  rm -rf ./tests/project_template_tmp

  debug "template_setup end"
}

# called in the core of the script
# 用户有关的目录创建，给予权限等等
function user_setup(){
  debug "user_setup"

  # Create pyscada user
  echo "Creating system user pyscada..."
  useradd -r pyscada
  mkdir -p $pyscada_home
  chown -R pyscada:pyscada $pyscada_home
  mkdir -p $INSTALL_ROOT
  chown -R pyscada:pyscada $INSTALL_ROOT
  mkdir -p $pyscada_home/measurement_data_dumps
  chown -R pyscada:pyscada $pyscada_home/measurement_data_dumps

  mkdir ${log_file_dir}
  chown pyscada:pyscada ${log_file_dir}
  touch ${log_file_dir}pyscada_{daemon,debug}.log
  chown pyscada:pyscada ${log_file_dir}pyscada_{daemon,debug}.log

  # Add rights for usb, i2c and serial
  adduser www-data pyscada
  adduser pyscada dialout

  debug "user_setup end"
}

# stop pyscada and show some python3 packages installed
function stop_pyscada(){
  debug "stop_pyscada"

  echo "Stopping PyScada"
  systemctl stop pyscada gunicorn gunicorn.socket
  sleep 1 # Give systemd time to shutdown
  systemctl --quiet is-active pyscada
  if [ $? == 0 ] ; then
    echo "Can't stop pyscada systemd service. Aborting."
    exit 1
  fi
  echo "PyScada stopped"

  debug "stop_pyscada end"
}

# install process: * means depending on the user answer
: <<'END'
- questions_setup
  - regex_proxy
  - *questions_clean_install_setup
    - admin_name_setup
    - regex_mail
- stop_pyscada
- user_setup
- install_dependences
  - apt_proxy
  - pip3_proxy
- pyscada install
- *install_channel_redis
  - apt_proxy
  - pip3_proxy_not_rust
  - pip3_proxy
- *db_setup
- *template_setup
- pyscada_init
  - *web_setup
END

questions_setup

stop_pyscada

user_setup

install_dependences
# 我们在这里安装前面打包的PyScada-0.8.3-py3-none-any.whl
# pip3_proxy install /home/work/PyScada/dist/pyscada-0.8.3-py3-none-any.whl
# Install PyScada
pip3_proxy install --upgrade .

if [[ "$answer_channels" == "y" ]]; then
  install_channel_redis
fi

if [[ "$answer_update" == "n" ]]; then
  db_setup
  template_setup
fi

pyscada_init

# fix owner in /home/pyscada
chown -R pyscada:pyscada $pyscada_home

 9、模板settings.py-tpl修改

DATABASES = {
    'default': {
        'ENGINE':   'django.db.backends.mysql',
        'NAME':     '{{ db_name }}',
        'USER':     '{{ db_user }}',
        'PASSWORD': '{{ db_password }}',
        #修改部分
        'HOST': '127.0.0.1',
        'PORT': '3306',
        'OPTIONS': {
            'init_command': "SET sql_mode='STRICT_TRANS_TABLES'",
        }
    }
}


# LANGUAGE_CODE = 'en-us'
LANGUAGE_CODE = "zh-hans"

#TIME_ZONE = 'UTC'
TIME_ZONE = "Asia/Shanghai"

#添加修改，配置QQ邮件服务器，可以用喔，不过是我的，请改过来
# email settings
EMAIL_BACKEND = 'django.core.mail.backends.smtp.EmailBackend'
DEFAULT_FROM_EMAIL = 'jkp258@qq.com'  #设置发件人，改为管理员的邮件
EMAIL_HOST = 'smtp.qq.com'  # QQ邮箱SMTP服务器(邮箱需要开通SMTP服务)
EMAIL_PORT = 587  # QQ邮箱SMTP服务端口
EMAIL_HOST_USER = 'jkp258@qq.com'  #改为改为管理员的邮件
EMAIL_USE_TLS = True
EMAIL_USE_SSL = False
EMAIL_HOST_PASSWORD = '*********************'  # 授权码  不是你的QQ密码,qq邮箱里可以去申请
EMAIL_PREFIX = 'A Message From PyScada'
# for admins and managers
SERVER_EMAIL=DEFAULT_FROM_EMAIL
EMAIL_SUBJECT_PREFIX=EMAIL_PREFIX
EMAIL_TIMEOUT=5

10、安装流程图

 11、安装

#确定conda activate myen
sudo ./install.sh

运行过程：

错误：

E: Package 'libhdf5-103' has no installation candidate

ERROR: Could not find a version that satisfies the requirement cffi (from versions: none)

ERROR: No matching distribution found for cffi

注释掉这个就可以了'libhdf5-103吧，有libhdf5-dev就行

安装结束：

PyScada installed

Connect to http://127.0.0.1 using :

username : superadmin

password : 123456

12、界面展示

我的服务器是192.168.1.14,初始界面

选择点击Admin进入另一个界面
