1、可变系数除法实现----利用除法的本质
`timescale 1ns / 1ps
//
// Company:
// Engineer:
//
// Create Date: 2025/04/15 13:45:39
// Design Name:
// Module Name: divide_1
// Project Name:
// Target Devices:
// Tool Versions:
// Description:
//
// Dependencies:
//
// Revision:
// Revision 0.01 - File Created
// Additional Comments:
//
//
module divide_1
(
// clk and rst_n
input wire sys_clk ,
input wire sys_rst_n ,
// dividend and divisor
input wire enIn ,
input wire [7:0] dividend ,
input wire [3:0] divisor ,
output wire busy ,
output wire enOut ,
output wire warning ,
output wire [7:0] quotient ,
output wire [3:0] remainder
);
localparam IDLE = 1'b0 ;
localparam S_CALC = 1'b1 ;
reg current_state ;
reg next_state ;
reg lockDivs ;
reg [7:0] DivA ;
reg [3:0] DivB ;
reg counting , ending ;
reg [7:0] counter ;
reg out_busy ;
reg out_enOut ;
reg out_warning ;
reg [7:0] out_quotient ;
reg [3:0] out_remainder ;
wire [7:0] extDivB = { 4'b0,DivB } ;
always@( posedge sys_clk )
begin
if( sys_rst_n == 1'b0 )
begin
current_state <= IDLE ;
DivA <= 8'b0 ;
DivB <= 4'b0 ;
counter <= 8'b0 ;
out_enOut <= 1'b0 ;
out_warning <= 1'b0 ;
out_quotient <= 8'b0 ;
out_remainder <= 4'd0 ;
end
else
begin
current_state <= next_state ;
// DivA DivB counter
if( lockDivs == 1'b1 )
begin
DivA <= dividend ;
DivB <= divisor ;
counter <= 8'b0 ;
end
else if( counting == 1'b1 )
begin
DivA <= DivA - extDivB ;
counter <= counter + 1'b1 ;
end
//out_enOut
out_enOut <= ending ;
// out_warning
if( ending == 1'b1 )
begin
if( DivB == 4'b0 )
begin
out_warning <= 1'b1 ;
end
else
begin
out_warning <= 1'b0 ;
end
// out_quotient
out_quotient <= counter ;
// our_remainder
out_remainder <= DivA[3:0] ;
end
end
end
always@( current_state , enIn , DivA , extDivB )
begin
out_busy <= 1'b0 ;
lockDivs <= 1'b0 ;
counting <= 1'b0 ;
ending <= 1'b0 ;
case( current_state )
IDLE :
begin
if( enIn == 1'b1 )
begin
lockDivs <= 1'b1 ;
next_state <= S_CALC ;
end
else
begin
next_state <= IDLE ;
end
end
S_CALC :
begin
out_busy <= 1'b1 ;
if( DivA < extDivB || extDivB == 8'b0 )
begin
ending <= 1'b1 ;
next_state <= IDLE ;
end
else
begin
counting <= 1'b1 ;
next_state <= S_CALC ;
end
end
default :
begin
next_state <= IDLE ;
end
endcase
end
assign busy = out_busy ;
assign enOut = out_enOut ;
assign warning = out_warning ;
assign quotient = out_quotient ;
assign remainder = out_remainder ;
endmodule

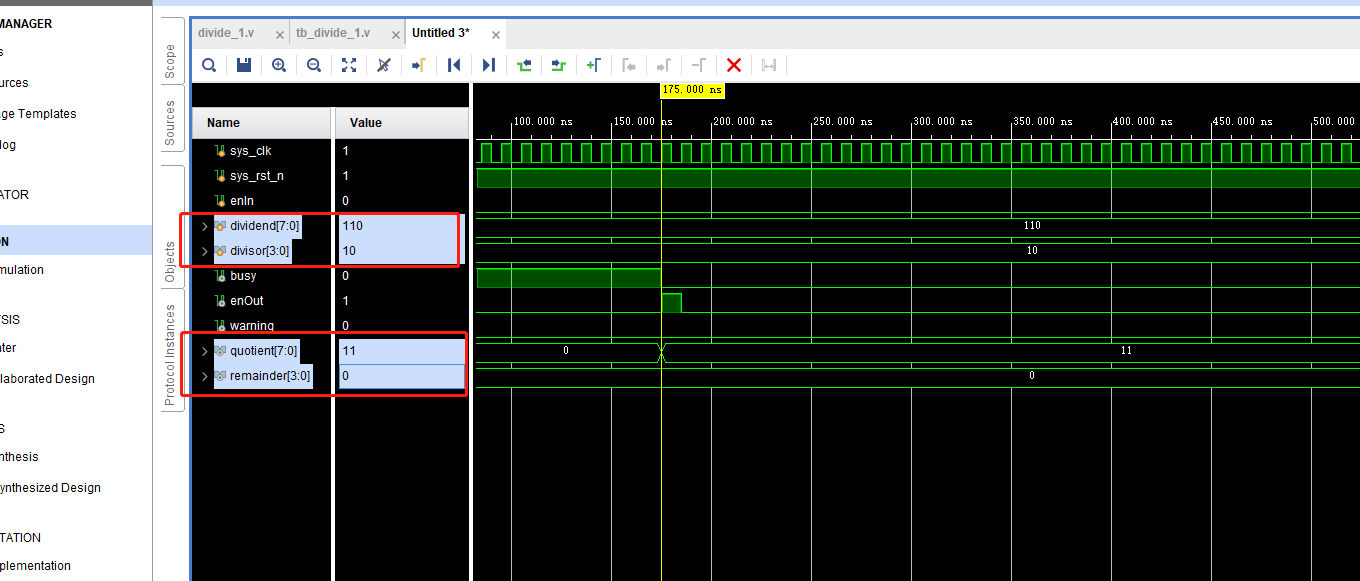

tb
`timescale 1ns / 1ps
//
// Company:
// Engineer:
//
// Create Date: 2025/04/15 15:24:32
// Design Name:
// Module Name: tb_divide_1
// Project Name:
// Target Devices:
// Tool Versions:
// Description:
//
// Dependencies:
//
// Revision:
// Revision 0.01 - File Created
// Additional Comments:
//
//
module tb_divide_1(
);
reg sys_clk ;
reg sys_rst_n ;
reg enIn ;
reg [7:0] dividend ;
reg [3:0] divisor ;
wire busy ;
wire enOut ;
wire warning ;
wire [7:0] quotient ;
wire [3:0] remainder ;
initial
begin
sys_clk = 1'b0 ;
sys_rst_n = 1'b0 ;
enIn = 1'b0 ;
dividend = 8'b0 ;
divisor = 4'b0 ;
#50
enIn = 1'b1 ;
dividend = 8'd110 ;
divisor = 4'd10 ;
sys_rst_n = 1'b1 ;
#20
enIn = 1'b0 ;
#200
$finish ;
end
always #5
begin
sys_clk = ~sys_clk ;
end
divide_1 divide_1_inst
(
.sys_clk (sys_clk),
.sys_rst_n (sys_rst_n),
.enIn (enIn),
.dividend (dividend),
.divisor (divisor),
.busy (busy),
.enOut (enOut),
.warning (warning),
.quotient (quotient),
.remainder (remainder)
);
endmodule
但是这种做法运算一次最多需要256的clk，所以需要减小消耗的实现
2、可变系数除法实现----利用除法的竖式求解
3、可变系数除法实现----利用乘法实现除法
