第 5 期（进阶版）：训练第一个 DDPM 模型（使用 CIFAR-10 数据集）

—— 用 DDPM 模型生成彩色图像，感受扩散魔法在 CIFAR-10 上的威力！

本期目标

• 将 MNIST 替换为 CIFAR-10；

• 模型结构适配 RGB 三通道输入；

• 保持原始扩散与采样流程；

• 增加图像可视化对比！

数据准备（CIFAR-10）

导入必要库

import torch
import torch.nn as nn
import torch.nn.functional as F
from torch.utils.data import DataLoader
import torchvision
import torchvision.transforms as transforms
import matplotlib.pyplot as plt
import numpy as np

加载 CIFAR-10 数据集

transform = transforms.Compose([
    transforms.ToTensor(),
    transforms.Lambda(lambda x: x * 2 - 1)  # [0,1] → [-1,1]
])

cifar10 = torchvision.datasets.CIFAR10(root='./data', train=True, download=True, transform=transform)
dataloader = DataLoader(cifar10, batch_size=128, shuffle=True)

更新扩散超参数

T = 300  # 扩散步数
beta_start = 1e-4
beta_end = 0.02
betas = torch.linspace(beta_start, beta_end, T)

alphas = 1. - betas
alphas_cumprod = torch.cumprod(alphas, dim=0)
sqrt_alphas_cumprod = torch.sqrt(alphas_cumprod)
sqrt_one_minus_alphas_cumprod = torch.sqrt(1. - alphas_cumprod)

正向扩散函数 q_sample

def q_sample(x_start, t, noise=None):
    if noise is None:
        noise = torch.randn_like(x_start)
    sqrt_alphas_cumprod_t = sqrt_alphas_cumprod[t].view(-1, 1, 1, 1).to(x_start.device)
    sqrt_one_minus_alphas_cumprod_t = sqrt_one_minus_alphas_cumprod[t].view(-1, 1, 1, 1).to(x_start.device)
    return sqrt_alphas_cumprod_t * x_start + sqrt_one_minus_alphas_cumprod_t * noise

定义模型（本次实验中的模型较为简单只是为了说明整个流程）

class CIFARDenoiseModel(nn.Module):
    def __init__(self):
        super().__init__()
        self.net = nn.Sequential(
            nn.Conv2d(3, 64, 3, padding=1),
            nn.ReLU(),
            nn.Conv2d(64, 64, 3, padding=1),
            nn.ReLU(),
            nn.Conv2d(64, 3, 3, padding=1)
        )

    def forward(self, x, t):
        return self.net(x)

定义损失函数

def get_loss(model, x_0, t):
    noise = torch.randn_like(x_0)
    x_t = q_sample(x_0, t, noise)
    predicted_noise = model(x_t, t)
    return F.mse_loss(predicted_noise, noise)

训练模型

device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
model = CIFARDenoiseModel().to(device)
optimizer = torch.optim.Adam(model.parameters(), lr=1e-3)

for epoch in range(10):
    for step, (x, _) in enumerate(dataloader):
        x = x.to(device)
        t = torch.randint(0, T, (x.size(0),), device=device).long()
        loss = get_loss(model, x, t)

        optimizer.zero_grad()
        loss.backward()
        optimizer.step()

        if step % 100 == 0:

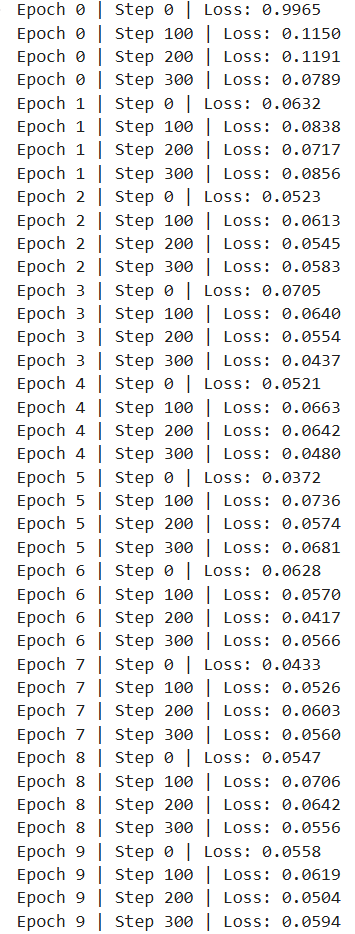

            print(f"Epoch {epoch} | Step {step} | Loss: {loss.item():.4f}")

图像生成：逆扩散采样

@torch.no_grad()
def p_sample(model, x_t, t):
    beta_t = betas[t].to(x_t.device)
    sqrt_one_minus_alpha_cumprod_t = sqrt_one_minus_alphas_cumprod[t].to(x_t.device)
    sqrt_recip_alpha_t = (1. / torch.sqrt(alphas[t])).to(x_t.device)

    predicted_noise = model(x_t, torch.tensor([t], device=x_t.device))
    model_mean = sqrt_recip_alpha_t * (x_t - beta_t / sqrt_one_minus_alpha_cumprod_t * predicted_noise)

    if t == 0:
        return model_mean
    noise = torch.randn_like(x_t)
    return model_mean + torch.sqrt(beta_t) * noise


@torch.no_grad()
def sample_images(model, n_samples=16):
    model.eval()
    x_t = torch.randn(n_samples, 3, 32, 32).to(device)
    for t in reversed(range(T)):
        x_t = p_sample(model, x_t, t)
    return x_t

可视化生成图像

def show_images(images):
    images = (images + 1) / 2  # 反归一化回 [0,1]
    grid = torchvision.utils.make_grid(images, nrow=4)
    plt.figure(figsize=(6, 6))
    plt.imshow(grid.permute(1, 2, 0).cpu().numpy())
    plt.axis("off")
    plt.show()

samples = sample_images(model)
show_images(samples)

期总结

第 6 期预告

🚀 用 UNet 替代 CNN 训练 CIFAR-10 扩散模型！我们将构建更强大的网络，进一步提高图像质量！
