序：需要三台安装好docker环境的虚拟机
在Centos7中，在线/离线安装Docker：在Centos7中，在线/离线安装Docker_centos7在线安装docker-CSDN博客
目录
（2）将master节点上的配置文件传输给node1和node2主机节点
6、三个节点主机上均需正确安装docker，并配置镜像加速器
7、修改docker.service配置文件，开启2375tcp端口，并重启docker服务
（2）在master节点上创建子网--"nginx_net"，用于使不同的主机上的容器网络互通
（3）在master节点上创建一个副本数为1的nginx容器
（1）模拟节点宕机状态，可先将node1节点上的docker服务关闭
（2）再master主机节点上查看swarm集群中节点的状态
（1）在三台主机节点上创建数据卷，数据卷名为"volume-test"
（2）在三台主机节点上的/var/lib/docker/volume/volume-test/_data目录中，新增index.html文件
1、配置集群环境
| 主机名 | IP地址 | 角色节点 |
| master | 192.32.20.10/24 | 管理节点 |
| node1 | 192.32.20.20/24 | 工作节点 |
| node2 | 192.32.20.30/24 | 工作节点 |
2、修改各节点的主机名
[root@localhost ~]# hostnamectl set-hostname master
[root@localhost ~]# bash
[root@master ~]#[root@localhost ~]# hostnamectl set-hostname node1
[root@localhost ~]# bash
[root@node1 ~]#[root@localhost ~]# hostnamectl set-hostname node2
[root@localhost ~]# bash
[root@node2 ~]#3、配置IP地址主机名映射表
（1）先将master节点上配置
[root@master ~]# vi /etc/hosts
[root@master ~]# cat /etc/hosts
127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
::1 localhost localhost.localdomain localhost6 localhost6.localdomain6
192.32.20.10 master
192.32.20.20 node1
192.32.20.30 node2（2）将master节点上的配置文件传输给node1和node2主机节点
[root@master ~]# scp /etc/hosts root@node1:/etc/hosts
The authenticity of host 'node1 (192.32.20.20)' can't be established.
ECDSA key fingerprint is SHA256:bsaRja0KRPLlvRorcIv/oxGF6ER1tE6qzNHYKc8oL8U.
ECDSA key fingerprint is MD5:ba:a3:51:96:6d:1e:3d:a3:88:77:01:04:25:b9:fb:73.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added 'node1,192.32.20.20' (ECDSA) to the list of known hosts.
root@node1's password:
hosts 100% 216 244.4KB/s 00:00
[root@master ~]# scp /etc/hosts root@node2:/etc/hosts
The authenticity of host 'node2 (192.32.20.30)' can't be established.
ECDSA key fingerprint is SHA256:bsaRja0KRPLlvRorcIv/oxGF6ER1tE6qzNHYKc8oL8U.
ECDSA key fingerprint is MD5:ba:a3:51:96:6d:1e:3d:a3:88:77:01:04:25:b9:fb:73.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added 'node2,192.32.20.30' (ECDSA) to the list of known hosts.
root@node2's password:
hosts 4、测试各主机之间的连通性
- master节点
[root@master ~]# ping node1 -c4
PING node1 (192.32.20.20) 56(84) bytes of data.
64 bytes from node1 (192.32.20.20): icmp_seq=1 ttl=64 time=0.420 ms
64 bytes from node1 (192.32.20.20): icmp_seq=2 ttl=64 time=0.555 ms
64 bytes from node1 (192.32.20.20): icmp_seq=3 ttl=64 time=5.54 ms
64 bytes from node1 (192.32.20.20): icmp_seq=4 ttl=64 time=2.68 ms
--- node1 ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 3022ms
rtt min/avg/max/mdev = 0.420/2.302/5.546/2.077 ms
[root@master ~]# ping node2 -c4
PING node2 (192.32.20.30) 56(84) bytes of data.
64 bytes from node2 (192.32.20.30): icmp_seq=1 ttl=64 time=0.599 ms
64 bytes from node2 (192.32.20.30): icmp_seq=2 ttl=64 time=0.545 ms
64 bytes from node2 (192.32.20.30): icmp_seq=3 ttl=64 time=1.04 ms
64 bytes from node2 (192.32.20.30): icmp_seq=4 ttl=64 time=1.15 ms
--- node2 ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 3003ms
rtt min/avg/max/mdev = 0.545/0.835/1.155/0.267 ms- node1节点
[root@node1 ~]# ping master -c4
PING master (192.32.20.10) 56(84) bytes of data.
64 bytes from master (192.32.20.10): icmp_seq=1 ttl=64 time=0.395 ms
64 bytes from master (192.32.20.10): icmp_seq=2 ttl=64 time=0.723 ms
64 bytes from master (192.32.20.10): icmp_seq=3 ttl=64 time=0.282 ms
64 bytes from master (192.32.20.10): icmp_seq=4 ttl=64 time=0.757 ms
--- master ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 3000ms
rtt min/avg/max/mdev = 0.282/0.539/0.757/0.205 ms
[root@node1 ~]# ping node2 -c4
PING node2 (192.32.20.30) 56(84) bytes of data.
64 bytes from node2 (192.32.20.30): icmp_seq=1 ttl=64 time=1.22 ms
64 bytes from node2 (192.32.20.30): icmp_seq=2 ttl=64 time=0.269 ms
64 bytes from node2 (192.32.20.30): icmp_seq=3 ttl=64 time=0.829 ms
64 bytes from node2 (192.32.20.30): icmp_seq=4 ttl=64 time=0.520 ms
--- node2 ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 3003ms
rtt min/avg/max/mdev = 0.269/0.710/1.224/0.357 ms
- node2节点
[root@node2 ~]# ping master -c4
PING master (192.32.20.10) 56(84) bytes of data.
64 bytes from master (192.32.20.10): icmp_seq=1 ttl=64 time=0.562 ms
64 bytes from master (192.32.20.10): icmp_seq=2 ttl=64 time=0.292 ms
64 bytes from master (192.32.20.10): icmp_seq=3 ttl=64 time=0.393 ms
64 bytes from master (192.32.20.10): icmp_seq=4 ttl=64 time=1.02 ms
--- master ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 3000ms
rtt min/avg/max/mdev = 0.292/0.567/1.021/0.279 ms
[root@node2 ~]# ping node1 -c4
PING node1 (192.32.20.20) 56(84) bytes of data.
64 bytes from node1 (192.32.20.20): icmp_seq=1 ttl=64 time=0.673 ms
64 bytes from node1 (192.32.20.20): icmp_seq=2 ttl=64 time=0.878 ms
64 bytes from node1 (192.32.20.20): icmp_seq=3 ttl=64 time=0.333 ms
64 bytes from node1 (192.32.20.20): icmp_seq=4 ttl=64 time=2.37 ms
--- node1 ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 3003ms
rtt min/avg/max/mdev = 0.333/1.065/2.379/0.783 ms5、测试与外网的连通性，并进行时钟同步（三台主机均需操作）
## 此处仅展示master节点的操作
[root@master ~]# ping aliyun.com -c4
PING aliyun.com (106.11.172.9) 56(84) bytes of data.
64 bytes from 106.11.172.9 (106.11.172.9): icmp_seq=1 ttl=128 time=25.2 ms
64 bytes from 106.11.172.9 (106.11.172.9): icmp_seq=2 ttl=128 time=23.7 ms
64 bytes from 106.11.172.9 (106.11.172.9): icmp_seq=3 ttl=128 time=22.3 ms
64 bytes from 106.11.172.9 (106.11.172.9): icmp_seq=4 ttl=128 time=24.8 ms
--- aliyun.com ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 3005ms
rtt min/avg/max/mdev = 22.380/24.045/25.245/1.119 ms
（时钟同步服务器可自行配置，此处选择阿里云的时钟服务器）
[root@master ~]# ntpdate ntp1.aliyun.com
2 Jun 04:52:42 ntpdate[2949]: adjust time server 118.31.3.89 offset -0.149026 sec6、三个节点主机上均需正确安装docker，并配置镜像加速器
## 此处仅展示master节点的操作
## 查看docker的版本信息
[root@master ~]# docker version
Client: Docker Engine - Community
Version: 26.1.4
API version: 1.45
Go version: go1.21.11
Git commit: 5650f9b
Built: Wed Jun 5 11:32:04 2024
OS/Arch: linux/amd64
Context: default
Server: Docker Engine - Community
Engine:
Version: 26.1.4
API version: 1.45 (minimum version 1.24)
Go version: go1.21.11
Git commit: de5c9cf
Built: Wed Jun 5 11:31:02 2024
OS/Arch: linux/amd64
Experimental: false
containerd:
Version: 1.6.33
GitCommit: d2d58213f83a351ca8f528a95fbd145f5654e957
runc:
Version: 1.1.12
GitCommit: v1.1.12-0-g51d5e94
docker-init:
Version: 0.19.0
GitCommit: de40ad0
## 查看镜像加速器的配置信息
[root@master ~]# cat /etc/docker/daemon.json
{
"registry-mirrors":["https://docker.1panel.live"]
}
7、修改docker.service配置文件，开启2375tcp端口，并重启docker服务
## 修改配置文件中"[service]"内容的参数
[root@master ~]# vi /lib/systemd/system/docker.service
ExecStart=/usr/bin/dockerd -H tcp://0.0.0.0:2375 -H unix:///var/run/docker.sock --containerd=/run/containerd/containerd.sock
## 将docker配置文件传输给node1和node2主机节点
[root@master ~]# scp /lib/systemd/system/docker.service root@node1:/lib/systemd/system/docker.service root@node1's password:
docker.service 100% 2006 962.0KB/s 00:00
[root@master ~]# scp /lib/systemd/system/docker.service root@node2:/lib/systemd/system/docker.service
root@node2's password:
docker.service 100% 2006 1.4MB/s 00:00
## 重启docker服务
[root@master ~]# systemctl daemon-reload
[root@master ~]# systemctl restart docker
[root@master ~]# systemctl status docker
● docker.service - Docker Application Container Engine
Loaded: loaded (/usr/lib/systemd/system/docker.service; enabled; vendor preset: disabled)
Active: active (running) since Mon 2025-06-02 05:02:53 EDT; 6s ago
Docs: https://docs.docker.com
Main PID: 3116 (dockerd)
Tasks: 8
Memory: 34.6M
CGroup: /system.slice/docker.service
└─3116 /usr/bin/dockerd -H tcp://0.0.0.0:2375 -H unix:///var/run/docker.sock --cont...## 检测各节点中2375端口是否开放
[root@master ~]# netstat -ntlp | grep 2375
tcp6 0 0 :::2375 :::* LISTEN 3116/dockerd
[root@node1 ~]# netstat -ntlp | grep 2375
tcp6 0 0 :::2375 :::* LISTEN 3700/dockerd
[root@node2 ~]# netstat -ntlp | grep 2375
tcp6 0 0 :::2375 :::* LISTEN 3661/dockerd 8、在各主机节点上拉取swarm镜像
## 此处仅展示master节点的操作
[root@master ~]# docker pull swarm
Using default tag: latest
latest: Pulling from library/swarm
38e5683d7755: Pull complete
083aff163606: Pull complete
2064f1a73c6b: Pull complete
Digest: sha256:2de8883e2933840ed7ee7360ea1eed314bf8aeac37c0692b9ca651630fde3b7f
Status: Downloaded newer image for swarm:latest
docker.io/library/swarm:latest
[root@master ~]# docker images
REPOSITORY TAG IMAGE ID CREATED SIZE
swarm latest 1a5eb59a410f 4 years ago 12.7MB9、在master节点上创建集群
## 在master节点上初始化集群，获得唯一的token，作为集群的唯一标识
[root@master ~]# docker swarm init --advertise-addr 192.32.20.10
Swarm initialized: current node (jfntj7166fm5etglkvqte74p5) is now a manager.
To add a worker to this swarm, run the following command:
docker swarm join --token SWMTKN-1-497b4igdcpt085my2by9yztfo7p3bq8jk3bgfohy6us5xh8s6j-7rzyhyyj219t29foozk6c7fi7 192.32.20.10:2377
To add a manager to this swarm, run 'docker swarm join-token manager' and follow the instructions.
10、将node1和node2加入集群
## 在上一步可知道集群的唯一token值为"--token SWMTKN-1-497b4igdcpt085my2by9yztfo7p3bq8jk3bgfohy6us5xh8s6j-7rzyhyyj219t29foozk6c7fi7 192.32.20.10:2377"
[root@node1 ~]# docker swarm join --token SWMTKN-1-497b4igdcpt085my2by9yztfo7p3bq8jk3bgfohy6us5xh8s6j-7rzyhyyj219t29foozk6c7fi7 192.32.20.10:2377
This node joined a swarm as a worker.
[root@node2 ~]# docker swarm join --token SWMTKN-1-497b4igdcpt085my2by9yztfo7p3bq8jk3bgfohy6us5xh8s6j-7rzyhyyj219t29foozk6c7fi7 192.32.20.10:2377
This node joined a swarm as a worker.
11、验证集群，在master节点中查看集群中各节点的信息
[root@master ~]# docker node ls
ID HOSTNAME STATUS AVAILABILITY MANAGER STATUS ENGINE VERSION
jfntj7166fm5etglkvqte74p5 * master Ready Active Leader 26.1.4
zo37xed5971opkvdy1a86b7qn node1 Ready Active 26.1.4
inrtx3wi6wzycmr9v18gk2064 node2 Ready Active 26.1.4
12、在swarm中部署服务，此处以部署nginx服务为例
（1）在各节点上拉取nginx镜像
## 此处仅展示master节点的操作
[root@master ~]# docker pull nginx
Using default tag: latest
latest: Pulling from library/nginx
61320b01ae5e: Pull complete
670a101d432b: Pull complete
405bd2df85b6: Pull complete
cc80efff8457: Pull complete
2b9310b2ee4b: Pull complete
6c4aa022e8e1: Pull complete
abddc69cb49d: Pull complete
Digest: sha256:fb39280b7b9eba5727c884a3c7810002e69e8f961cc373b89c92f14961d903a0
Status: Downloaded newer image for nginx:latest
docker.io/library/nginx:latest
[root@master ~]# docker images
REPOSITORY TAG IMAGE ID CREATED SIZE
nginx latest be69f2940aaf 6 weeks ago 192MB
swarm latest 1a5eb59a410f 4 years ago 12.7MB（2）在master节点上创建子网--"nginx_net"，用于使不同的主机上的容器网络互通
[root@master ~]# docker network create -d overlay nginx_net
bd6cwi4qvpnjwpx170c2aq2k0
[root@master ~]# docker network ls
NETWORK ID NAME DRIVER SCOPE
e02fef1cacd1 bridge bridge local
d4e8f7158806 docker_gwbridge bridge local
d70f62f8a958 host host local
y05cypqmfx11 ingress overlay swarm
bd6cwi4qvpnj nginx_net overlay swarm
de80db81b634 none null local（3）在master节点上创建一个副本数为1的nginx容器
[root@master ~]# docker service create --replicas 1 --network nginx_net --name my-test -p 9999:80 ngi
psk0lm34x9z7ivtefshfwzx44
overall progress: 1 out of 1 tasks
1/1: running [==================================================>]
verify: Service psk0lm34x9z7ivtefshfwzx44 converged
## 查看my-test容器信息，可以知道该容器运行在tj_node1节点上
[root@master ~]# docker service ps my-test
ID NAME IMAGE NODE DESIRED STATE CURRENT STATE ERROR PORTS
nyaejni07zdt my-test.1 nginx:latest node1 Running Running 4 minutes ago
## 查看my-test容器的服务信息
[root@master ~]# docker service inspect --pretty my-test
ID: psk0lm34x9z7ivtefshfwzx44
Name: my-test
Service Mode: Replicated
Replicas: 1
Placement:
UpdateConfig:
Parallelism: 1
On failure: pause
Monitoring Period: 5s
Max failure ratio: 0
Update order: stop-first
RollbackConfig:
Parallelism: 1
On failure: pause
Monitoring Period: 5s
Max failure ratio: 0
Rollback order: stop-first
ContainerSpec:
Image: nginx:latest@sha256:fb39280b7b9eba5727c884a3c7810002e69e8f961cc373b89c92f14961d903a0
Init: false
Resources:
Networks: nginx_net
Endpoint Mode: vip
Ports:
PublishedPort = 9999
Protocol = tcp
TargetPort = 80
PublishMode = ingress
（4）伸缩容器
## 先将my-test容器扩展到5个
[root@master ~]# docker service scale my-test=5
my-test scaled to 5
overall progress: 5 out of 5 tasks
1/5: running [==================================================>]
2/5: running [==================================================>]
3/5: running [==================================================>]
4/5: running [==================================================>]
5/5: running [==================================================>]
verify: Service my-test converged
[root@master ~]# docker service ps my-test
ID NAME IMAGE NODE DESIRED STATE CURRENT STATE ERROR PORTS
nyaejni07zdt my-test.1 nginx:latest node1 Running Running 5 minutes ago
rfvuw88zf912 my-test.2 nginx:latest master Running Running 19 seconds ago
t5mbd4prb40y my-test.3 nginx:latest node2 Running Running 18 seconds ago
y9s99m84p18y my-test.4 nginx:latest node2 Running Running 18 seconds ago
6clcwgwowkyk my-test.5 nginx:latest node1 Running Running 20 seconds ago
## 可再将my-test容器缩容到2个
[root@master ~]# docker service scale my-test=2
my-test scaled to 2
overall progress: 2 out of 2 tasks
1/2: running [==================================================>]
2/2: running [==================================================>]
verify: Service my-test converged
[root@master ~]# docker service ps my-test
ID NAME IMAGE NODE DESIRED STATE CURRENT STATE ERROR PORTS
nyaejni07zdt my-test.1 nginx:latest node1 Running Running 6 minutes ago
rfvuw88zf912 my-test.2 nginx:latest master Running Running 55 seconds ago13、节点宕机处理
若某个节点处出现了宕机情况，则节点会从Swarm集群中被移出，此时宕机节点上运行的容器会被调度到其他节点上，以满足制定数量的副本运行状态。
（1）模拟节点宕机状态，可先将node1节点上的docker服务关闭
[root@node1 ~]# systemctl stop docker
Warning: Stopping docker.service, but it can still be activated by:
docker.socket
[root@node1 ~]# systemctl status docker
● docker.service - Docker Application Container Engine
Loaded: loaded (/usr/lib/systemd/system/docker.service; enabled; vendor preset: disabled)
Active: inactive (dead) since Mon 2025-06-02 05:26:38 EDT; 6s ago
Docs: https://docs.docker.com
Process: 3661 ExecStart=/usr/bin/dockerd -H tcp://0.0.0.0:2375 -H unix:///var/run/docker.sock --containerd=/run/containerd/containerd.sock (code=exited, status=0/SUCCESS)
Main PID: 3661 (code=exited, status=0/SUCCESS)（2）再master主机节点上查看swarm集群中节点的状态
[root@master ~]# docker node ls
ID HOSTNAME STATUS AVAILABILITY MANAGER STATUS ENGINE VERSION
jfntj7166fm5etglkvqte74p5 * master Ready Active Leader 26.1.4
zo37xed5971opkvdy1a86b7qn node1 Down Active 26.1.4
inrtx3wi6wzycmr9v18gk2064 node2 Ready Active 26.1.4
## 此时可以看到，原本运行在node1上的容器“my-test.1”被调度到node2节点上
[root@master ~]# docker service ps my-test
ID NAME IMAGE NODE DESIRED STATE CURRENT STATE ERROR PORTS
na0tu98bpz9h my-test.1 nginx:latest node2 Running Running 28 seconds ago
nyaejni07zdt \_ my-test.1 nginx:latest node1 Shutdown Running 12 minutes ago
rfvuw88zf912 my-test.2 nginx:latest master Running Running 6 minutes ago ## 当node1节点重新启动docker服务后，node1节点原有的容器不会自动调度到node1节点上
[root@node1 ~]# systemctl restart docker
[root@node1 ~]# systemctl status docker
● docker.service - Docker Application Container Engine
Loaded: loaded (/usr/lib/systemd/system/docker.service; enabled; vendor preset: disabled)
Active: active (running) since Mon 2025-06-02 05:31:53 EDT; 13s ago
Docs: https://docs.docker.com
Main PID: 5003 (dockerd)
Tasks: 9
Memory: 35.2M
CGroup: /system.slice/docker.service
└─5003 /usr/bin/dockerd -H tcp://0.0.0.0:2375 -H unix:///var/run/docker.sock --contai...
[root@master ~]# docker service ps my-test
ID NAME IMAGE NODE DESIRED STATE CURRENT STATE ERROR PORTS
na0tu98bpz9h my-test.1 nginx:latest node2 Running Running 2 minutes ago
nyaejni07zdt \_ my-test.1 nginx:latest node1 Shutdown Shutdown 40 seconds ago
rfvuw88zf912 my-test.2 nginx:latest master Running Running 8 minutes ago
14、在swarm中使用数据卷
（1）在三台主机节点上创建数据卷，数据卷名为"volume-test"
## 此处仅展示master节点的操作
[root@master ~]# docker volume create --name volume-test
volume-test
[root@master ~]# docker volume ls
DRIVER VOLUME NAME
local volume-test
[root@master ~]# docker volume inspect volume-test
[
{
"CreatedAt": "2025-06-02T05:34:17-04:00",
"Driver": "local",
"Labels": null,
"Mountpoint": "/var/lib/docker/volumes/volume-test/_data",
"Name": "volume-test",
"Options": null,
"Scope": "local"
}
]（2）在三台主机节点上的/var/lib/docker/volume/volume-test/_data目录中，新增index.html文件
[root@master ~]# cd /var/lib/docker/volumes/volume-test/_data
[root@master _data]# echo "This is nginx-test in master" > index.html
[root@master _data]# cat index.html
This is nginx-test in master
[root@node1 ~]# cd /var/lib/docker/volumes/volume-test/_data
[root@node1 _data]# echo "This is nginx-test in node1" > index.html
[root@node1 _data]# cat index.html
This is nginx-test in node1
[root@node2 ~]# cd /var/lib/docker/volumes/volume-test/_data
[root@node2 _data]# echo "This is nginx-test in node2" > index.html
[root@node2 _data]# cat index.html
This is nginx-test in node2（3）在tj_master节点上创建衣服本为3的容器swarm-nginx，挂载volume-test到容器的/usr/share/nginx/html目录中，并映射端口
[root@master ~]# docker service create --replicas 3 --mount type=volume,src=volume-test,dst=/usr/share/nginx/html --name swarm-nginx -p 8001:80 nginx
2xbxqamfrvw45vbvz45irsc8h
overall progress: 3 out of 3 tasks
1/3: running [==================================================>]
2/3: running [==================================================>]
3/3: running [==================================================>]
verify: Service 2xbxqamfrvw45vbvz45irsc8h converged
[root@master ~]# docker service ps swarm-nginx
ID NAME IMAGE NODE DESIRED STATE CURRENT STATE ERROR PORTS
pk3x25l5qv4d swarm-nginx.1 nginx:latest master Running Running 31 seconds ago
pfpfte8sthoh swarm-nginx.2 nginx:latest node2 Running Running 31 seconds ago
bqjbhb5i44dh swarm-nginx.3 nginx:latest node1 Running Running 31 seconds ago
（4）验证效果
## 通过本地回环的方式访问
[root@master ~]# for i in {1..10};do curl node1:8001;done
This is nginx-test in master
This is nginx-test in node2
This is nginx-test in node1
This is nginx-test in master
This is nginx-test in node2
This is nginx-test in node1
This is nginx-test in master
This is nginx-test in node2
This is nginx-test in node1
This is nginx-test in master
[root@master ~]# for i in {1..10};do curl node2:8001;done
This is nginx-test in master
This is nginx-test in node2
This is nginx-test in node1
This is nginx-test in master
This is nginx-test in node2
This is nginx-test in node1
This is nginx-test in master
This is nginx-test in node2
This is nginx-test in node1
This is nginx-test in master

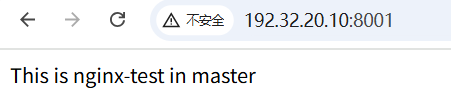

## 通过浏览器的方式访问
