SpringSecurity+vue通用权限系统

SpringSecurity+vue通用权限系统

采用主流的技术栈实现，Mysql数据库，SpringBoot2+Mybatis Plus后端，redis缓存，安全框架
SpringSecurity ，Vue3.2+Element Plus实现后台管理。基于JWT技术实现前后端分离。项目开发同时采
用MybatisX插件生成代码，提高开发效率。

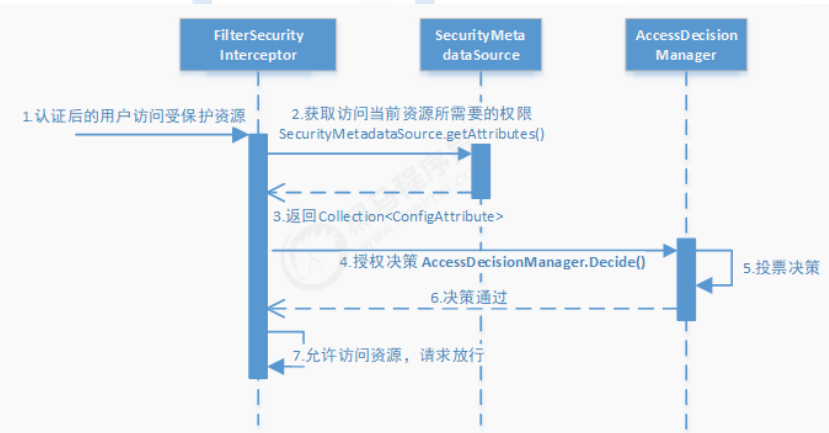

基于SpringSecurity实现了 登录验证鉴权功能，用户管理，角色管理，权限管理。

后端框架搭建

pom.xml初始化

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.3.2.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.java</groupId>
    <artifactId> RightManagement</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>RightManagement</name>
    <description>RightManagement-admin</description>
    <properties>
        <java.version>1.8</java.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>

        <!-- 连接池 -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
            <version>1.1.10</version>
        </dependency>
        <!-- mybatis-plus -->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
            <version>3.3.2</version>
        </dependency>
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
            <version>3.3.2</version>
        </dependency>

        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.40</version>
        </dependency>

        <!-- JWT -->
        <dependency>
            <groupId>com.auth0</groupId>
            <artifactId>java-jwt</artifactId>
            <version>3.2.0</version>
        </dependency>
        <dependency>
            <groupId>io.jsonwebtoken</groupId>
            <artifactId>jjwt</artifactId>
            <version>0.9.1</version>
        </dependency>

        <dependency>
            <groupId>commons-io</groupId>
            <artifactId>commons-io</artifactId>
            <version>2.5</version>
        </dependency>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>

        <!-- spring boot redis 缓存引入 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-redis</artifactId>
        </dependency>
        <!-- lettuce pool 缓存连接池 -->
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-pool2</artifactId>
        </dependency>

        <!-- hutool工具类-->
        <dependency>
            <groupId>cn.hutool</groupId>
            <artifactId>hutool-all</artifactId>
            <version>5.3.3</version>
        </dependency>



    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <version>2.3.2.RELEASE</version>
            </plugin>
        </plugins>
    </build>


</project>

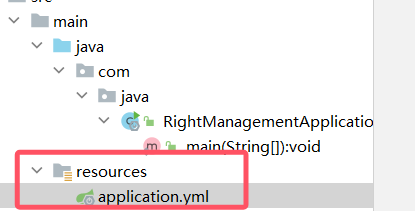

新建yml文件

server:
  port: 80
  servlet:
    context-path: /

spring:
  datasource:
    type: com.alibaba.druid.pool.DruidDataSource
    driver-class-name: com.mysql.cj.jdbc.Driver
    url: jdbc:mysql://localhost:3306/db_admin3?serverTimezone=Asia/Shanghai
    username: root
    password: 123456
  redis: # redis配置
    host: 127.0.0.1 # IP
    port: 6379  # 端口
    password:  # 密码
    connect-timeout: 10s  # 连接超时时间
    lettuce: # lettuce redis客户端配置
      pool: # 连接池配置
        max-active: 8  # 连接池最大连接数（使用负值表示没有限制） 默认 8
        max-wait: 200s  # 连接池最大阻塞等待时间（使用负值表示没有限制） 默认 -1
        max-idle: 8 # 连接池中的最大空闲连接 默认 8
        min-idle: 0 # 连接池中的最小空闲连接 默认 0


mybatis-plus:
  global-config:
    db-config:
      id-type: auto
  configuration:
    map-underscore-to-camel-case: true
    auto-mapping-behavior: full
    log-impl: org.apache.ibatis.logging.stdout.StdOutImpl
  mapper-locations: classpath:mapper/*.xml

新建数据库db_admin3

CREATE TABLE `sys_user` (
  `id` BIGINT(20) NOT NULL AUTO_INCREMENT COMMENT '用户ID',
  `username` VARCHAR(100) DEFAULT NULL COMMENT '用户名',
  `password` VARCHAR(100) DEFAULT NULL COMMENT '密码',
  `avatar` VARCHAR(255) DEFAULT 'default.jpg' COMMENT '用户头像',
  `email` VARCHAR(100) DEFAULT '' COMMENT '用户邮箱',
  `phonenumber` VARCHAR(11) DEFAULT '' COMMENT '手机号码',
  `login_date` DATETIME DEFAULT NULL COMMENT '最后登录时间',
  `status` CHAR(1) DEFAULT '0' COMMENT '帐号状态（0正常 1停用）',
  `create_time` DATETIME DEFAULT NULL COMMENT '创建时间',
  `update_time` DATETIME DEFAULT NULL COMMENT '更新时间',
  `remark` VARCHAR(500) DEFAULT NULL COMMENT '备注',
  PRIMARY KEY (`id`)
) ENGINE=INNODB AUTO_INCREMENT=31 DEFAULT CHARSET=utf8;

/*Data for the table `sys_user` */

INSERT  INTO `sys_user`(`id`,`username`,`password`,`avatar`,`email`,`phonenumber`,`login_date`,`status`,`create_time`,`update_time`,`remark`) VALUES (1,'java1234','$2a$10$Kib4zuVhTzg3I1CoqJfd0unuY9G9ysI7cfbhyT3fi7k7Z/4pr3bGW','20220727112556000000325.jpg','caofeng4017@126.com','18862857417','2022-08-29 22:10:52','0','2022-06-09 08:47:52','2022-06-22 08:47:54','备注'),(2,'common','$2a$10$tiArwm0GxChyEP5k0JGzsOuzyY15IKA.ZTl8S2aj3haYlKAfpwfl.','222.jpg','','','2022-08-22 21:34:39','0',NULL,NULL,NULL),(3,'test','$2a$10$tiArwm0GxChyEP5k0JGzsOuzyY15IKA.ZTl8S2aj3haYlKAfpwfl.','333.jpg','','','2022-07-24 17:36:07','0',NULL,NULL,NULL),(4,'1','$2a$10$lD0Fx7oMsFFmX9hVkmYy7eJteH8pBaXXro1X9DEMP5sbM.Z6Co55m','default.jpg','','',NULL,'1',NULL,NULL,NULL),(5,'2',NULL,'default.jpg','','',NULL,'1',NULL,NULL,NULL),(15,'fdsfs','$2a$10$AQVcp4hQ7REc5o7ztVnI7eX.sJdcYy3d1x2jm5CfrcCoMZMPacfpi','default.jpg','fdfa4@qq.com','18862851414','2022-08-02 02:22:45','1','2022-08-02 02:21:24','2022-08-01 18:23:16','fdfds4'),(28,'sdfss2','$2a$10$7aNJxwVmefI0XAk64vrzYuOqeeImYJUQnoBrtKP9pLTGTWO2CXQ/y','default.jpg','dfds3@qq.com','18862857413',NULL,'1','2022-08-07 00:42:46','2022-08-06 16:43:04','ddd33'),(29,'ccc','$2a$10$7cbWeVwDWO9Hh3qbJrvTHOn0E/DLYXxnIZpxZei0jY4ChfQbJuhi.','20220829080150000000341.jpg','3242@qq.com','18862584120','2022-08-29 19:52:27','0','2022-08-29 17:04:58',NULL,'xxx'),(30,'ccc666','$2a$10$Tmw5VCM/K2vb837AZDYHQOqE3gPiRZKevxLsh/ozndpTSjdwABqaK','20220829100454000000771.jpg','fdafds@qq.com','18865259845','2022-08-29 22:05:18','0','2022-08-29 22:00:39',NULL,'ccc');

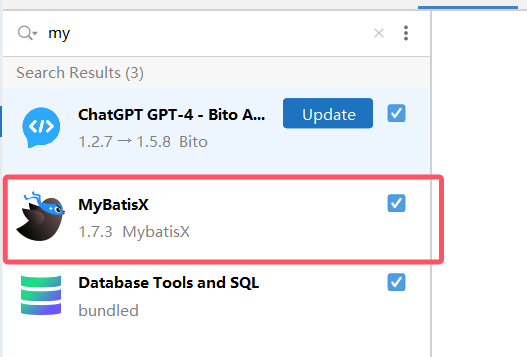

安装插件

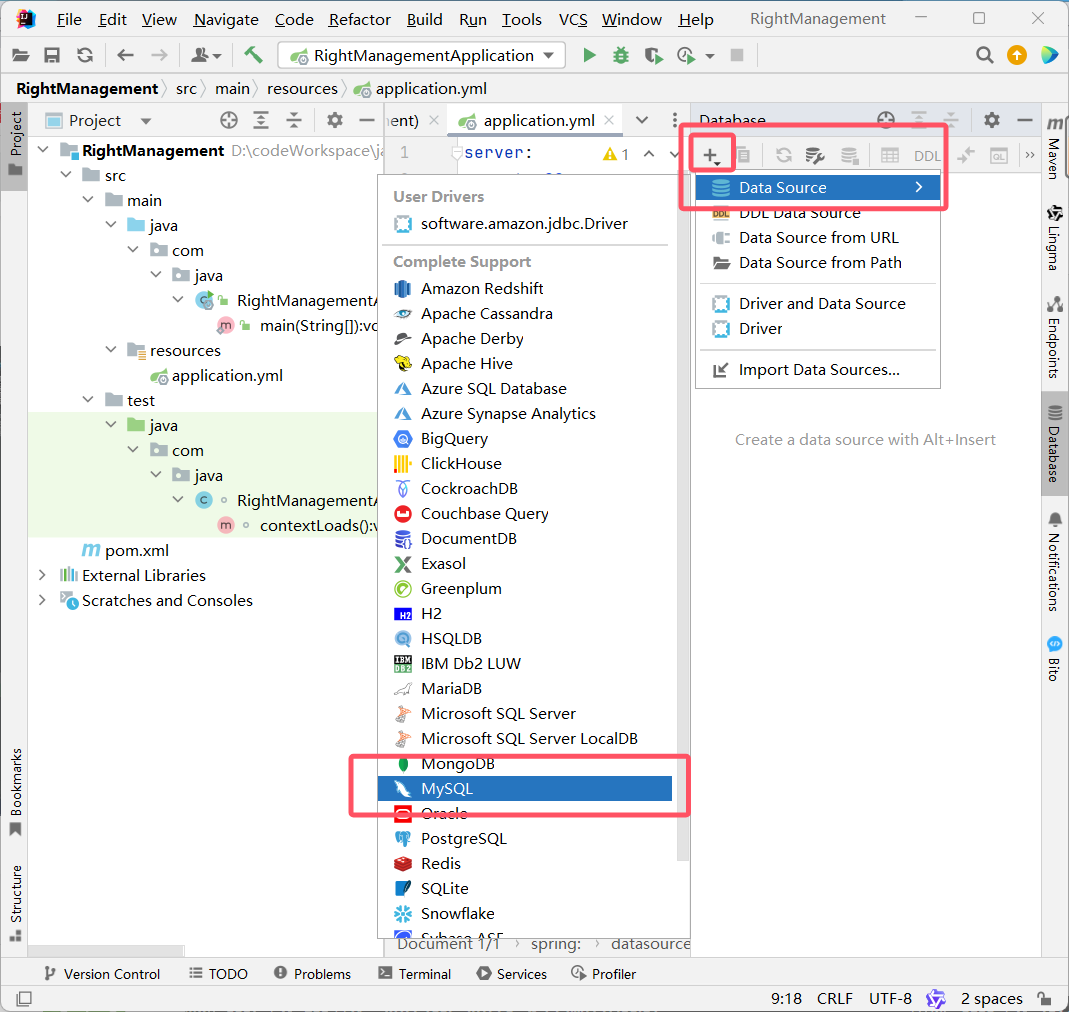

连接mysql

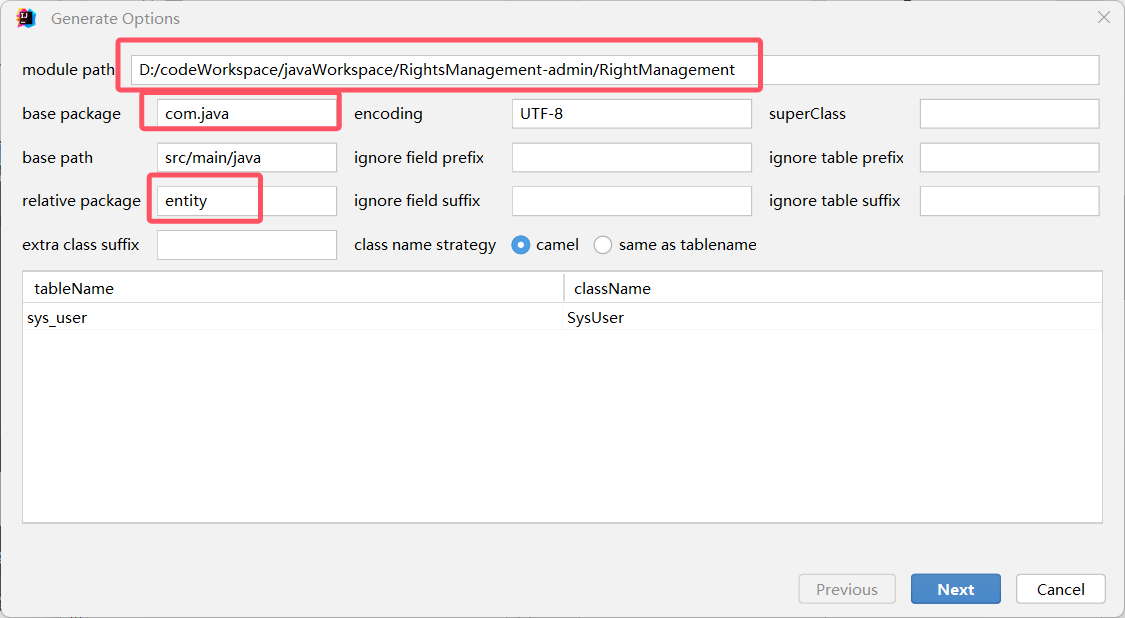

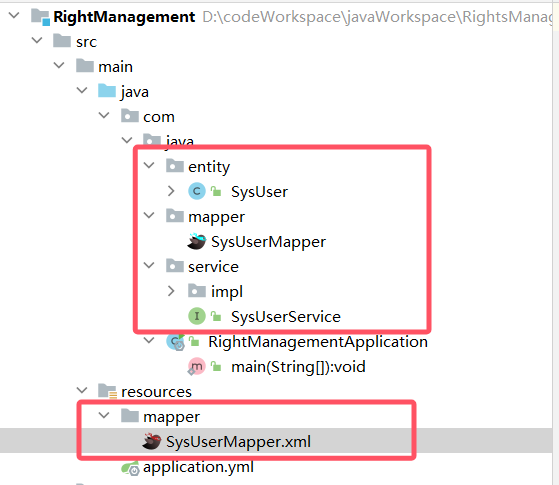

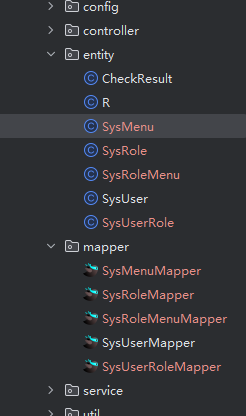

生成

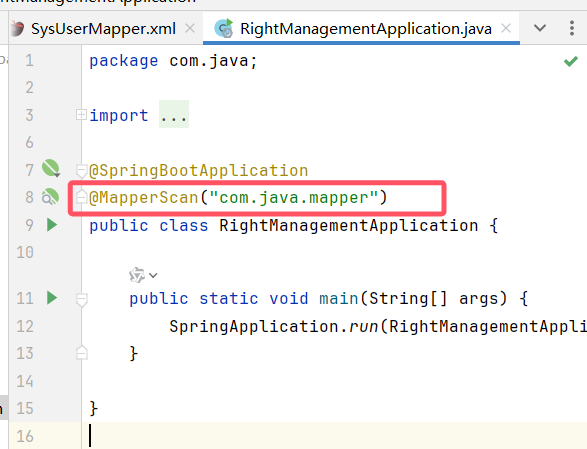

启动类增加MapperScan

添加封装类

package com.java.entity;

import java.util.HashMap;
import java.util.Map;

/**
 * 页面响应entity
 * @author java1234_小锋
 * @site www.java1234.com
 * @company Java知识分享网
 * @create 2019-08-13 上午 10:00
 */
public class R extends HashMap<String, Object> {

    private static final long serialVersionUID = 1L;

    public R() {
        put("code", 200);
    }

    public static R error() {
        return error(500, "未知异常，请联系管理员");
    }

    public static R error(String msg) {
        return error(500, msg);
    }

    public static R error(int code, String msg) {
        R r = new R();
        r.put("code", code);
        r.put("msg", msg);
        return r;
    }

    public static R ok(String msg) {
        R r = new R();
        r.put("msg", msg);
        return r;
    }

    public static R ok(Map<String, Object> map) {
        R r = new R();
        r.putAll(map);
        return r;
    }

    public static R ok() {
        return new R();
    }

    public R put(String key, Object value) {
        super.put(key, value);
        return this;
    }
}

新建testController

package com.java.controller;

import com.java.entity.R;
import com.java.entity.SysUser;
import com.java.service.SysUserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.HashMap;
import java.util.List;
import java.util.Map;

/**
 * @author: javaLiuwb
 * @date: 2025-05-04 17:21
 * @description:
 */
@RestController
@RequestMapping("/test")
public class TestController {

    @Autowired
    private SysUserService sysUserService;

    @RequestMapping("/user/list")
    public R userList(){
        Map<String,Object> resutlMap=new HashMap<>();
        List<SysUser> userList = sysUserService.list();
        resutlMap.put("userList",userList);
        return R.ok(resutlMap);
    }

}

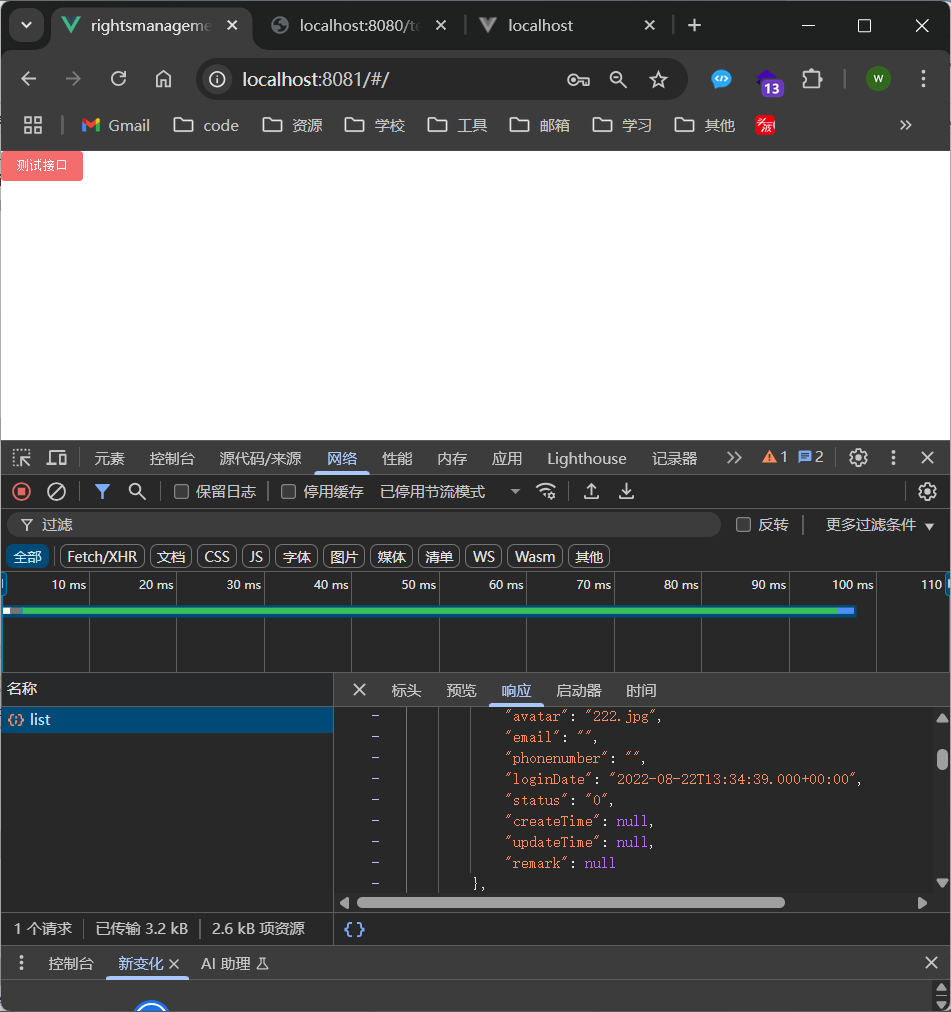

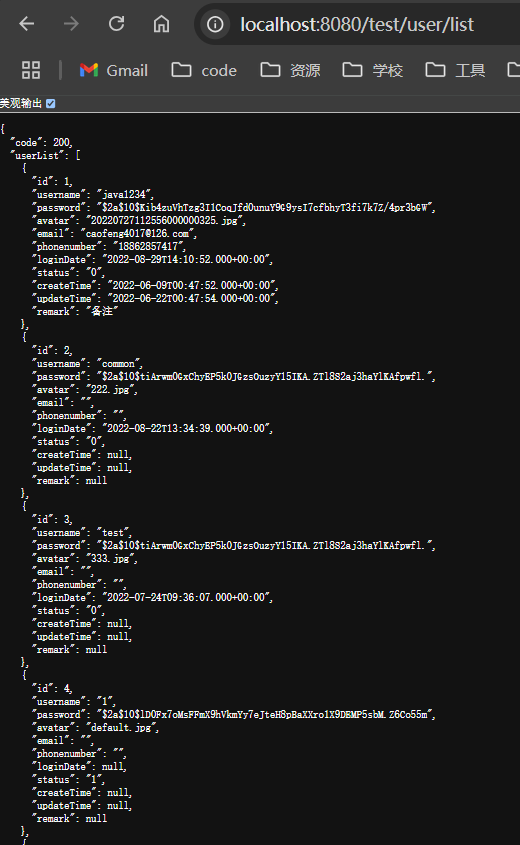

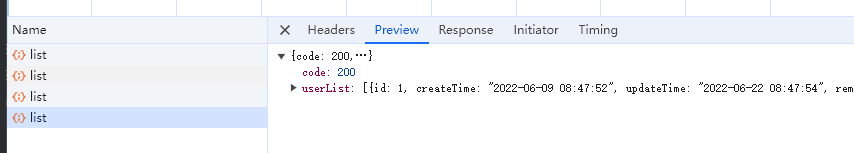

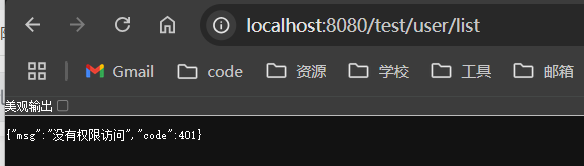

测试

前端架构搭建

用vue ui来搭建vue项目；
vue ui是一个可视化图形界面，方便你去创建、更新和管理vue项目，包括下载router，vuex，axios，
elementui等插件，配置好一些属性以及依赖关系，方便我们使用，我个人第一次接触它就感觉非常非
常非常智能和强大。

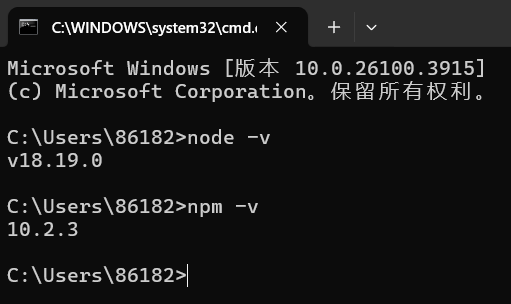

安装node

安装Vue Cli

vue-cli 是一个官方发布 vue.js 项目脚手架，使用 vue-cli 可以快速创建 vue 项目。
因为vue ui是在Vue CLI基础上封装的

npm install -g @vue/cli

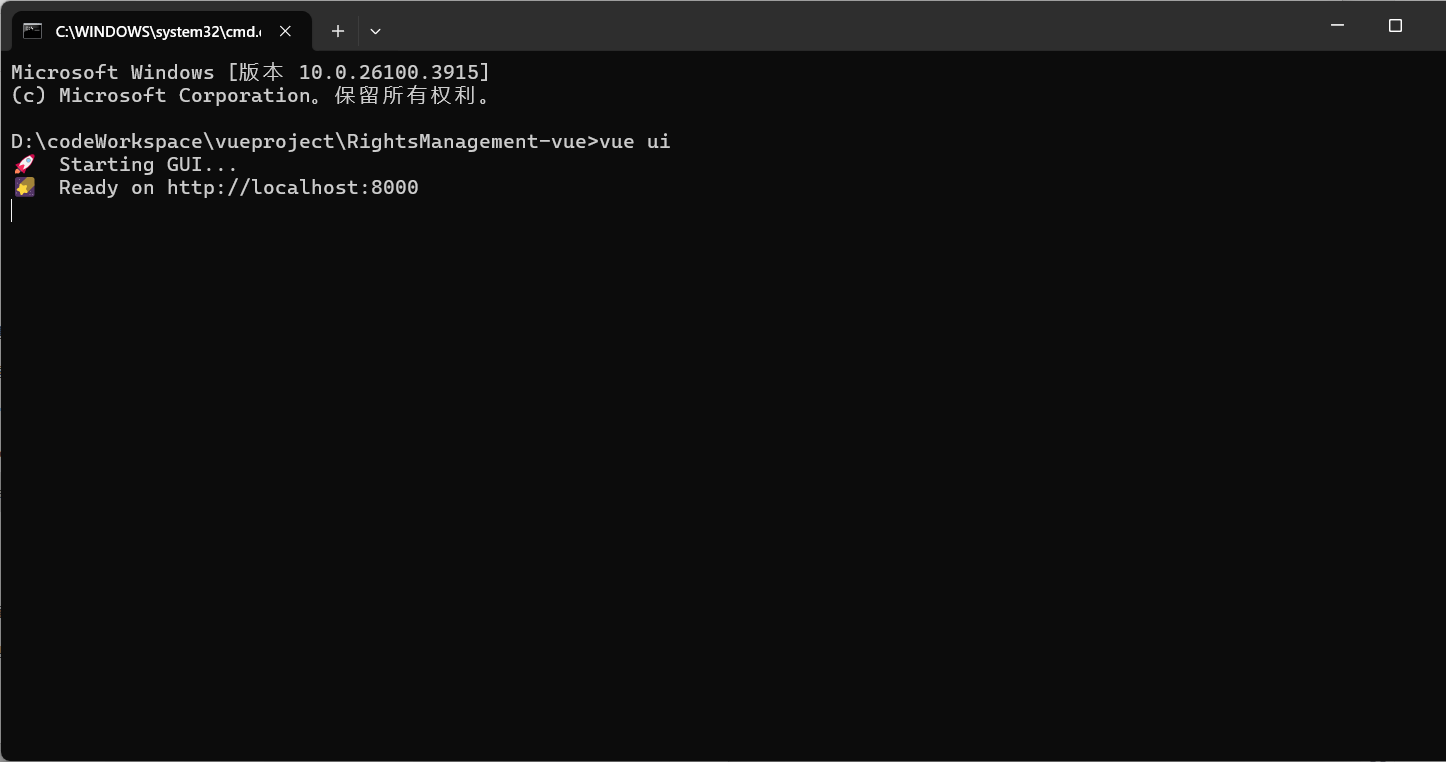

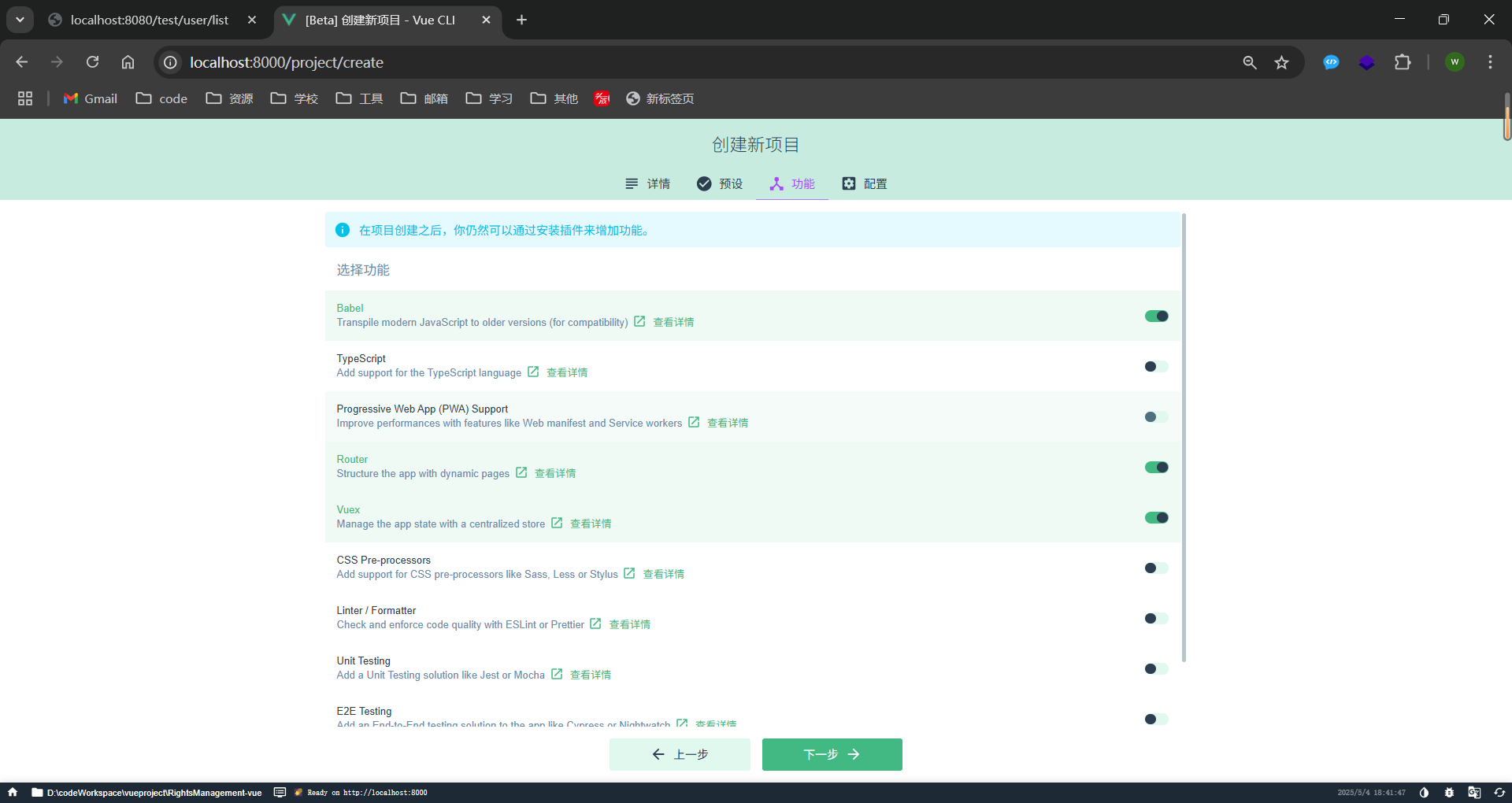

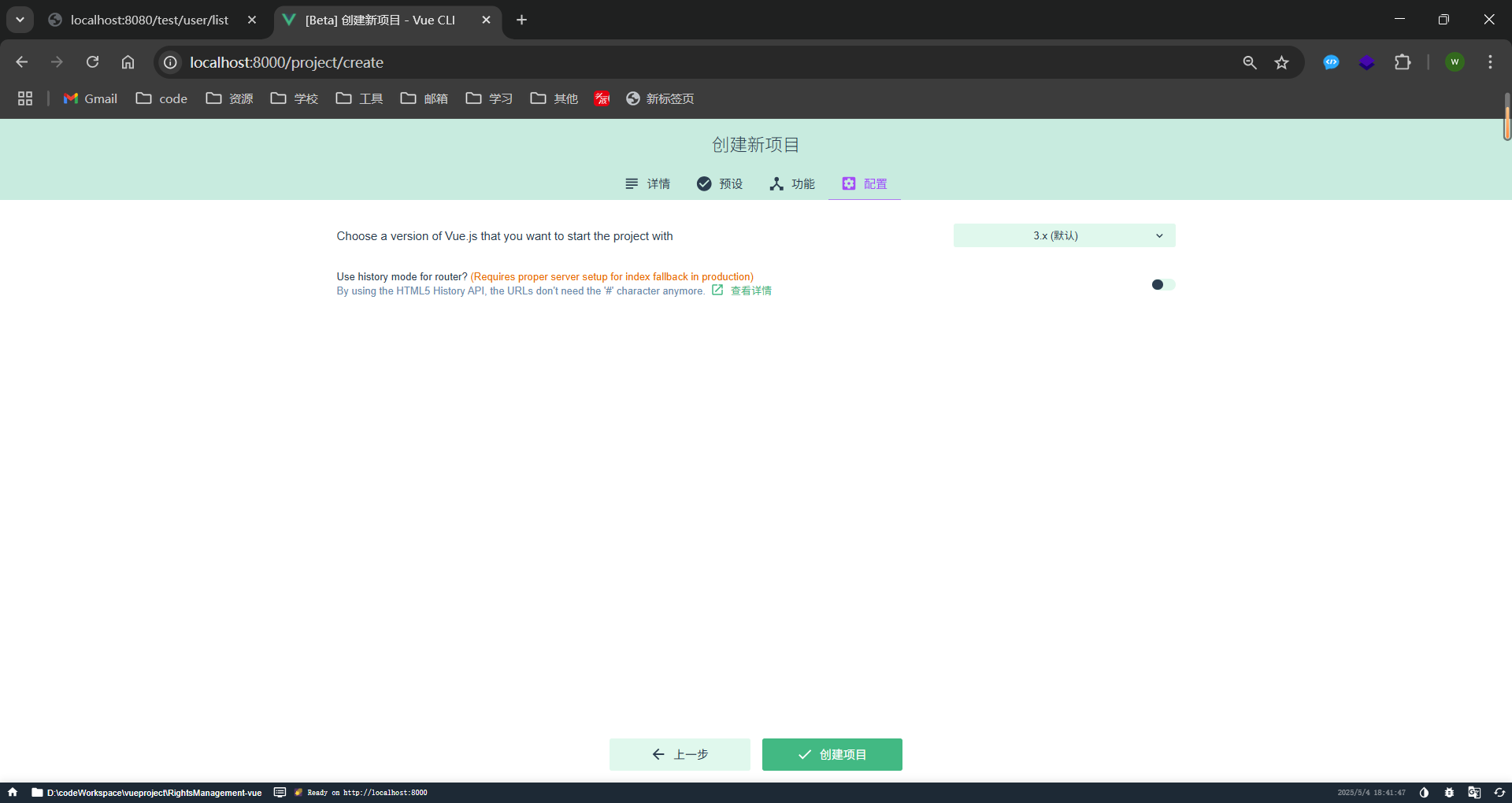

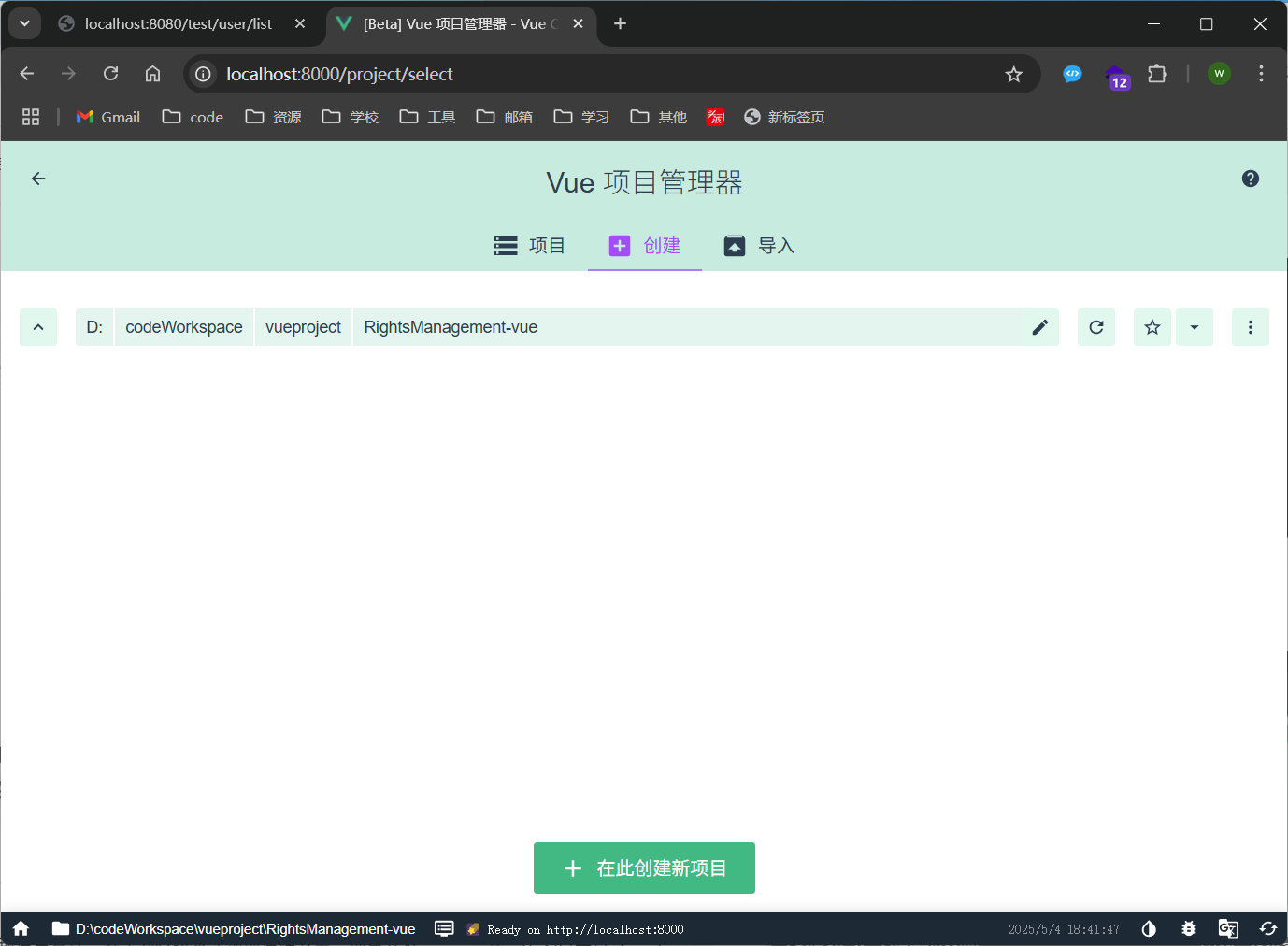

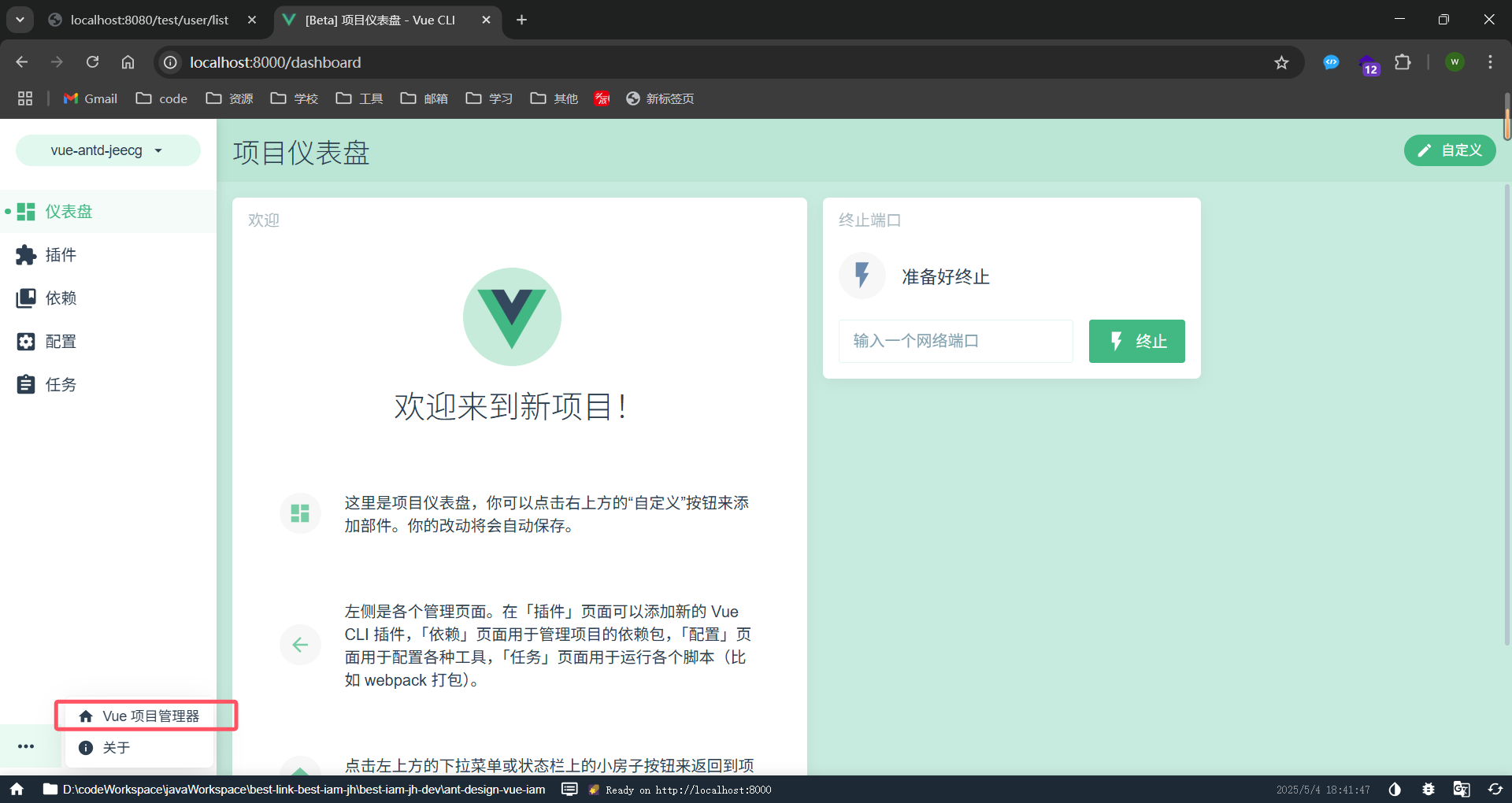

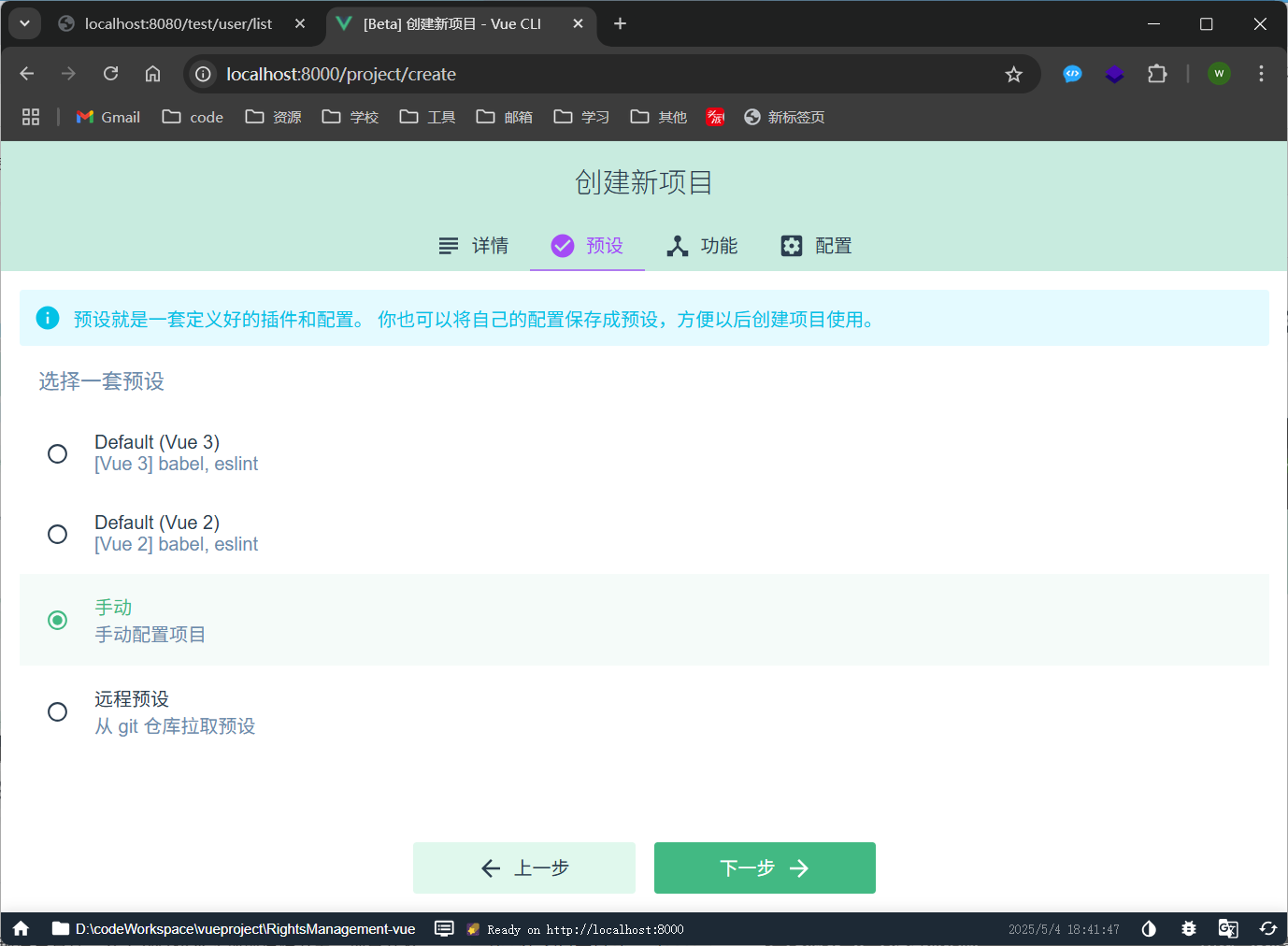

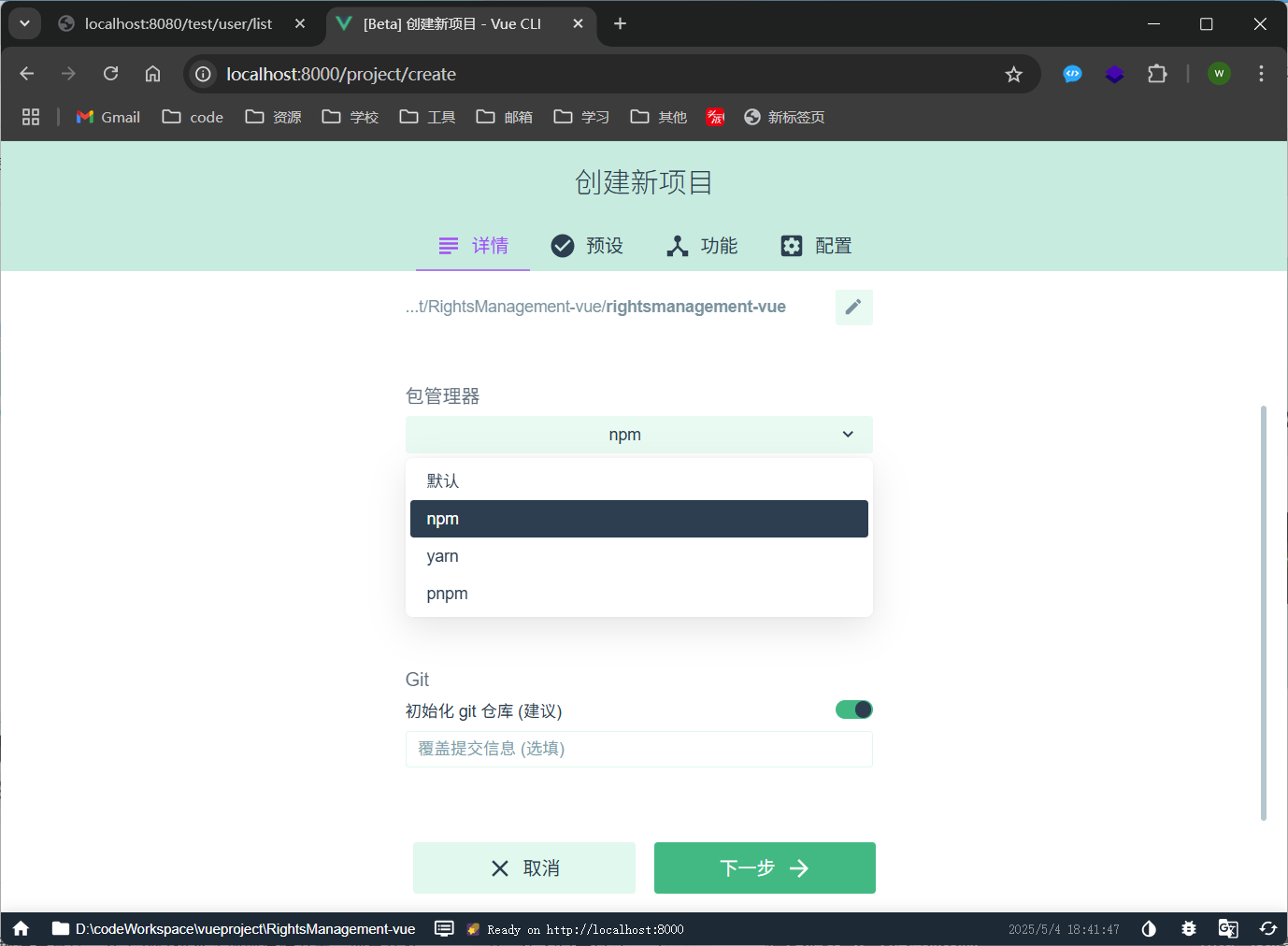

vue ui搭建vue项目

vue ui

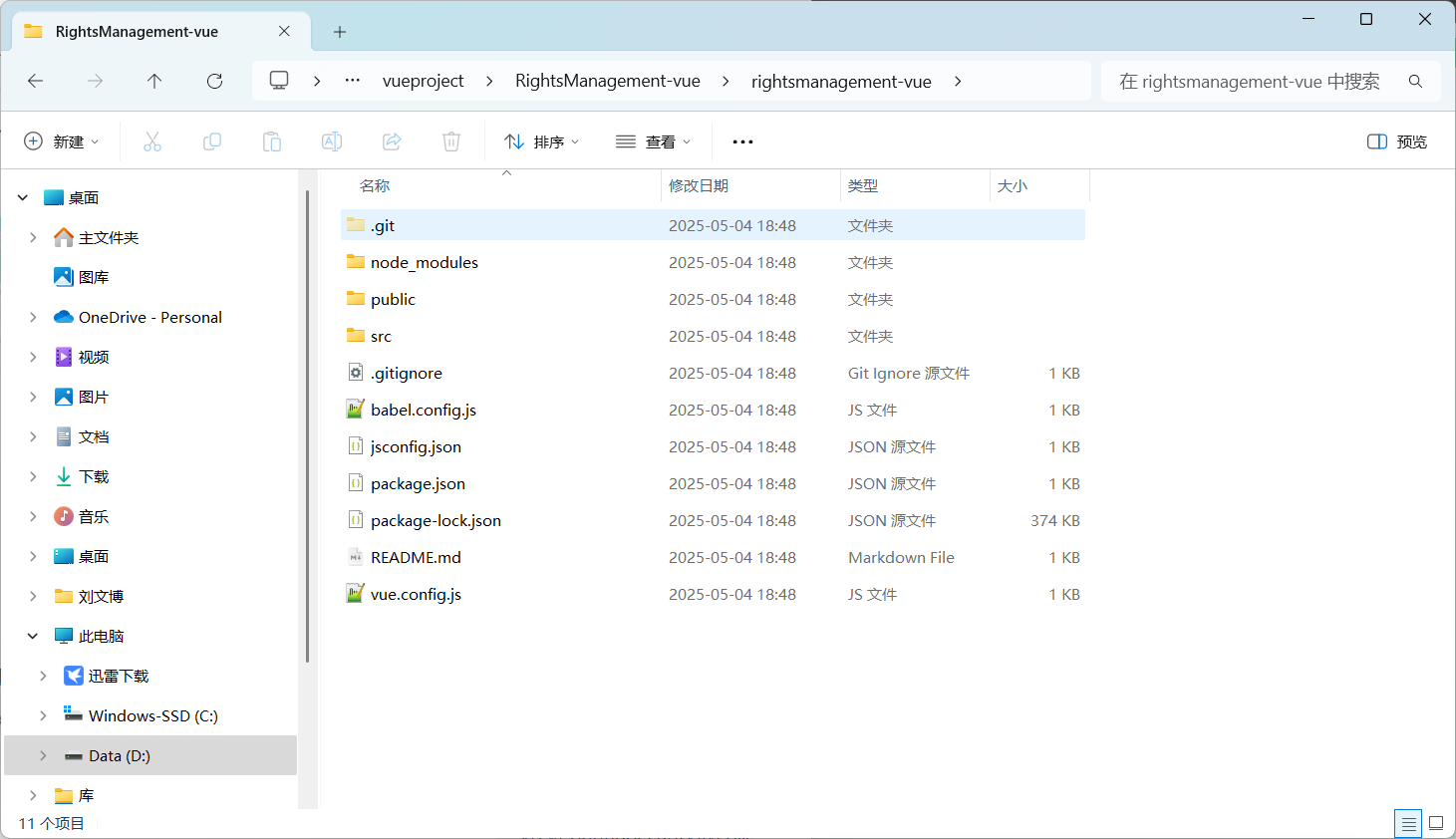

创建成功

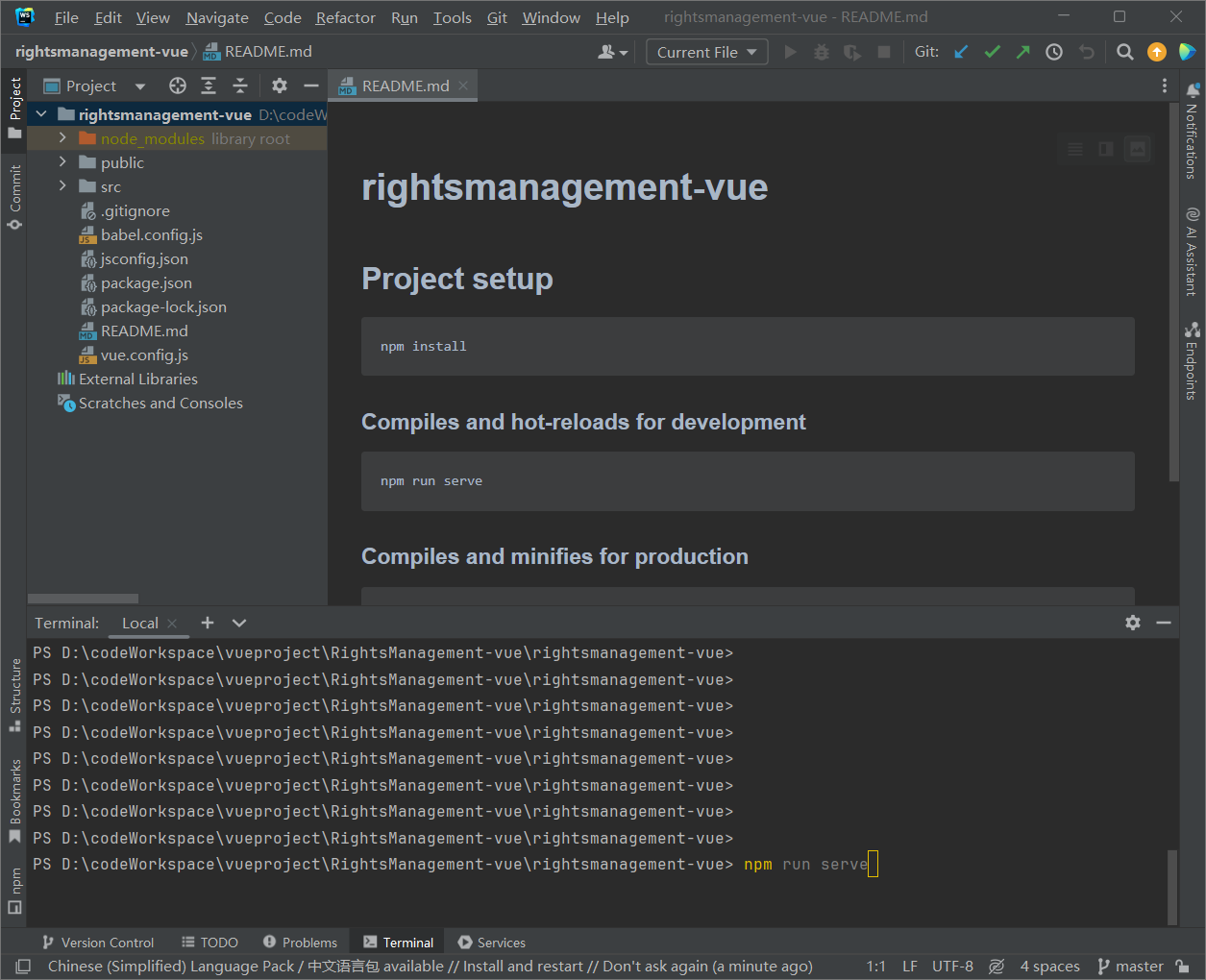

webstorm导入

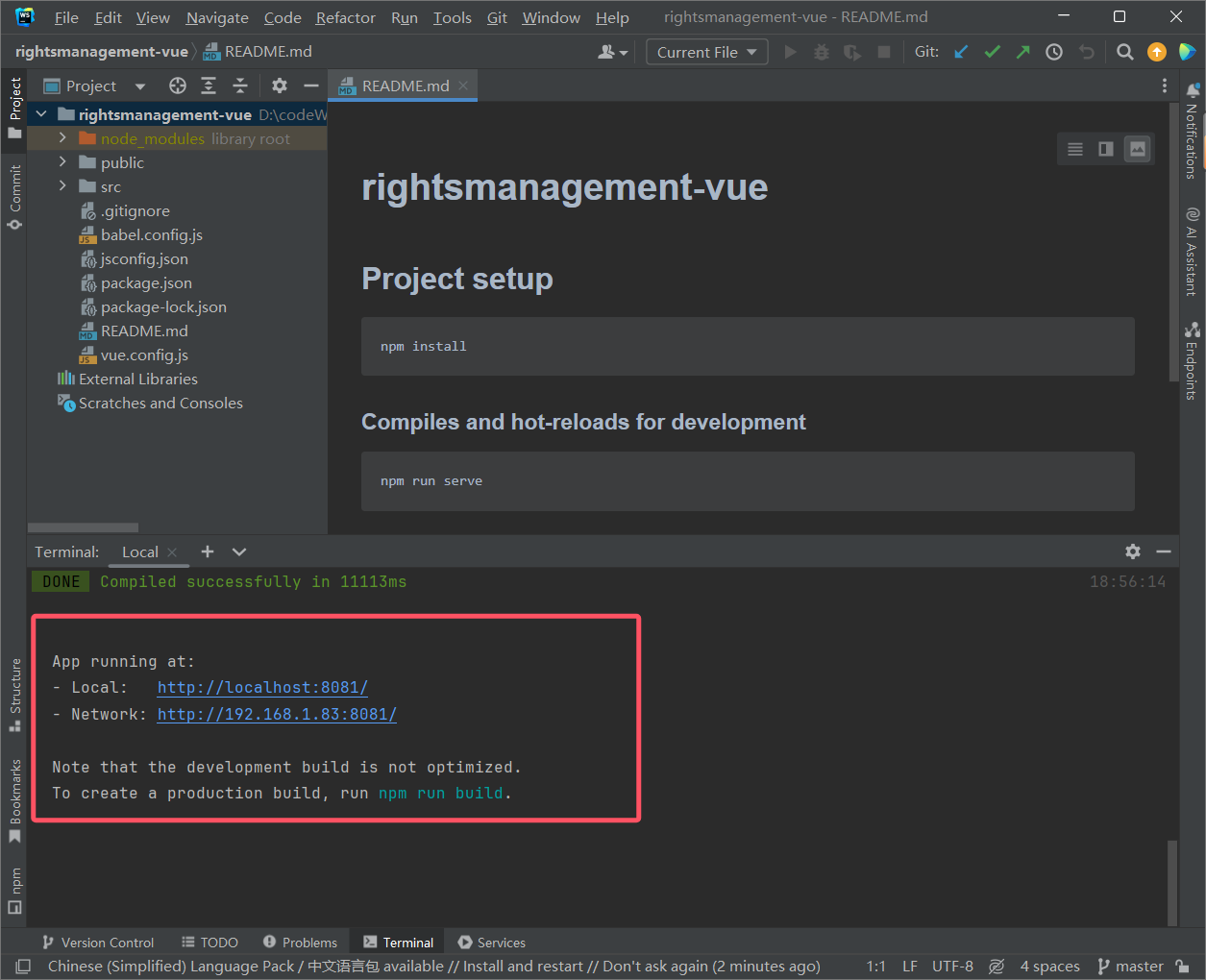

启动

npm run serve

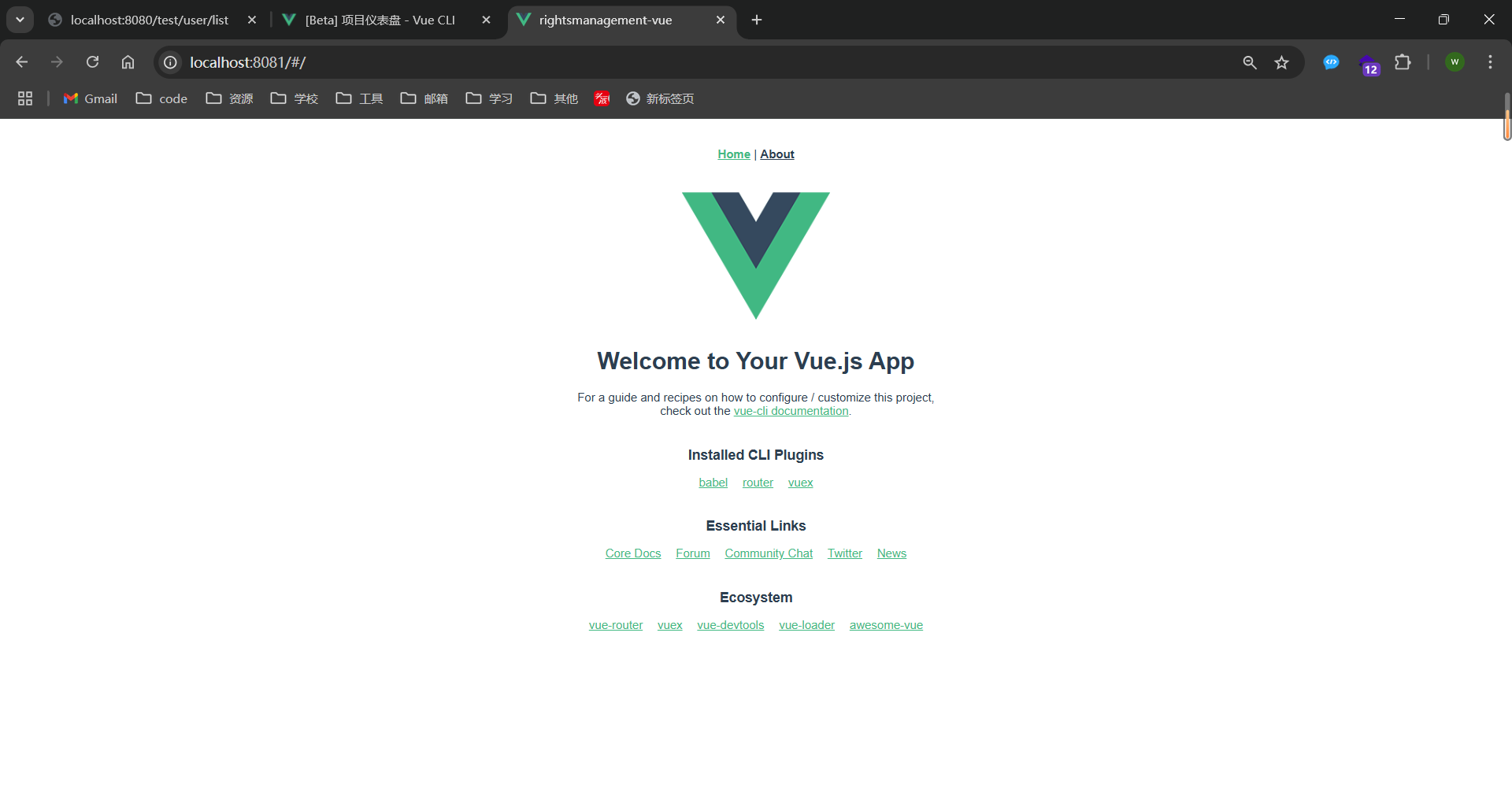

启动成功

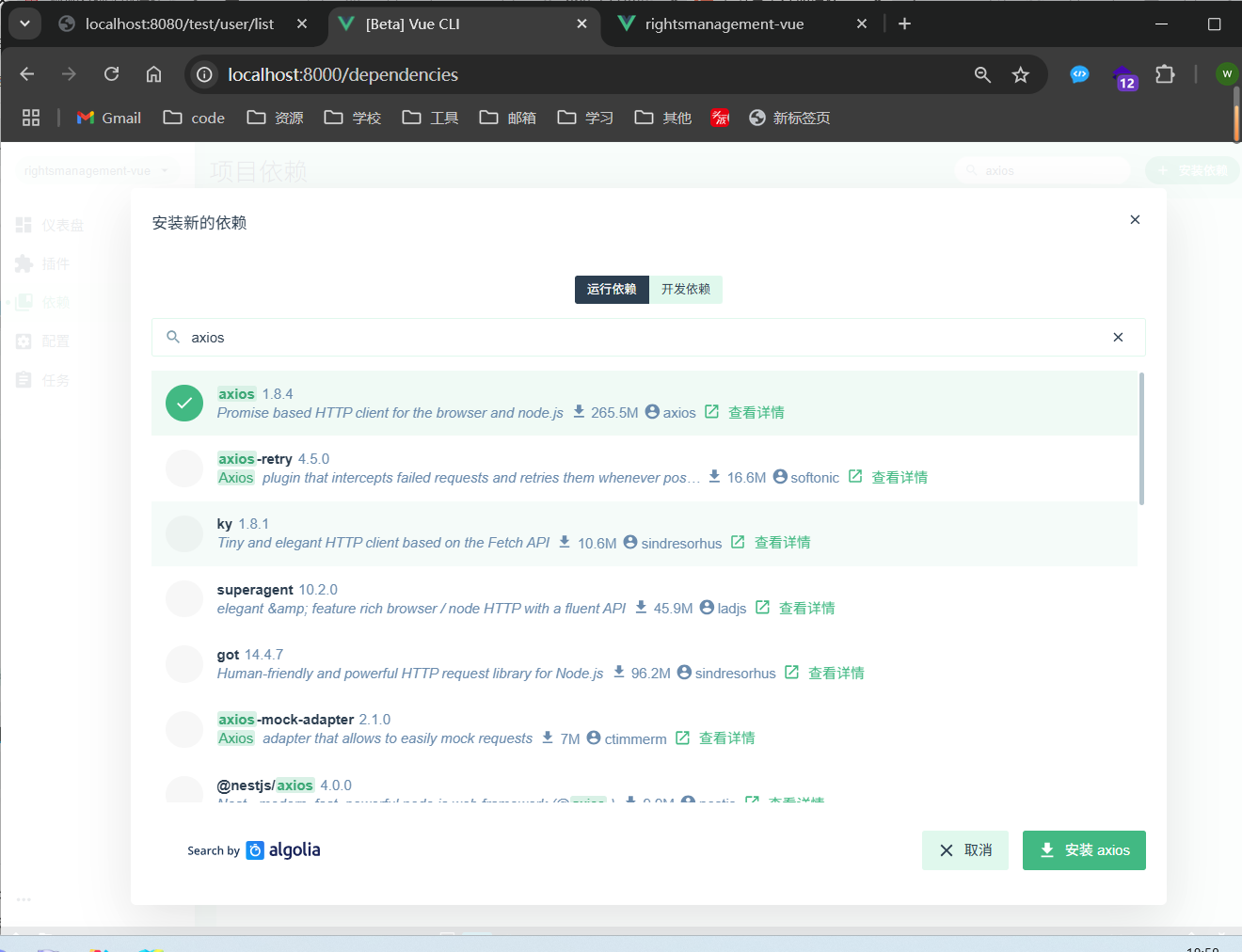

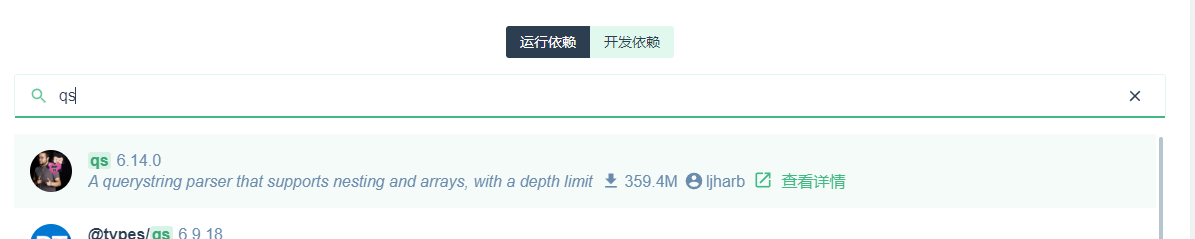

安装axios element-plus

element-plus官网：https://element-plus.org/zh-CN/guide/design.html

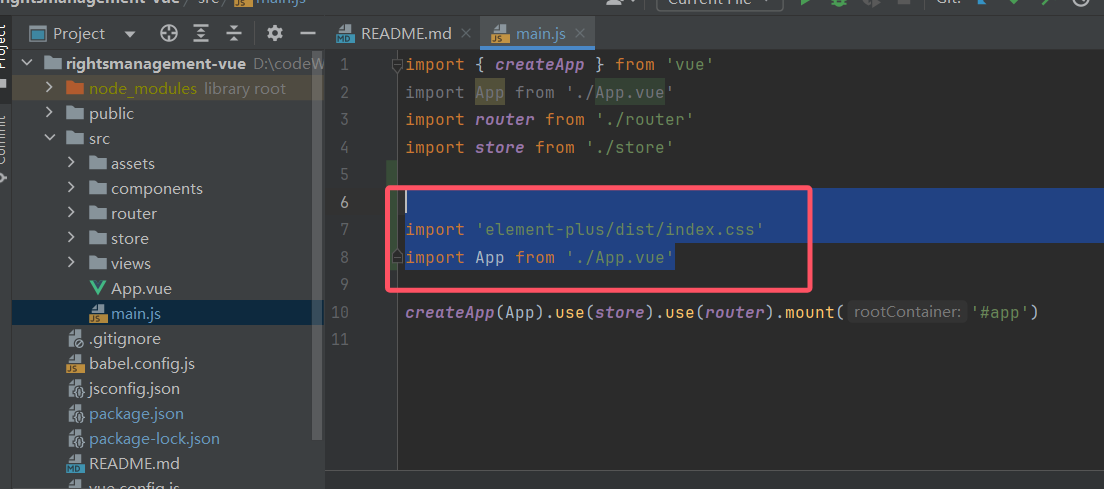

main.js里添加代码

import ElementPlus from 'element-plus'
import 'element-plus/dist/index.css'

createApp(App).use(store).use(router).use(ElementPlus).mount('#app')

添加代码

<template>
  <el-row class="mb-4">
    <el-button>Default</el-button>
    <el-button type="primary">Primary</el-button>
    <el-button type="success">Success</el-button>
    <el-button type="info">Info</el-button>
    <el-button type="warning">Warning</el-button>
    <el-button type="danger">Danger</el-button>
  </el-row>

  <el-row class="mb-4">
    <el-button plain>Plain</el-button>
    <el-button type="primary" plain>Primary</el-button>
    <el-button type="success" plain>Success</el-button>
    <el-button type="info" plain>Info</el-button>
    <el-button type="warning" plain>Warning</el-button>
    <el-button type="danger" plain>Danger</el-button>
  </el-row>

  <el-row class="mb-4">
    <el-button round>Round</el-button>
    <el-button type="primary" round>Primary</el-button>
    <el-button type="success" round>Success</el-button>
    <el-button type="info" round>Info</el-button>
    <el-button type="warning" round>Warning</el-button>
    <el-button type="danger" round>Danger</el-button>
  </el-row>

  <el-row>
    <el-button :icon="Search" circle />
    <el-button type="primary" :icon="Edit" circle />
    <el-button type="success" :icon="Check" circle />
    <el-button type="info" :icon="Message" circle />
    <el-button type="warning" :icon="Star" circle />
    <el-button type="danger" :icon="Delete" circle />
  </el-row>
</template>

<script  setup>
import {
  Check,
  Delete,
  Edit,
  Message,
  Search,
  Star,
} from '@element-plus/icons-vue'
</script>

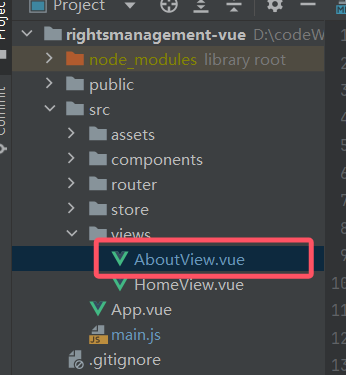

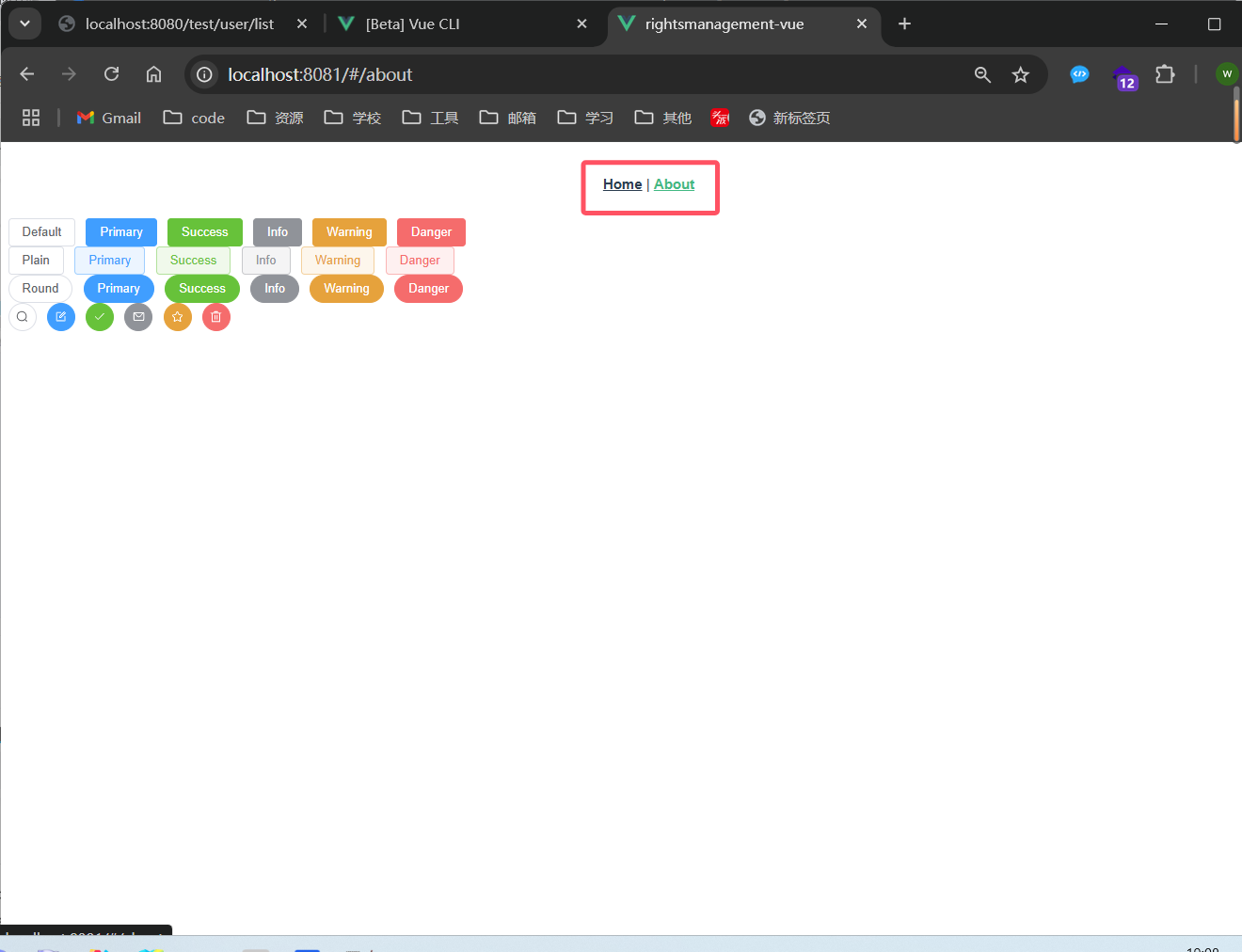

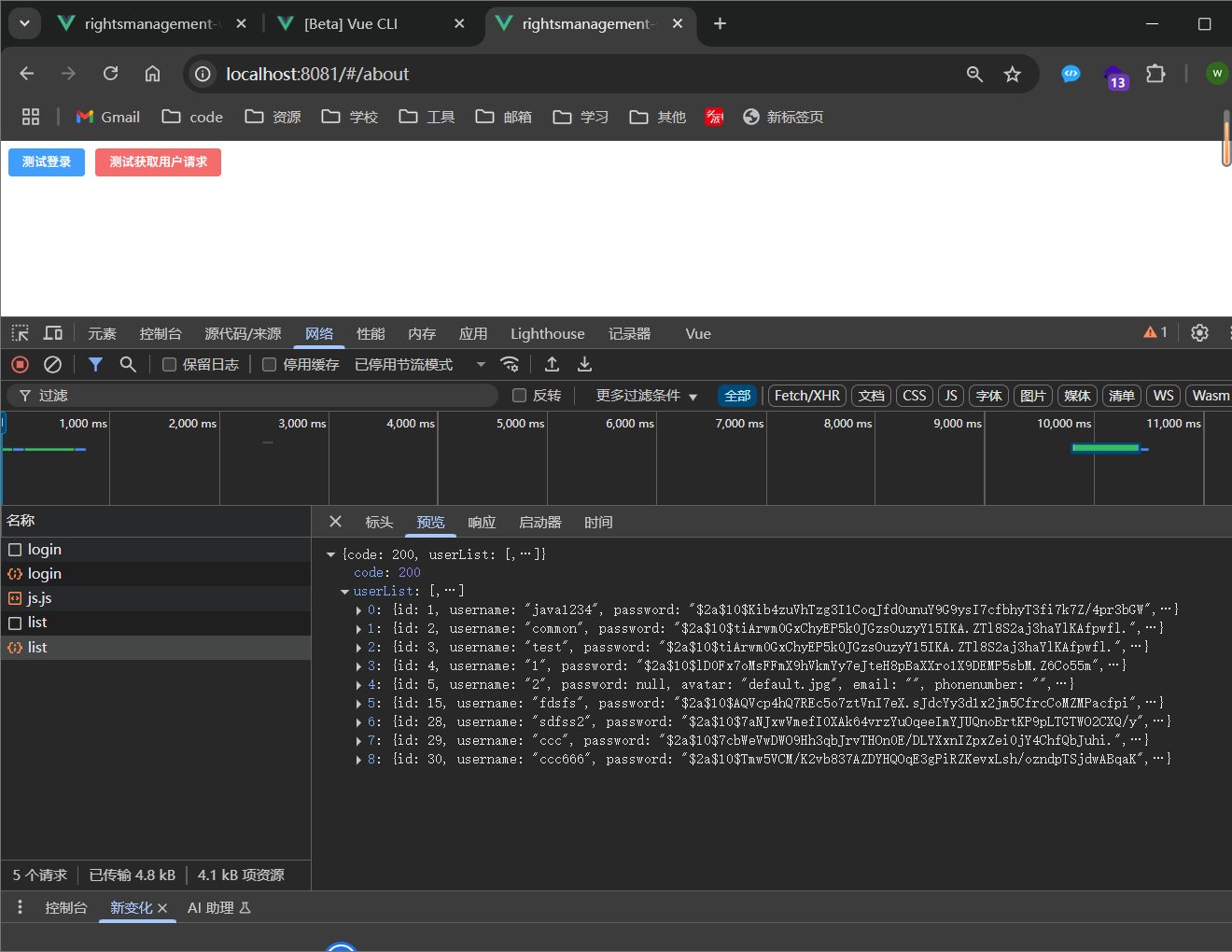

点击about 测试成功

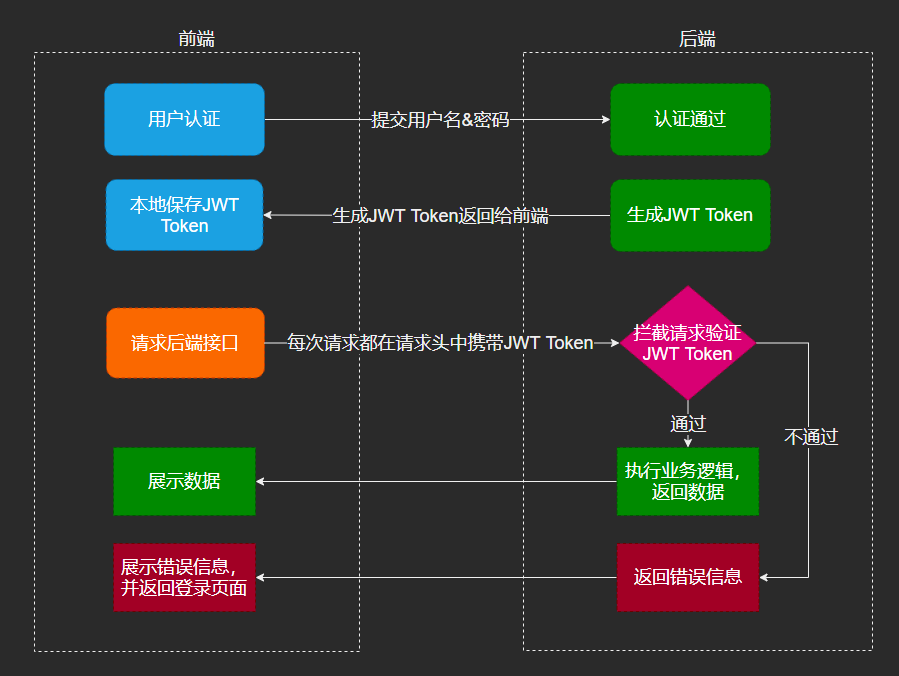

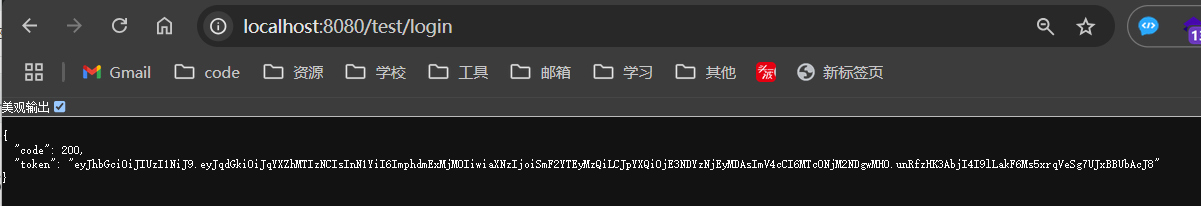

引入JWT前后端交互

Json web token (JWT), 是为了在网络应用环境间传递声明而执行的一种基于JSON的开放标准（(RFC
7519)；
JWT就是一段字符串，用来进行用户身份认证的凭证，该字符串分成三段【头部、载荷、签证】

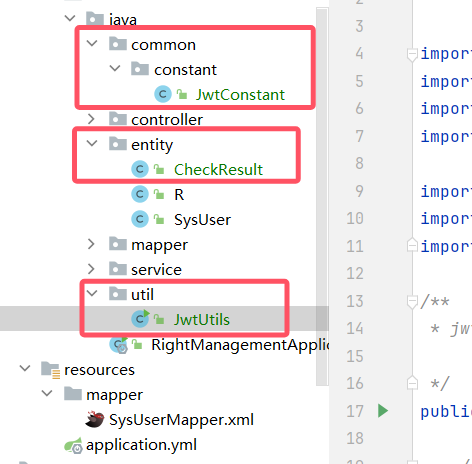

JwtUtils

package com.java.util;


import com.java.common.constant.JwtConstant;
import com.java.entity.CheckResult;
import io.jsonwebtoken.*;
import org.bouncycastle.util.encoders.Base64;

import javax.crypto.SecretKey;
import javax.crypto.spec.SecretKeySpec;
import java.util.Date;

/**
 * jwt加密和解密的工具类

 */
public class JwtUtils {

    /**
     * 签发JWT
     * @param id
     * @param subject 可以是JSON数据 尽可能少
     * @param ttlMillis
     * @return
     */
    public static String createJWT(String id, String subject, long ttlMillis) {
        SignatureAlgorithm signatureAlgorithm = SignatureAlgorithm.HS256;
        long nowMillis = System.currentTimeMillis();
        Date now = new Date(nowMillis);
        SecretKey secretKey = generalKey();
        JwtBuilder builder = Jwts.builder()
                .setId(id)
                .setSubject(subject)   // 主题
                .setIssuer("Java1234")     // 签发者
                .setIssuedAt(now)      // 签发时间
                .signWith(signatureAlgorithm, secretKey); // 签名算法以及密匙
        if (ttlMillis >= 0) {
            long expMillis = nowMillis + ttlMillis;
            Date expDate = new Date(expMillis);
            builder.setExpiration(expDate); // 过期时间
        }
        return builder.compact();
    }

    /**
     * 生成jwt token
     * @param username
     * @return
     */
    public static String genJwtToken(String username){
        return createJWT(username,username,60*60*1000);
    }

    /**
     * 验证JWT
     * @param jwtStr
     * @return
     */
    public static CheckResult validateJWT(String jwtStr) {
        CheckResult checkResult = new CheckResult();
        Claims claims = null;
        try {
            claims = parseJWT(jwtStr);
            checkResult.setSuccess(true);
            checkResult.setClaims(claims);
        } catch (ExpiredJwtException e) {
            checkResult.setErrCode(JwtConstant.JWT_ERRCODE_EXPIRE);
            checkResult.setSuccess(false);
        } catch (SignatureException e) {
            checkResult.setErrCode(JwtConstant.JWT_ERRCODE_FAIL);
            checkResult.setSuccess(false);
        } catch (Exception e) {
            checkResult.setErrCode(JwtConstant.JWT_ERRCODE_FAIL);
            checkResult.setSuccess(false);
        }
        return checkResult;
    }

    /**
     * 生成加密Key
     * @return
     */
    public static SecretKey generalKey() {
        byte[] encodedKey = Base64.decode(JwtConstant.JWT_SECERT);
        SecretKey key = new SecretKeySpec(encodedKey, 0, encodedKey.length, "AES");
        return key;
    }


    /**
     * 解析JWT字符串
     * @param jwt
     * @return
     * @throws Exception
     */
    public static Claims parseJWT(String jwt) {
        SecretKey secretKey = generalKey();
        return Jwts.parser()
                .setSigningKey(secretKey)
                .parseClaimsJws(jwt)
                .getBody();
    }

    public static void main(String[] args) throws InterruptedException {
        //小明失效 10s
        String sc = createJWT("1","小明", 60 * 60 * 1000);
        System.out.println(sc);
        System.out.println(validateJWT(sc).getErrCode());
        System.out.println(validateJWT(sc).getClaims().getId());
        System.out.println(validateJWT(sc).getClaims().getSubject());
        //Thread.sleep(3000);
        System.out.println(validateJWT(sc).getClaims());
        Claims claims = validateJWT(sc).getClaims();
        String sc2 = createJWT(claims.getId(),claims.getSubject(), JwtConstant.JWT_TTL);
        System.out.println(sc2);
    }

}

JwtConstant

 package com.java.common.constant;

/**
 * 系统级静态变量

 */
public class JwtConstant {

    /**
     * token
     */
    public static final int JWT_ERRCODE_NULL = 4000;			//Token不存在
    public static final int JWT_ERRCODE_EXPIRE = 4001;			//Token过期
    public static final int JWT_ERRCODE_FAIL = 4002;			//验证不通过

    /**
     * JWT
     */
    public static final String JWT_SECERT = "8677df7fc3a34e26a61c034d5ec8245d";			//密匙
    public static final long JWT_TTL = 24*60 * 60 * 1000;									//token有效时间
}

CheckResult

 package com.java.entity;

import io.jsonwebtoken.Claims;

/**
 * jwt验证信息

 */
public class CheckResult {

    private int errCode;

    private boolean success;

    private Claims claims;

    public int getErrCode() {
        return errCode;
    }

    public void setErrCode(int errCode) {
        this.errCode = errCode;
    }

    public boolean isSuccess() {
        return success;
    }

    public void setSuccess(boolean success) {
        this.success = success;
    }

    public Claims getClaims() {
        return claims;
    }

    public void setClaims(Claims claims) {
        this.claims = claims;
    }

}

测试
TestController

 @RequestMapping("/user/list")
    public R userList(@RequestHeader(required = false)String token){
        if(StringUtil.isNotEmpty(token)){
            Map<String,Object> resutlMap=new HashMap<>();
            List<SysUser> userList = sysUserService.list();
            resutlMap.put("userList",userList);
            return R.ok(resutlMap);
        }else{
            return R.error(401,"没有权限访问");
        }

    }

@RequestMapping("/login")
    public R login(){
        String token = JwtUtils.genJwtToken("java1234");
        return R.ok().put("token",token);
    }

引入stringUtil

package com.java.util;

import java.util.ArrayList;
import java.util.List;
import java.util.Random;

/**
 * 字符串工具类
 * @author
 *
 */
public class StringUtil {

	/**
	 * 判断是否是空
	 * @param str
	 * @return
	 */
	public static boolean isEmpty(String str){
		if(str==null||"".equals(str.trim())){
			return true;
		}else{
			return false;
		}
	}

	/**
	 * 判断是否不是空
	 * @param str
	 * @return
	 */
	public static boolean isNotEmpty(String str){
		if((str!=null)&&!"".equals(str.trim())){
			return true;
		}else{
			return false;
		}
	}

	/**
	 * 格式化模糊查询
	 * @param str
	 * @return
	 */
	public static String formatLike(String str){
		if(isNotEmpty(str)){
			return "%"+str+"%";
		}else{
			return null;
		}
	}

	/**
	 * 过滤掉集合里的空格
	 * @param list
	 * @return
	 */
	public static List<String> filterWhite(List<String> list){
		List<String> resultList=new ArrayList<String>();
		for(String l:list){
			if(isNotEmpty(l)){
				resultList.add(l);
			}
		}
		return resultList;
	}

	/**
	 * 去除html标签
	 */
	public static String stripHtml(String content) {
	    // <p>段落替换为换行
	    content = content.replaceAll("<p .*?>", "\r\n");
	    // <br><br/>替换为换行
	    content = content.replaceAll("<br\\s*/?>", "\r\n");
	    // 去掉其它的<>之间的东西
	    content = content.replaceAll("\\<.*?>", "");
	    // 去掉空格
	    content = content.replaceAll(" ", "");
	    return content;
	}

	/**
	 * 生成六位随机数
	 * @return
	 */
	public static String genSixRandomNum(){
		Random random = new Random();
		String result="";
		for (int i=0;i<6;i++)
		{
			result+=random.nextInt(10);
		}
		return result;
	}

	/**
	 * 生成由[A-Z,0-9]生成的随机字符串
	 * @param length  欲生成的字符串长度
	 * @return
	 */
	public static String getRandomString(int length){
		Random random = new Random();

		StringBuffer sb = new StringBuffer();

		for(int i = 0; i < length; ++i){
			int number = random.nextInt(2);
			long result = 0;

			switch(number){
				case 0:
					result = Math.round(Math.random() * 25 + 65);
					sb.append(String.valueOf((char)result));
					break;
				case 1:

					sb.append(String.valueOf(new Random().nextInt(10)));
					break;
			}
		}
		return sb.toString();
	}


}

前端请求后端用axios
前端新建 request.js

// 引入axios
import axios from 'axios';
import store from '@/store'

let baseUrl="http://localhost:8080/";
// 创建axios实例
const httpService = axios.create({
    // url前缀-'http:xxx.xxx'
    // baseURL: process.env.BASE_API, // 需自定义
    baseURL:baseUrl,
    // 请求超时时间
    timeout: 3000 // 需自定义
});

//添加请求和响应拦截器
// 添加请求拦截器
httpService.interceptors.request.use(function (config) {
    // 在发送请求之前做些什么
    //config.headers.token=window.sessionStorage.getItem('token');
    console.log("store="+store.getters.GET_TOKEN)
    config.headers.token=store.getters.GET_TOKEN
    return config;
}, function (error) {
    // 对请求错误做些什么
    return Promise.reject(error);
});

// 添加响应拦截器
httpService.interceptors.response.use(function (response) {
    // 对响应数据做点什么
    return response;
}, function (error) {
    // 对响应错误做点什么
    return Promise.reject(error);
});

/*网络请求部分*/

/*
 *  get请求
 *  url:请求地址
 *  params:参数
 * */
export function get(url, params = {}) {
    return new Promise((resolve, reject) => {
        httpService({
            url: url,
            method: 'get',
            params: params
        }).then(response => {
            resolve(response);
        }).catch(error => {
            reject(error);
        });
    });
}

/*
 *  post请求
 *  url:请求地址
 *  params:参数
 * */
export function post(url, params = {}) {
    return new Promise((resolve, reject) => {
        httpService({
            url: url,
            method: 'post',
            data: params
        }).then(response => {
            console.log(response)
            resolve(response);
        }).catch(error => {
            console.log(error)
            reject(error);
        });
    });
}

/*
 *  文件上传
 *  url:请求地址
 *  params:参数
 * */
export function fileUpload(url, params = {}) {
    return new Promise((resolve, reject) => {
        httpService({
            url: url,
            method: 'post',
            data: params,
            headers: { 'Content-Type': 'multipart/form-data' }
        }).then(response => {
            resolve(response);
        }).catch(error => {
            reject(error);
        });
    });
}

export function getServerUrl(){
    return baseUrl;
}

export default {
    get,
    post,
    fileUpload,
    getServerUrl
}

APP.VUE

<template>
  <el-button type="primary" @click="handleLogin">测试登录</el-button>

  <el-button type="danger" @click="handleUserList">测试获取用户请求</el-button>
</template>
<script setup>
import requestUtil from '@/util/request'
import store from '@/store'

const handleLogin=async ()=>{
  let result=await requestUtil.get("test/login");
  let data=result.data;
  if(data.code=200){
    const token=data.token;
    console.log("登录成功：token="+token);
    store.commit('SET_TOKEN',token);
  }else{
    console.log("登录出错！");
  }
}

const handleUserList=async ()=>{
  let result=await requestUtil.get("test/user/list");
  let data=result.data;
  if(data.code=200){
    const userList=data.userList;
    console.log("用户列表信息：userList="+userList);
  }
}


</script>
<style>
</style>

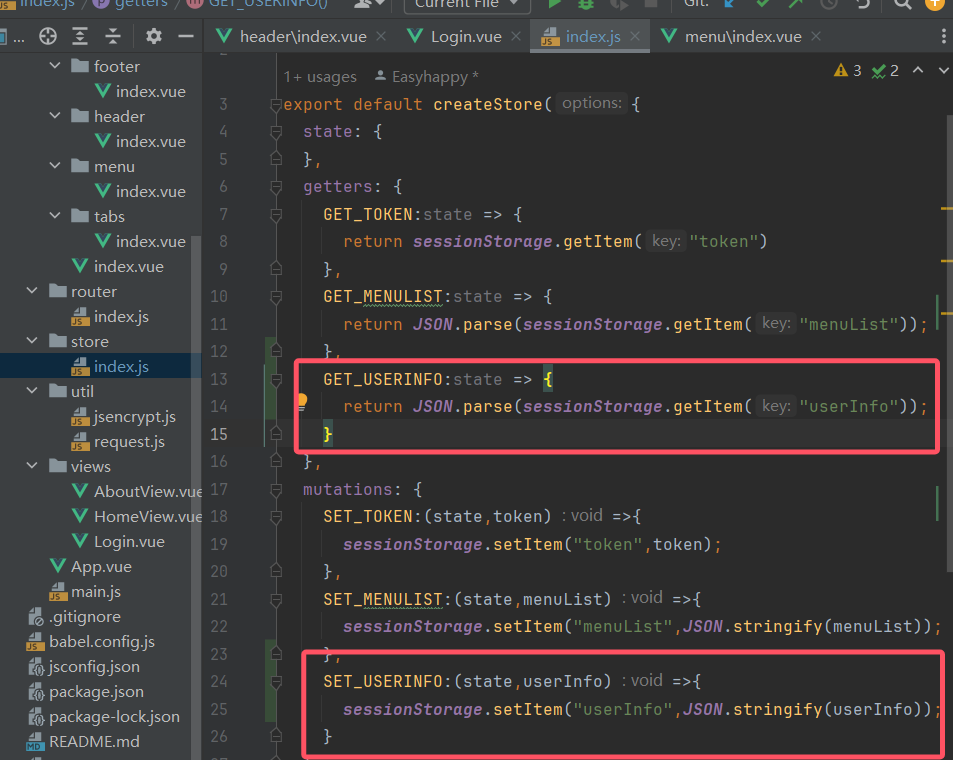

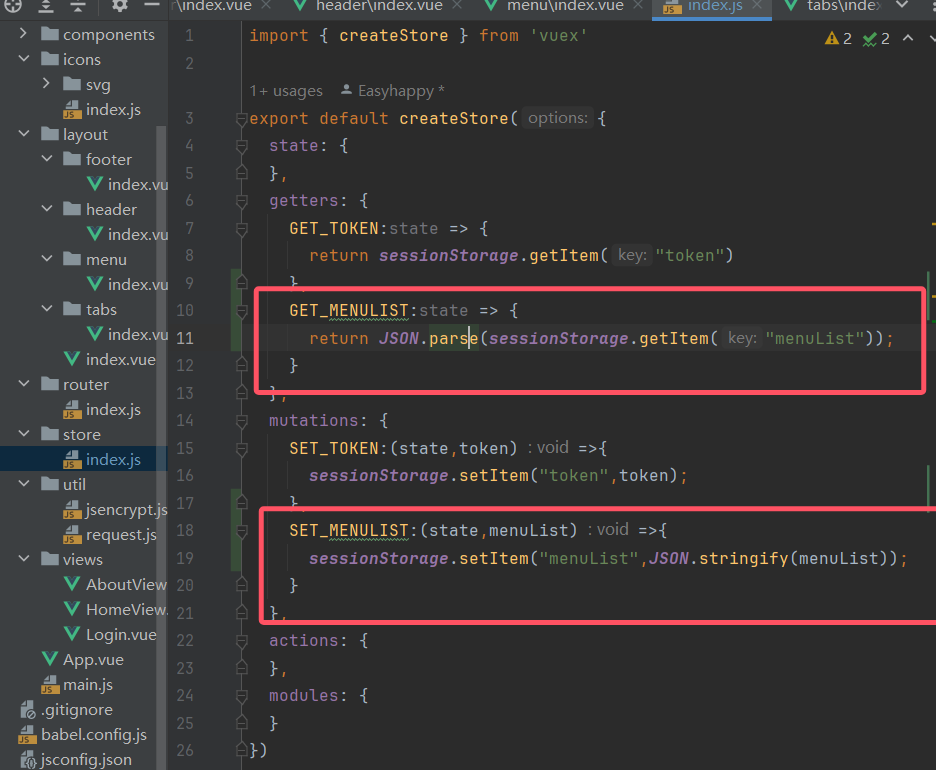

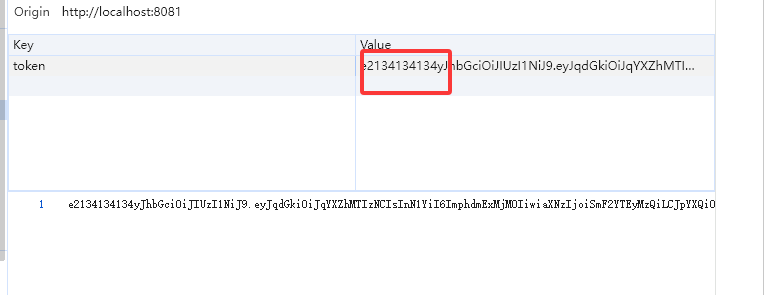

store.js里

import { createStore } from 'vuex'

export default createStore({
  state: {
  },
  getters: {
    GET_TOKEN:state => {
      return sessionStorage.getItem("token")
    }
  },
  mutations: {
    SET_TOKEN:(state,token)=>{
      sessionStorage.setItem("token",token);
    }
  },
  actions: {
  },
  modules: {
  }
})

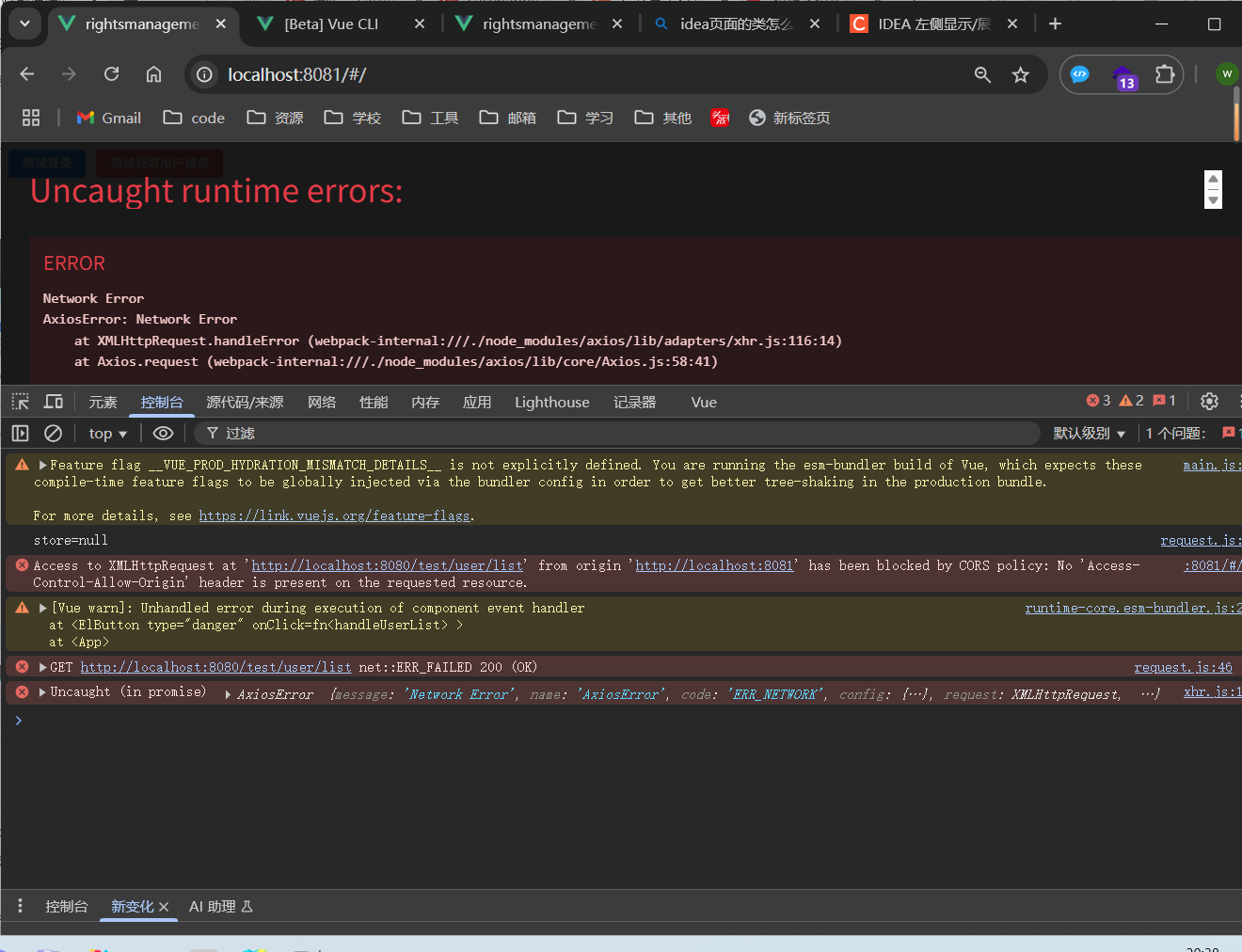

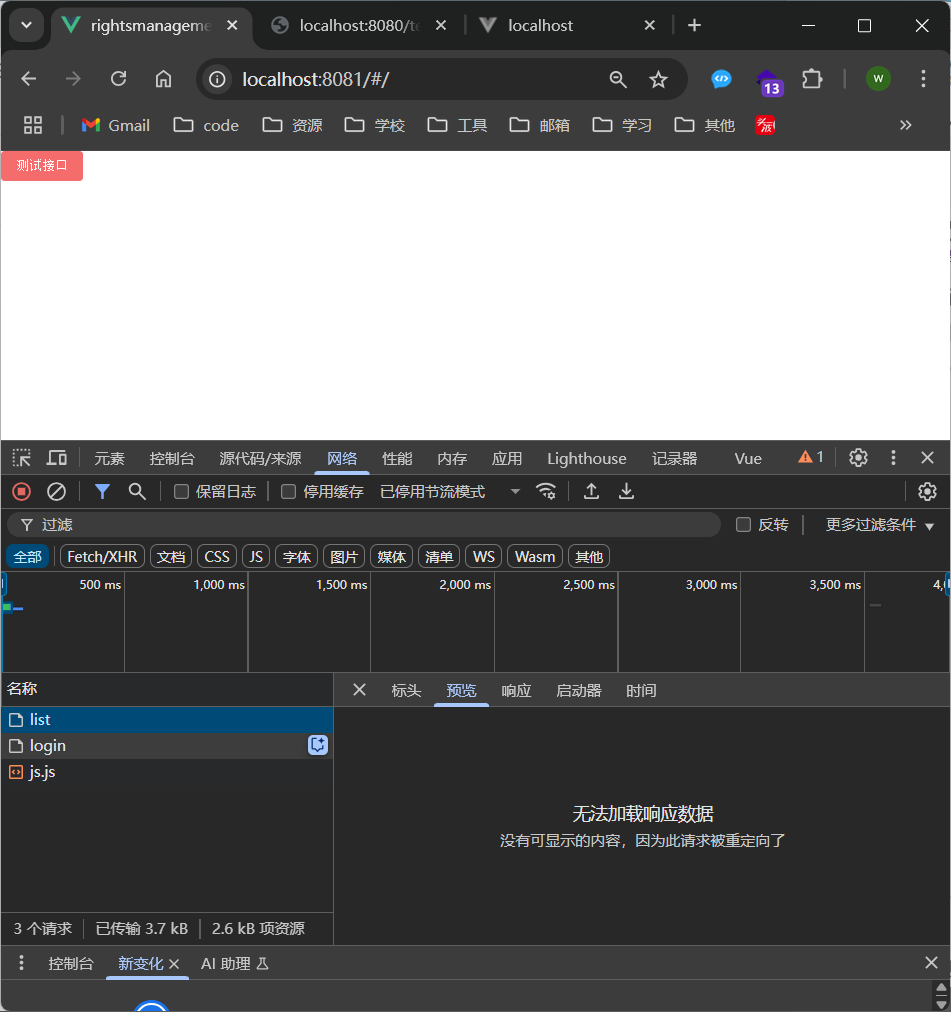

跨域问题报错

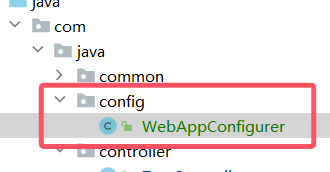

后端新建config

 package com.java.config;


import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.CorsRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;

/**
 * web项目配置类

 */
@Configuration
public class WebAppConfigurer implements WebMvcConfigurer {

    @Override
    public void addCorsMappings(CorsRegistry registry) {
        registry.addMapping("/**")
                .allowedOrigins("*")
                .allowCredentials(true)
                .allowedMethods("GET", "HEAD", "POST", "PUT", "DELETE","OPTIONS")
                .maxAge(3600);
    }


}

测试成功

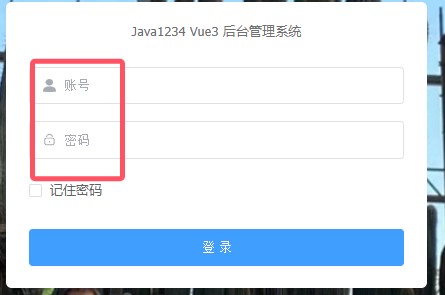

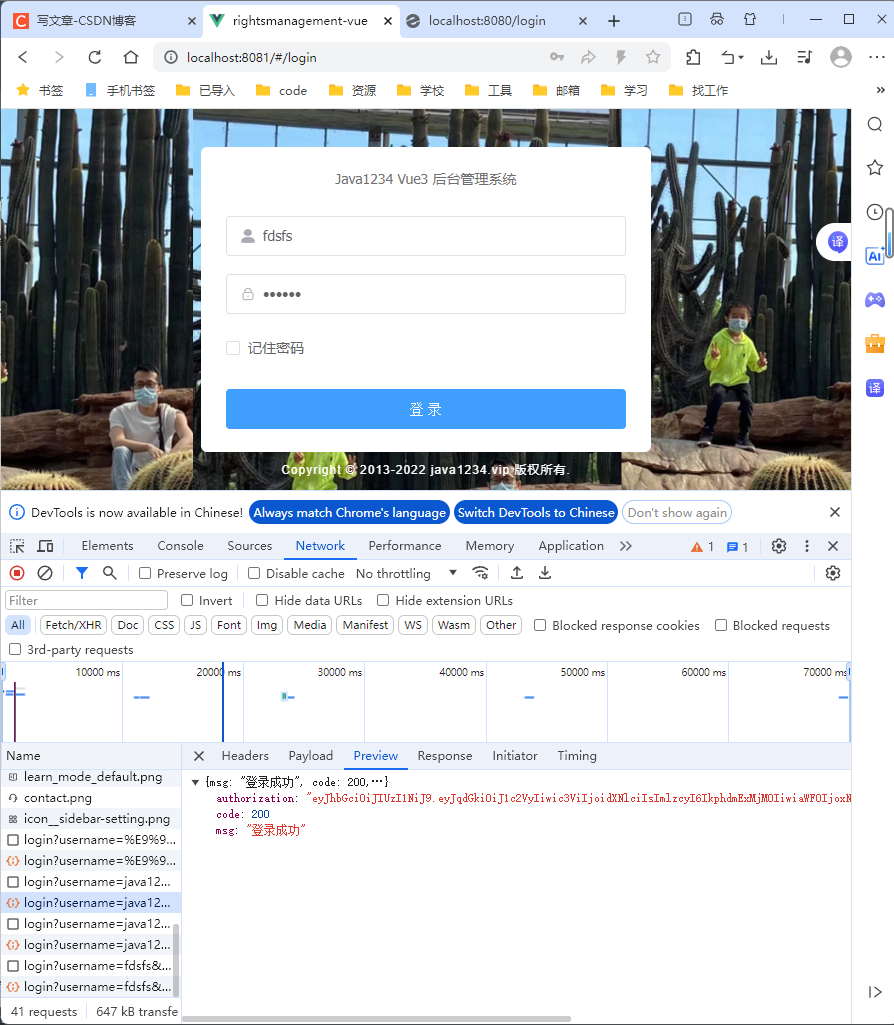

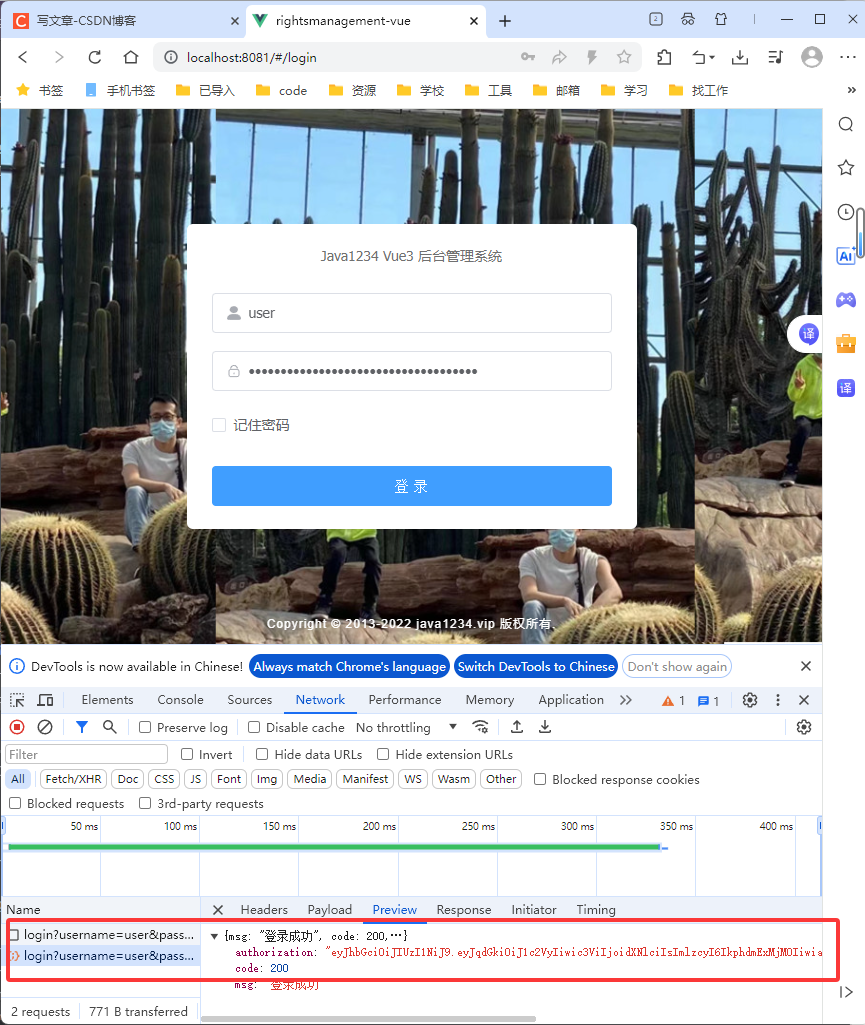

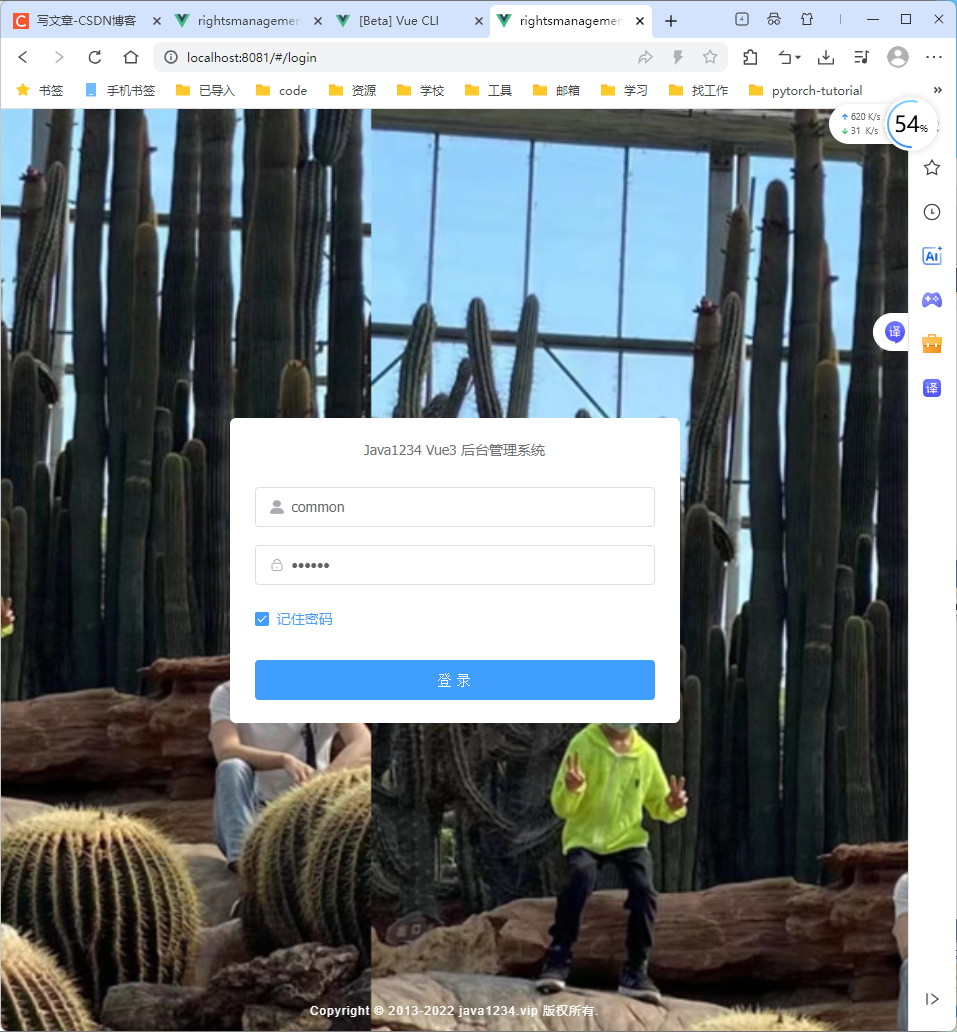

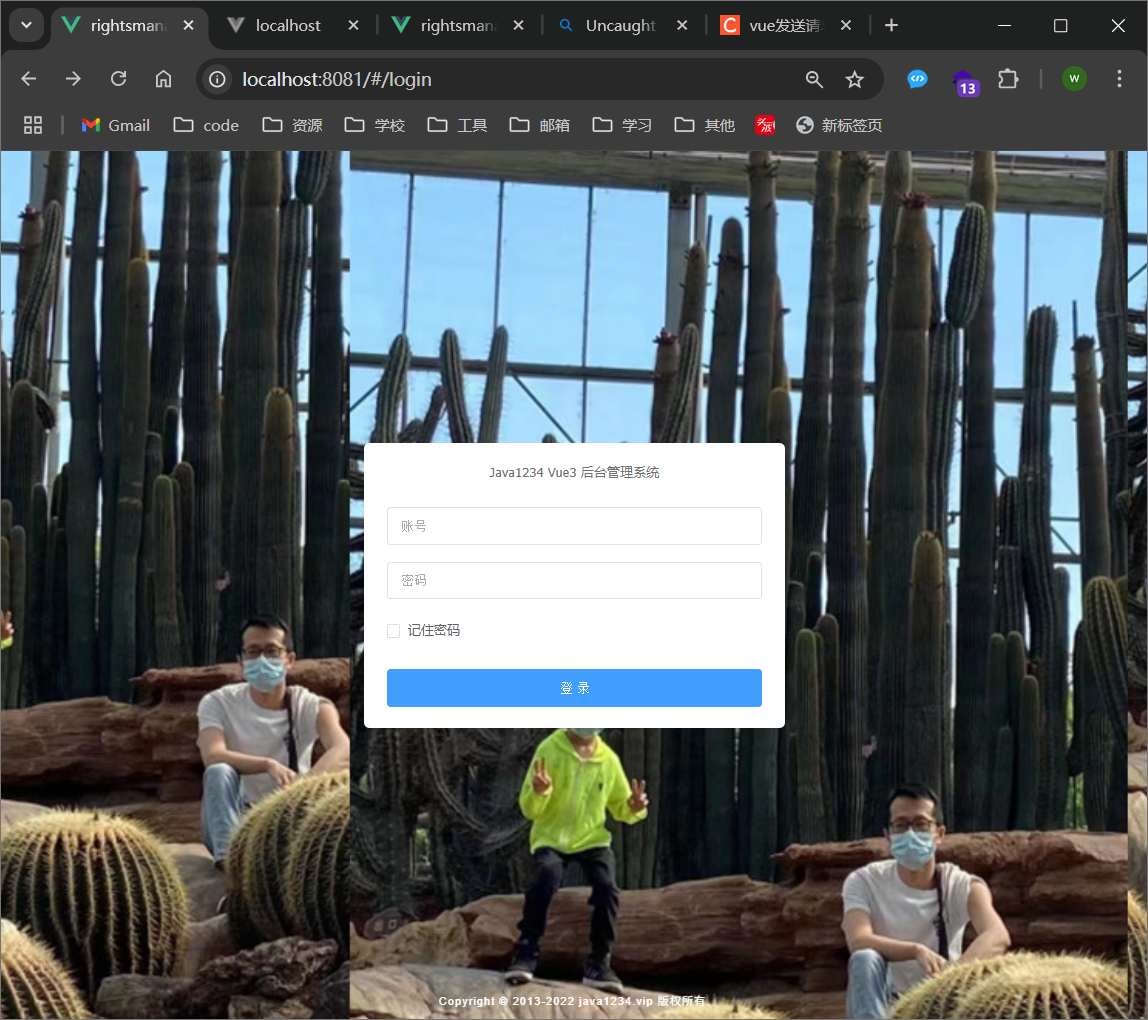

登录功能实现

前端新建文件

border.css

 @charset "utf-8";
.border,
.border-top,
.border-right,
.border-bottom,
.border-left,
.border-topbottom,
.border-rightleft,
.border-topleft,
.border-rightbottom,
.border-topright,
.border-bottomleft {
    position: relative;
}
.border::before,
.border-top::before,
.border-right::before,
.border-bottom::before,
.border-left::before,
.border-topbottom::before,
.border-topbottom::after,
.border-rightleft::before,
.border-rightleft::after,
.border-topleft::before,
.border-topleft::after,
.border-rightbottom::before,
.border-rightbottom::after,
.border-topright::before,
.border-topright::after,
.border-bottomleft::before,
.border-bottomleft::after {
    content: "\0020";
    overflow: hidden;
    position: absolute;
}
/* border
 * 因，边框是由伪元素区域遮盖在父级
 * 故，子级若有交互，需要对子级设置
 * 定位 及 z轴
 */
.border::before {
    box-sizing: border-box;
    top: 0;
    left: 0;
    height: 100%;
    width: 100%;
    border: 1px solid #eaeaea;
    transform-origin: 0 0;
}
.border-top::before,
.border-bottom::before,
.border-topbottom::before,
.border-topbottom::after,
.border-topleft::before,
.border-rightbottom::after,
.border-topright::before,
.border-bottomleft::before {
    left: 0;
    width: 100%;
    height: 1px;
}
.border-right::before,
.border-left::before,
.border-rightleft::before,
.border-rightleft::after,
.border-topleft::after,
.border-rightbottom::before,
.border-topright::after,
.border-bottomleft::after {
    top: 0;
    width: 1px;
    height: 100%;
}
.border-top::before,
.border-topbottom::before,
.border-topleft::before,
.border-topright::before {
    border-top: 1px solid #eaeaea;
    transform-origin: 0 0;
}
.border-right::before,
.border-rightbottom::before,
.border-rightleft::before,
.border-topright::after {
    border-right: 1px solid #eaeaea;
    transform-origin: 100% 0;
}
.border-bottom::before,
.border-topbottom::after,
.border-rightbottom::after,
.border-bottomleft::before {
    border-bottom: 1px solid #eaeaea;
    transform-origin: 0 100%;
}
.border-left::before,
.border-topleft::after,
.border-rightleft::after,
.border-bottomleft::after {
    border-left: 1px solid #eaeaea;
    transform-origin: 0 0;
}
.border-top::before,
.border-topbottom::before,
.border-topleft::before,
.border-topright::before {
    top: 0;
}
.border-right::before,
.border-rightleft::after,
.border-rightbottom::before,
.border-topright::after {
    right: 0;
}
.border-bottom::before,
.border-topbottom::after,
.border-rightbottom::after,
.border-bottomleft::after {
    bottom: 0;
}
.border-left::before,
.border-rightleft::before,
.border-topleft::after,
.border-bottomleft::before {
    left: 0;
}
@media (max--moz-device-pixel-ratio: 1.49), (-webkit-max-device-pixel-ratio: 1.49), (max-device-pixel-ratio: 1.49), (max-resolution: 143dpi), (max-resolution: 1.49dppx) {
    /* 默认值，无需重置 */
}
@media (min--moz-device-pixel-ratio: 1.5) and (max--moz-device-pixel-ratio: 2.49), (-webkit-min-device-pixel-ratio: 1.5) and (-webkit-max-device-pixel-ratio: 2.49), (min-device-pixel-ratio: 1.5) and (max-device-pixel-ratio: 2.49), (min-resolution: 144dpi) and (max-resolution: 239dpi), (min-resolution: 1.5dppx) and (max-resolution: 2.49dppx) {
    .border::before {
        width: 200%;
        height: 200%;
        transform: scale(.5);
    }
    .border-top::before,
    .border-bottom::before,
    .border-topbottom::before,
    .border-topbottom::after,
    .border-topleft::before,
    .border-rightbottom::after,
    .border-topright::before,
    .border-bottomleft::before {
        transform: scaleY(.5);
    }
    .border-right::before,
    .border-left::before,
    .border-rightleft::before,
    .border-rightleft::after,
    .border-topleft::after,
    .border-rightbottom::before,
    .border-topright::after,
    .border-bottomleft::after {
        transform: scaleX(.5);
    }
}
@media (min--moz-device-pixel-ratio: 2.5), (-webkit-min-device-pixel-ratio: 2.5), (min-device-pixel-ratio: 2.5), (min-resolution: 240dpi), (min-resolution: 2.5dppx) {
    .border::before {
        width: 300%;
        height: 300%;
        transform: scale(.33333);
    }
    .border-top::before,
    .border-bottom::before,
    .border-topbottom::before,
    .border-topbottom::after,
    .border-topleft::before,
    .border-rightbottom::after,
    .border-topright::before,
    .border-bottomleft::before {
        transform: scaleY(.33333);
    }
    .border-right::before,
    .border-left::before,
    .border-rightleft::before,
    .border-rightleft::after,
    .border-topleft::after,
    .border-rightbottom::before,
    .border-topright::after,
    .border-bottomleft::after {
        transform: scaleX(.33333);
    }
}

reset.css

 @charset "utf-8";
html{font-size:12px}
body,ul,ol,dl,dd,h1,h2,h3,h4,h5,h6,figure,form,fieldset,legend,input,textarea,button,p,blockquote,th,td,pre,xmp{margin:0;padding:0}
body,input,textarea,button,select,pre,xmp,tt,code,kbd,samp{line-height:1.5;font-family:tahoma,arial,"Hiragino Sans GB",simsun,sans-serif}
h1,h2,h3,h4,h5,h6,small,big,input,textarea,button,select{font-size:100%}
h1,h2,h3,h4,h5,h6{font-family:tahoma,arial,"Hiragino Sans GB","微软雅黑",simsun,sans-serif}
h1,h2,h3,h4,h5,h6,b,strong{font-weight:normal}
address,cite,dfn,em,i,optgroup,var{font-style:normal}
table{border-collapse:collapse;border-spacing:0;text-align:left}
caption,th{text-align:inherit}
ul,ol,menu{list-style:none}
fieldset,img{border:0}
img,object,input,textarea,button,select{vertical-align:middle}
article,aside,footer,header,section,nav,figure,figcaption,hgroup,details,menu{display:block}
audio,canvas,video{display:inline-block;*display:inline;*zoom:1}
blockquote:before,blockquote:after,q:before,q:after{content:"\0020"}
textarea{overflow:auto;resize:vertical}
input,textarea,button,select,a{outline:0 none;border: none;}
button::-moz-focus-inner,input::-moz-focus-inner{padding:0;border:0}
mark{background-color:transparent}
a,ins,s,u,del{text-decoration:none}
sup,sub{vertical-align:baseline}
html {overflow-x: hidden;height: 100%;font-size: 50px;-webkit-tap-highlight-color: transparent;}
body {font-family: Arial, "Microsoft Yahei", "Helvetica Neue", Helvetica, sans-serif;color: #333;font-size: .28em;line-height: 1;-webkit-text-size-adjust: none;}
hr {height: .02rem;margin: .1rem 0;border: medium none;border-top: .02rem solid #cacaca;}
a {color: #25a4bb;text-decoration: none;}

main.js导入样式文件：

import '@/assets/styles/border.css'
import '@/assets/styles/reset.css'

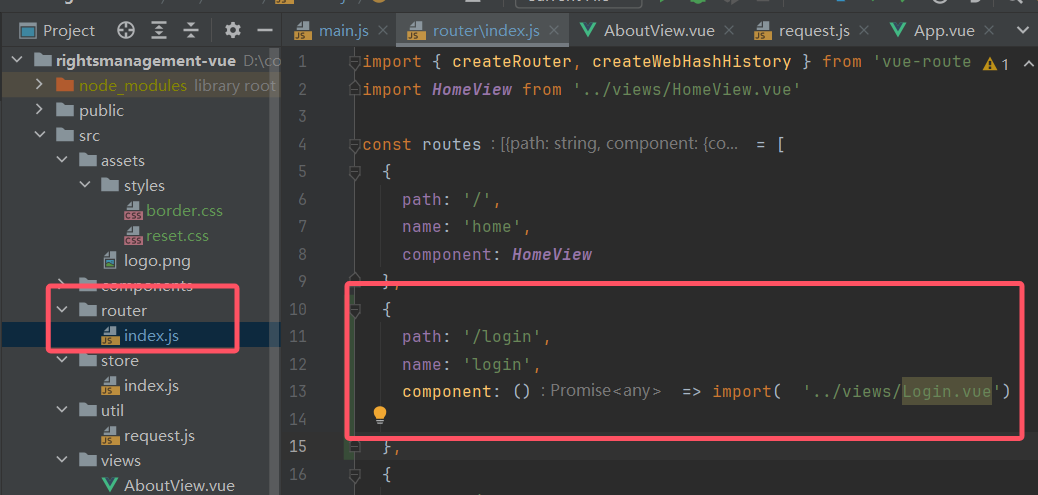

添加路由

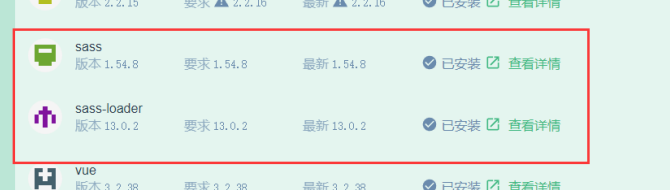

安装sass和sass-loader依赖

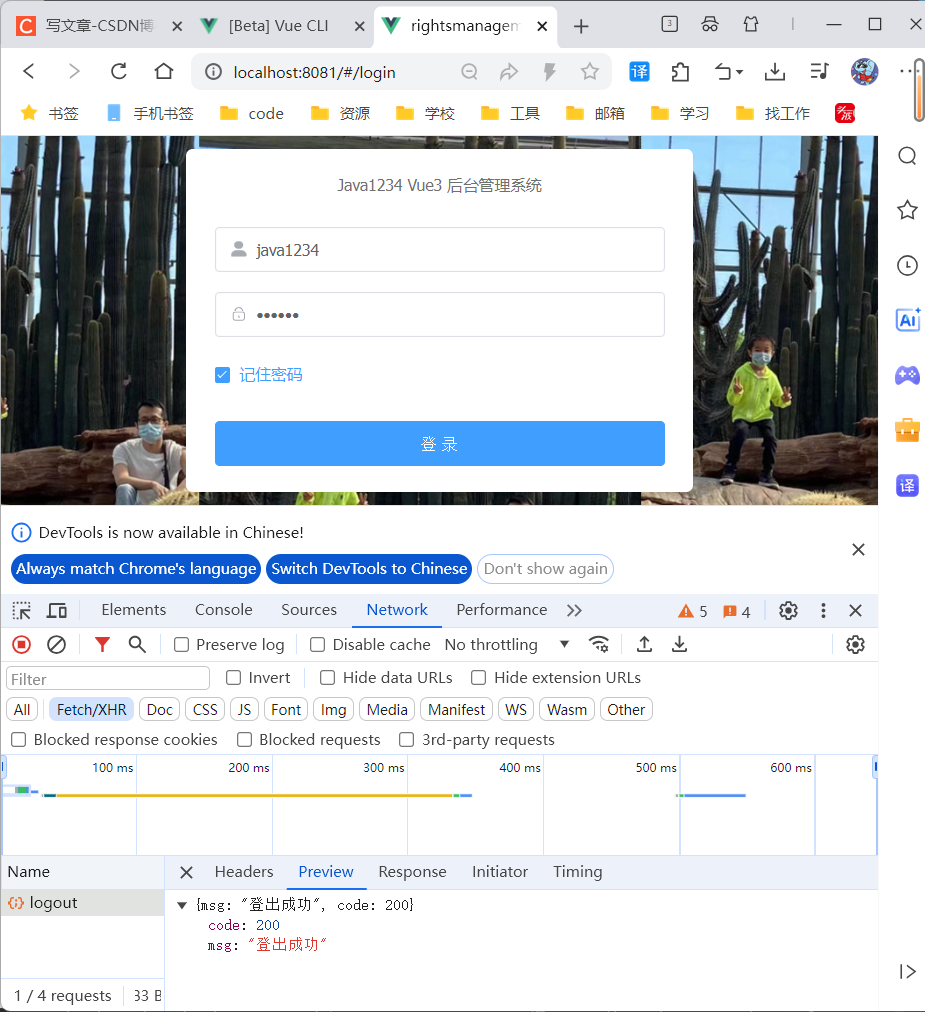

新建view Login.vue

 <template>
<div class="login">

    <el-form ref="loginRef" :model="loginForm" :rules="loginRules" class="login-form">
      <h3 class="title">Java1234 Vue3 后台管理系统</h3>

      <el-form-item prop="username">

        <el-input

            type="text"
            size="large"
            auto-complete="off"
            placeholder="账号"
        >

        </el-input>
      </el-form-item>
      <el-form-item prop="password">
        <el-input

            type="password"
            size="large"
            auto-complete="off"
            placeholder="密码"
            @keyup.enter="handleLogin"
        >

        </el-input>
      </el-form-item>


      <el-checkbox  style="margin:0px 0px 25px 0px;">记住密码</el-checkbox>
      <el-form-item style="width:100%;">
        <el-button
            size="large"
            type="primary"
            style="width:100%;"
            @click.prevent="handleLogin"
        >
          <span>登 录</span>

        </el-button>

      </el-form-item>
    </el-form>
    <!--  底部  -->
    <div class="el-login-footer">
      <span>Copyright © 2013-2022 <a href="http://www.java1234.vip" target="_blank">java1234.vip</a> 版权所有.</span>
    </div>
  </div>
</template>

<script setup>

</script>

<style lang="scss" scoped>
a{
  color:white
}
.login {
  display: flex;
  justify-content: center;
  align-items: center;
  height: 100%;

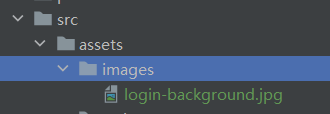

  background-image: url("../assets/images/login-background.jpg");
  background-size: cover;
}
.title {
  margin: 0px auto 30px auto;
  text-align: center;
  color: #707070;
}

.login-form {
  border-radius: 6px;
  background: #ffffff;
  width: 400px;
  padding: 25px 25px 5px 25px;

  .el-input {
    height: 40px;



    input {
      display: inline-block;
      height: 40px;
    }
  }
  .input-icon {
    height: 39px;
    width: 14px;
    margin-left: 0px;
  }

}
.login-tip {
  font-size: 13px;
  text-align: center;
  color: #bfbfbf;
}
.login-code {
  width: 33%;
  height: 40px;
  float: right;
  img {
    cursor: pointer;
    vertical-align: middle;
  }
}
.el-login-footer {
  height: 40px;
  line-height: 40px;
  position: fixed;
  bottom: 0;
  width: 100%;
  text-align: center;
  color: #fff;
  font-family: Arial;
  font-size: 12px;
  letter-spacing: 1px;
}
.login-code-img {
  height: 40px;
  padding-left: 12px;
}
</style>

App.vue设置下全局样式：

<style>
html,body,#app{
  height: 100%;
}
.app-container{
  padding:20px
}
</style>

自定义icon实现

新建

 <template>
  <svg class="svg-icon" aria-hidden="true">
    <use :xlink:href="iconName"></use>
  </svg>
</template>

<script setup>
import { defineProps, computed } from 'vue'
const props = defineProps({
  icon: {
    type: String,
    required: true
  }
})

const iconName = computed(() => {
  return `#icon-${props.icon}`
})
</script>

<style lang="scss" scoped>
.svg-icon {
  width: 1em;
  height: 1em;
  vertical-align: -0.15em;
  fill: currentColor;
  overflow: hidden;
}
</style>

src下新建文件夹 新建index.js

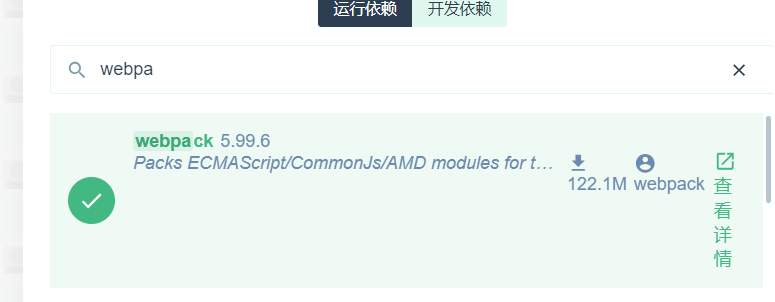

安装依赖 webpack

安装依赖 svg-sprite-loader

vue.config.js

 // const { defineConfig } = require('@vue/cli-service')
// module.exports = defineConfig({
//   transpileDependencies: true
// })
const webpack = require('webpack');

const path = require('path')
function resolve(dir) {
  return path.join(__dirname, dir)
}

module.exports = {
  lintOnSave: false,

  chainWebpack(config) {
    // 设置 svg-sprite-loader
    // config 为 webpack 配置对象
    // config.module 表示创建一个具名规则，以后用来修改规则
    config.module
        // 规则
        .rule('svg')
        // 忽略
        .exclude.add(resolve('src/icons'))
        // 结束
        .end()
    // config.module 表示创建一个具名规则，以后用来修改规则
    config.module
        // 规则
        .rule('icons')
        // 正则，解析 .svg 格式文件
        .test(/\.svg$/)
        // 解析的文件
        .include.add(resolve('src/icons'))
        // 结束
        .end()
        // 新增了一个解析的loader
        .use('svg-sprite-loader')
        // 具体的loader
        .loader('svg-sprite-loader')
        // loader 的配置
        .options({
          symbolId: 'icon-[name]'
        })
        // 结束
        .end()
    config
        .plugin('ignore')
        .use(
            new webpack.ContextReplacementPlugin(/moment[/\\]locale$/, /zh-cn$/)
        )
    config.module
        .rule('icons')
        .test(/\.svg$/)
        .include.add(resolve('src/icons'))
        .end()
        .use('svg-sprite-loader')
        .loader('svg-sprite-loader')
        .options({
          symbolId: 'icon-[name]'
        })
        .end()
  }
}

修改main.js

import { createApp } from 'vue'
import App from './App.vue'
import router from './router'
import store from './store'


import ElementPlus from 'element-plus'
import 'element-plus/dist/index.css'

import '@/assets/styles/border.css'
import '@/assets/styles/reset.css'

 import SvgIcon from '@/icons'
//
// createApp(App).use(store).use(router).use(ElementPlus).mount('#app')

const app=createApp(App);

SvgIcon(app);


app.use(store)
app.use(router)
app.use(ElementPlus)
app.mount('#app')

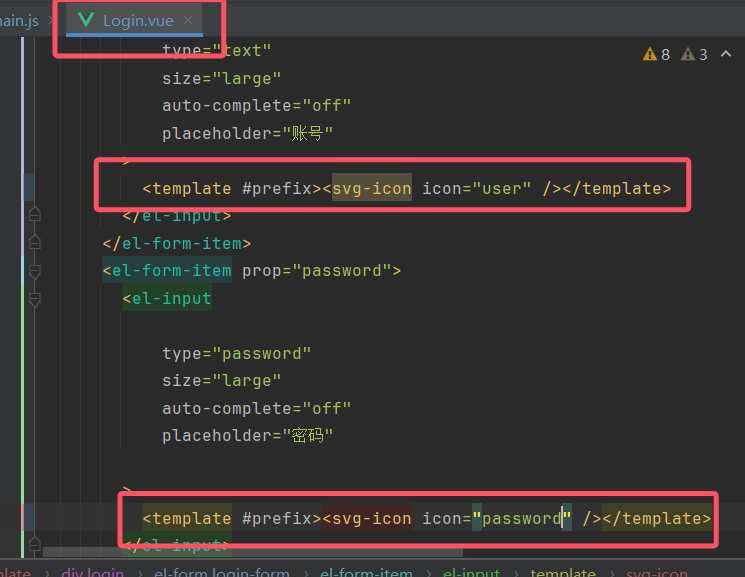

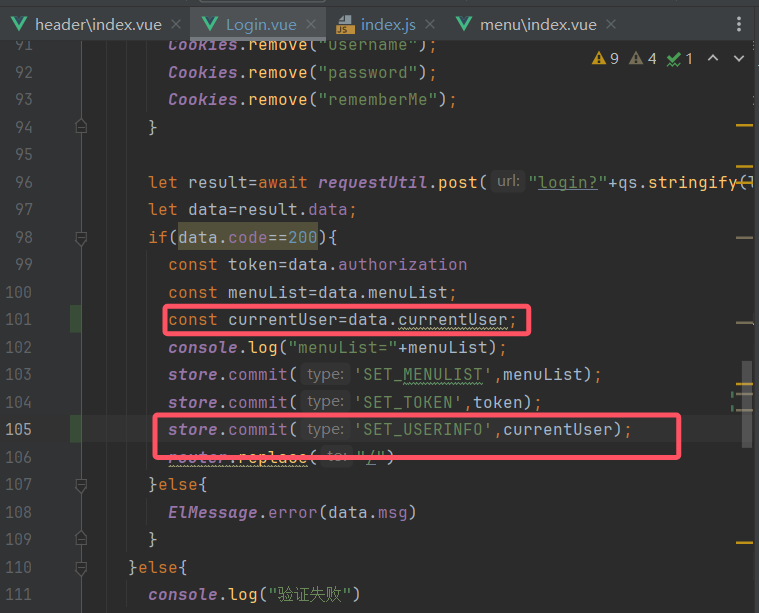

Login.vue添加代码

SpringSecurity执行原理概述

spring security的简单原理：
SpringSecurity有很多很多的拦截器，在执行流程里面主要有两个核心的拦截器
1，登陆验证拦截器AuthenticationProcessingFilter
2，资源管理拦截器AbstractSecurityInterceptor
但拦截器里面的实现需要一些组件来实现，所以就有了AuthenticationManager认证管理器、
accessDecisionManager决策管理器等组件来支撑。

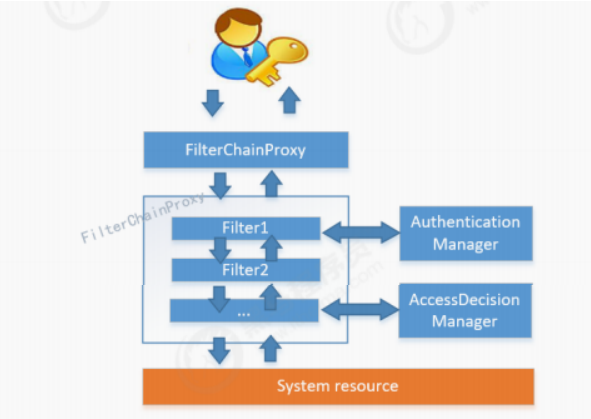

FilterChainProxy是一个代理，真正起作用的是各个Filter，这些Filter作为Bean被Spring管理，是
Spring Security核心，各有各的职责，不直接处理认证和授权，交由认证管理器和决策管理器处理！
大概流程

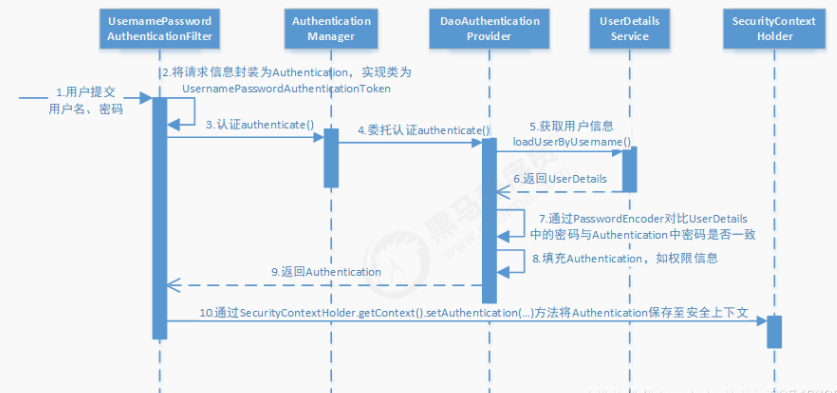

认证管理
流程图解读：
1、用户提交用户名、密码被SecurityFilterChain中的 UsernamePasswordAuthenticationFilter 过滤器
获取到， 封装为请求Authentication，通常情况下是UsernamePasswordAuthenticationToken这个实
现类。
2、然后过滤器将Authentication提交至认证管理器（AuthenticationManager）进行认证 。
3、认证成功后， AuthenticationManager 身份管理器返回一个被填充满了信息的（包括上面提到的权
限信息， 身份信息，细节信息，但密码通常会被移除） Authentication 实例。
4、SecurityContextHolder 安全上下文容器将第3步填充了信息的 Authentication ，通过
SecurityContextHolder.getContext().setAuthentication(…)方法，设置到其中。 可以看出
AuthenticationManager接口（认证管理器）是认证相关的核心接口，也是发起认证的出发点，它 的实
现类为ProviderManager。而Spring Security支持多种认证方式，因此ProviderManager维护着一个
List 列表，存放多种认证方式，最终实际的认证工作是由 AuthenticationProvider完成的。咱们知道
web表单的对应的AuthenticationProvider实现类为 DaoAuthenticationProvider，它的内部又维护着
一个UserDetailsService负责UserDetails的获取。最终 AuthenticationProvider将UserDetails填充至
Authentication。
授权管理

访问资源（即授权管理），访问url时，会通过FilterSecurityInterceptor拦截器拦截，其中会调用
SecurityMetadataSource的方法来获取被拦截url所需的全部权限，再调用授权管理器
AccessDecisionManager，这个授权管理器会通过spring的全局缓存SecurityContextHolder获取用户
的权限信息，还会获取被拦截的url和被拦截url所需的全部权限，然后根据所配的投票策略（有：一票决
定，一票否定，少数服从多数等），如果权限足够，则决策通过，返回访问资源，请求放行，否则跳转
到403页面、自定义页面。
转载自：https://blog.csdn.net/weixin_51542566/article/details/119705963

项目整合SpringSecurity

pom.xml加下springsecurity依赖

   <dependency>
             <groupId>org.springframework.boot</groupId>
             <artifactId>spring-boot-starter-security</artifactId>
        </dependency>

新建配置类

package com.java.config;

import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.method.configuration.EnableGlobalMethodSecurity;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.config.http.SessionCreationPolicy;

/**
 * spring security配置

 */
@Configuration
@EnableWebSecurity
@EnableGlobalMethodSecurity(prePostEnabled = true)

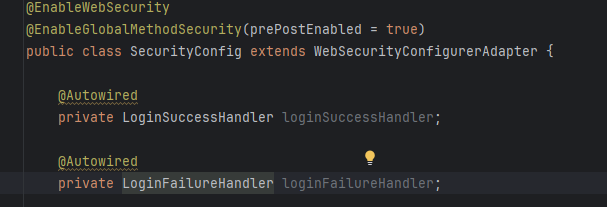

public class SecurityConfig extends WebSecurityConfigurerAdapter {

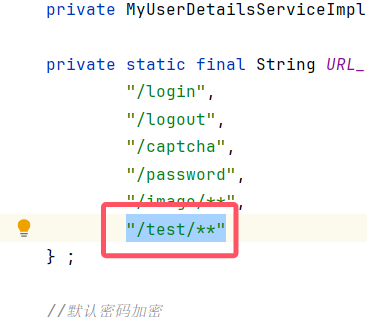

    private static final String URL_WHITELIST[] ={
            "/login",
            "/logout",
            "/captcha",
            "/password",
            "/image/**",
            "/test/**"
    } ;

    @Override
    protected void configure(AuthenticationManagerBuilder auth) throws Exception {
        super.configure(auth);
    }

    @Override

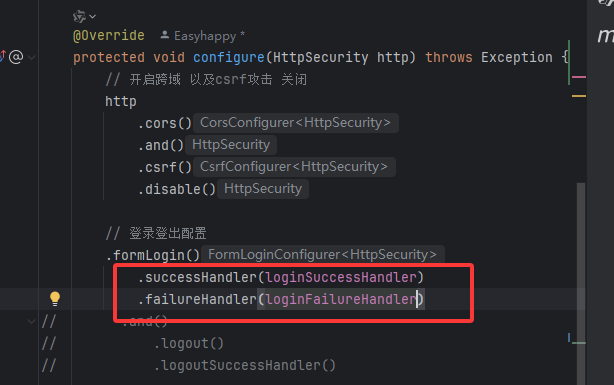

    protected void configure(HttpSecurity http) throws Exception {
        // 开启跨域 以及csrf攻击 关闭
        http
            .cors()
            .and()
            .csrf()
            .disable()

        // 登录登出配置
        .formLogin()
//            .successHandler()
//            .failureHandler()
//        .and()
//            .logout()
//            .logoutSuccessHandler()

        // session禁用配置
        .and()
            .sessionManagement()
            .sessionCreationPolicy(SessionCreationPolicy.STATELESS)  // 无状态

        // 拦截规则配置
        .and()
        .authorizeRequests()
        .antMatchers(URL_WHITELIST).permitAll()  // 白名单 放行
        .anyRequest().authenticated();


        // 异常处理配置

        // 自定义过滤器配置

    }
}

重写登录成功和登录失败处理器

common下新建security包，再新建两个类，LoginSuccessHandler和LoginFailureHandler

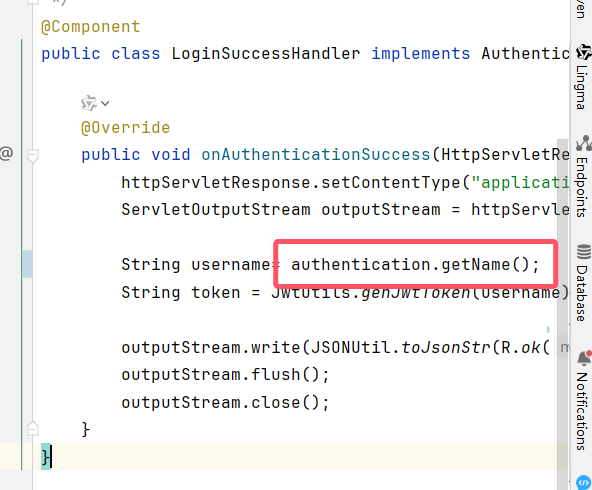

LoginSuccessHandler

 package com.java.common.security;

import cn.hutool.json.JSONUtil;

import com.java.entity.R;
import com.java.util.JwtUtils;
import org.springframework.security.core.Authentication;
import org.springframework.security.web.authentication.AuthenticationSuccessHandler;
import org.springframework.stereotype.Component;

import javax.servlet.ServletException;
import javax.servlet.ServletOutputStream;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;

/**
 * 登录成功处理器

 */
@Component
public class LoginSuccessHandler implements AuthenticationSuccessHandler {

    @Override
    public void onAuthenticationSuccess(HttpServletRequest httpServletRequest, HttpServletResponse httpServletResponse, Authentication authentication) throws IOException, ServletException {
        httpServletResponse.setContentType("application/json;charset=UTF-8");
        ServletOutputStream outputStream = httpServletResponse.getOutputStream();

        String username="user";
        String token = JwtUtils.genJwtToken(username);

        outputStream.write(JSONUtil.toJsonStr(R.ok("登录成功").put("authorization",token)).getBytes());
        outputStream.flush();
        outputStream.close();
    }
}

LoginFailureHandler

 package com.java.common.security;

import cn.hutool.json.JSONUtil;

import com.java.entity.R;
import org.springframework.security.authentication.BadCredentialsException;
import org.springframework.security.core.AuthenticationException;
import org.springframework.security.web.authentication.AuthenticationFailureHandler;
import org.springframework.stereotype.Component;

import javax.servlet.ServletException;
import javax.servlet.ServletOutputStream;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;

/**
 * 登录成功处理器

 */
@Component
public class LoginFailureHandler implements AuthenticationFailureHandler {


    @Override
    public void onAuthenticationFailure(HttpServletRequest httpServletRequest, HttpServletResponse httpServletResponse, AuthenticationException e) throws IOException, ServletException {
        httpServletResponse.setContentType("application/json;charset=UTF-8");
        ServletOutputStream outputStream = httpServletResponse.getOutputStream();

        String message=e.getMessage();
        if(e instanceof BadCredentialsException){
            message="用户名或者密码错误！";
        }

        outputStream.write(JSONUtil.toJsonStr(R.error(message)).getBytes("UTF-8"));
        outputStream.flush();
        outputStream.close();
    }
}

注入


前端

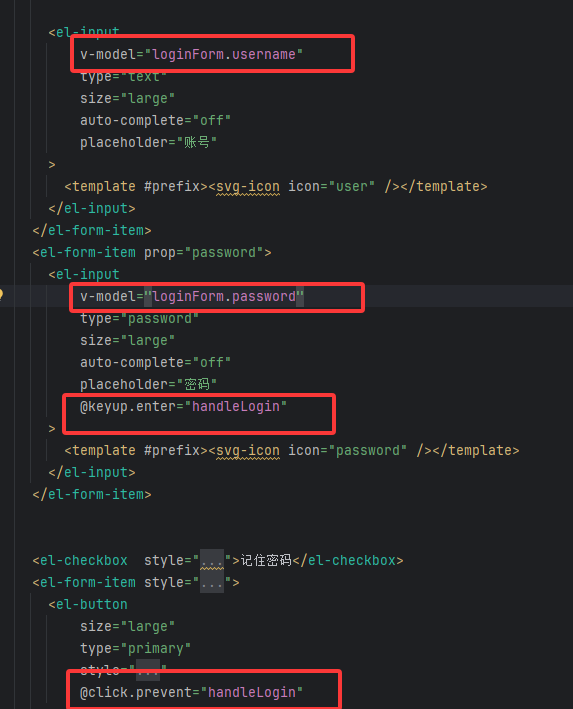

Login.vue页面修改

script 里添加代码

<script setup>


import {ref} from 'vue'
import requestUtil from '@/util/request'
import store from '@/store'
import qs from "qs"
import {ElMessage} from "element-plus"

const loginRef=ref(null)

const loginForm=ref({
  username:"",
  password:""
})

const loginRules = {
  username: [{ required: true, trigger: "blur", message: "请输入您的账号" }],
  password: [{ required: true, trigger: "blur", message: "请输入您的密码" }]
};

const handleLogin=()=>{
  loginRef.value.validate(async(valid)=>{
    if(valid){
      let result=await requestUtil.post("login?"+qs.stringify(loginForm.value))
      let data=result.data;
      if(data.code==200){
        const token=data.authorization
        store.commit('SET_TOKEN',token);
      }else{
        ElMessage.error(data.msg)
      }
    }else{
      console.log("验证失败")
    }
  })
}


</script>

安装qs

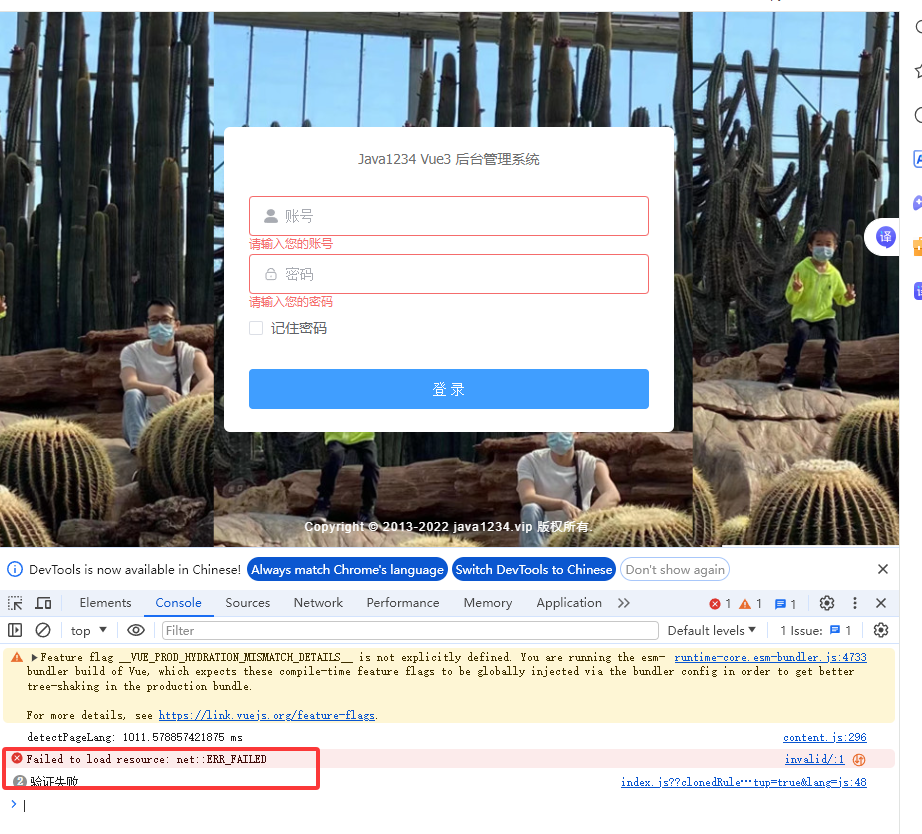

什么都不输入验证失败

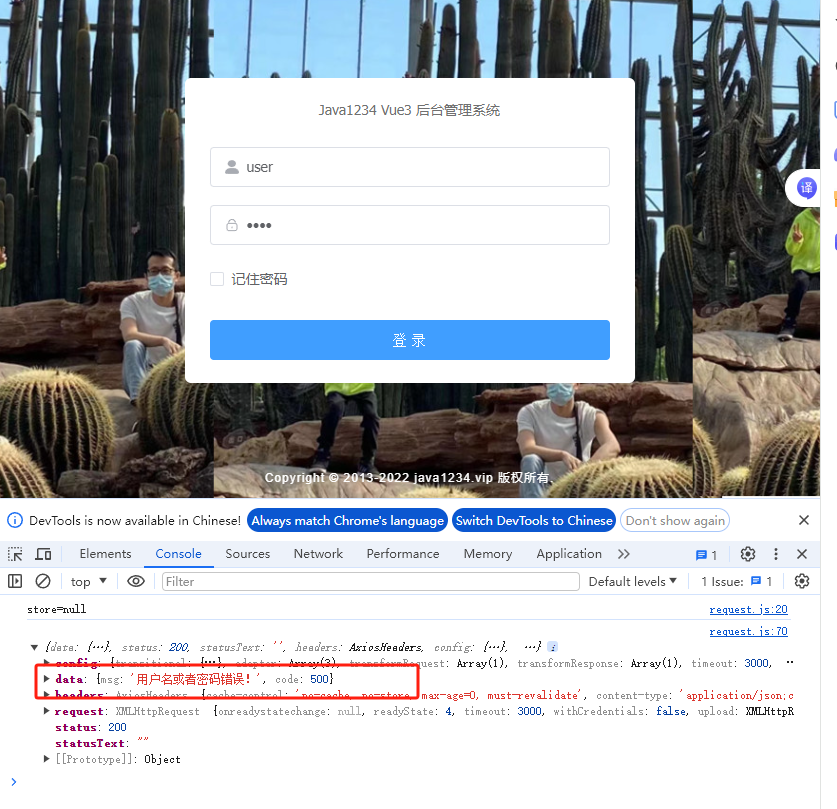

随便输入密码

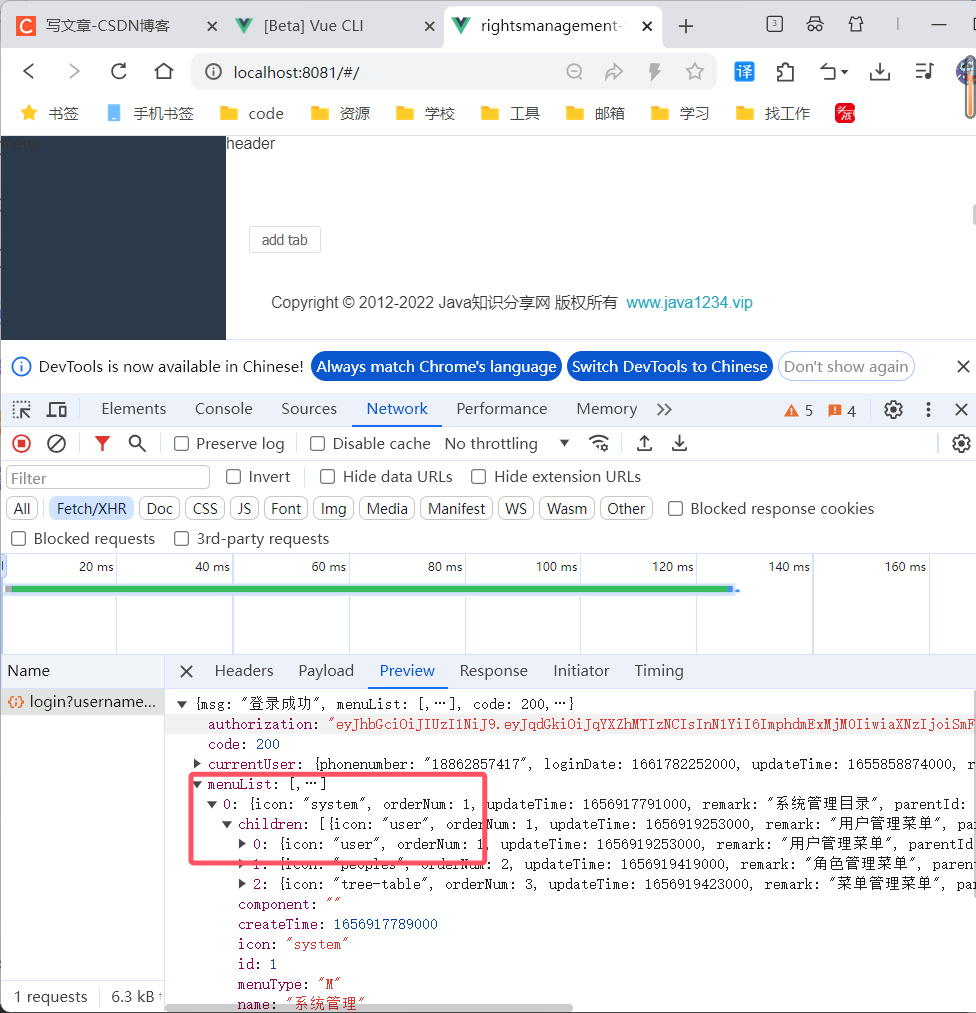

输入正确密码验证成功

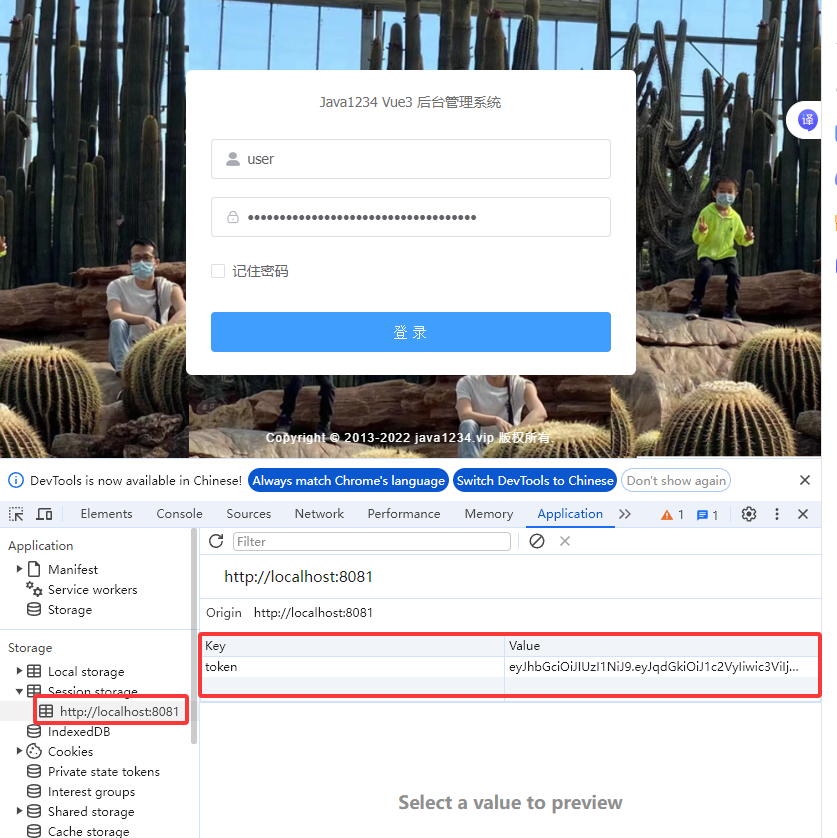

token也存在

用户登录SpringSecurity查库实现

security包下新建MyUserDetailServiceImpl

package com.java.common.security;


import com.java.common.exception.UserCountLockException;
import com.java.entity.SysUser;
import com.java.service.SysUserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.core.userdetails.User;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.stereotype.Service;

import java.util.ArrayList;
import java.util.Collection;
import java.util.List;

/**
 * 自定义UserDetails

 */
@Service
public class MyUserDetailsServiceImpl implements UserDetailsService {

    @Autowired
    SysUserService sysUserService;

    @Override
    public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {
        SysUser sysUser=sysUserService.getByUsername(username);
        if(sysUser==null){
            throw new UsernameNotFoundException("用户名或者密码错误！");
        }else if("1".equals(sysUser.getStatus())){

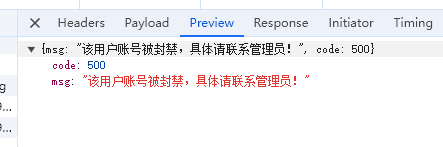

            throw new UserCountLockException("该用户账号被封禁，具体请联系管理员！");
        }
        return new User(sysUser.getUsername(),sysUser.getPassword(),getUserAuthority());
    }

    private List<GrantedAuthority> getUserAuthority() {
        return new ArrayList<>();
    }
}

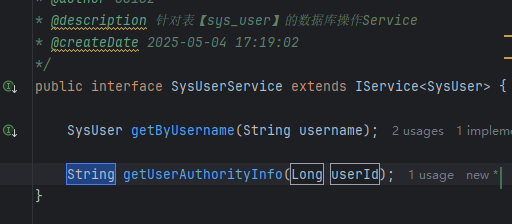

SysUserService里新建接口

  SysUser getByUsername(String username);

以及对应实现
SysUserServiceImpl

    @Override
    public SysUser getByUsername(String username) {
        return getOne(new QueryWrapper<SysUser>().eq("username",username));
    }

以及自定义异常类

全局异常

package com.java.common.exception;


import com.java.entity.R;
import lombok.extern.slf4j.Slf4j;
import org.springframework.web.bind.annotation.ExceptionHandler;
import org.springframework.web.bind.annotation.RestControllerAdvice;

/**
 * 全部异常处理

 */
@Slf4j
@RestControllerAdvice
public class GlobalExceptionHandler {

    @ExceptionHandler(value = RuntimeException.class)
    public R handler(RuntimeException e){
        log.error("运行时异常：---------{}"+e.getMessage());
        return R.error(e.getMessage());
    }
}

 package com.java.common.security;


import com.java.common.exception.UserCountLockException;
import com.java.entity.SysUser;
import com.java.service.SysUserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.core.userdetails.User;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.stereotype.Service;

import java.util.ArrayList;
import java.util.Collection;
import java.util.List;

/**
 * 自定义UserDetails

 */
@Service
public class MyUserDetailsServiceImpl implements UserDetailsService {

    @Autowired
    SysUserService sysUserService;

    @Override
    public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {
        SysUser sysUser=sysUserService.getByUsername(username);
        if(sysUser==null){
            throw new UsernameNotFoundException("用户名或者密码错误！");
        }else if("1".equals(sysUser.getStatus())){
            throw new UserCountLockException("该用户账号被封禁，具体请联系管理员！");
        }
        return new User(sysUser.getUsername(),sysUser.getPassword(),getUserAuthority());
    }

    private List<GrantedAuthority> getUserAuthority() {
        return new ArrayList<>();
    }
}

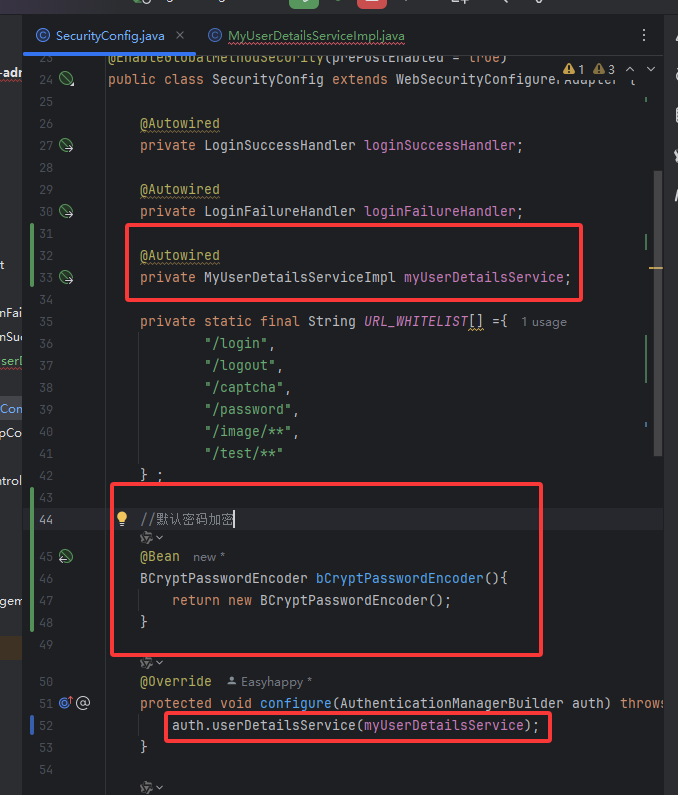

修改SecurityConfig.java

测试成功

实现JWT认证过滤器

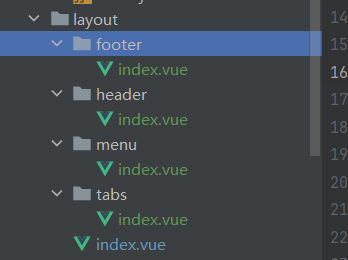

router配置，加下首页路由

{
  path: '/',
  name: '首页',
  component: () => import('../layout')
},

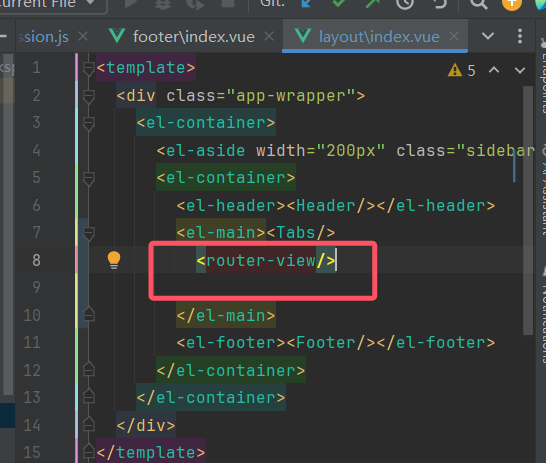

新建主页

<template>
<el-button type="danger" @click="testHandler">测试接口</el-button>
</template>

<script setup>
import requestUtil from '@/util/request'


const testHandler=async ()=>{
  let result=await requestUtil.get("test/user/list");

}
</script>

<style scoped>

</style>

Login.vue

import router from "@/router"



const handleLogin=()=>{
  loginRef.value.validate(async(valid)=>{
    if(valid){
      let result=await requestUtil.post("login?"+qs.stringify(loginForm.value))
      let data=result.data;
      if(data.code==200){
        const token=data.authorization
        store.commit('SET_TOKEN',token);
        router.replace("/")
      }else{
        ElMessage.error(data.msg)
      }
    }else{
      console.log("验证失败")
    }
  })
}

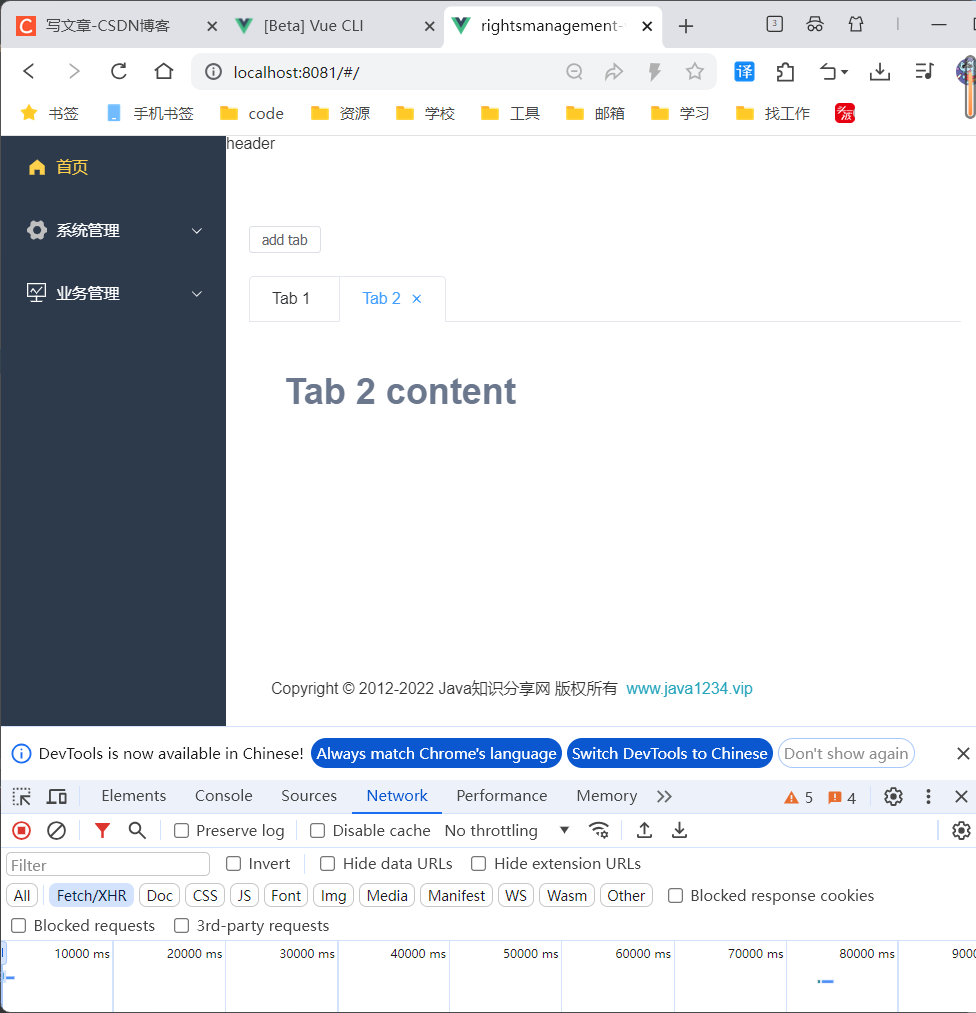

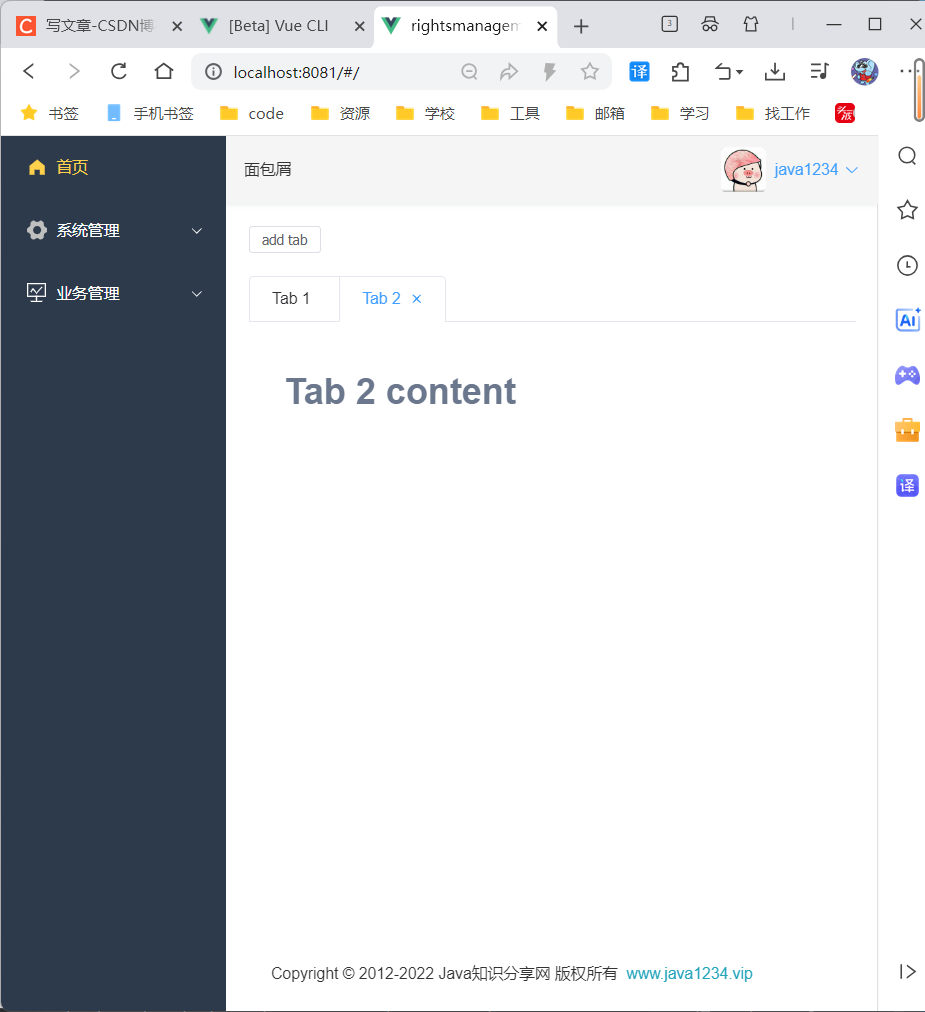

成功进入主页

删掉这部分

securityconfig里添加配置

  @Bean
    JwtAuthenticationFilter jwtAuthenticationFilter() throws Exception {
        JwtAuthenticationFilter jwtAuthenticationFilter=new JwtAuthenticationFilter(authenticationManager());
        return jwtAuthenticationFilter;
    }

 // 自定义过滤器配置
        .and()
        .addFilter(jwtAuthenticationFilter());

LoginSuccessHandler里修改代码

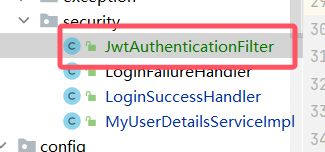

新建

 package com.java.common.security;


import com.java.common.constant.JwtConstant;
import com.java.entity.CheckResult;
import com.java.entity.SysUser;
import com.java.service.SysUserService;
import com.java.util.JwtUtils;
import com.java.util.StringUtil;
import io.jsonwebtoken.Claims;
import io.jsonwebtoken.JwtException;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.authentication.UsernamePasswordAuthenticationToken;
import org.springframework.security.core.context.SecurityContextHolder;
import org.springframework.security.web.authentication.www.BasicAuthenticationFilter;

import javax.servlet.FilterChain;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
import java.util.ArrayList;
import java.util.Arrays;

/**

 */
public class JwtAuthenticationFilter extends BasicAuthenticationFilter {

    @Autowired
    private SysUserService sysUserService;

    @Autowired
    private MyUserDetailsServiceImpl myUserDetailsService;

    private static final String URL_WHITELIST[] ={
            "/login",
            "/logout",
            "/captcha",
            "/password",
            "/image/**"
    } ;

    public JwtAuthenticationFilter(AuthenticationManager authenticationManager) {
        super(authenticationManager);
    }

    @Override
    protected void doFilterInternal(HttpServletRequest request, HttpServletResponse response, FilterChain chain) throws IOException, ServletException {
        String token = request.getHeader("token");
        System.out.println("请求url:"+request.getRequestURI());
        // 如果token是空 或者 url在白名单里，则放行
        if(StringUtil.isEmpty(token) || new ArrayList<String>(Arrays.asList(URL_WHITELIST)).contains(request.getRequestURI())){
            chain.doFilter(request,response);
            return;
        }
        CheckResult checkResult = JwtUtils.validateJWT(token);
        if(!checkResult.isSuccess()){
            switch (checkResult.getErrCode()){
                case JwtConstant.JWT_ERRCODE_NULL:throw new JwtException("Token不存在");
                case JwtConstant.JWT_ERRCODE_FAIL:throw new JwtException("Token验证不通过");
                case JwtConstant.JWT_ERRCODE_EXPIRE:throw new JwtException("Token过期");
            }
        }
        Claims claims = JwtUtils.parseJWT(token);
        String username = claims.getSubject();
        SysUser sysUser = sysUserService.getByUsername(username);

        UsernamePasswordAuthenticationToken usernamePasswordAuthenticationToken=new UsernamePasswordAuthenticationToken(username,null,myUserDetailsService.getUserAuthority());
        SecurityContextHolder.getContext().setAuthentication(usernamePasswordAuthenticationToken);
        chain.doFilter(request,response);
    }
}

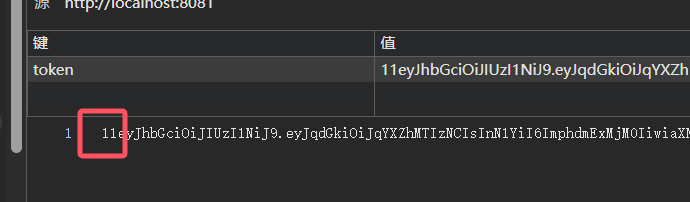

修改token

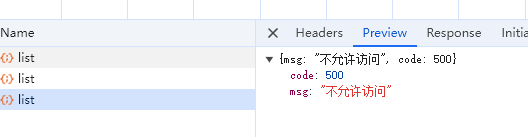

不可访问

实现JWT认证异常处理器

新建 JwtAuthenticationEntryPoint

package com.java.common.security;

import cn.hutool.json.JSONUtil;

import com.java.entity.R;
import org.springframework.security.core.AuthenticationException;
import org.springframework.security.web.AuthenticationEntryPoint;
import org.springframework.stereotype.Component;

import javax.servlet.ServletException;
import javax.servlet.ServletOutputStream;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;

/**
 * jwt认证失败处理

 */
@Component
public class JwtAuthenticationEntryPoint implements AuthenticationEntryPoint {

    @Override
    public void commence(HttpServletRequest httpServletRequest, HttpServletResponse httpServletResponse, AuthenticationException e) throws IOException, ServletException {
        httpServletResponse.setContentType("application/json;charset=UTF-8");
        ServletOutputStream outputStream = httpServletResponse.getOutputStream();

        outputStream.write(JSONUtil.toJsonStr(R.error(HttpServletResponse.SC_UNAUTHORIZED,"认证失败，请登录！")).getBytes());
        outputStream.flush();
        outputStream.close();
    }
}

SecurityConfig里添加配置

  @Autowired
    private JwtAuthenticationEntryPoint jwtAuthenticationEntryPoint;

    // 异常处理配置
                .and()
                .exceptionHandling()
                .authenticationEntryPoint(jwtAuthenticationEntryPoint)

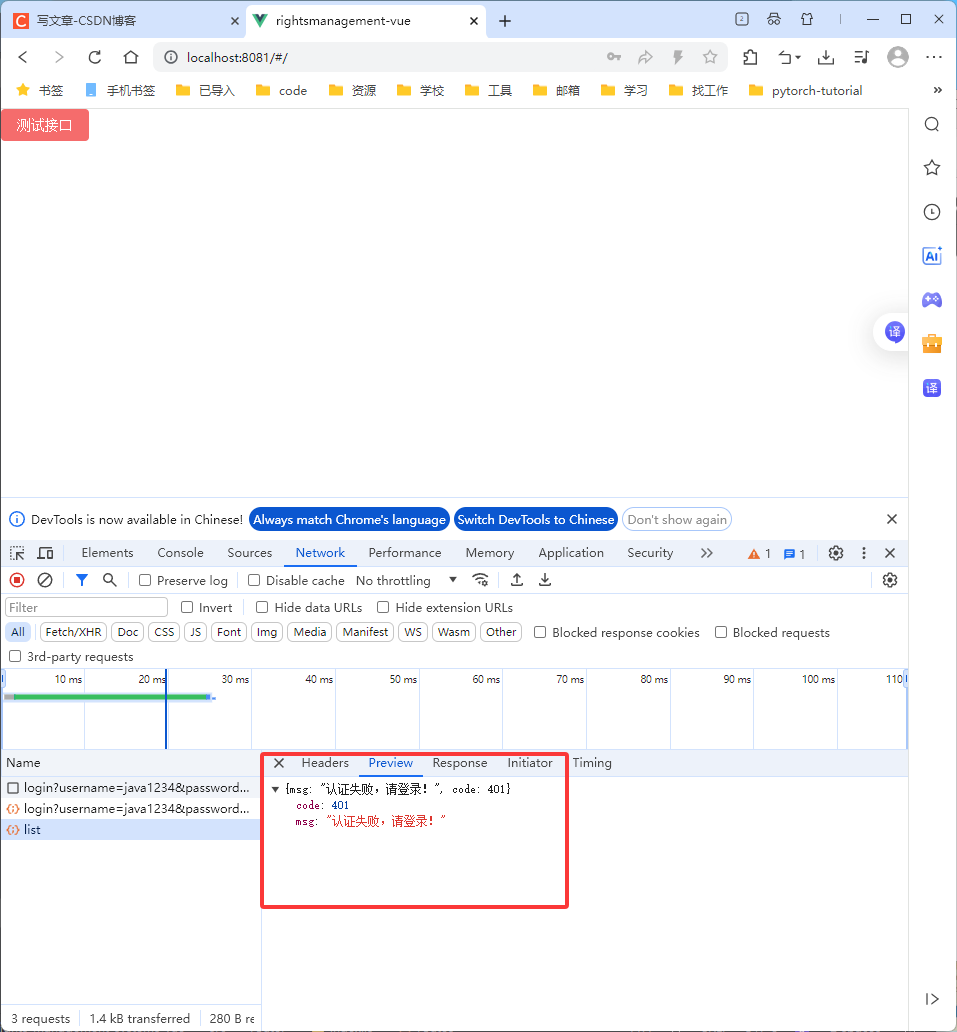

修改token

认证失败

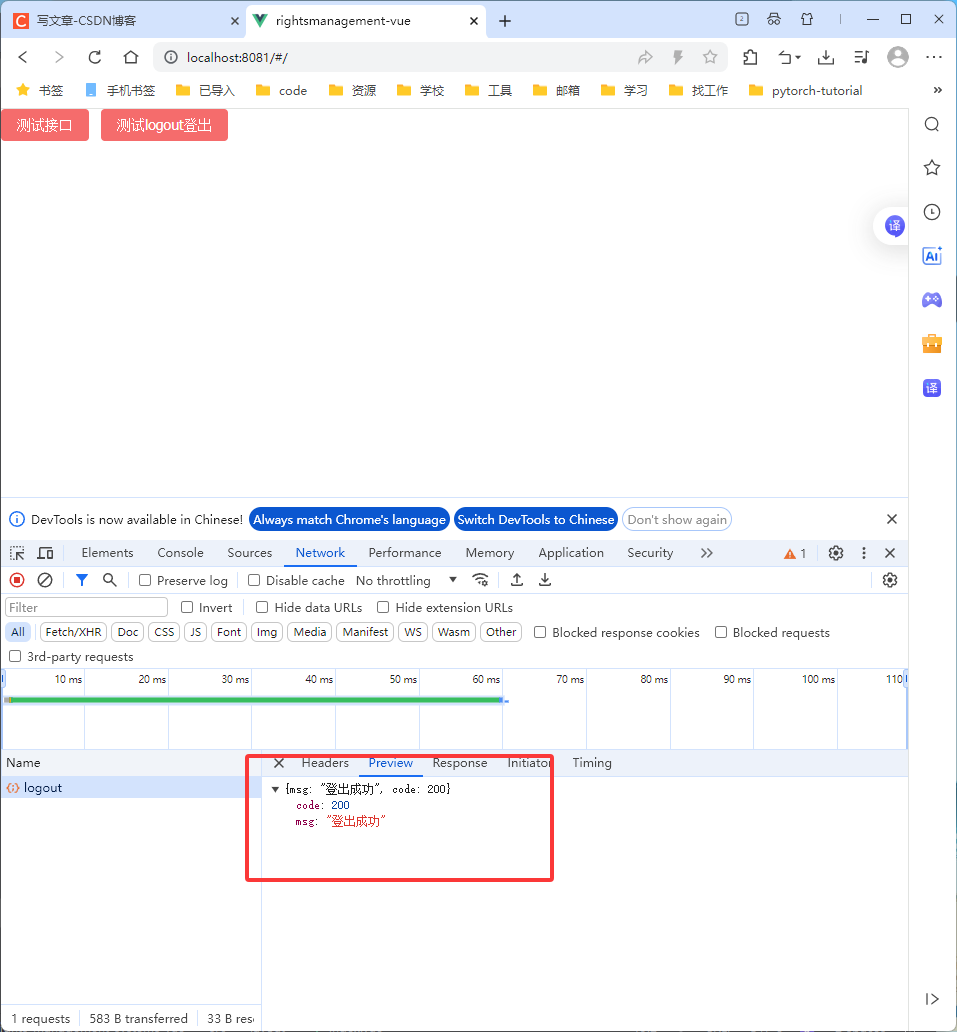

实现自定义logout处理

默认logout请求实现是有状态的，返回到login请求页面；我们现在是前后端分离处理，所以需要自定义
实现logout
新建JwtLogoutSuccessHandler

package com.java.common.security;

import cn.hutool.json.JSONUtil;

import com.java.entity.R;
import org.springframework.security.core.Authentication;
import org.springframework.security.web.authentication.logout.LogoutSuccessHandler;
import org.springframework.stereotype.Component;

import javax.servlet.ServletException;
import javax.servlet.ServletOutputStream;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;

/**
 * 自定义logout处理

 */
@Component
public class JwtLogoutSuccessHandler implements LogoutSuccessHandler {
    @Override
    public void onLogoutSuccess(HttpServletRequest httpServletRequest, HttpServletResponse httpServletResponse, Authentication authentication) throws IOException, ServletException {
        httpServletResponse.setContentType("application/json;charset=UTF-8");
        ServletOutputStream outputStream = httpServletResponse.getOutputStream();

        outputStream.write(JSONUtil.toJsonStr(R.ok("登出成功")).getBytes());
        outputStream.flush();
        outputStream.close();
    }
}

SecurityConfig添加配置

 @Autowired
    private JwtLogoutSuccessHandler jwtLogoutSuccessHandler;

 .and()
            .logout()
            .logoutSuccessHandler(jwtLogoutSuccessHandler)

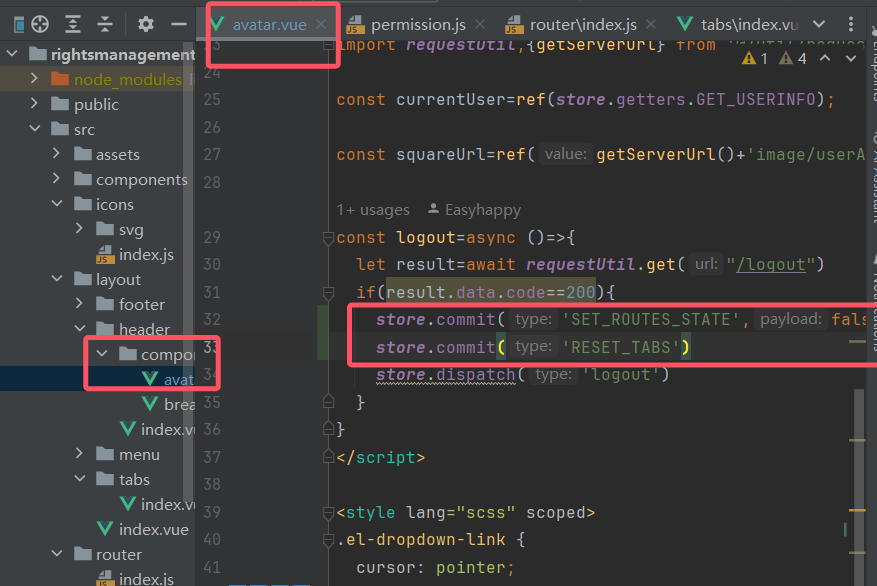

前端添加按钮

 <template>
  <el-button type="danger" @click="testHandler">测试接口</el-button>

  <el-button type="danger" @click="testLogoutHandler">测试logout登出</el-button>
</template>

<script setup>
import requestUtil from '@/util/request'


const testHandler=async ()=>{
  let result=await requestUtil.get("test/user/list");

}

const testLogoutHandler=async ()=>{
  let result=await requestUtil.get("logout");

}
</script>

<style scoped>

</style>

登出成功

获取用户角色权限信息实现

springsecurity鉴权需要获取用户的角色权限系统，包括前端也需要这些信息；
首先我们新建角色表sys_role，菜单权限表sys_menu，用户角色关联表sys_user_role，角色菜单权限关
联表sys_role_menu

角色表sys_role 菜单权限表sys_menu 用户角色关联表sys_user_role 角色菜单权限关联表sys_role_menu

/*
SQLyog Ultimate v11.33 (64 bit)
MySQL - 5.7.18-log : Database - db_admin3
*********************************************************************
*/


/*!40101 SET NAMES utf8 */;

/*!40101 SET SQL_MODE=''*/;

/*!40014 SET @OLD_UNIQUE_CHECKS=@@UNIQUE_CHECKS, UNIQUE_CHECKS=0 */;
/*!40014 SET @OLD_FOREIGN_KEY_CHECKS=@@FOREIGN_KEY_CHECKS, FOREIGN_KEY_CHECKS=0 */;
/*!40101 SET @OLD_SQL_MODE=@@SQL_MODE, SQL_MODE='NO_AUTO_VALUE_ON_ZERO' */;
/*!40111 SET @OLD_SQL_NOTES=@@SQL_NOTES, SQL_NOTES=0 */;
CREATE DATABASE /*!32312 IF NOT EXISTS*/`db_admin3` /*!40100 DEFAULT CHARACTER SET utf8 */;

USE `db_admin3`;

/*Table structure for table `sys_menu` */

DROP TABLE IF EXISTS `sys_menu`;

CREATE TABLE `sys_menu` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT '菜单主键ID',
  `name` varchar(50) DEFAULT NULL COMMENT '菜单名称',
  `icon` varchar(100) DEFAULT '#' COMMENT '菜单图标',
  `parent_id` bigint(20) DEFAULT NULL COMMENT '父菜单ID',
  `order_num` int(11) DEFAULT '0' COMMENT '显示顺序',
  `path` varchar(200) DEFAULT '' COMMENT '路由地址',
  `component` varchar(255) DEFAULT NULL COMMENT '组件路径',
  `menu_type` char(1) DEFAULT '' COMMENT '菜单类型（M目录 C菜单 F按钮）',
  `perms` varchar(100) DEFAULT '' COMMENT '权限标识',
  `create_time` datetime DEFAULT NULL COMMENT '创建时间',
  `update_time` datetime DEFAULT NULL COMMENT '更新时间',
  `remark` varchar(500) DEFAULT NULL COMMENT '备注',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=34 DEFAULT CHARSET=utf8;

/*Data for the table `sys_menu` */

insert  into `sys_menu`(`id`,`name`,`icon`,`parent_id`,`order_num`,`path`,`component`,`menu_type`,`perms`,`create_time`,`update_time`,`remark`) values (1,'系统管理','system',0,1,'/sys','','M','','2022-07-04 14:56:29','2022-07-04 14:56:31','系统管理目录'),(2,'业务管理','monitor',0,2,'/bsns','','M','','2022-07-04 14:59:43','2022-07-04 14:59:45','业务管理目录'),(3,'用户管理','user',1,1,'/sys/user','sys/user/index','C','system:user:list','2022-07-04 15:20:51','2022-07-04 15:20:53','用户管理菜单'),(4,'角色管理','peoples',1,2,'/sys/role','sys/role/index','C','system:role:list','2022-07-04 15:23:35','2022-07-04 15:23:39','角色管理菜单'),(5,'菜单管理','tree-table',1,3,'/sys/menu','sys/menu/index','C','system:menu:list','2022-07-04 15:23:41','2022-07-04 15:23:43','菜单管理菜单'),(6,'部门管理','tree',2,1,'/bsns/department','bsns/Department','C','','2022-07-04 15:24:40','2022-07-04 15:24:44','部门管理菜单'),(7,'岗位管理','post',2,2,'/bsns/post','bsns/Post','C','','2022-07-04 15:24:42','2022-07-04 15:24:46','岗位管理菜单'),(8,'用户新增','#',3,2,'','','F','system:user:add','2022-07-04 15:24:42','2022-07-04 15:24:46','添加用户按钮'),(9,'用户修改','#',3,3,'','','F','system:user:edit','2022-07-04 15:24:42','2022-07-04 15:24:46','修改用户按钮'),(10,'用户删除','#',3,4,'','','F','system:user:delete','2022-07-04 15:24:42','2022-07-04 15:24:46','删除用户按钮'),(11,'分配角色','#',3,5,'','','F','system:user:role','2022-07-04 15:24:42','2022-07-04 15:24:46','分配角色按钮'),(12,'重置密码','#',3,6,'','','F','system:user:resetPwd','2022-07-04 15:24:42','2022-07-04 15:24:46','重置密码按钮'),(13,'角色新增','#',4,2,'','','F','system:role:add','2022-07-04 15:24:42','2022-07-04 15:24:46','添加用户按钮'),(14,'角色修改','#',4,3,'','','F','system:role:edit','2022-07-04 15:24:42','2022-07-04 15:24:46','修改用户按钮'),(15,'角色删除','#',4,4,'',NULL,'F','system:role:delete','2022-07-04 15:24:42','2022-07-04 15:24:46','删除用户按钮'),(16,'分配权限','#',4,5,'','','F','system:role:menu','2022-07-04 15:24:42','2022-07-04 15:24:46','分配权限按钮'),(17,'菜单新增','#',5,2,'',NULL,'F','system:menu:add','2022-07-04 15:24:42','2022-07-04 15:24:46','添加菜单按钮'),(18,'菜单修改','#',5,3,'',NULL,'F','system:menu:edit','2022-07-04 15:24:42','2022-07-04 15:24:46','修改菜单按钮'),(19,'菜单删除','#',5,4,'',NULL,'F','system:menu:delete','2022-07-04 15:24:42','2022-07-04 15:24:46','删除菜单按钮'),(20,'用户查询','#',3,1,'',NULL,'F','system:user:query','2022-07-04 15:24:42','2022-07-04 15:24:46','用户查询按钮'),(21,'角色查询','#',4,1,'',NULL,'F','system:role:query','2022-07-04 15:24:42','2022-07-04 15:24:46','角色查询按钮'),(22,'菜单查询','#',5,1,'',NULL,'F','system:menu:query','2022-07-04 15:24:42','2022-07-04 15:24:46','菜单查询按钮'),(33,'测速22','122',3,3,'','34','M','33','2022-08-19 03:11:20','2022-08-18 19:11:33',NULL);

/*Table structure for table `sys_role` */

DROP TABLE IF EXISTS `sys_role`;

CREATE TABLE `sys_role` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT '角色主键ID',
  `name` varchar(30) DEFAULT NULL COMMENT '角色名称',
  `code` varchar(100) DEFAULT NULL COMMENT '角色权限字符串',
  `create_time` datetime DEFAULT NULL COMMENT '创建时间',
  `update_time` datetime DEFAULT NULL COMMENT '更新时间',
  `remark` varchar(500) DEFAULT NULL COMMENT '备注',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=22 DEFAULT CHARSET=utf8;

/*Data for the table `sys_role` */

insert  into `sys_role`(`id`,`name`,`code`,`create_time`,`update_time`,`remark`) values (1,'超级管理员','admin','2022-07-04 14:40:44','2022-07-04 14:40:47','拥有系统最高权限'),(2,'普通角色','common','2022-07-04 14:41:56','2022-07-04 14:41:58','普通角色'),(3,'测试角色','test','2022-07-04 14:42:24','2022-07-04 14:42:27','测试角色'),(4,'2',NULL,NULL,NULL,NULL),(5,'3',NULL,NULL,NULL,NULL),(6,'4',NULL,NULL,NULL,NULL),(7,'5',NULL,NULL,NULL,NULL),(14,'6',NULL,NULL,NULL,NULL),(16,'8',NULL,NULL,NULL,NULL),(17,'0',NULL,NULL,NULL,NULL),(19,'测2','cc2','2022-08-13 21:06:21','2022-08-13 13:06:27','eewew2'),(20,'ccc测试','test2','2022-08-29 17:10:33',NULL,'xxx'),(21,'今天测试角色','todytest','2022-08-29 22:01:11',NULL,'ccc');

/*Table structure for table `sys_role_menu` */

DROP TABLE IF EXISTS `sys_role_menu`;

CREATE TABLE `sys_role_menu` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT '角色菜单主键ID',
  `role_id` bigint(20) DEFAULT NULL COMMENT '角色ID',
  `menu_id` bigint(20) DEFAULT NULL COMMENT '菜单ID',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=239 DEFAULT CHARSET=utf8;

/*Data for the table `sys_role_menu` */

insert  into `sys_role_menu`(`id`,`role_id`,`menu_id`) values (8,2,1),(9,2,2),(10,2,3),(11,2,4),(12,2,5),(13,2,6),(14,2,7),(15,3,2),(16,3,6),(17,3,7),(21,7,1),(22,7,2),(23,7,6),(24,7,7),(25,6,1),(26,6,3),(27,6,9),(28,6,10),(29,19,1),(30,19,3),(31,19,2),(32,19,6),(33,1,1),(34,1,3),(35,1,20),(36,1,8),(37,1,9),(38,1,10),(39,1,11),(40,1,12),(41,1,4),(42,1,21),(43,1,13),(44,1,14),(45,1,15),(46,1,16),(47,1,23),(48,1,5),(49,1,22),(50,1,17),(51,1,18),(52,1,19),(53,1,2),(54,1,6),(55,1,7),(208,20,1),(209,20,3),(210,20,20),(211,20,8),(212,20,9),(213,20,33),(214,20,10),(215,20,11),(216,20,4),(217,20,21),(218,20,13),(219,20,5),(220,20,22),(221,20,17),(222,20,18),(223,20,2),(224,20,6),(225,20,7),(232,21,1),(233,21,9),(234,21,4),(235,21,21),(236,21,2),(237,21,6),(238,21,7);

/*Table structure for table `sys_user` */

DROP TABLE IF EXISTS `sys_user`;

CREATE TABLE `sys_user` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT '用户ID',
  `username` varchar(100) DEFAULT NULL COMMENT '用户名',
  `password` varchar(100) DEFAULT NULL COMMENT '密码',
  `avatar` varchar(255) DEFAULT 'default.jpg' COMMENT '用户头像',
  `email` varchar(100) DEFAULT '' COMMENT '用户邮箱',
  `phonenumber` varchar(11) DEFAULT '' COMMENT '手机号码',
  `login_date` datetime DEFAULT NULL COMMENT '最后登录时间',
  `status` char(1) DEFAULT '0' COMMENT '帐号状态（0正常 1停用）',
  `create_time` datetime DEFAULT NULL COMMENT '创建时间',
  `update_time` datetime DEFAULT NULL COMMENT '更新时间',
  `remark` varchar(500) DEFAULT NULL COMMENT '备注',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=31 DEFAULT CHARSET=utf8;

/*Data for the table `sys_user` */

insert  into `sys_user`(`id`,`username`,`password`,`avatar`,`email`,`phonenumber`,`login_date`,`status`,`create_time`,`update_time`,`remark`) values (1,'java1234','$2a$10$Kib4zuVhTzg3I1CoqJfd0unuY9G9ysI7cfbhyT3fi7k7Z/4pr3bGW','20220727112556000000325.jpg','caofeng4017@126.com','18862857417','2022-08-29 22:10:52','0','2022-06-09 08:47:52','2022-06-22 08:47:54','备注'),(2,'common','$2a$10$tiArwm0GxChyEP5k0JGzsOuzyY15IKA.ZTl8S2aj3haYlKAfpwfl.','222.jpg','','','2022-08-22 21:34:39','0',NULL,NULL,NULL),(3,'test','$2a$10$tiArwm0GxChyEP5k0JGzsOuzyY15IKA.ZTl8S2aj3haYlKAfpwfl.','333.jpg','','','2022-07-24 17:36:07','0',NULL,NULL,NULL),(4,'1','$2a$10$lD0Fx7oMsFFmX9hVkmYy7eJteH8pBaXXro1X9DEMP5sbM.Z6Co55m','default.jpg','','',NULL,'1',NULL,NULL,NULL),(5,'2',NULL,'default.jpg','','',NULL,'1',NULL,NULL,NULL),(15,'fdsfs','$2a$10$AQVcp4hQ7REc5o7ztVnI7eX.sJdcYy3d1x2jm5CfrcCoMZMPacfpi','default.jpg','fdfa4@qq.com','18862851414','2022-08-02 02:22:45','1','2022-08-02 02:21:24','2022-08-01 18:23:16','fdfds4'),(28,'sdfss2','$2a$10$7aNJxwVmefI0XAk64vrzYuOqeeImYJUQnoBrtKP9pLTGTWO2CXQ/y','default.jpg','dfds3@qq.com','18862857413',NULL,'1','2022-08-07 00:42:46','2022-08-06 16:43:04','ddd33'),(29,'ccc','$2a$10$7cbWeVwDWO9Hh3qbJrvTHOn0E/DLYXxnIZpxZei0jY4ChfQbJuhi.','20220829080150000000341.jpg','3242@qq.com','18862584120','2022-08-29 19:52:27','0','2022-08-29 17:04:58',NULL,'xxx'),(30,'ccc666','$2a$10$Tmw5VCM/K2vb837AZDYHQOqE3gPiRZKevxLsh/ozndpTSjdwABqaK','20220829100454000000771.jpg','fdafds@qq.com','18865259845','2022-08-29 22:05:18','0','2022-08-29 22:00:39',NULL,'ccc');

/*Table structure for table `sys_user_role` */

DROP TABLE IF EXISTS `sys_user_role`;

CREATE TABLE `sys_user_role` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT '用户角色主键ID',
  `user_id` bigint(20) DEFAULT NULL COMMENT '用户ID',
  `role_id` bigint(20) DEFAULT NULL COMMENT '角色ID',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=23 DEFAULT CHARSET=utf8;

/*Data for the table `sys_user_role` */

insert  into `sys_user_role`(`id`,`user_id`,`role_id`) values (1,1,1),(2,2,2),(4,1,2),(6,3,3),(7,3,2),(9,4,3),(10,5,3),(11,15,3),(16,28,2),(17,28,3),(20,29,20),(21,30,17),(22,30,21);

/*!40101 SET SQL_MODE=@OLD_SQL_MODE */;
/*!40014 SET FOREIGN_KEY_CHECKS=@OLD_FOREIGN_KEY_CHECKS */;
/*!40014 SET UNIQUE_CHECKS=@OLD_UNIQUE_CHECKS */;
/*!40111 SET SQL_NOTES=@OLD_SQL_NOTES */;
