Linux部署私有文件管理系统MinIO

最近需要用到一个文件管理服务，但是又不想花钱，所以就想着自己搭建一个，刚好我们用的一个开源框架已经集成了MinIO，所以就选了这个
我这边对文件服务性能要求不是太高，单机版就可以
安装非常简单，几个命令就可以

# 下载服务文件
wget https://dl.min.io/server/minio/release/linux-amd64/minio
# 设置权限
chmod +x minio
# 移动目录方便执行
sudo mv minio /usr/local/bin/
# 创建数据目录
mkdir -p /data/minio
# 添加用户
export MINIO_ROOT_USER=minioadmin
# 添加密码
export MINIO_ROOT_PASSWORD=minio123

上面配置完后我们再来配置开机自启服务，直接执行下面命令即可

cat <<EOF > /etc/systemd/system/minio.service
[Unit]
Description=MinIO Object Storage
After=network.target

[Service]
User=root
ExecStart=/usr/local/bin/minio server /data/minio --console-address ":9001"
Environment=MINIO_ROOT_USER=minioadmin
Environment=MINIO_ROOT_PASSWORD=minio123
Restart=always
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target
EOF

然后依次执行下面的命令

# 加载配置
systemctl daemon-reexec
# 加入开机项
systemctl enable minio
# 启动服务
systemctl start minio
# 查看服务
systemctl status minio

如果 systemctl status minio 返回下面内容就说明启动成功了

[root@ecm-74de bin]# systemctl status minio
● minio.service - MinIO Server
   Loaded: loaded (/etc/systemd/system/minio.service; enabled; vendor preset: disabled)
   Active: active (running) since Mon 2025-06-09 16:09:49 CST; 2h 51min ago
 Main PID: 25443 (minio)
    Tasks: 14
   Memory: 235.5M
   CGroup: /system.slice/minio.service
           └─25443 /usr/local/bin/minio server /data/minio --console-address :9001

Jun 09 16:09:49 ecm-74de systemd[1]: Started MinIO Server.
Jun 09 16:09:49 ecm-74de minio[25443]: MinIO Object Storage Server
Jun 09 16:09:49 ecm-74de minio[25443]: Copyright: 2015-2025 MinIO, Inc.
Jun 09 16:09:49 ecm-74de minio[25443]: License: GNU AGPLv3 - https://www.gnu.org/licenses/agpl-3.0.html
Jun 09 16:09:49 ecm-74de minio[25443]: Version: RELEASE.2025-05-24T17-08-30Z (go1.24.3 linux/amd64)
Jun 09 16:09:49 ecm-74de minio[25443]: API: http://10.0.0.5:9000  http://127.0.0.1:9000
Jun 09 16:09:49 ecm-74de minio[25443]: WebUI: http://10.0.0.5:9001 http://127.0.0.1:9001
Jun 09 16:09:49 ecm-74de minio[25443]: Docs: https://docs.min.io
Jun 09 16:09:49 ecm-74de minio[25443]: WARN: Detected Linux kernel version older than 4.0 release, there are some known potential performance problems with this kernel version. MinIO recommends a minimum of 4.x linux... best performance
Hint: Some lines were ellipsized, use -l to show in full.

这里我给服务配置了两个域名，一个是控制台的，一个是给 api 调用的，分别对应两个端口 9000 和 9001
控制台 nginx 配置
这里主要注意里面有个 websocket 配置，一开始没有配置这个发现文件列表刷新不出来

server {
    listen 80;
    server_name oss-console.sakura.com;

    return 301 https://$host$request_uri;
}

server {
    listen 443 ssl;
    server_name oss-console.sakura.com;

    ssl_certificate /etc/nginx/ssl/sakura.com.pem;
    ssl_certificate_key /etc/nginx/ssl/sakura.com.key;

    client_max_body_size 512m;

	# WebSocket 支持
	location /ws/ {
		proxy_pass http://127.0.0.1:9001;

		proxy_http_version 1.1;
		proxy_set_header Upgrade $http_upgrade;
		proxy_set_header Connection "upgrade";

		proxy_set_header Host $host;
		proxy_set_header X-Real-IP $remote_addr;
		proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
		proxy_set_header X-Forwarded-Proto https;

		proxy_buffering off;
	}

    # 控制台页面（9001）
    location / {
        proxy_pass http://127.0.0.1:9001;
        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto https;
        proxy_http_version 1.1;
        proxy_set_header Connection "";
        proxy_buffering off;
    }

    access_log /etc/nginx/logs/oss-console.access.log;
    error_log  /etc/nginx/logs/oss-console.error.log;
}

api nginx 配置

server {
    listen 80;
    server_name oss.sakura.com;

    return 301 https://$host$request_uri;
}

server {
    listen 443 ssl;
    server_name oss.sakura.com;

    ssl_certificate /etc/nginx/ssl/sakura.com.pem;
    ssl_certificate_key /etc/nginx/ssl/sakura.com.key;

    client_max_body_size 512m;

    # S3 API 接口（9000）
    location / {
        proxy_pass http://127.0.0.1:9000/;

        proxy_set_header Host $host;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        proxy_set_header X-Forwarded-Proto https;
        proxy_http_version 1.1;
        proxy_set_header Connection "";
        proxy_buffering off;
    }

    access_log /etc/nginx/logs/oss.access.log;
    error_log  /etc/nginx/logs/oss.error.log;
}

重启 nginx 配置

# 校验配置文件语法
nginx -t
# 重新加载配置
nginx -s reload

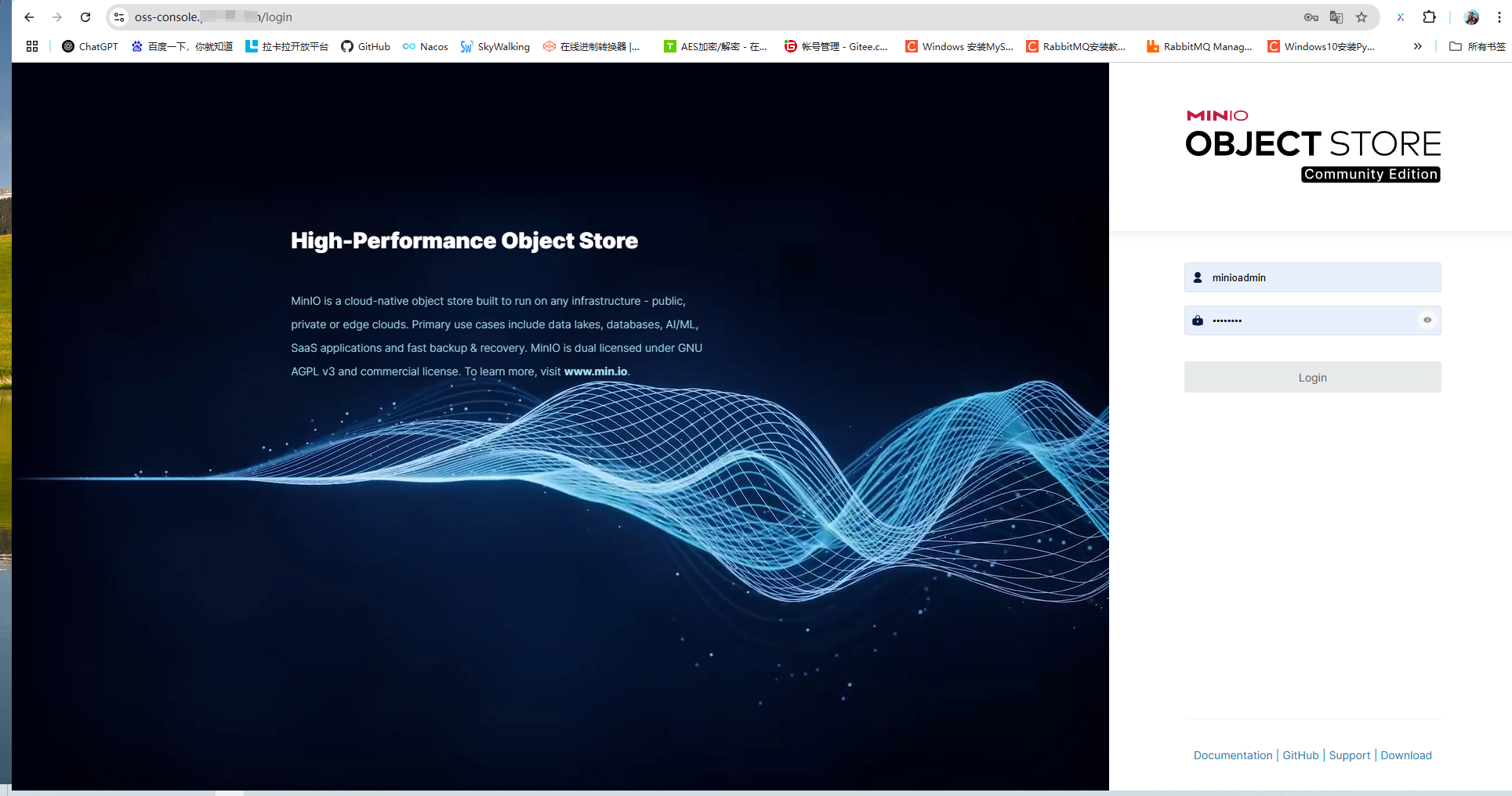

正常情况下访问 https://oss-console.sakura.com 就可以看到下面页面了

然后就是项目集成
首先是 pom
我这里多了个 okhttp 是因为启动的时候提示 minio 里面自带的 okhttp 和我之前的冲突了

		<dependency>
            <groupId>io.minio</groupId>
            <artifactId>minio</artifactId>
            <version>8.5.3</version>
        </dependency>

        <dependency>
            <groupId>com.squareup.okhttp3</groupId>
            <artifactId>okhttp</artifactId>
            <version>4.12.0</version>
        </dependency>

然后 yml 配置文件

minio:
  endpoint: https://oss.sakura.com
  access-key: minioadmin
  secret-key: sakura123
  bucket: doyike-bucket

配置文件

import io.minio.MinioClient;
import lombok.Data;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

/**
 * @author Sakura
 * @date 2025/6/9 16:37
 */
@Configuration
@ConfigurationProperties(prefix = "minio")
@Data
public class MinioConfig {
    private String endpoint;
    private String accessKey;
    private String secretKey;
    private String bucket;

    @Bean
    public MinioClient minioClient() {
        return MinioClient.builder()
                .endpoint(endpoint)
                .credentials(accessKey, secretKey)
                .build();
    }
}

测试方法

import lombok.RequiredArgsConstructor;
import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.multipart.MultipartFile;

/**
 * @author Sakura
 * @date 2025/6/9 16:38
 */
@RestController
@RequestMapping("/minio")
@RequiredArgsConstructor
public class MinioController {

    private final MinioService minioService;

    @PostMapping("/upload")
    public ResponseEntity<String> upload(@RequestParam("file") MultipartFile file) {
        try {
            String url = minioService.uploadFile(file);
            return ResponseEntity.ok(url);
        } catch (Exception e) {
            return ResponseEntity.status(HttpStatus.INTERNAL_SERVER_ERROR)
                    .body("上传失败：" + e.getMessage());
        }
    }
}

这里特别要注意，MinIO 默认所有的桶都是私有的，上传的文件访问会有很多限制，然后访问连接特别的长，然后我在控制台又没有找到可以设置权限的地方（不知道是不是安装有问题），接着我又安装 mc 发现还是设置不了，没办法我就自己写了一个修改桶权限的 main 方法，这样上传的文件就能直接域名加桶加文件名访问了

import io.minio.*;
import io.minio.errors.MinioException;
import io.minio.http.Method;
import lombok.RequiredArgsConstructor;
import org.springframework.stereotype.Service;
import org.springframework.web.multipart.MultipartFile;

import java.util.UUID;

/**
 * @author Sakura
 * @date 2025/6/9 16:40
 */
@Service
@RequiredArgsConstructor
public class MinioService {

    private final MinioClient minioClient;
    private final MinioConfig minioConfig;

    public String uploadFile(MultipartFile file) throws Exception {
        String bucket = minioConfig.getBucket();
        String filename = UUID.randomUUID() + "_" + file.getOriginalFilename();

        // 自动创建 bucket（可选）
        boolean found = minioClient.bucketExists(BucketExistsArgs.builder().bucket(bucket).build());
        if (!found) {
            minioClient.makeBucket(MakeBucketArgs.builder().bucket(bucket).build());
        }

        // 上传文件
        minioClient.putObject(
                PutObjectArgs.builder()
                        .bucket(bucket)
                        .object(filename)
                        .stream(file.getInputStream(), file.getSize(), -1)
                        .contentType(file.getContentType())
                        .build()
        );

        // 返回可访问链接（可选）
        return minioClient.getPresignedObjectUrl(
                GetPresignedObjectUrlArgs.builder()
                        .bucket(bucket)
                        .object(filename)
                        .method(Method.GET)
                        .build()
        );
    }

    public static void main(String[] args) {
        try {
            // 连接 MinIO 服务端，替换为你的配置
            MinioClient minioClient = MinioClient.builder()
                    .endpoint("https://oss.sakura.com")
                    .credentials("minioadmin", "sakura123")
                    .build();

            String bucketName = "doyike-bucket";

            // 桶公开读权限策略，JSON格式（允许匿名读取所有对象）
            String policyJson = "{\n" +
                    "  \"Version\":\"2012-10-17\",\n" +
                    "  \"Statement\":[\n" +
                    "    {\n" +
                    "      \"Effect\":\"Allow\",\n" +
                    "      \"Principal\":{\"AWS\":[\"*\"]},\n" +
                    "      \"Action\":[\"s3:GetObject\"],\n" +
                    "      \"Resource\":[\"arn:aws:s3:::" + bucketName + "/*\"]\n" +
                    "    }\n" +
                    "  ]\n" +
                    "}";

            // 设置桶策略
            minioClient.setBucketPolicy(
                    SetBucketPolicyArgs.builder()
                            .bucket(bucketName)
                            .config(policyJson)
                            .build()
            );

            System.out.println("桶权限设置成功，桶 " + bucketName + " 现在公开可读");

        } catch (MinioException e) {
            System.err.println("Error occurred: " + e);
        } catch (Exception e) {
            e.printStackTrace();
        }
    }
}

最后上传的文件可以登录控制台查看的
