零、环境准备
安装所依赖的库
//安装babylonjs
npm install --save babylonjs
//安装模型加载依赖的库
npm install babylonjs-loaders
//安装mediapipe
npm install mediapipe
一、使用mediapipe进行关键点识别

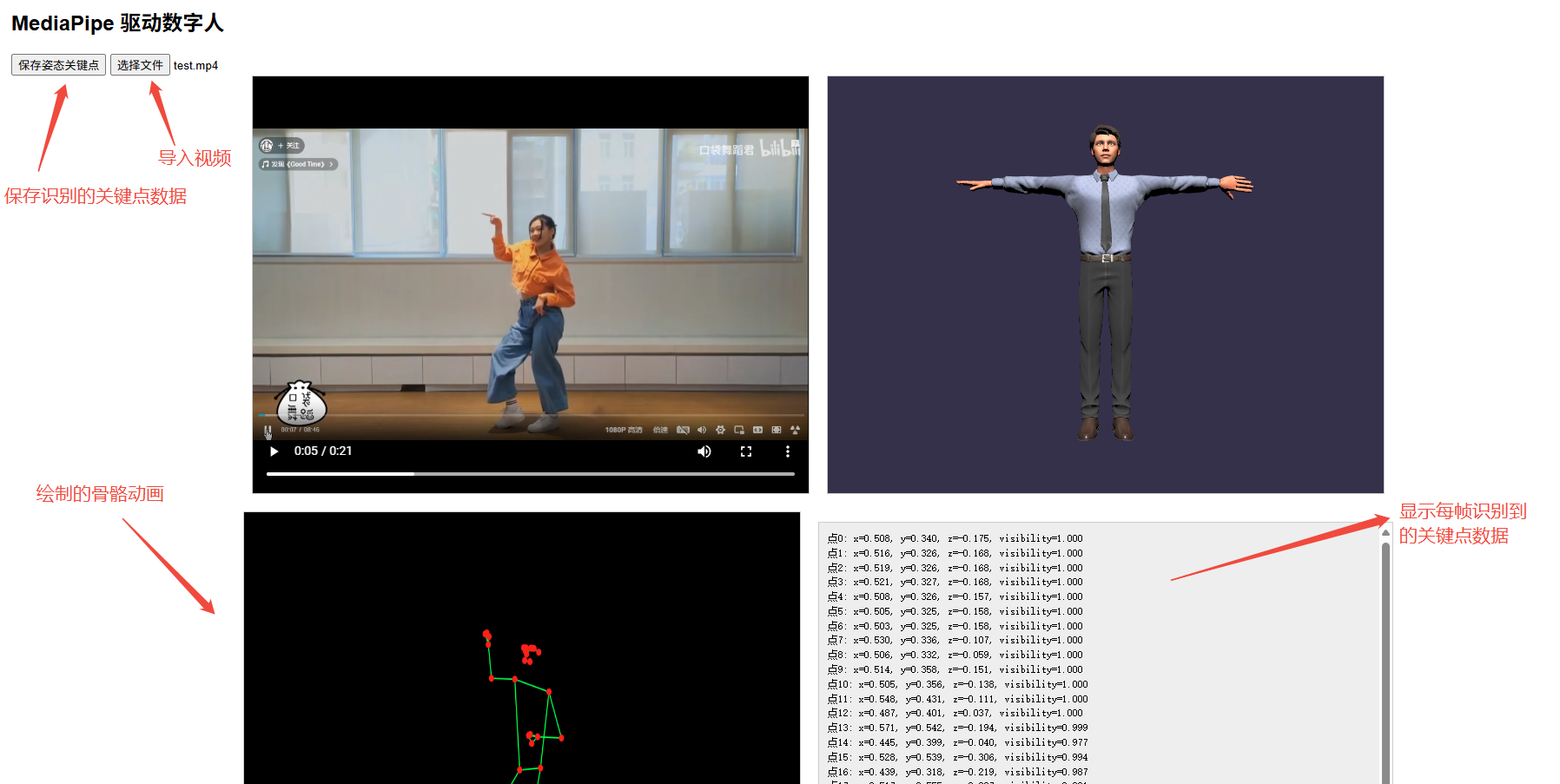

使用mediapipe对视频进行关键点识别，实时输出关键点位置
二、对模型进行骨骼旋转、移动操作
关键代码
//加载模型
const result = await BABYLON.SceneLoader.ImportMeshAsync(
null,
"/",
"man.glb",
scene
);
// 获取第一个骨骼系统
const skeleton = result.skeletons[0];
//获取单个骨骼节点
const leftshoulder = skeleton.bones.find((b) =>b.name.toLowerCase().includes("leftarm")).getTransformNode();
//骨骼旋转
leftshoulder.rotate(BABYLON.Axis.Y, Math.PI/2, BABYLON.Space.LOCAL);
三、将mediapipe得到的关键点数据与模型骨骼进行映射（未实现）
相关参考：https://blog.csdn.net/qq_58484580/article/details/132661430
四、相关代码代码
index.html
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8" />
<title>MediaPipe Pose 驱动数字人</title>
<style>
body {
font-family: Arial, sans-serif;
margin: 20px;
}
#topSection, #bottomSection {
display: flex;
justify-content: center;
gap: 20px;
margin-bottom: 20px;
}
video, canvas {
width: 640px;
height: 480px;
border: 1px solid #ccc;
background: #000;
}
#avatarCanvas {
width: 640px;
height: 480px;
border: 1px solid #ccc;
background: #111;
}
#output {
width: 640px;
height: 480px;
overflow: auto;
background: #eee;
padding: 10px;
white-space: pre-wrap;
font-size: 12px;
line-height: 1.4em;
border: 1px solid #ccc;
}
</style>
</head>
<body>
<h2>MediaPipe 驱动数字人</h2>
<button id="saveBtn">保存姿态关键点</button>
<input type="file" id="videoFileInput" accept="video/*" />
<div id="topSection">
<video id="inputVideo" controls></video>
<canvas id="outputCanvas"></canvas>
</div>
<div id="bottomSection">
<canvas id="avatarCanvas"></canvas>
<pre id="output">等待加载视频...</pre>
</div>
<script type="module" src="src/main.js"></script>
</body>
</html>
main.js
import { Pose, POSE_CONNECTIONS } from "@mediapipe/pose";
//导入babylonjs
import * as BABYLON from "babylonjs";
//导入gltf加载器
import "babylonjs-loaders";
// 视频输入界面
const videoElement = document.getElementById("inputVideo");
// 输出关键点坐标界面
const canvasElement = document.getElementById("outputCanvas");
// 骨骼动画绘制界面
const canvasCtx = canvasElement.getContext("2d");
// 输出关键点坐标
const outputDiv = document.getElementById("output");
const fileInput = document.getElementById("videoFileInput");
// 保存关键点按钮
document.getElementById("saveBtn").addEventListener("click", () => {
saveLandmarksToTxt(allLandmarkFrames);
});
// 数字人展示界面
const avatarCanvas = document.getElementById("avatarCanvas");
const allLandmarkFrames = []; // 存储每一帧的姿态数据
// === 功能模块 1：设置姿态识别模型和回调 ===
function setupPoseDetection(onLandmarksDetected) {
const pose = new Pose({
locateFile: (file) =>
`https://cdn.jsdelivr.net/npm/@mediapipe/pose/${file}`,
});
pose.setOptions({
modelComplexity: 1,
smoothLandmarks: true,
minDetectionConfidence: 0.5,
minTrackingConfidence: 0.5,
});
pose.onResults((results) => {
canvasCtx.clearRect(0, 0, canvasElement.width, canvasElement.height);
if (!results.poseLandmarks) {
outputDiv.textContent = "未检测到姿态";
return;
}
// 深拷贝 landmarks，防止后续引用被改变，用于保存关键点数据
allLandmarkFrames.push(JSON.parse(JSON.stringify(results.poseLandmarks)));
const landmarks = results.poseLandmarks;
drawSkeleton(canvasCtx, landmarks);
displayLandmarksText(landmarks);
// 触发自定义处理（例如驱动数字人）
if (onLandmarksDetected) {
onLandmarksDetected(landmarks);
}
});
return pose;
}
// === 工具函数1：绘制骨骼线和关键点 ===
function drawSkeleton(ctx, landmarks) {
ctx.strokeStyle = "#00FF00";
ctx.lineWidth = 2;
POSE_CONNECTIONS.forEach(([startIdx, endIdx]) => {
const start = landmarks[startIdx];
const end = landmarks[endIdx];
if (start.visibility > 0.5 && end.visibility > 0.5) {
ctx.beginPath();
ctx.moveTo(start.x * canvasElement.width, start.y * canvasElement.height);
ctx.lineTo(end.x * canvasElement.width, end.y * canvasElement.height);
ctx.stroke();
}
});
landmarks.forEach((lm) => {
if (lm.visibility > 0.5) {
ctx.beginPath();
ctx.arc(
lm.x * canvasElement.width,
lm.y * canvasElement.height,
5,
0,
2 * Math.PI
);
ctx.fillStyle = "#FF0000";
ctx.fill();
}
});
}
// === 工具函数2：文本输出关键点 ===
function displayLandmarksText(landmarks) {
outputDiv.textContent = landmarks
.map(
(lm, i) =>
`点${i}: x=${lm.x.toFixed(3)}, y=${lm.y.toFixed(3)}, z=${lm.z.toFixed(
3
)}, visibility=${lm.visibility.toFixed(3)}`
)
.join("\n");
}
// === 工具函数3：保存关键点数据为txt文件 ===
function saveLandmarksToTxt(frames, filename = "pose_data.txt") {
if (!frames || frames.length === 0) {
alert("没有可保存的数据");
return;
}
const lines = frames.map((landmarks, frameIdx) => {
const header = `第 ${frameIdx + 1} 帧`;
const points = landmarks.map(
(lm, i) =>
`点${i}: x=${lm.x.toFixed(6)}, y=${lm.y.toFixed(6)}, z=${lm.z.toFixed(
6
)}, visibility=${lm.visibility.toFixed(6)}`
);
return [header, ...points].join("\n");
});
const content = lines.join("\n\n");
const blob = new Blob([content], { type: "text/plain" });
const url = URL.createObjectURL(blob);
const a = document.createElement("a");
a.href = url;
a.download = filename;
a.click();
URL.revokeObjectURL(url);
}
// === 工具函数4：加载模型并返回实例 ===
// utils/loadPoseTxt.js
async function loadPoseTxtFile(path) {
const response = await fetch(path);
if (!response.ok) {
throw new Error(`无法读取文件：${path}`);
}
const text = await response.text();
const lines = text.split("\n");
const frames = [];
let currentFrame = [];
for (const line of lines) {
const trimmed = line.trim();
// 检测到新的一帧
if (trimmed.startsWith("第") && trimmed.includes("帧")) {
if (currentFrame.length > 0) {
frames.push(currentFrame);
currentFrame = [];
}
}
// 匹配点数据行
const match = trimmed.match(
/x=([-.\d]+),\s*y=([-.\d]+),\s*z=([-.\d]+),\s*visibility=([-.\d]+)/
);
if (match) {
const [_, x, y, z, visibility] = match.map(Number);
currentFrame.push([x, y, z, visibility]);
}
}
// 最后一帧加进去
if (currentFrame.length > 0) {
frames.push(currentFrame);
}
return frames;
}
// === 功能模块 2：处理视频加载、播放、逐帧发送 ===
function handleVideoInput(videoEl, fileInputEl, poseInstance) {
fileInputEl.onchange = () => {
const file = fileInputEl.files[0];
if (!file) return;
const url = URL.createObjectURL(file);
videoEl.src = url;
videoEl.play();
outputDiv.textContent = "视频加载中...";
};
videoEl.onloadedmetadata = () => {
canvasElement.width = videoEl.videoWidth;
canvasElement.height = videoEl.videoHeight;
canvasElement.style.width = videoEl.clientWidth + "px";
canvasElement.style.height = videoEl.clientHeight + "px";
};
videoEl.onplay = () => {
const processFrame = async () => {
if (videoEl.paused || videoEl.ended) return;
await poseInstance.send({ image: videoEl });
requestAnimationFrame(processFrame);
};
processFrame();
};
}
// === 功能模块 3：数字人驱动逻辑 ===
//创建引擎
const engine = new BABYLON.Engine(avatarCanvas, true);
const scene = new BABYLON.Scene(engine);
//相机
const camera = new BABYLON.ArcRotateCamera(
"camera",
Math.PI / 2,
Math.PI / 2,
4,
new BABYLON.Vector3(0, 0.9, -1),
scene
);
// 摄像头跟随鼠标移动
// camera.attachControl(avatarCanvas, true);
//光源
const light = new BABYLON.DirectionalLight(
"light",
new BABYLON.Vector3(0, -1, -1),
scene
);
light.intensity = 10;
//加载模型
const result = await BABYLON.SceneLoader.ImportMeshAsync(
null,
"/",
"man.glb",
scene
);
//读取txt文件关键点数据
const poseData = await loadPoseTxtFile("/pose_data.txt");
console.log(poseData[0]);
//打印骨骼层级信息
function printBoneHierarchy(skeleton) {
const bones = skeleton.bones;
// 找到根骨骼（parent 为 null）
const rootBones = bones.filter((bone) => bone.getParent() === null);
function traverse(bone, level = 0) {
const indent = " ".repeat(level);
console.log(`${indent}- ${bone.name}`);
const children = bones.filter((b) => b.getParent() === bone);
children.forEach((child) => traverse(child, level + 1));
}
rootBones.forEach((rootBone) => {
traverse(rootBone);
});
}
printBoneHierarchy(result.skeletons[0]);
const skeleton = result.skeletons[0]; // 获取第一个骨骼系统
//获取需要变化的骨骼
// 左边
const leftshoulder = skeleton.bones.find((b) =>b.name.toLowerCase().includes("leftarm")).getTransformNode(); //11
const leftelbow = skeleton.bones.find((b) =>b.name.toLowerCase().includes("leftforearm")).getTransformNode(); //13
const leftwrist = skeleton.bones.find((b) =>b.name.toLowerCase().includes("lefthand")).getTransformNode(); //15
const lefthip = skeleton.bones.find((b) =>b.name.toLowerCase().includes("leftupleg")).getTransformNode();//23
const leftknee = skeleton.bones.find((b) =>b.name.toLowerCase().includes("leftleg")).getTransformNode(); //25
const leftankle = skeleton.bones.find((b) =>b.name.toLowerCase().includes("leftfoot")).getTransformNode();//27
//右边
const rightshoulder = skeleton.bones.find((b) =>b.name.toLowerCase().includes("rightarm")).getTransformNode();//12
const rightelbow = skeleton.bones.find((b) =>b.name.toLowerCase().includes("rightforearm")).getTransformNode();//14
const rightwrist = skeleton.bones.find((b) =>b.name.toLowerCase().includes("righthand")).getTransformNode();//16
const righthip = skeleton.bones.find((b) =>b.name.toLowerCase().includes("rightupleg")).getTransformNode();//24
const rightknee = skeleton.bones.find((b) =>b.name.toLowerCase().includes("rightleg")).getTransformNode();//26
const rightankle = skeleton.bones.find((b) =>b.name.toLowerCase().includes("rightfoot")).getTransformNode();//28
//中间
const spine=skeleton.bones.find((b) =>b.name.toLowerCase().includes("hips")).getTransformNode();
//骨骼旋转
leftwrist.rotate(BABYLON.Axis.Y, Math.PI/2, BABYLON.Space.LOCAL);
//渲染循环
engine.runRenderLoop(() => {
scene.render();
});
// === 初始化逻辑 ===
const pose = setupPoseDetection((landmarks) => {
allLandmarkFrames.push(JSON.parse(JSON.stringify(landmarks))); // 保存一帧
// ✅ 在这里添加数字人驱动逻辑
// updateAvatarWithLandmarks(landmarks);
});
handleVideoInput(videoElement, fileInput, pose);
