YOLOv8分类的三种C++实现：opencv dnn/libtorch/onnxruntime

      之前在 YOLOv8 classify介绍_yolov8分类模型-CSDN博客 中介绍过使用YOLOv8模型进行分类，当时只给出了Python的实现，包括训练和预测，这里基于训练生成的模型，分别给出C++的opencv dnn、libtorch、onnruntime的实现。

      opencv dnn实现测试代码如下：

int test_yolov8_classify_opencv()
{
	auto net = cv::dnn::readNetFromONNX(onnx_file);
	if (net.empty()) {
		std::cerr << "Error: there are no layers in the network: " << onnx_file << std::endl;
		return -1;
	}

	if (cuda_enabled) {
		net.setPreferableBackend(cv::dnn::DNN_BACKEND_CUDA);
		net.setPreferableTarget(cv::dnn::DNN_TARGET_CUDA);
	} else {
		net.setPreferableBackend(cv::dnn::DNN_BACKEND_OPENCV);
		net.setPreferableTarget(cv::dnn::DNN_TARGET_CPU);
	}

	auto classes = parse_classes_file(classes_file);
	if (classes.size() == 0) {
		std::cerr << "Error: fail to parse classes file: " << classes_file << std::endl;
		return -1;
	}

	constexpr int imgsz{ 224 };
	for (const auto& [key, val] : get_dir_images(images_dir)) {
		cv::Mat frame = cv::imread(val, cv::IMREAD_COLOR);
		if (frame.empty()) {
			std::cerr << "Warning: unable to load image: " << val << std::endl;
			continue;
		}

		cv::Mat bgr = modify_image_size(frame); // top left padding
		//cv::Mat bgr;
		//letter_box(frame, bgr, std::vector<int>{imgsz, imgsz}); // center padding

		cv::Mat blob;
		cv::dnn::blobFromImage(bgr, blob, 1.0 / 255.0, cv::Size(imgsz, imgsz), cv::Scalar(), true, false);
		net.setInput(blob);

		std::vector<cv::Mat> outputs;
		net.forward(outputs, net.getUnconnectedOutLayersNames());

		double max_val{ 0. };
		cv::Point max_idx{};
		cv::minMaxLoc(outputs[0], 0, &max_val, 0, &max_idx);
		std::cout << "image name: " << val << ", category: " << classes[max_idx.x] << ", conf: " << std::format("{:.4f}",max_val) << std::endl;
	}

	return 0;
}

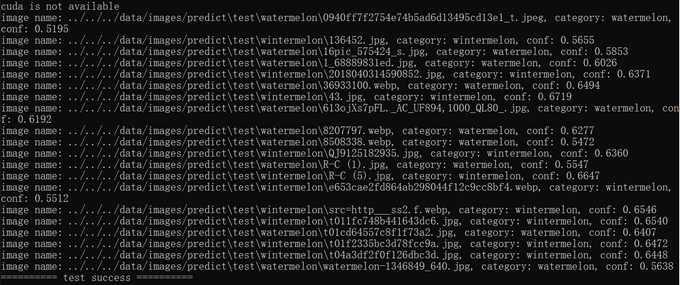

      执行结果如下图所示：图像填充方式有左上角填充和中心填充两种方式，两种方式的均可正确分类，但置信度多少有些差异

      libtorch实现测试代码如下：

int test_yolov8_classify_libtorch()
{
	if (auto flag = torch::cuda::is_available(); flag == true)
		std::cout << "cuda is available" << std::endl;
	else
		std::cout << "cuda is not available" << std::endl;

	torch::Device device(torch::cuda::is_available() ? torch::kCUDA : torch::kCPU);

	auto classes = parse_classes_file(classes_file);
	if (classes.size() == 0) {
		std::cerr << "Error: fail to parse classes file: " << classes_file << std::endl;
		return -1;
	}

	try {
		// load model
		torch::jit::script::Module model;
		if (torch::cuda::is_available() == true)
			model = torch::jit::load(torchscript_file, torch::kCUDA);
		else
			model = torch::jit::load(torchscript_file, torch::kCPU);
		model.eval();
		// note: cpu is normal; gpu is abnormal: the model may not be fully placed on the gpu
		// model = torch::jit::load(file); model.to(torch::kCUDA) ==> model = torch::jit::load(file, torch::kCUDA)
		// model.to(device, torch::kFloat32);

		constexpr int imgsz{ 224 };
		for (const auto& [key, val] : get_dir_images(images_dir)) {
			// load image and preprocess
			cv::Mat frame = cv::imread(val, cv::IMREAD_COLOR);
			if (frame.empty()) {
				std::cerr << "Warning: unable to load image: " << val << std::endl;
				continue;
			}

			cv::Mat bgr;
			letter_box(frame, bgr, std::vector<int>{imgsz, imgsz});

			torch::Tensor tensor = torch::from_blob(bgr.data, { bgr.rows, bgr.cols, 3 }, torch::kByte).to(device);
			tensor = tensor.toType(torch::kFloat32).div(255);
			tensor = tensor.permute({ 2, 0, 1 });
			tensor = tensor.unsqueeze(0);
			std::vector<torch::jit::IValue> inputs{ tensor };

			// inference
			torch::Tensor output = model.forward(inputs).toTensor().cpu();
			auto idx = std::get<1>(output.max(1, true)).item<int>();
			std::cout << "image name: " << val << ", category: " << classes[idx] << ", conf: " << std::format("{:.4f}", torch::softmax(output, 1)[0][idx].item<float>()) << std::endl;
		}
	}
	catch (const c10::Error& e) {
		std::cerr << "Error: " << e.msg() << std::endl;
		return -1;
	}

	return 0;
}

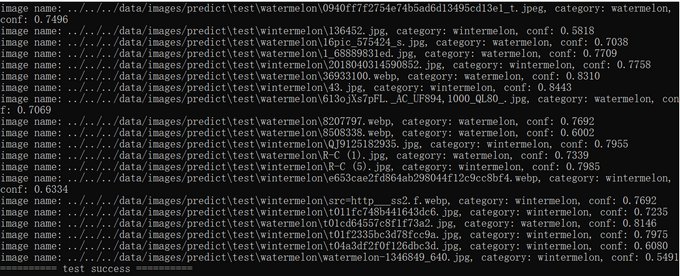

      执行结果如下图所示：

      onnxruntime实现测试代码如下：

int test_yolov8_classify_onnxruntime()
{
	try {
		Ort::Env env = Ort::Env(ORT_LOGGING_LEVEL_WARNING, "Yolo");
		Ort::SessionOptions session_option;

		if (cuda_enabled) {
			OrtCUDAProviderOptions cuda_option;
			cuda_option.device_id = 0;
			session_option.AppendExecutionProvider_CUDA(cuda_option);
		}

		session_option.SetGraphOptimizationLevel(GraphOptimizationLevel::ORT_ENABLE_ALL);
		session_option.SetIntraOpNumThreads(1);
		session_option.SetLogSeverityLevel(3);

		Ort::Session session(env, ctow(onnx_file).c_str(), session_option);
		Ort::AllocatorWithDefaultOptions allocator;
		std::vector<const char*> input_node_names, output_node_names;
		std::vector<std::string> input_node_names_, output_node_names_;

		for (auto i = 0; i < session.GetInputCount(); ++i) {
			Ort::AllocatedStringPtr input_node_name = session.GetInputNameAllocated(i, allocator);
			input_node_names_.emplace_back(input_node_name.get());
		}

		for (auto i = 0; i < session.GetOutputCount(); ++i) {
			Ort::AllocatedStringPtr output_node_name = session.GetOutputNameAllocated(i, allocator);
			output_node_names_.emplace_back(output_node_name.get());
		}

		for (auto i = 0; i < input_node_names_.size(); ++i)
			input_node_names.emplace_back(input_node_names_[i].c_str());
		for (auto i = 0; i < output_node_names_.size(); ++i)
			output_node_names.emplace_back(output_node_names_[i].c_str());

		constexpr int imgsz{ 224 };
		Ort::RunOptions options(nullptr);
		std::unique_ptr<float[]> blob(new float[imgsz * imgsz * 3]);
		std::vector<int64_t> input_node_dims{ 1, 3, imgsz, imgsz };

		auto classes = parse_classes_file(classes_file);
		if (classes.size() == 0) {
			std::cerr << "Error: fail to parse classes file: " << classes_file << std::endl;
			return -1;
		}

		for (const auto& [key, val] : get_dir_images(images_dir)) {
			cv::Mat frame = cv::imread(val, cv::IMREAD_COLOR);
			if (frame.empty()) {
				std::cerr << "Warning: unable to load image: " << val << std::endl;
				continue;
			}

			cv::Mat rgb;
			letter_box(frame, rgb, std::vector<int>{imgsz, imgsz});
			cv::cvtColor(rgb, rgb, cv::COLOR_BGR2RGB);
			image_to_blob(rgb, blob.get());
			Ort::Value input_tensor = Ort::Value::CreateTensor<float>(
				Ort::MemoryInfo::CreateCpu(OrtDeviceAllocator, OrtMemTypeCPU), blob.get(), 3 * imgsz * imgsz, input_node_dims.data(), input_node_dims.size());
			auto output_tensors = session.Run(options, input_node_names.data(), &input_tensor, input_node_names.size(), output_node_names.data(), output_node_names.size());

			Ort::Value& output_tensor = output_tensors[0];
			float* output_data = output_tensor.GetTensorMutableData<float>();
			auto shape = output_tensor.GetTensorTypeAndShapeInfo().GetShape();
			auto num = shape.size() > 1 ? shape[1] : shape[0];

			float conf{ 0. };
			int idx{ -1 };
			for (auto i = 0; i < num; ++i) {
				if (output_data[i] > conf) {
					conf = output_data[i];
					idx = static_cast<int>(i);
				}
			}

			std::cout << "image name: " << val << ", category: " << classes[idx] << ", conf: " << std::format("{:.4f}", conf) << std::endl;
		}
	}
	catch (const std::exception& e) {
		std::cerr << "Error: " << e.what() << std::endl;
		return -1;
	}

	return 0;
}

      执行结果如下图所示：

      注：虽然三种方式均可对所有测试图像进行正确分类，但它们的置信度不同

      GitHub：https://github.com/fengbingchun/NN_Test
