【鸿蒙HarmonyOS】鸿蒙app开发入门到实战教程(三):实现一个音乐列表的页面

鸿蒙里面，实现一个音乐播放的列表,模拟数组的数据展示

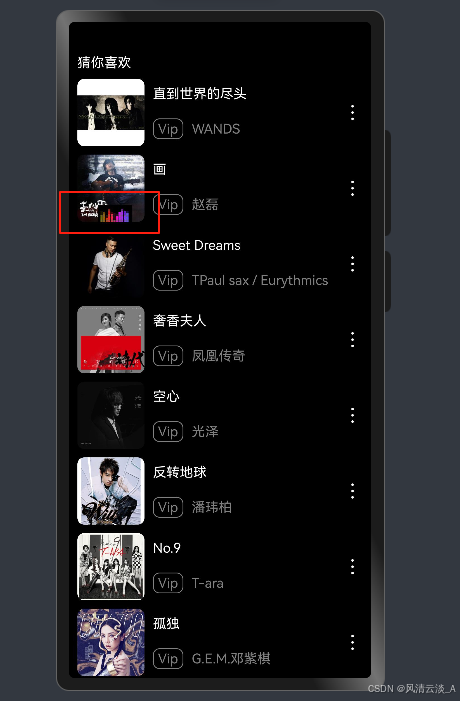

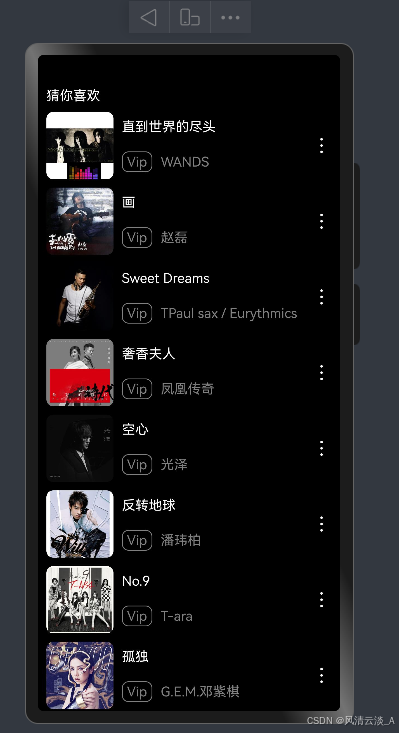

实现效果

代码实现

• 准备数据

songs:SongItemTypes[] = [
    {
      img:'https://yjy-teach-oss.oss-cn-beijing.aliyuncs.com/HeimaCloudMusic/0.jpg',
      name:'直到世界的尽头',
      author:'WANDS'
    },
    {
      img:'https://yjy-teach-oss.oss-cn-beijing.aliyuncs.com/HeimaCloudMusic/1.jpg',
      name:'画',
      author:'赵磊'
    },
    {
      img:'http://yjy-teach-oss.oss-cn-beijing.aliyuncs.com/HeimaCloudMusic/2.jpg',
      name:'Sweet Dreams',
      author:'TPaul sax / Eurythmics'
    },
    {
      img:'http://yjy-teach-oss.oss-cn-beijing.aliyuncs.com/HeimaCloudMusic/3.jpg',
      name:'奢香夫人',
      author:'凤凰传奇'
    },
    {
      img:'http://yjy-teach-oss.oss-cn-beijing.aliyuncs.com/HeimaCloudMusic/4.jpg',
      name:'空心',
      author:'光泽'
    },
    {
      img:'http://yjy-teach-oss.oss-cn-beijing.aliyuncs.com/HeimaCloudMusic/5.jpg',
      name:'反转地球',
      author:'潘玮柏'
    }
    ,
    {
      img:'http://yjy-teach-oss.oss-cn-beijing.aliyuncs.com/HeimaCloudMusic/6.jpg',
      name:'No.9',
      author:'T-ara'
    },
    {
      img:'http://yjy-teach-oss.oss-cn-beijing.aliyuncs.com/HeimaCloudMusic/7.jpg',
      name:'孤独',
      author:'G.E.M.邓紫棋'
    },
    {
      img:'http://yjy-teach-oss.oss-cn-beijing.aliyuncs.com/HeimaCloudMusic/8.jpg',
      name:'Lose Control',
      author:'Hedley'
    },
    {
      img:'http://yjy-teach-oss.oss-cn-beijing.aliyuncs.com/HeimaCloudMusic/9.jpg',
      name:'倩女幽魂',
      author:'张国荣'
    },
    {
      img:'http://yjy-teach-oss.oss-cn-beijing.aliyuncs.com/HeimaCloudMusic/10.jpg',
      name:'反转地球',
      author:'潘玮柏'
    },
    {
      img:'http://yjy-teach-oss.oss-cn-beijing.aliyuncs.com/HeimaCloudMusic/11.jpg',
      name:'苦笑',
      author:'汪苏泷'
    },
    {
      img:'http://yjy-teach-oss.oss-cn-beijing.aliyuncs.com/HeimaCloudMusic/12.jpg',
      name:'一生所爱',
      author:'卢冠廷 / 莫文蔚'
    },
    {
      img:'http://yjy-teach-oss.oss-cn-beijing.aliyuncs.com/HeimaCloudMusic/13.jpg',
      name:'月半小夜曲',
      author:'李克勤'
    },
    {
      img:'http://yjy-teach-oss.oss-cn-beijing.aliyuncs.com/HeimaCloudMusic/14.jpg',
      name:'Rolling in the peep',
      author:'Adele'
    },
    {
      img:'http://yjy-teach-oss.oss-cn-beijing.aliyuncs.com/HeimaCloudMusic/1.jpg',
      name:'Beyond',
      author:'海阔天空'
    }
  ]

• 标题的实现

Text("猜你喜欢").fontColor('#fff').width('100%').margin({bottom:10})

• 列表的实现

List(){
 ForEach(this.songs,(item:SongItemTypes,index:number) => {
   ListItem(){
     Row(){
       Stack(){
         Image(item.img).width(80).border({radius:8}).margin({
           right:10
         })
         if(this.currentIndex == index){
           Image($r('app.media.wave')).width(40)
         }
       }.alignContent(Alignment.Bottom)
       Column(){
         Text(item.name).fontColor(Color.White).width('100%')
         Row(){
           Text("Vip").fontColor(Color.White).padding({top:2,right:5,bottom:2,left:5}).fontColor(Color.Grey).margin({right:10}).border({width:1,radius:8,color:Color.Grey})
           Text(item.author).fontColor(Color.White).fontColor(Color.Grey)
         }.width('100%').margin({top:20})
       }.layoutWeight(1)
       Image($r('app.media.more')).width(24).fillColor('#fff')
     }.width('100%').height(80).onClick(() => {
       this.currentIndex = index
     })
   }.margin({bottom:10})
})
}.scrollBar(BarState.Off)

• 点击当前项的时候，出现音量闪烁的图片

if(this.currentIndex == index){
  Image($r('app.media.wave')).width(40)
}

完整代码

import {SongItemTypes} from '../types'

@Entry
@Component
struct  FourthPage {
  @State currentIndex:number = -1
  build() {
     Column(){
       Text("猜你喜欢").fontColor('#fff').width('100%').margin({bottom:10})
       List(){
         ForEach(this.songs,(item:SongItemTypes,index:number) => {
           ListItem(){
             Row(){
               Stack(){
                 Image(item.img).width(80).border({radius:8}).margin({
                   right:10
                 })
                 if(this.currentIndex == index){
                   Image($r('app.media.wave')).width(40)
                 }
               }.alignContent(Alignment.Bottom)
               Column(){
                 Text(item.name).fontColor(Color.White).width('100%')
                 Row(){
                   Text("Vip").fontColor(Color.White).padding({top:2,right:5,bottom:2,left:5}).fontColor(Color.Grey).margin({right:10}).border({width:1,radius:8,color:Color.Grey})
                   Text(item.author).fontColor(Color.White).fontColor(Color.Grey)
                 }.width('100%').margin({top:20})
               }.layoutWeight(1)
               Image($r('app.media.more')).width(24).fillColor('#fff')
             }.width('100%').height(80).onClick(() => {
               this.currentIndex = index
             })
           }.margin({bottom:10})
         })
       }.scrollBar(BarState.Off)
     }.backgroundColor("#000").width('100%').height('100%').padding({left:10,right:10})
     .expandSafeArea([SafeAreaType.SYSTEM],[SafeAreaEdge.TOP,SafeAreaEdge.BOTTOM])
  }
}

这样就实现了一个模拟的音乐列表页面
