基于飞浆的车牌检测系统
效果展示
车牌检查系统效果展示

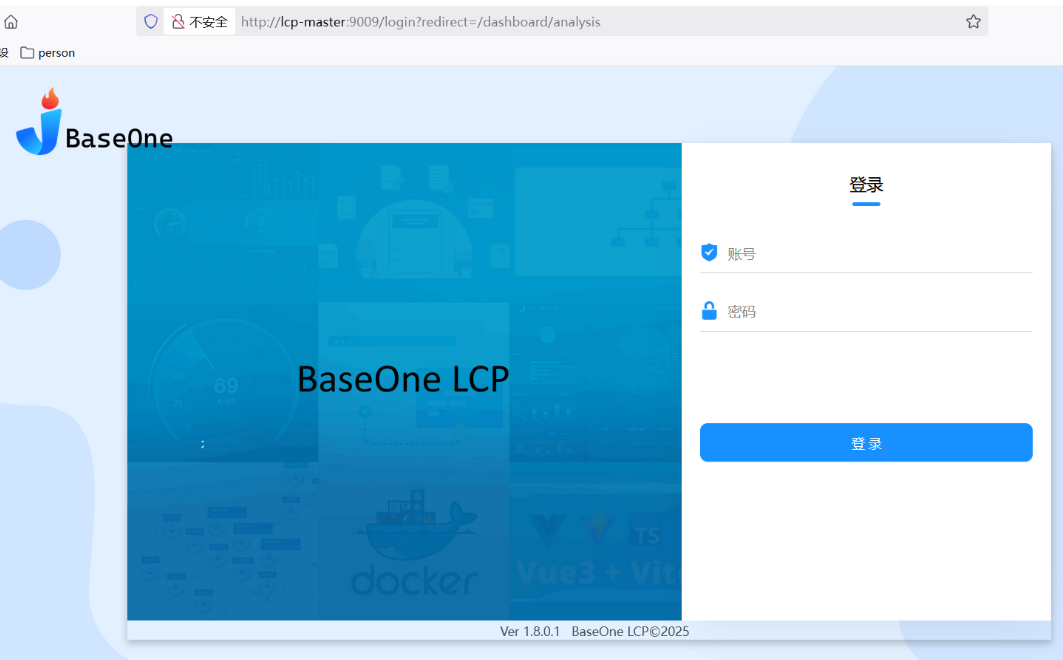

登录界面

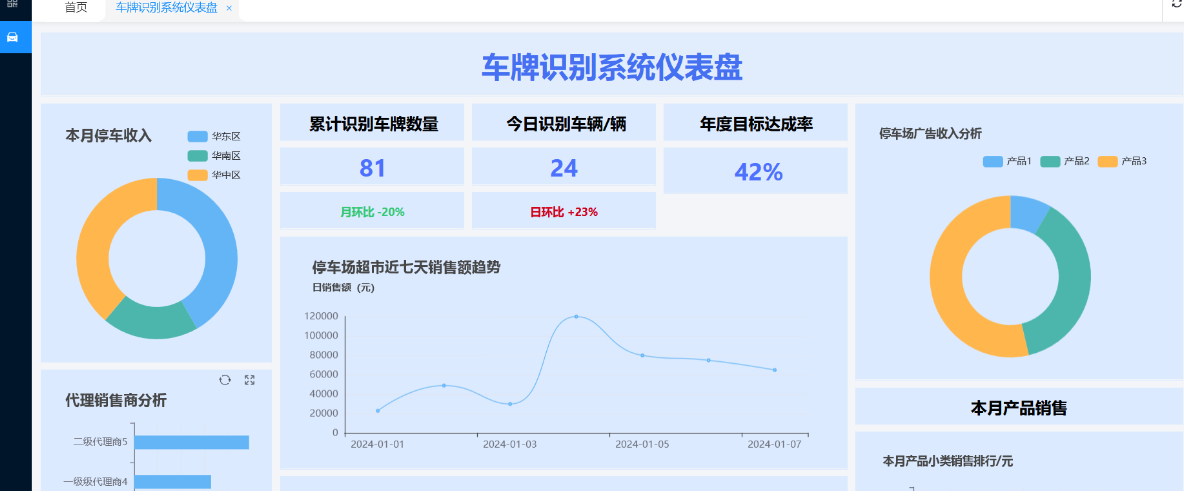

登录后的效果

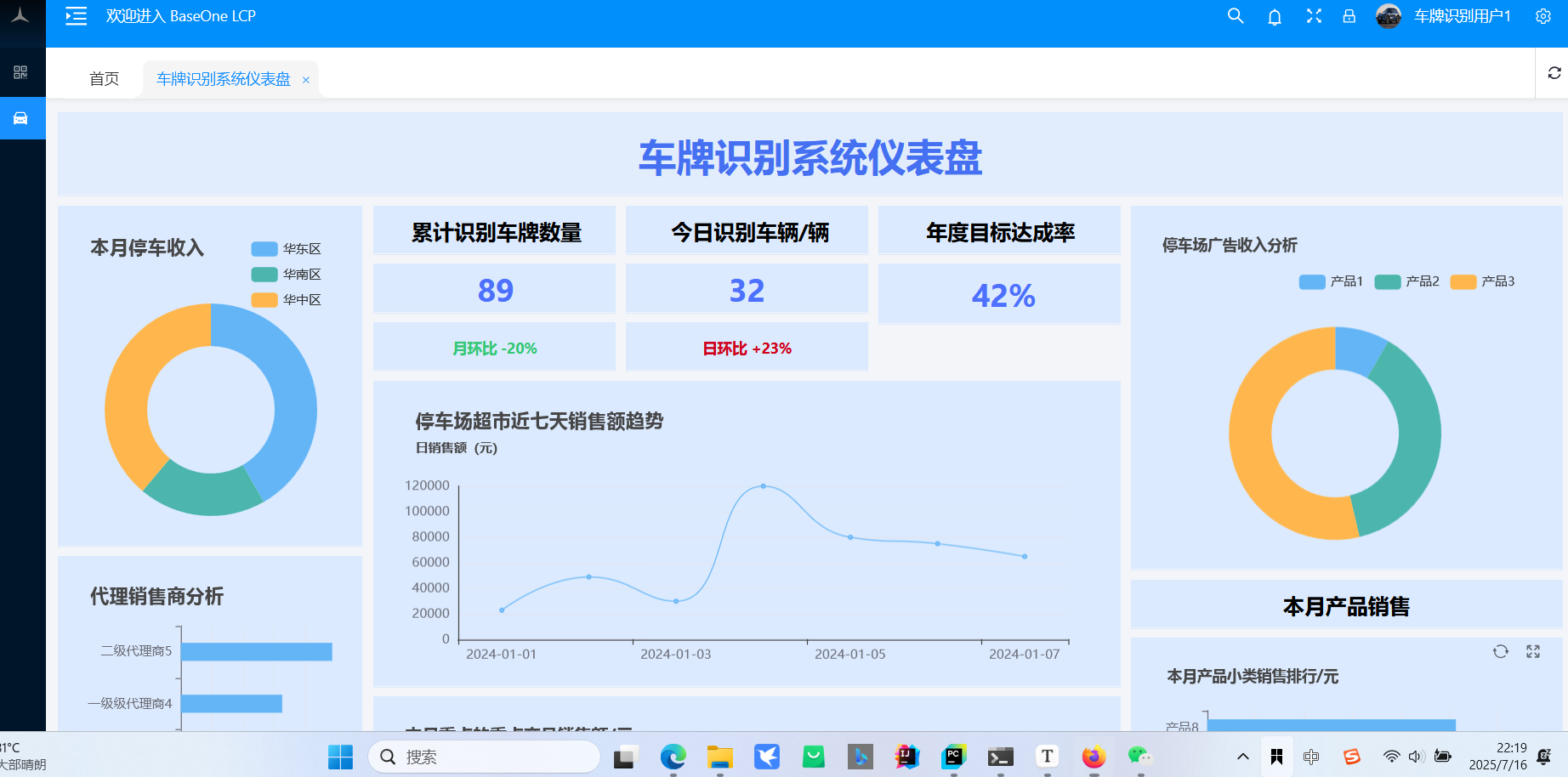

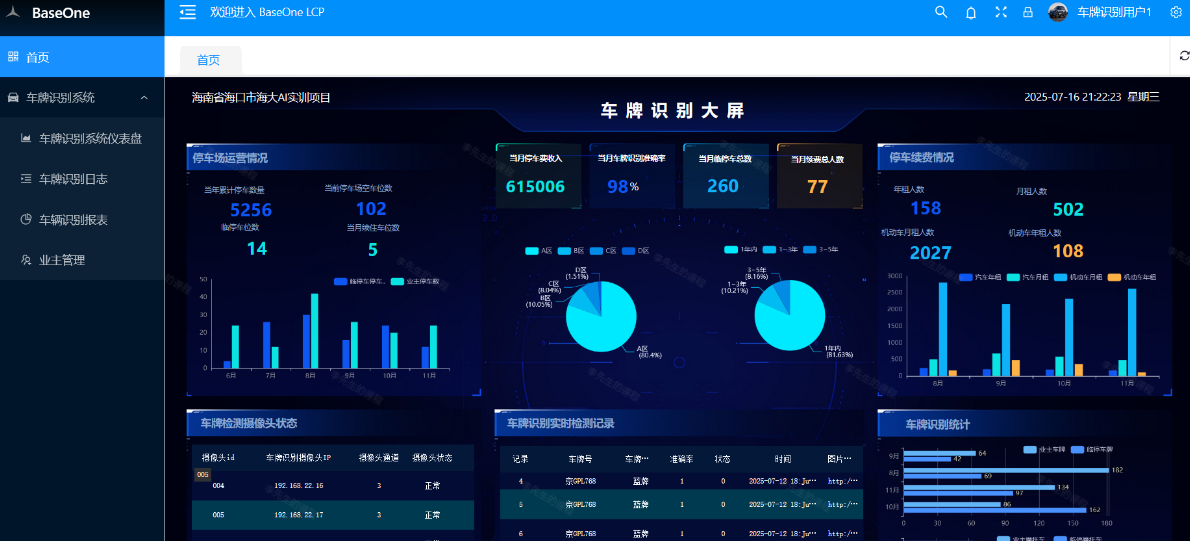

车牌的仪表盘

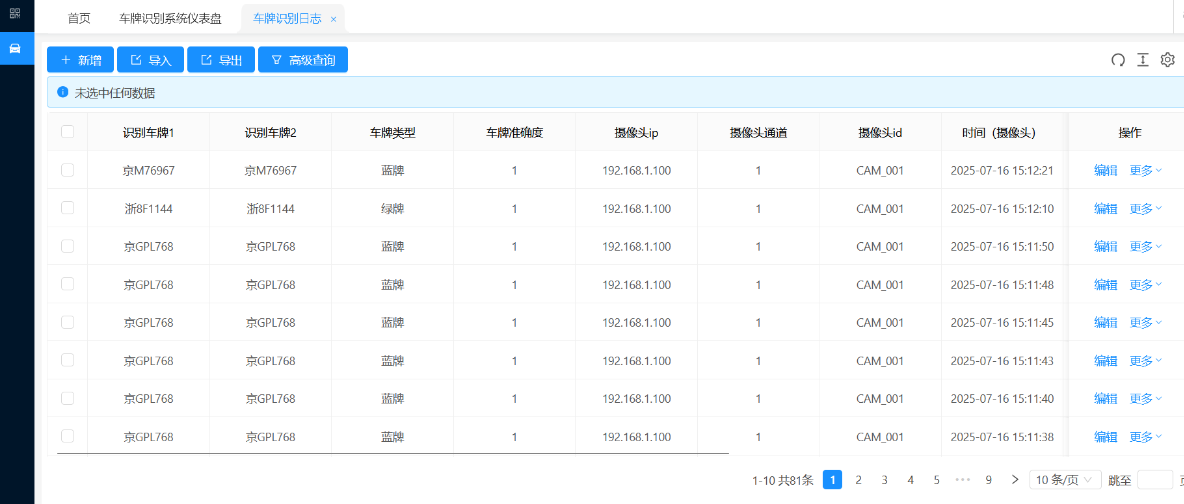

车牌识别日志

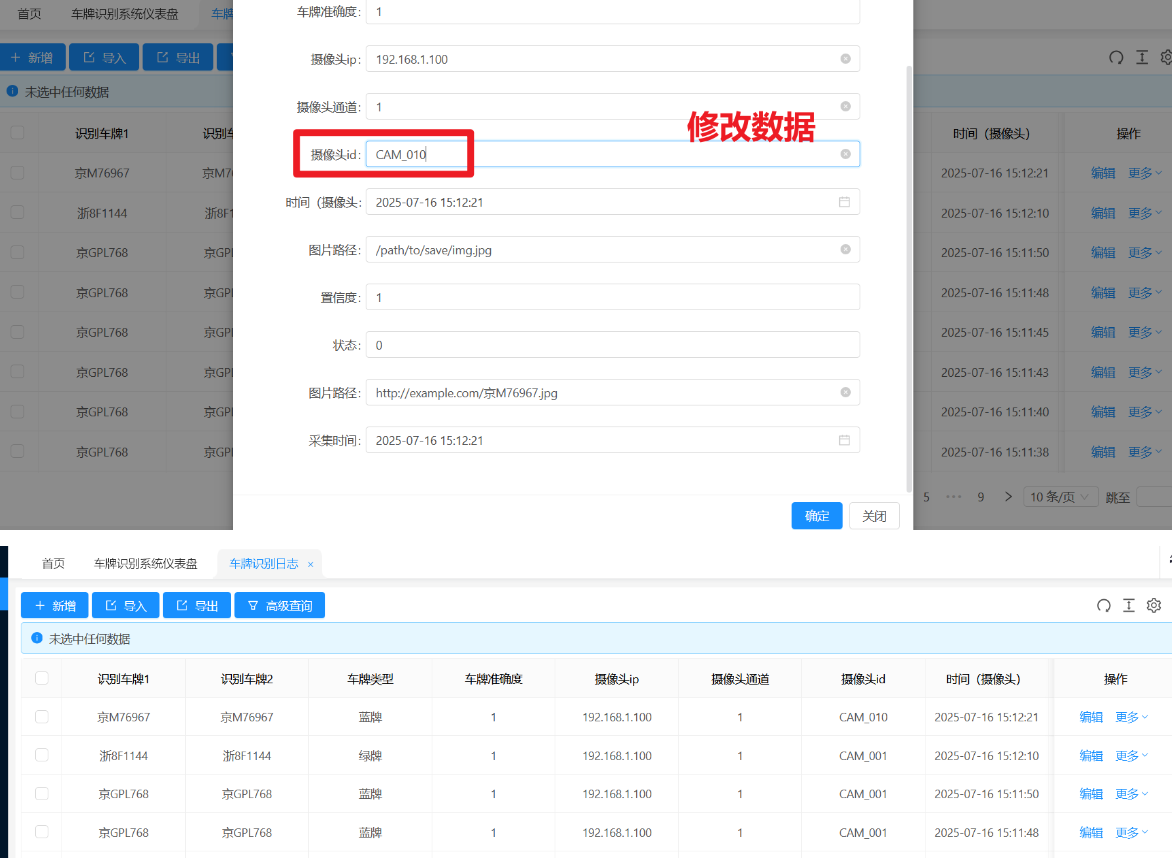

修改数据

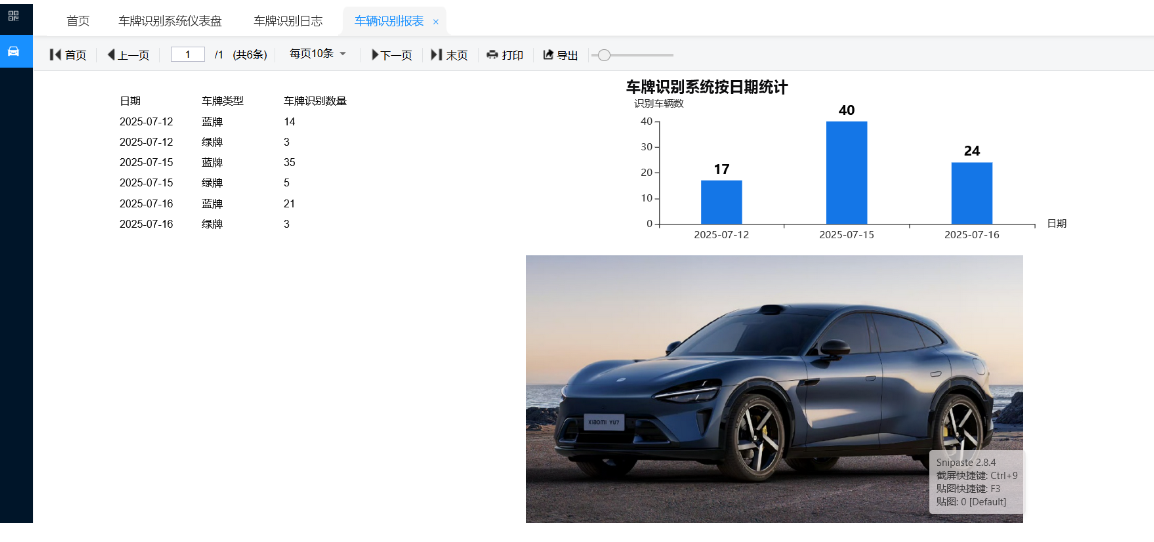

统计报表

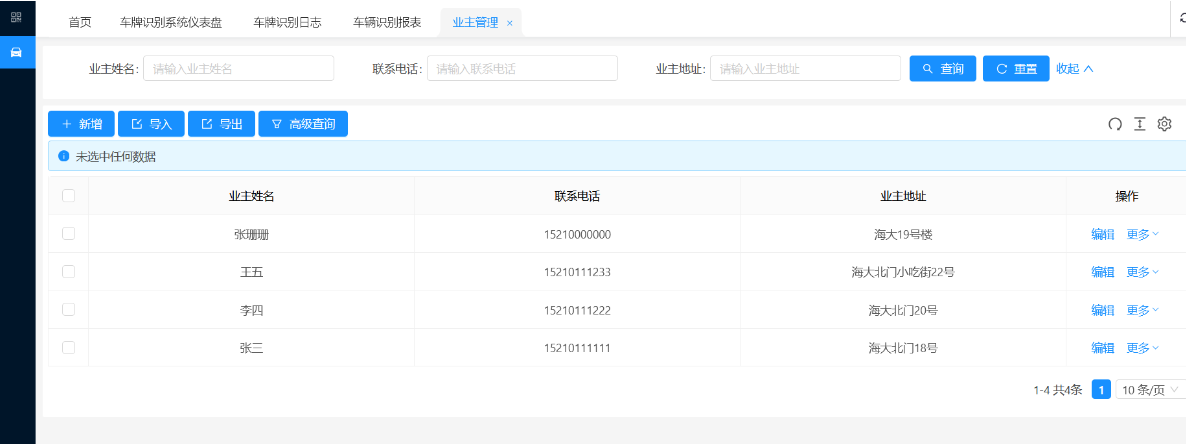

业主管理

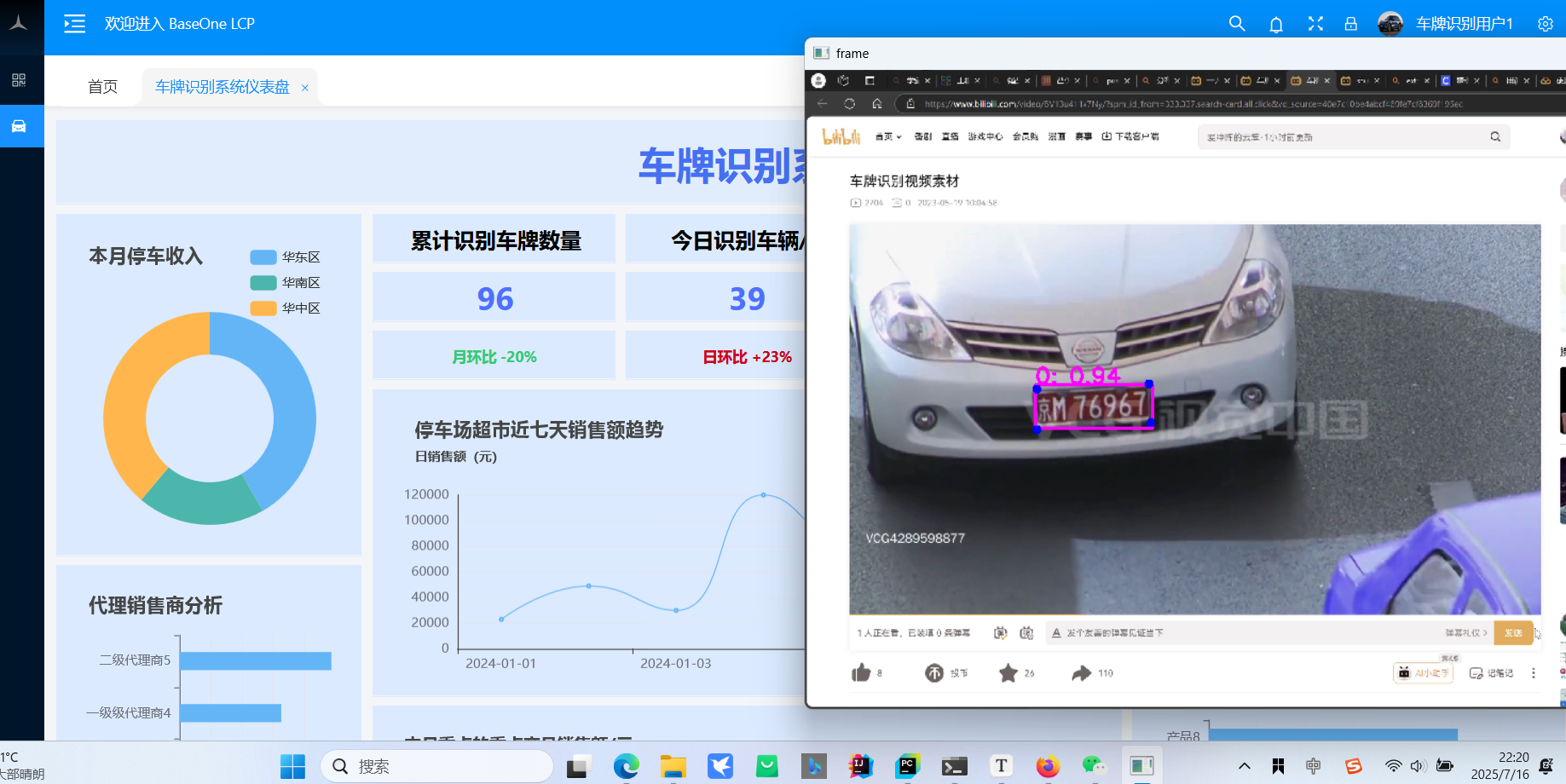

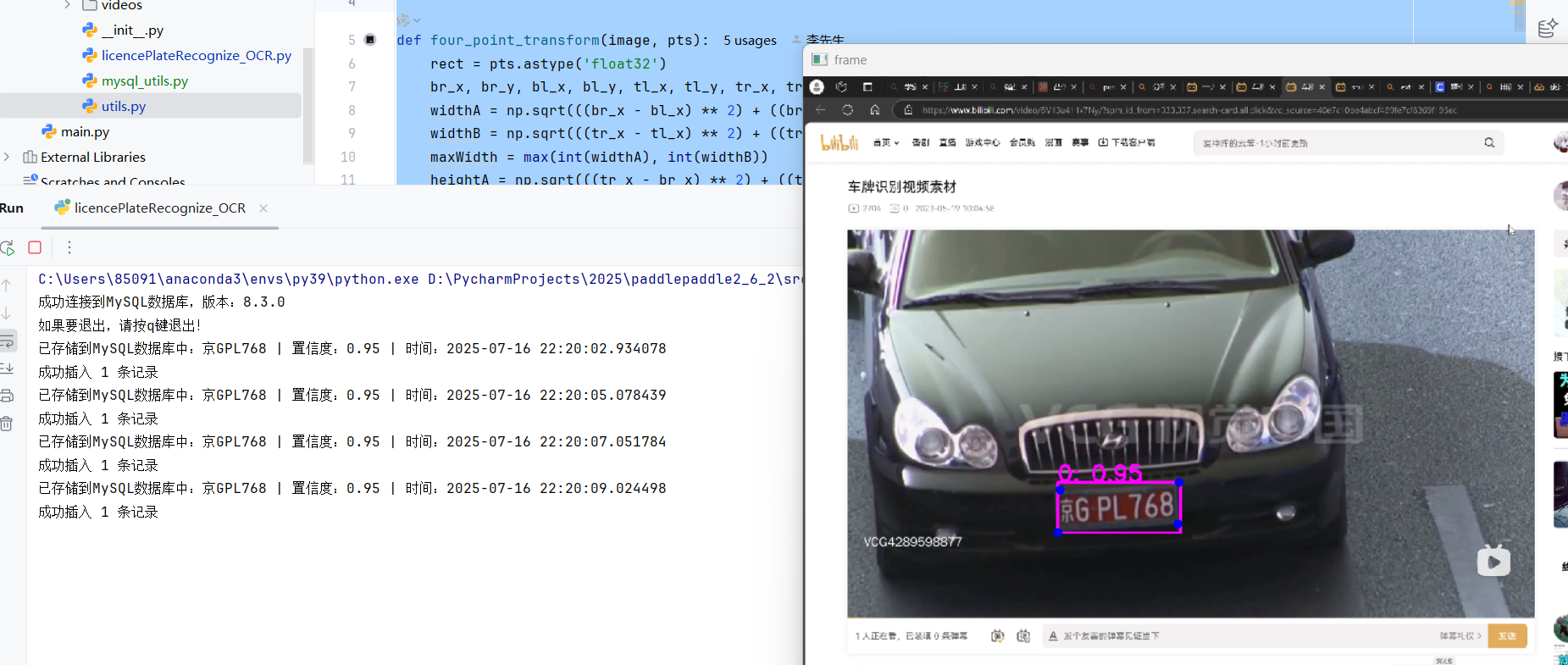

车牌识别演示
基于PaddlePaddle训练的车牌识别模型进行后台部署
部署代码如下：
licencePlateRecognize_OCR.py
# -*- coding: utf-8 -*-
# @Time : 2025/7/16 10:55
# @Author : pblh123@126.com
# @File ： paddlepaddle2_6_2_licencePlateRecognize_OCR.py
# @Describe : 车牌识别代码部署代码
from datetime import datetime
import cv2
import numpy as np
import onnxruntime
from src.day8.mysql_utils import get_mysql_connection, insert_plate_records
from utils import pre_process, post_process, draw_boxes, draw_points, four_point_transform
# 代码的重要配置
"""车牌识别部分"""
CHARS = ['京', '沪', '津', '渝', '冀', '晋', '蒙', '辽', '吉', '黑',
'苏', '浙', '皖', '闽', '赣', '鲁', '豫', '鄂', '湘', '粤',
'桂', '琼', '川', '贵', '云', '藏', '陕', '甘', '青', '宁',
'新',
'0', '1', '2', '3', '4', '5', '6', '7', '8', '9',
'A', 'B', 'C', 'D', 'E', 'F', 'G', 'H', 'J', 'K',
'L', 'M', 'N', 'P', 'Q', 'R', 'S', 'T', 'U', 'V',
'W', 'X', 'Y', 'Z', 'I', 'O', '-'
]
# ONNX 模型路径（保持与视频处理相同）
detection_onnx_path = "models/License_Plate_Detection_best.onnx"
lprnet_chosen_path = "models/lprnet_chosen_mymodel.onnx"
lprnet_green_path = "models/lprnet_green_mymodel.onnx"
# -------------------------- 摄像头信息（示例） --------------------------
# 实际需根据硬件获取（如通过SDK或配置文件）
camera_info = {
"ip": "192.168.1.100", # 摄像头IP
"channel": "1", # 摄像头通道
"id": "CAM_001" # 摄像头ID
}
# 从配置或环境变量获取（示例使用硬编码，实际建议用配置文件）
mysql_config = {
"host": "localhost",
"port": 3306,
"user": "root",
"password": "root",
"database": "jeecg-boot", # 需提前创建数据库
"charset": "utf8mb4"
}
def reprocess(pred):
"""
Parameters
pred: numpy.ndarray
The prediction output of the LPRNet model.
Returns
-------
str
The recognized license plate number.
"""
pred_data = pred[0]
pred_label = np.argmax(pred_data, axis=0)
no_repeat_blank_label = []
pre_c = pred_label[0]
if pre_c != len(CHARS) - 1: # 非空白
no_repeat_blank_label.append(pre_c)
for c in pred_label: # dropout repeate label and blank label
if (pre_c == c) or (c == len(CHARS) - 1):
if c == len(CHARS) - 1:
pre_c = c
continue
no_repeat_blank_label.append(c)
pre_c = c
char_list = [CHARS[i] for i in no_repeat_blank_label]
return ''.join(char_list)
def process_video(video_path,confidence_threshold=0.95):
"""
Parameters
video_path: str
The path to the video file.
confidence_threshold: float
The minimum confidence threshold for plate recognition.
Returns
-------
None
"""
# 加载 ONNX 模型
providers = ['CPUExecutionProvider']
sess_detect = onnxruntime.InferenceSession(detection_onnx_path, providers=providers)
# 打开视频
cap = cv2.VideoCapture(video_path)
if not cap.isOpened():
print(f"无法打开视频文件：{video_path}")
return
# 设置窗口大小
window_width = 1000
window_height = 600
cv2.namedWindow('frame', cv2.WINDOW_NORMAL)
cv2.resizeWindow('frame', window_width, window_height)
# 存储上一次检测到的车牌信息
last_plates = []
frame_counter = 0
while True:
ret, frame = cap.read()
if not ret:
break
frame_counter += 1
# 图片预处理
img_data, scale, padd_data = pre_process(frame, img_size=640) # RGB
# 使用 ONNXRuntime 推理
ort_inputs = {sess_detect.get_inputs()[0].name: img_data}
result = sess_detect.run(None, ort_inputs)
result = np.array(result) # (1, 1, 25200, 14)
result = np.squeeze(result)
# 后处理
confidence = 0.4
iou = 0.3
hw = frame.shape[:2]
boxes, landmarks, confs, classes = post_process(result, confidence, iou, scale, padd_data[0], padd_data[1], hw)
# 框选出每个车牌
plate_img = []
for i in range(len(classes)):
plate_img.append(four_point_transform(frame, landmarks[i]))
# 可视化
color = (255, 0, 255)
img = draw_boxes(frame, boxes, confs, classes, color, thickness=5)
img_out = draw_points(img, landmarks, (0, 0, 255), 10)
img_out = img_out[:, :, ::-1] # BGR -> RGB
# 显示结果
cv2.imshow('frame', img_out)
# 车牌识别部分
current_plates = []
for i in range(len(classes)):
# print(f'第{i}个识别结果,识别类别{classes[i]}')
# 图像预处理
img_data = plate_img[i][:, :, ::-1] # BGR to RGB
img_data = cv2.resize(img_data, (94, 24))
img_data = (img_data - 127.5) / 127.5 # 归一化
img_data = np.transpose(img_data, (2, 0, 1)) # HWC to CHW
img_data = np.expand_dims(img_data, 0) # to BCHW
img_data = np.array(img_data, dtype=np.float32)
# 加载识别模型
# 这里给了两个车牌识别模型，一个是通用的识别模型，一个是针对绿牌的识别模型
if int(classes[i]) == 0:
sess_recog = onnxruntime.InferenceSession(lprnet_chosen_path, providers=providers)
elif int(classes[i]) == 1:
sess_recog = onnxruntime.InferenceSession(lprnet_green_path, providers=providers)
else:
continue
ort_inputs_recog = {sess_recog.get_inputs()[0].name: img_data}
result_recog, = sess_recog.run(None, ort_inputs_recog)
# 解析结果
plate_str = reprocess(result_recog)
if confs[i] > confidence_threshold:
current_plates.append((plate_str, confs[i]))
# 检测车牌变化并打印
if current_plates != last_plates and (frame_counter % 20 == 0):
last_plates = current_plates
for plate, conf in current_plates:
print(f'识别到车牌号：{plate}，置信度：{conf:.2f}')
if cv2.waitKey(1) & 0xFF == ord('q'):
break
# 释放资源
cap.release()
cv2.destroyAllWindows()
def process_camera(confidence_threshold=0.95):
"""
Parameters
confidence_threshold: float
The minimum confidence threshold for plate recognition.
Returns
-------
None
"""
# 加载 ONNX 模型（与视频处理相同）
providers = ['CPUExecutionProvider']
sess_detect = onnxruntime.InferenceSession(detection_onnx_path, providers=providers)
# 打开摄像头（修改点1：使用0表示默认摄像头）
cap = cv2.VideoCapture(0)
if not cap.isOpened():
print("无法打开摄像头")
return
# 窗口设置（与视频处理相同）
window_width = 1000
window_height = 600
cv2.namedWindow('frame', cv2.WINDOW_NORMAL)
cv2.resizeWindow('frame', window_width, window_height)
# 存储上一次检测信息（与视频处理相同）
last_plates = []
frame_counter = 0
print("需要关闭摄像头请按q键")
while True:
# 读取摄像头帧（修改点2：添加retry逻辑）
ret, frame = cap.read()
if not ret:
print("摄像头读取失败，正在重试...")
cap.release()
cap = cv2.VideoCapture(0)
continue
frame_counter += 1
# 图片预处理
img_data, scale, padd_data = pre_process(frame, img_size=640) # RGB
# 使用 ONNXRuntime 推理
ort_inputs = {sess_detect.get_inputs()[0].name: img_data}
result = sess_detect.run(None, ort_inputs)
result = np.array(result) # (1, 1, 25200, 14)
result = np.squeeze(result)
# 后处理
confidence = 0.4
iou = 0.3
hw = frame.shape[:2]
boxes, landmarks, confs, classes = post_process(result, confidence, iou, scale, padd_data[0], padd_data[1], hw)
# 框选出每个车牌
plate_img = []
for i in range(len(classes)):
plate_img.append(four_point_transform(frame, landmarks[i]))
# 可视化
color = (255, 0, 255)
img = draw_boxes(frame, boxes, confs, classes, color, thickness=5)
img_out = draw_points(img, landmarks, (0, 0, 255), 10)
img_out = img_out[:, :, ::-1] # BGR -> RGB
# 显示结果
cv2.imshow('frame', img_out)
# 车牌识别部分
current_plates = []
for i in range(len(classes)):
# print(f'第{i}个识别结果,识别类别{classes[i]}')
# 图像预处理
img_data = plate_img[i][:, :, ::-1] # BGR to RGB
img_data = cv2.resize(img_data, (94, 24))
img_data = (img_data - 127.5) / 127.5 # 归一化
img_data = np.transpose(img_data, (2, 0, 1)) # HWC to CHW
img_data = np.expand_dims(img_data, 0) # to BCHW
img_data = np.array(img_data, dtype=np.float32)
# 加载识别模型
# 这里给了两个车牌识别模型，一个是通用的识别模型，一个是针对绿牌的识别模型
if int(classes[i]) == 0:
sess_recog = onnxruntime.InferenceSession(lprnet_chosen_path, providers=providers)
elif int(classes[i]) == 1:
sess_recog = onnxruntime.InferenceSession(lprnet_green_path, providers=providers)
else:
continue
ort_inputs_recog = {sess_recog.get_inputs()[0].name: img_data}
result_recog, = sess_recog.run(None, ort_inputs_recog)
# 解析结果
plate_str = reprocess(result_recog)
if confs[i] > confidence_threshold:
current_plates.append((plate_str, confs[i]))
# 检测车牌变化并打印
if current_plates != last_plates and (frame_counter % 20 == 0):
last_plates = current_plates
for plate, conf in current_plates:
print(f'识别到车牌号：{plate}，置信度：{conf:.2f}')
# 退出逻辑（保持原有逻辑）
if cv2.waitKey(1) & 0xFF == ord('q'):
break
# 释放资源（保持原有逻辑）
cap.release()
cv2.destroyAllWindows()
def process_video_2_mysql(video_path, confidence_threshold=0.95):
"""
Parameters
video_path: str
The path to the video file.
confidence_threshold: float
The minimum confidence threshold for plate recognition.
Returns
-------
None
"""
# 获取MySQL连接
mysql_conn = get_mysql_connection(**mysql_config)
if not mysql_conn:
print("数据库连接失败，程序终止")
return
# 加载 ONNX 模型
providers = ['CPUExecutionProvider']
sess_detect = onnxruntime.InferenceSession(detection_onnx_path, providers=providers)
# 打开视频
cap = cv2.VideoCapture(video_path)
if not cap.isOpened():
print(f"无法打开视频文件：{video_path}")
mysql_conn.close() # 关闭数据库连接
return
# 设置窗口大小
window_width = 1000
window_height = 600
cv2.namedWindow('frame', cv2.WINDOW_NORMAL)
cv2.resizeWindow('frame', window_width, window_height)
# 存储上一次检测到的车牌信息
last_plates = []
frame_counter = 0
print("如果要退出，请按q键退出！")
while True:
ret, frame = cap.read()
if not ret:
break
frame_counter += 1
# 图片预处理
img_data, scale, padd_data = pre_process(frame, img_size=640) # RGB
# 使用 ONNXRuntime 推理
ort_inputs = {sess_detect.get_inputs()[0].name: img_data}
result = sess_detect.run(None, ort_inputs)
result = np.array(result) # (1, 1, 25200, 14)
result = np.squeeze(result)
# 后处理
confidence = 0.4
iou = 0.3
hw = frame.shape[:2]
boxes, landmarks, confs, classes = post_process(result, confidence, iou, scale, padd_data[0], padd_data[1], hw)
# 框选出每个车牌
plate_img = []
for i in range(len(classes)):
plate_img.append(four_point_transform(frame, landmarks[i]))
# 可视化
color = (255, 0, 255)
img = draw_boxes(frame, boxes, confs, classes, color, thickness=5)
img_out = draw_points(img, landmarks, (0, 0, 255), 10)
img_out = img_out[:, :, ::-1] # BGR -> RGB
# 显示结果
cv2.imshow('frame', img_out)
# 车牌识别部分
current_plates = []
for i in range(len(classes)):
# 图像预处理
img_data = plate_img[i][:, :, ::-1] # BGR to RGB
img_data = cv2.resize(img_data, (94, 24))
img_data = (img_data - 127.5) / 127.5 # 归一化
img_data = np.transpose(img_data, (2, 0, 1)) # HWC to CHW
img_data = np.expand_dims(img_data, 0) # to BCHW
img_data = np.array(img_data, dtype=np.float32)
# 加载识别模型
if int(classes[i]) == 0:
sess_recog = onnxruntime.InferenceSession(lprnet_chosen_path, providers=providers)
elif int(classes[i]) == 1:
sess_recog = onnxruntime.InferenceSession(lprnet_green_path, providers=providers)
else:
continue
ort_inputs_recog = {sess_recog.get_inputs()[0].name: img_data}
result_recog, = sess_recog.run(None, ort_inputs_recog)
# 解析结果
plate_str = reprocess(result_recog)
if confs[i] > confidence_threshold:
current_plates.append((plate_str, confs[i]))
# -------------------------- 存储到MySQL --------------------------
if current_plates != last_plates and (frame_counter % 20 == 0):
last_plates = current_plates.copy()
# 构造待插入的记录列表
records_to_insert = []
for plate, conf in current_plates:
camera_time1 = datetime.now() # 模拟摄像头采集时间
record = {
"res_plate_number": plate, # 识别车牌1（主结果）
"e2e_plate_number": plate, # 识别车牌2（备用，示例用主结果填充）
"e2e_plate_type": "蓝牌" if plate.startswith("京") else "绿牌", # 车牌类型（示例逻辑）这里是实例不正确的代码
"e2e_plate_confidence": float(conf), # 置信度
"camera_ip": camera_info["ip"], # 摄像头IP
"camera_channel": camera_info["channel"], # 摄像头通道
"camera_id": camera_info["id"], # 摄像头ID
"camera_time": camera_time1, # 摄像头采集时间（当前时间）
"res_plate_img_path": "/path/to/save/img.jpg", # 图片保存路径（示例，需实现截图功能）
"res_plate_crop_confidence": float(conf), # 裁剪置信度（示例用原置信度）
"status": 0, # 状态（0=成功）
"plate_url": f"http://example.com/{plate}.jpg", # 图片URL（示例）
"e2e_plate_time": datetime.now() # 采集时间（与camera_time一致）
}
records_to_insert.append(record)
print(f"已存储到MySQL数据库中：{plate} | 置信度：{conf:.2f} | 时间：{camera_time1}")
# 插入数据库
if records_to_insert:
insert_success = insert_plate_records(mysql_conn, records_to_insert)
if not insert_success:
print("数据插入失败，检查数据库连接或字段格式")
# 按'q'键退出
if cv2.waitKey(1) & 0xFF == ord('q'):
break
# 释放资源
cap.release()
cv2.destroyAllWindows()
mysql_conn.close() # 关闭数据库连接
def process_camera_2_mysql(camera_id=0, confidence_threshold=0.95):
"""
Parameters
camera_id: str
The id of camera.
confidence_threshold: float
The minimum confidence threshold for plate recognition.
Returns
-------
None
"""
# 获取MySQL连接
mysql_conn = get_mysql_connection(**mysql_config)
if not mysql_conn:
print("数据库连接失败，程序终止")
return
# 加载 ONNX 模型
providers = ['CPUExecutionProvider']
sess_detect = onnxruntime.InferenceSession(detection_onnx_path, providers=providers)
# 打开视频
cap = cv2.VideoCapture(camera_id)
if not cap.isOpened():
print(f"无法打开摄像头：{camera_id}")
mysql_conn.close() # 关闭数据库连接
return
# 设置窗口大小
window_width = 1000
window_height = 600
cv2.namedWindow('frame', cv2.WINDOW_NORMAL)
cv2.resizeWindow('frame', window_width, window_height)
# 存储上一次检测到的车牌信息
last_plates = []
frame_counter = 0
print("如果要退出，请按q键退出！")
while True:
ret, frame = cap.read()
if not ret:
break
frame_counter += 1
# 图片预处理
img_data, scale, padd_data = pre_process(frame, img_size=640) # RGB
# 使用 ONNXRuntime 推理
ort_inputs = {sess_detect.get_inputs()[0].name: img_data}
result = sess_detect.run(None, ort_inputs)
result = np.array(result) # (1, 1, 25200, 14)
result = np.squeeze(result)
# 后处理
confidence = 0.4
iou = 0.3
hw = frame.shape[:2]
boxes, landmarks, confs, classes = post_process(result, confidence, iou, scale, padd_data[0], padd_data[1], hw)
# 框选出每个车牌
plate_img = []
for i in range(len(classes)):
plate_img.append(four_point_transform(frame, landmarks[i]))
# 可视化
color = (255, 0, 255)
img = draw_boxes(frame, boxes, confs, classes, color, thickness=5)
img_out = draw_points(img, landmarks, (0, 0, 255), 10)
img_out = img_out[:, :, ::-1] # BGR -> RGB
# 显示结果
cv2.imshow('frame', img_out)
# 车牌识别部分
current_plates = []
for i in range(len(classes)):
# 图像预处理
img_data = plate_img[i][:, :, ::-1] # BGR to RGB
img_data = cv2.resize(img_data, (94, 24))
img_data = (img_data - 127.5) / 127.5 # 归一化
img_data = np.transpose(img_data, (2, 0, 1)) # HWC to CHW
img_data = np.expand_dims(img_data, 0) # to BCHW
img_data = np.array(img_data, dtype=np.float32)
# 加载识别模型
if int(classes[i]) == 0:
sess_recog = onnxruntime.InferenceSession(lprnet_chosen_path, providers=providers)
elif int(classes[i]) == 1:
sess_recog = onnxruntime.InferenceSession(lprnet_green_path, providers=providers)
else:
continue
ort_inputs_recog = {sess_recog.get_inputs()[0].name: img_data}
result_recog, = sess_recog.run(None, ort_inputs_recog)
# 解析结果
plate_str = reprocess(result_recog)
if confs[i] > confidence_threshold:
current_plates.append((plate_str, confs[i]))
# -------------------------- 存储到MySQL --------------------------
if current_plates != last_plates and (frame_counter % 20 == 0):
last_plates = current_plates.copy()
# 构造待插入的记录列表
records_to_insert = []
for plate, conf in current_plates:
camera_time1 = datetime.now() # 模拟摄像头采集时间
record = {
"res_plate_number": plate, # 识别车牌1（主结果）
"e2e_plate_number": plate, # 识别车牌2（备用，示例用主结果填充）
"e2e_plate_type": "蓝牌" if plate.startswith("京") else "绿牌", # 车牌类型（示例逻辑）这里是实例不正确的代码
"e2e_plate_confidence": float(conf), # 置信度
"camera_ip": camera_info["ip"], # 摄像头IP
"camera_channel": camera_info["channel"], # 摄像头通道
"camera_id": camera_info["id"], # 摄像头ID
"camera_time": camera_time1, # 摄像头采集时间（当前时间）
"res_plate_img_path": "/path/to/save/img.jpg", # 图片保存路径（示例，需实现截图功能）
"res_plate_crop_confidence": float(conf), # 裁剪置信度（示例用原置信度）
"status": 0, # 状态（0=成功）
"plate_url": f"http://example.com/{plate}.jpg", # 图片URL（示例）
"e2e_plate_time": datetime.now() # 采集时间（与camera_time一致）
}
records_to_insert.append(record)
print(f"已存储到MySQL数据库中：{plate} | 置信度：{conf:.2f} | 时间：{camera_time1}")
# 插入数据库
if records_to_insert:
insert_success = insert_plate_records(mysql_conn, records_to_insert)
if not insert_success:
print("数据插入失败，检查数据库连接或字段格式")
# 按'q'键退出
if cv2.waitKey(1) & 0xFF == ord('q'):
break
# 释放资源
cap.release()
cv2.destroyAllWindows()
mysql_conn.close() # 关闭数据库连接
def main():
# 示例调用
# process_video("videos/video.mp4")
# process_camera()
process_video_2_mysql("videos/video.mp4")
if __name__ == '__main__':
main()
mysql_utils.py
# -*- coding: utf-8 -*-
# @Time : 2025/7/16 20:58
# @Author : pblh123@126.com
# @File ： paddlepaddle2_6_2_mysql_utils.py.py
# @Describe : todo
import pymysql
from datetime import datetime
def get_mysql_connection(
host: str = 'localhost', # MySQL服务器地址
port: int = 3306, # MySQL端口
user: str = 'root', # 用户名
password: str = 'root', # 密码
database: str = None, # 数据库名
charset: str = 'utf8mb4' # 字符集
) -> pymysql.connections.Connection:
"""
创建并返回MySQL数据库连接对象
参数:
host: MySQL服务器IP地址（默认localhost）
port: MySQL服务端口（默认3306）
user: 登录用户名（默认root）
password: 登录密码
database: 要连接的数据库名（默认test_db）
charset: 字符集（默认utf8mb4）
返回:
pymysql.connections.Connection: MySQL连接对象（连接成功时）
None: 连接失败时返回None
"""
try:
# 创建连接对象
conn = pymysql.connect(
host=host,
port=port,
user=user,
password=password,
database=database,
charset=charset,
cursorclass=pymysql.cursors.DictCursor # 返回字典格式结果
)
# 测试连接（执行简单查询）
with conn.cursor() as cursor:
cursor.execute("SELECT VERSION()")
version = cursor.fetchone()['VERSION()']
print(f"成功连接到MySQL数据库，版本：{version}")
return conn
except pymysql.MySQLError as e:
print(f"MySQL连接失败：{str(e)}")
return None
except Exception as e:
print(f"创建MySQL连接时发生未知错误：{str(e)}")
return None
import pymysql
from typing import Union, List, Dict
def mysql_sql_execute(sql: str, params: tuple = None) -> Union[int, List[Dict]]:
"""
执行 MySQL SQL 语句（支持查询和修改操作）
参数:
sql: 要执行的 SQL 语句（支持 SELECT、INSERT、UPDATE、DELETE 等）
params: SQL 语句的参数（可选，用于防止 SQL 注入）
返回:
若为查询操作（SELECT）：返回结果列表（每个元素为字典，键为字段名）
若为修改操作（INSERT/UPDATE/DELETE）：返回受影响的行数
异常时返回 -1 并打印错误信息
"""
conn = None
cursor = None
# 定义所有返回结果的关键字（不区分大小写）
query_keywords = {'select', 'show', 'describe', 'explain'}
try:
# 获取数据库连接（使用之前定义的 get_mysql_connection 函数）
conn = get_mysql_connection()
if not conn:
print("数据库连接失败")
return -1
# 创建游标（使用 DictCursor 以便返回字典格式结果）
cursor = conn.cursor(pymysql.cursors.DictCursor)
# 处理 SQL 语句（去除前后空格，转换为小写判断关键字）
sql_clean = sql.strip().lower()
# 拆分 SQL 语句
for sql_part in sql_clean.strip().split(';'):
sql_part = sql_part.strip()
if not sql_part:
continue
# 执行单条 SQL
if params:
affected_rows = cursor.execute(sql_part, params)
else:
affected_rows = cursor.execute(sql_part)
# 判断是否为查询操作（返回结果的语句）
is_query = any(sql_part.startswith(keyword) for keyword in query_keywords)
if is_query:
result = cursor.fetchall()
return result
else:
conn.commit()
print(f"SQL语句:{sql_part}执行成功")
except pymysql.MySQLError as e:
# 发生错误时回滚事务
if conn:
conn.rollback()
print(f"SQL 执行失败（MySQL 错误）: {str(e)}")
return -1
except Exception as e:
# 其他异常处理
if conn:
conn.rollback()
print(f"SQL 执行失败（未知错误）: {str(e)}")
return -1
finally:
# 确保游标和连接关闭
if cursor:
cursor.close()
if conn:
conn.close()
def insert_plate_records(conn: pymysql.connections.Connection, records: list):
"""
将车牌识别记录批量插入MySQL数据库
参数:
conn: MySQL连接对象（需已成功连接）
records: 待插入的记录列表（每个元素为字典）
返回:
bool: 插入成功返回True，失败返回False
"""
if not conn or not records:
print("无效的数据库连接或记录列表")
return False
# 定义插入SQL模板（根据表结构调整字段）
sql = """
INSERT INTO plate_recognize (
res_plate_number,
e2e_plate_number,
e2e_plate_type,
e2e_plate_confidence,
camera_ip,
camera_channel,
camera_id,
camera_time,
res_plate_img_path,
res_plate_crop_confidence,
status,
plate_url,
e2e_plate_time
) VALUES (%s, %s, %s, %s, %s, %s, %s, %s, %s, %s, %s, %s, %s)
"""
try:
with conn.cursor() as cursor:
# 批量插入（参数化为元组列表）
batch_data = [
(
record.get('res_plate_number'), # res_plate_number
record.get('e2e_plate_number'), # e2e_plate_number
record.get('e2e_plate_type'), # e2e_plate_type
record.get('e2e_plate_confidence'), # e2e_plate_confidence
record.get('camera_ip'), # camera_ip
record.get('camera_channel'), # camera_channel
record.get('camera_id'), # camera_id
record.get('camera_time'), # camera_time（datetime对象）
record.get('res_plate_img_path'), # res_plate_img_path
record.get('res_plate_crop_confidence'), # res_plate_crop_confidence
record.get('status', 0), # status（默认0）
record.get('plate_url'), # plate_url
record.get('e2e_plate_time') # e2e_plate_time（datetime对象）
) for record in records
]
cursor.executemany(sql, batch_data)
conn.commit() # 提交事务
print(f"成功插入 {len(batch_data)} 条记录")
return True
except pymysql.MySQLError as e:
conn.rollback() # 回滚事务
print(f"插入失败，事务已回滚：{str(e)}")
return False
except Exception as e:
conn.rollback()
print(f"插入时发生未知错误：{str(e)}")
return False
def main():
create_plate_recognize_sql = """
CREATE TABLE `jeecg-boot`.`plate_recognize` (
`id` bigint NOT NULL AUTO_INCREMENT,
`res_plate_number` varchar(40) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '识别车牌1',
`e2e_plate_number` varchar(40) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '识别车牌2',
`e2e_plate_type` varchar(40) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '车牌类型',
`e2e_plate_confidence` float NULL DEFAULT NULL COMMENT '车牌准确度',
`camera_ip` varchar(40) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '摄像头IP',
`camera_channel` varchar(20) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '摄像头通道',
`camera_id` varchar(20) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '摄像头ID',
`camera_time` datetime NULL DEFAULT NULL COMMENT '时间（摄像头）',
`res_plate_img_path` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '图片路径',
`res_plate_crop_confidence` float NULL DEFAULT NULL COMMENT '置信度',
`status` int NULL DEFAULT NULL COMMENT '状态',
`plate_url` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NULL DEFAULT NULL COMMENT '图片路径',
`e2e_plate_time` datetime NULL DEFAULT NULL COMMENT '采集时间',
PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 1 CHARACTER SET = utf8mb4 COLLATE = utf8mb4_general_ci ROW_FORMAT = DYNAMIC;
"""
mysql_sql_execute(create_plate_recognize_sql)
if __name__ == '__main__':
main()
utils.py
import cv2
import numpy as np
import colorsys
def four_point_transform(image, pts):
rect = pts.astype('float32')
br_x, br_y, bl_x, bl_y, tl_x, tl_y, tr_x, tr_y = rect
widthA = np.sqrt(((br_x - bl_x) ** 2) + ((br_y - bl_y) ** 2))
widthB = np.sqrt(((tr_x - tl_x) ** 2) + ((tr_y - tl_y) ** 2))
maxWidth = max(int(widthA), int(widthB))
heightA = np.sqrt(((tr_x - br_x) ** 2) + ((tr_y - br_y) ** 2))
heightB = np.sqrt(((tl_x - bl_x) ** 2) + ((tl_y - bl_y) ** 2))
maxHeight = max(int(heightA), int(heightB))
rect = np.array([[tl_x, tl_y], [tr_x, tr_y], [br_x, br_y], [bl_x, bl_y]], dtype='float32')
dst = np.array([
[0, 0],
[maxWidth - 1, 0],
[maxWidth - 1, maxHeight - 1],
[0, maxHeight - 1]], dtype = "float32")
M = cv2.getPerspectiveTransform(rect, dst)
warped = cv2.warpPerspective(image, M, (maxWidth, maxHeight))
return warped
def resize_padd(img, size, color=(114, 114, 114)):
h, w = img.shape[0:2] # hw
# resize
r = size / max(h, w)
if r != 1:
interp = cv2.INTER_LINEAR if r > 1 else cv2.INTER_AREA
img = cv2.resize(img, (round(w * r), round(h * r)), interpolation=interp)
# padd
n_h, n_w = img.shape[0:2]
padd_h = size - n_h
padd_w = size - n_w
padd_h /= 2
padd_w /= 2
top, bottom = int(round(padd_h - 0.1)), int(round(padd_h + 0.1))
left, right = int(round(padd_w - 0.1)), int(round(padd_w + 0.1))
img = cv2.copyMakeBorder(img, top, bottom, left, right, cv2.BORDER_CONSTANT, value=color)
return img, r, (left, top)
### 自己加的，不进行裁剪
def resize_padd_scale(img, size, color=(114, 114, 114)):
h, w = img.shape[0:2] # hw
# 计算缩放比例
r = min(size / h, size / w)
# 调整图像大小不进行裁剪
interp = cv2.INTER_LINEAR if r > 1 else cv2.INTER_AREA
img = cv2.resize(img, (round(w * r), round(h * r)), interpolation=interp)
# 计算填充信息，但这里不再需要填充信息，可以将 padd_data 设为 None
padd_data = None
return img, r, padd_data
###
def cxcywh2xyxys(cxcywh, scale, left, top, img_hw):
out = np.zeros_like(cxcywh)
x1 = cxcywh[:, 0] - (cxcywh[:, 2] / 2) - left
x2 = cxcywh[:, 0] + (cxcywh[:, 2] / 2) - left
y1 = cxcywh[:, 1] - (cxcywh[:, 3] / 2) - top
y2 = cxcywh[:, 1] + (cxcywh[:, 3] / 2) - top
out[:, 0] = np.clip(x1/scale, 0, img_hw[1])
out[:, 1] = np.clip(y1/scale, 0, img_hw[0])
out[:, 2] = np.clip(x2/scale, 0, img_hw[1])
out[:, 3] = np.clip(y2/scale, 0, img_hw[0])
return out
def scale_landmarks(landmarks, scale, left, top, img_hw):
out = np.zeros_like(landmarks)
out[:, [0,2,4,6]] = landmarks[:, [0,2,4,6]] - left
out[:, [1,3,5,7]] = landmarks[:, [1,3,5,7]] - top
out = np.clip(out/scale, 0, img_hw[1])
return out
def nms(boxes, confs, iou_thresh=0.3):
x1 = boxes[:, 0]
y1 = boxes[:, 1]
x2 = boxes[:, 2]
y2 = boxes[:, 3]
areas = (x2 - x1 + 1) * (y2 - y1 + 1)
order = confs.flatten().argsort()[::-1]
keep = []
while order.size > 0:
i = order[0]
keep.append(i)
xx1 = np.maximum(x1[i], x1[order[1:]])
xx2 = np.minimum(x2[i], x2[order[1:]])
yy1 = np.maximum(y1[i], y1[order[1:]])
yy2 = np.minimum(y2[i], y2[order[1:]])
w = np.maximum(0.0, xx2 - xx1)
h = np.maximum(0.0, yy2 - yy1)
inter = w * h
ovr = inter / (areas[i] + areas[order[1:]] - inter)
inds = np.where(ovr <= iou_thresh)[0]
order = order[inds + 1]
return keep
def pre_process(img_raw, img_size=640):
img_data, scale, padd_data = resize_padd(img_raw, img_size)
img_data = img_data / 255.0 # 归一化
img_data = img_data[..., ::-1] # BGR -> RGB格式
img_data = np.transpose(img_data, (2, 0, 1)) # HWC to CHW
img_data = np.expand_dims(img_data, 0) # to BCHW
np_data = np.array(img_data, dtype=np.float32)
return np_data, scale, padd_data
### 后来改的，可删，唯一区别在于resize_padd -> resize_padd_scale
def pre_process_scale(img_raw, img_size=640):
img_data, scale, padd_data = resize_padd_scale(img_raw, img_size)
img_data = img_data / 255.0 # 归一化
img_data = img_data[..., ::-1] # BGR -> RGB格式
img_data = np.transpose(img_data, (2, 0, 1)) # HWC to CHW
img_data = np.expand_dims(img_data, 0) # to BCHW
np_data = np.array(img_data, dtype=np.float32)
return np_data, scale, padd_data
###
def post_process(pred, conf_thred, iou_thred, scale, left, top, img_hw):
"""
过滤低置信度结果, 缩放回原图尺寸, nms
"""
true_conf = pred[:, 4:5] * pred[:, 13:]
if isinstance(conf_thred, list): # 不同类可使用不同的置信度
mask = true_conf >= np.array(conf_thred)
else:
mask = true_conf >= conf_thred
mask = np.sum(mask, axis=-1) > 0
boxes = cxcywh2xyxys(pred[mask][:, 0:4], scale, left, top, img_hw)
landmarks = scale_landmarks(pred[mask][:, 5:13], scale, left, top, img_hw)
confs = np.max(true_conf[mask], axis=-1)
classes = np.argmax(pred[mask][:, 13:], axis=-1)
# 所有分类一起做nms
c = classes.reshape((-1, 1)) * 1000 # 或者是其他大于max([w, h])的数
nms_boxes = boxes + c
keep = nms(nms_boxes, confs, iou_thred)
confs = confs[keep]
boxes = boxes[keep]
landmarks = landmarks[keep]
classes = classes[keep]
return boxes, landmarks, confs, classes
def get_color_list(label_list):
# 根据标签生成颜色
color_list = []
hues = np.linspace(0, 1, len(label_list) + 1)
for hue in hues.tolist():
rgb = [int(c * 255) for c in colorsys.hsv_to_rgb(hue, 1.0, 1.0)]
color_list.append(rgb)
return color_list
def draw_boxes(img, boxes, confs, labels, color, thickness=1):
for bbox, cls, conf in zip(boxes, labels, confs):
x1, y1, x2, y2 = bbox
cv2.rectangle(img, (int(x1), int(y1)), (int(x2), int(y2)), color, thickness)
label = f"{cls}: {conf:.2f}"
cv2.putText(img, label, (int(x1), int(y1) - 2), cv2.FONT_HERSHEY_SIMPLEX, thickness / 3, color, thickness)
return img
def draw_points(img, points, color, thickness=2):
points_list = []
for landmarks in points:
for i in range(len(landmarks) // 2):
points_list.append((landmarks[2*i].round().astype(np.int32), landmarks[2*i+1].round().astype(np.int32)))
for i, p in enumerate(points_list):
cv2.circle(img, p, thickness, color, -1)
return img
