一、 概述
经过前几个章节的介绍，关于DDS配置和用法已经了解，并可以通过aclken来控制何时输出波形，在本章节，我们使用两个通道同时储存两种波形，由于每次突发只能传输256个数据，那么每个通道传输10次写突发，共2560*2个数据，这样将这5120个数据存储进DDR4中。
二、 存储波形数据
使用通道0和通道1向DDR4中写入波形数据，，由interconnect来分配通道的使用权。其中需要考虑的是何时产生写开始，合理分配写地址。因为只截取5120个数据，不需要考虑写突发长度，每次突发长度都为256。

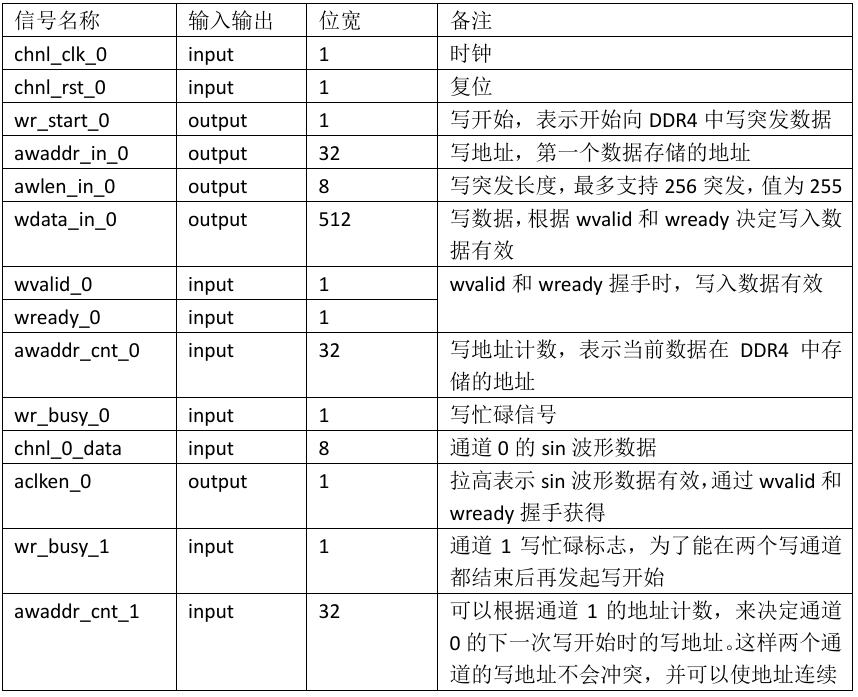

通道0接口列表：
产生写开始信号：
先定义写开始信号，第一次的写开始信号可以由计数器定时产生，后面的写开始需要等待通道0和通道1全都空闲时再发起。共发起10次。
always @(posedge chnl_clk_0) begin
if (chnl_rst_0) begin
wr_start_0_cnt <= 0;
end
else if (wr_start_0) begin
wr_start_0_cnt <= wr_start_0_cnt + 1;
end
end
always @(posedge chnl_clk_0) begin
if (chnl_rst_0) begin
clk_cnt <= 0;
end
else if (clk_cnt <= 'd999) begin
clk_cnt <= clk_cnt + 1;
end
end
always @(posedge chnl_clk_0) begin
wr_busy_0_r <= wr_busy_0;
end
always @(posedge chnl_clk_0) begin
if (chnl_rst_0) begin
wr_idle_flag_0 <= 0;
end
else if (wr_idle_flag_0 == 1 && wr_busy_1 == 0) begin
wr_idle_flag_0 <= 0;
end
else if (wr_busy_0 == 0 && wr_busy_0_r == 1) begin
wr_idle_flag_0 <= 1;
end
end
always @(posedge chnl_clk_0) begin
if (chnl_rst_0) begin
wr_start_0 <= 0;
end
else if (wr_idle_flag_0 == 1 && wr_busy_1 == 0 && wr_start_0_cnt <= 'd9) begin
wr_start_0 <= 1;
end
else if (clk_cnt == 'd990) begin
wr_start_0 <= 1;
end
else begin
wr_start_0 <= 0;
end
end
在写开始有效的同时，产生写地址和写突发长度，对于写突发长度，固定为255。对于写地址，因为本次的写开始为通道0和通道1全部突发结束后再产生的写开始信号，在两通道同时产生写开始时，验证过interconnect会先写通道0，再写通道1。所以在这里使用通道1的地址计数作为写地址。这样就可以将DDR4的地址连续写入数据。
always @(posedge chnl_clk_0) begin
if (chnl_rst_0) begin
awaddr_in_0 <= 0;
end
else if (wr_idle_flag_0 == 1 && wr_busy_1 == 0 && wr_start_0_cnt <= 'd9) begin
awaddr_in_0 <= awaddr_cnt_1;
end
else if (clk_cnt == 'd990) begin
awaddr_in_0 <= 0;
end
else begin
awaddr_in_0 <= 0;
end
end
always @(posedge chnl_clk_0) begin
if (chnl_rst_0) begin
awlen_in_0 <= 0;
end
else if (wr_idle_flag_0 == 1 && wr_busy_1 == 0 && wr_start_0_cnt <= 'd9) begin
awlen_in_0 <= 'd255;
end
else if (clk_cnt == 'd990) begin
awlen_in_0 <= 'd255;
end
else begin
awlen_in_0 <= 0;
end
end
对于写数据，在wvalid和wready握手时，将sin波形数据赋值给DDR4写数据。
always @(posedge chnl_clk_0) begin
if (chnl_rst_0) begin
wdata_in_0 <= chnl_0_data;
end
else if (wvalid_0 && wready_0) begin
wdata_in_0 <= chnl_0_data;
end
end
assign aclken_0 = wvalid_0 & wready_0;

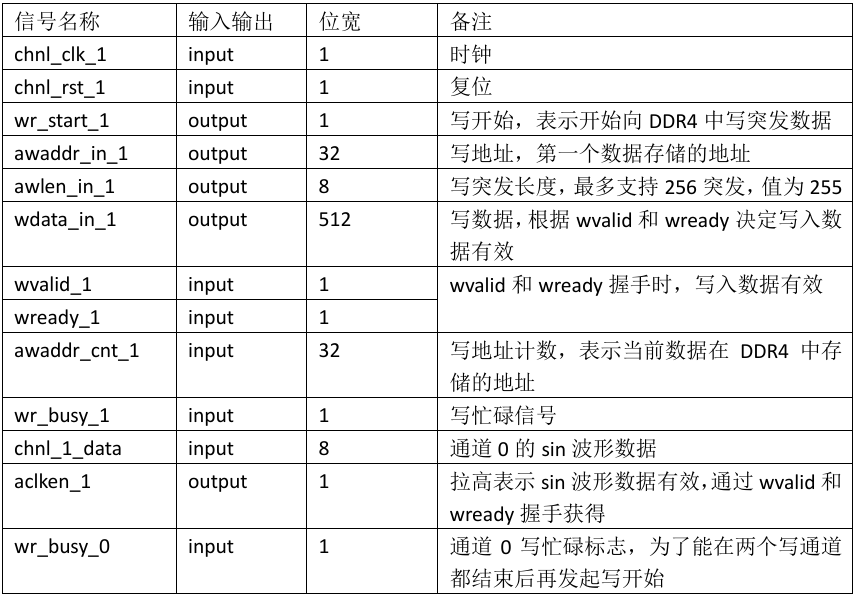

通道1接口列表：
对于产生写开始信号，与通道0的方式相同，不同点在与写地址的产生。
对于通道1的写地址，每次通道0的写长度都为256，那么通道2发起的写地址就为当前写地址计数+’h4000。
assign aclken_1 = wvalid_1 & wready_1;
always @(posedge chnl_clk_1) begin
if (chnl_rst_1) begin
wr_start_1_cnt <= 0;
end
else if (wr_start_1) begin
wr_start_1_cnt <= wr_start_1_cnt + 1;
end
end
always @(posedge chnl_clk_1) begin
if (chnl_rst_1) begin
clk_cnt <= 0;
end
else if (clk_cnt <= 'd999) begin
clk_cnt <= clk_cnt + 1;
end
end
always @(posedge chnl_clk_1) begin
wr_busy_1_r <= wr_busy_1;
end
always @(posedge chnl_clk_1) begin
if (chnl_rst_1) begin
wr_idle_flag_1 <= 0;
end
else if (wr_idle_flag_1 == 1 && wr_busy_0 == 0) begin
wr_idle_flag_1 <= 0;
end
else if (wr_busy_1 == 0 && wr_busy_1_r == 1) begin
wr_idle_flag_1 <= 1;
end
end
always @(posedge chnl_clk_1) begin
if (chnl_rst_1) begin
wr_start_1 <= 0;
end
else if (wr_idle_flag_1 == 1 && wr_busy_0 == 0 && wr_start_1_cnt <= 'd9) begin
wr_start_1 <= 1;
end
else if (clk_cnt == 'd990) begin
wr_start_1 <= 1;
end
else begin
wr_start_1 <= 0;
end
end
always @(posedge chnl_clk_1) begin
if (chnl_rst_1) begin
awaddr_in_1 <= 0;
end
else if (wr_idle_flag_1 == 1 && wr_busy_0 == 0 && wr_start_1_cnt <= 'd9) begin
awaddr_in_1 <= awaddr_cnt_1 + 'h4000;
end
else if (clk_cnt == 'd990) begin
awaddr_in_1 <= 'h4000;
end
else begin
awaddr_in_1 <= 0;
end
end
always @(posedge chnl_clk_1) begin
if (chnl_rst_1) begin
awlen_in_1 <= 0;
end
else if (wr_idle_flag_1 == 1 && wr_busy_0 == 0 && wr_start_1_cnt <= 'd9) begin
awlen_in_1 <= 'd255;
end
else if (clk_cnt == 'd990) begin
awlen_in_1 <= 'd255;
end
else begin
awlen_in_1 <= 0;
end
end
always @(posedge chnl_clk_1) begin
if (chnl_rst_1) begin
wdata_in_1 <= chnl_1_data;
end
else if (wvalid_1 && wready_1) begin
wdata_in_1 <= chnl_1_data;
end
end
三、 总结
本章节使用通道0和通道1来同时存储两个sin波形数据，下一章节通过仿真来更直观的观察并了解两个通道存储波形的过程。
