前言

这个主要是最开始的时候了解驱动的时候, 看到的一系列的 case, 这里来大致剖析一下相关的道理

这些模块是怎么和内核交互的, 内核的这些业务是怎么实现的

这里主要是一个模块来注册了一个字符设备

然后这个字符设备可读可写, 基于的是分配的一段空间

测试用例

测试模块如下, 模块主要是来自于某git仓库, 这里未记录信息, 感谢原作者

#include <linux/init.h>
#include <linux/module.h>
#include <linux/cdev.h>
#include <linux/fs.h>
#include <linux/device.h>
#include <asm/uaccess.h>
#include <linux/string.h>
#include <linux/errno.h>

MODULE_LICENSE("Dual BSD/GPL");

static char data[] = "0123456789\r\n";
/* The lock for device data. */
static rwlock_t lock;

static int example_open(struct inode *inode, struct file *filp) {
   printk(KERN_DEBUG "EXAMPLE: open\n");

   /* Initial lock. */
   rwlock_init(&lock);
   /* Map the data location to the file data pointer. */
   filp->private_data = data;

   return 0;
}

static int example_close(struct inode *inode, struct file *filp) {
   printk(KERN_DEBUG "EXAMPLE: close\n");

   /* Release the mapping of file data address. */
   if(filp->private_data) {
      filp->private_data = NULL;
   }

   return 0;
}

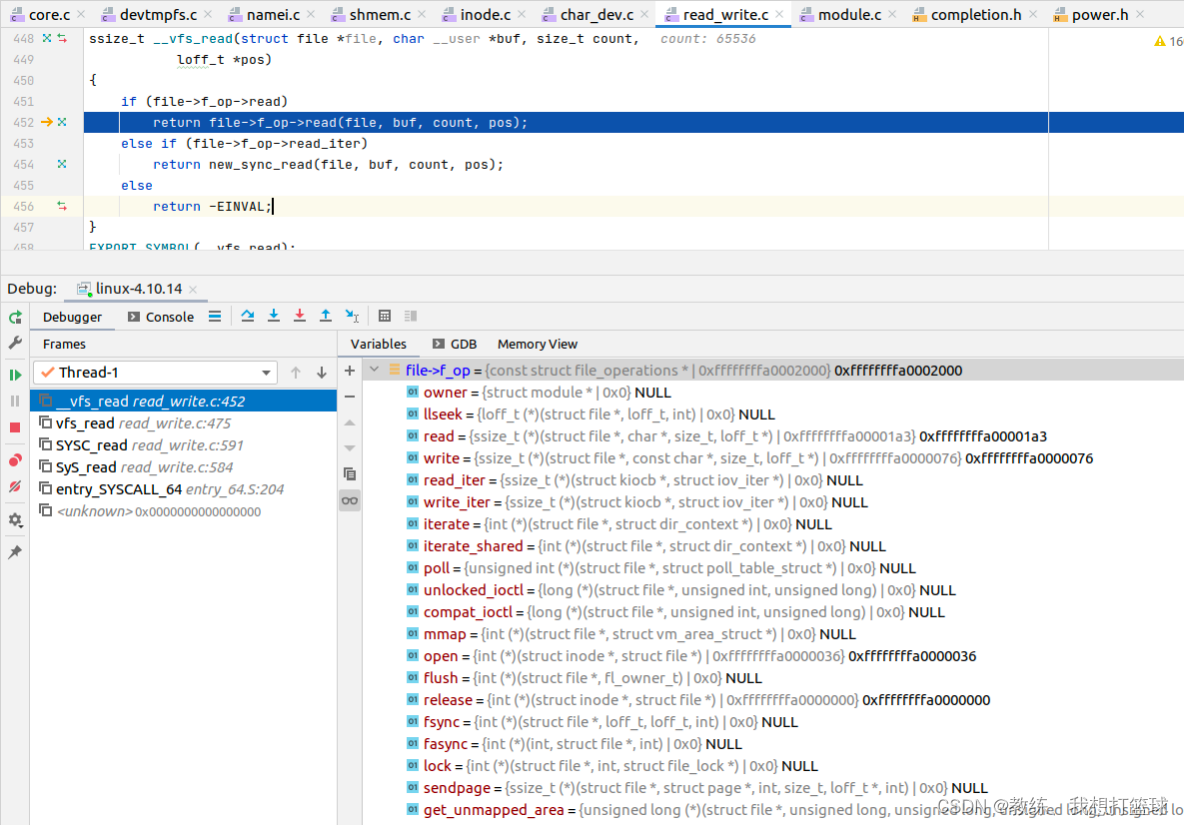

static ssize_t example_read(struct file *filp, char __user *buf, size_t size, loff_t *f_pos) {
   size_t count;
   uint8_t byte;
   uint8_t *data_p;

   printk(KERN_DEBUG "EXAMPLE: read (size=%zu)\n", size);

   data_p = filp->private_data;
   /* Get the lock for reading. */
   read_lock(&lock);
   /* Read from the device data to user space. */
   for(count = 0; (count < size) && (*f_pos) < strlen(data); ++(*f_pos), ++count) {
      byte = data_p[*f_pos];
      if(copy_to_user(buf + count, &byte, 1) != 0) {
         break;
      }
      printk(KERN_DEBUG "EXAMPLE: read (buf[%zu]=%02x)\n", count, (unsigned)byte);
   }
   /* Release the lock for reading. */
   read_unlock(&lock);

   return count;
}

static ssize_t example_write(struct file *filp, const char __user *buf, size_t size, loff_t *f_pos) {
   size_t count;
   ssize_t ret;
   uint8_t byte;
   uint8_t *data_p;

   printk(KERN_DEBUG "EXAMPLE: write (size=%zu)\n", size);

   data_p = filp->private_data;
   /* Get the lock for writing. */
   write_lock(&lock);
   /* Write from user space to the device. */
   for(count = 0; (count < size) && (*f_pos) < strlen(data); ++(*f_pos), ++count) {
      if(copy_from_user(&byte, buf + count, 1) != 0) {
         break;
      }
      data_p[*f_pos] = byte;
      printk(KERN_DEBUG "EXAMPLE: write (buf[%zu]=%02x)\n", count, (unsigned)byte);
   }
   /* Release the lock for writing. */
   write_unlock(&lock);

   if((count == 0) && ((*f_pos) >= strlen(data))) {
      ret = -ENOBUFS;
   }
   else {
      ret = count;
   }

   return ret;
}

static struct file_operations example_fops = {
   .open = example_open,
   .release = example_close,
   .read = example_read,
   .write = example_write,
};

#define EXAMPLE_NAME   "example"

static unsigned int example_major;
static unsigned int example_devs = 2;
static struct cdev example_cdev;
static struct class *example_sys_class = NULL;

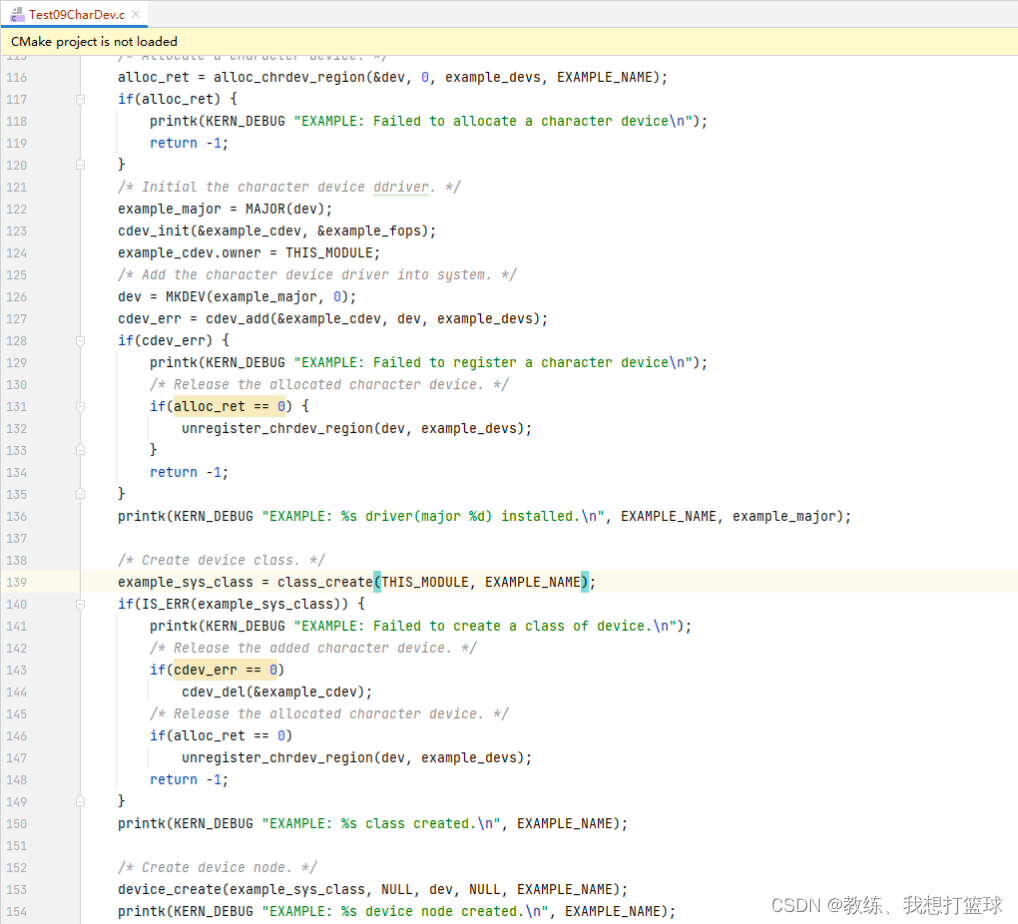

static int example_init(void) {
   dev_t dev;
   int alloc_ret, cdev_err;

   printk(KERN_DEBUG "EXAMPLE: init\n");

   /* Allocate a character device. */

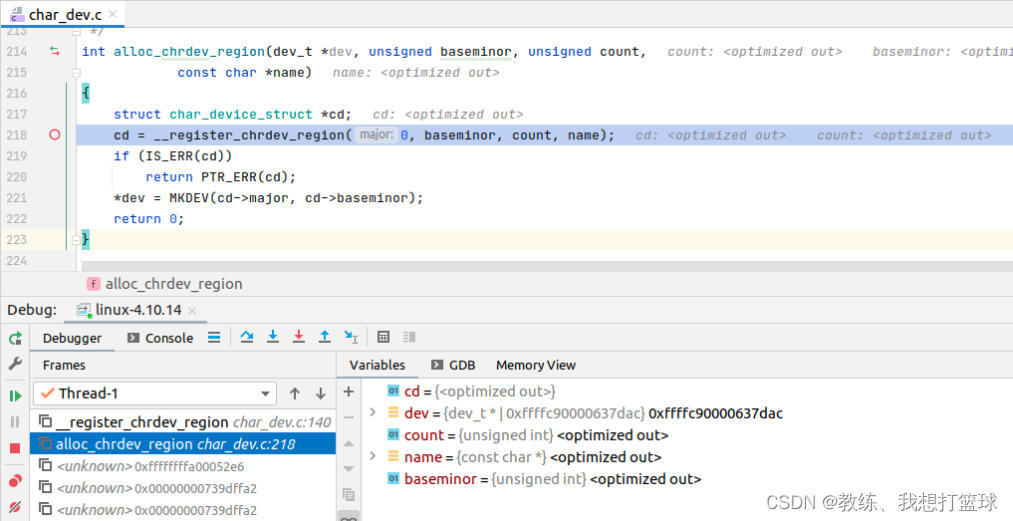

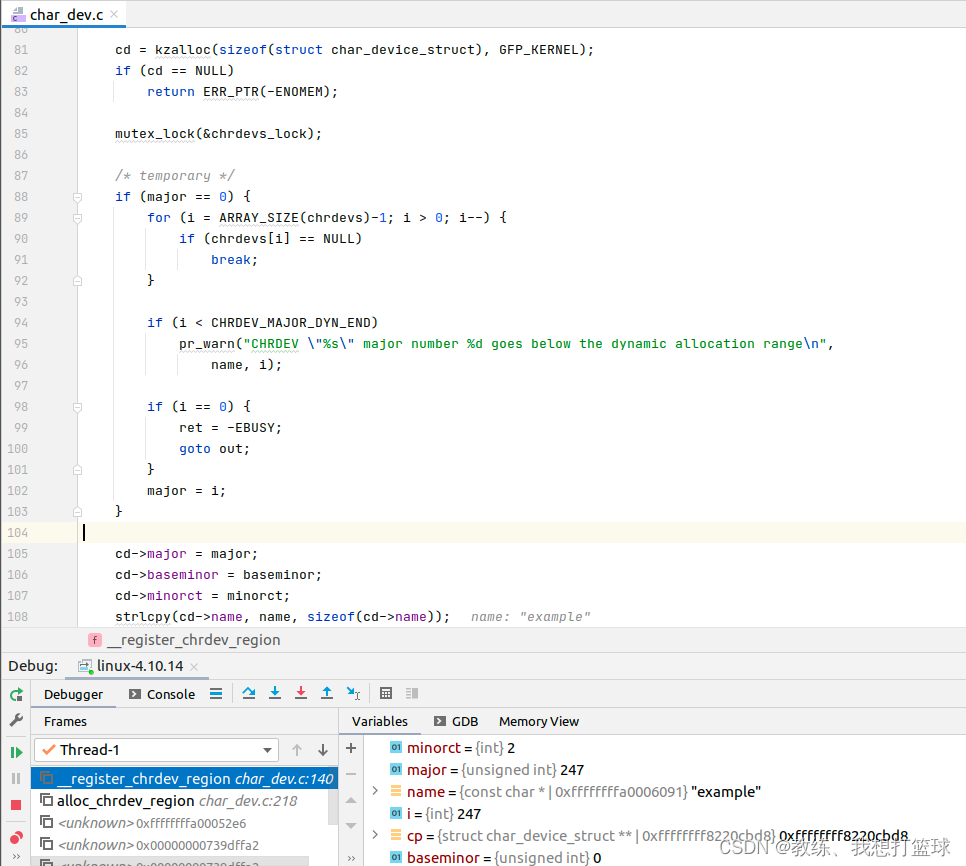

   alloc_ret = alloc_chrdev_region(&dev, 0, example_devs, EXAMPLE_NAME);
   if(alloc_ret) {
      printk(KERN_DEBUG "EXAMPLE: Failed to allocate a character device\n");
      return -1;
   }
   /* Initial the character device ddriver. */
   example_major = MAJOR(dev);

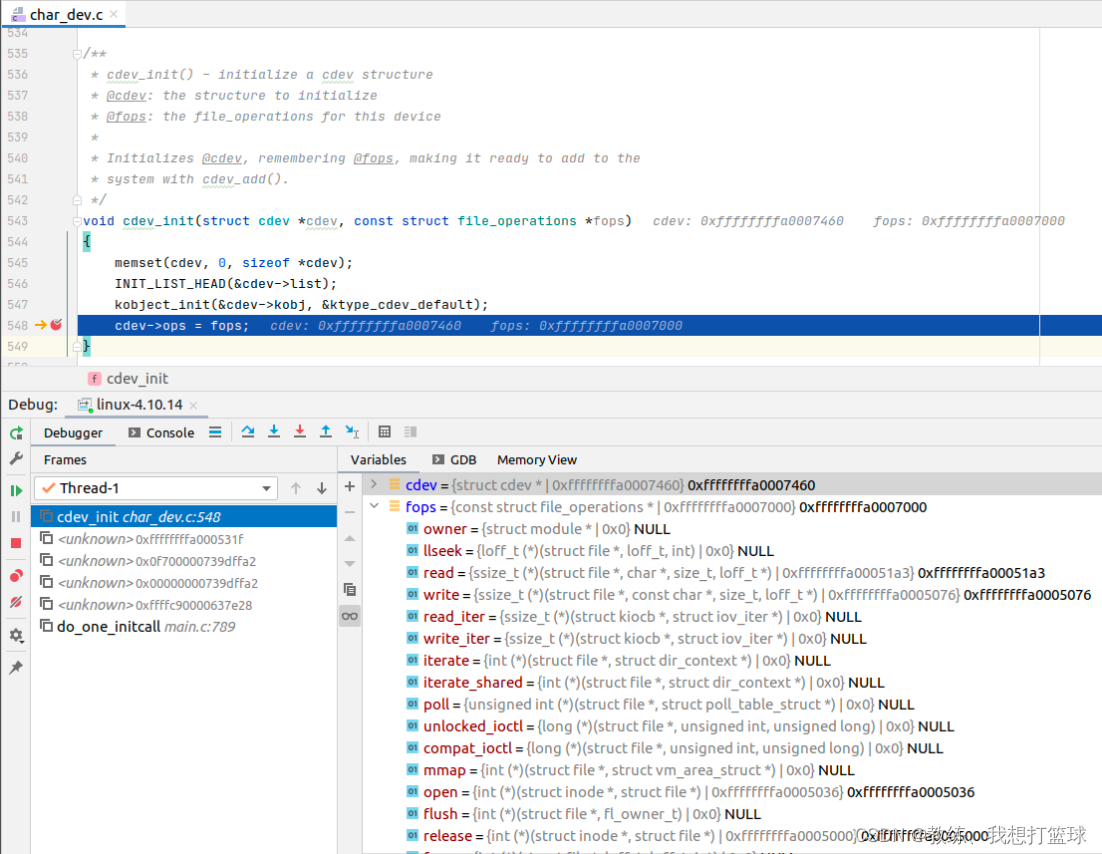

   cdev_init(&example_cdev, &example_fops);
   example_cdev.owner = THIS_MODULE;
   /* Add the character device driver into system. */
   dev = MKDEV(example_major, 0);

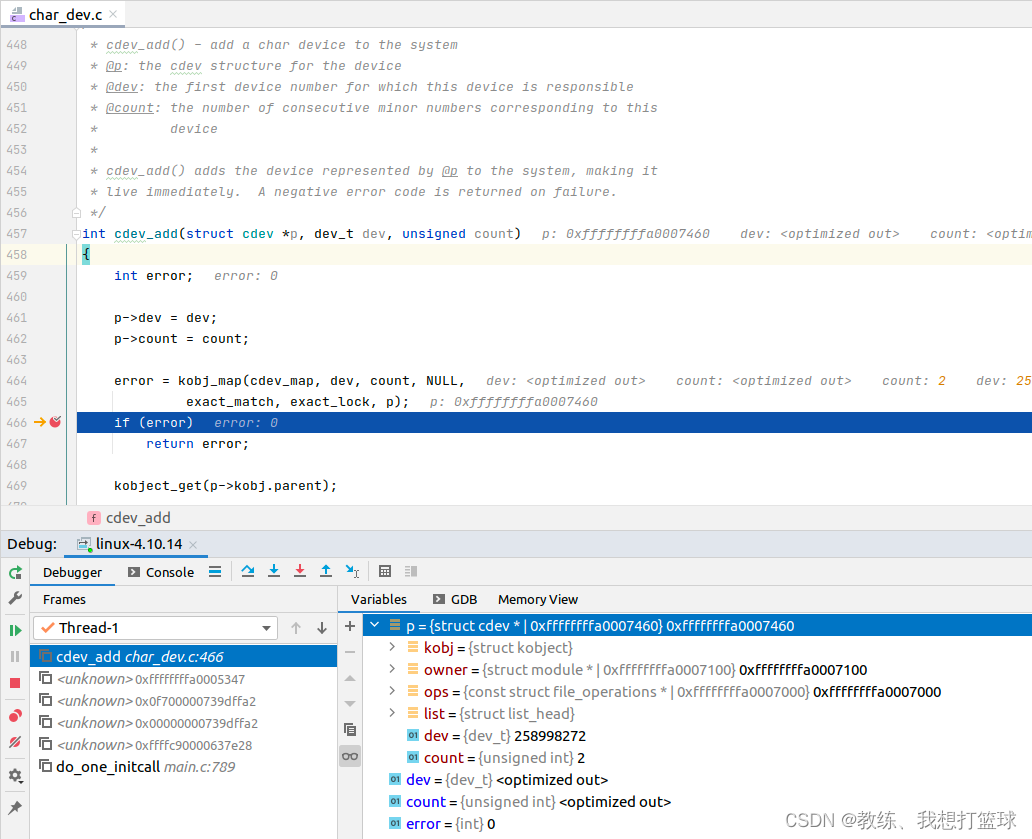

   cdev_err = cdev_add(&example_cdev, dev, example_devs);
   if(cdev_err) {
      printk(KERN_DEBUG "EXAMPLE: Failed to register a character device\n");
      /* Release the allocated character device. */
      if(alloc_ret == 0) {
         unregister_chrdev_region(dev, example_devs);
      }
      return -1;
   }
   printk(KERN_DEBUG "EXAMPLE: %s driver(major %d) installed.\n", EXAMPLE_NAME, example_major);

   /* Create device class. */

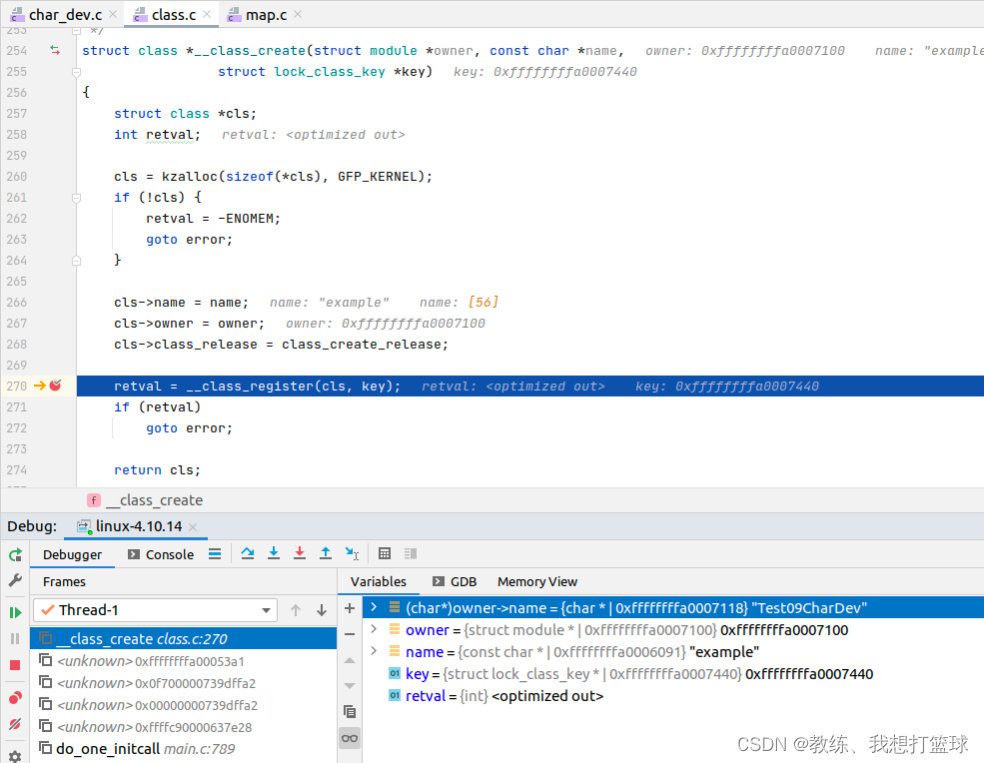

   example_sys_class = class_create(THIS_MODULE, EXAMPLE_NAME);
   if(IS_ERR(example_sys_class)) {
      printk(KERN_DEBUG "EXAMPLE: Failed to create a class of device.\n");
      /* Release the added character device. */
      if(cdev_err == 0)
         cdev_del(&example_cdev);
      /* Release the allocated character device. */
      if(alloc_ret == 0)
         unregister_chrdev_region(dev, example_devs);
      return -1;
   }
   printk(KERN_DEBUG "EXAMPLE: %s class created.\n", EXAMPLE_NAME);

   /* Create device node. */

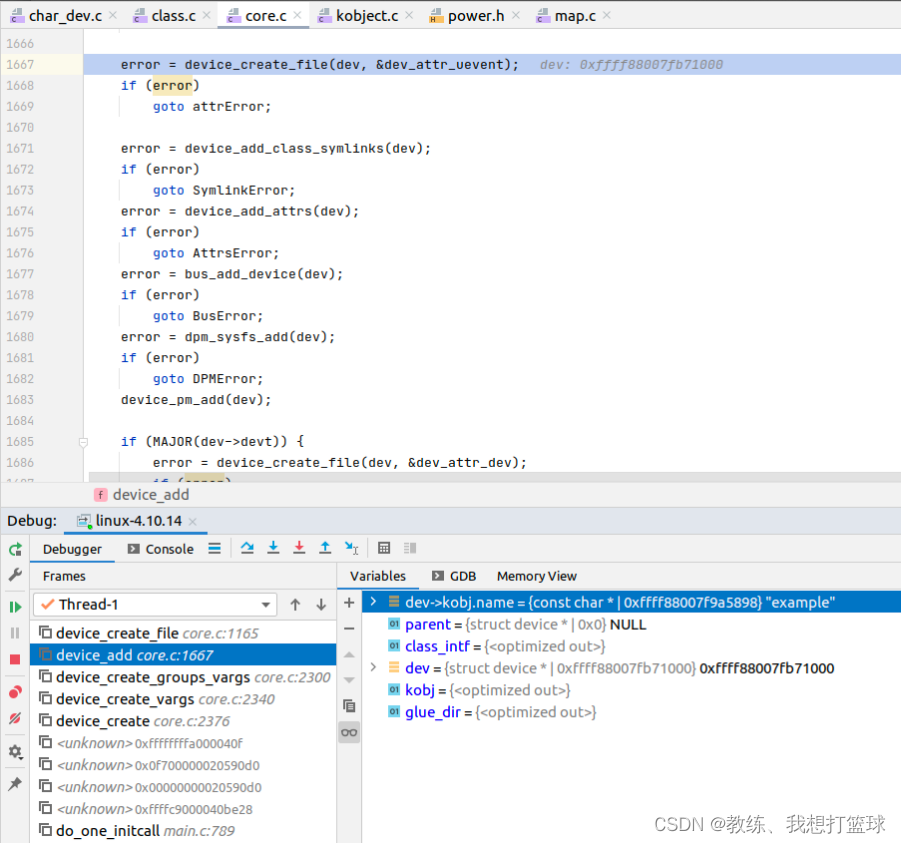

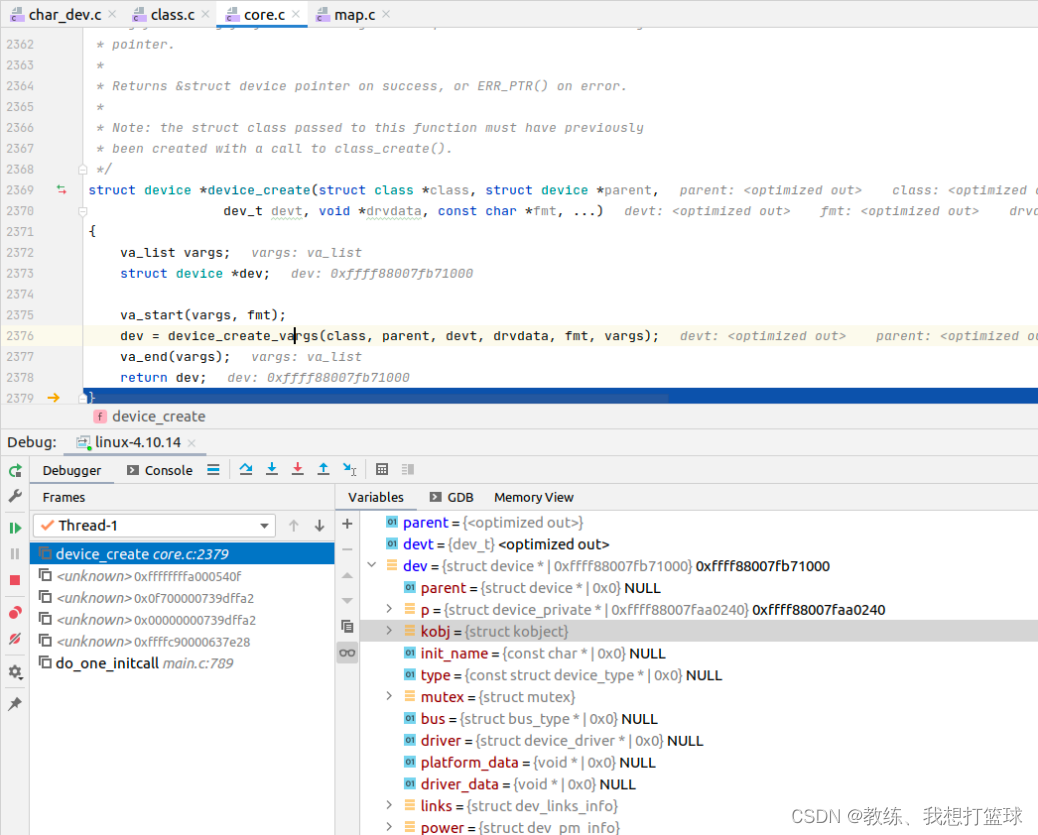

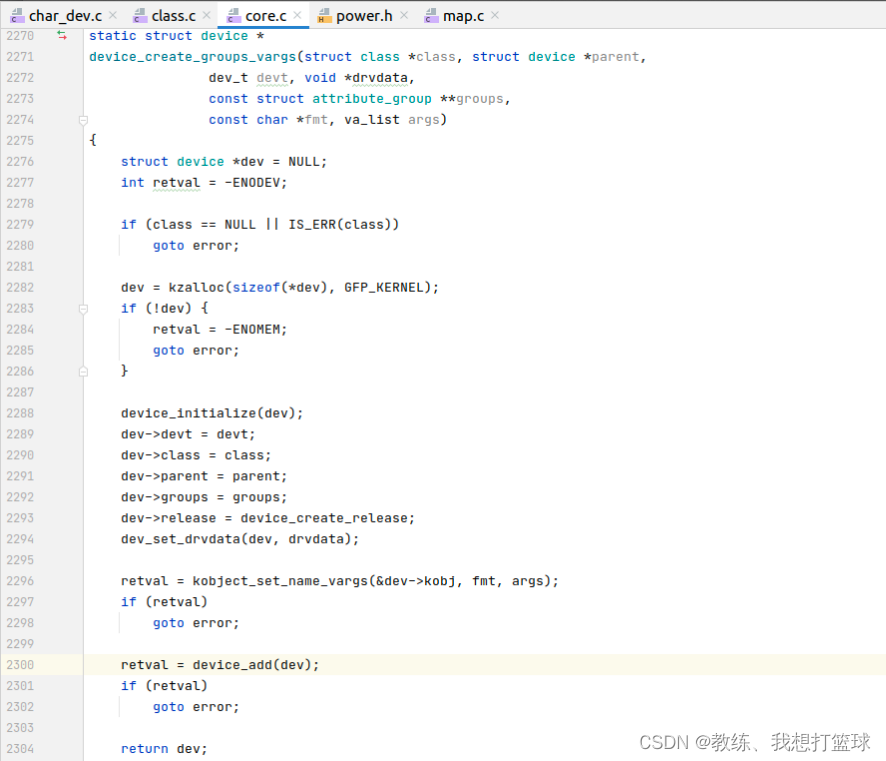

   device_create(example_sys_class, NULL, dev, NULL, EXAMPLE_NAME);
   printk(KERN_DEBUG "EXAMPLE: %s device node created.\n", EXAMPLE_NAME);

   return 0;
}

static void example_exit(void) {
   dev_t dev = MKDEV(example_major, 0);

   printk(KERN_DEBUG "EXAMPLE: exit\n");
   /* Destory device nodes. */
   device_destroy(example_sys_class, dev);
   /* Delete device class. */
   class_destroy(example_sys_class);
   /* Delete the character device driver from system. */
   cdev_del(&example_cdev);
   /* Unregister the allocated character device. */
   unregister_chrdev_region(dev, example_devs);
   printk(KERN_DEBUG "EXAMPLE: %s driver removed.\n", EXAMPLE_NAME);
}

module_init(example_init);
module_exit(example_exit);
