Tomcat线程池深度优化指南：高并发场景下的maxConnections计算与监控体系

一、maxConnections黄金计算公式深度解析

1.1 核心公式推导

1.2 参数详解与取值指南

1.3 不同业务场景计算案例

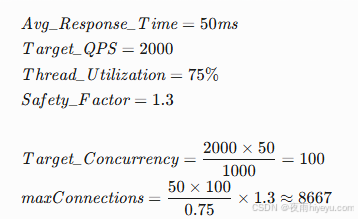

案例1：电商下单接口（CPU密集型）

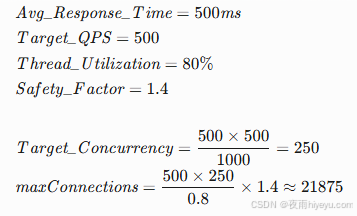

案例2：文件上传服务（I/O密集型）

1.4 操作系统级优化

# Linux内核参数优化（/etc/sysctl.conf）
net.core.somaxconn=65535
net.ipv4.tcp_max_syn_backlog=65535
net.ipv4.tcp_syncookies=1
net.ipv4.tcp_tw_reuse=1
net.ipv4.tcp_fin_timeout=30
fs.file-max=1000000

# 用户级限制（/etc/security/limits.conf）
* soft nofile 1000000
* hard nofile 1000000
tomcat soft nproc 65535
tomcat hard nproc 65535

二、线程池多维度监控体系

2.1 Prometheus+Grafana监控看板

数据采集配置

# jmx_exporter.yml
lowercaseOutputName: true
rules:
  - pattern: 'Catalina<name=(\w+), type=ThreadPool><>(\w+):'
    name: tomcat_threadpool_$2
    labels:
      pool: "$1"
  - pattern: 'Catalina<name=(\w+), type=GlobalRequestProcessor><>(\w+):'
    name: tomcat_connector_$2
    labels:
      protocol: "$1"

Grafana看板核心指标

告警规则配置

# prometheus/rules/tomcat.rules.yml
groups:
- name: tomcat-alert
  rules:
  - alert: ThreadPoolExhausted
    expr: tomcat_threadpool_currentThreadCountBusy / tomcat_threadpool_maxThreads > 0.9
    for: 5m
    labels:
      severity: critical
    annotations:
      summary: "线程池过载 ({{ $labels.instance }})"
      description: "线程使用率超过90%"

  - alert: ConnectionQueueFull
    expr: tomcat_threadpool_backlog / tomcat_threadpool_maxThreads > 0.8
    for: 3m
    labels:
      severity: warning
    annotations:
      summary: "连接队列积压 ({{ $labels.instance }})"
      description: "等待队列超过线程数80%"

2.2 线程级深度监控

线程状态分析脚本

#!/bin/bash
# thread_analyzer.sh

PID=$(ps aux | grep tomcat | grep -v grep | awk '{print $2}')
jstack $PID > thread_dump.txt

# 分析线程状态
WAITING=$(grep -c "WAITING" thread_dump.txt)
BLOCKED=$(grep -c "BLOCKED" thread_dump.txt)
RUNNABLE=$(grep -c "RUNNABLE" thread_dump.txt)

echo "线程状态统计:"
echo "  RUNNABLE: $RUNNABLE"
echo "  WAITING : $WAITING"
echo "  BLOCKED : $BLOCKED"

# 检测死锁
grep -A 1 "deadlock" thread_dump.txt | grep -B 1 "java.lang.Thread.State"

线程热点检测

// 注册MBean监控
public class ThreadMonitor implements ThreadMonitorMBean {
    public String getHotThreads(int topN) {
        ThreadMXBean threadBean = ManagementFactory.getThreadMXBean();
        long[] ids = threadBean.getAllThreadIds();

        // 获取线程CPU时间
        Map<Long, Long> times = new HashMap<>();
        for(long id : ids) {
            long cpuTime = threadBean.getThreadCpuTime(id);
            if(cpuTime > 0) times.put(id, cpuTime);
        }

        // 排序取TopN
        return times.entrySet().stream()
            .sorted(Map.Entry.comparingByValue(Comparator.reverseOrder()))
            .limit(topN)
            .map(e -> "ThreadID: " + e.getKey() + " CPU: " + e.getValue()/1000000 + "ms")
            .collect(Collectors.joining("\n"));
    }
}

三、动态调优策略

3.1 基于流量模式的弹性配置

<!-- 使用环境变量动态配置 -->
<Connector
    executor="tomcatThreadPool"
    maxConnections="${env.CONN_MAX:-10000}"
    acceptCount="${env.QUEUE_SIZE:-500}"
    maxThreads="${env.MAX_THREADS:-800}"
/>

弹性扩缩脚本

#!/bin/bash
# adjust_pool.sh

# 获取当前QPS
QPS=$(curl -s http://localhost:8080/metrics | grep 'tomcat_global_request_processor_request_count' | cut -d' ' -f2)

# 计算新线程数
MAX_THREADS=$(( ($QPS * 50 / 1000) + 100 ))

# 更新配置
sed -i "s/<maxThreads>[0-9]*</<maxThreads>$MAX_THREADS</" $CATALINA_HOME/conf/server.xml

# 优雅重启
$CATALINA_HOME/bin/shutdown.sh && $CATALINA_HOME/bin/startup.sh

3.2 连接泄漏检测

public class LeakDetectionFilter implements Filter {
    private static final ThreadLocal<Long> startTime = new ThreadLocal<>();

    @Override
    public void doFilter(ServletRequest request, ServletResponse response, FilterChain chain) {
        startTime.set(System.currentTimeMillis());
        try {
            chain.doFilter(request, response);
        } finally {
            long duration = System.currentTimeMillis() - startTime.get();
            if(duration > 30000) { // 30秒超时
                log.warn("潜在连接泄漏: {}ms, URI={}", duration, ((HttpServletRequest)request).getRequestURI());
            }
            startTime.remove();
        }
    }
}

四、高并发场景优化实战

4.1 百万连接架构设计

4.2 配置模板

<Connector
    protocol="org.apache.coyote.http11.Http11Nio2Protocol"
    port="8080"
    maxConnections="50000"
    acceptorThreadCount="2"
    maxThreads="1000"
    minSpareThreads="50"
    connectionTimeout="30000"
    keepAliveTimeout="30000"
    maxKeepAliveRequests="100"
    acceptCount="5000"
    processorCache="5000"
    socket.rxBufSize="65536"
    socket.txBufSize="65536"
    socket.directBuffer="true"
    socket.appReadBufSize="65536"
    socket.appWriteBufSize="65536"
    socket.bufferPool="50000"
    socket.processorCache="5000"
    useSendfile="false" >
    <UpgradeProtocol className="org.apache.coyote.http2.Http2Protocol" />
</Connector>

4.3 压力测试模型

# JMeter分布式压测命令
jmeter -n -t load_test.jmx -R 192.168.1.101,192.168.1.102 -l result.jtl

# 梯度增压参数
ThreadGroup.scheduler=true
ThreadGroup.duration=3600
ThreadGroup.delay=1000
ThreadGroup.ramp_time=300

五、故障应急手册

5.1 连接拒绝故障处理流程

5.2 性能劣化快速诊断

# 一键诊断脚本
#!/bin/bash
# tomcat_diag.sh

echo "========== 系统状态 =========="
top -b -n 1 | head -20
echo ""
echo "========== 网络连接 =========="
netstat -ant | awk '{print $6}' | sort | uniq -c
echo ""
echo "========== 线程池状态 =========="
curl -s http://localhost:8080/manager/status?XML=true | xmllint --format -
echo ""
echo "========== 内存状态 =========="
jstat -gc $(pgrep java) 1000 5

六、云原生环境适配

6.1 Kubernetes部署优化

# tomcat-deployment.yaml
apiVersion: apps/v1
kind: Deployment
spec:
  template:
    spec:
      containers:
      - name: tomcat
        image: tomcat:9.0
        resources:
          limits:
            cpu: "4"
            memory: 8Gi
          requests:
            cpu: "2"
            memory: 4Gi
        env:
        - name: MAX_THREADS
          value: "800"
        - name: MAX_CONNECTIONS
          value: "10000"
        ports:
        - containerPort: 8080
        livenessProbe:
          httpGet:
            path: /manager/text/serverinfo
            port: 8080
          initialDelaySeconds: 120
          periodSeconds: 10
        readinessProbe:
          httpGet:
            path: /manager/text/threaddump
            port: 8080
          initialDelaySeconds: 30
          periodSeconds: 5

6.2 自动弹性扩缩容

# hpa.yaml
apiVersion: autoscaling/v2
kind: HorizontalPodAutoscaler
metadata:
  name: tomcat-hpa
spec:
  scaleTargetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: tomcat
  minReplicas: 3
  maxReplicas: 20
  metrics:
  - type: Pods
    pods:
      metric:
        name: tomcat_threadpool_utilization
      target:
        type: AverageValue
        averageValue: 70

七、最佳实践总结

7.1 参数调优黄金法则

1. 线程数设置：

maxThreads = \frac{CPU\_Cores \times Target\_CPU\_Utilization \times (1 + Wait\_Ratio)}{Task\_Time}

- Wait_Ratio = I/O等待时间 / 计算时间
- Target_CPU_Utilization ≈ 0.8

2. 连接数公式：

maxConnections = \frac{maxThreads}{1 - Target\_Response\_Time\_Percentile}

- 目标响应时间百分位：P99建议0.99，P95建议0.95

7.2 监控指标健康阈值

7.3 版本兼容性矩阵

通过本指南的系统化配置，Tomcat线程池可稳定支撑数万并发连接，建议结合业务场景定期进行压力测试验证。
