Pygame模块化实战：火星救援游戏开发指南

Pygame模块化实战：火星救援游戏开发指南

用Python打造太空探险游戏，掌握模块化开发核心技巧

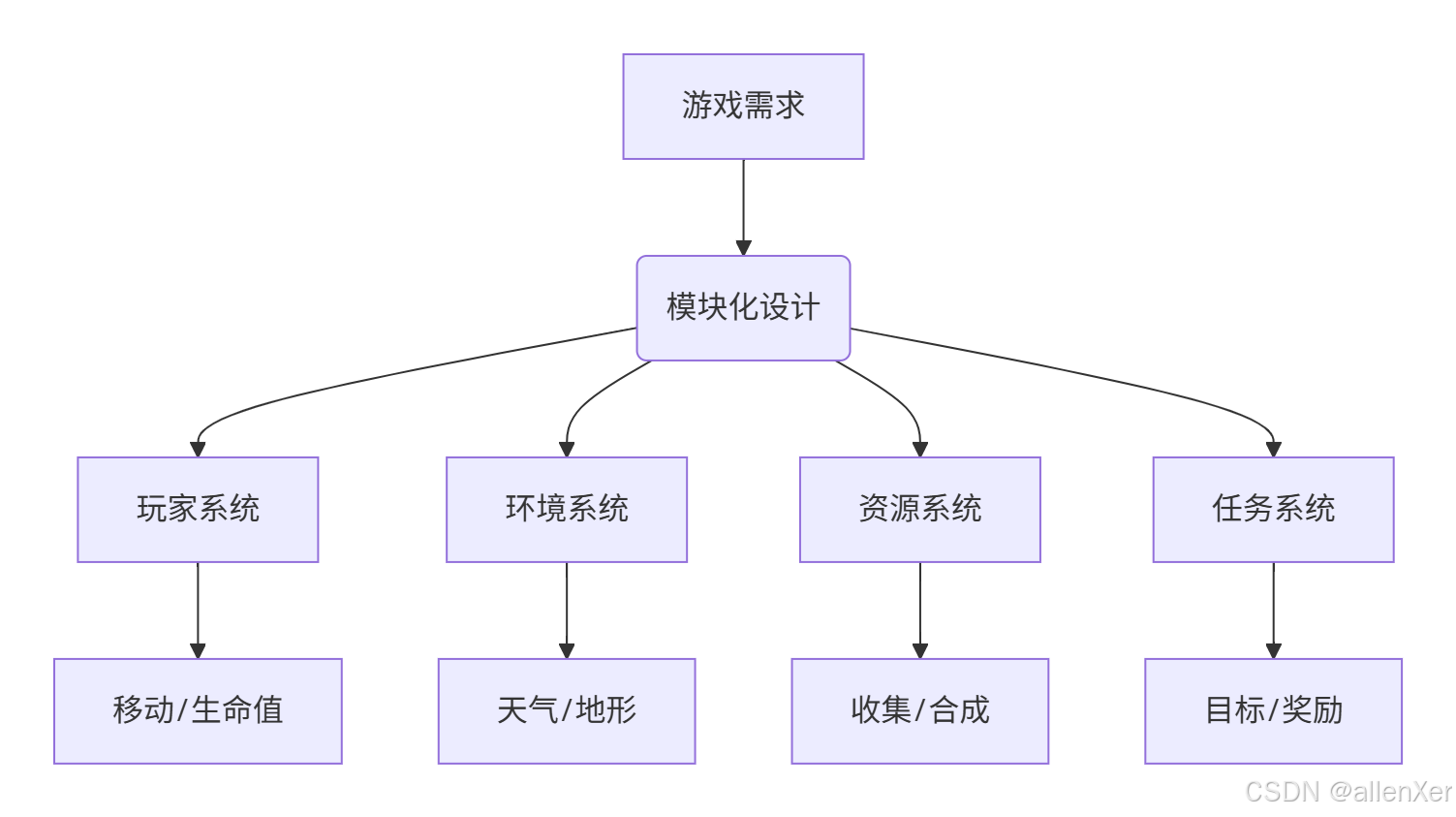

一、火星救援：模块化开发的完美场景

​​想象这样的场景​​：
你是一名宇航员，被困在火星表面，需要收集资源、修复飞船、躲避沙尘暴，最终逃离这颗红色星球。这正是我们将要开发的游戏！

二、模块化设计：游戏开发的架构艺术

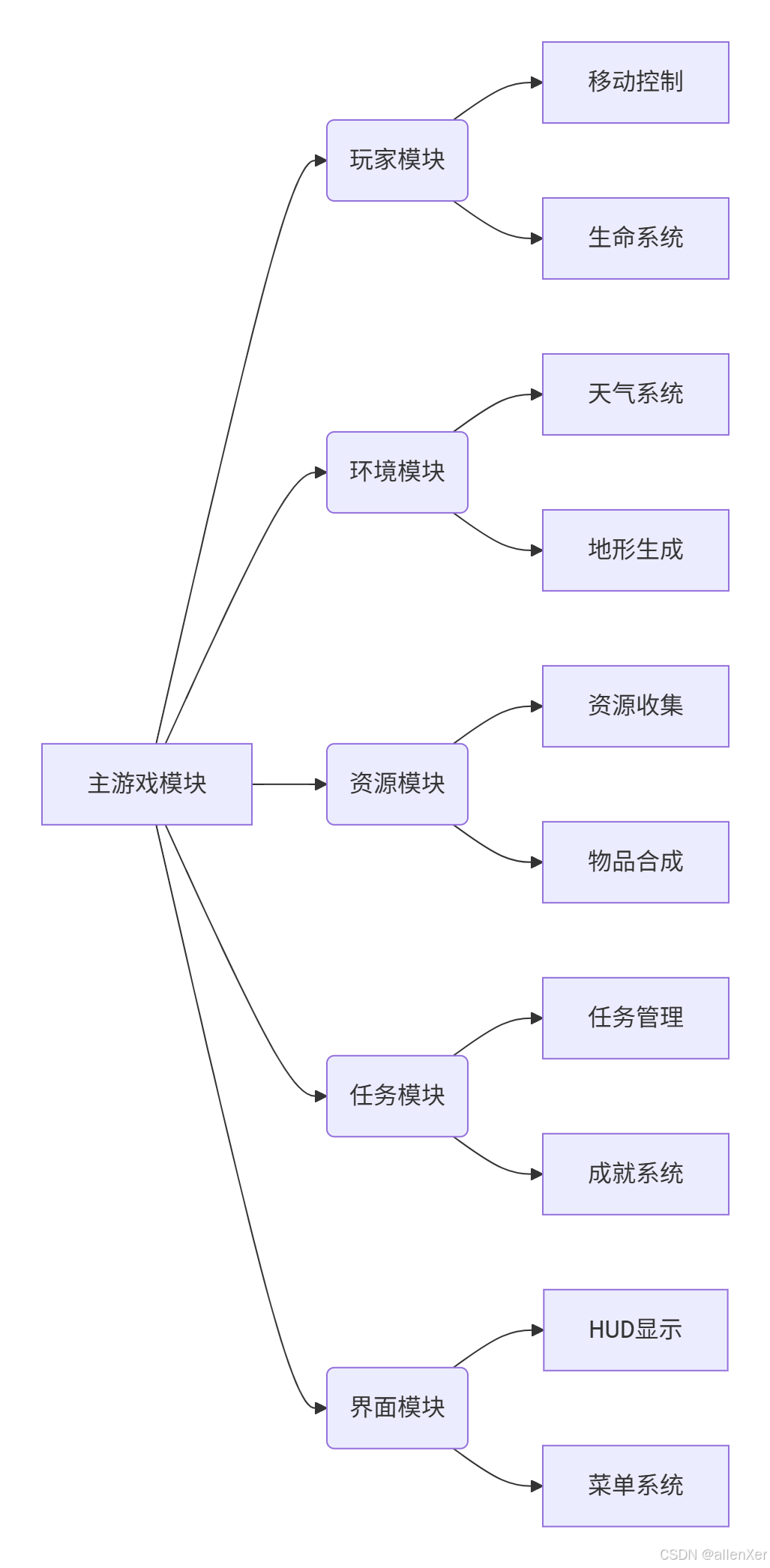

1. 模块化架构图

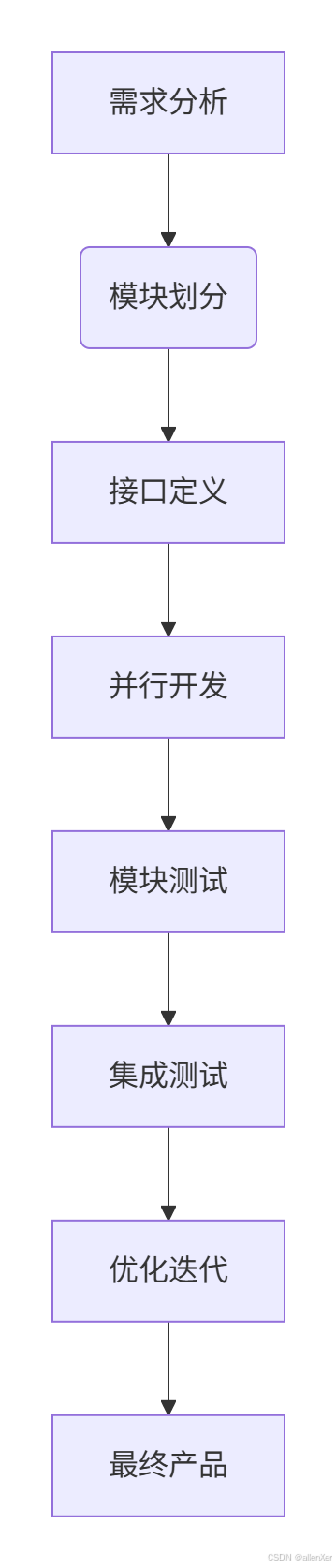

2. 模块化开发优势

1. ​​并行开发​​：团队可同时开发不同模块
2. ​​易于维护​​：修复问题只需修改单个模块
3. ​​代码复用​​：模块可在不同项目中重用
4. ​​可扩展性​​：轻松添加新功能模块

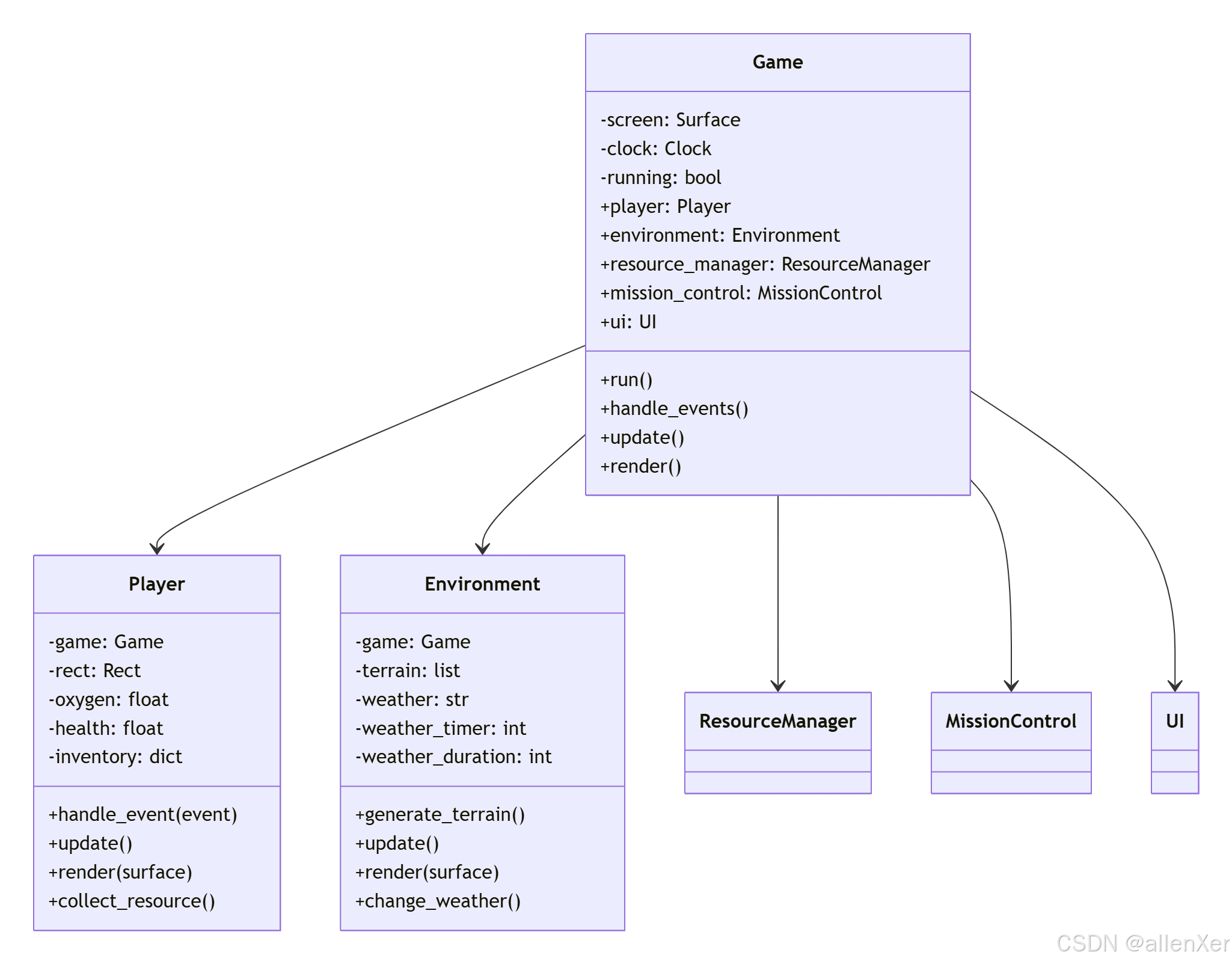

三、核心模块实现：火星救援游戏引擎

1. 游戏初始化模块

import pygame
import sys
import random
import math

class Game:
    """游戏主控制器"""
    def __init__(self, width=800, height=600):
        pygame.init()
        self.screen = pygame.display.set_mode((width, height))
        pygame.display.set_caption("火星救援")
        self.clock = pygame.time.Clock()
        self.running = True
        self.game_state = "menu"  # menu, playing, paused, game_over

        # 模块初始化
        self.player = Player(self)
        self.environment = Environment(self)
        self.resource_manager = ResourceManager(self)
        self.mission_control = MissionControl(self)
        self.ui = UI(self)

    def run(self):
        """游戏主循环"""
        while self.running:
            self.handle_events()
            self.update()
            self.render()
            self.clock.tick(60)

        pygame.quit()
        sys.exit()

    def handle_events(self):
        """处理事件"""
        for event in pygame.event.get():
            if event.type == pygame.QUIT:
                self.running = False
            # 分发事件到各模块
            self.player.handle_event(event)
            self.ui.handle_event(event)

    def update(self):
        """更新游戏状态"""
        if self.game_state == "playing":
            self.player.update()
            self.environment.update()
            self.resource_manager.update()
            self.mission_control.update()

    def render(self):
        """渲染游戏画面"""
        self.screen.fill((0, 0, 0))  # 黑色背景

        # 渲染各模块
        self.environment.render(self.screen)
        self.player.render(self.screen)
        self.resource_manager.render(self.screen)
        self.ui.render(self.screen)

        pygame.display.flip()

# 启动游戏
if __name__ == "__main__":
    game = Game()
    game.run()

2. 玩家模块：火星宇航员

class Player:
    """玩家角色模块"""
    def __init__(self, game):
        self.game = game
        self.image = pygame.Surface((30, 50))
        self.image.fill((255, 0, 0))  # 红色宇航服
        self.rect = self.image.get_rect(center=(400, 300))
        self.speed = 5
        self.oxygen = 100  # 氧气值
        self.health = 100  # 生命值
        self.inventory = {}  # 背包

    def handle_event(self, event):
        """处理玩家输入"""
        if event.type == pygame.KEYDOWN:
            if event.key == pygame.K_SPACE:
                self.collect_resource()

    def update(self):
        """更新玩家状态"""
        # 移动控制
        keys = pygame.key.get_pressed()
        if keys[pygame.K_LEFT]:
            self.rect.x -= self.speed
        if keys[pygame.K_RIGHT]:
            self.rect.x += self.speed
        if keys[pygame.K_UP]:
            self.rect.y -= self.speed
        if keys[pygame.K_DOWN]:
            self.rect.y += self.speed

        # 边界检查
        self.rect.clamp_ip(self.game.screen.get_rect())

        # 氧气消耗
        self.oxygen -= 0.05
        if self.oxygen <= 0:
            self.health -= 1
            self.oxygen = 0

        # 生命值检查
        if self.health <= 0:
            self.game.game_state = "game_over"

    def collect_resource(self):
        """收集资源"""
        for resource in self.game.resource_manager.resources:
            if self.rect.colliderect(resource.rect):
                if resource.type in self.inventory:
                    self.inventory[resource.type] += 1
                else:
                    self.inventory[resource.type] = 1
                self.game.resource_manager.resources.remove(resource)
                break

    def render(self, surface):
        """渲染玩家"""
        surface.blit(self.image, self.rect)

        # 显示氧气和生命值
        pygame.draw.rect(surface, (0, 100, 200), (10, 10, self.oxygen, 20))
        pygame.draw.rect(surface, (200, 0, 0), (10, 40, self.health, 20))

3. 环境模块：火星地表

class Environment:
    """火星环境模块"""
    def __init__(self, game):
        self.game = game
        self.terrain = self.generate_terrain()
        self.weather = "clear"  # clear, dust_storm, solar_flare
        self.weather_timer = 0
        self.weather_duration = 0

    def generate_terrain(self):
        """生成火星地形"""
        terrain = []
        # 创建一些随机岩石
        for _ in range(20):
            x = random.randint(0, self.game.screen.get_width())
            y = random.randint(0, self.game.screen.get_height())
            size = random.randint(20, 50)
            terrain.append({"type": "rock", "pos": (x, y), "size": size})
        return terrain

    def update(self):
        """更新环境状态"""
        # 天气变化
        self.weather_timer += 1
        if self.weather_timer > self.weather_duration:
            self.change_weather()

        # 天气影响
        if self.weather == "dust_storm":
            self.game.player.oxygen -= 0.1  # 沙尘暴加速氧气消耗
        elif self.weather == "solar_flare":
            self.game.player.health -= 0.05  # 太阳耀斑伤害

    def change_weather(self):
        """随机改变天气"""
        weather_types = ["clear", "dust_storm", "solar_flare"]
        self.weather = random.choice(weather_types)
        self.weather_duration = random.randint(300, 900)  # 5-15秒
        self.weather_timer = 0

    def render(self, surface):
        """渲染环境"""
        # 绘制火星表面
        surface.fill((150, 75, 0))  # 火星红

        # 绘制地形
        for feature in self.terrain:
            if feature["type"] == "rock":
                pygame.draw.circle(
                    surface,
                    (100, 50, 0),
                    feature["pos"],
                    feature["size"]
                )

        # 天气效果
        if self.weather == "dust_storm":
            # 半透明黄色层模拟沙尘
            dust = pygame.Surface(self.game.screen.get_size())
            dust.fill((200, 180, 50))
            dust.set_alpha(100)
            surface.blit(dust, (0, 0))
        elif self.weather == "solar_flare":
            # 闪烁效果模拟太阳耀斑
            if pygame.time.get_ticks() % 500 < 250:
                flare = pygame.Surface(self.game.screen.get_size())
                flare.fill((255, 255, 200))
                flare.set_alpha(150)
                surface.blit(flare, (0, 0))

4. 资源模块：火星物资

class Resource:
    """资源类"""
    def __init__(self, game, resource_type, position):
        self.game = game
        self.type = resource_type
        self.position = position
        self.size = 20

        # 创建资源图像
        self.image = pygame.Surface((self.size, self.size))

        # 不同资源不同颜色
        colors = {
            "oxygen": (0, 100, 255),
            "water": (0, 0, 255),
            "metal": (150, 150, 150),
            "electronics": (255, 255, 0),
            "food": (0, 255, 0)
        }
        self.image.fill(colors.get(resource_type, (255, 0, 255)))

        self.rect = self.image.get_rect(center=position)

    def render(self, surface):
        """渲染资源"""
        surface.blit(self.image, self.rect)

class ResourceManager:
    """资源管理模块"""
    def __init__(self, game):
        self.game = game
        self.resources = []
        self.respawn_timer = 0
        self.generate_initial_resources()

    def generate_initial_resources(self):
        """生成初始资源"""
        resource_types = ["oxygen", "water", "metal", "electronics", "food"]
        for _ in range(15):
            resource_type = random.choice(resource_types)
            x = random.randint(50, self.game.screen.get_width() - 50)
            y = random.randint(50, self.game.screen.get_height() - 50)
            self.resources.append(Resource(self.game, resource_type, (x, y)))

    def update(self):
        """更新资源状态"""
        # 资源重生
        self.respawn_timer += 1
        if self.respawn_timer > 300:  # 每5秒重生一个资源
            self.respawn_resource()
            self.respawn_timer = 0

    def respawn_resource(self):
        """重生一个新资源"""
        if len(self.resources) < 20:  # 限制最大资源数量
            resource_types = ["oxygen", "water", "metal", "electronics", "food"]
            resource_type = random.choice(resource_types)
            x = random.randint(50, self.game.screen.get_width() - 50)
            y = random.randint(50, self.game.screen.get_height() - 50)
            self.resources.append(Resource(self.game, resource_type, (x, y)))

    def render(self, surface):
        """渲染所有资源"""
        for resource in self.resources:
            resource.render(surface)

5. 任务模块：逃离火星

class Mission:
    """任务类"""
    def __init__(self, title, description, objective, reward):
        self.title = title
        self.description = description
        self.objective = objective  # {"resource": amount} 或 {"action": count}
        self.reward = reward
        self.completed = False
        self.progress = 0

    def update_progress(self, game):
        """更新任务进度"""
        if not self.completed:
            # 检查资源收集任务
            if isinstance(self.objective, dict):
                for resource, amount in self.objective.items():
                    if resource in game.player.inventory:
                        self.progress = min(amount, game.player.inventory[resource])

            # 检查是否完成
            if self.progress >= sum(self.objective.values()):
                self.completed = True
                self.apply_reward(game)

    def apply_reward(self, game):
        """应用任务奖励"""
        if "oxygen" in self.reward:
            game.player.oxygen = min(100, game.player.oxygen + self.reward["oxygen"])
        if "health" in self.reward:
            game.player.health = min(100, game.player.health + self.reward["health"])

class MissionControl:
    """任务管理模块"""
    def __init__(self, game):
        self.game = game
        self.missions = [
            Mission(
                "寻找氧气",
                "收集3个氧气罐维持生命",
                {"oxygen": 3},
                {"oxygen": 20}
            ),
            Mission(
                "收集金属",
                "收集5个金属碎片修复飞船",
                {"metal": 5},
                {"health": 10}
            ),
            Mission(
                "修复电子系统",
                "找到3个电子元件修复通讯系统",
                {"electronics": 3},
                {"oxygen": 30, "health": 20}
            )
        ]
        self.current_mission_index = 0

    @property
    def current_mission(self):
        """获取当前任务"""
        if self.current_mission_index < len(self.missions):
            return self.missions[self.current_mission_index]
        return None

    def update(self):
        """更新任务状态"""
        if self.current_mission:
            self.current_mission.update_progress(self.game)

            # 检查任务完成
            if self.current_mission.completed:
                self.current_mission_index += 1

                # 所有任务完成，游戏胜利
                if self.current_mission_index >= len(self.missions):
                    self.game.game_state = "victory"

    def render(self, surface):
        """渲染任务信息"""
        if self.current_mission:
            font = pygame.font.SysFont(None, 24)

            # 任务标题
            title_text = font.render(f"任务: {self.current_mission.title}", True, (255, 255, 255))
            surface.blit(title_text, (10, 70))

            # 任务描述
            desc_text = font.render(self.current_mission.description, True, (200, 200, 200))
            surface.blit(desc_text, (10, 100))

            # 任务进度
            if isinstance(self.current_mission.objective, dict):
                progress_text = []
                for resource, amount in self.current_mission.objective.items():
                    progress = self.current_mission.progress
                    text = f"{resource}: {progress}/{amount}"
                    progress_text.append(text)

                progress_str = "  ".join(progress_text)
                progress_render = font.render(progress_str, True, (0, 255, 0))
                surface.blit(progress_render, (10, 130))

6. 界面模块：游戏HUD

class UI:
    """用户界面模块"""
    def __init__(self, game):
        self.game = game
        self.font = pygame.font.SysFont(None, 36)
        self.menu_items = ["开始游戏", "游戏设置", "退出游戏"]
        self.selected_item = 0

    def handle_event(self, event):
        """处理界面事件"""
        if event.type == pygame.KEYDOWN:
            if self.game.game_state == "menu":
                if event.key == pygame.K_UP:
                    self.selected_item = (self.selected_item - 1) % len(self.menu_items)
                elif event.key == pygame.K_DOWN:
                    self.selected_item = (self.selected_item + 1) % len(self.menu_items)
                elif event.key == pygame.K_RETURN:
                    self.handle_menu_selection()

    def handle_menu_selection(self):
        """处理菜单选择"""
        if self.menu_items[self.selected_item] == "开始游戏":
            self.game.game_state = "playing"
        elif self.menu_items[self.selected_item] == "退出游戏":
            self.game.running = False

    def render(self, surface):
        """渲染用户界面"""
        if self.game.game_state == "menu":
            self.render_menu(surface)
        elif self.game.game_state == "playing":
            self.render_hud(surface)
        elif self.game.game_state == "game_over":
            self.render_game_over(surface)
        elif self.game.game_state == "victory":
            self.render_victory(surface)

    def render_menu(self, surface):
        """渲染主菜单"""
        title_font = pygame.font.SysFont(None, 72)
        title = title_font.render("火星救援", True, (255, 0, 0))
        surface.blit(title, (self.game.screen.get_width()//2 - title.get_width()//2, 100))

        for i, item in enumerate(self.menu_items):
            color = (0, 255, 0) if i == self.selected_item else (255, 255, 255)
            text = self.font.render(item, True, color)
            surface.blit(text, (self.game.screen.get_width()//2 - text.get_width()//2, 250 + i*50))

    def render_hud(self, surface):
        """渲染游戏HUD"""
        # 氧气和生命值已在玩家模块渲染
        # 渲染任务信息
        self.game.mission_control.render(surface)

        # 渲染背包
        inventory_y = 160
        font = pygame.font.SysFont(None, 24)
        title = font.render("背包:", True, (255, 255, 255))
        surface.blit(title, (10, inventory_y))

        for i, (item, count) in enumerate(self.game.player.inventory.items()):
            text = font.render(f"{item}: {count}", True, (200, 200, 0))
            surface.blit(text, (20, inventory_y + 30 + i*25))

    def render_game_over(self, surface):
        """渲染游戏结束画面"""
        overlay = pygame.Surface(self.game.screen.get_size())
        overlay.fill((0, 0, 0))
        overlay.set_alpha(180)
        surface.blit(overlay, (0, 0))

        font = pygame.font.SysFont(None, 72)
        text = font.render("任务失败", True, (255, 0, 0))
        surface.blit(text, (self.game.screen.get_width()//2 - text.get_width()//2,
                           self.game.screen.get_height()//2 - text.get_height()//2))

        restart_font = pygame.font.SysFont(None, 36)
        restart = restart_font.render("按R键重新开始", True, (255, 255, 255))
        surface.blit(restart, (self.game.screen.get_width()//2 - restart.get_width()//2,
                              self.game.screen.get_height()//2 + 50))

    def render_victory(self, surface):
        """渲染胜利画面"""
        overlay = pygame.Surface(self.game.screen.get_size())
        overlay.fill((0, 50, 0))
        overlay.set_alpha(180)
        surface.blit(overlay, (0, 0))

        font = pygame.font.SysFont(None, 72)
        text = font.render("任务成功！", True, (0, 255, 0))
        surface.blit(text, (self.game.screen.get_width()//2 - text.get_width()//2,
                           self.game.screen.get_height()//2 - text.get_height()//2))

        subtitle_font = pygame.font.SysFont(None, 36)
        subtitle = subtitle_font.render("你成功逃离了火星！", True, (200, 255, 200))
        surface.blit(subtitle, (self.game.screen.get_width()//2 - subtitle.get_width()//2,
                              self.game.screen.get_height()//2 + 50))

四、模块化开发最佳实践

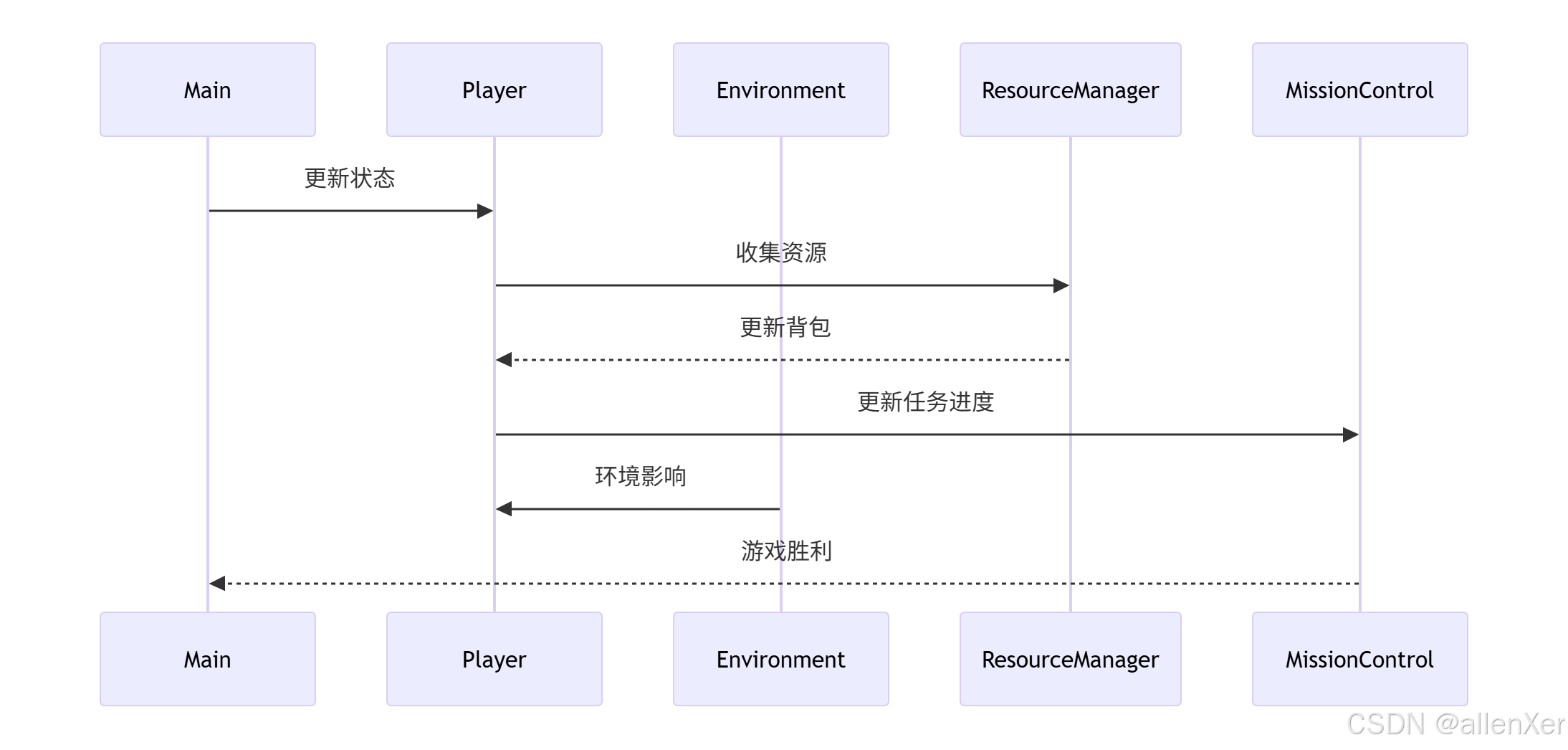

1. 模块通信模式

2. 模块化设计原则

1. ​​单一职责​​：每个模块只做一件事
2. ​​低耦合​​：模块间依赖最小化
3. ​​高内聚​​：模块内功能紧密相关
4. ​​接口清晰​​：定义明确的公共方法
5. ​​可替换性​​：模块可轻松替换实现

3. 常见错误与解决方案

​​错误：模块依赖混乱​​

# 反例：模块间直接访问内部属性
class Player:
    def update(self):
        # 错误：直接访问环境模块内部属性
        if self.game.environment.weather == "dust_storm":
            self.oxygen -= 0.1

​​正解：使用接口方法​​

# 正解：通过公共接口交互
class Environment:
    def get_weather_effect(self):
        """获取天气影响"""
        effects = {"oxygen": 0, "health": 0}
        if self.weather == "dust_storm":
            effects["oxygen"] = -0.1
        return effects

class Player:
    def update(self):
        # 通过公共接口获取影响
        effects = self.game.environment.get_weather_effect()
        self.oxygen += effects["oxygen"]

五、游戏优化：添加更多功能

1. 音效模块

class SoundManager:
    """音效管理模块"""
    def __init__(self, game):
        self.game = game
        self.sounds = {}

        # 加载音效
        self.load_sound("collect", "sounds/collect.wav")
        self.load_sound("storm", "sounds/dust_storm.wav")
        self.load_sound("victory", "sounds/victory.wav")

    def load_sound(self, name, path):
        """加载音效文件"""
        try:
            self.sounds[name] = pygame.mixer.Sound(path)
        except:
            print(f"无法加载音效: {path}")

    def play(self, name):
        """播放音效"""
        if name in self.sounds:
            self.sounds[name].play()

    def play_weather_sound(self):
        """播放天气音效"""
        if self.game.environment.weather == "dust_storm":
            self.play("storm")

2. 存档系统

import json
import os

class SaveSystem:
    """游戏存档模块"""
    SAVE_DIR = "saves"

    def __init__(self, game):
        self.game = game
        os.makedirs(self.SAVE_DIR, exist_ok=True)

    def save_game(self, slot=1):
        """保存游戏状态"""
        data = {
            "player": {
                "position": (self.game.player.rect.x, self.game.player.rect.y),
                "oxygen": self.game.player.oxygen,
                "health": self.game.player.health,
                "inventory": self.game.player.inventory
            },
            "environment": {
                "weather": self.game.environment.weather,
                "weather_timer": self.game.environment.weather_timer,
                "weather_duration": self.game.environment.weather_duration
            },
            "resources": [
                {"type": r.type, "position": r.position}
                for r in self.game.resource_manager.resources
            ],
            "missions": {
                "current_index": self.game.mission_control.current_mission_index,
                "missions": [
                    {
                        "title": m.title,
                        "progress": m.progress,
                        "completed": m.completed
                    }
                    for m in self.game.mission_control.missions
                ]
            }
        }

        with open(f"{self.SAVE_DIR}/save_{slot}.json", "w") as f:
            json.dump(data, f)

    def load_game(self, slot=1):
        """加载游戏状态"""
        try:
            with open(f"{self.SAVE_DIR}/save_{slot}.json", "r") as f:
                data = json.load(f)

            # 恢复玩家状态
            player = self.game.player
            player.rect.x, player.rect.y = data["player"]["position"]
            player.oxygen = data["player"]["oxygen"]
            player.health = data["player"]["health"]
            player.inventory = data["player"]["inventory"]

            # 恢复环境状态
            env = self.game.environment
            env.weather = data["environment"]["weather"]
            env.weather_timer = data["environment"]["weather_timer"]
            env.weather_duration = data["environment"]["weather_duration"]

            # 恢复资源
            self.game.resource_manager.resources = [
                Resource(self.game, r["type"], r["position"])
                for r in data["resources"]
            ]

            # 恢复任务
            mission_ctrl = self.game.mission_control
            mission_ctrl.current_mission_index = data["missions"]["current_index"]
            for i, m_data in enumerate(data["missions"]["missions"]):
                mission_ctrl.missions[i].progress = m_data["progress"]
                mission_ctrl.missions[i].completed = m_data["completed"]

            return True
        except:
            return False

3. 粒子系统

class Particle:
    """粒子类"""
    def __init__(self, position, velocity, color, size, lifetime):
        self.position = list(position)
        self.velocity = list(velocity)
        self.color = color
        self.size = size
        self.lifetime = lifetime
        self.age = 0

    def update(self):
        """更新粒子状态"""
        self.position[0] += self.velocity[0]
        self.position[1] += self.velocity[1]
        self.age += 1
        return self.age < self.lifetime

    def render(self, surface):
        """渲染粒子"""
        alpha = 255 * (1 - self.age / self.lifetime)
        particle_surf = pygame.Surface((self.size, self.size), pygame.SRCALPHA)
        pygame.draw.circle(particle_surf, (*self.color, alpha), (self.size//2, self.size//2), self.size//2)
        surface.blit(particle_surf, (self.position[0] - self.size//2, self.position[1] - self.size//2))

class ParticleSystem:
    """粒子系统模块"""
    def __init__(self, game):
        self.game = game
        self.particles = []

    def add_particles(self, position, count=10, color=(255, 255, 200), size_range=(2, 5), speed_range=(1, 3), lifetime=30):
        """添加粒子"""
        for _ in range(count):
            angle = random.uniform(0, math.pi * 2)
            speed = random.uniform(*speed_range)
            velocity = (math.cos(angle) * speed, math.sin(angle) * speed)
            size = random.randint(*size_range)
            self.particles.append(Particle(position, velocity, color, size, lifetime))

    def update(self):
        """更新所有粒子"""
        self.particles = [p for p in self.particles if p.update()]

    def render(self, surface):
        """渲染所有粒子"""
        for particle in self.particles:
            particle.render(surface)

六、模块化开发思维：从游戏到工程

1. 模块化设计模式

2. 模块化开发工作流

3. 模块化开发工具链

1. ​​版本控制​​：Git + GitHub
2. ​​依赖管理​​：pip + requirements.txt
3. ​​文档生成​​：Sphinx + reStructuredText
4. ​​测试框架​​：pytest + unittest
5. ​​持续集成​​：GitHub Actions

七、结语：成为模块化开发大师

通过本指南，你已经掌握了：

• 🧩 模块化设计原则
• 🚀 Pygame游戏开发
• 🪐 火星救援游戏实现
• 🔧 模块通信机制
• 🎮 游戏功能扩展技巧
• 📦 模块化工程思维

​​下一步行动​​：

1. 运行完整火星救援游戏
2. 添加更多模块（敌人系统、基地建设）
3. 优化游戏画面（使用精灵图替代简单图形）
4. 开发多人联机功能
5. 将模块化思维应用到其他项目

"模块化开发不是技术，而是艺术。它让复杂系统变得简单，让不可能成为可能。"
