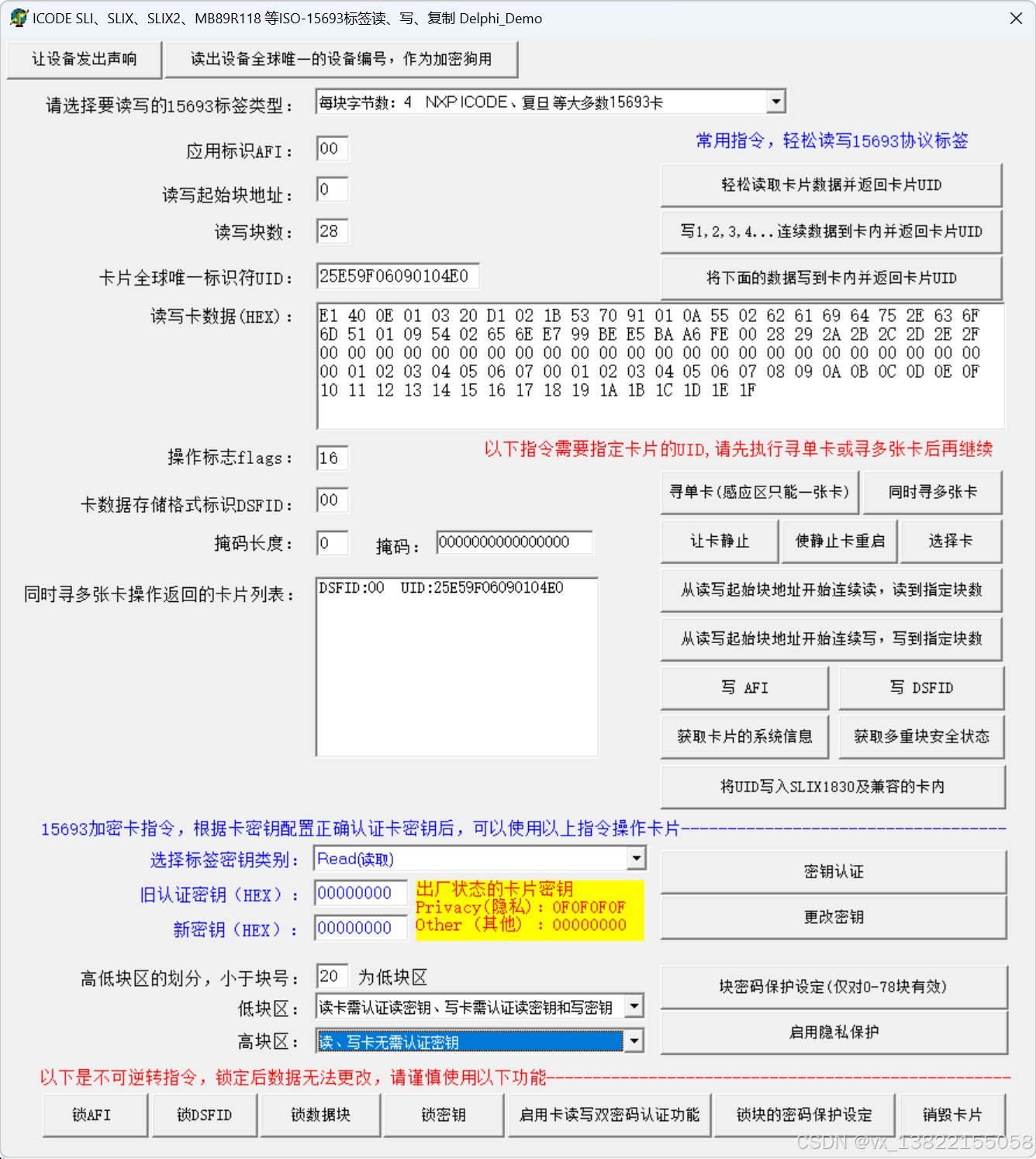

ICODE SLIX2有密钥保护的物流跟踪、图书馆管理ISO15693标签读写Delphi源码

本示例使用设备：https://item.taobao.com/item.htm?spm=a21dvs.23580594.0.0.6781645eXF3tm5&ft=t&id=959258149468

一、密钥认证

procedure TForm1.Button21Click(Sender: TObject);
var
    ctrlword:byte;
    passwordid:byte;  //密钥类型
    status:byte;      //存放返回值
    authkeybuf:array[0..3] of byte;
	  uidbuf:array[0..7] of byte;  //UID
    cardstr:string;
begin
   cardstr:=trim(edit4.Text);
   if checkuidstr(cardstr ,8,uidbuf)=false then    //检测数据是否合法并放入数组缓冲
   begin
       Application.MessageBox('需要操作的卡片UID错误，可先执行寻卡操作获取UID！', '提示', MB_OK+MB_ICONSTOP);
       edit4.SetFocus ;
       exit;
   end;

   if checkuidstr(Trim(Edit5.Text) ,4,authkeybuf)=false then    //检测数据是否合法并放入数组缓冲
   begin
       Application.MessageBox('卡片认证密钥输入错误，请输入8位16进制卡认证密钥！', '提示', MB_OK+MB_ICONSTOP);
       edit5.SetFocus ;
       exit;
   end;

   if ComboBox2.ItemIndex =4 then
       passwordid:=$10
   else if ComboBox2.ItemIndex =3 then
       passwordid:=$8
   else if ComboBox2.ItemIndex =2 then
       passwordid:=$4
   else if ComboBox2.ItemIndex =1 then
       passwordid:=$2
   else passwordid:=$1;

   ctrlword:=$4;
   status:=iso15693authkey(ctrlword,@uidbuf,passwordid,@authkeybuf);
   case status of
       0:
           begin
                pcdbeep(50);
                Application.MessageBox(PAnsiChar(AnsiString('UID '+cardstr+' 密钥认证成功！')), '提示',  MB_OK+MB_ICONINFORMATION);
           end;
       8:
           Application.MessageBox('异常代码：8，卡不在感应区或指令UID不匹配该卡!', '提示', MB_OK+MB_ICONSTOP);
       20:
           Application.MessageBox('异常代码：20，读写器不支持该指令!', '提示', MB_OK+MB_ICONSTOP);
       47:
           Application.MessageBox('异常代码：47，该卡不支持加密功能，或加密功能未启用，或密码错误(该卡将不能再响应任何指令，只能拿开卡再重放)!', '提示', MB_OK+MB_ICONSTOP);
       else  MessageDispInfo(status);
    end;
end;

 二、更改密钥

procedure TForm1.Button22Click(Sender: TObject);
var
    ctrlword:byte;
    passwordid:byte;  //密钥类型
    status:byte;      //存放返回值
    newkeybuf:array[0..3] of byte;
	  uidbuf:array[0..7] of byte;  //UID
    cardstr:string;
begin
   cardstr:=trim(edit4.Text);
   if checkuidstr(cardstr ,8,uidbuf)=false then    //检测数据是否合法并放入数组缓冲
   begin
       Application.MessageBox('需要操作的卡片UID错误，可先执行寻卡操作获取UID！', '提示', MB_OK+MB_ICONSTOP);
       edit4.SetFocus ;
       exit;
   end;

   if checkuidstr(Trim(Edit10.Text) ,4,newkeybuf)=false then    //检测数据是否合法并放入数组缓冲
   begin
       Application.MessageBox('卡片新密钥输入错误，请输入8位16进制新密钥！', '提示', MB_OK+MB_ICONSTOP);
       edit10.SetFocus ;
       exit;
   end;

   if ComboBox2.ItemIndex =4 then
       passwordid:=$10
   else if ComboBox2.ItemIndex =3 then
       passwordid:=$8
   else if ComboBox2.ItemIndex =2 then
       passwordid:=$4
   else if ComboBox2.ItemIndex =1 then
       passwordid:=$2
   else passwordid:=$1;

   ctrlword:=$4;
   status:=iso15693writekey(ctrlword,@uidbuf,passwordid,@newkeybuf);
   case status of
       0:
           begin
                pcdbeep(50);
                Application.MessageBox(PAnsiChar(AnsiString('UID '+cardstr+' 更改卡密钥成功！')), '提示',  MB_OK+MB_ICONINFORMATION);
           end;
       8:
           Application.MessageBox('异常代码：8，卡不在感应区或指令UID不匹配该卡!', '提示', MB_OK+MB_ICONSTOP);
       20:
           Application.MessageBox('异常代码：20，读写器不支持该指令!', '提示', MB_OK+MB_ICONSTOP);
       47:
           Application.MessageBox('异常代码：47，上一条指令必须是认证密码指令......!', '提示', MB_OK+MB_ICONSTOP);
       else  MessageDispInfo(status);
    end;
end;

三、设置密钥保护块及密钥认证方式

procedure TForm1.Button23Click(Sender: TObject);
var
    ctrlword:byte;
    blockpoint,extprotectstatus:byte;  //高低块分隔地址,配置值
    status:byte;                 //存放返回值
	  uidbuf:array[0..7] of byte;  //UID
    cardstr:string;
begin
   cardstr:=trim(edit4.Text);
   if checkuidstr(cardstr ,8,uidbuf)=false then    //检测数据是否合法并放入数组缓冲
   begin
       Application.MessageBox('需要操作的卡片UID错误，可先执行寻卡操作获取UID！', '提示', MB_OK+MB_ICONSTOP);
       edit4.SetFocus ;
       exit;
   end;

   if(not isrightint(edit11.Text)) then
   begin
       Application.MessageBox('分隔高低块的块地址输入错误！', '警告', MB_OK+MB_ICONSTOP);
       edit11.SetFocus();
       edit11.SelectAll();
       exit;
   end
   else blockpoint:=strtoint(edit11.Text);

   extprotectstatus:=ComboBox3.ItemIndex +ComboBox4.ItemIndex *16;

   ctrlword:=$4;
   status:=iso15693protectblock(ctrlword,@uidbuf,blockpoint,extprotectstatus);
   case status of
       0:
           begin
                pcdbeep(50);
                Application.MessageBox(PAnsiChar(AnsiString('UID '+cardstr+' 块密码保护设定成功！')), '提示',  MB_OK+MB_ICONINFORMATION);
           end;
       8:
           Application.MessageBox('异常代码：8，卡不在感应区或指令UID不匹配该卡!', '提示', MB_OK+MB_ICONSTOP);
       20:
           Application.MessageBox('异常代码：20，读写器不支持该指令!', '提示', MB_OK+MB_ICONSTOP);
       47:
           Application.MessageBox('异常代码：47，必须都认证读取密码和写入密码成功后再进行块密码保护设定!', '提示', MB_OK+MB_ICONSTOP);
       else  MessageDispInfo(status);
    end;
end;

四、开启隐私保护

procedure TForm1.Button24Click(Sender: TObject);
var
    ctrlword:byte;
    status:byte;      //存放返回值
    password:array[0..3] of byte;
	  uidbuf:array[0..7] of byte;  //UID
    cardstr:string;
begin

   cardstr:=trim(edit4.Text);
   if checkuidstr(cardstr ,8,uidbuf)=false then    //检测数据是否合法并放入数组缓冲
   begin
       Application.MessageBox('需要操作的卡片UID错误，可先执行寻卡操作获取UID！', '提示', MB_OK+MB_ICONSTOP);
       edit4.SetFocus ;
       exit;
   end;

   if checkuidstr(Trim(Edit5.Text) ,4,password)=false then    //检测数据是否合法并放入数组缓冲
   begin
       Application.MessageBox('卡片隐私密钥输入错误，请输入8位16进制卡认证隐私密钥！', '提示', MB_OK+MB_ICONSTOP);
       edit5.SetFocus ;
       exit;
   end;

   if Application.MessageBox('卡片启用隐私保护后将不再响应除认证隐私密钥的任何指令，确认您已记住此卡的UID 及 隐私密钥，否则此卡将报废！', '严重警告', MB_OKCANCEL+MB_ICONQUESTION) <>1 then exit;

   ctrlword:=$4;
   status:=iso15693privacyen(ctrlword,@uidbuf,@password);
   case status of
       0:
           begin
                pcdbeep(50);
                Application.MessageBox(PAnsiChar(AnsiString('UID '+cardstr+' 启用隐私保护成功，此卡不再响应除认证隐私密码的任何指令，该卡必须 验证隐私密码 才能恢复非隐私状态！')), '提示',  MB_OK+MB_ICONINFORMATION);
           end;
       8:
           Application.MessageBox('异常代码：8，卡不在感应区或指令UID不匹配该卡!', '提示', MB_OK+MB_ICONSTOP);
       20:
           Application.MessageBox('异常代码：20，读写器不支持该指令!', '提示', MB_OK+MB_ICONSTOP);
       47:
           Application.MessageBox('异常代码：47，该卡不支持加密功能，或加密功能未启用，或密码错误(该卡将不能再响应任何指令，只能拿开卡再重放)!', '提示', MB_OK+MB_ICONSTOP);
       else  MessageDispInfo(status);
    end;
end;

五、读取块内数据

procedure TForm1.Button16Click(Sender: TObject);
var
    i:byte;
    status:byte;//存放返回值
    flags:byte;//控制标志
    startblock:byte; //起始扇区
    blocknum:byte;   //读扇区数
    revlen:array[0..1] of byte; //长度
	  uidbuf:array[0..7] of byte;//UID
    mypiccdata:array[0..60] of byte;//每次读卡数据缓冲
    readbuf:array[0..8000] of byte;//全部卡数据缓冲
    j,p:integer;
    cardstr,carddatahex:string;

begin
   cardstr:=trim(edit4.Text);
   if checkuidstr(cardstr ,8,uidbuf)=false then    //检测数据是否合法并放入数组缓冲
   begin
       Application.MessageBox('需要操作的卡片UID错误，可先执行寻卡操作获取UID！', '提示', MB_OK+MB_ICONSTOP);
       edit4.SetFocus ;
       exit;
   end;

   edit9.Text :='22';
   flags := strtoint('$'+edit9.Text);//操作标志

   if(not isrightint(edit2.Text)) then
   begin
       Application.MessageBox('读写起始块地址输入错误！', '警告', MB_OK+MB_ICONSTOP);
       edit2.SetFocus();
       edit2.SelectAll();
       exit;
   end
   else startblock:=strtoint(edit2.Text);

   if(not isrightint(edit3.Text)) then
   begin
       Application.MessageBox('读写块数输入错误！', '警告', MB_OK+MB_ICONSTOP);
       edit3.SetFocus();
       edit3.SelectAll();
       exit;
   end
   else blocknum:=strtoint(edit3.Text );

   memo1.Text :='';

   j:=0;
   carddatahex:='';
   while j<blocknum do
   begin
        status := iso15693readblock(flags,startblock+j,1,@uidbuf,@revlen,@mypiccdata);   //读一个块数据
        if status=0 then     //读卡成功，获取数据，指针加1
        begin
            for i:=0 to revlen[0]-1 do
                carddatahex:=carddatahex+inttohex(mypiccdata[i],2)+' ';
            j:=j+1;
        end
        else                //读卡失败，指针跳到最后退出
            j:=blocknum;
   end;

   if status=0 then
   begin
       pcdbeep(50);
       memo1.Text:=carddatahex;

       if revlen[0]=8 then      //根据读一块返回的字节数预判是什么类型的卡
          ComboBox1.ItemIndex:=1
       else if revlen[0]=32 then
          ComboBox1.ItemIndex:=2
       else ComboBox1.ItemIndex:=0;
   end
   else if status=46 then
        Application.MessageBox('请先认证相应的密码!', '提示',  MB_OK+MB_ICONSTOP)
   else
        MessageDispInfo(status);
end;

六、写数据到块内

procedure TForm1.Button17Click(Sender: TObject);
var
    i,j,p:integer;
    status:byte;      //存放返回值
    flags:byte;       //控制标志
    startblock:byte;  //起始扇区
    blocknum:byte;    //读扇区数
    writelen:integer; //长度
	  uidbuf:array[0..7] of byte;//UID
    writebuf:array[0..1024] of byte;//卡数据缓冲
    mypiccdata:array[0..31] of byte;
    writestr:string;
    cardstr:string;
    eachblocksize:integer;

begin
   if ComboBox1.ItemIndex=0 then
       eachblocksize:=4
   else if ComboBox1.ItemIndex=1 then
       eachblocksize:=8
   else  eachblocksize:=32;

   cardstr:=trim(edit4.Text);
   if checkuidstr(cardstr ,8,uidbuf)=false then    //检测数据是否合法并放入数组缓冲
   begin
       Application.MessageBox('需要操作的卡片UID错误，可先执行寻卡操作获取UID！', '提示', MB_OK+MB_ICONSTOP);
       edit4.SetFocus ;
       exit;
   end;

   if(not isrightint(edit2.Text)) then
   begin
       Application.MessageBox('读写起始块地址输入错误！', '警告', MB_OK+MB_ICONSTOP);
       edit2.SetFocus();
       edit2.SelectAll();
       exit;
   end
   else startblock:=strtoint(edit2.Text);

   if(not isrightint(edit3.Text)) then
   begin
       Application.MessageBox('读写块数输入错误！', '警告', MB_OK+MB_ICONSTOP);
       edit3.SetFocus();
       edit3.SelectAll();
       exit;
   end
   else blocknum:=strtoint(edit3.Text );
   writelen:=blocknum*eachblocksize;

   if checkuidstr(trim(Memo1.Text) ,writelen,writebuf)=false then    //检测数据是否合法并放入数组缓冲
   begin
       Application.MessageBox('需要写入的数据输入错误，可先执行读卡操作！', '提示', MB_OK+MB_ICONSTOP);
       Memo1.SetFocus ;
       exit;
   end;

   edit9.Text :='22';
   flags := strtoint('$'+edit9.Text);//操作标志

   j:=0;
   while j<blocknum do
   begin
        for p:=0 to eachblocksize-1 do mypiccdata[p]:=writebuf[j*eachblocksize+p];

        status := iso15693writeblock(flags,startblock+j,1,@uidbuf,eachblocksize,@mypiccdata);
        if status=0 then     //写卡成功，指针加1
            j:=j+1
        else                 //写卡失败，指针跳到最后退出
            j:=blocknum;
   end;

   if status=0 then
   begin
        pcdbeep(50);
        Application.MessageBox(PAnsiChar(AnsiString(cardstr+' 号卡写卡成功！')), '提示',  MB_OK+MB_ICONINFORMATION);
   end
   else if status=46 then
         Application.MessageBox('请先认证相应的密码!', '提示',  MB_OK+MB_ICONSTOP)
   else  MessageDispInfo(status);
end;
