ospf综合实验

发布于:2025-08-05 ⋅ 阅读:(20) ⋅ 点赞:(0)

OSPF综合实验报告册

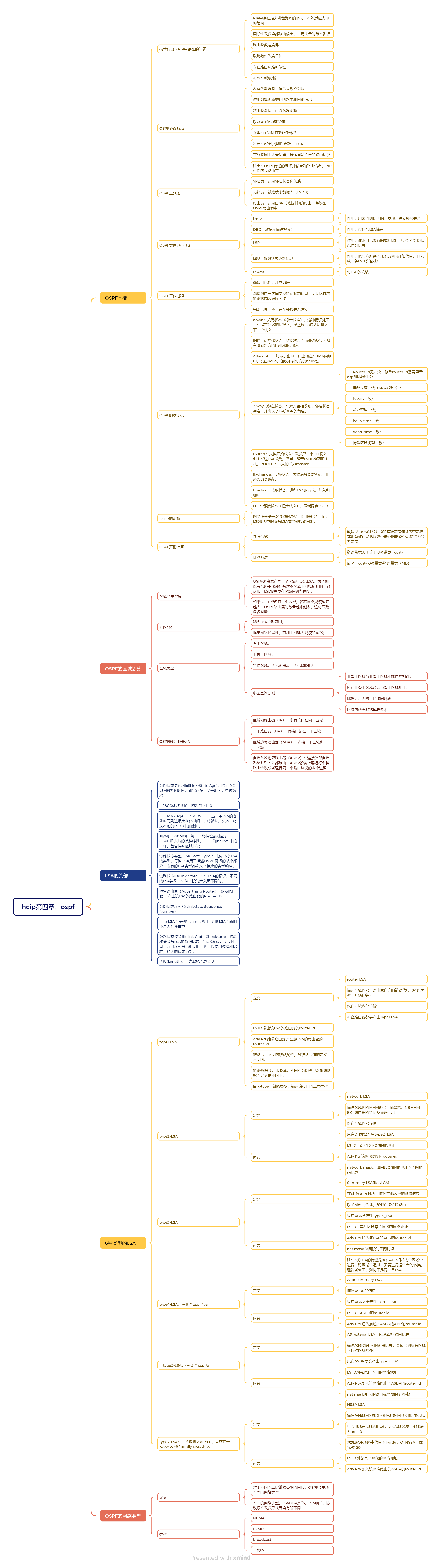

ospf思维导图:

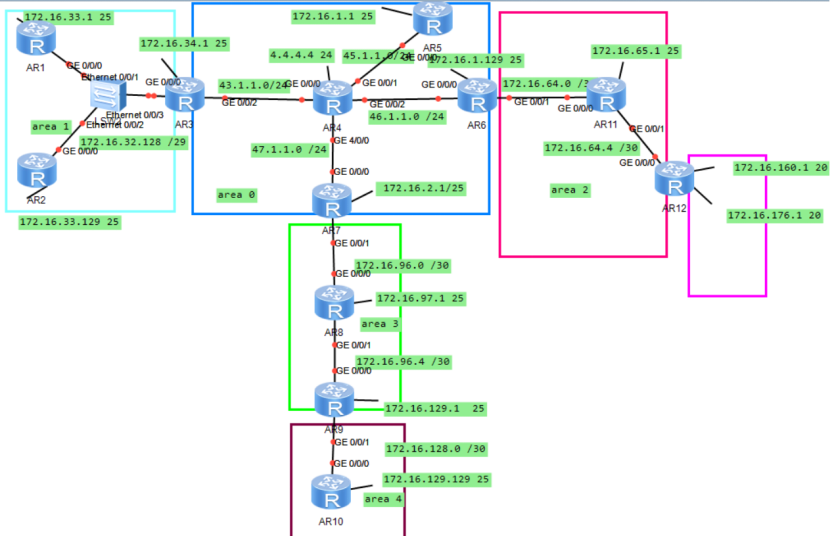

实验拓扑:

实验要求:

1.R4为ISP,其上只能配置IP地址;R4与其他所有直连设备使用公有IP

2.R3---R5、R6、R7为MGRE环境,R3为中心站点

3、整个OSPF环境IP基于172.16.0.0/16划分;除了R12有两个环回,其他路由器均有一个环回IP

4.所有设备均可访问R4的环回

5.减少LSA的更新量,加快收敛,保障更新安全

6.全网可达

实验分析:

1.地址规划

由于OSPF 基于区域汇总,图中有6个区域,因此我们先借三位划分为8个网段,又根据实际需求一个广播域50台主机左右,故子网掩码为25位。

172.16.0.0  /19 ---area 0

172.16.0.0   /25  172.16.0.128 /25  172.16.1.0 /25  172.16.1.128/25....172.16.31.128

172.16.0.0  /25     p2p 骨干  172.16.0.0/30  172.16.0.4/30

172.16.0.128 /25    MA 骨干   172.16.0.128 /29  --MGRE   172.16.0.136/29



172.16.32.0  /19---area 1

172.16.64.0  /19--- area 2

172.16.96.0  /19--- area3

172.16.128.0  /19---area 4

172.16.160.0  /19---rip   172.16.160.0/20    172.16.176.0/20



172.16.192.0  /19

                       -----备用

172.16.224.0  /19

2.在R3--R5/R6/R7配置MGRE

R3---R5/6/7为MGRE环境,R3为中心站点,其他为站点找R1注册,默认的接口为P2P,我们需要修改为广播,并在R5/R6/R7修改接口优先级使得DR为R3,并配置缺省

R3:

interface LoopBack0

 ip address 172.16.34.1 255.255.255.128

interface GigabitEthernet0/0/2

 ip address 43.1.1.1 255.255.255.0

ip route-static 0.0.0.0 0.0.0.0 43.1.1.2    ----缺省

interface Tunnel0/0/0

 ip address 172.16.0.129 255.255.255.248

 tunnel-protocol gre p2mp

 source 43.1.1.1

 ospf network-type broadcast    ---修改默认点到点类型为broadcast

 nhrp entry multicast dynamic

 nhrp network-id 100

R4:

interface LoopBack0

 ip address 4.4.4.4 255.255.255.0

interface GigabitEthernet0/0/0

 ip address 43.1.1.2 255.255.255.0

interface GigabitEthernet0/0/1

 ip address 45.1.1.1 255.255.255.0

interface GigabitEthernet0/0/2

 ip address 46.1.1.1 255.255.255.0

interface GigabitEthernet4/0/0

 ip address 47.1.1.1 255.255.255.0

R5:

interface LoopBack0

 ip address 172.16.1.1 255.255.255.128

interface GigabitEthernet0/0/0

 ip address 45.1.1.2 255.255.255.0

ip route-static 0.0.0.0 0.0.0.0 45.1.1.1

interface Tunnel0/0/0

 ip address 172.16.0.130 255.255.255.248

 tunnel-protocol gre p2mp

 source 45.1.1.2

 ospf network-type broadcast    ---修改默认点到点类型为broadcast

 ospf dr-priority 0      -----修改DR优先级为0,不参与选举,使DR为R3

 nhrp network-id 100

 nhrp entry 172.16.0.129 43.1.1.1 register

R6:

interface LoopBack0

 ip address 172.16.1.129 255.255.255.128

interface GigabitEthernet0/0/0

 ip address 46.1.1.2 255.255.255.0

ip route-static 0.0.0.0 0.0.0.0 46.1.1.1

interface Tunnel0/0/0

 ip address 172.16.0.131 255.255.255.248

 tunnel-protocol gre p2mp

 source 46.1.1.2

 ospf network-type broadcast ---修改默认点到点类型为broadcast

 ospf dr-priority 0    -----修改DR优先级为0,不参与选举,使DR为R3

 nhrp network-id 100

 nhrp entry 172.16.0.129 43.1.1.1 register

R7:

interface LoopBack0

 ip address 172.16.2.1 255.255.255.128

Interface GigabitEthernet0/0/0

 ip address 47.1.1.2 255.255.255.0

ip route-static 0.0.0.0 0.0.0.0 47.1.1.1

interface Tunnel0/0/0

 ip address 172.16.0.132 255.255.255.248

 tunnel-protocol gre p2mp

 source 47.1.1.2

 ospf network-type broadcast ---修改默认点到点类型为broadcast

 ospf dr-priority 0     -----修改DR优先级为0,不参与选举,使DR为R3

 nhrp network-id 100

 nhrp entry 172.16.0.129 43.1.1.1 register

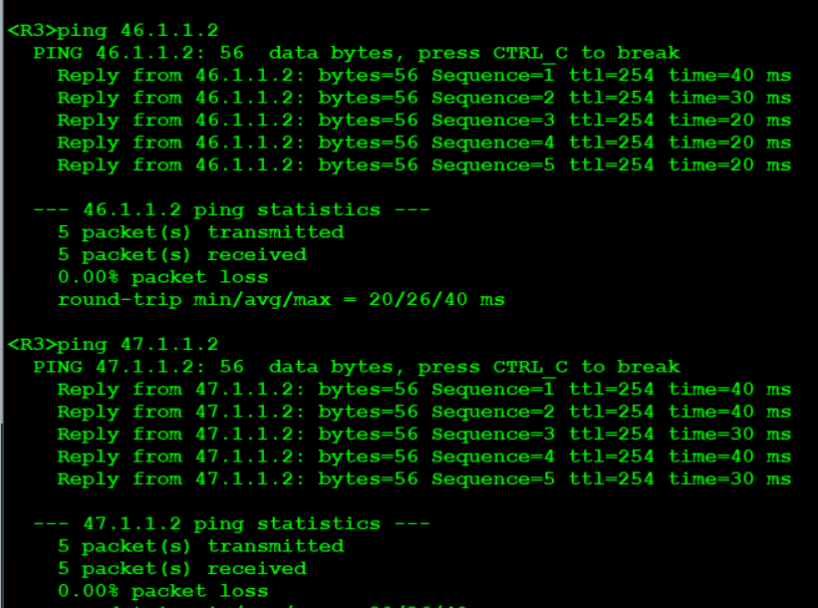

配置完成后,我们可以从R3上测试R5/R6/R7

3.配置IP地址

根据上图和已做出的IP规划配置IP地址,配置完成后进行ping测试IP地址配置是否正确

4.配置OSPF和RIP

R1:

ospf 1 router-id 1.1.1.1

 area 0.0.0.1

  network 172.16.0.0 0.0.255.255

R2:

ospf 1 router-id 2.2.2.2

 area 0.0.0.1

  network 172.16.0.0 0.0.255.255

R3:

ospf 1 router-id 3.3.3.3

 area 0.0.0.0

  network 172.16.0.129 0.0.0.0

 area 0.0.0.1

  network 172.16.32.0 0.0.3.255

R5:

ospf 1 router-id 5.5.5.5

 area 0.0.0.0

  network 172.16.0.0 0.0.255.255

R6:

ospf 1 router-id 6.6.6.6

 area 0.0.0.0

  network 172.16.0.0 0.0.1.255

 area 0.0.0.2

  network 172.16.64.1 0.0.0.0

R7:

ospf 1 router-id 7.7.7.7

 area 0.0.0.0

  network 172.16.0.0 0.0.3.255

 area 0.0.0.3

  network 172.16.96.1 0.0.0.0

R8:

ospf 1 router-id 8.8.8.8

 area 0.0.0.3

  network 172.16.0.0 0.0.255.255

R9:

ospf 1 router-id 9.9.9.9

 area 0.0.0.3

  network 172.16.96.6 0.0.0.0

 area 0.0.0.4

  network 172.16.128.0 0.0.1.255

R10:

ospf 1 router-id 10.10.10.10

 area 0.0.0.4

  network 172.16.0.0 0.0.255.255

R11:

ospf 1 router-id 11.11.11.11

 area 0.0.0.2

  network 172.16.0.0 0.0.255.255

R12:

ospf 1 router-id 12.12.12.12

 area 0.0.0.2

  network 172.16.64.6 0.0.0.0

rip 1

 version 2

 network 172.16.0.0

配置完OSPF后,我们需要查看邻居表,查看邻居是否建立

5.重发布

通过查看路由表,发现还缺少area 4和rip 的 路由 ,根据拓扑我们需要在R12上对RIP进行重发布

在R9上对area 4进行多进程重发布

R9:

首先我们需要删除之前在R9上配置的area 4的ospf1进程

ospf 2

 area 0.0.0.4

  network 172.16.128.0 0.0.1.255

ospf 1

import-route ospf 2    ----将进程2宣告给进程1

R12:

将RIP宣告进ospf 1 进程

ospf 1

import-route rip 1

宣告完成后 ,此时路由表路由条目已经齐全,但我们还需要做减少LSA的更新量,加快收敛,保障更新安全

6.路由汇总

我们需要进行在R3 /R6/R7---区域间路由汇总,R12---rip路由汇总,R9----区域外路由汇总

区域间路由汇总

R3:

ospf 1

 area 1

  abr-summary 172.16.32.0 255.255.224.0

R6:

ospf 1

 area 2

  abr-summary 172.16.64.0 255.255.224.0

R7:

ospf 1

 area 3

  abr-summary 172.16.96.0 255.255.224.0

区域外路由汇总

R9:

ospf 1

area 3

 asbr-summary 172.16.128.0 255.255.224.0

rip路由汇总



R12:

ospf 1

area 2

 asbr-summary 172.16.160.0 255.255.224.0

7.特殊区域

area 1 完全末梢    area 2 完全nssa      area 3 完全nssa    R9---OSPF 缺省指向R10

area 1 完全末梢

R1:

ospf 1 router-id 1.1.1.1

 area 0.0.0.1

  stub

R2:

ospf 1 router-id 2.2.2.2

 area 0.0.0.1

  stub

R3:

ospf 1 router-id 3.3.3.3

 area 0.0.0.1

  stub no-summary

area 2   完全nssa

R6:

ospf 1 router-id 6.6.6.6

 area 0.0.0.2

  nssa no-summary

R11:

ospf 1 router-id 11.11.11.11

 area 0.0.0.2

  nssa

R12:

ospf 1 router-id 12.12.12.12

 area 0.0.0.2

  nssa

area 3  完全nssa

R7:

ospf 1 router-id 7.7.7.7

 area 0.0.0.3

  nssa no-summary

R8:

ospf 1 router-id 8.8.8.8

 area 0.0.0.3

  nssa

R9:

ospf 1 router-id 9.9.9.9

 area 0.0.0.3

  nssa

R9-OSPF 缺省指向R10

R9:

ospf 2

 default-route-advertise

8.NAT

从局域网访问ISP需要进行地址转换,我们需要在R3、R6、R7做NAT

R3:

acl number 2000

 rule 5 permit source 172.16.0.0 0.0.255.255

interface GigabitEthernet0/0/2

 nat outbound 2000

R6:

acl number 2000

 rule 5 permit source 172.16.0.0 0.0.255.255

interface GigabitEthernet0/0/0

 nat outbound 2000

R7:

acl number 2000

 rule 5 permit source 172.16.0.0 0.0.255.255

interface GigabitEthernet0/0/0

 nat outbound 2000

9.防环,空接口

由于存在缺省路由,在R9和R12上会出现环路,在R3、R6、R7上虽然不会出环,但会占用资源,所以我们需要设置空接口。

设置空接口

R3:

ip route-static 172.16.32.0 255.255.224.0 NULL0

R6:

ip route-static 172.16.64.0 255.255.224.0 NULL0

R7:

ip route-static 172.16.96.0 255.255.224.0 NULL0

R9:

ip route-static 172.16.128.0 255.255.224.0 NULL0

R12:

ip route-static 172.16.160.0 255.255.224.0 NULL0

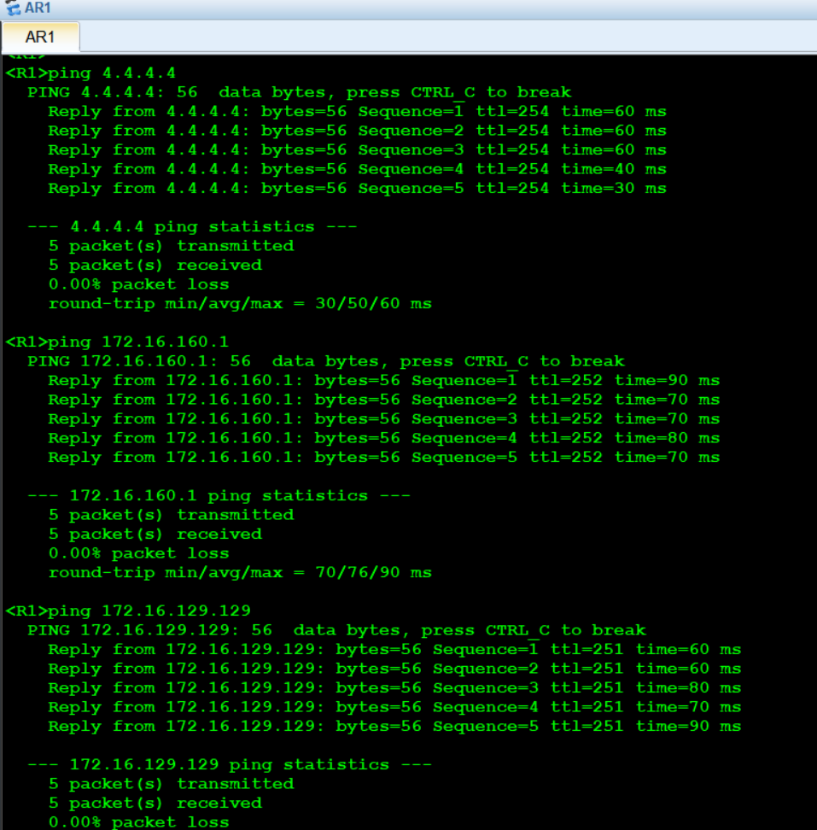

10.测试验证
