通过 Docker 运行 Prometheus 入门

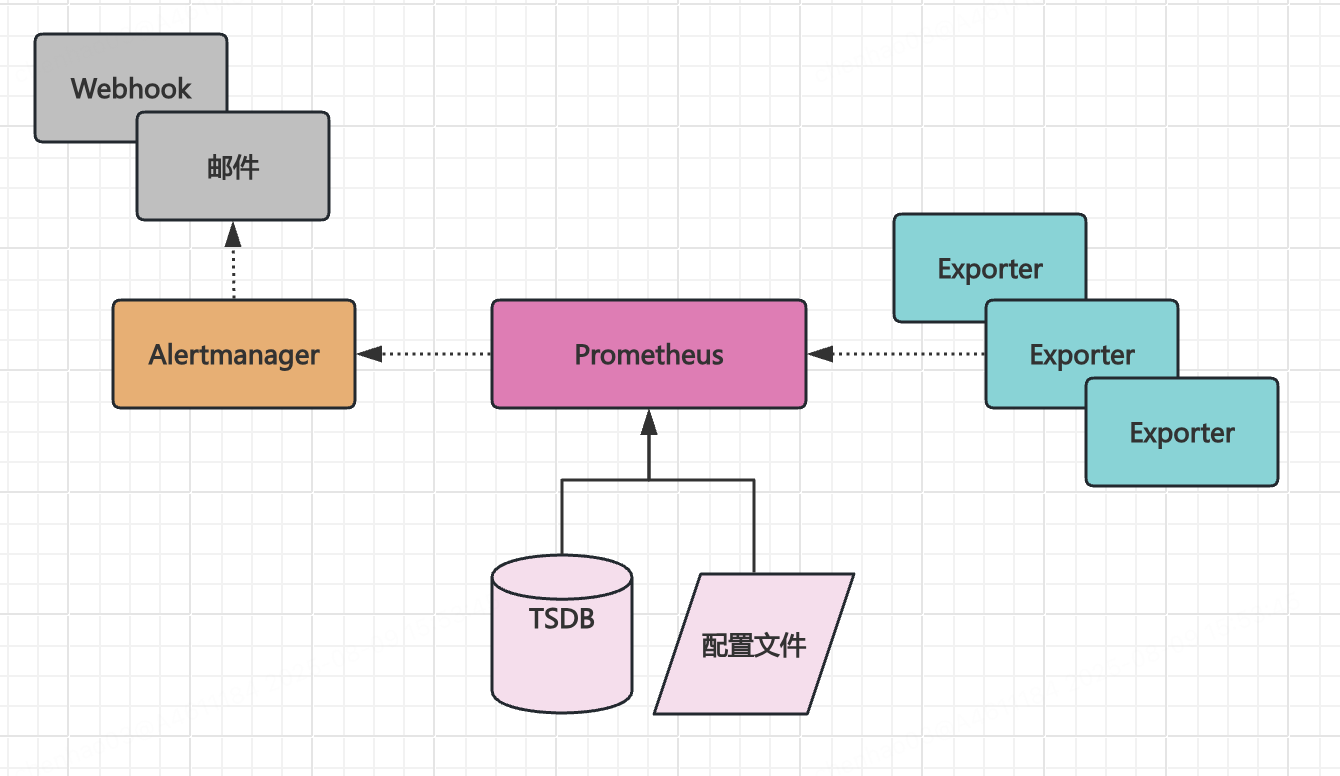

Promethues 组件

• prometheus server
• exporter
• alertmanager

环境准备

• Docker

拉取镜像备用

# https://hub.docker.com/r/prom/prometheus
docker pull m.daocloud.io/docker.io/prom/prometheus:main

# https://hub.docker.com/r/prom/node-exporter
docker pull m.daocloud.io/docker.io/prom/node-exporter:master

# https://hub.docker.com/r/prom/alertmanager
docker pull m.daocloud.io/docker.io/prom/alertmanager:main

• 接收 Prometheus Alertmanager Webhook 告警的 API

本文使用 php 接收

$ cat index.php
<?php

$a = $_GET;
$b = $_POST;
$c = file_get_contents('php://input');

file_put_contents('debug.log', print_r([date('Y-m-d H:i:s', time()), $a, $b, $c], true), FILE_APPEND);

print_r([$a, $b, $c]);

# 在 9977 端口监听 HTTP 请求，用于告警的 webhook
$ php -S 0.0.0.0:9977

代码示例

目录结构

tree .
├── alertmanager # Alertmanager 相关配置及数据目录
│   ├── config
│   │   └── alertmanager.yml # 配置文件
│   └── data # 数据目录
├── prometheus # Prometheus 相关配置及数据目录
│   ├── config
│   │   ├── alert_rules.yml # 告警配置
│   │   └── prometheus.yml # prometheus 配置文件
│   └── data # 数据目录
├── run-alertmanager.sh # 启动 Alertmanager 脚本
├── run-node-exporter.sh # 启动 Node-Exporter 脚本
└── run-prometheus.sh # 启动 Prometheus Server 脚本

脚本内容

• alertmanager/config/alertmanager.yml

route:
  group_by: ['alertname']
  group_wait: 30s
  group_interval: 5m
  repeat_interval: 1h
  receiver: 'web.hook'
receivers:
  - name: 'web.hook'
    webhook_configs:
      # webhook 的通知地址
      - url: 'http://192.168.1.8:9977/'
inhibit_rules:
  - source_match:
      severity: 'critical'
    target_match:
      severity: 'warning'
    equal: ['alertname', 'dev', 'instance']

• prometheus/config/prometheus.yml

# my global config
global:
  scrape_interval: 15s # Set the scrape interval to every 15 seconds. Default is every 1 minute.
  evaluation_interval: 15s # Evaluate rules every 15 seconds. The default is every 1 minute.
  # scrape_timeout is set to the global default (10s).

# Alertmanager configuration
alerting:
  alertmanagers:
    - static_configs:
        - targets:
          # alertmanager 的服务地址
          - 192.168.1.8:9093

# Load rules once and periodically evaluate them according to the global 'evaluation_interval'.
rule_files:
  # - "first_rules.yml"
  # - "second_rules.yml"
  - "alert_rules.yml"

# A scrape configuration containing exactly one endpoint to scrape:
# Here it's Prometheus itself.
scrape_configs:
  # The job name is added as a label `job=<job_name>` to any timeseries scraped from this config.
  - job_name: "prometheus"

    # metrics_path defaults to '/metrics'
    # scheme defaults to 'http'.

    static_configs:
      - targets: ["localhost:9090"]
       # The label name is added as a label `label_name=<label_value>` to any timeseries scraped from this config.
        labels:
          app: "prometheus"
  - job_name: "my_node_exporter"

    # metrics_path defaults to '/metrics'
    # scheme defaults to 'http'.

    static_configs:
    	# node_exporter 地址
      - targets: ["192.168.1.8:9100"]
       # The label name is added as a label `label_name=<label_value>` to any timeseries scraped from this config.
        labels:
          app: "another_node_exporter"

• prometheus/config/alert_rules.yml

groups:
  - name: example
    rules:
    - alert: HighCPUUsage
      # 当 CPU 使用率 >= 85% 持续时间 >= 2 分钟以上时进行告警
      expr: sum(rate(node_cpu_seconds_total{mode=~"user|system"}[5m]))/sum(rate(node_cpu_seconds_total[5m])) >= 0.8
      for: 2m
      labels:
        severity: warning
      annotations:
        summary: "CPU usage on {{ $labels.instance }} is high"

• run-alertmanager.sh

#!/bin/sh

CONFIG_PATH=$PWD/alertmanager/config
DATA_PATH=$PWD/alertmanager/data
IMAGE=m.daocloud.io/docker.io/prom/alertmanager:main

docker run --rm --name alertmanager -d \
	-v $CONFIG_PATH:/etc/alertmanager \
	-v $DATA_PATH:/alertmanager \
	-p 9093:9093 \
	$IMAGE

• run-node-exporter.sh

#!/bin/sh

IMAGE=m.daocloud.io/docker.io/prom/node-exporter:master
docker run -d \
  -p 9100:9100 \
  $IMAGE

• run-prometheus.sh

#!/bin/sh
IMAGE=m.daocloud.io/docker.io/prom/prometheus:main
CONFIG_PATH=$PWD/prometheus/config
DATA_PATH=$PWD/prometheus/data

# 注：--web.enable-lifecycle 启用热重载
# 配置热重载方式：curl -X POST http://192.168.1.8:9090/-/reload
docker run --rm --name prometheus -d \
	-v $CONFIG_PATH:/etc/prometheus \
	-v $DATA_PATH:/prometheus \
	-p 127.0.0.1:9090:9090 \
	$IMAGE \
	--config.file=/etc/prometheus/prometheus.yml \
	--storage.tsdb.path=/prometheus \
	--web.enable-lifecycle

开始运行

（1）启动组件

# 启动 Alertmanager
sh run-alertmanager.sh

# 启动 Exporter
sh run-node-exporter.sh

# 启动 Prometheus Server
sh run-prometheus.sh

# 查看容器状态
docker ps
CONTAINER ID   IMAGE                                               COMMAND                   CREATED          STATUS          PORTS                                         NAMES
f8eafe761ada   m.daocloud.io/docker.io/prom/alertmanager:main      "/bin/alertmanager -…"   37 minutes ago   Up 37 minutes   0.0.0.0:9093->9093/tcp, [::]:9093->9093/tcp   alertmanager
e9059e4b093e   m.daocloud.io/docker.io/prom/prometheus:main        "/bin/prometheus --c…"   39 minutes ago   Up 39 minutes   127.0.0.1:9090->9090/tcp                      prometheus
b2d29afc5f8d   m.daocloud.io/docker.io/prom/node-exporter:master   "/bin/node_exporter …"   2 hours ago      Up 2 hours      0.0.0.0:9100->9100/tcp, [::]:9100->9100/tcp   pedantic_edison

（2）进入 node-exporter 通过命令 yes > /dev/null & 使 CPU 负载达到告警阀值

docker exec -it b2d29afc5f8d /bin/sh
b2d29afc5f8d $ yes > /dev/null &
b2d29afc5f8d $ yes > /dev/null &
b2d29afc5f8d $ yes > /dev/null &
b2d29afc5f8d $ yes > /dev/null &
...
b2d29afc5f8d $ yes > /dev/null &
b2d29afc5f8d $ yes > /dev/null &

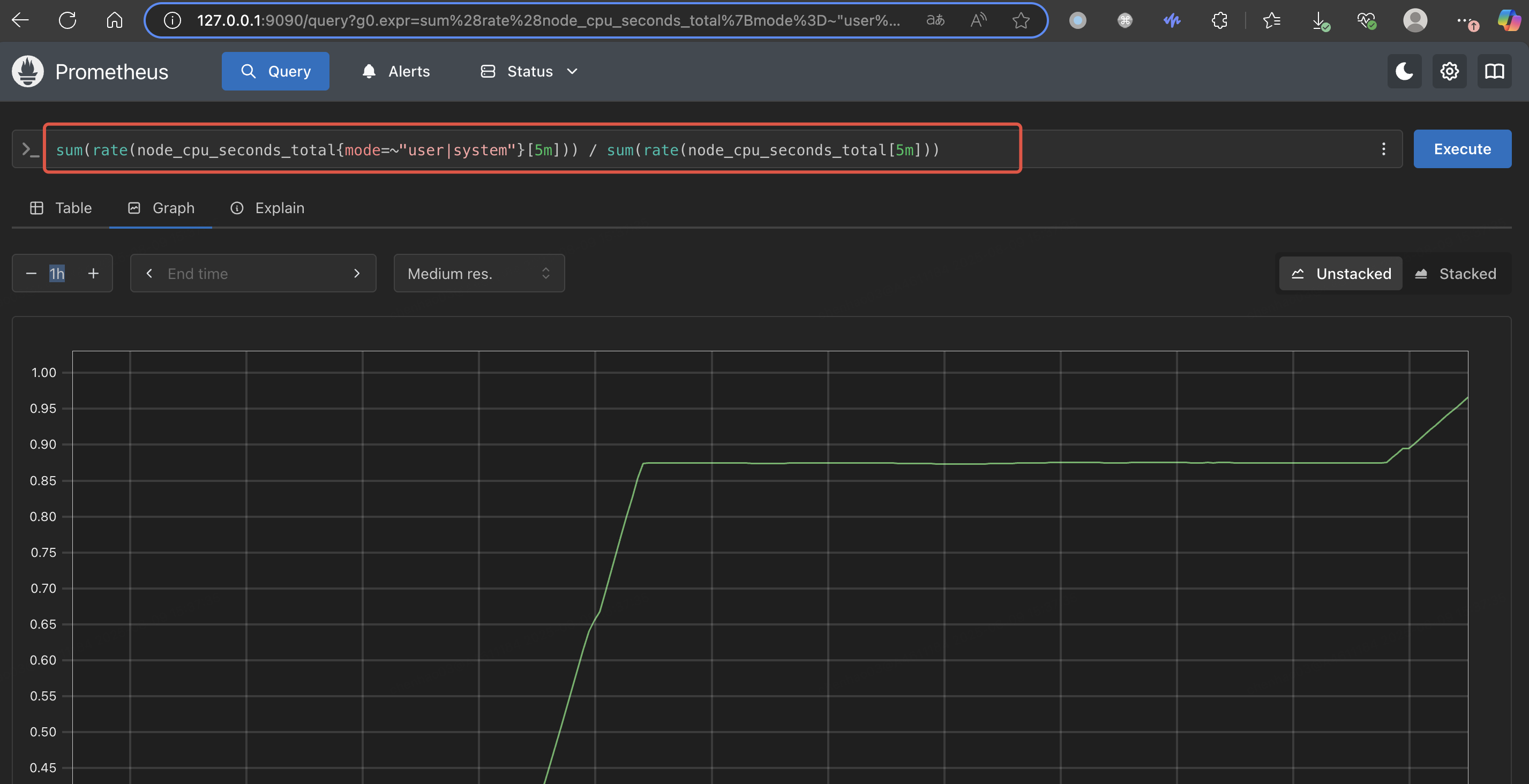

（3）然后访问 192.168.1.8:9090 查看 CPU 使用率变化情况
查询语句 sum(rate(node_cpu_seconds_total{mode=~"user|system"}[5m])) / sum(rate(node_cpu_seconds_total[5m]))

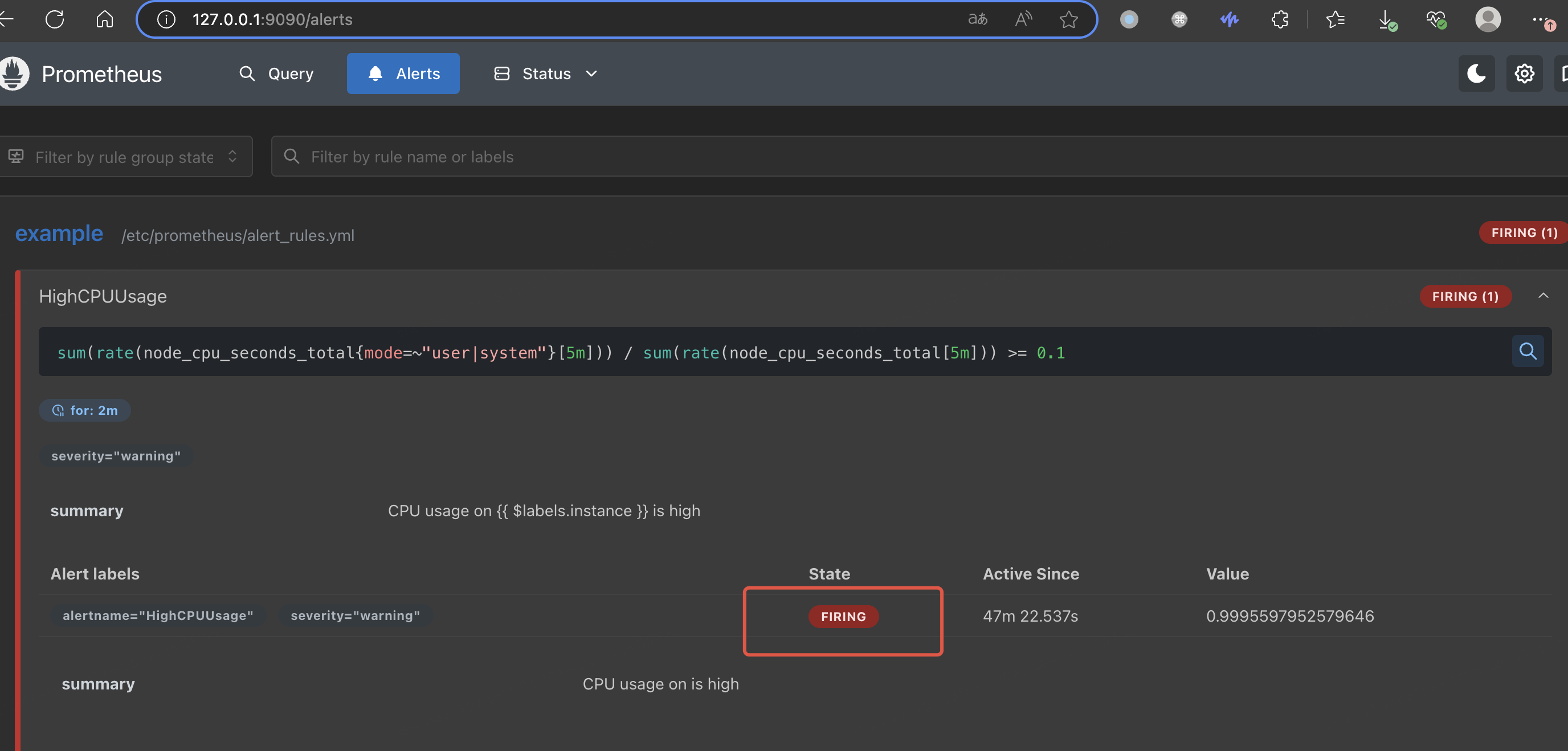

（4）点击 Alerts 查看是否触发告警

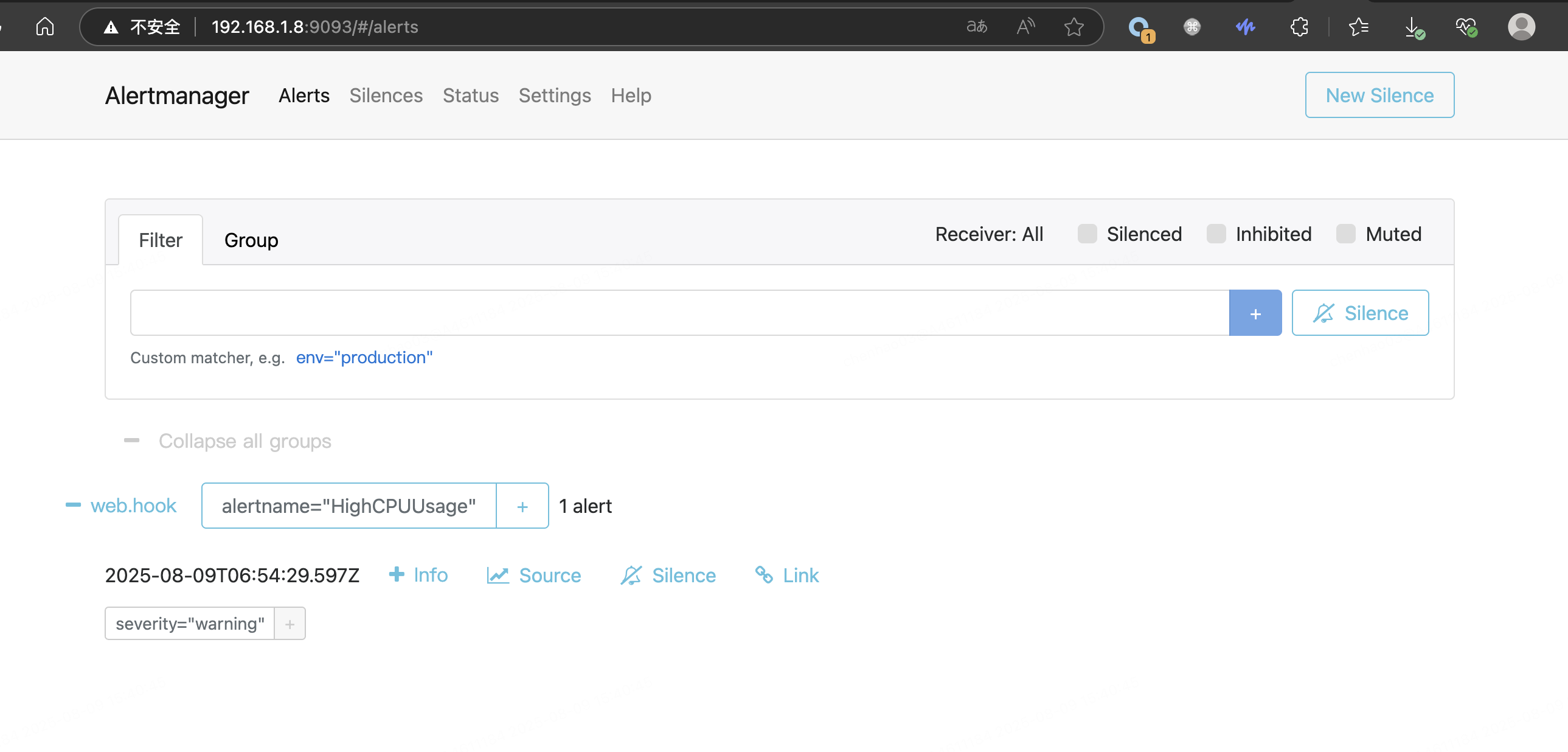

（5）访问 192.168.1.8:9093 查看 Alertmanager 是否触发告警 webhook

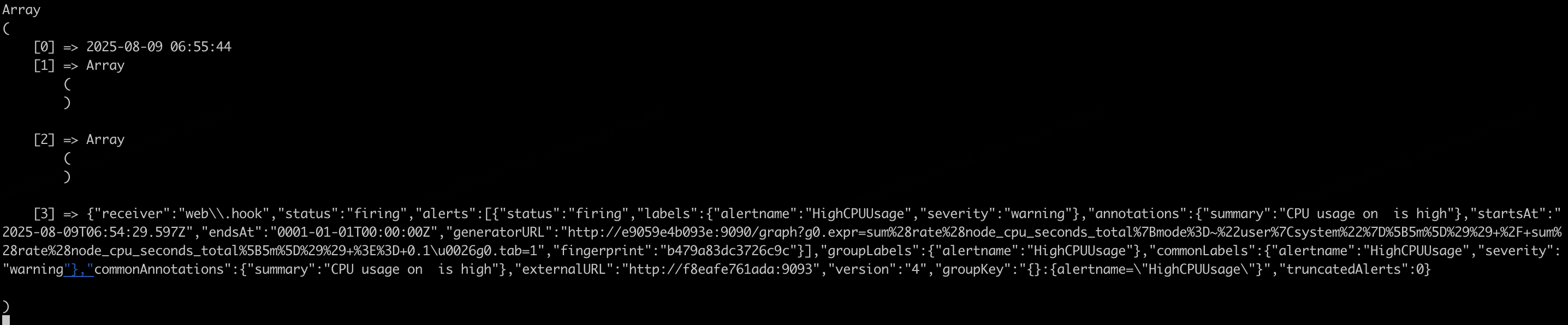

（6）在 webhook 接收端查看数据情况

cat debug.log（debug.log 由上述的 index.php 生成）

（7）其它

• 可根据接收到报文进行自定义处理（如通知到钉钉、企业微信等）
• Alertmanager 可以配置邮件告警，可参考官方文档
