（第三篇）spring cloud之Zookeeper注册中心

发布于：2025-08-12 ⋅ 阅读:(27) ⋅ 点赞:(0)

目录

一、说明

二、安装zookeeper

三、创建工程cloud-provider-payment8004

四、创建工程cloud-consumerzk-order80

一、说明

        zookeeper是一个分布式协调工具，可以实现注册中心功能，zookeeper服务器取代Eureka服务器，zk作为服务注册中心。

二、安装zookeeper

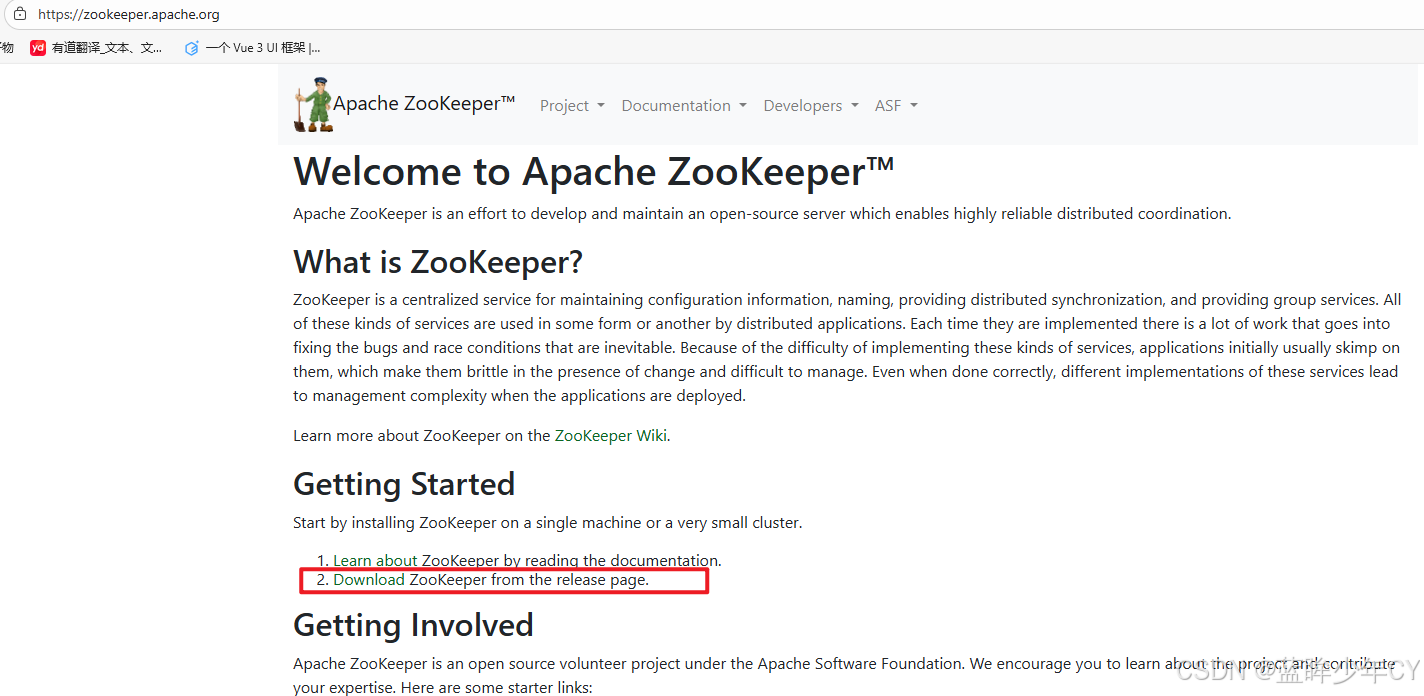

1、官网下载

官网地址https://zookeeper.apache.org/

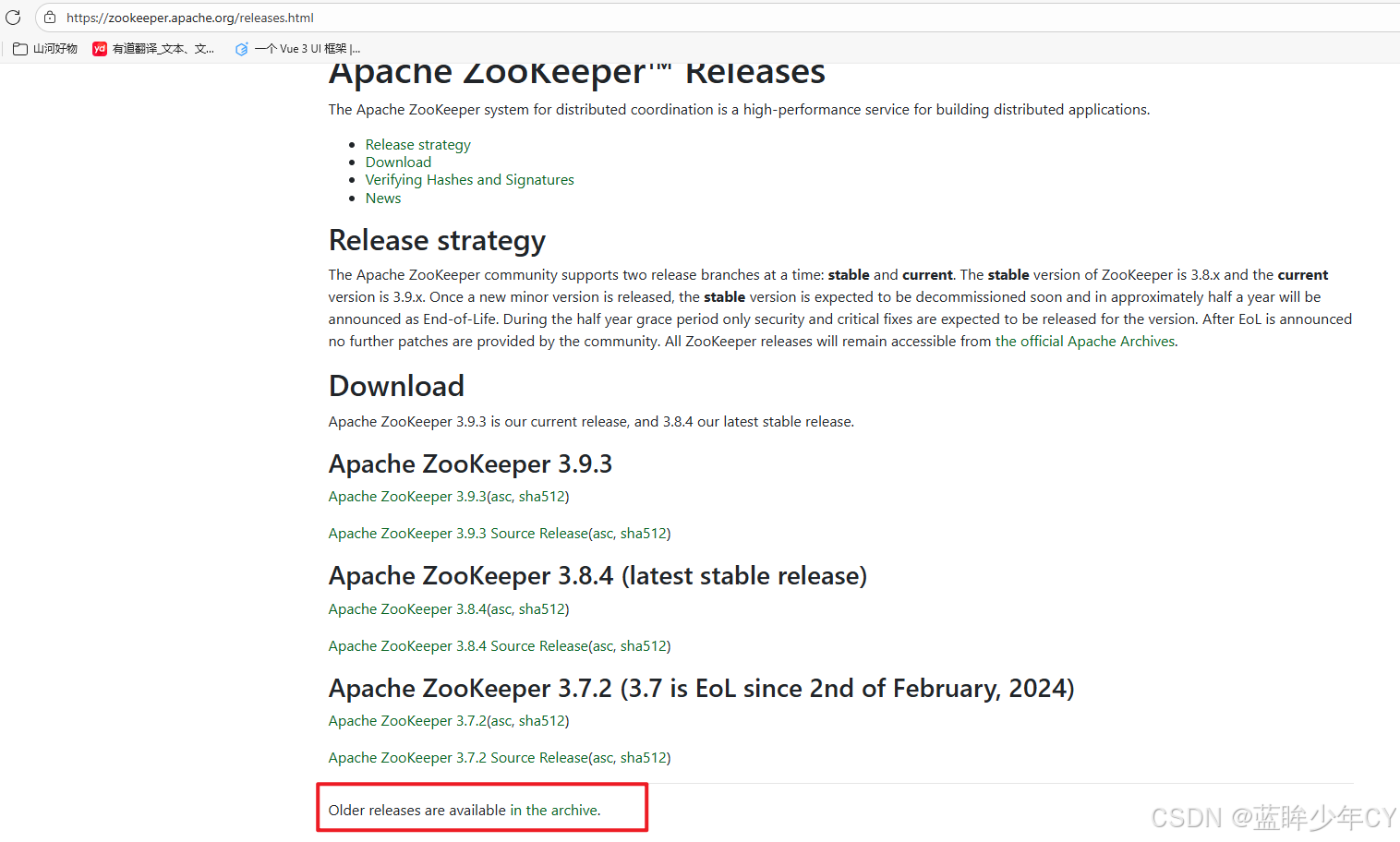

其他版本点击Older releases are available in the archive.

2、安装

下载完压缩包后进行解压，本次使用3.6.3版本

3、启动

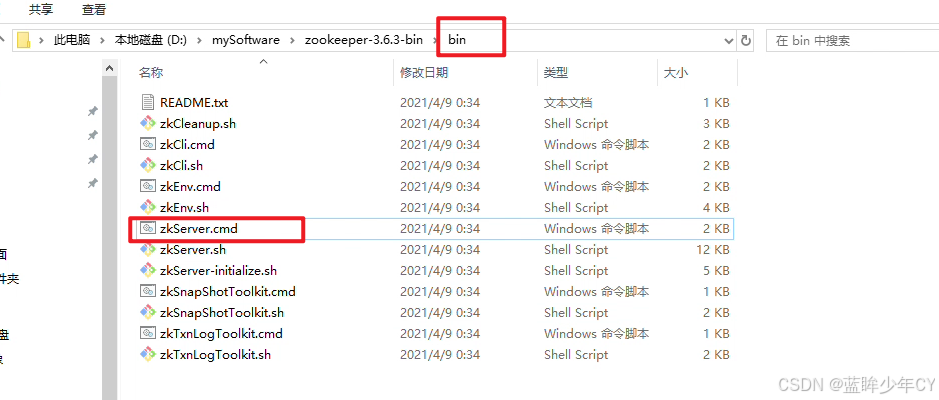

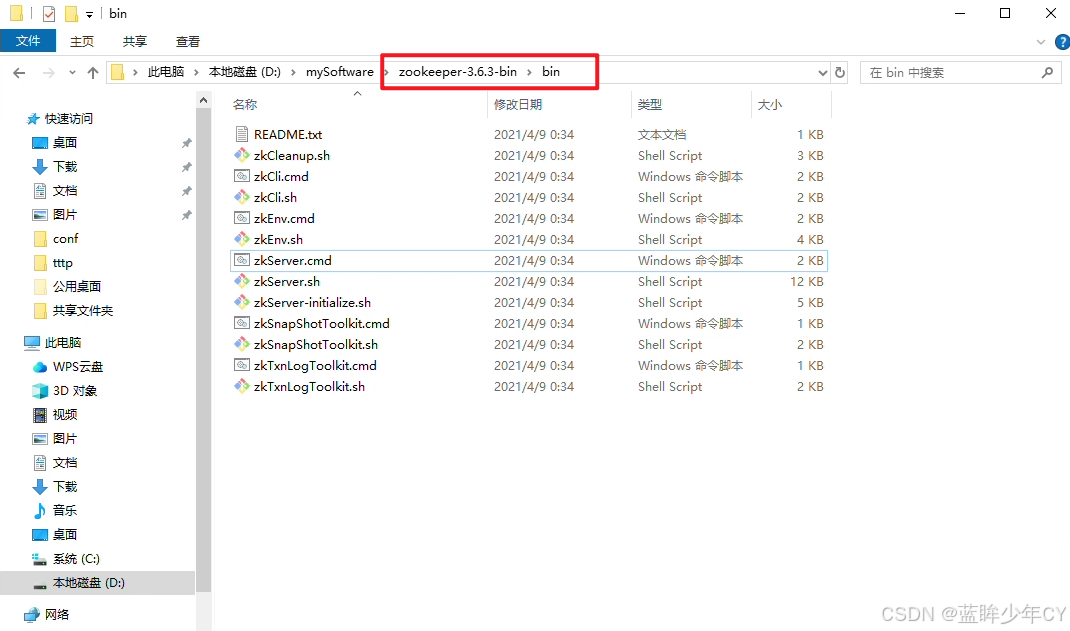

进入bin目录，双击zkServer.cmd

三、创建工程cloud-provider-payment8004

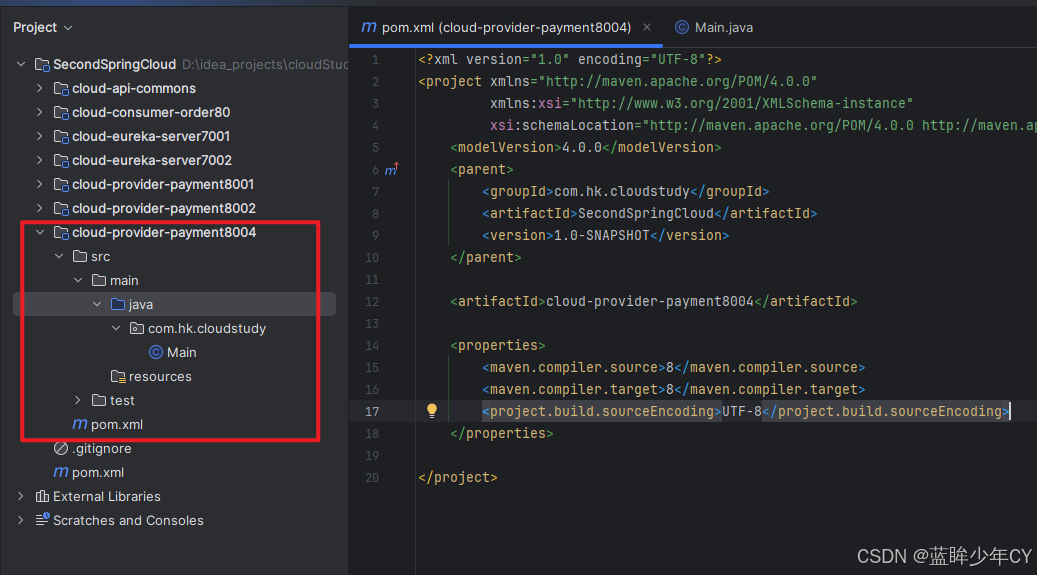

1、新建

2、添加pom

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>com.hk.cloudstudy</groupId>
        <artifactId>SecondSpringCloud</artifactId>
        <version>1.0-SNAPSHOT</version>
    </parent>

    <artifactId>cloud-provider-payment8004</artifactId>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    </properties>

    <dependencies>
        <!-- SpringBoot整合Web组件 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency><!-- 引入自己定义的api通用包，可以使用Payment支付Entity -->
            <groupId>com.hk.cloudstudy</groupId>
            <artifactId>cloud-api-commons</artifactId>
            <version>${project.version}</version>
        </dependency>
        <!-- SpringBoot整合zookeeper客户端 -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-zookeeper-discovery</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

</project>

3、添加yml文件

#8004表示注册到zookeeper服务器的支付服务提供者端口号
server:
  port: 8004
#服务别名----注册zookeeper到注册中心名称
spring:
  application:
    name: cloud-provider-payment
  cloud:
    zookeeper:
      connect-string: 192.168.10.139:2181

4、启动类

package com.hk.cloudstudy;


import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;

@SpringBootApplication
@EnableDiscoveryClient //该注解用于向使用consul或者zookeeper作为注册中心时注册服务
public class PaymentMain8004 {
    public static void main(String[] args) {
        SpringApplication.run(PaymentMain8004.class,args);
    }
}

5、编写controller

package com.hk.cloudstudy.controller;

import org.springframework.beans.factory.annotation.Value;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.UUID;

@RestController
public class PaymentController {

    @Value("${server.port}")
    private String serverPort;

    @RequestMapping("/payment/zk")
    public String getPaymentPort(){
        return "springcloud with zookeeper: "+serverPort+"\t"+ UUID.randomUUID().toString();
    }
}

6、启动8004

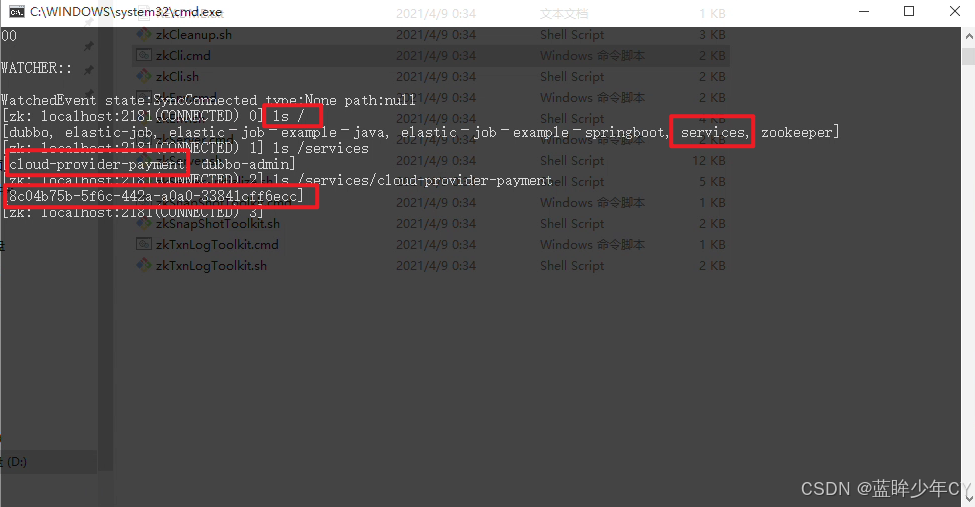

查看zookeeper中是否有cloud-provider-payment节点

打开zookeeper的连接工具，双击zkCli.cmd

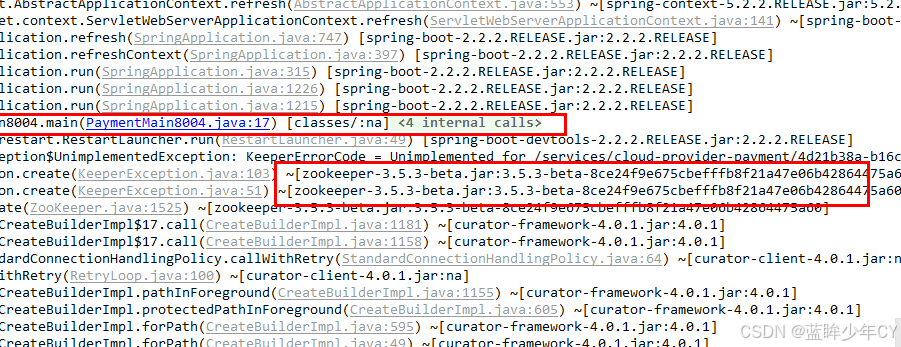

如果启动存在异常，这是因为zookeeper版本包冲突

解决：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>com.hk.cloudstudy</groupId>
        <artifactId>SecondSpringCloud</artifactId>
        <version>1.0-SNAPSHOT</version>
    </parent>

    <artifactId>cloud-provider-payment8004</artifactId>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    </properties>

    <dependencies>
        <!-- SpringBoot整合Web组件 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency><!-- 引入自己定义的api通用包，可以使用Payment支付Entity -->
            <groupId>com.hk.cloudstudy</groupId>
            <artifactId>cloud-api-commons</artifactId>
            <version>${project.version}</version>
        </dependency>
        <!-- SpringBoot整合zookeeper客户端 -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-zookeeper-discovery</artifactId>
            <!--先排除自带的zookeeper3.5.3-->
            <exclusions>
                <exclusion>
                    <groupId>org.apache.zookeeper</groupId>
                    <artifactId>zookeeper</artifactId>
                </exclusion>
            </exclusions>
        </dependency>

        <!--添加zookeeper3.6.3版本-->
        <dependency>
            <groupId>org.apache.zookeeper</groupId>
            <artifactId>zookeeper</artifactId>
            <version>3.6.3</version>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

</project>

四、创建工程cloud-consumerzk-order80

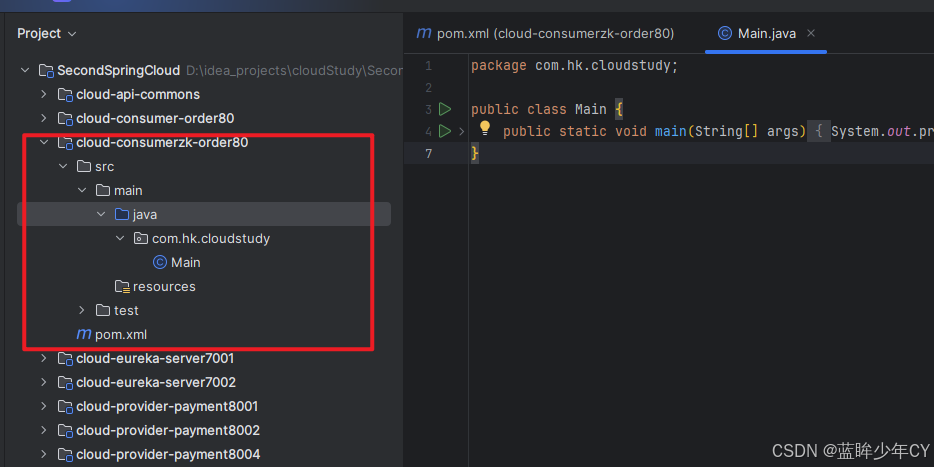

1、新建

2、添加pom

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>com.hk.cloudstudy</groupId>
        <artifactId>SecondSpringCloud</artifactId>
        <version>1.0-SNAPSHOT</version>
    </parent>

    <artifactId>cloud-consumerzk-order80</artifactId>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    </properties>

    <dependencies>
        <!-- SpringBoot整合Web组件 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <!-- SpringBoot整合zookeeper客户端 -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-zookeeper-discovery</artifactId>
            <!--先排除自带的zookeeper-->
            <exclusions>
                <exclusion>
                    <groupId>org.apache.zookeeper</groupId>
                    <artifactId>zookeeper</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <!--添加zookeeper3.4.9版本-->
        <dependency>
            <groupId>org.apache.zookeeper</groupId>
            <artifactId>zookeeper</artifactId>
            <version>3.6.3</version>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

</project>

3、添加yml

server:
  port: 80

spring:
  application:
    name: cloud-consumer-order
  cloud:
    #注册到zookeeper地址
    zookeeper:
      connect-string: 192.168.10.139:2181

4、启动类

package com.hk.cloudstudy;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class OrderZK80
{
    public static void main(String[] args)
    {
        SpringApplication.run(OrderZK80.class,args);
    }
}

5、配置类

package com.hk.cloudstudy.config;

import org.springframework.cloud.client.loadbalancer.LoadBalanced;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.client.RestTemplate;

@Configuration
public class ApplicationContextBean {

    @Bean
    @LoadBalanced
    public RestTemplate getRestTemplate()
    {
        return new RestTemplate();
    }
}

6、编写controller

package com.hk.cloudstudy.controller;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.client.RestTemplate;

@RestController
public class OrderZKController
{
    public static final String INVOKE_URL = "http://cloud-provider-payment";

    @Autowired
    private RestTemplate restTemplate;

    @RequestMapping(value = "/consumer/payment/zk")
    public String paymentInfo()
    {
        String result = restTemplate.getForObject(INVOKE_URL+"/payment/zk", String.class);

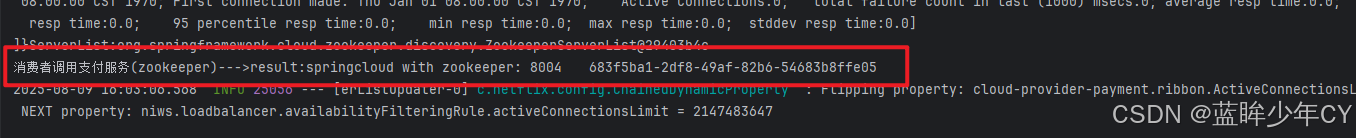

        System.out.println("消费者调用支付服务(zookeeper)--->result:" + result);
        return result;
    }

}

7、启动

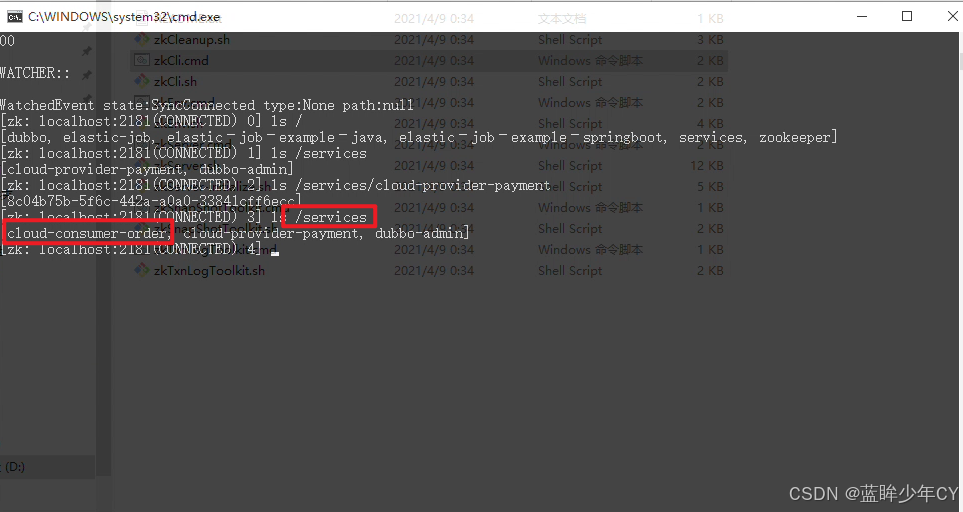

查看80服务是否注册进zookeeper

8、测试

访问http://localhost:80/consumer/payment/zk

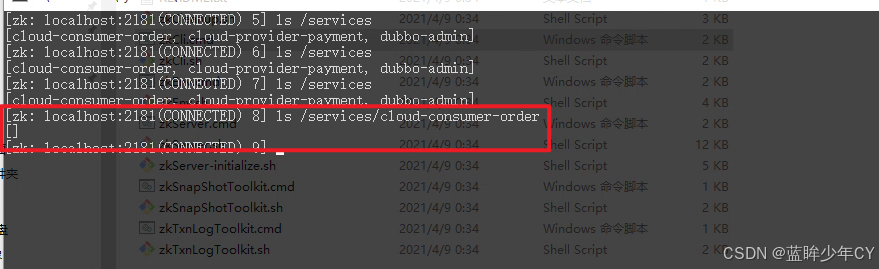

9、zookeeper上的服务节点是临时节点还是持久节点

关闭80服务和8004服务，再次查看zookeeper

说明：临时节点
