安装说明
- 系统版本为 Centos7.9
- 内核版本为 6.3.5-1.el7
- K8S版本为 v1.26.14
- Nacos官网
安装前准备
开始安装前确认自己集群是否有共享存储或者块存储，如果没有的的话点击这个链接安装NFS共享存储
安装Mysql 数据库
容器启动以后 用户名：root，密码：mysql123
# mysql-secret.yaml
apiVersion: v1
kind: Secret
metadata:
name: mysql-secret
namespace: system
type: Opaque
data:
root-password: bXlzcWwxMjM= # root 密码 mysql123
---
# mysql-configmap.yaml
apiVersion: v1
kind: ConfigMap
metadata:
name: mysql-config
namespace: system
data:
my.cnf: |
[mysqld]
default-authentication-plugin=mysql_native_password
character-set-server=utf8mb4
collation-server=utf8mb4_unicode_ci
max_connections=200
---
# mysql-statefulset.yaml
apiVersion: apps/v1
kind: StatefulSet
metadata:
name: mysql
namespace: system
spec:
serviceName: mysql
replicas: 1
selector:
matchLabels:
app: mysql
template:
metadata:
labels:
app: mysql
spec:
containers:
- name: mysql
# image: harbor.deployers.cn/library/mysql:8.0
image: harbor.deployers.cn/library/nacos-mysql:5.7
env:
- name: MYSQL_ROOT_PASSWORD
valueFrom:
secretKeyRef:
name: mysql-secret
key: root-password
ports:
- containerPort: 3306
name: mysql
volumeMounts:
- name: mysql-data
mountPath: /var/lib/mysql
- name: mysql-config
mountPath: /etc/mysql/conf.d/my.cnf
subPath: my.cnf
resources:
requests:
memory: "512Mi"
cpu: "250m"
limits:
memory: "1Gi"
cpu: "500m"
livenessProbe:
exec:
command: ["mysqladmin", "ping", "-h", "localhost"]
initialDelaySeconds: 30
periodSeconds: 20
readinessProbe:
exec:
command: ["mysqladmin", "ping", "-h", "localhost"]
initialDelaySeconds: 30
periodSeconds: 10
volumes:
- name: mysql-config
configMap:
name: mysql-config
volumeClaimTemplates:
- metadata:
name: mysql-data
spec:
accessModes: [ "ReadWriteOnce" ]
storageClassName: "nfs-dynamic" # 修改为实际存储类
resources:
requests:
storage: 10Gi
---
# mysql-service.yaml
apiVersion: v1
kind: Service
metadata:
name: mysql
namespace: system
spec:
selector:
app: mysql
ports:
- protocol: TCP
port: 3306
targetPort: 3306
type: ClusterIP
导入数据
保存成文件以后用命令导入数据
mysql -u用户名 -p密码 < nacos_devtest.sql
-- MySQL dump 10.13 Distrib 5.7.40, for Linux (x86_64)
--
-- Host: localhost Database: nacos_devtest
-- ------------------------------------------------------
-- Server version 5.7.40
/*!40101 SET @OLD_CHARACTER_SET_CLIENT=@@CHARACTER_SET_CLIENT */;
/*!40101 SET @OLD_CHARACTER_SET_RESULTS=@@CHARACTER_SET_RESULTS */;
/*!40101 SET @OLD_COLLATION_CONNECTION=@@COLLATION_CONNECTION */;
/*!40101 SET NAMES utf8 */;
/*!40103 SET @OLD_TIME_ZONE=@@TIME_ZONE */;
/*!40103 SET TIME_ZONE='+00:00' */;
/*!40014 SET @OLD_UNIQUE_CHECKS=@@UNIQUE_CHECKS, UNIQUE_CHECKS=0 */;
/*!40014 SET @OLD_FOREIGN_KEY_CHECKS=@@FOREIGN_KEY_CHECKS, FOREIGN_KEY_CHECKS=0 */;
/*!40101 SET @OLD_SQL_MODE=@@SQL_MODE, SQL_MODE='NO_AUTO_VALUE_ON_ZERO' */;
/*!40111 SET @OLD_SQL_NOTES=@@SQL_NOTES, SQL_NOTES=0 */;
--
-- Current Database: `nacos_devtest`
--
CREATE DATABASE /*!32312 IF NOT EXISTS*/ `nacos_devtest` /*!40100 DEFAULT CHARACTER SET utf8mb4 COLLATE utf8mb4_unicode_ci */;
USE `nacos_devtest`;
--
-- Table structure for table `config_info`
--
DROP TABLE IF EXISTS `config_info`;
/*!40101 SET @saved_cs_client = @@character_set_client */;
/*!40101 SET character_set_client = utf8 */;
CREATE TABLE `config_info` (
`id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'id',
`data_id` varchar(255) COLLATE utf8_bin NOT NULL COMMENT 'data_id',
`group_id` varchar(128) COLLATE utf8_bin DEFAULT NULL COMMENT 'group_id',
`content` longtext COLLATE utf8_bin NOT NULL COMMENT 'content',
`md5` varchar(32) COLLATE utf8_bin DEFAULT NULL COMMENT 'md5',
`gmt_create` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
`gmt_modified` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '修改时间',
`src_user` text COLLATE utf8_bin COMMENT 'source user',
`src_ip` varchar(50) COLLATE utf8_bin DEFAULT NULL COMMENT 'source ip',
`app_name` varchar(128) COLLATE utf8_bin DEFAULT NULL COMMENT 'app_name',
`tenant_id` varchar(128) COLLATE utf8_bin DEFAULT '' COMMENT '租户å—段',
`c_desc` varchar(256) COLLATE utf8_bin DEFAULT NULL COMMENT 'configuration description',
`c_use` varchar(64) COLLATE utf8_bin DEFAULT NULL COMMENT 'configuration usage',
`effect` varchar(64) COLLATE utf8_bin DEFAULT NULL COMMENT 'é…置生效的æè¿°',
`type` varchar(64) COLLATE utf8_bin DEFAULT NULL COMMENT 'é…置的类型',
`c_schema` text COLLATE utf8_bin COMMENT 'é…置的模å¼',
`encrypted_data_key` varchar(1024) COLLATE utf8_bin NOT NULL DEFAULT '' COMMENT '密钥',
PRIMARY KEY (`id`),
UNIQUE KEY `uk_configinfo_datagrouptenant` (`data_id`,`group_id`,`tenant_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='config_info';
/*!40101 SET character_set_client = @saved_cs_client */;
--
-- Dumping data for table `config_info`
--
LOCK TABLES `config_info` WRITE;
/*!40000 ALTER TABLE `config_info` DISABLE KEYS */;
/*!40000 ALTER TABLE `config_info` ENABLE KEYS */;
UNLOCK TABLES;
--
-- Table structure for table `config_info_aggr`
--
DROP TABLE IF EXISTS `config_info_aggr`;
/*!40101 SET @saved_cs_client = @@character_set_client */;
/*!40101 SET character_set_client = utf8 */;
CREATE TABLE `config_info_aggr` (
`id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'id',
`data_id` varchar(255) COLLATE utf8_bin NOT NULL COMMENT 'data_id',
`group_id` varchar(128) COLLATE utf8_bin NOT NULL COMMENT 'group_id',
`datum_id` varchar(255) COLLATE utf8_bin NOT NULL COMMENT 'datum_id',
`content` longtext COLLATE utf8_bin NOT NULL COMMENT '内容',
`gmt_modified` datetime NOT NULL COMMENT '修改时间',
`app_name` varchar(128) COLLATE utf8_bin DEFAULT NULL COMMENT 'app_name',
`tenant_id` varchar(128) COLLATE utf8_bin DEFAULT '' COMMENT '租户å—段',
PRIMARY KEY (`id`),
UNIQUE KEY `uk_configinfoaggr_datagrouptenantdatum` (`data_id`,`group_id`,`tenant_id`,`datum_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='å¢žåŠ ç§Ÿæˆ·å—段';
/*!40101 SET character_set_client = @saved_cs_client */;
--
-- Dumping data for table `config_info_aggr`
--
LOCK TABLES `config_info_aggr` WRITE;
/*!40000 ALTER TABLE `config_info_aggr` DISABLE KEYS */;
/*!40000 ALTER TABLE `config_info_aggr` ENABLE KEYS */;
UNLOCK TABLES;
--
-- Table structure for table `config_info_beta`
--
DROP TABLE IF EXISTS `config_info_beta`;
/*!40101 SET @saved_cs_client = @@character_set_client */;
/*!40101 SET character_set_client = utf8 */;
CREATE TABLE `config_info_beta` (
`id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'id',
`data_id` varchar(255) COLLATE utf8_bin NOT NULL COMMENT 'data_id',
`group_id` varchar(128) COLLATE utf8_bin NOT NULL COMMENT 'group_id',
`app_name` varchar(128) COLLATE utf8_bin DEFAULT NULL COMMENT 'app_name',
`content` longtext COLLATE utf8_bin NOT NULL COMMENT 'content',
`beta_ips` varchar(1024) COLLATE utf8_bin DEFAULT NULL COMMENT 'betaIps',
`md5` varchar(32) COLLATE utf8_bin DEFAULT NULL COMMENT 'md5',
`gmt_create` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
`gmt_modified` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '修改时间',
`src_user` text COLLATE utf8_bin COMMENT 'source user',
`src_ip` varchar(50) COLLATE utf8_bin DEFAULT NULL COMMENT 'source ip',
`tenant_id` varchar(128) COLLATE utf8_bin DEFAULT '' COMMENT '租户å—段',
`encrypted_data_key` varchar(1024) COLLATE utf8_bin NOT NULL DEFAULT '' COMMENT '密钥',
PRIMARY KEY (`id`),
UNIQUE KEY `uk_configinfobeta_datagrouptenant` (`data_id`,`group_id`,`tenant_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='config_info_beta';
/*!40101 SET character_set_client = @saved_cs_client */;
--
-- Dumping data for table `config_info_beta`
--
LOCK TABLES `config_info_beta` WRITE;
/*!40000 ALTER TABLE `config_info_beta` DISABLE KEYS */;
/*!40000 ALTER TABLE `config_info_beta` ENABLE KEYS */;
UNLOCK TABLES;
--
-- Table structure for table `config_info_gray`
--
DROP TABLE IF EXISTS `config_info_gray`;
/*!40101 SET @saved_cs_client = @@character_set_client */;
/*!40101 SET character_set_client = utf8 */;
CREATE TABLE `config_info_gray` (
`id` bigint(20) NOT NULL AUTO_INCREMENT,
`data_id` varchar(255) NOT NULL,
`group_id` varchar(128) NOT NULL,
`content` longtext NOT NULL,
`md5` varchar(32) DEFAULT NULL,
PRIMARY KEY (`id`),
UNIQUE KEY `uk_configinfo_gray_datagroup` (`data_id`,`group_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;
/*!40101 SET character_set_client = @saved_cs_client */;
--
-- Dumping data for table `config_info_gray`
--
LOCK TABLES `config_info_gray` WRITE;
/*!40000 ALTER TABLE `config_info_gray` DISABLE KEYS */;
/*!40000 ALTER TABLE `config_info_gray` ENABLE KEYS */;
UNLOCK TABLES;
--
-- Table structure for table `config_info_tag`
--
DROP TABLE IF EXISTS `config_info_tag`;
/*!40101 SET @saved_cs_client = @@character_set_client */;
/*!40101 SET character_set_client = utf8 */;
CREATE TABLE `config_info_tag` (
`id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'id',
`data_id` varchar(255) COLLATE utf8_bin NOT NULL COMMENT 'data_id',
`group_id` varchar(128) COLLATE utf8_bin NOT NULL COMMENT 'group_id',
`tenant_id` varchar(128) COLLATE utf8_bin DEFAULT '' COMMENT 'tenant_id',
`tag_id` varchar(128) COLLATE utf8_bin NOT NULL COMMENT 'tag_id',
`app_name` varchar(128) COLLATE utf8_bin DEFAULT NULL COMMENT 'app_name',
`content` longtext COLLATE utf8_bin NOT NULL COMMENT 'content',
`md5` varchar(32) COLLATE utf8_bin DEFAULT NULL COMMENT 'md5',
`gmt_create` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
`gmt_modified` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '修改时间',
`src_user` text COLLATE utf8_bin COMMENT 'source user',
`src_ip` varchar(50) COLLATE utf8_bin DEFAULT NULL COMMENT 'source ip',
PRIMARY KEY (`id`),
UNIQUE KEY `uk_configinfotag_datagrouptenanttag` (`data_id`,`group_id`,`tenant_id`,`tag_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='config_info_tag';
/*!40101 SET character_set_client = @saved_cs_client */;
--
-- Dumping data for table `config_info_tag`
--
LOCK TABLES `config_info_tag` WRITE;
/*!40000 ALTER TABLE `config_info_tag` DISABLE KEYS */;
/*!40000 ALTER TABLE `config_info_tag` ENABLE KEYS */;
UNLOCK TABLES;
--
-- Table structure for table `config_tags_relation`
--
DROP TABLE IF EXISTS `config_tags_relation`;
/*!40101 SET @saved_cs_client = @@character_set_client */;
/*!40101 SET character_set_client = utf8 */;
CREATE TABLE `config_tags_relation` (
`id` bigint(20) NOT NULL COMMENT 'id',
`tag_name` varchar(128) COLLATE utf8_bin NOT NULL COMMENT 'tag_name',
`tag_type` varchar(64) COLLATE utf8_bin DEFAULT NULL COMMENT 'tag_type',
`data_id` varchar(255) COLLATE utf8_bin NOT NULL COMMENT 'data_id',
`group_id` varchar(128) COLLATE utf8_bin NOT NULL COMMENT 'group_id',
`tenant_id` varchar(128) COLLATE utf8_bin DEFAULT '' COMMENT 'tenant_id',
`nid` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'nid, è‡ªå¢žé•¿æ ‡è¯†',
PRIMARY KEY (`nid`),
UNIQUE KEY `uk_configtagrelation_configidtag` (`id`,`tag_name`,`tag_type`),
KEY `idx_tenant_id` (`tenant_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='config_tag_relation';
/*!40101 SET character_set_client = @saved_cs_client */;
--
-- Dumping data for table `config_tags_relation`
--
LOCK TABLES `config_tags_relation` WRITE;
/*!40000 ALTER TABLE `config_tags_relation` DISABLE KEYS */;
/*!40000 ALTER TABLE `config_tags_relation` ENABLE KEYS */;
UNLOCK TABLES;
--
-- Table structure for table `group_capacity`
--
DROP TABLE IF EXISTS `group_capacity`;
/*!40101 SET @saved_cs_client = @@character_set_client */;
/*!40101 SET character_set_client = utf8 */;
CREATE TABLE `group_capacity` (
`id` bigint(20) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键ID',
`group_id` varchar(128) COLLATE utf8_bin NOT NULL DEFAULT '' COMMENT 'Group ID，空å—符表示整个集群',
`quota` int(10) unsigned NOT NULL DEFAULT '0' COMMENT 'é…é¢ï¼Œ0表示使用默认值',
`usage` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '使用é‡',
`max_size` int(10) unsigned NOT NULL DEFAULT '0' COMMENT 'å•ä¸ªé…置大å°ä¸Šé™ï¼Œå•ä½ä¸ºå—节，0表示使用默认值',
`max_aggr_count` int(10) unsigned NOT NULL DEFAULT '0' COMMENT 'èšåˆåé…置最大个数，，0表示使用默认值',
`max_aggr_size` int(10) unsigned NOT NULL DEFAULT '0' COMMENT 'å•ä¸ªèšåˆæ•°æ®çš„åé…置大å°ä¸Šé™ï¼Œå•ä½ä¸ºå—节，0表示使用默认值',
`max_history_count` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '最大å˜æ›´åŽ†å²æ•°é‡',
`gmt_create` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
`gmt_modified` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '修改时间',
PRIMARY KEY (`id`),
UNIQUE KEY `uk_group_id` (`group_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='集群ã€å„Group容é‡ä¿¡æ¯è¡¨';
/*!40101 SET character_set_client = @saved_cs_client */;
--
-- Dumping data for table `group_capacity`
--
LOCK TABLES `group_capacity` WRITE;
/*!40000 ALTER TABLE `group_capacity` DISABLE KEYS */;
/*!40000 ALTER TABLE `group_capacity` ENABLE KEYS */;
UNLOCK TABLES;
--
-- Table structure for table `his_config_info`
--
DROP TABLE IF EXISTS `his_config_info`;
/*!40101 SET @saved_cs_client = @@character_set_client */;
/*!40101 SET character_set_client = utf8 */;
CREATE TABLE `his_config_info` (
`id` bigint(20) unsigned NOT NULL COMMENT 'id',
`nid` bigint(20) unsigned NOT NULL AUTO_INCREMENT COMMENT 'nid, è‡ªå¢žæ ‡è¯†',
`data_id` varchar(255) COLLATE utf8_bin NOT NULL COMMENT 'data_id',
`group_id` varchar(128) COLLATE utf8_bin NOT NULL COMMENT 'group_id',
`app_name` varchar(128) COLLATE utf8_bin DEFAULT NULL COMMENT 'app_name',
`content` longtext COLLATE utf8_bin NOT NULL COMMENT 'content',
`md5` varchar(32) COLLATE utf8_bin DEFAULT NULL COMMENT 'md5',
`gmt_create` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
`gmt_modified` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '修改时间',
`src_user` text COLLATE utf8_bin COMMENT 'source user',
`src_ip` varchar(50) COLLATE utf8_bin DEFAULT NULL COMMENT 'source ip',
`op_type` char(10) COLLATE utf8_bin DEFAULT NULL COMMENT 'operation type',
`tenant_id` varchar(128) COLLATE utf8_bin DEFAULT '' COMMENT '租户å—段',
`encrypted_data_key` varchar(1024) COLLATE utf8_bin NOT NULL DEFAULT '' COMMENT '密钥',
PRIMARY KEY (`nid`),
KEY `idx_gmt_create` (`gmt_create`),
KEY `idx_gmt_modified` (`gmt_modified`),
KEY `idx_did` (`data_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='å¤šç§Ÿæˆ·æ”¹é€ ';
/*!40101 SET character_set_client = @saved_cs_client */;
--
-- Dumping data for table `his_config_info`
--
LOCK TABLES `his_config_info` WRITE;
/*!40000 ALTER TABLE `his_config_info` DISABLE KEYS */;
/*!40000 ALTER TABLE `his_config_info` ENABLE KEYS */;
UNLOCK TABLES;
--
-- Table structure for table `permissions`
--
DROP TABLE IF EXISTS `permissions`;
/*!40101 SET @saved_cs_client = @@character_set_client */;
/*!40101 SET character_set_client = utf8 */;
CREATE TABLE `permissions` (
`role` varchar(50) COLLATE utf8mb4_unicode_ci NOT NULL COMMENT 'role',
`resource` varchar(128) COLLATE utf8mb4_unicode_ci NOT NULL COMMENT 'resource',
`action` varchar(8) COLLATE utf8mb4_unicode_ci NOT NULL COMMENT 'action',
UNIQUE KEY `uk_role_permission` (`role`,`resource`,`action`) USING BTREE
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_unicode_ci;
/*!40101 SET character_set_client = @saved_cs_client */;
--
-- Dumping data for table `permissions`
--
LOCK TABLES `permissions` WRITE;
/*!40000 ALTER TABLE `permissions` DISABLE KEYS */;
/*!40000 ALTER TABLE `permissions` ENABLE KEYS */;
UNLOCK TABLES;
--
-- Table structure for table `roles`
--
DROP TABLE IF EXISTS `roles`;
/*!40101 SET @saved_cs_client = @@character_set_client */;
/*!40101 SET character_set_client = utf8 */;
CREATE TABLE `roles` (
`username` varchar(50) COLLATE utf8mb4_unicode_ci NOT NULL COMMENT 'username',
`role` varchar(50) COLLATE utf8mb4_unicode_ci NOT NULL COMMENT 'role',
UNIQUE KEY `idx_user_role` (`username`,`role`) USING BTREE
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_unicode_ci;
/*!40101 SET character_set_client = @saved_cs_client */;
--
-- Dumping data for table `roles`
--
LOCK TABLES `roles` WRITE;
/*!40000 ALTER TABLE `roles` DISABLE KEYS */;
/*!40000 ALTER TABLE `roles` ENABLE KEYS */;
UNLOCK TABLES;
--
-- Table structure for table `tenant_capacity`
--
DROP TABLE IF EXISTS `tenant_capacity`;
/*!40101 SET @saved_cs_client = @@character_set_client */;
/*!40101 SET character_set_client = utf8 */;
CREATE TABLE `tenant_capacity` (
`id` bigint(20) unsigned NOT NULL AUTO_INCREMENT COMMENT '主键ID',
`tenant_id` varchar(128) COLLATE utf8_bin NOT NULL DEFAULT '' COMMENT 'Tenant ID',
`quota` int(10) unsigned NOT NULL DEFAULT '0' COMMENT 'é…é¢ï¼Œ0表示使用默认值',
`usage` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '使用é‡',
`max_size` int(10) unsigned NOT NULL DEFAULT '0' COMMENT 'å•ä¸ªé…置大å°ä¸Šé™ï¼Œå•ä½ä¸ºå—节，0表示使用默认值',
`max_aggr_count` int(10) unsigned NOT NULL DEFAULT '0' COMMENT 'èšåˆåé…置最大个数',
`max_aggr_size` int(10) unsigned NOT NULL DEFAULT '0' COMMENT 'å•ä¸ªèšåˆæ•°æ®çš„åé…置大å°ä¸Šé™ï¼Œå•ä½ä¸ºå—节，0表示使用默认值',
`max_history_count` int(10) unsigned NOT NULL DEFAULT '0' COMMENT '最大å˜æ›´åŽ†å²æ•°é‡',
`gmt_create` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
`gmt_modified` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP COMMENT '修改时间',
PRIMARY KEY (`id`),
UNIQUE KEY `uk_tenant_id` (`tenant_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='租户容é‡ä¿¡æ¯è¡¨';
/*!40101 SET character_set_client = @saved_cs_client */;
--
-- Dumping data for table `tenant_capacity`
--
LOCK TABLES `tenant_capacity` WRITE;
/*!40000 ALTER TABLE `tenant_capacity` DISABLE KEYS */;
/*!40000 ALTER TABLE `tenant_capacity` ENABLE KEYS */;
UNLOCK TABLES;
--
-- Table structure for table `tenant_info`
--
DROP TABLE IF EXISTS `tenant_info`;
/*!40101 SET @saved_cs_client = @@character_set_client */;
/*!40101 SET character_set_client = utf8 */;
CREATE TABLE `tenant_info` (
`id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'id',
`kp` varchar(128) COLLATE utf8_bin NOT NULL COMMENT 'kp',
`tenant_id` varchar(128) COLLATE utf8_bin DEFAULT '' COMMENT 'tenant_id',
`tenant_name` varchar(128) COLLATE utf8_bin DEFAULT '' COMMENT 'tenant_name',
`tenant_desc` varchar(256) COLLATE utf8_bin DEFAULT NULL COMMENT 'tenant_desc',
`create_source` varchar(32) COLLATE utf8_bin DEFAULT NULL COMMENT 'create_source',
`gmt_create` bigint(20) NOT NULL COMMENT '创建时间',
`gmt_modified` bigint(20) NOT NULL COMMENT '修改时间',
PRIMARY KEY (`id`),
UNIQUE KEY `uk_tenant_info_kptenantid` (`kp`,`tenant_id`),
KEY `idx_tenant_id` (`tenant_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8 COLLATE=utf8_bin COMMENT='tenant_info';
/*!40101 SET character_set_client = @saved_cs_client */;
--
-- Dumping data for table `tenant_info`
--
LOCK TABLES `tenant_info` WRITE;
/*!40000 ALTER TABLE `tenant_info` DISABLE KEYS */;
/*!40000 ALTER TABLE `tenant_info` ENABLE KEYS */;
UNLOCK TABLES;
--
-- Table structure for table `users`
--
DROP TABLE IF EXISTS `users`;
/*!40101 SET @saved_cs_client = @@character_set_client */;
/*!40101 SET character_set_client = utf8 */;
CREATE TABLE `users` (
`username` varchar(50) COLLATE utf8mb4_unicode_ci NOT NULL COMMENT 'username',
`password` varchar(500) COLLATE utf8mb4_unicode_ci NOT NULL COMMENT 'password',
`enabled` tinyint(1) NOT NULL COMMENT 'enabled',
PRIMARY KEY (`username`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_unicode_ci;
/*!40101 SET character_set_client = @saved_cs_client */;
--
-- Dumping data for table `users`
--
LOCK TABLES `users` WRITE;
/*!40000 ALTER TABLE `users` DISABLE KEYS */;
/*!40000 ALTER TABLE `users` ENABLE KEYS */;
UNLOCK TABLES;
/*!40103 SET TIME_ZONE=@OLD_TIME_ZONE */;
/*!40101 SET SQL_MODE=@OLD_SQL_MODE */;
/*!40014 SET FOREIGN_KEY_CHECKS=@OLD_FOREIGN_KEY_CHECKS */;
/*!40014 SET UNIQUE_CHECKS=@OLD_UNIQUE_CHECKS */;
/*!40101 SET CHARACTER_SET_CLIENT=@OLD_CHARACTER_SET_CLIENT */;
/*!40101 SET CHARACTER_SET_RESULTS=@OLD_CHARACTER_SET_RESULTS */;
/*!40101 SET COLLATION_CONNECTION=@OLD_COLLATION_CONNECTION */;
/*!40111 SET SQL_NOTES=@OLD_SQL_NOTES */;
-- Dump completed on 2025-03-17 4:27:45
部署 Nacos
---
apiVersion: v1
kind: Service
metadata:
name: nacos-headless
namespace: system
labels:
app: nacos
spec:
publishNotReadyAddresses: true
ports:
- port: 8848
name: server
targetPort: 8848
- port: 9848
name: client-rpc
targetPort: 9848
- port: 9849
name: raft-rpc
targetPort: 9849
- port: 7848
name: old-raft-rpc
targetPort: 7848
clusterIP: None
selector:
app: nacos
---
apiVersion: v1
kind: ConfigMap
metadata:
name: nacos-cm
namespace: system
data:
mysql.host: "mysql"
mysql.db.name: "nacos_devtest"
mysql.port: "3306"
mysql.user: "root"
mysql.password: "mysql123"
---
apiVersion: apps/v1
kind: StatefulSet
metadata:
name: nacos
namespace: system
spec:
podManagementPolicy: Parallel
serviceName: nacos-headless
replicas: 3
template:
metadata:
labels:
app: nacos
annotations:
pod.alpha.kubernetes.io/initialized: "true"
spec:
initContainers:
- name: peer-finder-plugin-install
image: harbor.deployers.cn/library/nacos-peer-finder-plugin:1.1
imagePullPolicy: Always
volumeMounts:
- mountPath: /home/nacos/plugins/peer-finder
name: data
subPath: peer-finder
- name: timezone
mountPath: /etc/localtime
containers:
- name: nacos
imagePullPolicy: Always
image: harbor.deployers.cn/library/nacos-server:v2.4.2
resources:
requests:
memory: "2Gi"
cpu: "500m"
ports:
- containerPort: 8848
name: client-port
- containerPort: 9848
name: client-rpc
- containerPort: 9849
name: raft-rpc
- containerPort: 7848
name: old-raft-rpc
env:
- name: NACOS_REPLICAS
value: "3"
- name: SERVICE_NAME
value: "nacos-headless"
- name: DOMAIN_NAME
value: "cluster.local"
- name: POD_NAMESPACE
valueFrom:
fieldRef:
apiVersion: v1
fieldPath: metadata.namespace
- name: MYSQL_SERVICE_HOST
valueFrom:
configMapKeyRef:
name: nacos-cm
key: mysql.host
- name: MYSQL_SERVICE_DB_NAME
valueFrom:
configMapKeyRef:
name: nacos-cm
key: mysql.db.name
- name: MYSQL_SERVICE_PORT
valueFrom:
configMapKeyRef:
name: nacos-cm
key: mysql.port
- name: MYSQL_SERVICE_USER
valueFrom:
configMapKeyRef:
name: nacos-cm
key: mysql.user
- name: MYSQL_SERVICE_PASSWORD
valueFrom:
configMapKeyRef:
name: nacos-cm
key: mysql.password
- name: SPRING_DATASOURCE_PLATFORM
value: "mysql"
- name: NACOS_SERVER_PORT
value: "8848"
- name: NACOS_APPLICATION_PORT
value: "8848"
- name: PREFER_HOST_MODE
value: "hostname"
volumeMounts:
- name: data
mountPath: /home/nacos/plugins/peer-finder
subPath: peer-finder
- name: data
mountPath: /home/nacos/data
subPath: data
- name: data
mountPath: /home/nacos/logs
subPath: logs
- name: timezone
mountPath: /etc/localtime
volumes:
- name: timezone
hostPath:
path: /usr/share/zoneinfo/Asia/Shanghai
volumeClaimTemplates:
- metadata:
name: data
spec:
accessModes: [ "ReadWriteMany" ]
storageClassName: "nfs-dynamic"
resources:
requests:
storage: 20Gi
selector:
matchLabels:
app: nacos
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: nacos-ingress
namespace: system
spec:
ingressClassName: nginx
rules:
- host: nacos.deployers.cn
http:
paths:
- backend:
service:
name: nacos-headless
port:
name: server
path: /
pathType: Prefix

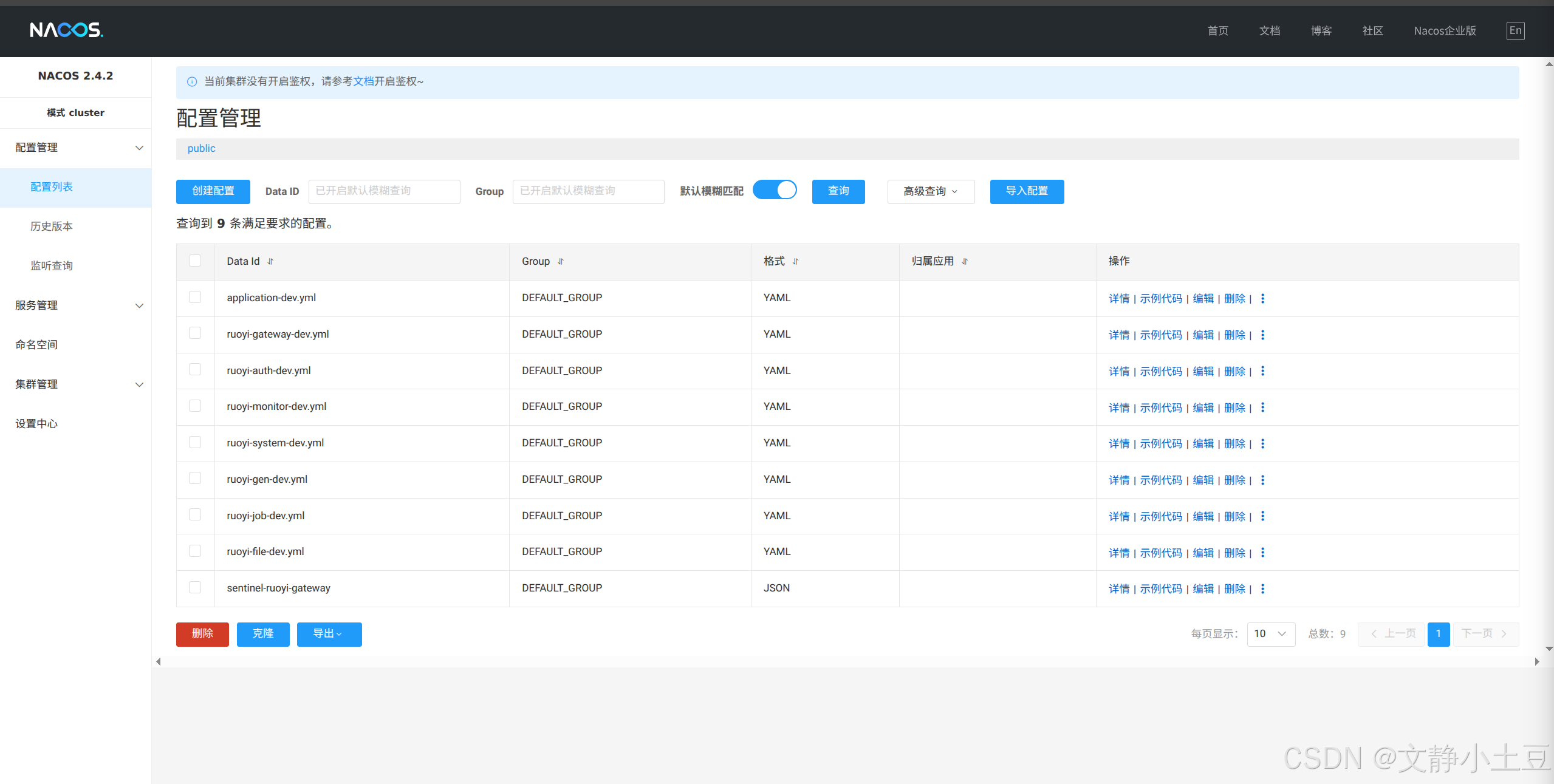

部署完成以后显示如下
[root@k8s docker]# kubectl get po -n system
NAME READY STATUS RESTARTS AGE
mysql-0 1/1 Running 3 (64m ago) 2d
nacos-0 1/1 Running 2 (64m ago) 41h
nacos-1 1/1 Running 2 (64m ago) 41h
nacos-2 1/1 Running 2 (64m ago) 41h
[root@k8s docker]# kubectl get ing -n system
NAME CLASS HOSTS ADDRESS PORTS AGE
nacos-ingress nginx nacos.deployers.cn 10.98.86.253 80 41h
配置好hosts 以后访问这个地址：nacos.deployers.cn
