aws(学习笔记第五十一课) ECS集中练习(3)

aws(学习笔记第五十一课) ECS集中练习(3)

• 深入练习设定ecs的fargate service的各种设定

学习内容：

• 练习设定ecs单一task的fargate service + network load balancer
• 练习设定ecs复数task的fargate service + network load balancer
• 练习设定ecs复数task的fargate service + efs

1. 代码连接

1.1 代码链接

ECS集中练习

2. 练习设定ecs的fargate service + network load balancer(单一task)

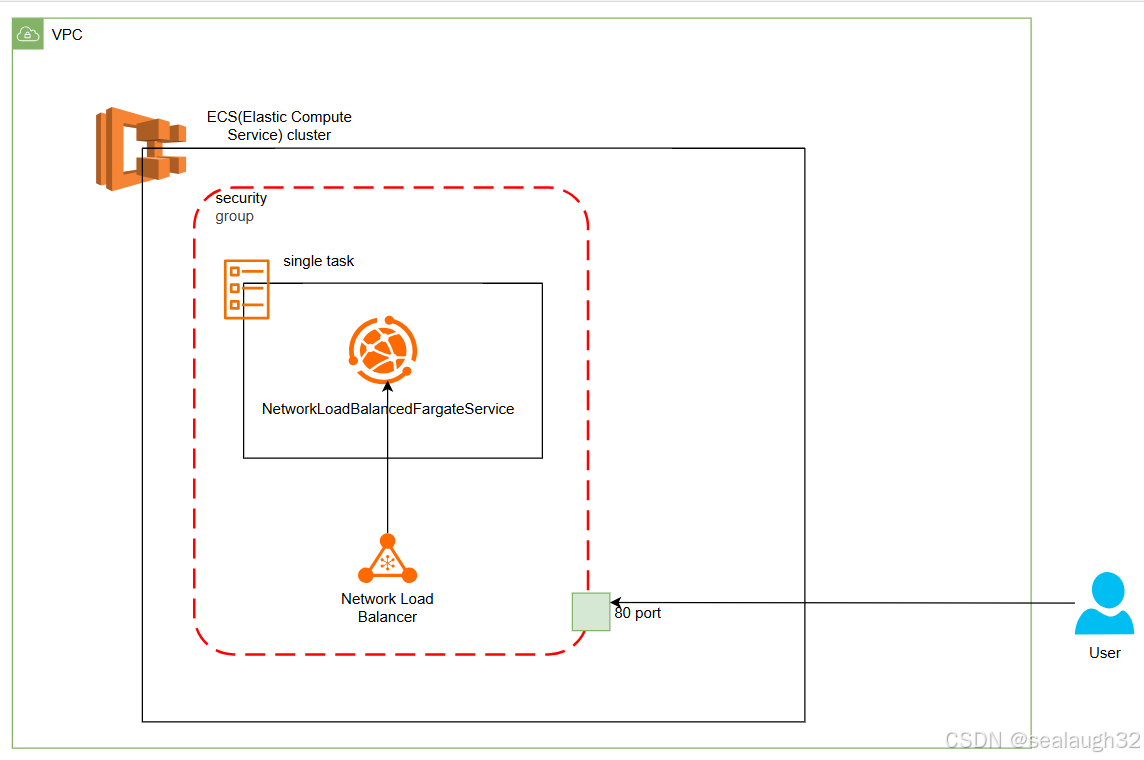

2.1 整体架构

• 创建一个ecs的cluster
• 在cluster中创建一个NetworkLoadBalancedFargateService
• aws会在创建fargate service同时，自动创建一个代理该fargate service的NetworkLoadBalancedFargateService
• 没有指定desired task count，这里aws会默认一个task运行service
• aws为这个fargate service创建一个security group以便进行安全设定
• 这里，手动对security group进行设定，开放0.0.0.0(internet)的80端口

2.2 代码

from aws_cdk import (
    aws_autoscaling as autoscaling,
    aws_ec2 as ec2,
    aws_ecs as ecs,
    aws_ecs_patterns as ecs_patterns,
    App, CfnOutput, Stack
)
from constructs import Construct


class BonjourFargate(Stack):

    def __init__(self, scope: Construct, id: str, **kwargs) -> None:
        super().__init__(scope, id, **kwargs)

        # Create VPC and Fargate Cluster
        # NOTE: Limit AZs to avoid reaching resource quotas
        vpc = ec2.Vpc(
            self, "MyVpc",
            max_azs=2
        )

        cluster = ecs.Cluster(
            self, 'Ec2Cluster',
            vpc=vpc
        )

        fargate_service = ecs_patterns.NetworkLoadBalancedFargateService(
            self, "FargateService",
            cluster=cluster,
            task_image_options=ecs_patterns.NetworkLoadBalancedTaskImageOptions(
                image=ecs.ContainerImage.from_registry("amazon/amazon-ecs-sample")
            )
        )

        fargate_service.service.connections.security_groups[0].add_ingress_rule(
            peer = ec2.Peer.ipv4(vpc.vpc_cidr_block),
            connection = ec2.Port.tcp(80),
            description="Allow http inbound from VPC"
        )

        CfnOutput(
            self, "LoadBalancerDNS",
            value=fargate_service.load_balancer.load_balancer_dns_name
        )

app = App()
BonjourFargate(app, "Bonjour")
app.synth()

2.3 执行代码

2.3.1 执行命令

python -m venv ./venv
source ./.venv/Scripts/activate
pip -r requirements.txt
cdk --require-approval never deploy

创建好了fargate service之后，进行验证。

2.3 网络问题的workaround，即cloudshell

最近的本地，已经网络好像出现了问题。

aws s3 ls

都出现了timeout的问题。没有办法，还是老办法，转头使用cloudshell

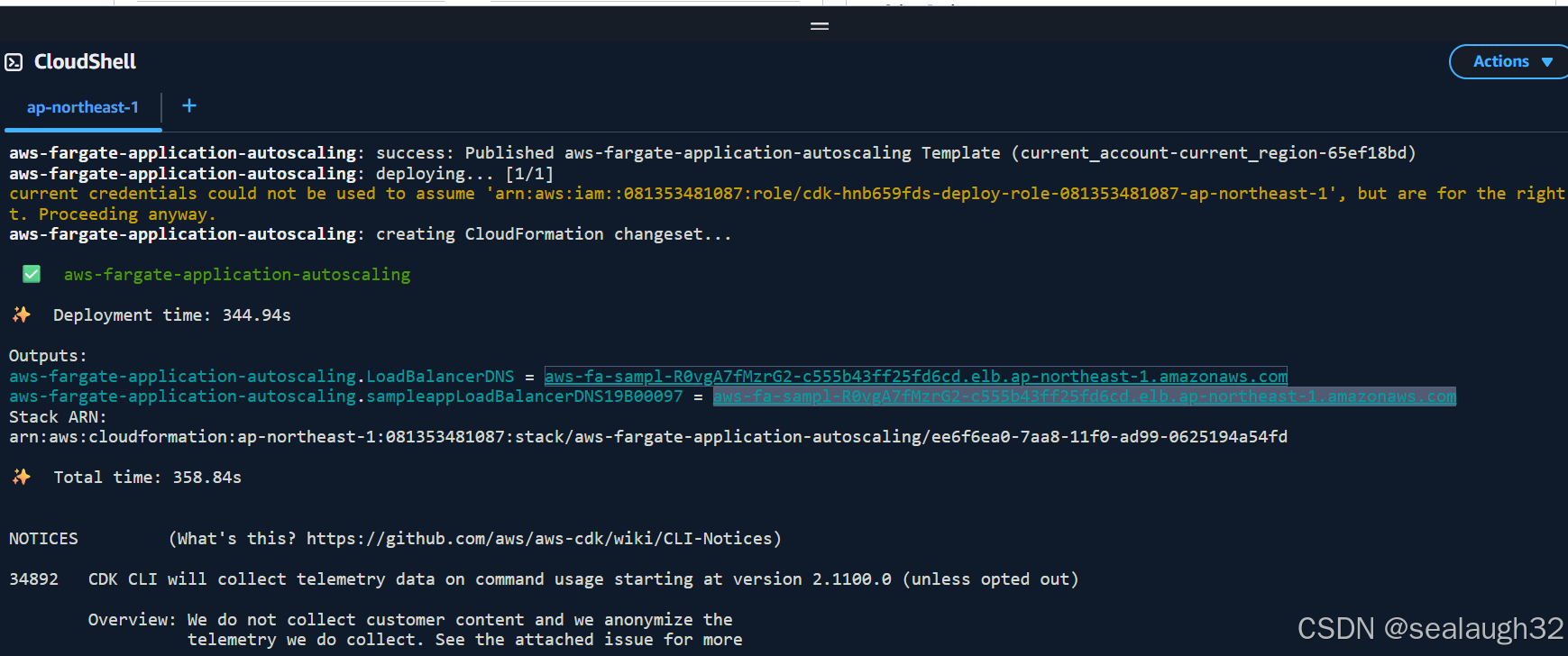

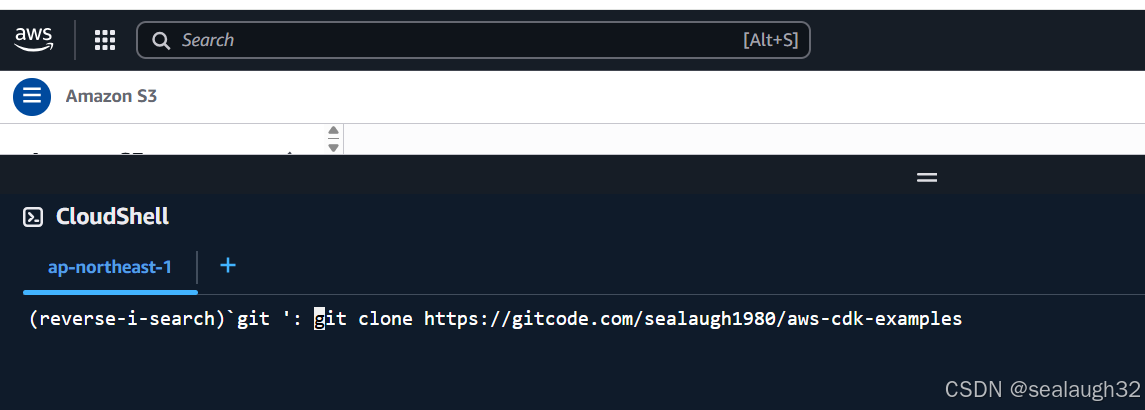

2.3.1 在cloudshell进行git clone

2.3.2 同样进行部署

python -m venv ./venv
source ./.venv/Scripts/activate
pip -r requirements.txt
cdk --require-approval never deploy

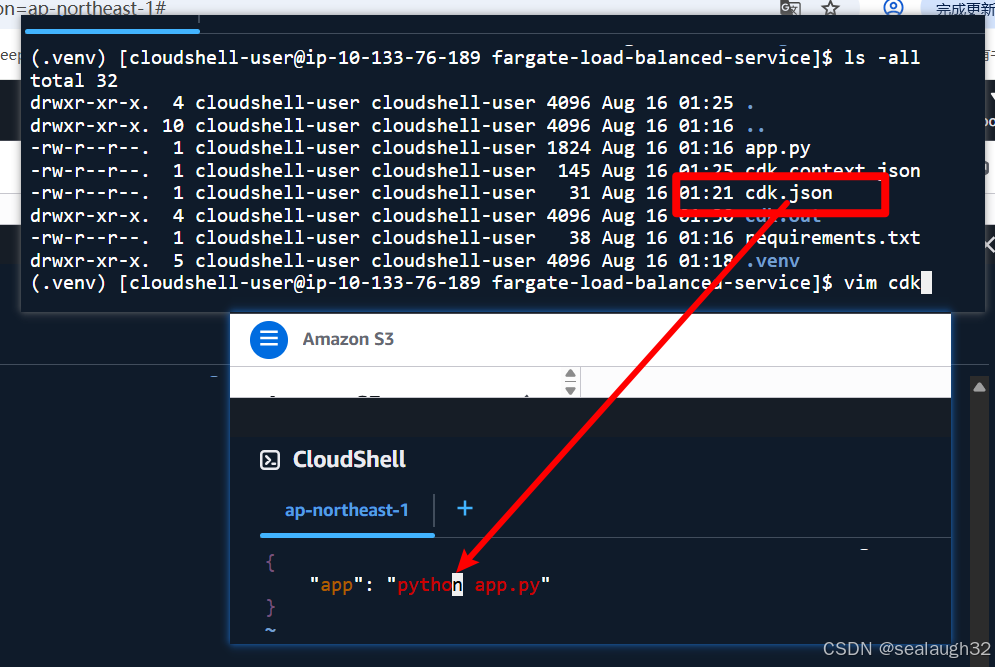

这里注意，既然使用python作为命令，修改下面的文件，将cdk.json里面的python3修改成python

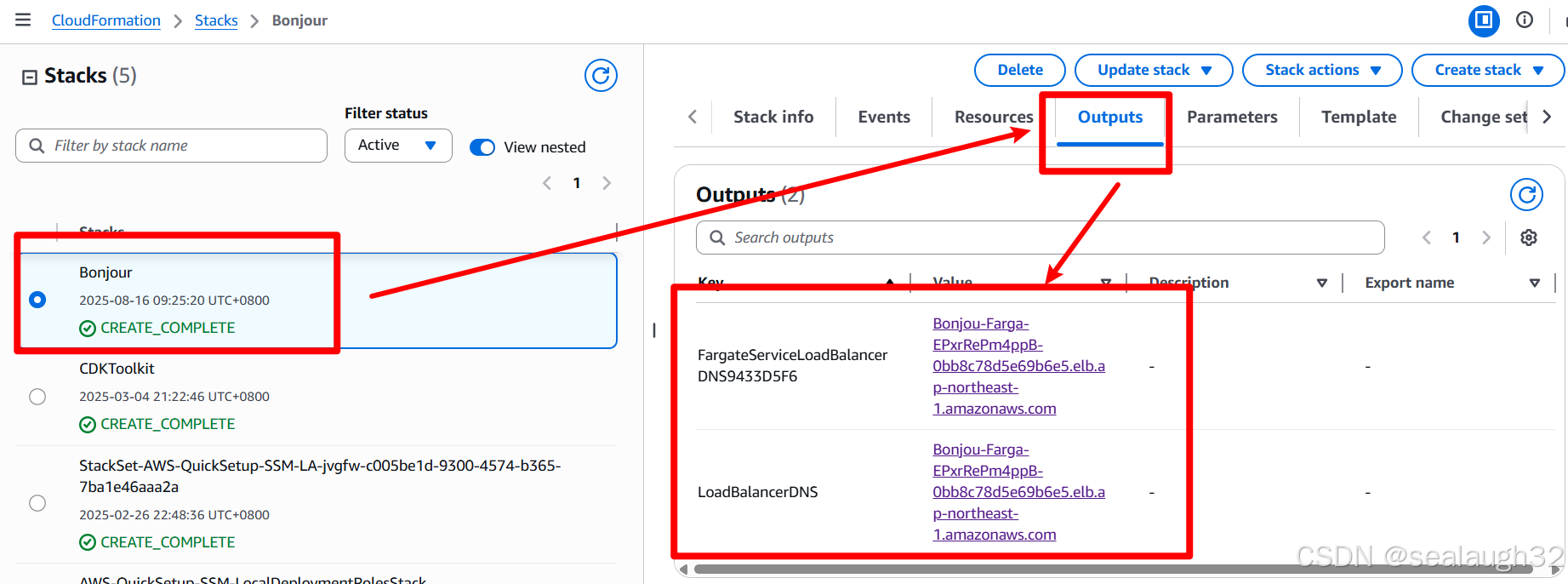

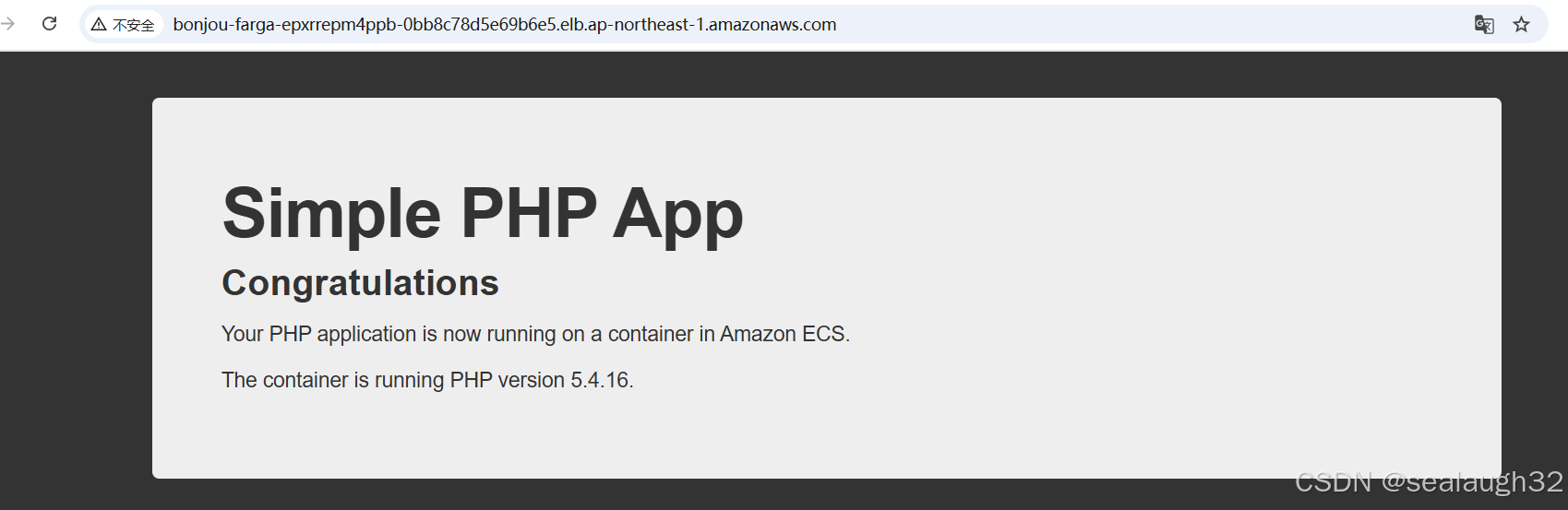

2.4 验证部署结果

2.5 clean up创建的cloudformation

cdk destroy

3. 练习设定ecs的fargate service + network load balancer(复数task)

3.1 全体架构

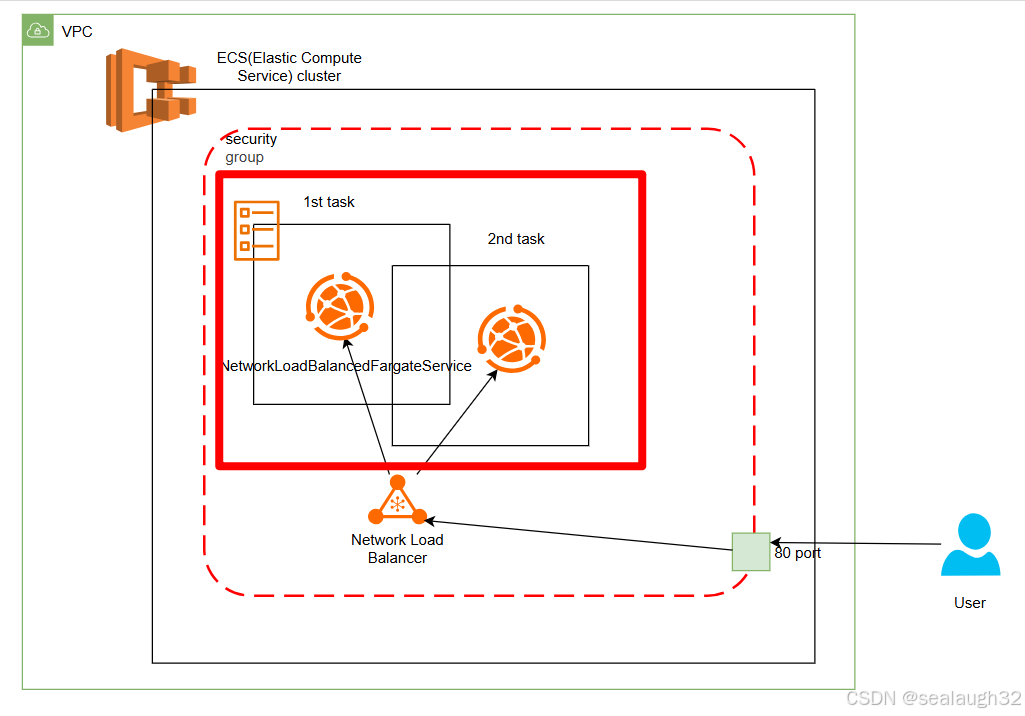

这里看出，为了保持高可用性，运行service的task采用复数，并且使用NetworkLoadBalancer进行负载均衡。

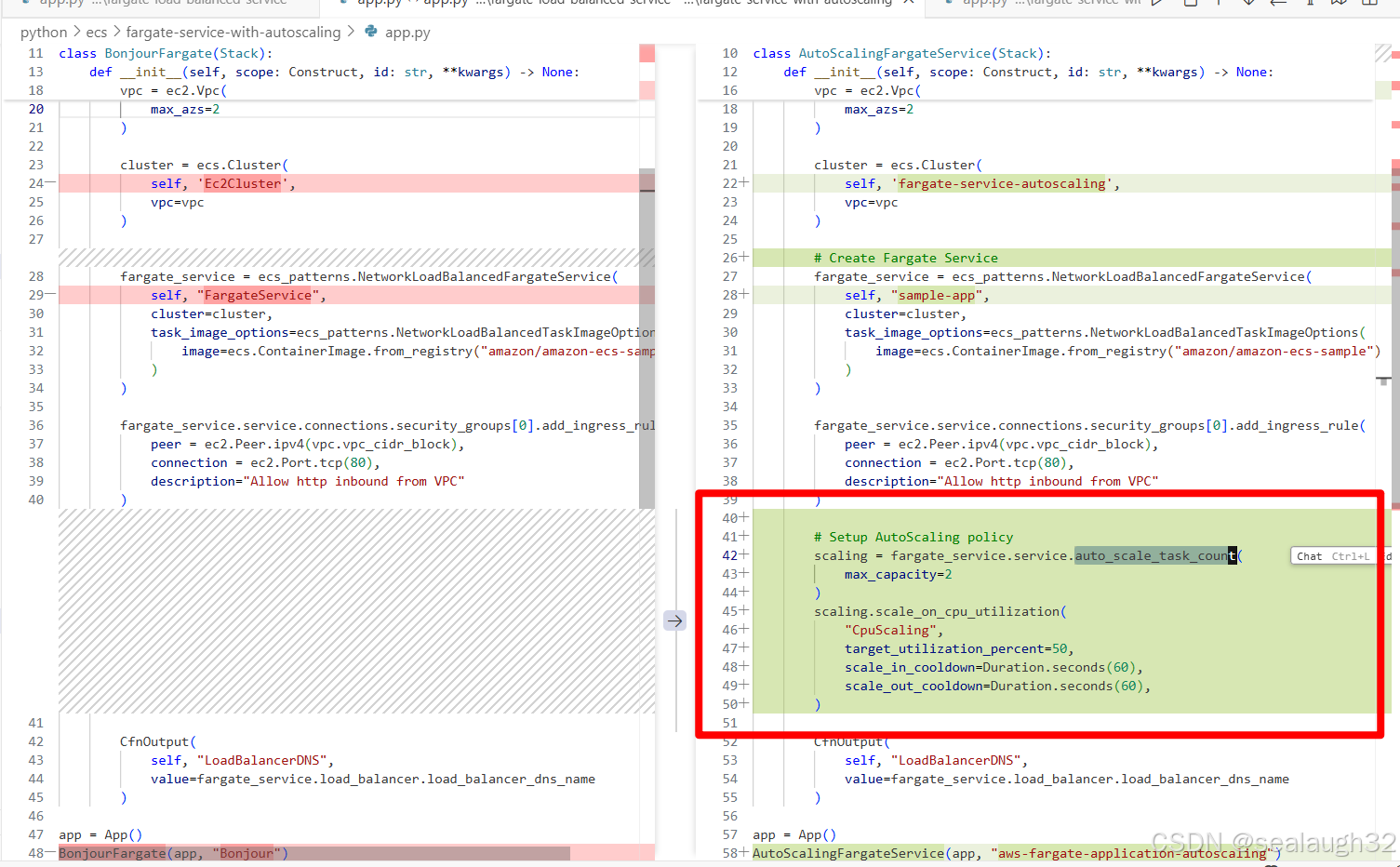

3.2 和单一task的代码差分

代码的差分，可以看得到就是在对service进行auto_scale_task_count，主要是设定复数运行service的task数量。

# Setup AutoScaling policy
        scaling = fargate_service.service.auto_scale_task_count(
            max_capacity=2
        )
        scaling.scale_on_cpu_utilization(
            "CpuScaling",
            target_utilization_percent=50,
            scale_in_cooldown=Duration.seconds(60),
            scale_out_cooldown=Duration.seconds(60),
        )

3.3 执行代码

python -m venv ./venv
source ./.venv/Scripts/activate
pip -r requirements.txt
cdk --require-approval never deploy

创建好了fargate service之后，进行验证。

访问loader balancer

3.4 查看fargate service的运行task的数量

• 首先取得fargate cluster的列表(问AI即可)

aws ecs list-clusters --query 'clusterArns[]' --output text | xargs -n 1 basename
aws-fargate-application-autoscaling-fargateserviceautoscalingD107CF93-qVM8jqB1V64n

• 取得service的一览

  # Get the ECS service name
  aws ecs list-services --cluster aws-fargate-application-autoscaling-fargateserviceautoscalingD107CF93-qVM8jqB1V64n


  得到json对象

  {
      "serviceArns": [
          "arn:aws:ecs:ap-northeast-1:081353481087:service/aws-fargate-application-autoscaling-fargateserviceautoscalingD107CF93-qVM8jqB1V64n/aws-fargate-application-autoscaling-sampleappServiceE7504FDB-rE2iT76J8A17"
      ]
  }


• 最后得到task运行的数量

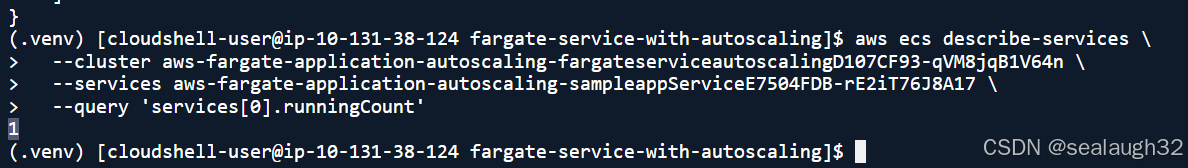

  # Get running task count (replace cluster/service names)
  aws ecs describe-services \
    --cluster aws-fargate-application-autoscaling-fargateserviceautoscalingD107CF93-qVM8jqB1V64n \
    --services aws-fargate-application-autoscaling-sampleappServiceE7504FDB-rE2iT76J8A17 \
    --query 'services[0].runningCount'



  这里可以看出，虽然max_capacity=2，但是默认还是1。

3.5 注意清理环境

cdk destroy

4. 练习设定ecs复数task的fargate service + efs

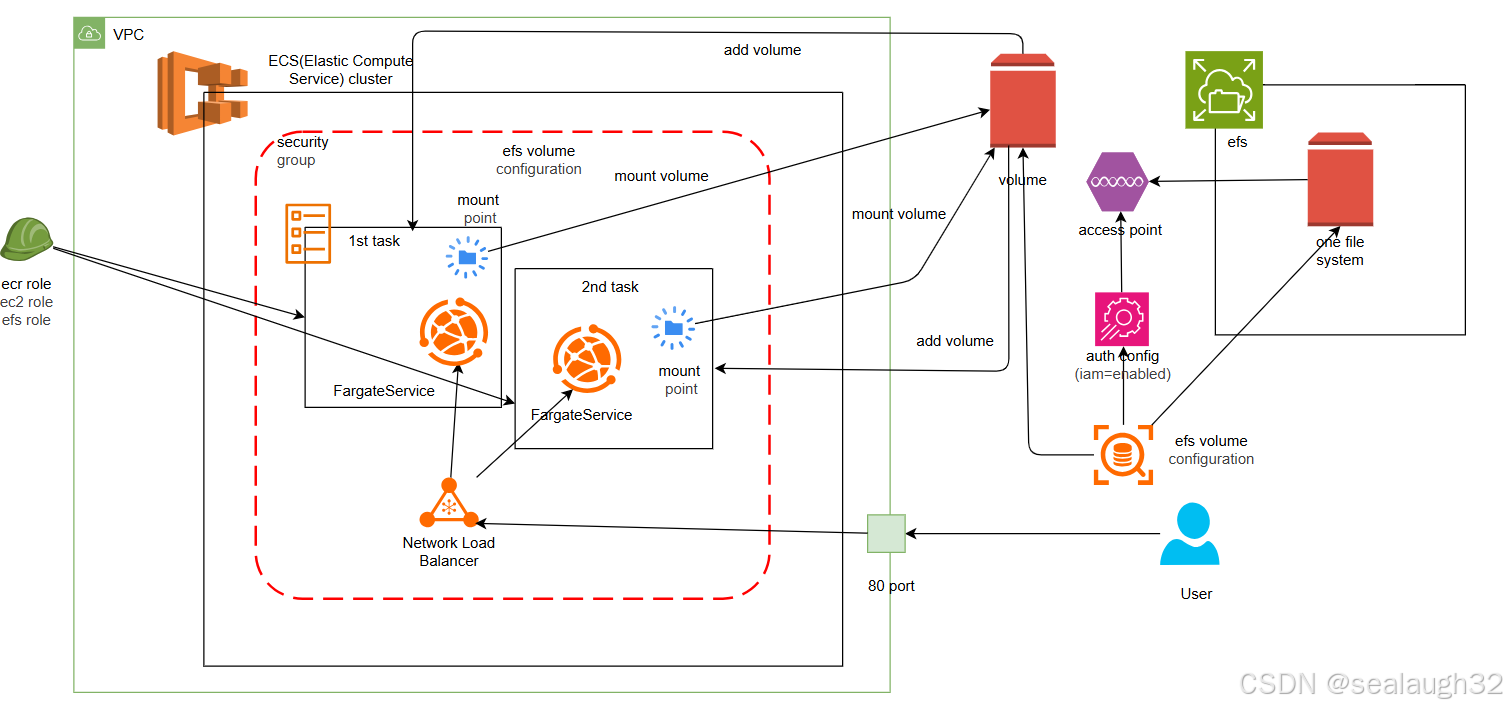

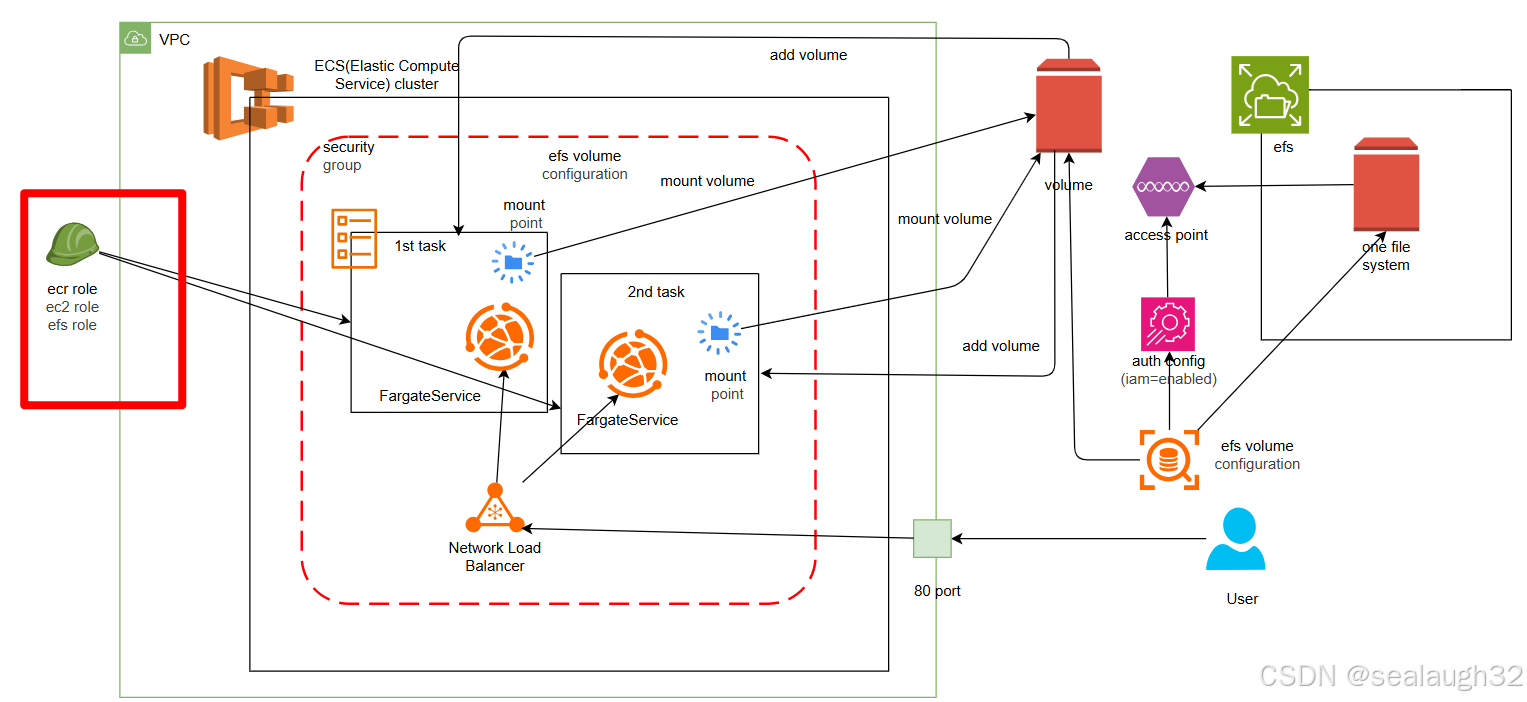

4.1 全体架构

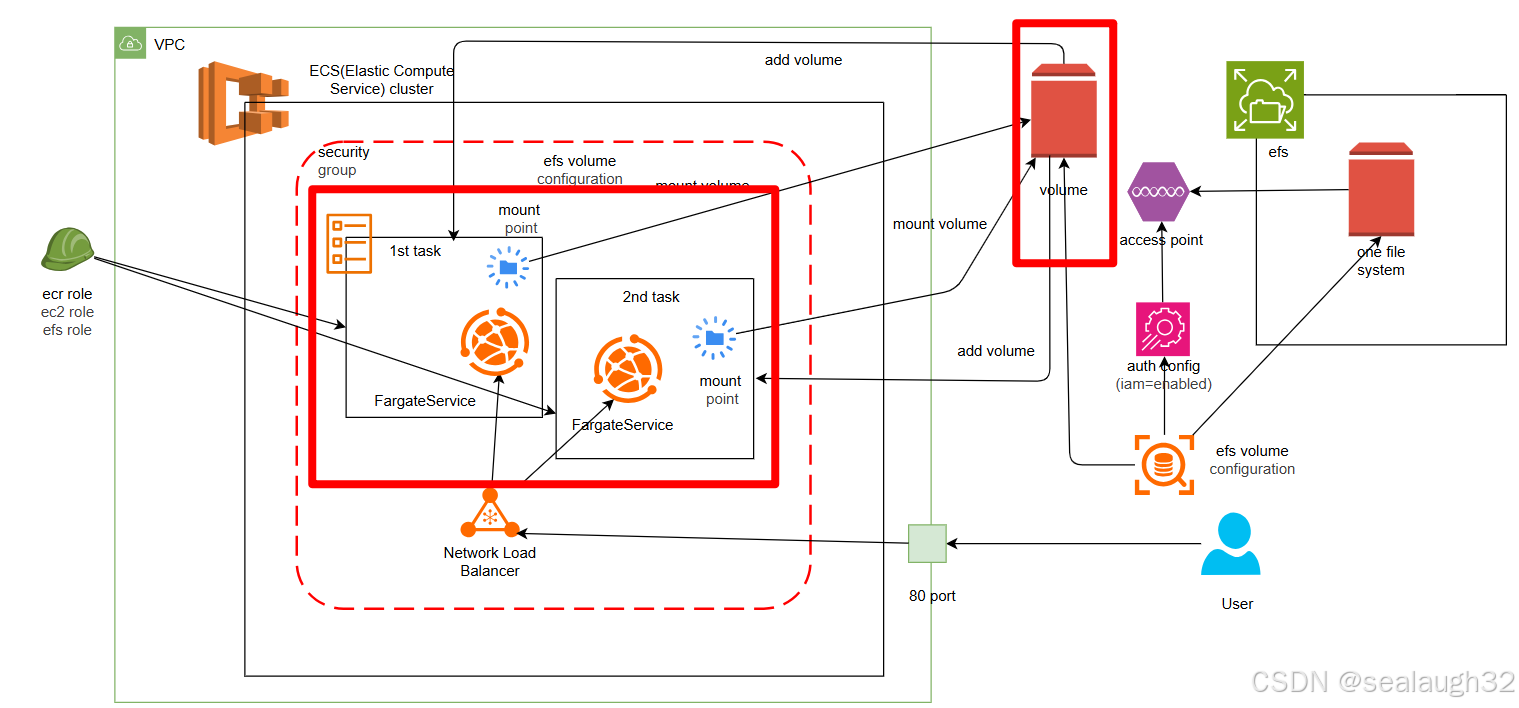

4.2 代码解析

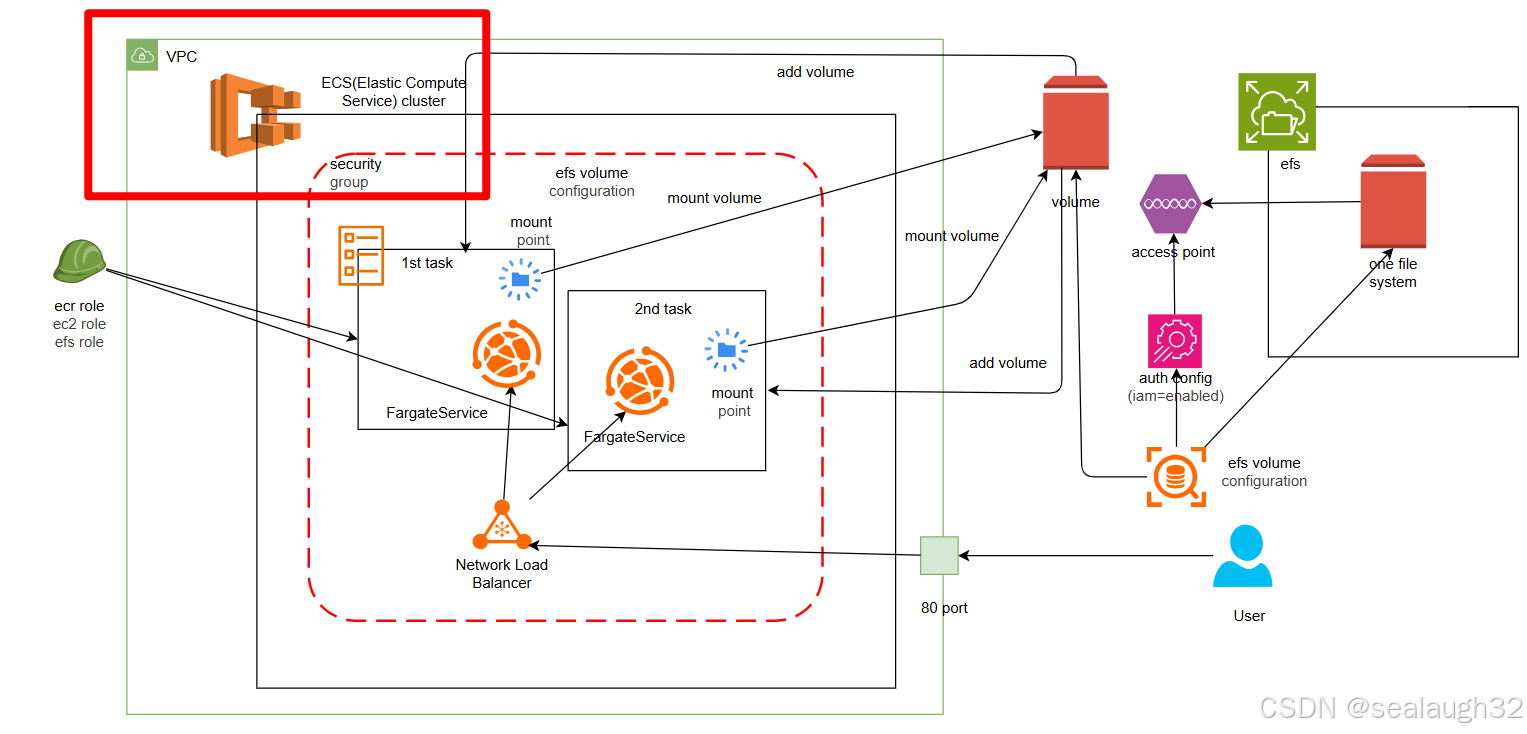

4.2.1 创建常量，vpc以及cluster

PREFIX      = 'efs-sample-'
        APP_PATH    = '/var/www/'
        VOLUME_NAME = 'cdk-ecs-sample-efs-volume'

        vpc = ec2.Vpc(
            self, PREFIX + 'Vpc',
            max_azs=2
        )

        ecs_cluster = ecs.Cluster(
            self, PREFIX + 'Cluster',
            vpc=vpc,
        )

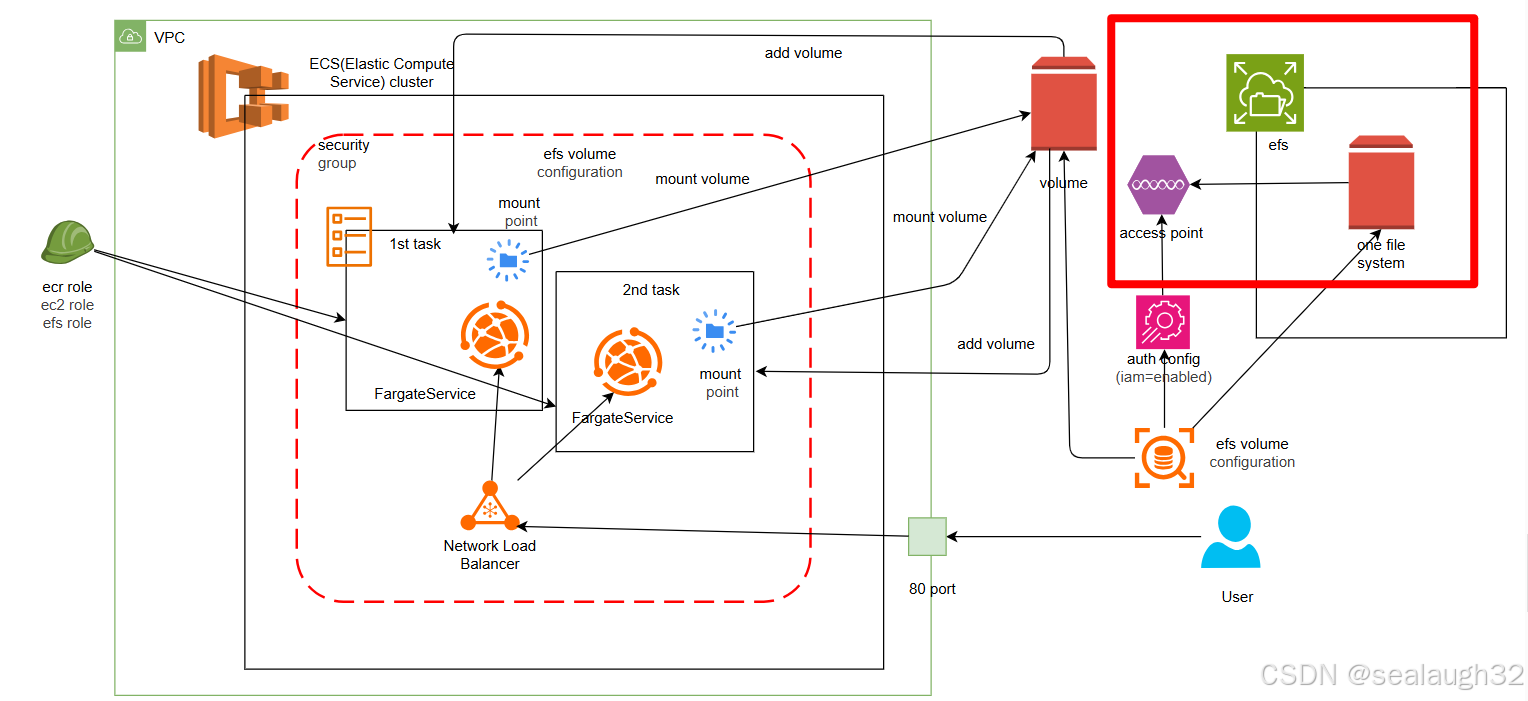

4.2.2 创建efs file system和access point

 # Create an Amazon Elastic File System (EFS), with the logical ID CDK-efs-sample-EFS
        file_system = efs.FileSystem(
            self, PREFIX + 'EFS',
            vpc=vpc,
            lifecycle_policy=efs.LifecyclePolicy.AFTER_14_DAYS,
            performance_mode=efs.PerformanceMode.GENERAL_PURPOSE,
        )

        # Create an Access Point for the EFS, with the logical ID CDK-efs-sample-AccessPoint
        access_point = efs.AccessPoint(
            self, PREFIX + 'AccessPoint',
            file_system=file_system,
        )

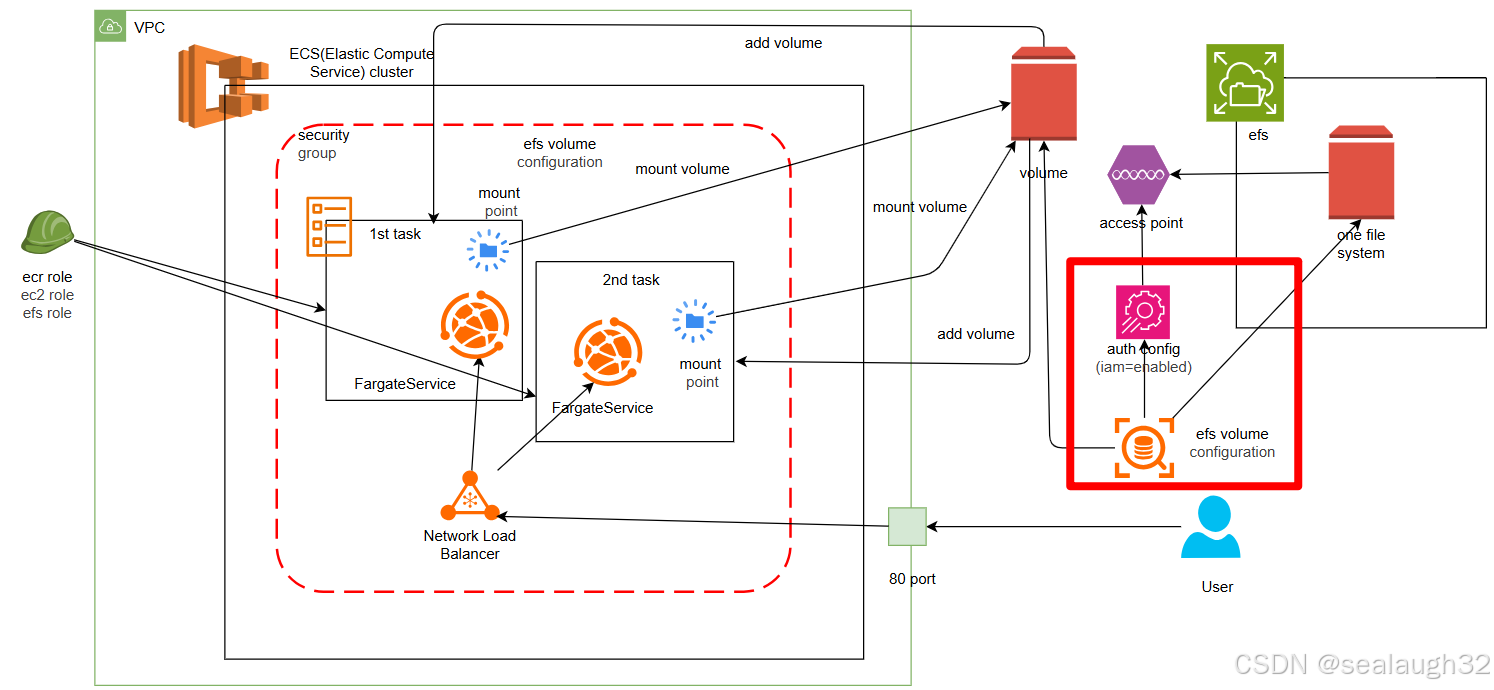

4.2.3 创建efs_volume_configuration

        # Create a new EFS volume configuration for the ECS Task
        efs_volume_configuration = ecs.EfsVolumeConfiguration(
            file_system_id=file_system.file_system_id,

            # The logical ID of the Access Point to use.
            # This is a string, not an ARN.
            authorization_config=ecs.AuthorizationConfig(
                access_point_id=access_point.access_point_id,
                iam='ENABLED',
            ),
            transit_encryption='ENABLED',
        )

4.2.4 创建role

 # Create a new IAM Role for the ECS Task
        task_role = iam.Role (
            self, PREFIX + 'EcsTaskRole',
            assumed_by=iam.ServicePrincipal('ecs-tasks.amazonaws.com').with_conditions({
                "StringEquals": {
                    "aws:SourceAccount": Stack.of(self).account
                },
                "ArnLike":{
                    "aws:SourceArn":"arn:aws:ecs:" + Stack.of(self).region + ":" + Stack.of(self).account + ":*"
                },
            }),
        )

        # Attach a managed policy to the IAM Role
        task_role.attach_inline_policy(
            iam.Policy(self, PREFIX +'Policy',
                statements=[
                    iam.PolicyStatement(
                        effect=iam.Effect.ALLOW,
                        resources=['*'],
                        actions=[
                            "ecr:GetAuthorizationToken",
                            "ec2:DescribeAvailabilityZones"
                        ]
                    ),
                    iam.PolicyStatement(
                        sid='AllowEfsAccess',
                        effect=iam.Effect.ALLOW,
                        resources=['*'],
                        actions=[
                            'elasticfilesystem:ClientRootAccess',
                            'elasticfilesystem:ClientWrite',
                            'elasticfilesystem:ClientMount',
                            'elasticfilesystem:DescribeMountTargets'
                        ]
                    )
                ]
            )
        )

4.2.5 创建efs volume以及task definition

 # Create a new Fargate Task Definition
        task_definition = ecs.FargateTaskDefinition(
            self, PREFIX + 'FargateTaskDef',
            task_role=task_role,
        )

        # Add a new volume to the Fargate Task Definition
        task_definition.add_volume(
            name=VOLUME_NAME,
            efs_volume_configuration=efs_volume_configuration,
        )

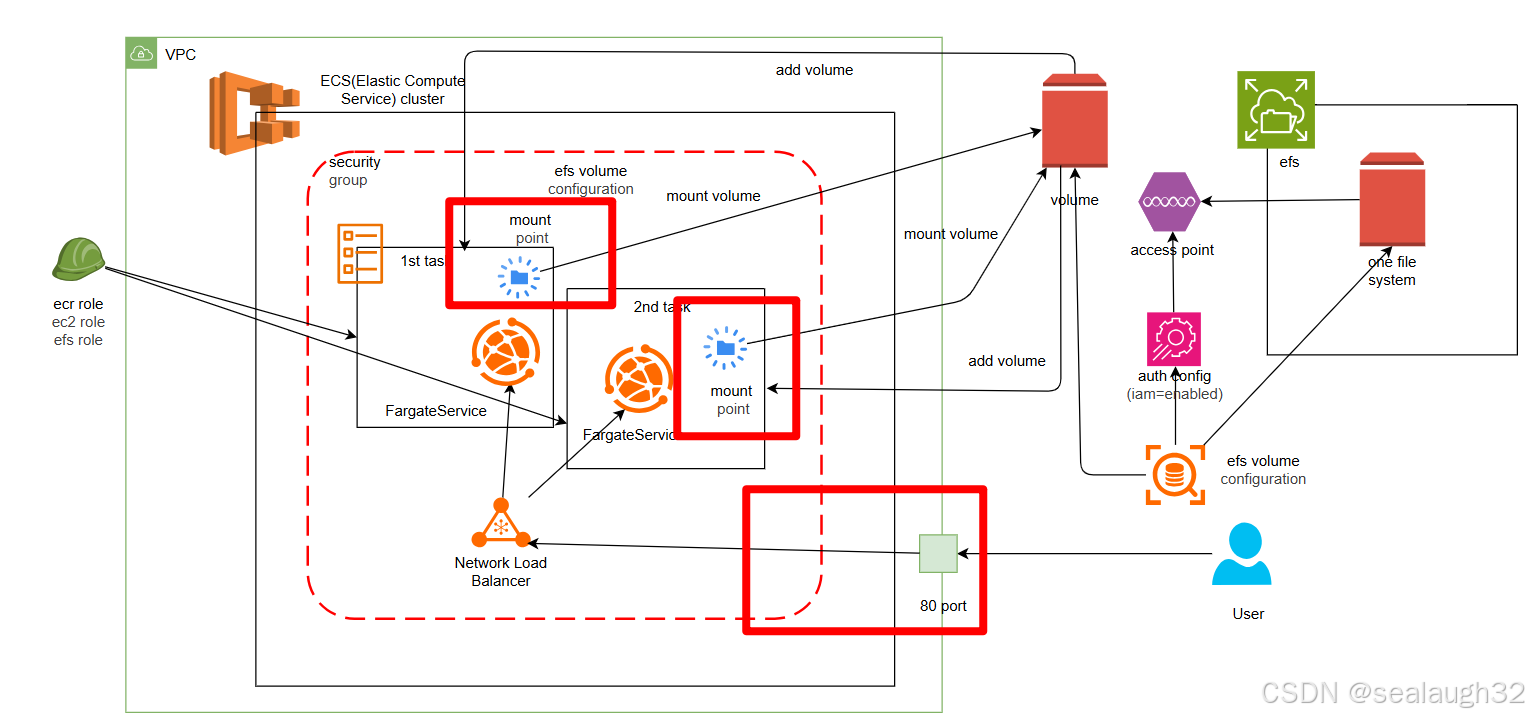

4.2.6 创建mount point以及port mapping

# Add a new container to the Fargate Task Definition
        mount_point = ecs.MountPoint(
            container_path=APP_PATH+VOLUME_NAME,
            source_volume=VOLUME_NAME,
            read_only=False,
        )

        # Add a new port mapping to the Fargate Task Definition
        port_mapping = ecs.PortMapping(
            container_port=80,
            host_port=80,
            protocol=ecs.Protocol.TCP,
        )

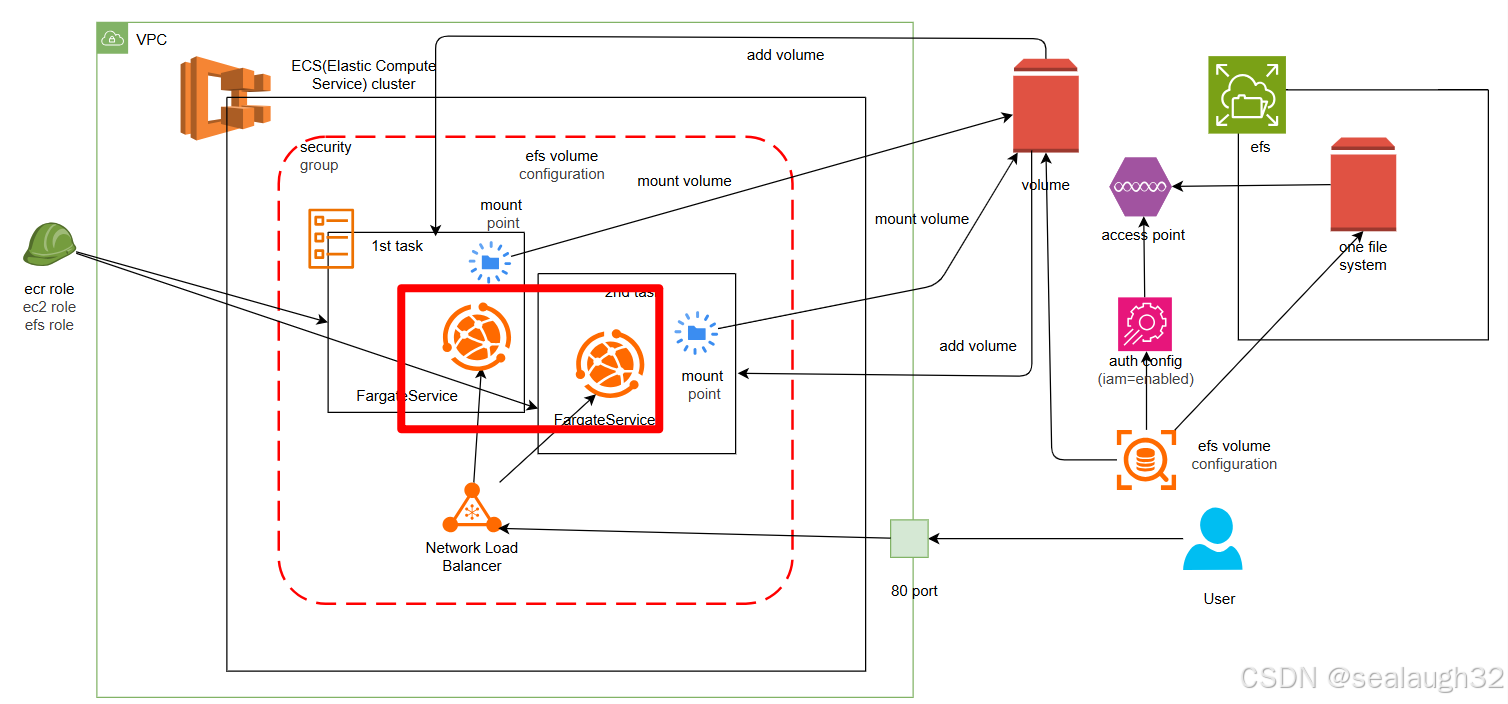

4.2.7 创建fargate service

 # Create a new Fargate Service with ALB
        fargate_service = ecs_patterns.ApplicationLoadBalancedFargateService(
            self, PREFIX + 'Service',
            cluster=ecs_cluster,
            desired_count=1,
            task_definition=task_definition,
            task_subnets=ec2.SubnetSelection(
                subnet_type=ec2.SubnetType.PRIVATE_WITH_EGRESS,
            ),
            platform_version=ecs.FargatePlatformVersion.LATEST,
            public_load_balancer=True,
            enable_execute_command=True,
            enable_ecs_managed_tags=True,

        )

4.2.8 在fargate service和efs之间设定网络

# Allow the ECS Service to connect to the EFS
        fargate_service.service.connections.allow_from(file_system, ec2.Port.tcp(2049)),

        # Allow the EFS to connect to the ECS Service
        fargate_service.service.connections.allow_to(file_system, ec2.Port.tcp(2049)),

4.2.9 对在fargate service设定scalable

# Create a new Auto Scaling Policy for the ECS Service
        scalable_target = fargate_service.service.auto_scale_task_count(
            min_capacity=2,
            max_capacity=20,
        )

        # Create a new Auto Scaling Policy for the ECS Service
        scalable_target.scale_on_cpu_utilization("CpuScaling",
            target_utilization_percent=50,
        )

        # Create a new Auto Scaling Policy for the ECS Service
        scalable_target.scale_on_memory_utilization("MemoryScaling",
            target_utilization_percent=50,
        )

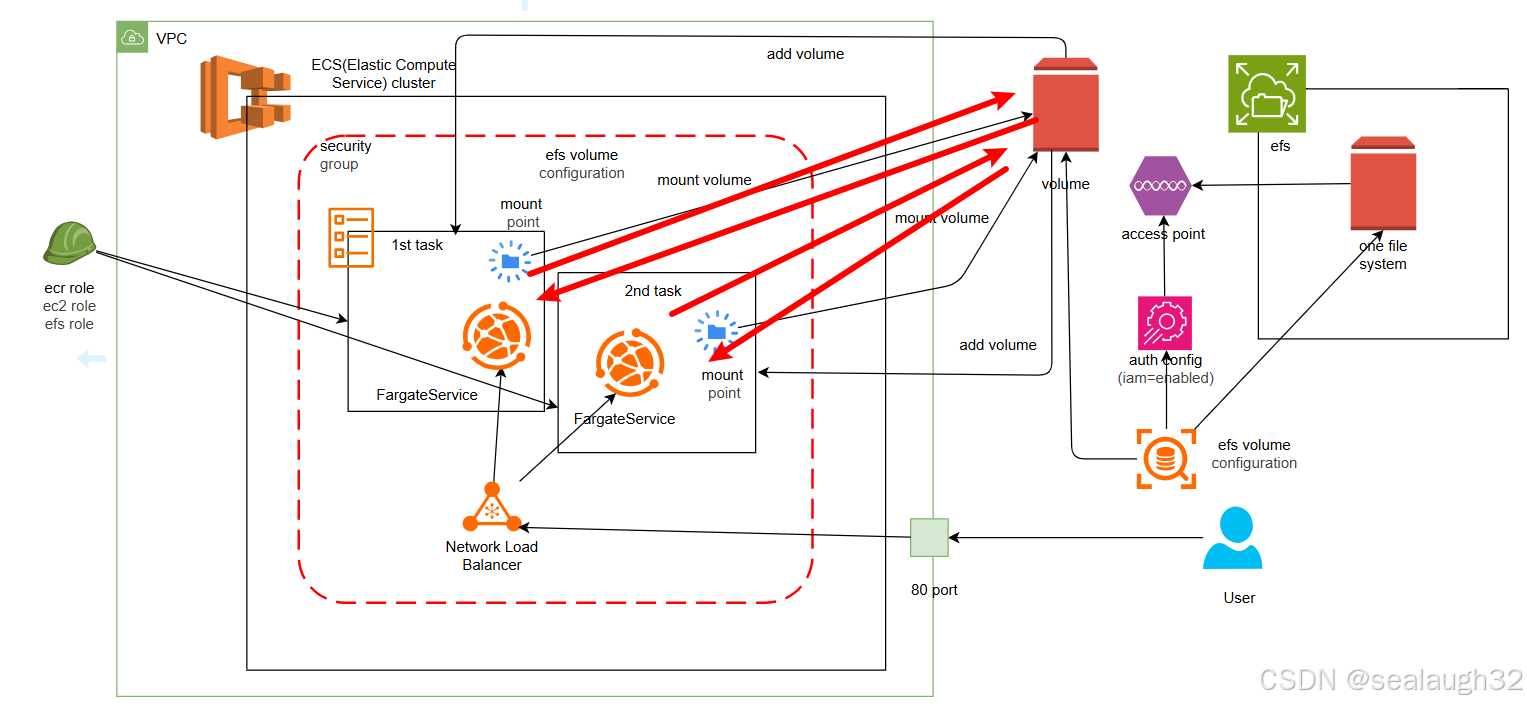

这里为了检测，多个task执行的时候，会共享相同的efs volume，配置min_capacity=2

4.3 整体执行并检测task是不是真正的共享使用efs volume

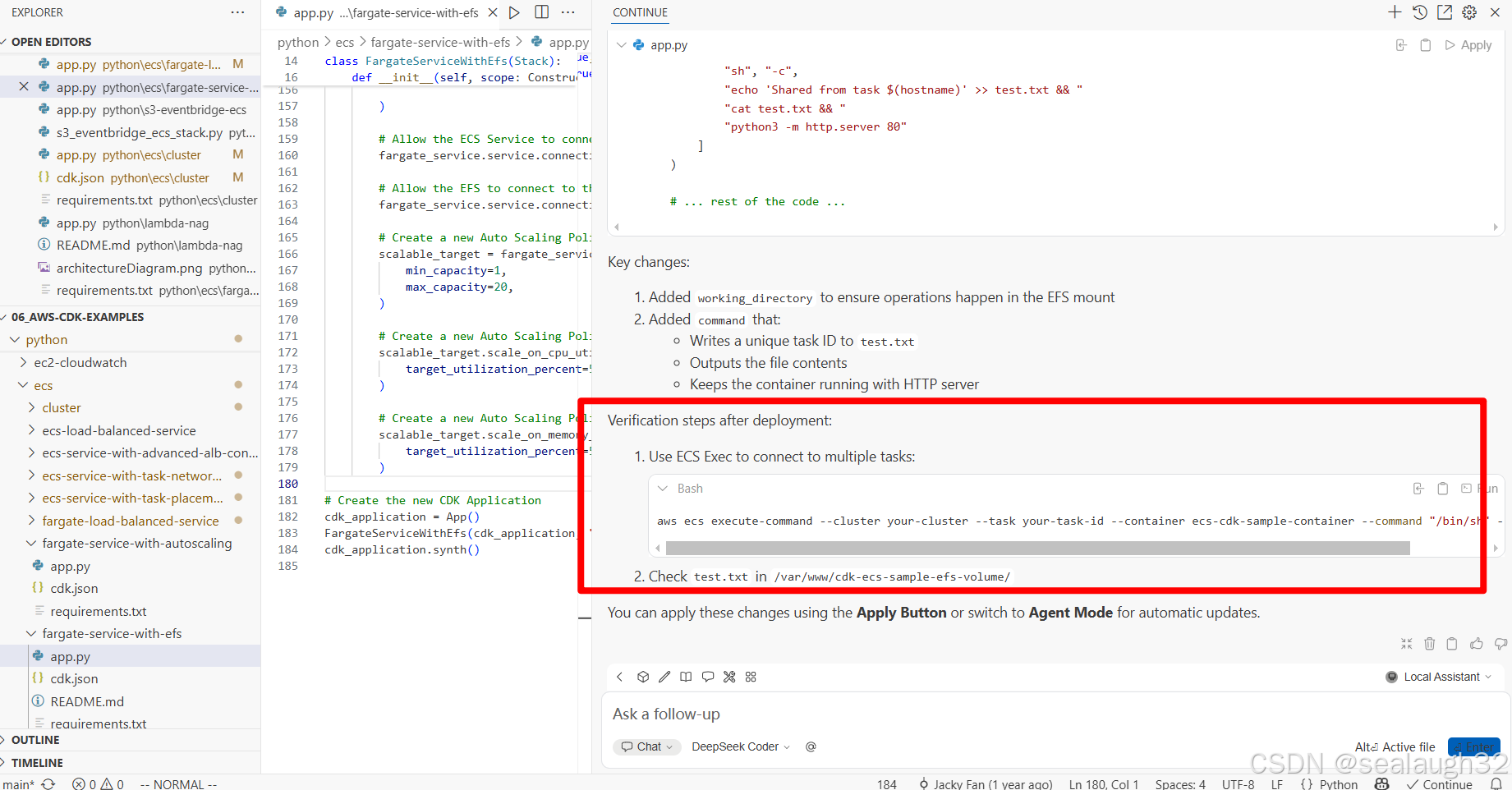

4.3.1 AI告诉如何在deploy两个以上的task后如何看mount point

接下来进行验证（未完待续）。
