Spring 源码学习（十一）—— webmvc 配置

发布于：2025-08-18 ⋅ 阅读:(15) ⋅ 点赞:(0)

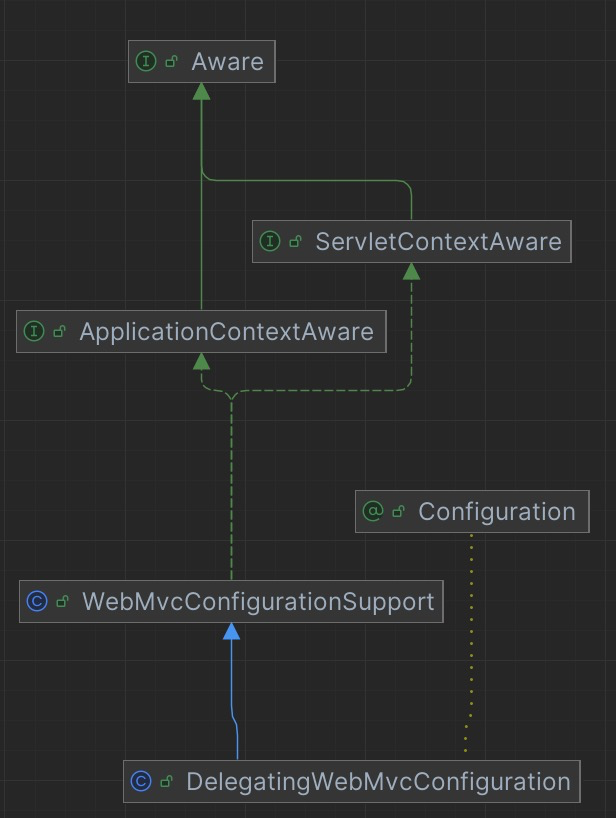

1. WebMvcConfigurationSupport 类

        WebMvcConfigurationSupport 类提供了对 MVC 的配置支持；

1.1 变量

1.1.1 静态变量

public class WebMvcConfigurationSupport implements ApplicationContextAware, ServletContextAware {

	private static final boolean romePresent;

	private static final boolean jaxb2Present;

	private static final boolean jackson2Present;

	private static final boolean jackson2XmlPresent;

	private static final boolean jackson2SmilePresent;

	private static final boolean jackson2CborPresent;

	private static final boolean gsonPresent;

	private static final boolean jsonbPresent;

	static {
		ClassLoader classLoader = WebMvcConfigurationSupport.class.getClassLoader();
		romePresent = ClassUtils.isPresent("com.rometools.rome.feed.WireFeed", classLoader);
		jaxb2Present = ClassUtils.isPresent("javax.xml.bind.Binder", classLoader);
		jackson2Present = ClassUtils.isPresent("com.fasterxml.jackson.databind.ObjectMapper", classLoader) &&
				ClassUtils.isPresent("com.fasterxml.jackson.core.JsonGenerator", classLoader);
		jackson2XmlPresent = ClassUtils.isPresent("com.fasterxml.jackson.dataformat.xml.XmlMapper", classLoader);
		jackson2SmilePresent = ClassUtils.isPresent("com.fasterxml.jackson.dataformat.smile.SmileFactory", classLoader);
		jackson2CborPresent = ClassUtils.isPresent("com.fasterxml.jackson.dataformat.cbor.CBORFactory", classLoader);
		gsonPresent = ClassUtils.isPresent("com.google.gson.Gson", classLoader);
		jsonbPresent = ClassUtils.isPresent("javax.json.bind.Jsonb", classLoader);
	}
}

        WebMvcConfigurationSupport 类中静态变量有 8 个，用于检测当前可用的序列化/反序列化库：其中 romePresent 属性通过检测 com.rometools.rome.feed.WireFeed 类是否存在来检测 ROME 库（RSS/Atom 订阅处理）是否存在，jaxb2Present 通过 javax.xml.bind.Binder 类检测 JAXB 库（XML绑定标准（JavaEE 标准）），jackson2Present 同时检查 com.fasterxml.jackson.databind.ObjectMapper 与 com.fasterxml.jackson.core.JsonGenerator 类来判断是否引入了 Jackson JSON 库（JSON 核心处理库），jackson2XmlPresent 通过 com.fasterxml.jackson.dataformat.xml.XmlMapper 类检测 Jackson XML 库（XML处理扩展），jackson2SmilePresent 通过 com.fasterxml.jackson.dataformat.smile.SmileFactory 类检测 Jackson Smile 库（二进制JSON格式处理），jackson2CborPresent 通过 com.fasterxml.jackson.dataformat.cbor.CBORFactory 类检测 Jackson CBOR 库（类似 MessagePack 的简洁二进制对象表示），gsonPresent 通过 com.google.gson.Gson 类检测 Google Gson 库（Google 的 JSON 库），jsonbPresent 通过 javax.json.bind.Jsonb 类检测 JSON-B 库（JavaEE标准JSON处理）。

1.1.2 类变量

public class WebMvcConfigurationSupport implements ApplicationContextAware, ServletContextAware {

	@Nullable
	private ApplicationContext applicationContext;

	@Nullable
	private ServletContext servletContext;

	@Nullable
	private List<Object> interceptors;

	@Nullable
	private PathMatchConfigurer pathMatchConfigurer;

	@Nullable
	private ContentNegotiationManager contentNegotiationManager;

	@Nullable
	private List<HandlerMethodArgumentResolver> argumentResolvers;

	@Nullable
	private List<HandlerMethodReturnValueHandler> returnValueHandlers;

	@Nullable
	private List<HttpMessageConverter<?>> messageConverters;

	@Nullable
	private Map<String, CorsConfiguration> corsConfigurations;
}

        WebMvcConfigurationSupport 类中的 applicationContext 与 servletContext 属性分别保存的是当前应用程序与 Servlet 上下文，interceptors 为当前程序注册的拦截器缓存列表，pathMatchConfigurer 属性为路径匹配配置，contentNegotiationManager 属性用于控制客户端请求类型

1.2 方法

        WebMvcConfigurationSupport 类作为一个 spring 配置类，理所当然通过 Bean 注解声明了并向上下文中注入了很多必要对象，因此本文将基于使用 Bean 修饰的方法入手，即从配置对象入手对该配置类进行方法分析。

1.2.1 requestMappingHandlerMapping 方法

public class WebMvcConfigurationSupport implements ApplicationContextAware, ServletContextAware {
	@Bean
	@SuppressWarnings("deprecation")
	public RequestMappingHandlerMapping requestMappingHandlerMapping(
			@Qualifier("mvcContentNegotiationManager") ContentNegotiationManager contentNegotiationManager,
			@Qualifier("mvcConversionService") FormattingConversionService conversionService,
			@Qualifier("mvcResourceUrlProvider") ResourceUrlProvider resourceUrlProvider) {

		RequestMappingHandlerMapping mapping = createRequestMappingHandlerMapping();
		mapping.setOrder(0);
		mapping.setInterceptors(getInterceptors(conversionService, resourceUrlProvider));
		mapping.setContentNegotiationManager(contentNegotiationManager);
		mapping.setCorsConfigurations(getCorsConfigurations());

		PathMatchConfigurer configurer = getPathMatchConfigurer();

		Boolean useSuffixPatternMatch = configurer.isUseSuffixPatternMatch();
		if (useSuffixPatternMatch != null) {
			mapping.setUseSuffixPatternMatch(useSuffixPatternMatch);
		}
		Boolean useRegisteredSuffixPatternMatch = configurer.isUseRegisteredSuffixPatternMatch();
		if (useRegisteredSuffixPatternMatch != null) {
			mapping.setUseRegisteredSuffixPatternMatch(useRegisteredSuffixPatternMatch);
		}
		Boolean useTrailingSlashMatch = configurer.isUseTrailingSlashMatch();
		if (useTrailingSlashMatch != null) {
			mapping.setUseTrailingSlashMatch(useTrailingSlashMatch);
		}

		UrlPathHelper pathHelper = configurer.getUrlPathHelper();
		if (pathHelper != null) {
			mapping.setUrlPathHelper(pathHelper);
		}
		PathMatcher pathMatcher = configurer.getPathMatcher();
		if (pathMatcher != null) {
			mapping.setPathMatcher(pathMatcher);
		}
		Map<String, Predicate<Class<?>>> pathPrefixes = configurer.getPathPrefixes();
		if (pathPrefixes != null) {
			mapping.setPathPrefixes(pathPrefixes);
		}

		return mapping;
	}
}

        requestMappingHandlerMapping 方法用于声明和构建 RequestMappingHandlerMapping 对象及 DispatcherServlet 类中需要的 HandlerMapping 对象一个实现，执行顺序为 0，表示首先进行执行：其首先通过 createRequestMappingHandlerMapping 方法创建基础 RequestMappingHandlerMapping 对象，并将其排序值置为 1，使用 getInterceptors 为其设置拦截器数组，将其 contentNegotiationManager 属性初始化为注入的 contentNegotiationManager 值，然后通过 getCorsConfigurations 方法获取跨域配置并保存到 CorsConfigurations 属性之中；之后根据 getPathMatchConfigurer 方法获取到的路径匹配配置项设置不同的属性值，其设置的属性值有是否进行后缀匹配 useSuffixPatternMatch（默认 false）、后缀匹配模式是否只用于扩展路径的 useRegisteredSuffixPatternMatch （默认 false）、是否默认是否可默认匹配后缀反斜杠 useTrailingSlashMatch（默认 true，示例：/users 与 /users/ 都可匹配）、URL 匹配辅助器 urlPathHelper、路径匹配器 pathMatcher 及前缀断言映射 pathPrefixes；在设置完上述属性后返回复制完成的 RequestMappingHandlerMapping 对象。

public class WebMvcConfigurationSupport implements ApplicationContextAware, ServletContextAware {
	protected RequestMappingHandlerMapping createRequestMappingHandlerMapping() {
		return new RequestMappingHandlerMapping();
	}
}

        WebMvcConfigurationSupport 声明的 createRequestMappingHandlerMapping 方法直接创建空 RequestMappingHandlerMapping 对象并返回；

public class WebMvcConfigurationSupport implements ApplicationContextAware, ServletContextAware {
	protected final Object[] getInterceptors(
			FormattingConversionService mvcConversionService,
			ResourceUrlProvider mvcResourceUrlProvider) {
		if (this.interceptors == null) {
			InterceptorRegistry registry = new InterceptorRegistry();
			addInterceptors(registry);
			registry.addInterceptor(new ConversionServiceExposingInterceptor(mvcConversionService));
			registry.addInterceptor(new ResourceUrlProviderExposingInterceptor(mvcResourceUrlProvider));
			this.interceptors = registry.getInterceptors();
		}
		return this.interceptors.toArray();
	}

	protected void addInterceptors(InterceptorRegistry registry) {
	}
}

        WebMvcConfigurationSupport 声明的 getInterceptors 方法首先会通过 interceptors 属性值判断是否已经加载过拦截器，尚未加载则会使用 mvcConversionService 与 mvcResourceUrlProvider 参数创建 ConversionServiceExposingInterceptor 对象与 ResourceUrlProviderExposingInterceptor 对象，并使用新建的 InterceptorRegistry 注册器对象将上述两对象及子类通过 addInterceptors 方法注册的拦截器转换一下然后赋值到 interceptors 属性之中并在最后返回 interceptors 属性值；

public class WebMvcConfigurationSupport implements ApplicationContextAware, ServletContextAware {
	protected final Map<String, CorsConfiguration> getCorsConfigurations() {
		if (this.corsConfigurations == null) {
			CorsRegistry registry = new CorsRegistry();
			addCorsMappings(registry);
			this.corsConfigurations = registry.getCorsConfigurations();
		}
		return this.corsConfigurations;
	}

	protected void addCorsMappings(CorsRegistry registry) {
	}
}

        getCorsConfigurations 方法用于获取跨域配置，其和 getInterceptors 方法一样也是可以通过子类实现 addCorsMappings 方法进行扩展，但在  WebMvcConfigurationSupport 类中不提供默认值；

public class WebMvcConfigurationSupport implements ApplicationContextAware, ServletContextAware {
	protected PathMatchConfigurer getPathMatchConfigurer() {
		if (this.pathMatchConfigurer == null) {
			this.pathMatchConfigurer = new PathMatchConfigurer();
			configurePathMatch(this.pathMatchConfigurer);
		}
		return this.pathMatchConfigurer;
	}

	protected void configurePathMatch(PathMatchConfigurer configurer) {
	}
}

        getPathMatchConfigurer 方法与 getInterceptors 方法一样也是可以通过子类实现 configurePathMatch 方法进行扩展，其在  WebMvcConfigurationSupport 类中也不提供默认值；

1.2.2 mvcPathMatcher 方法

public class WebMvcConfigurationSupport implements ApplicationContextAware, ServletContextAware {
	@Bean
	public PathMatcher mvcPathMatcher() {
		PathMatcher pathMatcher = getPathMatchConfigurer().getPathMatcher();
		return (pathMatcher != null ? pathMatcher : new AntPathMatcher());
	}
}

        mvcPathMatcher 方法首先尝试从 pathMatchConfigurer 属性中获取 pathMatcher 对象来注入，否则直接新建 AntPathMatcher 对象进行注入；

1.2.3 mvcUrlPathHelper 方法

public class WebMvcConfigurationSupport implements ApplicationContextAware, ServletContextAware {
	@Bean
	public UrlPathHelper mvcUrlPathHelper() {
		UrlPathHelper pathHelper = getPathMatchConfigurer().getUrlPathHelper();
		return (pathHelper != null ? pathHelper : new UrlPathHelper());
	}
}

        mvcUrlPathHelper 方法首先也会尝试从 pathMatchConfigurer 属性中获取 mvcUrlPathHelper 对象注入，否则注入新建的 UrlPathHelper 对象；

1.2.4 mvcContentNegotiationManager 方法

public class WebMvcConfigurationSupport implements ApplicationContextAware, ServletContextAware {
	@Bean
	public ContentNegotiationManager mvcContentNegotiationManager() {
		if (this.contentNegotiationManager == null) {
			ContentNegotiationConfigurer configurer = new ContentNegotiationConfigurer(this.servletContext);
			configurer.mediaTypes(getDefaultMediaTypes());
			configureContentNegotiation(configurer);
			this.contentNegotiationManager = configurer.buildContentNegotiationManager();
		}
		return this.contentNegotiationManager;
	}

	protected void configureContentNegotiation(ContentNegotiationConfigurer configurer) {
	}
}

        mvcContentNegotiationManager 方法在 contentNegotiationManager 属性不为空时直接返回，否则首先会使用 servlet 上下文创建 ContentNegotiationConfigurer 配置，同时将配置的媒体类型设置 getDefaultMediaTypes 方法值并使用 configureContentNegotiation 将配置交由子类扩展，最后调用 ContentNegotiationConfigurer 配置对象的 buildContentNegotiationManager 方法建造 ContentNegotiationManager 对象并保存到 contentNegotiationManager 属性之后然后返回；

public class WebMvcConfigurationSupport implements ApplicationContextAware, ServletContextAware {
	protected Map<String, MediaType> getDefaultMediaTypes() {
		Map<String, MediaType> map = new HashMap<>(4);
		if (romePresent) {
			map.put("atom", MediaType.APPLICATION_ATOM_XML);
			map.put("rss", MediaType.APPLICATION_RSS_XML);
		}
		if (jaxb2Present || jackson2XmlPresent) {
			map.put("xml", MediaType.APPLICATION_XML);
		}
		if (jackson2Present || gsonPresent || jsonbPresent) {
			map.put("json", MediaType.APPLICATION_JSON);
		}
		if (jackson2SmilePresent) {
			map.put("smile", MediaType.valueOf("application/x-jackson-smile"));
		}
		if (jackson2CborPresent) {
			map.put("cbor", MediaType.APPLICATION_CBOR);
		}
		return map;
	}
}

        getDefaultMediaTypes 方法根据常量值（即是否引入对应的序列化/反序列化包）来配置对应的媒体支持；romePresent 常量为 true 即引入了 ROME 库后支持 APPLICATION_ATOM_XML 与 APPLICATION_RSS_XML，jaxb2Present 或 jackson2XmlPresent 常量为 true 即引入了 JAXB 或 Jackson XML 库后支持 APPLICATION_XML，jackson2Present、gsonPresent 或 jsonbPresent 常量为 true 即引入了 Jackson JSON、Google Gson 或 JSON-B 库后支持 APPLICATION_JSON ，jackson2SmilePresent 常量为 true 即引入了 Jackson Smile 库后支持 application/x-jackson-smile，jackson2CborPresent 常量为 true 即引入了 Jackson CBOR 库后支持 APPLICATION_CBOR。

1.2.5 viewControllerHandlerMapping 方法

public class WebMvcConfigurationSupport implements ApplicationContextAware, ServletContextAware {
	@Bean
	@Nullable
	public HandlerMapping viewControllerHandlerMapping(
			@Qualifier("mvcPathMatcher") PathMatcher pathMatcher,
			@Qualifier("mvcUrlPathHelper") UrlPathHelper urlPathHelper,
			@Qualifier("mvcConversionService") FormattingConversionService conversionService,
			@Qualifier("mvcResourceUrlProvider") ResourceUrlProvider resourceUrlProvider) {
		ViewControllerRegistry registry = new ViewControllerRegistry(this.applicationContext);
		addViewControllers(registry);

		AbstractHandlerMapping handlerMapping = registry.buildHandlerMapping();
		if (handlerMapping == null) {
			return null;
		}
		handlerMapping.setPathMatcher(pathMatcher);
		handlerMapping.setUrlPathHelper(urlPathHelper);
		handlerMapping.setInterceptors(getInterceptors(conversionService, resourceUrlProvider));
		handlerMapping.setCorsConfigurations(getCorsConfigurations());
		return handlerMapping;
	}

	protected void addViewControllers(ViewControllerRegistry registry) {
	}
}

        viewControllerHandlerMapping 方法首先使用 applicationContext 上下文创建 ViewControllerRegistry 注册器，随后使用 addViewControllers 方法对其进行扩展同时调用其 buildHandlerMapping 方法建造 AbstractHandlerMapping 对象，若未成功创建直接返回 null；随后依次为建造的 AbstractHandlerMapping 对象依次设置 pathMatcher、urlPathHelper、Interceptor 拦截器列表及 corsConfigurations 跨域配置。

1.2.6 BeanNameUrlHandlerMapping 方法

public class WebMvcConfigurationSupport implements ApplicationContextAware, ServletContextAware {
	@Bean
	public BeanNameUrlHandlerMapping beanNameHandlerMapping(
			@Qualifier("mvcConversionService") FormattingConversionService conversionService,
			@Qualifier("mvcResourceUrlProvider") ResourceUrlProvider resourceUrlProvider) {

		BeanNameUrlHandlerMapping mapping = new BeanNameUrlHandlerMapping();
		mapping.setOrder(2);
		mapping.setInterceptors(getInterceptors(conversionService, resourceUrlProvider));
		mapping.setCorsConfigurations(getCorsConfigurations());
		return mapping;
	}
}

        beanNameHandlerMapping 方法创建的 BeanNameUrlHandlerMapping 对象执行顺序为 2，其直接新建 BeanNameUrlHandlerMapping 对象并为其设置 nterceptor 拦截器列表及 corsConfigurations 跨配置并返回。

1.2.7 routerFunctionMapping 方法

public class WebMvcConfigurationSupport implements ApplicationContextAware, ServletContextAware {
	@Bean
	public RouterFunctionMapping routerFunctionMapping(
			@Qualifier("mvcConversionService") FormattingConversionService conversionService,
			@Qualifier("mvcResourceUrlProvider") ResourceUrlProvider resourceUrlProvider) {

		RouterFunctionMapping mapping = new RouterFunctionMapping();
		mapping.setOrder(3);
		mapping.setInterceptors(getInterceptors(conversionService, resourceUrlProvider));
		mapping.setCorsConfigurations(getCorsConfigurations());
		mapping.setMessageConverters(getMessageConverters());
		return mapping;
	}
}

        routerFunctionMapping 方法创建的 RouterFunctionMapping 对象执行顺序为 3，直接新建 RouterFunctionMapping 对象并为其设置 nterceptor 拦截器列表、corsConfigurations 跨配置及 HttpMessageConverter 消息转换器列表并返回。

public class WebMvcConfigurationSupport implements ApplicationContextAware, ServletContextAware {
	protected final List<HttpMessageConverter<?>> getMessageConverters() {
		if (this.messageConverters == null) {
			this.messageConverters = new ArrayList<>();
			configureMessageConverters(this.messageConverters);
			if (this.messageConverters.isEmpty()) {
				addDefaultHttpMessageConverters(this.messageConverters);
			}
			extendMessageConverters(this.messageConverters);
		}
		return this.messageConverters;
	}

	protected void configureMessageConverters(List<HttpMessageConverter<?>> converters) {
	}

	protected void extendMessageConverters(List<HttpMessageConverter<?>> converters) {
	}
}

        getMessageConverters 方法在当前 messageConverters 属性不为空时直接返回，否则首先通过 configureMessageConverters 方法在子类中配置消息转换器，若未从子类获取到，则会调用 addDefaultHttpMessageConverters 方法设置默认消息转化器，最后在配置完后通过 extendMessageConverters 方法提供子类对消息转化器的扩展功能。

public class WebMvcConfigurationSupport implements ApplicationContextAware, ServletContextAware {
	protected final void addDefaultHttpMessageConverters(List<HttpMessageConverter<?>> messageConverters) {
		messageConverters.add(new ByteArrayHttpMessageConverter());
		messageConverters.add(new StringHttpMessageConverter());
		messageConverters.add(new ResourceHttpMessageConverter());
		messageConverters.add(new ResourceRegionHttpMessageConverter());
		try {
			messageConverters.add(new SourceHttpMessageConverter<>());
		}
		catch (Throwable ex) {
			// Ignore when no TransformerFactory implementation is available...
		}
		messageConverters.add(new AllEncompassingFormHttpMessageConverter());

		if (romePresent) {
			messageConverters.add(new AtomFeedHttpMessageConverter());
			messageConverters.add(new RssChannelHttpMessageConverter());
		}

		if (jackson2XmlPresent) {
			Jackson2ObjectMapperBuilder builder = Jackson2ObjectMapperBuilder.xml();
			if (this.applicationContext != null) {
				builder.applicationContext(this.applicationContext);
			}
			messageConverters.add(new MappingJackson2XmlHttpMessageConverter(builder.build()));
		}
		else if (jaxb2Present) {
			messageConverters.add(new Jaxb2RootElementHttpMessageConverter());
		}

		if (jackson2Present) {
			Jackson2ObjectMapperBuilder builder = Jackson2ObjectMapperBuilder.json();
			if (this.applicationContext != null) {
				builder.applicationContext(this.applicationContext);
			}
			messageConverters.add(new MappingJackson2HttpMessageConverter(builder.build()));
		}
		else if (gsonPresent) {
			messageConverters.add(new GsonHttpMessageConverter());
		}
		else if (jsonbPresent) {
			messageConverters.add(new JsonbHttpMessageConverter());
		}

		if (jackson2SmilePresent) {
			Jackson2ObjectMapperBuilder builder = Jackson2ObjectMapperBuilder.smile();
			if (this.applicationContext != null) {
				builder.applicationContext(this.applicationContext);
			}
			messageConverters.add(new MappingJackson2SmileHttpMessageConverter(builder.build()));
		}
		if (jackson2CborPresent) {
			Jackson2ObjectMapperBuilder builder = Jackson2ObjectMapperBuilder.cbor();
			if (this.applicationContext != null) {
				builder.applicationContext(this.applicationContext);
			}
			messageConverters.add(new MappingJackson2CborHttpMessageConverter(builder.build()));
		}
	}
}

        addDefaultHttpMessageConverters 方法首先将 ByteArrayHttpMessageConverter、StringHttpMessageConverter、ResourceHttpMessageConverter、ResourceRegionHttpMessageConverter、SourceHttpMessageConverter 及 AllEncompassingFormHttpMessageConverter 保存到 messageConverters 参数之中，随后也会根据常量值即通过判断支持不同的序列化方式，来注入对应的消息转换器。

1.2.8 resourceHandlerMapping 方法

public class WebMvcConfigurationSupport implements ApplicationContextAware, ServletContextAware {
	@Bean
	@Nullable
	public HandlerMapping resourceHandlerMapping(
			@Qualifier("mvcUrlPathHelper") UrlPathHelper urlPathHelper,
			@Qualifier("mvcPathMatcher") PathMatcher pathMatcher,
			@Qualifier("mvcContentNegotiationManager") ContentNegotiationManager contentNegotiationManager,
			@Qualifier("mvcConversionService") FormattingConversionService conversionService,
			@Qualifier("mvcResourceUrlProvider") ResourceUrlProvider resourceUrlProvider) {

		Assert.state(this.applicationContext != null, "No ApplicationContext set");
		Assert.state(this.servletContext != null, "No ServletContext set");

		ResourceHandlerRegistry registry = new ResourceHandlerRegistry(this.applicationContext,
				this.servletContext, contentNegotiationManager, urlPathHelper);
		addResourceHandlers(registry);

		AbstractHandlerMapping handlerMapping = registry.getHandlerMapping();
		if (handlerMapping == null) {
			return null;
		}
		handlerMapping.setPathMatcher(pathMatcher);
		handlerMapping.setUrlPathHelper(urlPathHelper);
		handlerMapping.setInterceptors(getInterceptors(conversionService, resourceUrlProvider));
		handlerMapping.setCorsConfigurations(getCorsConfigurations());
		return handlerMapping;
	}

	protected void addResourceHandlers(ResourceHandlerRegistry registry) {
	}
}

        resourceHandlerMapping 方法首先创建 ResourceHandlerRegistry 对象同时调用 addResourceHandlers 方法在子类上对其进行补充，随后尝试从其中获取 AbstractHandlerMapping 对象；若不为空则依次设置 pathMatcher、urlPathHelper、Interceptor 拦截器列表及 corsConfigurations 跨域配置。

1.2.9 defaultServletHandlerMapping 方法

public class WebMvcConfigurationSupport implements ApplicationContextAware, ServletContextAware {
	@Bean
	@Nullable
	public HandlerMapping defaultServletHandlerMapping() {
		Assert.state(this.servletContext != null, "No ServletContext set");
		DefaultServletHandlerConfigurer configurer = new DefaultServletHandlerConfigurer(this.servletContext);
		configureDefaultServletHandling(configurer);
		return configurer.buildHandlerMapping();
	}

	protected void configureDefaultServletHandling(DefaultServletHandlerConfigurer configurer) {
	}
}

        defaultServletHandlerMapping 方法通过 DefaultServletHandlerConfigurer 对象与 configureDefaultServletHandling 方法配置默认 Servlet  处理器并返回。

 1.2.10 requestMappingHandlerAdapter 方法

public class WebMvcConfigurationSupport implements ApplicationContextAware, ServletContextAware {
	@Bean
	public RequestMappingHandlerAdapter requestMappingHandlerAdapter(
			@Qualifier("mvcContentNegotiationManager") ContentNegotiationManager contentNegotiationManager,
			@Qualifier("mvcConversionService") FormattingConversionService conversionService,
			@Qualifier("mvcValidator") Validator validator) {

		RequestMappingHandlerAdapter adapter = createRequestMappingHandlerAdapter();
		adapter.setContentNegotiationManager(contentNegotiationManager);
		adapter.setMessageConverters(getMessageConverters());
		adapter.setWebBindingInitializer(getConfigurableWebBindingInitializer(conversionService, validator));
		adapter.setCustomArgumentResolvers(getArgumentResolvers());
		adapter.setCustomReturnValueHandlers(getReturnValueHandlers());

		if (jackson2Present) {
			adapter.setRequestBodyAdvice(Collections.singletonList(new JsonViewRequestBodyAdvice()));
			adapter.setResponseBodyAdvice(Collections.singletonList(new JsonViewResponseBodyAdvice()));
		}

		AsyncSupportConfigurer configurer = new AsyncSupportConfigurer();
		configureAsyncSupport(configurer);
		if (configurer.getTaskExecutor() != null) {
			adapter.setTaskExecutor(configurer.getTaskExecutor());
		}
		if (configurer.getTimeout() != null) {
			adapter.setAsyncRequestTimeout(configurer.getTimeout());
		}
		adapter.setCallableInterceptors(configurer.getCallableInterceptors());
		adapter.setDeferredResultInterceptors(configurer.getDeferredResultInterceptors());

		return adapter;
	}

	protected RequestMappingHandlerAdapter createRequestMappingHandlerAdapter() {
		return new RequestMappingHandlerAdapter();
	}

	protected final List<HandlerMethodArgumentResolver> getArgumentResolvers() {
		if (this.argumentResolvers == null) {
			this.argumentResolvers = new ArrayList<>();
			addArgumentResolvers(this.argumentResolvers);
		}
		return this.argumentResolvers;
	}

	protected void addArgumentResolvers(List<HandlerMethodArgumentResolver> argumentResolvers) {
	}

	protected final List<HandlerMethodReturnValueHandler> getReturnValueHandlers() {
		if (this.returnValueHandlers == null) {
			this.returnValueHandlers = new ArrayList<>();
			addReturnValueHandlers(this.returnValueHandlers);
		}
		return this.returnValueHandlers;
	}

	protected void addReturnValueHandlers(List<HandlerMethodReturnValueHandler> returnValueHandlers) {
	}
}

        requestMappingHandlerAdapter 方法首先通过 createRequestMappingHandlerAdapter 方法创建 RequestMappingHandlerAdapter 对象，并依次设置 contentNegotiationManager、messageConverters、webBindingInitializer、customArgumentResolvers 以及 customReturnValueHandlers 属性值，同时在引入了 Jackson JSON 核心库是分别将 requestBodyAdvice 与 responseBodyAdvice 属性设置为 JsonViewRequestBodyAdvice 与 JsonViewResponseBodyAdvice 对象，接下来根据 configureAsyncSupport 方法配置结果进行异步配置然后返回；

public class WebMvcConfigurationSupport implements ApplicationContextAware, ServletContextAware {
	protected ConfigurableWebBindingInitializer getConfigurableWebBindingInitializer(
			FormattingConversionService mvcConversionService, Validator mvcValidator) {

		ConfigurableWebBindingInitializer initializer = new ConfigurableWebBindingInitializer();
		initializer.setConversionService(mvcConversionService);
		initializer.setValidator(mvcValidator);
		MessageCodesResolver messageCodesResolver = getMessageCodesResolver();
		if (messageCodesResolver != null) {
			initializer.setMessageCodesResolver(messageCodesResolver);
		}
		return initializer;
	}

	@Nullable
	protected MessageCodesResolver getMessageCodesResolver() {
		return null;
	}
}

        getConfigurableWebBindingInitializer 方法创建了 ConfigurableWebBindingInitializer 对象并依次设置 FormattingConversionService、Validator 与 MessageCodesResolver 属性并返回；

1.2.11 handlerFunctionAdapter 方法

public class WebMvcConfigurationSupport implements ApplicationContextAware, ServletContextAware {
	@Bean
	public HandlerFunctionAdapter handlerFunctionAdapter() {
		return new HandlerFunctionAdapter();
	}
}

        handlerFunctionAdapter 方法直接注入新建的 HandlerFunctionAdapter 的对象。

 1.2.12 mvcConversionService 方法

public class WebMvcConfigurationSupport implements ApplicationContextAware, ServletContextAware {
	@Bean
	public FormattingConversionService mvcConversionService() {
		FormattingConversionService conversionService = new DefaultFormattingConversionService();
		addFormatters(conversionService);
		return conversionService;
	}

	protected void addFormatters(FormatterRegistry registry) {
	}
}

        mvcConversionService 方法新建 DefaultFormattingConversionService 对象并 addFormatters 方法用于子类扩展并返回。

1.2.13 mvcValidator 方法

public class WebMvcConfigurationSupport implements ApplicationContextAware, ServletContextAware {
	@Bean
	public Validator mvcValidator() {
		Validator validator = getValidator();
		if (validator == null) {
			if (ClassUtils.isPresent("javax.validation.Validator", getClass().getClassLoader())) {
				Class<?> clazz;
				try {
					String className = "org.springframework.validation.beanvalidation.OptionalValidatorFactoryBean";
					clazz = ClassUtils.forName(className, WebMvcConfigurationSupport.class.getClassLoader());
				}
				catch (ClassNotFoundException | LinkageError ex) {
					throw new BeanInitializationException("Failed to resolve default validator class", ex);
				}
				validator = (Validator) BeanUtils.instantiateClass(clazz);
			}
			else {
				validator = new NoOpValidator();
			}
		}
		return validator;
	}

	@Nullable
	protected Validator getValidator() {
		return null;
	}
}

        mvcValidator 方法首先尝试从 getValidator 中获取自定义 Validator 验证器，未获取到时则会判断是否引入了 javax.validation.Validator 对象，若引入了直接创建 org.springframework.validation.beanvalidation.OptionalValidatorFactoryBean 类并返回，否则创建 NoOpValidator 对象并返回。

public class WebMvcConfigurationSupport implements ApplicationContextAware, ServletContextAware {
	private static final class NoOpValidator implements Validator {

		@Override
		public boolean supports(Class<?> clazz) {
			return false;
		}

		@Override
		public void validate(@Nullable Object target, Errors errors) {
		}
	}

}

        NoOpValidator 为 Validator 接口的空实现，supports 方法直接返回 false，同时 validate 方法只有一个空实现

1.2.14 mvcUriComponentsContributor 方法

public class WebMvcConfigurationSupport implements ApplicationContextAware, ServletContextAware {
	@Bean
	public CompositeUriComponentsContributor mvcUriComponentsContributor(
			@Qualifier("mvcConversionService") FormattingConversionService conversionService,
			@Qualifier("requestMappingHandlerAdapter") RequestMappingHandlerAdapter requestMappingHandlerAdapter) {
		return new CompositeUriComponentsContributor(
				requestMappingHandlerAdapter.getArgumentResolvers(), conversionService);
	}
}

        mvcUriComponentsContributor 方法直接创建 CompositeUriComponentsContributor 对象然后返回。

1.2.15 httpRequestHandlerAdapter 方法

public class WebMvcConfigurationSupport implements ApplicationContextAware, ServletContextAware {
	@Bean
	public HttpRequestHandlerAdapter httpRequestHandlerAdapter() {
		return new HttpRequestHandlerAdapter();
	}
}

        HttpRequestHandlerAdapter 方法直接创建 HttpRequestHandlerAdapter 对象然后返回。

1.2.16 simpleControllerHandlerAdapter 方法

public class WebMvcConfigurationSupport implements ApplicationContextAware, ServletContextAware {
	@Bean
	public SimpleControllerHandlerAdapter simpleControllerHandlerAdapter() {
		return new SimpleControllerHandlerAdapter();
	}
}

        simpleControllerHandlerAdapter 方法直接创建 SimpleControllerHandlerAdapter 对象然后返回。

1.2.17 handlerExceptionResolver 方法

public class WebMvcConfigurationSupport implements ApplicationContextAware, ServletContextAware {
	@Bean
	public HandlerExceptionResolver handlerExceptionResolver(
			@Qualifier("mvcContentNegotiationManager") ContentNegotiationManager contentNegotiationManager) {
		List<HandlerExceptionResolver> exceptionResolvers = new ArrayList<>();
		configureHandlerExceptionResolvers(exceptionResolvers);
		if (exceptionResolvers.isEmpty()) {
			addDefaultHandlerExceptionResolvers(exceptionResolvers, contentNegotiationManager);
		}
		extendHandlerExceptionResolvers(exceptionResolvers);
		HandlerExceptionResolverComposite composite = new HandlerExceptionResolverComposite();
		composite.setOrder(0);
		composite.setExceptionResolvers(exceptionResolvers);
		return composite;
	}

	protected void configureHandlerExceptionResolvers(List<HandlerExceptionResolver> exceptionResolvers) {
	}

	protected void extendHandlerExceptionResolvers(List<HandlerExceptionResolver> exceptionResolvers) {
	}
}

        handlerExceptionResolver 方法直接首先尝试从 configureHandlerExceptionResolvers 方法从子类中获取自定义异常解析器，若未配置则使用 addDefaultHandlerExceptionResolvers 方法设置默认异常解析器列表，随后使用 HandlerExceptionResolverComposite 对其进行封装并将其执行顺序设置为 0 ，然后返回。

public class WebMvcConfigurationSupport implements ApplicationContextAware, ServletContextAware {
	protected final void addDefaultHandlerExceptionResolvers(List<HandlerExceptionResolver> exceptionResolvers,
			ContentNegotiationManager mvcContentNegotiationManager) {

		ExceptionHandlerExceptionResolver exceptionHandlerResolver = createExceptionHandlerExceptionResolver();
		exceptionHandlerResolver.setContentNegotiationManager(mvcContentNegotiationManager);
		exceptionHandlerResolver.setMessageConverters(getMessageConverters());
		exceptionHandlerResolver.setCustomArgumentResolvers(getArgumentResolvers());
		exceptionHandlerResolver.setCustomReturnValueHandlers(getReturnValueHandlers());
		if (jackson2Present) {
			exceptionHandlerResolver.setResponseBodyAdvice(
					Collections.singletonList(new JsonViewResponseBodyAdvice()));
		}
		if (this.applicationContext != null) {
			exceptionHandlerResolver.setApplicationContext(this.applicationContext);
		}
		exceptionHandlerResolver.afterPropertiesSet();
		exceptionResolvers.add(exceptionHandlerResolver);

		ResponseStatusExceptionResolver responseStatusResolver = new ResponseStatusExceptionResolver();
		responseStatusResolver.setMessageSource(this.applicationContext);
		exceptionResolvers.add(responseStatusResolver);

		exceptionResolvers.add(new DefaultHandlerExceptionResolver());
	}

	protected ExceptionHandlerExceptionResolver createExceptionHandlerExceptionResolver() {
		return new ExceptionHandlerExceptionResolver();
	}
}

        addDefaultHandlerExceptionResolvers 调用 createExceptionHandlerExceptionResolver 创建 ExceptionHandlerExceptionResolver 对象作为基处理器，然后设置 mvcContentNegotiationManager、MessageConverter 列表、ArgumentResolver 处理器列表及 ReturnValueHandler 列表；随后若引入了 jackson JSON，会将其 ResponseBodyAdvice 设置为 JsonViewResponseBodyAdvice 对象；最后调用其 afterPropertiesSet 方法进行后处理并在处理完成后将其保存到 exceptionResolvers 变量之中，随后依次向该变量中添加 ResponseStatusExceptionResolver 与 DefaultHandlerExceptionResolver 对象然后返回；

1.2.18 handlerExceptionResolver 方法

public class WebMvcConfigurationSupport implements ApplicationContextAware, ServletContextAware {
	@Bean
	public ViewResolver mvcViewResolver(
			@Qualifier("mvcContentNegotiationManager") ContentNegotiationManager contentNegotiationManager) {
		ViewResolverRegistry registry =
				new ViewResolverRegistry(contentNegotiationManager, this.applicationContext);
		configureViewResolvers(registry);

		if (registry.getViewResolvers().isEmpty() && this.applicationContext != null) {
			String[] names = BeanFactoryUtils.beanNamesForTypeIncludingAncestors(
					this.applicationContext, ViewResolver.class, true, false);
			if (names.length == 1) {
				registry.getViewResolvers().add(new InternalResourceViewResolver());
			}
		}

		ViewResolverComposite composite = new ViewResolverComposite();
		composite.setOrder(registry.getOrder());
		composite.setViewResolvers(registry.getViewResolvers());
		if (this.applicationContext != null) {
			composite.setApplicationContext(this.applicationContext);
		}
		if (this.servletContext != null) {
			composite.setServletContext(this.servletContext);
		}
		return composite;
	}

	protected void configureViewResolvers(ViewResolverRegistry registry) {
	}
}

        mvcViewResolver 方法首先使用 contentNegotiationManager 与 applicationContext 值创建 ViewResolverRegistry 对象并调用 configureViewResolvers 方法对其进行配置；之后若未配置任何 viewResolver 解析器、当前上下文不为空且上下文中只拥有一个 ViewResolver 对象时则会向该注册器中添加一个 InternalResourceViewResolver 对象；最后创建 ViewResolverComposite 对象并依次设置执行顺序、ViewResolver 解析器列表、程序上下文及 servlet 上下文然后返回。

2. DelegatingWebMvcConfiguration 类

        DelegatingWebMvcConfiguration 类提供了对 spring-mvc 配置的自定义扩展；

2.1 变量

public class DelegatingWebMvcConfiguration extends WebMvcConfigurationSupport {

	private final WebMvcConfigurerComposite configurers = new WebMvcConfigurerComposite();

	@Autowired(required = false)
	public void setConfigurers(List<WebMvcConfigurer> configurers) {
		if (!CollectionUtils.isEmpty(configurers)) {
			this.configurers.addWebMvcConfigurers(configurers);
		}
	}
}

        DelegatingWebMvcConfiguration 类只有一个用于保存所有自定义 WebMvcConfigurer 配置对象的 WebMvcConfigurerComposite 类型 configurers 属性，setConfigurers 方法直接将上下文中的所有 WebMvcConfigurer 对象保存到 configurers 属性之中；

2.2 方法

public class DelegatingWebMvcConfiguration extends WebMvcConfigurationSupport {

	@Override
	protected void configurePathMatch(PathMatchConfigurer configurer) {
		this.configurers.configurePathMatch(configurer);
	}
    ...
}

        DelegatingWebMvcConfiguration 所有方法都是用于对 Web-mvc 自定义配置，其都是通过调用 configurers 属性的对应方法实现的；

2.3 WebMvcConfigurer 接口

public class DelegatingWebMvcConfiguration extends WebMvcConfigurationSupport {

	default void configurePathMatch(PathMatchConfigurer configurer) {
	}

    ...

	@Nullable
	default Validator getValidator() {
		return null;
	}
    ...
}

        WebMvcConfigurer 的所有接口都拥有默认实现，其中没有返回值的方法直接默认空实现，拥有返回值的方法默认返回 null；

2.4 WebMvcConfigurerComposite 类

public class DelegatingWebMvcConfiguration extends WebMvcConfigurationSupport {

	private final List<WebMvcConfigurer> delegates = new ArrayList<>();


	public void addWebMvcConfigurers(List<WebMvcConfigurer> configurers) {
		if (!CollectionUtils.isEmpty(configurers)) {
			this.delegates.addAll(configurers);
		}
	}
}

        WebMvcConfigurerComposite 类只有一个用于保存第一次通过 addWebMvcConfigurers 方法注入的 WebMvcConfigurer 对象列表的 delegates 属性；

public class DelegatingWebMvcConfiguration extends WebMvcConfigurationSupport {

	@Override
	public void configurePathMatch(PathMatchConfigurer configurer) {
		for (WebMvcConfigurer delegate : this.delegates) {
			delegate.configurePathMatch(configurer);
		}
	}

    ...

	@Override
	public Validator getValidator() {
		Validator selected = null;
		for (WebMvcConfigurer configurer : this.delegates) {
			Validator validator = configurer.getValidator();
			if (validator != null) {
				if (selected != null) {
					throw new IllegalStateException("No unique Validator found: {" +
							selected + ", " + validator + "}");
				}
				selected = validator;
			}
		}
		return selected;
	}
    ...
}

        WebMvcConfigurerComposite 的方法实现也是分成两种，一种是没返回值的，依次执行 delegates 属性中的对应方法，拥有返回值的则会验证 delegates 中只有一个元素或更少实现了该方法，存在多个实现了由返回值方法的对象时直接抛出异常；

网站公告

今日签到

点亮在社区的每一天
去签到

热门文章

最新发布
