天地图应用篇： 增加缩放、比例尺控件

天地图应用篇： 增加缩放、比例尺控件

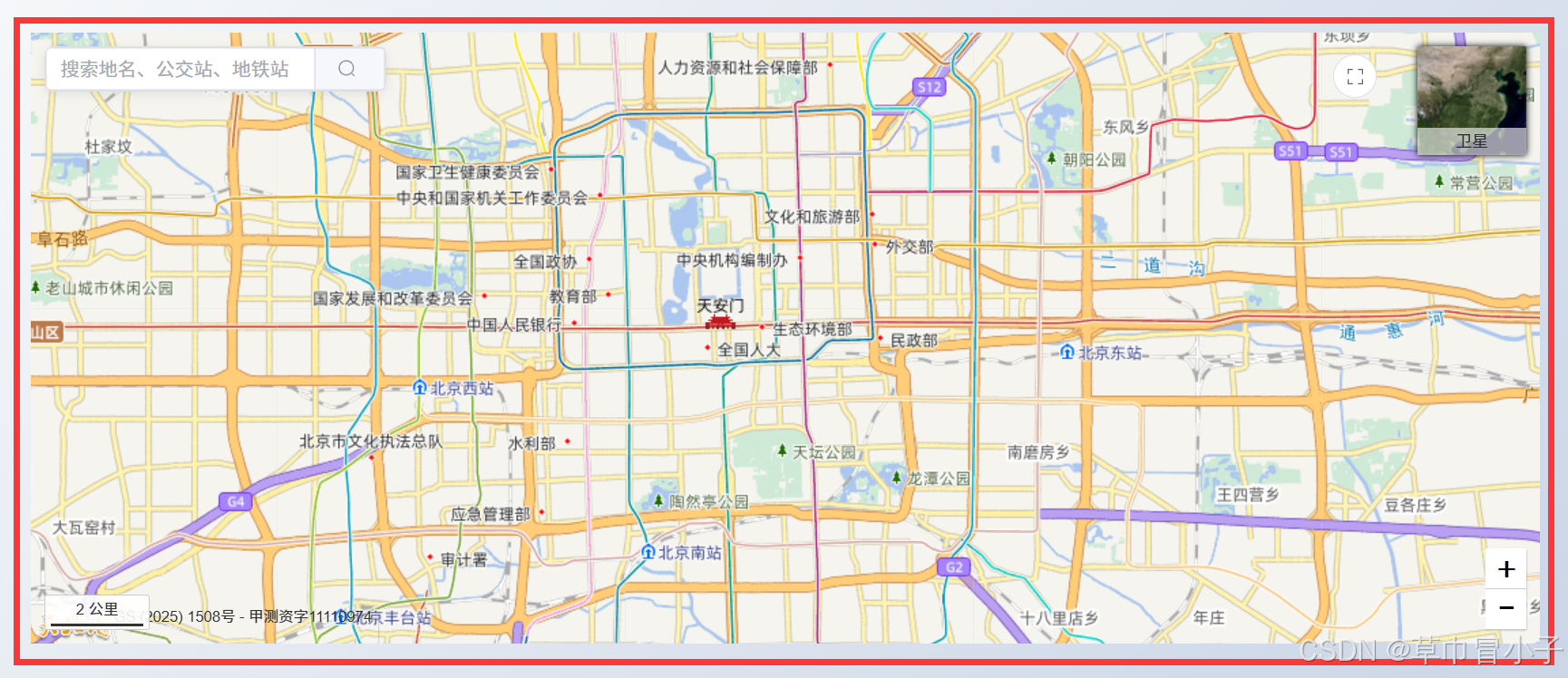

案例截图：

• 效果图示下：


案例代码：

• 代码示下：

  <template>
    <div class="tianditu-map-container">
      <!-- 顶部搜索和天气栏 -->
      <div class="map-top-bar">
        <div class="search-weather-box search-box-official">
          <el-autocomplete
            v-if="mapOptions.showSearch"
            v-model="searchKeyword"
            :fetch-suggestions="fetchSearchSuggestions"
            placeholder="搜索地名、公交站、地铁站"
            class="search-input"
            @select="handleSelectSuggestion"
            clearable
          >
            <template #default="{ item, query, highlighted }">
              <div class="search-suggestion-item" :class="{ 'is-active': highlighted }">
                <span class="search-suggestion-icon">{{ getPoiIcon(item.catalog) }}</span>
                <span class="search-suggestion-title" v-html="highlightKeyword(item.value, query)"></span>
                <span class="search-suggestion-type">{{ item.catalog }}</span>
                <span class="search-suggestion-meta">{{ item.address }}</span>
              </div>
            </template>
            <template #append>
              <el-button :icon="Search" @click="searchLocation" :loading="searchLoading">
                <!-- 搜索 -->
              </el-button>
            </template>
          </el-autocomplete>

        </div>
      </div>
      <!-- 右上角按钮组 -->
      <div class="map-toolbar-top-right">
        <el-tooltip content="全屏" placement="left">
          <el-button v-if="mapOptions.showFullscreen" :icon="isFullscreen ? Fold : FullScreen" @click="toggleFullscreen" circle />
        </el-tooltip>
      </div>



      <!-- 地图容器 -->
      <div id="tianditu-map" class="map-container"></div>
      <!-- 标记管理和表单 -->
      <div class="marker-form" v-if="showMarkerForm">
        <el-form :model="markerForm" label-width="100px">
          <el-form-item label="名称" prop="name">
            <el-input v-model="markerForm.name" placeholder="请输入标记名称" />
          </el-form-item>
          <el-form-item label="纬度" prop="lat">
            <el-input v-model="markerForm.lat" type="number" placeholder="请输入纬度" />
          </el-form-item>
          <el-form-item label="经度" prop="lng">
            <el-input v-model="markerForm.lng" type="number" placeholder="请输入经度" />
          </el-form-item>
          <el-form-item label="描述" prop="description">
            <el-input v-model="markerForm.description" type="textarea" :rows="2" placeholder="请输入描述" />
          </el-form-item>
          <el-form-item>
            <el-button type="primary" @click="saveMarker">保存</el-button>
            <el-button @click="cancelMarker">取消</el-button>
          </el-form-item>
        </el-form>
      </div>
      <div class="markers-list" v-if="markers.length > 0">
        <h4>已保存的标记</h4>
        <el-table :data="markers" style="width: 100%">
          <el-table-column prop="name" label="名称" />
          <el-table-column prop="description" label="描述" />
          <el-table-column label="坐标" width="200">
            <template #default="scope">
              {{ scope.row.lat.toFixed(6) }}, {{ scope.row.lng.toFixed(6) }}
            </template>
          </el-table-column>
          <el-table-column label="操作" width="250">
            <template #default="scope">
              <el-button size="small" @click="centerOnMarker(scope.row)" :icon="Location">定位</el-button>
              <el-button size="small" type="primary" @click="navigateToMarker(scope.row)" :icon="Position">导航</el-button>
              <el-button size="small" type="danger" @click="removeMarker(scope.$index)" :icon="Delete">删除</el-button>
            </template>
          </el-table-column>
        </el-table>
      </div>
    </div>
  </template>

  <script setup>
  import { ref, reactive, onMounted, onUnmounted, nextTick } from 'vue'
  import { ElMessage, ElMessageBox } from 'element-plus'
  import { Location, Position, Search, FullScreen, Fold, Promotion, Guide, Place, School, Delete } from '@element-plus/icons-vue'
  import { h } from 'vue'

  // 天地图API密钥
  const TIANDITU_KEY = '08pfngl6ytjjs8sjgjeef7ac2lsiissc'

  // 响应式数据
  const markers = ref([])
  const showMarkerForm = ref(false)
  const markerForm = ref({
    name: '',
    lat: '',
    lng: '',
    description: ''
  })

  // 地图相关变量
  let markerObjs = []
  let mapObj = null
  let mapTypeControl = null
  let customScaleControl = null

  // 功能开关参数
  const mapOptions = reactive({
    showZoom: true, // 是否显示缩放控件
    showSearch: true, // 是否显示搜索框
    showLayerSwitch: true, // 是否显示图层切换控件
    showFullscreen: true, // 是否显示全屏切换控件
    // 比例尺配置控件
    showScale: true, // 是否显示比例尺控件
    scaleUnit: 'Km', // 默认值km，比例尺单位配置：'Km'(公里), 'mi'(英里), 'both'(双单位)
    scaleUnitDisplay: 'chinese' // 单位显示方式：'word'(英文单词), 'chinese'(汉字), 'both'(双语言)
  })

  // 其他状态
  const isFullscreen = ref(false)
  const searchKeyword = ref('')
  const searchLoading = ref(false)



  // 创建自定义比例尺
  function createCustomScale() {
    if (!mapObj) return

    const scaleContainer = document.createElement('div')
    scaleContainer.className = 'custom-scale-control'
    scaleContainer.style.cssText = `
      position: absolute;
      bottom: 10px;
      left: 10px;
      background: rgba(255, 255, 255, 0.9);
      border: 1px solid #ccc;
      border-radius: 2px;
      padding: 2px 4px;
      font-size: 11px;
      font-family: Arial, sans-serif;
      z-index: 1000;
      min-width: 60px;
      text-align: center;
      color: #333;
    `

    // 单位显示映射函数
    function getUnitDisplay(unit, value) {
      const unitMappings = {
        'Km': {
          'word': 'Km',
          'chinese': '公里',
          'both': 'Km/公里'
        },
        'm': {
          'word': 'm',
          'chinese': '米',
          'both': 'm/米'
        },
        'mi': {
          'word': 'mi',
          'chinese': '英里',
          'both': 'mi/英里'
        },
        'ft': {
          'word': 'ft',
          'chinese': '英尺',
          'both': 'ft/英尺'
        }
      }

      const displayMode = mapOptions.scaleUnitDisplay
      const unitMap = unitMappings[unit] || { 'word': unit, 'chinese': unit, 'both': unit }

      return unitMap[displayMode] || unit
    }

    function updateScale() {
      const zoom = mapObj.getZoom()
      const center = mapObj.getCenter()
      const lat = center.getLat()

      // 计算比例尺
      const earthCircumference = 40075016.686
      const pixelsPerTile = 256
      const tilesPerZoom = Math.pow(2, zoom)
      const pixelsPerDegree = (pixelsPerTile * tilesPerZoom) / 360
      const metersPerDegree = earthCircumference * Math.cos(lat * Math.PI / 180) / 360
      const metersPerPixel = metersPerDegree / pixelsPerDegree

          // 计算合适的比例尺距离和宽度
      let targetDistance, scaleWidth, unit, displayText

      if (mapOptions.scaleUnit === 'Km' || mapOptions.scaleUnit === 'both') {
        // 公里模式
        const mPerPixel = metersPerPixel
        const targetWidth = 100 // 目标宽度（像素）
        let meters = mPerPixel * targetWidth

        // 选择合适的比例尺距离
        if (meters >= 1000) {
          // 超过1km，使用原来的逻辑
          const Km = meters / 1000
          if (Km >= 1000) {
            targetDistance = Math.floor(Km / 1000) * 1000
            unit = 'Km'
          } else if (Km >= 100) {
            targetDistance = Math.floor(Km / 100) * 100
            unit = 'Km'
          } else if (Km >= 10) {
            targetDistance = Math.floor(Km / 10) * 10
            unit = 'Km'
          } else if (Km >= 1) {
            targetDistance = Math.floor(Km)
            unit = 'Km'
          } else {
            targetDistance = Math.floor(Km * 1000)
            unit = 'm'
          }
          scaleWidth = targetDistance / (unit === 'Km' ? mPerPixel / 1000 : mPerPixel)
               } else {
           // 1km范围内，使用新的逻辑（500m, 300m, 200m, 100m, 50m, 30m, 20m, 10m, 1m）
           if (meters >= 500) {
             targetDistance = 500
             unit = 'm'
           } else if (meters >= 300) {
             targetDistance = 300
             unit = 'm'
           } else if (meters >= 200) {
             targetDistance = 200
             unit = 'm'
           } else if (meters >= 100) {
             targetDistance = 100
             unit = 'm'
           } else if (meters >= 50) {
             targetDistance = 50
             unit = 'm'
           } else if (meters >= 30) {
             targetDistance = 30
             unit = 'm'
           } else if (meters >= 20) {
             targetDistance = 20
             unit = 'm'
           } else if (meters >= 10) {
             targetDistance = 10
             unit = 'm'
           } else {
             targetDistance = 1
             unit = 'm'
           }
          scaleWidth = targetDistance / mPerPixel
        }

        const unitDisplay = getUnitDisplay(unit, targetDistance)
        displayText = `${targetDistance} ${unitDisplay}`

      } else if (mapOptions.scaleUnit === 'mi') {
        // 英里模式
        const mPerPixel = metersPerPixel
        const targetWidth = 100
        let meters = mPerPixel * targetWidth

        // 选择合适的比例尺距离
        if (meters >= 1000) {
          // 超过1km，使用原来的逻辑
          const miPerPixel = mPerPixel * 0.000621371
          const Km = meters / 1000
          let mi = Km * 0.621371

          if (mi >= 100) {
            targetDistance = Math.floor(mi / 100) * 100
            unit = 'mi'
          } else if (mi >= 10) {
            targetDistance = Math.floor(mi / 10) * 10
            unit = 'mi'
          } else if (mi >= 1) {
            targetDistance = Math.floor(mi)
            unit = 'mi'
          } else {
            targetDistance = Math.floor(mi * 5280)
            unit = 'ft'
          }
          scaleWidth = targetDistance / (unit === 'ft' ? miPerPixel * 5280 : miPerPixel)
               } else {
           // 1km范围内，使用新的逻辑
           let targetMeters
           if (meters >= 500) {
             targetMeters = 500
           } else if (meters >= 300) {
             targetMeters = 300
           } else if (meters >= 200) {
             targetMeters = 200
           } else if (meters >= 100) {
             targetMeters = 100
           } else if (meters >= 50) {
             targetMeters = 50
           } else if (meters >= 30) {
             targetMeters = 30
           } else if (meters >= 20) {
             targetMeters = 20
           } else if (meters >= 10) {
             targetMeters = 10
           } else {
             targetMeters = 1
           }

          // 转换为英里
          const miles = targetMeters * 0.000621371
          if (miles >= 1) {
            targetDistance = Math.floor(miles)
            unit = 'mi'
          } else {
            targetDistance = Math.floor(miles * 5280)
            unit = 'ft'
          }

          scaleWidth = targetMeters / mPerPixel
        }

        const unitDisplay = getUnitDisplay(unit, targetDistance)
        displayText = `${targetDistance} ${unitDisplay}`
      }

      if (mapOptions.scaleUnit === 'both') {
        let miText
        if (unit === 'Km') {
          const miles = targetDistance * 0.621371
          if (miles >= 1) {
            const miUnitDisplay = getUnitDisplay('mi', Math.floor(miles))
            miText = `${Math.floor(miles)} ${miUnitDisplay}`
          } else {
            const ftUnitDisplay = getUnitDisplay('ft', Math.floor(miles * 5280))
            miText = `${Math.floor(miles * 5280)} ${ftUnitDisplay}`
          }
        } else if (unit === 'm') {
          const miles = targetDistance * 0.000621371
          if (miles >= 1) {
            const miUnitDisplay = getUnitDisplay('mi', Math.floor(miles))
            miText = `${Math.floor(miles)} ${miUnitDisplay}`
          } else {
            const ftUnitDisplay = getUnitDisplay('ft', Math.floor(miles * 5280))
            miText = `${Math.floor(miles * 5280)} ${ftUnitDisplay}`
          }
        } else if (unit === 'mi') {
          const meters = targetDistance * 1609.34
          const mUnitDisplay = getUnitDisplay('m', Math.floor(meters))
          miText = `${Math.floor(meters)} ${mUnitDisplay}`
        } else {
          const meters = targetDistance * 5280 * 0.3048
          const mUnitDisplay = getUnitDisplay('m', Math.floor(meters))
          miText = `${Math.floor(meters)} ${mUnitDisplay}`
        }
        displayText = `${displayText} / ${miText}`
      }

      // 限制比例尺宽度在合理范围内，确保线条长度适中
      scaleWidth = Math.max(40, Math.min(120, scaleWidth))

      scaleContainer.innerHTML = `
        <div style="margin-bottom: 2px;">${displayText}</div>
        <div style="height: 2px; background: #333; width: ${scaleWidth}px; margin: 0 auto;"></div>
      `
    }

    updateScale()
    mapObj.addEventListener('zoomend', updateScale)
    mapObj.addEventListener('moveend', updateScale)

    // 将比例尺添加到地图容器
    const mapContainer = mapObj.getContainer()
    mapContainer.appendChild(scaleContainer)

    // 保存引用以便清理
    customScaleControl = scaleContainer
  }

  /**
   * 比例尺配置说明：
   *
   * 通过修改 mapOptions.scaleUnit 来控制比例尺显示单位：
   * - 'Km': 显示公里/米（1km范围内使用米，超过1km使用公里）
   * - 'mi': 显示英里/英尺（1km范围内使用英里/英尺，超过1km使用英里）
   * - 'both': 同时显示公里/米和英里/英尺
   *
   * 通过修改 mapOptions.scaleUnitDisplay 来控制单位显示方式：
   * - 'word': 显示英文单词（km, m, mi, ft）
   * - 'chinese': 显示汉字（公里, 米, 英里, 英尺）
   * - 'both': 显示双语言（km/公里, m/米, mi/英里, ft/英尺）
   *
   * 比例尺长度单位：
   * - 1km范围内：500m, 300m, 200m, 100m, 50m, 30m, 20m, 10m, 1m
   * - 超过1km：按原来逻辑显示（1000km, 100km, 10km, 1km等）
   *
   * 示例：
   * mapOptions.scaleUnit = 'mi'  // 切换到英里显示
   * mapOptions.scaleUnit = 'both' // 显示双单位
   * mapOptions.scaleUnitDisplay = 'chinese' // 切换到汉字显示
   * mapOptions.scaleUnitDisplay = 'both' // 显示双语言
   *
   * 比例尺会自动显示在地图左下角，无需额外操作
   */



  // 全屏切换
  function toggleFullscreen() {
    const el = document.getElementById('tianditu-map')?.parentElement
    if (!el) return

    if (!isFullscreen.value) {
      if (el.requestFullscreen) el.requestFullscreen()
      else if (el.webkitRequestFullscreen) el.webkitRequestFullscreen()
      else if (el.mozRequestFullScreen) el.mozRequestFullScreen()
      else if (el.msRequestFullscreen) el.msRequestFullscreen()
      isFullscreen.value = true
    } else {
      if (document.exitFullscreen) document.exitFullscreen()
      else if (document.webkitExitFullscreen) document.webkitExitFullscreen()
      else if (document.mozCancelFullScreen) document.mozCancelFullScreen()
      else if (document.msExitFullscreen) document.msExitFullscreen()
      isFullscreen.value = false
    }
  }

  // 监听全屏状态变化
  document.addEventListener('fullscreenchange', () => {
    isFullscreen.value = !!document.fullscreenElement
  })

  // 搜索相关函数
  function highlightKeyword(text, keyword) {
    if (!keyword) return text
    const reg = new RegExp(`(${keyword})`, 'gi')
    return text.replace(reg, '<span class="search-highlight">$1</span>')
  }

  function getPoiIcon(catalog) {
    if (!catalog) return h(Location)
    if (catalog.includes('地铁')) return h(Promotion)
    if (catalog.includes('公交')) return h(Guide)
    if (catalog.includes('火车站') || catalog.includes('高铁')) return h(Place)
    if (catalog.includes('学校')) return h(School)
    return h(Location)
  }

  async function fetchSearchSuggestions(query, cb) {
    if (!query) { cb([]); return }
    const url = `https://api.tianditu.gov.cn/search?postStr={\"keyWord\":\"${encodeURIComponent(query)}\",\"level\":\"9\",\"queryType\":\"1\",\"start\":0,\"count\":10}&type=query&tk=${TIANDITU_KEY}`
    try {
      const res = await fetch(url)
      const data = await res.json()
      if (data && data.pois && Array.isArray(data.pois)) {
        cb(data.pois.map(item => ({
          value: item.name,
          address: item.address,
          catalog: item.catalog,
          lon: item.lonlat.split(' ')[0],
          lat: item.lonlat.split(' ')[1]
        })))
      } else {
        cb([])
      }
    } catch { cb([]) }
  }

  function handleSelectSuggestion(item) {
    if (item.lon && item.lat && mapObj) {
      mapObj.centerAndZoom(new window.T.LngLat(item.lon, item.lat), 16)
      // 添加高亮marker
      const marker = new window.T.Marker(new window.T.LngLat(item.lon, item.lat))
      mapObj.addOverLay(marker)
      // 弹窗显示详细信息
      const popupContent = `
        <div style='min-width:180px;'>
          <h4 style='margin:0 0 8px 0;'>${item.value}</h4>
          <div style='font-size:13px;color:#666;margin-bottom:6px;'>${item.catalog || ''}</div>
          <div style='font-size:12px;color:#999;margin-bottom:8px;'>${item.address || ''}</div>
          <div style='font-size:12px;color:#999;'>坐标: ${item.lat}, ${item.lon}</div>
        </div>
      `
      const infoWin = new window.T.InfoWindow(popupContent, { offset: new window.T.Pixel(0, -20) })
      mapObj.openInfoWindow(infoWin, new window.T.LngLat(item.lon, item.lat))
      ElMessage.success('已定位到：' + item.value)
    }
  }



  // 动态加载天地图API
  function loadTiandituScript() {
    return new Promise((resolve, reject) => {
      if (window.T) {
        resolve()
        return
      }
      const script = document.createElement('script')
      script.src = `https://api.tianditu.gov.cn/api?v=4.0&tk=${TIANDITU_KEY}`
      script.onload = resolve
      script.onerror = reject
      document.head.appendChild(script)
    })
  }

  // 初始化地图
  async function initMap() {
    await loadTiandituScript()
    await nextTick()
    if (!window.T) {
      ElMessage.error('天地图API加载失败')
      return
    }

    mapObj = new window.T.Map('tianditu-map')
    mapObj.centerAndZoom(new window.T.LngLat(116.4074, 39.9042), 12)
    mapObj.enableScrollWheelZoom()
    mapObj.enableDoubleClickZoom()
    mapObj.enableKeyboard()

    // 添加控件
    if (mapOptions.showZoom) {
      const zoomCtrl = new window.T.Control.Zoom({ position: window.T_ANCHOR_BOTTOM_RIGHT })
      mapObj.addControl(zoomCtrl)
    }

    // 添加控件 （图层切换）
    if (mapOptions.showLayerSwitch) {
      mapTypeControl = new window.T.Control.MapType()
      mapObj.addControl(mapTypeControl)
    }

    // 添加自定义比例尺
    if (mapOptions.showScale) {
      createCustomScale()
    }

    // 地图点击事件
    mapObj.addEventListener('click', onMapClick)
  }

  // 地图点击事件
  function onMapClick(e) {
    markerForm.value.lat = e.latlng.getLat().toFixed(6)
    markerForm.value.lng = e.latlng.getLng().toFixed(6)
    showMarkerForm.value = true
  }

  // 标记相关函数
  function saveMarker() {
    if (!markerForm.value.name || !markerForm.value.lat || !markerForm.value.lng) {
      ElMessage.warning('请填写完整信息')
      return
    }
    const markerData = {
      id: Date.now(),
      name: markerForm.value.name,
      lat: parseFloat(markerForm.value.lat),
      lng: parseFloat(markerForm.value.lng),
      description: markerForm.value.description
    }
    markers.value.push(markerData)
    addMarkerToMap(markerData)
    showMarkerForm.value = false
    ElMessage.success('标记保存成功')
  }

  function addMarkerToMap(markerData) {
    if (!window.T) return
    const marker = new window.T.Marker(new window.T.LngLat(markerData.lng, markerData.lat))
    marker.data = markerData
    marker.addEventListener('click', (e) => {
      showMarkerPopup(e, markerData)
    })
    mapObj.addOverLay(marker)
    markerObjs.push(marker)
    markerData._marker = marker
  }

  function showMarkerPopup(e, markerData) {
    const popupContent = `
      <div style='min-width:180px;'>
        <h4 style='margin:0 0 8px 0;'>${markerData.name}</h4>
        <div style='font-size:13px;color:#666;margin-bottom:6px;'>${markerData.description || ''}</div>
        <div style='font-size:12px;color:#999;margin-bottom:8px;'>坐标: ${markerData.lat.toFixed(6)}, ${markerData.lng.toFixed(6)}</div>
        <div style='display:flex;gap:8px;'>
          <button onclick="window.tdtNavigate(${markerData.lat},${markerData.lng},'${markerData.name}')" style='background:#409EFF;color:#fff;border:none;padding:4px 10px;border-radius:4px;cursor:pointer;'>导航</button>
          <button onclick="navigator.clipboard.writeText('${markerData.lat},${markerData.lng}')" style='background:#67C23A;color:#fff;border:none;padding:4px 10px;border-radius:4px;cursor:pointer;'>复制坐标</button>
        </div>
      </div>
    `
    const infoWin = new window.T.InfoWindow(popupContent, { offset: new window.T.Pixel(0, -20) })
    mapObj.openInfoWindow(infoWin, new window.T.LngLat(markerData.lng, markerData.lat))
  }

  function cancelMarker() {
    showMarkerForm.value = false
    markerForm.value = {
      name: '',
      lat: '',
      lng: '',
      description: ''
    }
  }

  function centerOnMarker(marker) {
    if (mapObj) {
      mapObj.centerAndZoom(new window.T.LngLat(marker.lng, marker.lat), 16)
      ElMessage.success('已定位到标记')
    }
  }

  function navigateToMarker(marker) {
    window.tdtNavigate(marker.lat, marker.lng, marker.name)
  }

  async function removeMarker(index) {
    const marker = markers.value[index]
    try {
      await ElMessageBox.confirm('确定要删除这个标记吗？', '警告', {
        confirmButtonText: '确定',
        cancelButtonText: '取消',
        type: 'warning'
      })
      if (marker._marker) {
        mapObj.removeOverLay(marker._marker)
        const i = markerObjs.indexOf(marker._marker)
        if (i !== -1) markerObjs.splice(i, 1)
      }
      markers.value.splice(index, 1)
      ElMessage.success('标记已删除')
    } catch {}
  }



  async function searchLocation() {
    if (!searchKeyword.value.trim()) {
      ElMessage.warning('请输入地名')
      return
    }
    searchLoading.value = true
    const url = `https://api.tianditu.gov.cn/geocoder?ds={"keyWord":"${encodeURIComponent(searchKeyword.value)}"}&tk=${TIANDITU_KEY}`
    try {
      const res = await fetch(url)
      const data = await res.json()
      if (data && data.location) {
        const { lon, lat } = data.location
        mapObj.centerAndZoom(new window.T.LngLat(lon, lat), 16)
        ElMessage.success('已定位到：' + searchKeyword.value)
      } else {
        ElMessage.warning('未找到地名')
      }
    } catch {
      ElMessage.error('地名搜索失败')
    }
    searchLoading.value = false
  }

  // 导航跳转函数（全局）
  window.tdtNavigate = function(lat, lng, name) {
    const url = `https://map.tianditu.gov.cn/navigation.html?lat=${lat}&lng=${lng}&name=${encodeURIComponent(name)}`
    window.open(url, '_blank')
  }

  // 生命周期
  onMounted(async () => {
    await initMap()
  })

  onUnmounted(() => {
    if (mapObj) {
      markerObjs.forEach(marker => mapObj.removeOverLay(marker))
      markerObjs.length = 0
      if (customScaleControl) {
        customScaleControl.remove()
        customScaleControl = null
      }
      mapObj = null
    }
    if (window.tdtNavigate) delete window.tdtNavigate
  })
  </script>

  <style scoped>
  .tianditu-map-container {
    position: relative;
    padding: 0;
    max-width: 100vw;
    height: 50vh;
    background: #f5f7fa;
  }

  .map-top-bar {
    position: absolute;
    top: 10px;
    left: 10px;
    z-index: 500;
    display: flex;
    flex-direction: row;
    align-items: center;
  }

  .search-weather-box {
    display: flex;
    align-items: center;
    background: #fff;
    border-radius: 8px;
    box-shadow: 0 2px 8px rgba(0,0,0,0.08);
    padding: 8px 16px;
    gap: 16px;
  }

  .search-box-official {
    background: #fff;
    border: 1px solid #dcdfe6;
    box-shadow: 0 2px 8px rgba(0,0,0,0.08);
    border-radius: 8px;
    padding: 0;
  }

  .search-input {
    width: 340px;
    font-size: 15px;
    border-radius: 8px;
    border: none;
    box-shadow: none;
  }

  .map-toolbar-top-right {
    position: absolute;
    top: 16px;
    right: 120px;
    z-index: 500;
    display: flex;
    flex-direction: row;
    gap: 8px;
  }

  .map-container {
    width: 100%;
    height: 100%;
    border-radius: 0;
    overflow: hidden;
    border: none;
    margin: 0;
  }

  .marker-form {
    position: absolute;
    left: 50px;
    top: 80px;
    z-index: 30;
    background: var(--el-bg-color-page);
    padding: 20px;
    border-radius: 8px;
    border: 1px solid var(--el-border-color-light);
  }

  .markers-list {
    position: absolute;
    right: 32px;
    bottom: 32px;
    z-index: 30;
    background: var(--el-bg-color-page);
    padding: 20px;
    border-radius: 8px;
    border: 1px solid var(--el-border-color-light);
    max-width: 400px;
    max-height: 300px;
    overflow: auto;
  }

  .markers-list h4 {
    margin-bottom: 15px;
    color: var(--el-color-primary);
  }



  .search-suggestion-item {
    display: flex;
    align-items: center;
    padding: 6px 12px;
    border-radius: 6px;
    transition: background 0.2s;
    cursor: pointer;
  }

  .search-suggestion-item.is-active,
  .search-suggestion-item:hover {
    background: #f0f7ff;
  }

  .search-suggestion-icon {
    margin-right: 8px;
    color: #409EFF;
    font-size: 18px;
    display: flex;
    align-items: center;
  }

  .search-suggestion-title {
    font-weight: 500;
    color: #222;
    margin-right: 8px;
  }

  .search-suggestion-type {
    color: #aaa;
    font-size: 13px;
    margin-left: 8px;
    margin-right: 8px;
  }

  .search-suggestion-meta {
    color: #999;
    font-size: 13px;
    flex: 1;
    white-space: nowrap;
    overflow: hidden;
    text-overflow: ellipsis;
  }

  .search-highlight {
    color: #409EFF;
    background: #e6f7ff;
    border-radius: 2px;
    padding: 0 2px;
  }


  </style>



完结。
