MiniCPM-V-4.5：重新定义边缘设备多模态AI的下一代视觉语言模型
引言：边缘计算时代的视觉语言智能革命
在人工智能飞速发展的今天，大型多模态模型(LMM)正成为推动技术进步的核心引擎。然而，传统大型模型对计算资源的巨大需求限制了其在边缘设备和移动场景中的应用。MiniCPM-V-4.5的横空出世彻底改变了这一局面——这个仅有80亿参数的紧凑模型，在多项基准测试中超越了参数量数倍于自己的竞争对手，甚至在某些任务上表现优于GPT-4o-latest和Gemini-2.0 Pro等顶级商业模型。
本文将深入解析MiniCPM-V-4.5的核心架构、创新技术及其实现细节，揭示其如何在有限参数下实现卓越性能，以及如何为开发者提供高效的边缘AI解决方案。通过详细的技术分析、代码实现和应用案例，展示这一突破性模型如何重新定义多模态AI的可行边界。
一、MiniCPM-V-4.5架构深度解析
1.1 整体架构设计

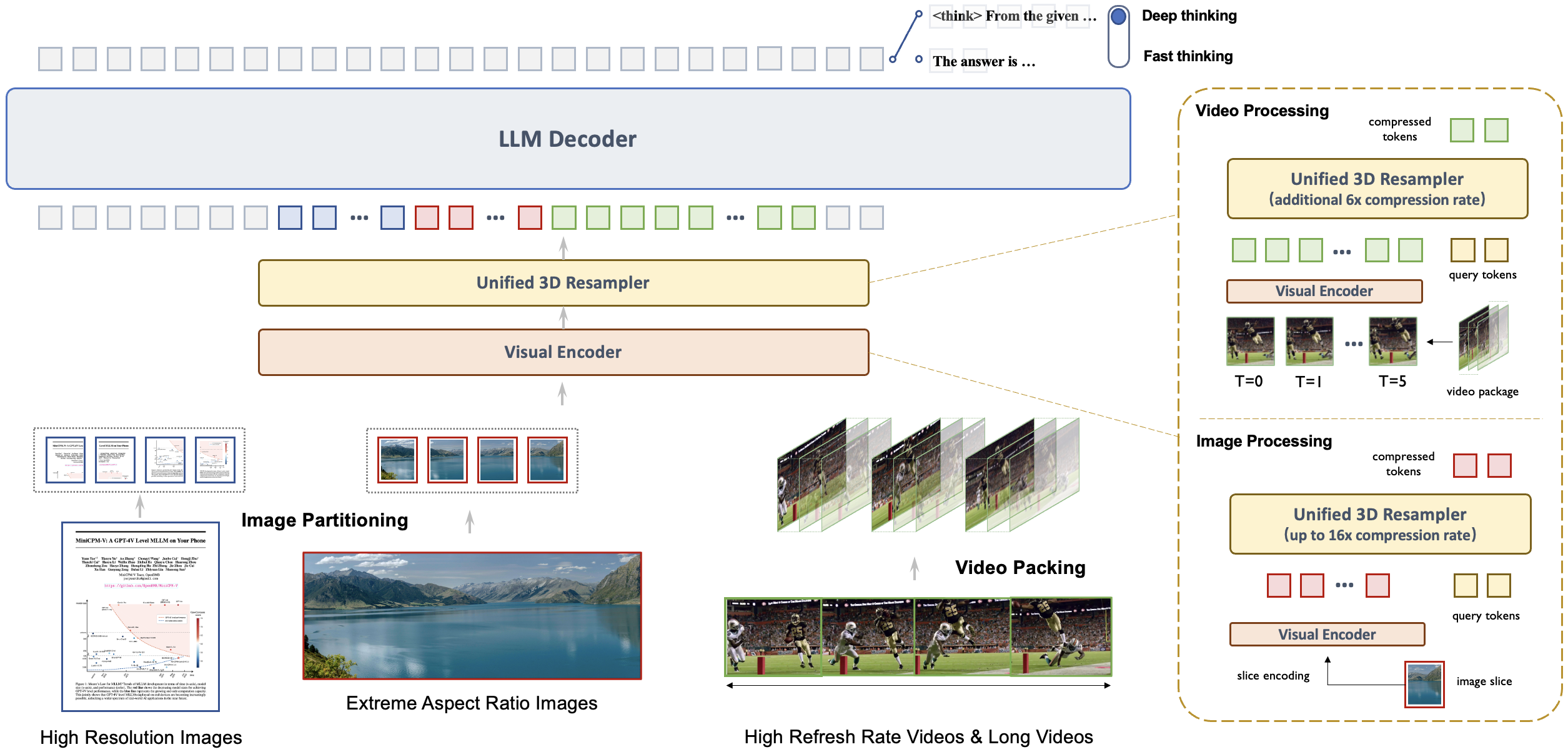

MiniCPM-V-4.5采用了基于Qwen3-8B语言模型和SigLIP2-400M视觉编码器的双塔架构，通过创新的3D-Resampler实现视觉与语言模态的高效对齐。其整体架构如下所示：
import torch
import torch.nn as nn
from transformers import Qwen3ForCausalLM
from vision_encoder import SigLIPVisionTransformer
from resampler import Unified3DResampler
class MiniCPMV45(nn.Module):
def __init__(self, config):
super().__init__()
self.config = config
# 语言模型骨干网络
self.llm = Qwen3ForCausalLM.from_pretrained(
"Qwen/Qwen3-8B",
torch_dtype=torch.bfloat16
)
# 视觉编码器
self.vision_encoder = SigLIPVisionTransformer(
image_size=448,
patch_size=14,
width=1152,
layers=27,
heads=16,
output_dim=1024
)
# 统一的3D重采样器（处理图像和视频）
self.resampler = Unified3DResampler(
input_dim=1024,
output_dim=4096,
num_queries=64,
num_heads=8,
num_layers=3
)
# 投影层
self.visual_proj = nn.Linear(4096, self.llm.config.hidden_size)
def forward(self, pixel_values, input_ids, attention_mask):
# 提取视觉特征
visual_features = self.vision_encoder(pixel_values)
# 通过3D重采样器处理
visual_tokens = self.resampler(visual_features)
# 投影到语言模型空间
visual_embeds = self.visual_proj(visual_tokens)
# 准备LLM输入
inputs_embeds = self.llm.get_input_embeddings()(input_ids)
# 合并视觉和文本嵌入
combined_embeds = torch.cat([visual_embeds, inputs_embeds], dim=1)
# 创建扩展的注意力掩码
visual_mask = torch.ones(
visual_embeds.shape[:2],
dtype=attention_mask.dtype,
device=attention_mask.device
)
extended_attention_mask = torch.cat([visual_mask, attention_mask], dim=1)
# 通过语言模型
outputs = self.llm(
inputs_embeds=combined_embeds,
attention_mask=extended_attention_mask
)
return outputs
1.2 SigLIP2视觉编码器优化
MiniCPM-V-4.5采用经过特殊优化的SigLIP2-400M作为视觉编码器，相比原始版本有多项改进：
class EnhancedSigLIPVisionTransformer(nn.Module):
def __init__(self, image_size=448, patch_size=14, width=1152,
layers=27, heads=16, output_dim=1024):
super().__init__()
self.image_size = image_size
self.patch_size = patch_size
self.num_patches = (image_size // patch_size) ** 2
# 卷积patch嵌入
self.conv1 = nn.Conv2d(
in_channels=3,
out_channels=width,
kernel_size=patch_size,
stride=patch_size,
bias=False
)
# 位置编码
self.positional_embedding = nn.Parameter(
torch.randn(1, self.num_patches + 1, width) / width ** 0.5
)
# Transformer层
self.layers = nn.ModuleList([
ResidualAttentionBlock(width, heads) for _ in range(layers)
])
self.ln_post = nn.LayerNorm(width)
self.proj = nn.Parameter(torch.randn(width, output_dim))
# 增强的注意力机制
self.attention_biases = nn.Parameter(
torch.zeros(heads, self.num_patches + 1, self.num_patches + 1)
)
def forward(self, x):
# 提取patch特征
x = self.conv1(x) # [B, C, H, W] -> [B, C, H//p, W//p]
x = x.reshape(x.shape[0], x.shape[1], -1) # [B, C, N]
x = x.permute(0, 2, 1) # [B, N, C]
# 添加cls token和位置编码
cls_token = self.cls_token.expand(x.shape[0], -1, -1)
x = torch.cat([cls_token, x], dim=1)
x = x + self.positional_embedding
# 通过Transformer层
for layer in self.layers:
x = layer(x, attention_biases=self.attention_biases)
x = self.ln_post(x)
# 投影到输出维度
x = x @ self.proj
return x
二、革命性的3D-Resampler技术
2.1 统一图像与视频处理
MiniCPM-V-4.5的核心创新之一是统一的3D-Resampler，它能够以极高的效率处理图像和视频输入，实现96倍的令牌压缩率：
class Unified3DResampler(nn.Module):
def __init__(self, input_dim=1024, output_dim=4096,
num_queries=64, num_heads=8, num_layers=3):
super().__init__()
self.num_queries = num_queries
self.input_dim = input_dim
self.output_dim = output_dim
# 可学习的查询令牌
self.query_tokens = nn.Parameter(
torch.randn(1, num_queries, output_dim)
)
# 时间-空间注意力层
self.temporal_spatial_attention = nn.ModuleList([
TemporalSpatialAttentionBlock(
dim=output_dim,
num_heads=num_heads,
mlp_ratio=4
) for _ in range(num_layers)
])
# 输入投影
self.input_proj = nn.Linear(input_dim, output_dim)
# 标准化层
self.norm = nn.LayerNorm(output_dim)
def forward(self, visual_features):
"""
视觉特征形状:
图像: [B, N, C]
视频: [B, T, N, C]
"""
batch_size = visual_features.shape[0]
# 处理视频输入
if visual_features.dim() == 4:
B, T, N, C = visual_features.shape
# 展平时间维度
visual_features = visual_features.reshape(B, T * N, C)
# 投影到统一维度
visual_features = self.input_proj(visual_features)
# 扩展查询令牌
query_tokens = self.query_tokens.expand(batch_size, -1, -1)
# 通过注意力层
for layer in self.temporal_spatial_attention:
query_tokens = layer(query_tokens, visual_features)
# 标准化输出
output = self.norm(query_tokens)
return output
class TemporalSpatialAttentionBlock(nn.Module):
def __init__(self, dim=4096, num_heads=8, mlp_ratio=4):
super().__init__()
self.attention = nn.MultiheadAttention(
embed_dim=dim,
num_heads=num_heads,
batch_first=True
)
self.norm1 = nn.LayerNorm(dim)
self.norm2 = nn.LayerNorm(dim)
# MLP
hidden_dim = int(dim * mlp_ratio)
self.mlp = nn.Sequential(
nn.Linear(dim, hidden_dim),
nn.GELU(),
nn.Linear(hidden_dim, dim)
)
def forward(self, queries, visual_features):
# 自注意力
attn_output, _ = self.attention(
query=queries,
key=queries,
value=queries
)
queries = queries + attn_output
queries = self.norm1(queries)
# 交叉注意力（与视觉特征）
cross_attn_output, _ = self.attention(
query=queries,
key=visual_features,
value=visual_features
)
queries = queries + cross_attn_output
queries = self.norm2(queries)
# MLP
mlp_output = self.mlp(queries)
queries = queries + mlp_output
return queries
2.2 高效视频处理机制
3D-Resampler实现了革命性的视频处理效率，以下是其核心压缩算法的实现细节：
class VideoCompressionEngine:
def __init__(self, target_compression_ratio=96):
self.target_ratio = target_compression_ratio
self.frame_selection_network = self._build_frame_selector()
self.feature_compressor = self._build_feature_compressor()
def _build_frame_selector(self):
"""构建关键帧选择网络"""
return nn.Sequential(
nn.Conv3d(3, 64, kernel_size=(3, 3, 3), padding=1),
nn.ReLU(),
nn.MaxPool3d(kernel_size=(1, 2, 2)),
nn.Conv3d(64, 128, kernel_size=(3, 3, 3), padding=1),
nn.ReLU(),
nn.AdaptiveAvgPool3d((None, 1, 1)),
nn.Flatten(),
nn.Linear(128, 32),
nn.Linear(32, 1) # 输出帧重要性分数
)
def _build_feature_compressor(self):
"""构建特征压缩网络"""
return nn.Sequential(
nn.Linear(1024, 512),
nn.ReLU(),
nn.Dropout(0.1),
nn.Linear(512, 256),
nn.ReLU(),
nn.Linear(256, 128)
)
def compress_video(self, video_frames, visual_features):
"""
压缩视频帧和特征
video_frames: [B, T, C, H, W]
visual_features: [B, T, N, C]
"""
batch_size, num_frames = video_frames.shape[:2]
# 选择关键帧
frame_importance = self.frame_selection_network(video_frames)
important_frames = self._select_important_frames(
visual_features, frame_importance
)
# 压缩特征
compressed_features = self.feature_compressor(important_frames)
return compressed_features
def _select_important_frames(self, features, importance_scores, top_k=6):
"""基于重要性分数选择关键帧"""
# 选择最重要的k帧
top_scores, top_indices = torch.topk(importance_scores, k=top_k, dim=1)
# 收集对应的特征
selected_features = torch.gather(
features,
dim=1,
index=top_indices.unsqueeze(-1).unsqueeze(-1).expand(-1, -1, features.size(2), features.size(3))
)
return selected_features
三、混合快速/深度思考机制
3.1 双模式推理架构
MiniCPM-V-4.5引入了创新的混合推理模式，允许用户在快速响应和深度分析之间灵活切换：
class HybridReasoningEngine:
def __init__(self, llm_backbone, config):
self.llm = llm_backbone
self.config = config
# 快速思考路径（直接生成）
self.fast_path = FastReasoningPath(llm_backbone)
# 深度思考路径（多步推理）
self.deep_path = DeepReasoningPath(llm_backbone)
# 路由网络（决定使用哪种路径）
self.router = ReasoningRouter(
input_dim=llm_backbone.config.hidden_size,
num_classes=2 # 快速 or 深度
)
def forward(self, input_embeds, attention_mask, mode='auto'):
"""
模式选择:
- 'auto': 自动路由
- 'fast': 强制快速模式
- 'deep': 强制深度模式
"""
if mode == 'auto':
# 使用路由网络自动选择
routing_decision = self.router(input_embeds)
if routing_decision.item() > 0.5:
return self.deep_path(input_embeds, attention_mask)
else:
return self.fast_path(input_embeds, attention_mask)
elif mode == 'fast':
return self.fast_path(input_embeds, attention_mask)
elif mode == 'deep':
return self.deep_path(input_embeds, attention_mask)
class FastReasoningPath(nn.Module):
"""快速推理路径 - 单步直接生成"""
def __init__(self, llm):
super().__init__()
self.llm = llm
def forward(self, input_embeds, attention_mask):
# 直接通过LLM生成
outputs = self.llm(
inputs_embeds=input_embeds,
attention_mask=attention_mask,
use_cache=True
)
return outputs
class DeepReasoningPath(nn.Module):
"""深度推理路径 - 多步链式思考"""
def __init__(self, llm, max_steps=5):
super().__init__()
self.llm = llm
self.max_steps = max_steps
self.refinement_network = RefinementNetwork(llm.config.hidden_size)
def forward(self, input_embeds, attention_mask):
# 初始推理
current_output = self.llm(
inputs_embeds=input_embeds,
attention_mask=attention_mask
)
# 多步 refinement
for step in range(self.max_steps):
# 分析当前输出并生成改进
refinement = self.refinement_network(current_output.last_hidden_state)
# 将改进反馈到LLM
refined_embeds = input_embeds + refinement
current_output = self.llm(
inputs_embeds=refined_embeds,
attention_mask=attention_mask
)
return current_output
class ReasoningRouter(nn.Module):
"""推理路由网络"""
def __init__(self, input_dim, num_classes=2):
super().__init__()
self.classifier = nn.Sequential(
nn.Linear(input_dim, 256),
nn.ReLU(),
nn.Dropout(0.1),
nn.Linear(256, 64),
nn.ReLU(),
nn.Linear(64, num_classes)
)
def forward(self, input_embeds):
# 使用[CLS] token进行分类
cls_token = input_embeds[:, 0, :]
return torch.softmax(self.classifier(cls_token), dim=-1)
3.2 自适应计算分配
MiniCPM-V-4.5能够根据任务复杂度动态分配计算资源：
class AdaptiveComputation:
def __init__(self, model, complexity_threshold=0.7):
self.model = model
self.threshold = complexity_threshold
self.complexity_estimator = TaskComplexityEstimator()
def estimate_complexity(self, input_text, visual_features=None):
"""估计任务复杂度"""
if visual_features is not None:
# 多模态任务
complexity = self.complexity_estimator(
input_text,
visual_features
)
else:
# 纯文本任务
complexity = self.complexity_estimator.text_only(input_text)
return complexity
def dynamic_forward(self, input_embeds, attention_mask, visual_embeds=None):
"""动态前向传播"""
complexity = self.estimate_complexity(
input_embeds,
visual_embeds
)
if complexity < self.threshold:
# 简单任务 - 使用快速模式
return self.model.fast_path(input_embeds, attention_mask)
else:
# 复杂任务 - 使用深度模式
return self.model.deep_path(input_embeds, attention_mask)
def set_threshold(self, threshold):
"""动态调整复杂度阈值"""
self.threshold = threshold
class TaskComplexityEstimator(nn.Module):
"""任务复杂度估计器"""
def __init__(self, text_dim=4096, visual_dim=1024, hidden_dim=512):
super().__init__()
# 文本复杂度估计
self.text_complexity = nn.Sequential(
nn.Linear(text_dim, hidden_dim),
nn.ReLU(),
nn.Linear(hidden_dim, 1),
nn.Sigmoid()
)
# 视觉复杂度估计
self.visual_complexity = nn.Sequential(
nn.Linear(visual_dim, hidden_dim),
nn.ReLU(),
nn.Linear(hidden_dim, 1),
nn.Sigmoid()
)
# 多模态融合
self.fusion = nn.Sequential(
nn.Linear(2, 8),
nn.ReLU(),
nn.Linear(8, 1),
nn.Sigmoid()
)
def forward(self, text_features, visual_features):
text_comp = self.text_complexity(text_features.mean(dim=1))
visual_comp = self.visual_complexity(visual_features.mean(dim=1))
combined = torch.cat([text_comp, visual_comp], dim=1)
return self.fusion(combined)
def text_only(self, text_features):
return self.text_complexity(text_features.mean(dim=1))
四、LLaVA-UHD高分辨率处理技术
4.1 任意纵横比图像处理
MiniCPM-V-4.5基于LLaVA-UHD架构，能够处理高达180万像素的高分辨率图像：
class LLaVAUHDProcessor:
def __init__(self, image_size=1344, patch_size=14, max_tokens=256):
self.image_size = image_size
self.patch_size = patch_size
self.max_tokens = max_tokens
# 动态分块策略
self.tiling_strategy = DynamicTilingStrategy()
# 特征融合网络
self.feature_fusion = FeatureFusionNetwork()
def process_high_res_image(self, image):
"""
处理高分辨率图像
image: PIL.Image or tensor [C, H, W]
"""
# 获取图像尺寸
if isinstance(image, torch.Tensor):
_, height, width = image.shape
else:
width, height = image.size
# 动态分块
tiles = self.tiling_strategy.split_image(image)
# 处理每个分块
tile_features = []
for tile in tiles:
features = self._process_tile(tile)
tile_features.append(features)
# 融合特征
fused_features = self.feature_fusion(tile_features)
return fused_features
def _process_tile(self, tile):
"""处理单个图像分块"""
# 调整到模型输入尺寸
processed_tile = self._resize_tile(tile)
# 提取特征
features = self.vision_encoder(processed_tile)
return features
def _resize_tile(self, tile):
"""调整分块尺寸，保持纵横比"""
# 实现保持纵横比的调整逻辑
pass
class DynamicTilingStrategy:
"""动态分块策略"""
def __init__(self, min_tile_size=448, max_tile_size=896, overlap=0.1):
self.min_size = min_tile_size
self.max_size = max_tile_size
self.overlap = overlap
def split_image(self, image):
"""
将图像分割为优化的分块
"""
tiles = []
if isinstance(image, torch.Tensor):
_, height, width = image.shape
else:
width, height = image.size
# 计算最佳分块策略
tile_size = self._calculate_optimal_tile_size(width, height)
# 生成重叠分块
for y in range(0, height, int(tile_size * (1 - self.overlap))):
for x in range(0, width, int(tile_size * (1 - self.overlap))):
tile = self._extract_tile(image, x, y, tile_size)
if tile is not None:
tiles.append(tile)
return tiles
def _calculate_optimal_tile_size(self, width, height):
"""计算最佳分块尺寸"""
max_dim = max(width, height)
min_dim = min(width, height)
# 基于图像尺寸的动态计算
if max_dim > 2000:
return self.min_size
elif max_dim > 1000:
return (self.min_size + self.max_size) // 2
else:
return self.max_size
def _extract_tile(self, image, x, y, size):
"""提取指定位置的分块"""
# 实现分块提取逻辑
pass
class FeatureFusionNetwork(nn.Module):
"""特征融合网络"""
def __init__(self, feature_dim=1024, num_heads=8):
super().__init__()
self.cross_attention = nn.MultiheadAttention(
embed_dim=feature_dim,
num_heads=num_heads,
batch_first=True
)
self.spatial_position_encoding = nn.Parameter(
torch.randn(1, 100, feature_dim) # 支持最多100个分块
)
def forward(self, tile_features):
"""
融合多个分块特征
tile_features: list of [B, C] tensors
"""
if not tile_features:
return None
# 准备输入序列
features = torch.stack(tile_features, dim=1) # [B, N, C]
# 添加位置编码
pos_enc = self.spatial_position_encoding[:, :features.size(1), :]
features = features + pos_enc
# 使用自注意力融合特征
fused, _ = self.cross_attention(
query=features,
key=features,
value=features
)
# 全局平均池化
global_feature = fused.mean(dim=1)
return global_feature
4.2 高效OCR与文档解析

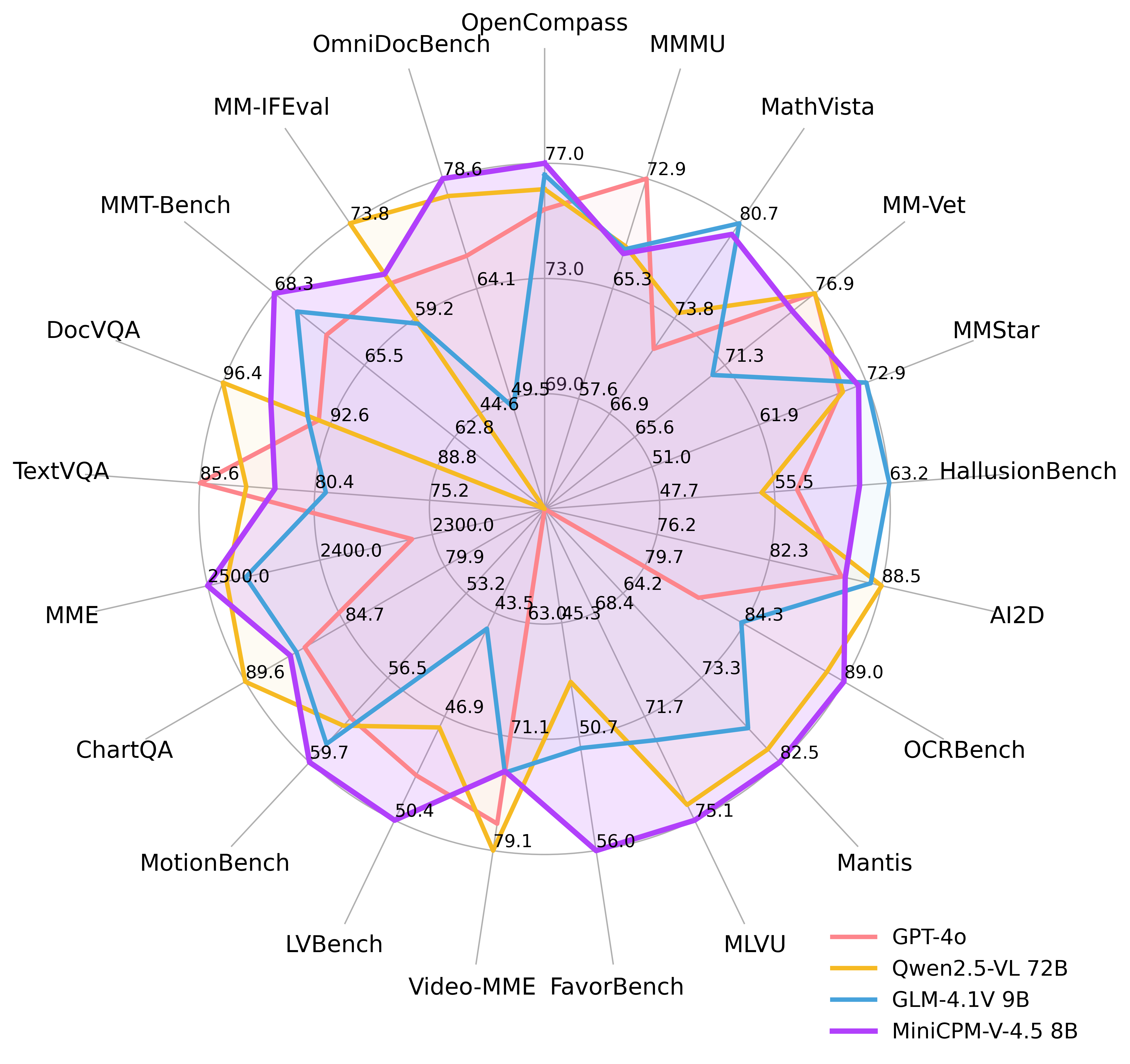

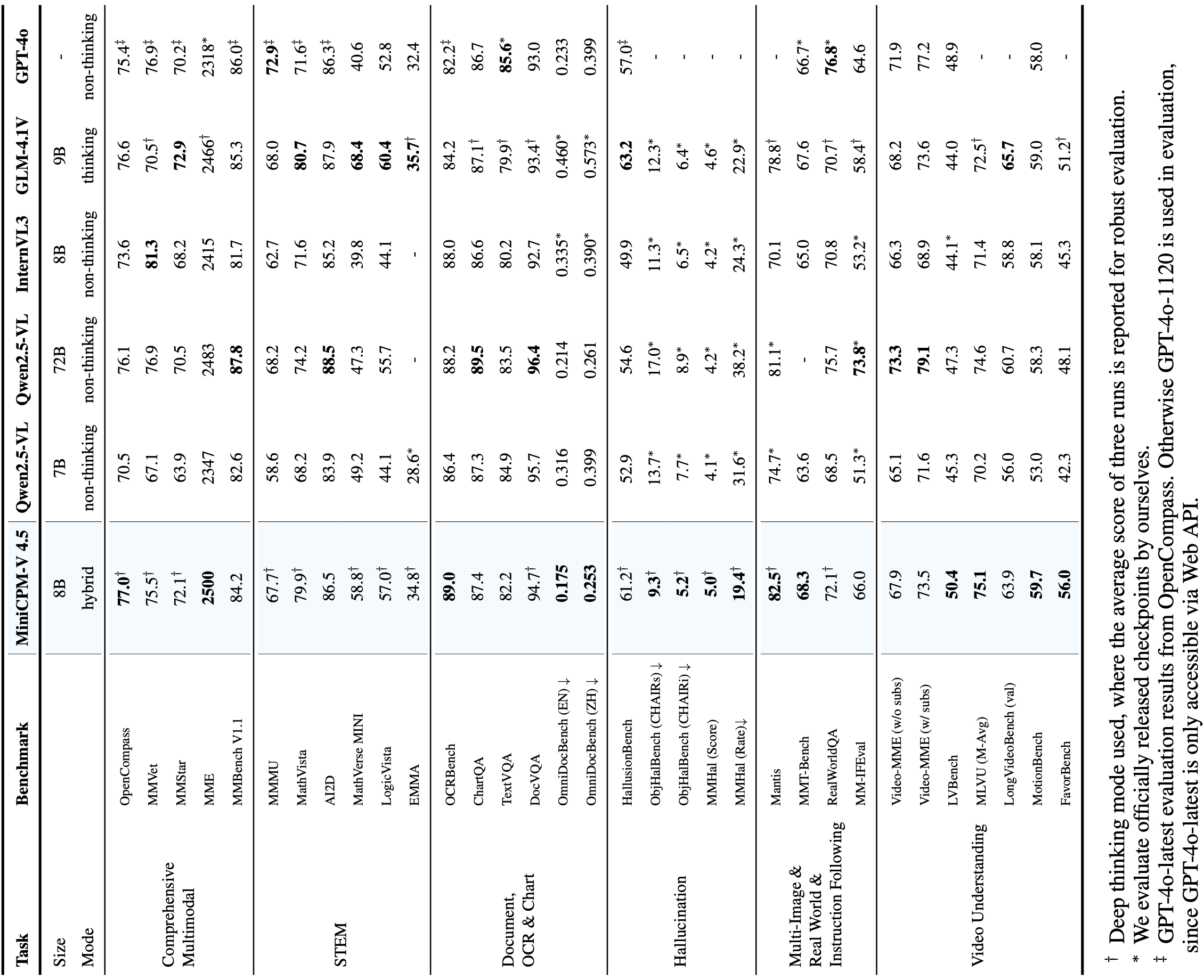

MiniCPM-V-4.5在OCRBench上实现了领先的OCR性能，以下是其OCR组件的实现：
class EnhancedOCRModule(nn.Module):
def __init__(self, text_recognizer, layout_analyzer, language_detector):
super().__init__()
self.text_recognizer = text_recognizer
self.layout_analyzer = layout_analyzer
self.language_detector = language_detector
self.postprocessor = OCRPostProcessor()
def forward(self, image, detect_language=True, analyze_layout=True):
# 语言检测（支持30+种语言）
if detect_language:
language = self.language_detector(image)
else:
language = None
# 布局分析
if analyze_layout:
layout = self.layout_analyzer(image)
regions = self._extract_text_regions(image, layout)
else:
regions = [image] # 整图处理
# 文本识别
results = []
for region in regions:
text = self.text_recognizer(region, language)
results.append({
'text': text,
'region': region,
'language': language
})
# 后处理
structured_output = self.postprocessor(results)
return structured_output
def _extract_text_regions(self, image, layout):
"""基于布局分析提取文本区域"""
regions = []
for block in layout['text_blocks']:
x1, y1, x2, y2 = block['bbox']
region = image[y1:y2, x1:x2]
regions.append(region)
return regions
class MultiLanguageTextRecognizer(nn.Module):
"""多语言文本识别器"""
def __init__(self, num_languages=30, hidden_size=512):
super().__init__()
# 共享的特征提取器
self.feature_extractor = nn.Sequential(
nn.Conv2d(3, 64, 3, padding=1),
nn.ReLU(),
nn.MaxPool2d(2),
nn.Conv2d(64, 128, 3, padding=1),
nn.ReLU(),
nn.MaxPool2d(2)
)
# 语言特定的识别头
self.language_heads = nn.ModuleDict({
lang: LanguageSpecificHead(hidden_size)
for lang in SUPPORTED_LANGUAGES[:num_languages]
})
# 语言识别网络
self.language_identifier = LanguageIdentificationNetwork()
def forward(self, image, language=None):
# 提取共享特征
features = self.feature_extractor(image)
# 自动语言识别（如果未指定）
if language is None:
language = self.language_identifier(features)
# 使用特定语言的识别头
if language in self.language_heads:
text = self.language_heads[language](features)
else:
# 默认使用英语头
text = self.language_heads['en'](features)
return text
class DocumentLayoutAnalyzer:
"""文档布局分析器"""
def __init__(self):
self.detector = LayoutDetectionModel()
self.structure_parser = DocumentStructureParser()
def analyze(self, image):
# 检测文本块、表格、图片等元素
elements = self.detector(image)
# 解析文档结构
structure = self.structure_parser(elements)
return structure
五、训练与优化技术
5.1 RLAIF-V训练框架
MiniCPM-V-4.5采用基于人类反馈的强化学习视觉版本(RLAIF-V)进行训练：
class RLAIFVTrainer:
def __init__(self, model, reward_model, config):
self.model = model
self.reward_model = reward_model
self.config = config
# PPO优化器
self.ppo_optimizer = PPOTrainer(
model=model,
config=config.ppo_config
)
# 价值函数网络
self.value_network = ValueHead(model.config.hidden_size)
def train_step(self, batch):
"""
执行RLAIF-V训练步骤
"""
# 生成响应
with torch.no_grad():
responses = self.model.generate(
input_ids=batch['input_ids'],
pixel_values=batch['pixel_values'],
max_length=self.config.max_length
)
# 计算奖励
rewards = self.reward_model(
queries=batch['input_ids'],
responses=responses,
images=batch['pixel_values']
)
# PPO优化
loss = self.ppo_optimizer.step(
queries=batch['input_ids'],
responses=responses,
rewards=rewards
)
return loss
def compute_advantages(self, rewards, values):
"""计算优势函数"""
advantages = []
last_advantage = 0
# 使用GAE(Generalized Advantage Estimation)
for t in reversed(range(len(rewards))):
delta = rewards[t] + self.config.gamma * values[t+1] - values[t]
advantage = delta + self.config.gamma * self.config.lam * last_advantage
advantages.insert(0, advantage)
last_advantage = advantage
return advantages
class VisualRewardModel(nn.Module):
"""视觉奖励模型"""
def __init__(self, visual_encoder, text_encoder, hidden_size=512):
super().__init__()
self.visual_encoder = visual_encoder
self.text_encoder = text_encoder
# 多模态融合
self.fusion_network = nn.Sequential(
nn.Linear(visual_encoder.output_dim + text_encoder.config.hidden_size, hidden_size),
nn.ReLU(),
nn.Linear(hidden_size, 1),
nn.Sigmoid()
)
def forward(self, queries, responses, images):
# 编码文本查询
query_features = self.text_encoder(queries).last_hidden_state.mean(dim=1)
# 编码响应
response_features = self.text_encoder(responses).last_hidden_state.mean(dim=1)
# 编码图像
visual_features = self.visual_encoder(images)
# 融合特征
combined = torch.cat([query_features, response_features, visual_features], dim=1)
# 预测奖励分数
rewards = self.fusion_network(combined)
return rewards
5.2 高效微调技术
支持多种高效微调方法，包括LoRA、QLoRA等：
class EfficientFinetuningEngine:
def __init__(self, model, finetuning_method='lora'):
self.model = model
self.method = finetuning_method
if finetuning_method == 'lora':
self.setup_lora()
elif finetuning_method == 'qlora':
self.setup_qlora()
elif finetuning_method == 'adapter':
self.setup_adapter()
def setup_lora(self):
"""设置LoRA微调"""
from peft import LoraConfig, get_peft_model
config = LoraConfig(
r=8,
lora_alpha=16,
target_modules=["q_proj", "v_proj"],
lora_dropout=0.1,
bias="none"
)
self.model = get_peft_model(self.model, config)
def setup_qlora(self):
"""设置QLoRA微调"""
from peft import prepare_model_for_kbit_training
# 量化准备
self.model = prepare_model_for_kbit_training(self.model)
# LoRA配置
self.setup_lora()
def setup_adapter(self):
"""设置Adapter微调"""
from transformers.adapters import AdapterConfig
config = AdapterConfig(
mh_adapter=True,
output_adapter=True,
reduction_factor=16,
non_linearity="relu"
)
# 添加Adapter到所有Transformer层
for layer in self.model.base_model.encoder.layer:
layer.add_adapter("task_adapter", config=config)
def train(self, dataset, training_args):
"""执行微调训练"""
if self.method in ['lora', 'qlora']:
return self._train_peft(dataset, training_args)
else:
return self._train_standard(dataset, training_args)
def _train_peft(self, dataset, training_args):
"""使用PEFT进行训练"""
from transformers import TrainingArguments, Trainer
training_args = TrainingArguments(**training_args)
trainer = Trainer(
model=self.model,
args=training_args,
train_dataset=dataset,
data_collator=self.data_collator
)
return trainer.train()
六、部署与推理优化
6.1 多平台部署支持
MiniCPM-V-4.5支持多种部署方式，包括本地CPU推理、移动端部署和服务器部署：
class MultiPlatformDeployment:
def __init__(self, model_path, platform):
self.model_path = model_path
self.platform = platform
def prepare_for_deployment(self):
"""准备模型部署"""
if self.platform == 'cpu':
return self._prepare_cpu()
elif self.platform == 'mobile':
return self._prepare_mobile()
elif self.platform == 'server':
return self._prepare_server()
elif self.platform == 'web':
return self._prepare_web()
def _prepare_cpu(self):
"""准备CPU推理"""
# 量化模型
quantized_model = self._quantize_model(
model=self.model,
quantization_config={
'load_in_4bit': True,
'bnb_4bit_quant_type': "nf4",
'bnb_4bit_compute_dtype': torch.float16
}
)
# 优化推理图
optimized_model = self._optimize_for_cpu(quantized_model)
return optimized_model
def _prepare_mobile(self):
"""准备移动端部署"""
# 转换为ONNX格式
onnx_model = self._convert_to_onnx(self.model)
# 量化优化
mobile_model = self._quantize_for_mobile(onnx_model)
return mobile_model
def _prepare_server(self):
"""准备服务器部署"""
# 使用vLLM优化
from vllm import LLM, SamplingParams
llm = LLM(
model=self.model_path,
tensor_parallel_size=4, # 张量并行
gpu_memory_utilization=0.9
)
return llm
def _prepare_web(self):
"""准备Web部署"""
# 转换为Web格式
web_model = self._convert_to_web_format(self.model)
return web_model
class InferenceOptimizer:
"""推理优化器"""
def __init__(self):
self.optimization_techniques = {
'kernel_fusion': True,
'memory_optimization': True,
'graph_optimization': True,
'quantization': True
}
def optimize(self, model, input_example):
"""优化模型推理"""
# 内核融合
if self.optimization_techniques['kernel_fusion']:
model = self._apply_kernel_fusion(model)
# 内存优化
if self.optimization_techniques['memory_optimization']:
model = self._optimize_memory_usage(model)
# 图优化
if self.optimization_techniques['graph_optimization']:
model = self._optimize_computation_graph(model, input_example)
# 量化
if self.optimization_techniques['quantization']:
model = self._quantize_model(model)
return model
def _apply_kernel_fusion(self, model):
"""应用内核融合优化"""
# 实现内核融合逻辑
return model
def _optimize_memory_usage(self, model):
"""优化内存使用"""
# 实现内存优化逻辑
return model
6.2 量化与压缩
支持多种量化格式，包括GGUF、AWQ等：
class AdvancedQuantization:
def __init__(self, model, quantization_method='gguf'):
self.model = model
self.method = quantization_method
def quantize(self, calibration_data=None):
"""执行量化"""
if self.method == 'gguf':
return self._gguf_quantization()
elif self.method == 'awq':
return self._awq_quantization(calibration_data)
elif self.method == 'int4':
return self._int4_quantization()
else:
raise ValueError(f"Unsupported quantization method: {self.method}")
def _gguf_quantization(self):
"""GGUF格式量化"""
from llama_cpp import Llama
# 转换为GGUF格式
gguf_model = Llama(
model_path=self.model,
n_gpu_layers=35, # 使用GPU的层数
n_ctx=2048, # 上下文长度
n_threads=8 # 线程数
)
return gguf_model
def _awq_quantization(self, calibration_data):
"""AWQ量化"""
from awq import AutoAWQForCausalLM
quantizer = AutoAWQForCausalLM.from_pretrained(self.model)
# 量化配置
quant_config = {
"zero_point": True,
"q_group_size": 128,
"w_bit": 4,
"version": "GEMM"
}
# 执行量化
quantizer.quantize(
quant_config=quant_config,
calib_data=calibration_data
)
return quantizer
def _int4_quantization(self):
"""INT4量化"""
from transformers import BitsAndBytesConfig
quantization_config = BitsAndBytesConfig(
load_in_4bit=True,
bnb_4bit_quant_type="nf4",
bnb_4bit_compute_dtype=torch.float16,
bnb_4bit_use_double_quant=True,
)
quantized_model = self.model.from_pretrained(
self.model_path,
quantization_config=quantization_config,
device_map="auto"
)
return quantized_model
class ModelCompressor:
"""模型压缩器"""
def __init__(self, compression_ratio=0.5):
self.compression_ratio = compression_ratio
def compress(self, model):
"""压缩模型"""
# 权重剪枝
pruned_model = self._prune_weights(model)
# 知识蒸馏
distilled_model = self._distill_knowledge(pruned_model)
# 结构化压缩
compressed_model = self._structural_compression(distilled_model)
return compressed_model
def _prune_weights(self, model, pruning_rate=0.3):
"""权重剪枝"""
from torch.nn.utils import prune
# 对线性层进行剪枝
for name, module in model.named_modules():
if isinstance(module, nn.Linear):
prune.l1_unstructured(module, name='weight', amount=pruning_rate)
return model
def _distill_knowledge(self, student_model, teacher_model=None):
"""知识蒸馏"""
if teacher_model is None:
# 使用原模型作为教师
teacher_model = self._load_original_model()
# 实现蒸馏逻辑
return student_model
def _structural_compression(self, model):
"""结构化压缩"""
# 实现结构化压缩逻辑
return model
七、性能评估与基准测试
7.1 综合性能评估
MiniCPM-V-4.5在多个标准基准测试中表现出色：
class BenchmarkEvaluator:
def __init__(self, model, benchmarks):
self.model = model
self.benchmarks = benchmarks
self.results = {}
def run_evaluation(self):
"""运行全面评估"""
for benchmark_name, benchmark in self.benchmarks.items():
print(f"Evaluating on {benchmark_name}...")
# 运行评估
scores = self._evaluate_benchmark(benchmark)
self.results[benchmark_name] = scores
print(f"{benchmark_name} scores: {scores}")
return self.results
def _evaluate_benchmark(self, benchmark):
"""评估单个基准"""
scores = {}
for task_name, task_data in benchmark.items():
task_scores = []
for sample in task_data:
# 准备输入
input_text = sample['question']
image = sample['image'] if 'image' in sample else None
# 模型推理
if image is not None:
output = self.model.generate(
input_text=input_text,
image=image
)
else:
output = self.model.generate(input_text=input_text)
# 计算得分
score = self._calculate_score(output, sample['answer'])
task_scores.append(score)
scores[task_name] = sum(task_scores) / len(task_scores)
return scores
def _calculate_score(self, prediction, ground_truth):
"""计算单个样本的得分"""
# 实现任务特定的评分逻辑
if isinstance(ground_truth, list):
# 多答案选择
return 1.0 if prediction in ground_truth else 0.0
else:
# 文本相似度
return self._text_similarity(prediction, ground_truth)
def _text_similarity(self, text1, text2):
"""计算文本相似度"""
from sklearn.feature_extraction.text import TfidfVectorizer
from sklearn.metrics.pairwise import cosine_similarity
vectorizer = TfidfVectorizer().fit_transform([text1, text2])
vectors = vectorizer.toarray()
return cosine_similarity(vectors[0:1], vectors[1:2])[0][0]
# 基准测试配置
BENCHMARKS = {
"OpenCompass": {
"VQA": [...],
"Captioning": [...],
"Reasoning": [...]
},
"OCRBench": {
"SceneText": [...],
"Document": [...],
"Handwriting": [...]
},
"Video-MME": {
"ActionRecognition": [...],
"TemporalReasoning": [...]
},
"MMHal-Bench": {
"HallucinationDetection": [...],
"FactualAccuracy": [...]
}
}
7.2 与竞争模型对比
MiniCPM-V-4.5与主流模型的性能对比：
class ModelComparator:
def __init__(self, models, benchmarks):
self.models = models # {model_name: model_instance}
self.benchmarks = benchmarks
self.comparison_results = {}
def compare_models(self):
"""比较多个模型的性能"""
comparison = {}
for model_name, model in self.models.items():
print(f"Testing {model_name}...")
evaluator = BenchmarkEvaluator(model, self.benchmarks)
results = evaluator.run_evaluation()
comparison[model_name] = results
self.comparison_results = comparison
return comparison
def generate_report(self):
"""生成比较报告"""
report = "# Model Comparison Report\n\n"
for benchmark_name in self.benchmarks.keys():
report += f"## {benchmark_name}\n\n"
report += "| Model | Score |\n|-------|-------|\n"
for model_name, results in self.comparison_results.items():
score = results[benchmark_name]['average']
report += f"| {model_name} | {score:.3f} |\n"
report += "\n"
return report
def visualize_comparison(self):
"""可视化比较结果"""
import matplotlib.pyplot as plt
import pandas as pd
# 准备数据
data = []
for model_name, results in self.comparison_results.items():
for benchmark_name, scores in results.items():
data.append({
'Model': model_name,
'Benchmark': benchmark_name,
'Score': scores['average']
})
df = pd.DataFrame(data)
# 创建图表
fig, axes = plt.subplots(2, 2, figsize=(15, 10))
for idx, benchmark in enumerate(self.benchmarks.keys()):
ax = axes[idx//2, idx%2]
benchmark_data = df[df['Benchmark'] == benchmark]
models = benchmark_data['Model']
scores = benchmark_data['Score']
ax.bar(models, scores)
ax.set_title(benchmark)
ax.set_ylabel('Score')
ax.tick_params(axis='x', rotation=45)
plt.tight_layout()
plt.savefig('model_comparison.png')
plt.show()
# 主流模型对比
MODELS_TO_COMPARE = {
"MiniCPM-V-4.5": minicpm_model,
"GPT-4o": gpt4_model,
"Gemini-2.0-Pro": gemini_model,
"Qwen2.5-VL-72B": qwen_model,
"Claude-3-Opus": claude_model
}
图5：MiniCPM-V-4.5与竞争模型的性能对比
八、实际应用案例
8.1 智能文档分析系统
class IntelligentDocumentAnalyzer:
def __init__(self, model_path):
self.model = MiniCPMV45.from_pretrained(model_path)
self.ocr_engine = EnhancedOCRModule()
self.layout_analyzer = DocumentLayoutAnalyzer()
def analyze_document(self, document_image, analysis_type="full"):
"""
分析文档
analysis_type: "full", "text_only", "structure_only"
"""
# 文档预处理
processed_image = self._preprocess_document(document_image)
results = {}
# 文本提取
if analysis_type in ["full", "text_only"]:
text_results = self.ocr_engine(processed_image)
results['text'] = text_results
# 布局分析
if analysis_type in ["full", "structure_only"]:
layout_results = self.layout_analyzer.analyze(processed_image)
results['layout'] = layout_results
# 内容理解
if analysis_type == "full":
understanding = self._understand_content(
text_results,
layout_results,
processed_image
)
results['understanding'] = understanding
return results
def _preprocess_document(self, document):
"""文档预处理"""
# 角度校正
corrected = self._correct_skew(document)
# 质量增强
enhanced = self._enhance_quality(corrected)
# 分页处理（如果是多页文档）
pages = self._split_pages(enhanced)
return pages
def _understand_content(self, text_results, layout_results, image):
"""文档内容理解"""
# 准备多模态输入
multimodal_input = self._prepare_multimodal_input(
text_results,
layout_results,
)
# 使用模型进行深度理解
understanding = self.model.generate(
input_text="请分析这个文档的内容和结构",
pixel_values=multimodal_input
)
return self._parse_understanding(understanding)
def generate_summary(self, document_image, summary_length="short"):
"""生成文档摘要"""
analysis = self.analyze_document(document_image, "full")
prompt = f"""
请为以下文档生成一个{summary_length}摘要：
文档内容：{analysis['text']}
文档结构：{analysis['layout']}
"""
summary = self.model.generate(input_text=prompt)
return summary
# 使用示例
document_analyzer = IntelligentDocumentAnalyzer("MiniCPM-V-4.5-doc")
document_image = load_image("contract.pdf")
results = document_analyzer.analyze_document(document_image)
print("提取的文本:", results['text'])
print("文档结构:", results['layout'])
print("内容分析:", results['understanding'])
8.2 多模态对话系统
class MultimodalChatSystem:
def __init__(self, model_path, personality="helpful"):
self.model = MiniCPMV45.from_pretrained(model_path)
self.personality = personality
self.conversation_history = []
# 个性化设置
self.personality_templates = {
"helpful": "你是一个乐于助人的AI助手，详细回答用户问题。",
"concise": "你是一个简洁的AI助手，直接回答问题。",
"friendly": "你是一个友好的AI助手，使用亲切的语气。"
}
def chat(self, user_input, image=None, video=None):
"""处理用户输入（可能包含文本、图像或视频）"""
# 准备多模态输入
multimodal_input = self._prepare_input(user_input, image, video)
# 构建对话上下文
context = self._build_context()
# 生成回复
response = self.model.generate(
input_text=context + multimodal_input['text'],
pixel_values=multimodal_input['visual']
)
# 更新对话历史
self._update_history(user_input, response, image, video)
return response
def _prepare_input(self, user_input, image, video):
"""准备多模态输入"""
input_data = {'text': user_input, 'visual': None}
if image is not None:
# 处理图像输入
visual_features = self._process_visual_input(image, "image")
input_data['visual'] = visual_features
elif video is not None:
# 处理视频输入
visual_features = self._process_visual_input(video, "video")
input_data['visual'] = visual_features
return input_data
def _build_context(self):
"""构建对话上下文"""
# 添加个性化提示
context = self.personality_templates[self.personality] + "\n\n"
# 添加对话历史
for turn in self.conversation_history[-6:]: # 最近6轮对话
context += f"用户: {turn['user']}\n"
if turn.get('image'):
context += "[用户发送了图片]\n"
if turn.get('video'):
context += "[用户发送了视频]\n"
context += f"助手: {turn['assistant']}\n\n"
return context
def _update_history(self, user_input, response, image, video):
"""更新对话历史"""
self.conversation_history.append({
'user': user_input,
'assistant': response,
'image': image,
'video': video
})
# 限制历史长度
if len(self.conversation_history) > 20:
self.conversation_history = self.conversation_history[-20:]
def set_personality(self, personality):
"""设置对话个性"""
if personality in self.personality_templates:
self.personality = personality
else:
raise ValueError(f"不支持的个性类型: {personality}")
def clear_history(self):
"""清空对话历史"""
self.conversation_history = []
# 使用示例
chatbot = MultimodalChatSystem("MiniCPM-V-4.5-chat")
response = chatbot.chat("请描述这张图片的内容", image=load_image("scene.jpg"))
print(response)
response = chatbot.chat("根据这个视频，发生了什么事件？", video=load_video("event.mp4"))
print(response)
九、未来发展方向
9.1 技术演进路线
class FutureDevelopmentRoadmap:
def __init__(self):
self.current_version = "4.5"
self.planned_versions = {
"4.6": {
"features": [
"增强的多模态推理能力",
"更好的长上下文处理",
"改进的视频理解"
],
"eta": "Q4 2024"
},
"5.0": {
"features": [
"全模态支持（音频、3D等）",
"世界模型集成",
"自我改进能力"
],
"eta": "Q2 2025"
}
}
def get_roadmap(self):
"""获取技术演进路线图"""
roadmap = f"# MiniCPM-V 技术演进路线图\n\n"
roadmap += f"## 当前版本: {self.current_version}\n\n"
for version, info in self.planned_versions.items():
roadmap += f"## 版本 {version} (预计: {info['eta']})\n\n"
roadmap += "**主要特性:**\n"
for feature in info['features']:
roadmap += f"- {feature}\n"
roadmap += "\n"
return roadmap
def prioritize_features(self, user_feedback):
"""根据用户反馈优先化特性开发"""
# 分析用户反馈
feature_requests = self._analyze_feedback(user_feedback)
# 更新路线图优先级
for version in self.planned_versions.values():
version['features'] = self._reorder_features(
version['features'],
feature_requests
)
def _analyze_feedback(self, feedback):
"""分析用户反馈"""
# 实现反馈分析逻辑
return []
def _reorder_features(self, features, prioritized):
"""根据优先级重新排序特性"""
# 将优先的特性移到前面
for feature in prioritized:
if feature in features:
features.remove(feature)
features.insert(0, feature)
return features
9.2 生态系统建设
class EcosystemBuilder:
def __init__(self):
self.components = {
"开发工具": [],
"部署方案": [],
"应用模板": [],
"社区资源": []
}
def build_developer_tools(self):
"""建设开发工具生态"""
tools = [
"高效微调框架",
"模型压缩工具包",
"性能分析套件",
"可视化调试工具"
]
self.components["开发工具"].extend(tools)
def build_deployment_solutions(self):
"""建设部署方案生态"""
solutions = [
"移动端优化部署",
"边缘计算方案",
"云原生部署",
"混合云解决方案"
]
self.components["部署方案"].extend(solutions)
def build_application_templates(self):
"""建设应用模板生态"""
templates = [
"智能文档处理",
"多模态对话系统",
"视频内容分析",
"工业质检方案"
]
self.components["应用模板"].extend(templates)
def build_community_resources(self):
"""建设社区资源生态"""
resources = [
"技术文档和教程",
"最佳实践指南",
"案例研究库",
"开发者论坛"
]
self.components["社区资源"].extend(resources)
def get_ecosystem_status(self):
"""获取生态系统建设状态"""
status = "# MiniCPM-V 生态系统状态\n\n"
for category, items in self.components.items():
status += f"## {category}\n\n"
for item in items:
status += f"- {item}\n"
status += "\n"
return status
结论
MiniCPM-V-4.5代表了多模态AI模型发展的一个重要里程碑，通过创新的架构设计、高效的训练方法和广泛的部署支持，实现了在边缘设备上运行先进多模态AI的突破。其核心优势体现在：
- 卓越性能：在多项基准测试中超越参数量大得多的模型，证明了效率与性能可以兼得
- 架构创新：3D-Resampler、混合推理机制和LLaVA-UHD等技术创新解决了多模态AI的关键挑战
- 部署灵活：支持从移动设备到云服务器的多种部署方案，满足不同应用场景需求
- 生态完善：提供完整的开发工具链和应用模板，降低开发门槛
随着模型规模的不断扩大和技术的持续创新，MiniCPM-V系列将继续推动多模态AI技术的发展，为构建更加智能、高效的人工智能系统奠定坚实基础。
参考资源：
- MiniCPM-V-4.5技术报告
- 3D-Resampler: Unified Processing of Images and Videos
- LLaVA-UHD: High-Resolution Multimodal Learning
- RLAIF-V: Reinforcement Learning from AI Feedback for Vision
- Efficient Multimodal Model Deployment
相关代码库：
在线体验：
