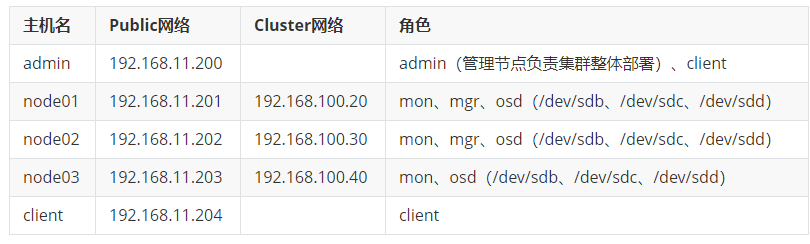

一、准备
5台centos7主机

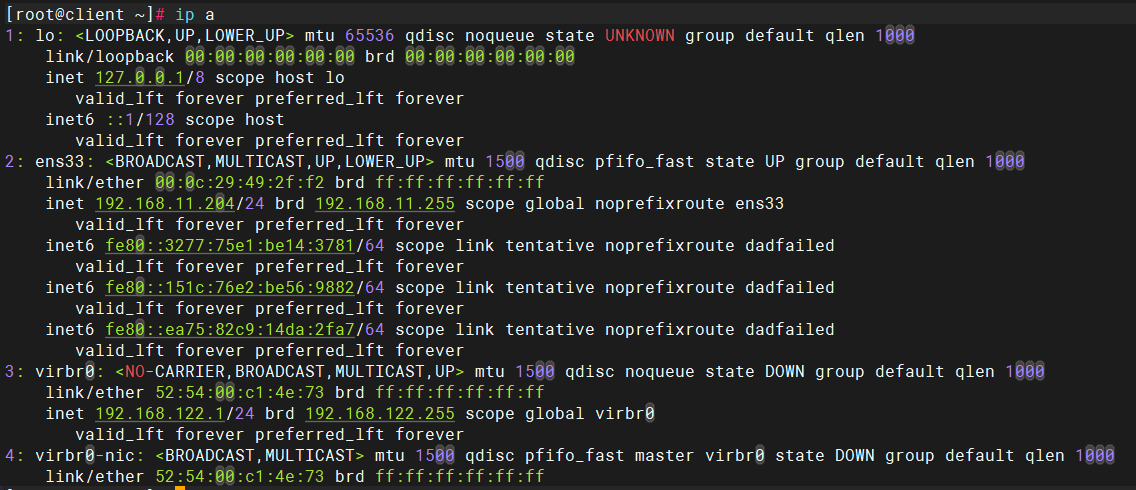

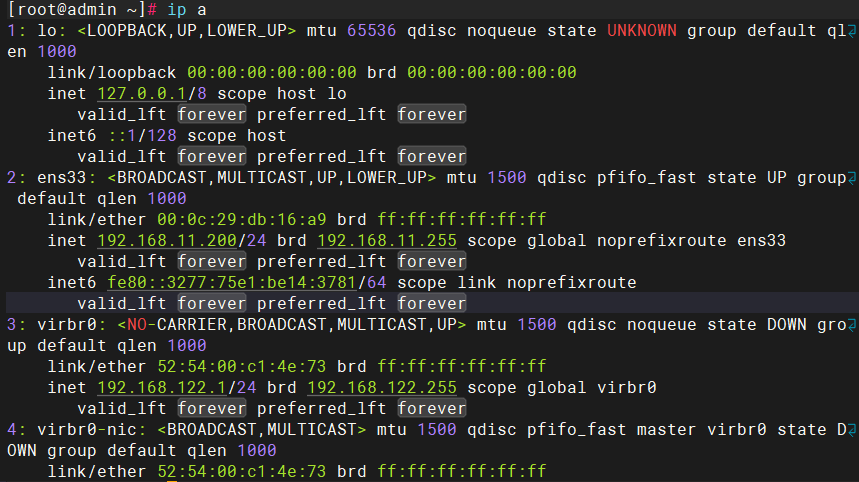

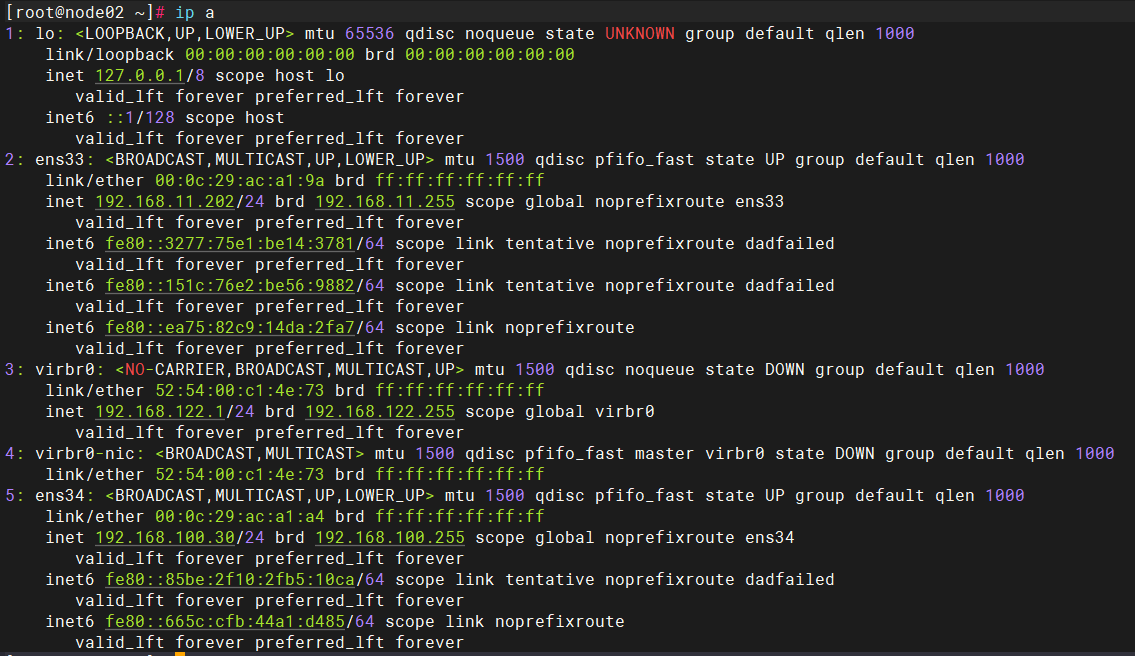

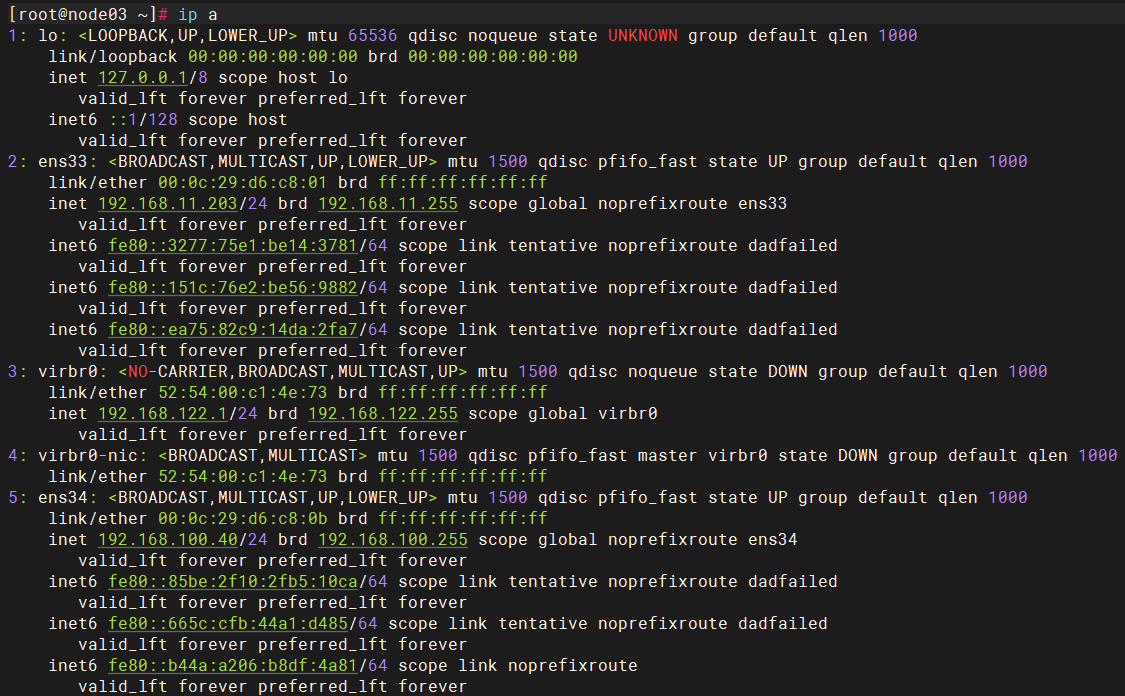

node节点双网卡
（1个内部检测，1个外部使用）

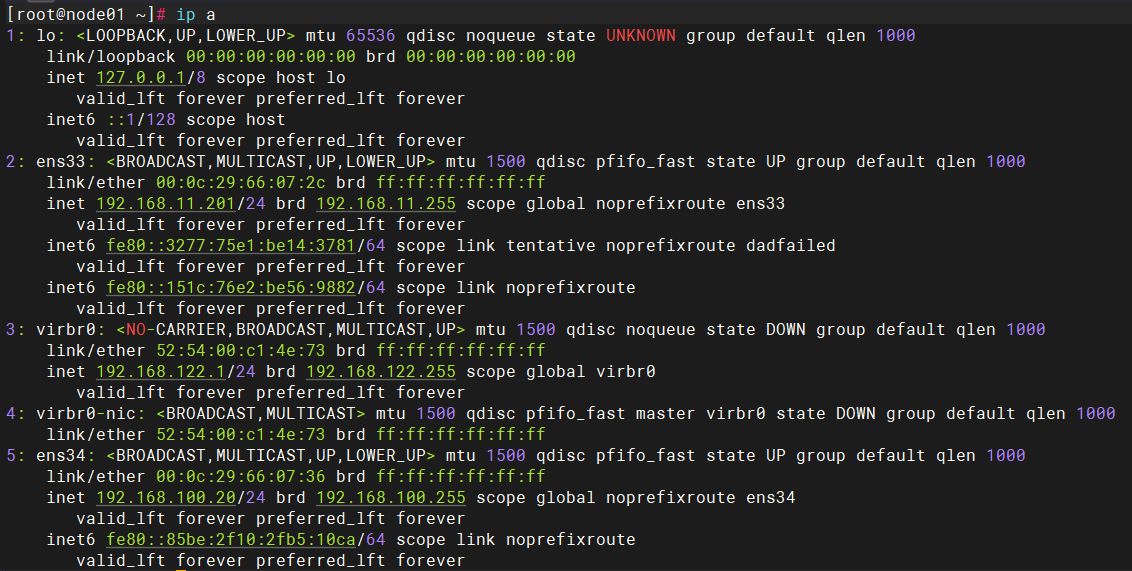

node节点都添加新网卡
关闭防火墙和上下文
都需要

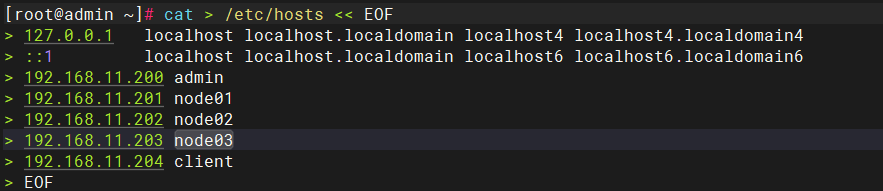

添加hosts文件
都需要
-
cat > /etc/hosts << EOF
-
> 127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
-
> ::1 localhost localhost.localdomain localhost6 localhost6.localdomain6
-
> 192.168.11.200 admin
-
> 192.168.11.201 node01
-
> 192.168.11.202 node02
-
> 192.168.11.203 node03
-
> 192.168.11.204 client
-
> EOF
AI运行代码

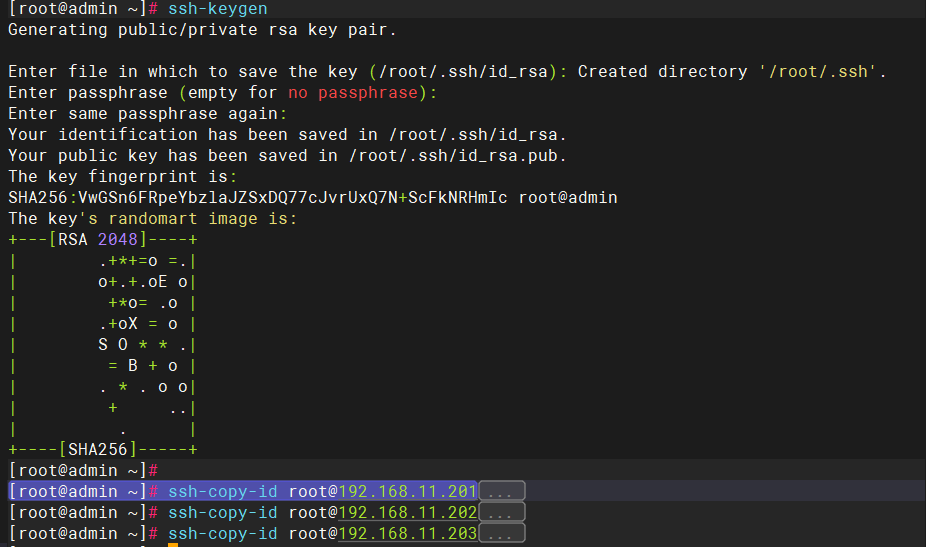

admin对node免密

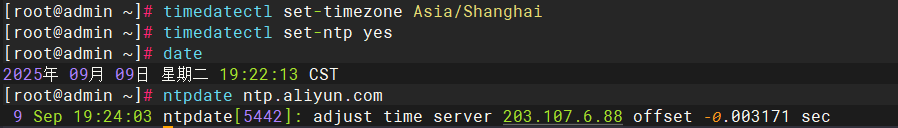

配时间同步
-
timedatectl set-timezone Asia/Shanghai
-
timedatectl set-ntp yes
-
-
###
-
ntpdate ntp.aliyun.com
AI运行代码
创建工作目录

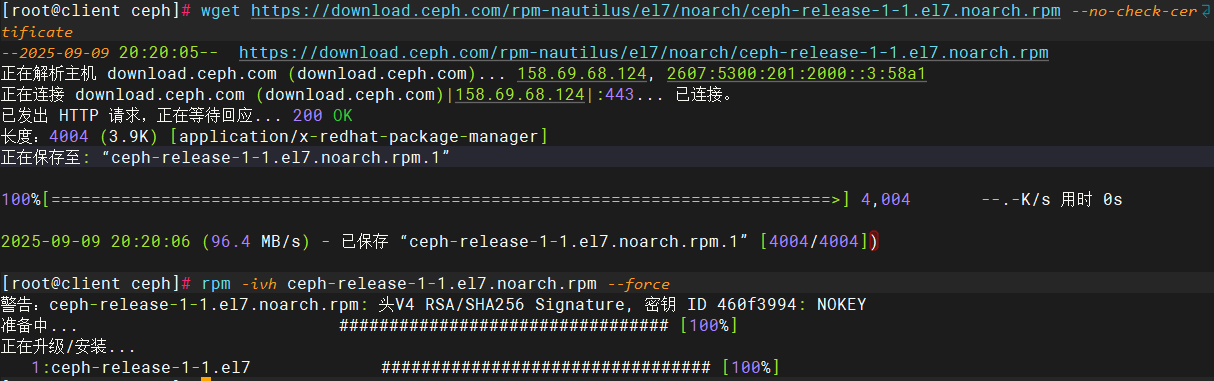

配置下载源
-
wget https://download.ceph.com/rpm-nautilus/el7/noarch/ceph-release-1-1.el7.noarch.rpm --no-check-certificate
-
-
rpm -ivh ceph-release-1-1.el7.noarch.rpm --force
AI运行代码

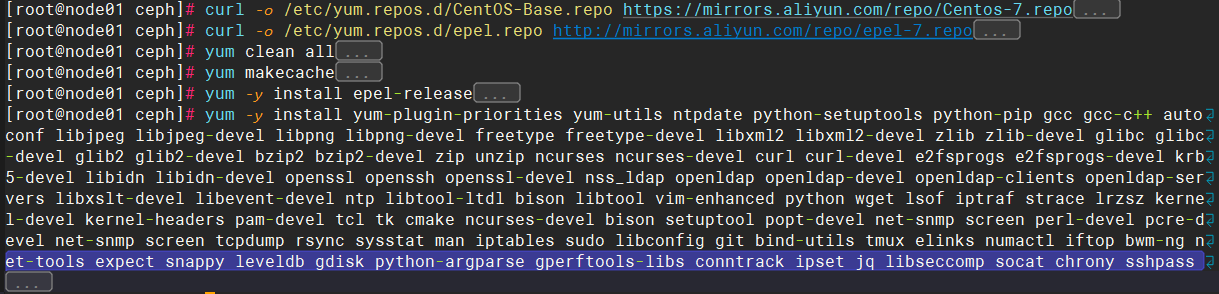

安装软件包及依赖
-
curl -o /etc/yum.repos.d/CentOS-Base.repo https://mirrors.aliyun.com/repo/Centos-7.repo
-
-
curl -o /etc/yum.repos.d/epel.repo http://mirrors.aliyun.com/repo/epel-7.repo
-
-
yum clean all
-
-
yum makecache
-
-
yum -y install epel-release
-
-
yum -y install yum-plugin-priorities yum-utils ntpdate python-setuptools python-pip gcc gcc-c++ autoconf libjpeg libjpeg-devel libpng libpng-devel freetype freetype-devel libxml2 libxml2-devel zlib zlib-devel glibc glibc-devel glib2 glib2-devel bzip2 bzip2-devel zip unzip ncurses ncurses-devel curl curl-devel e2fsprogs e2fsprogs-devel krb5-devel libidn libidn-devel openssl openssh openssl-devel nss_ldap openldap openldap-devel openldap-clients openldap-servers libxslt-devel libevent-devel ntp libtool-ltdl bison libtool vim-enhanced python wget lsof iptraf strace lrzsz kernel-devel kernel-headers pam-devel tcl tk cmake ncurses-devel bison setuptool popt-devel net-snmp screen perl-devel pcre-devel net-snmp screen tcpdump rsync sysstat man iptables sudo libconfig git bind-utils tmux elinks numactl iftop bwm-ng net-tools expect snappy leveldb gdisk python-argparse gperftools-libs conntrack ipset jq libseccomp socat chrony sshpass
AI运行代码
在admin执行
下载失败可手动下载
admin与node
-
yum clean all
-
-
yum mackcache
-
-
yum -y install epel-release
-
-
yum -y install yum-plugin-priorities
-
-
yum -y install ceph-release ceph ceph-radosgw
AI运行代码

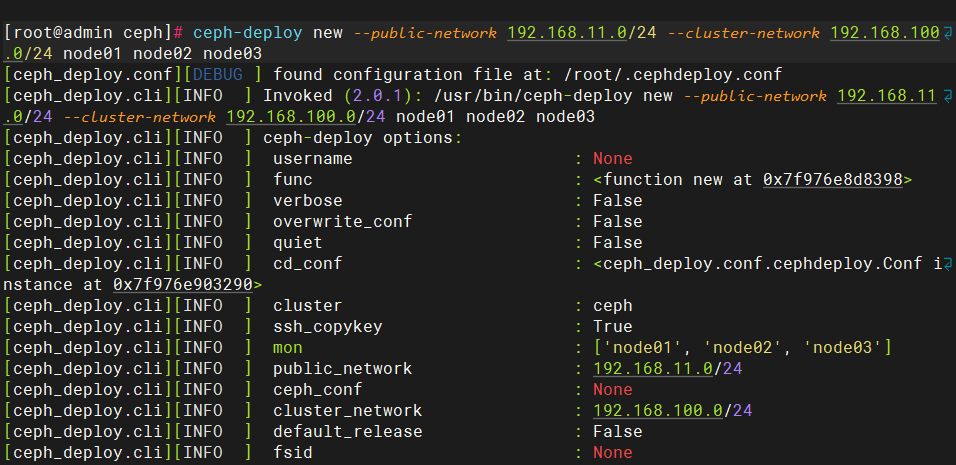

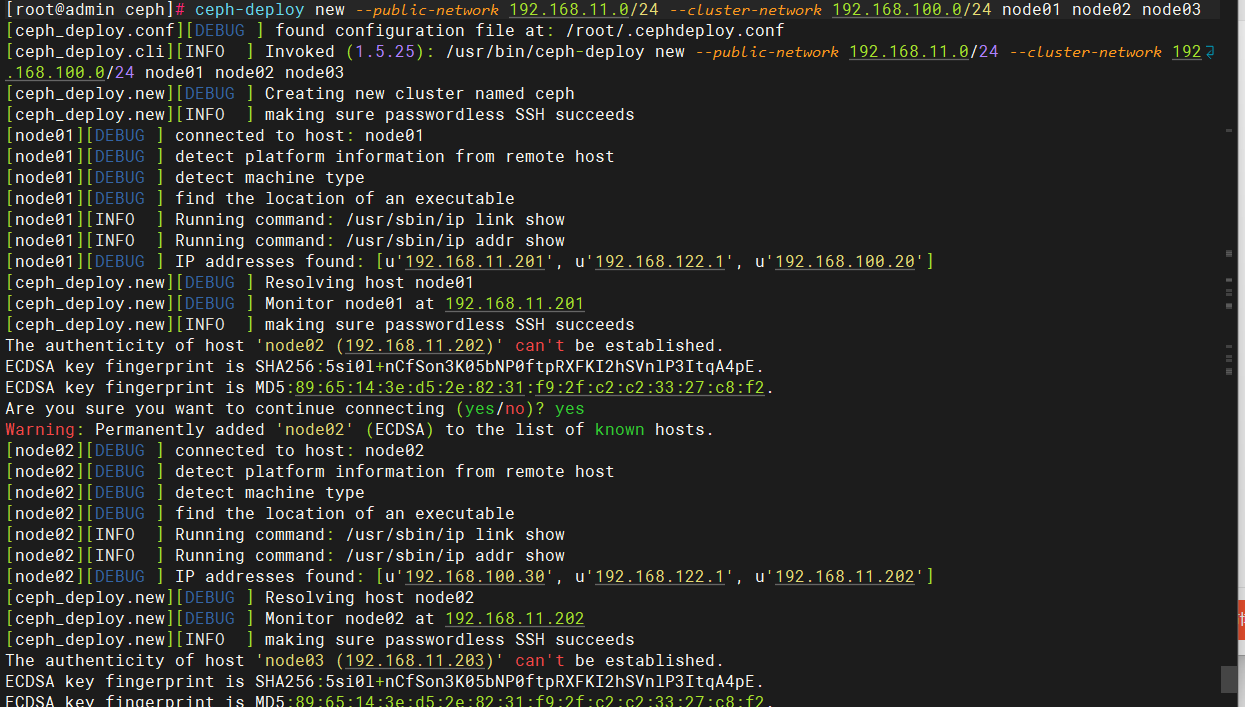

生成初始配置
ceph-deploy new --public-network 192.168.11.0/24 --cluster-network 192.168.100.0/24 node01 node02 node03
AI运行代码

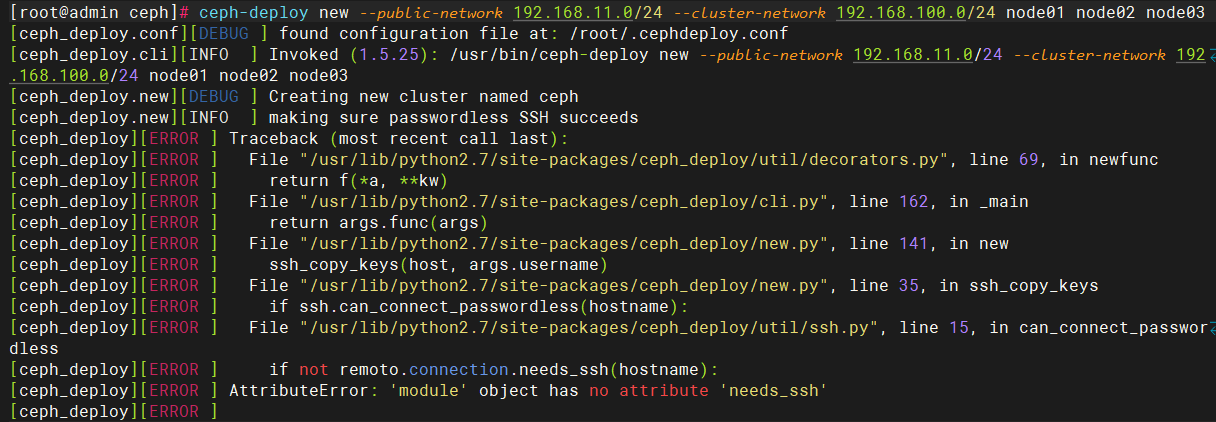

假如出现
-
cat > /usr/lib/python2.7/site-packages/ceph_deploy/util/ssh.py << 'EOF'
-
# -*- coding: utf-8 -*-
-
import logging
-
from ceph_deploy.lib import remoto
-
from ceph_deploy.connection import get_local_connection
-
-
-
def can_connect_passwordless(hostname):
-
"""
-
Ensure that current host can SSH remotely to the remote
-
host using the ``BatchMode`` option to prevent a password prompt.
-
-
That attempt will error with an exit status of 255 and a ``Permission
-
denied`` message or a``Host key verification failed`` message.
-
"""
-
# 直接返回True，跳过needs_ssh检查（已确认SSH正常）
-
return True
-
-
# 以下代码会被上面的return跳过，保留仅作参考
-
logger = logging.getLogger(hostname)
-
with get_local_connection(logger) as conn:
-
# Check to see if we can login, disabling password prompts
-
command = ['ssh', '-CT', '-o', 'BatchMode=yes', hostname]
-
out, err, retval = remoto.process.check(conn, command, stop_on_error=False)
-
permission_denied_error = 'Permission denied '
-
host_key_verify_error = 'Host key verification failed.'
-
has_key_error = False
-
for line in err:
-
if permission_denied_error in line or host_key_verify_error in line:
-
has_key_error = True
-
-
if retval == 255 and has_key_error:
-
return False
-
return True
-
EOF
AI运行代码

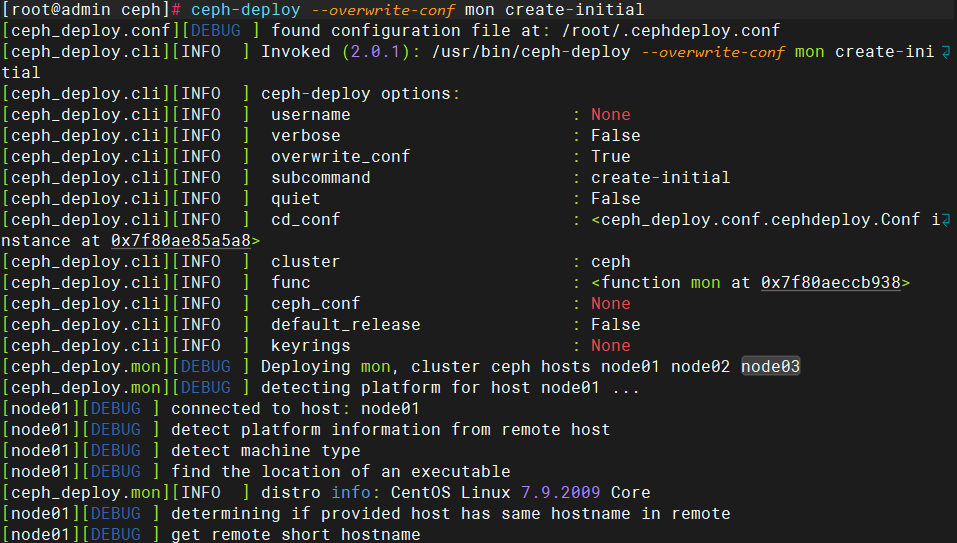

同步配置
ceph-deploy --overwrite-conf mon create-initial
AI运行代码
初始化mon节点

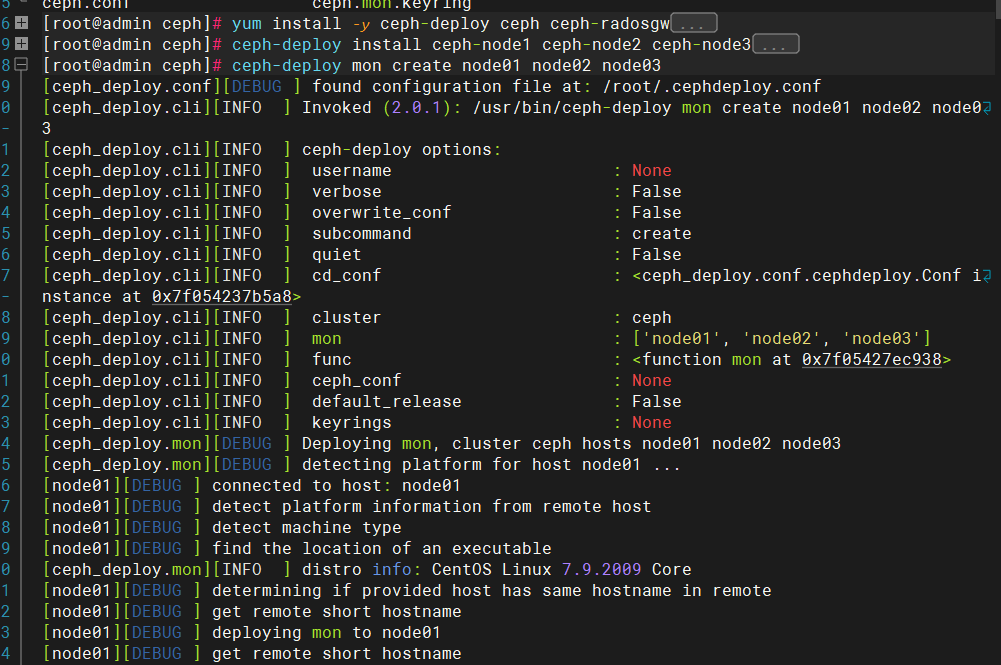

ceph-deploy mon create node01 node02 node03
AI运行代码

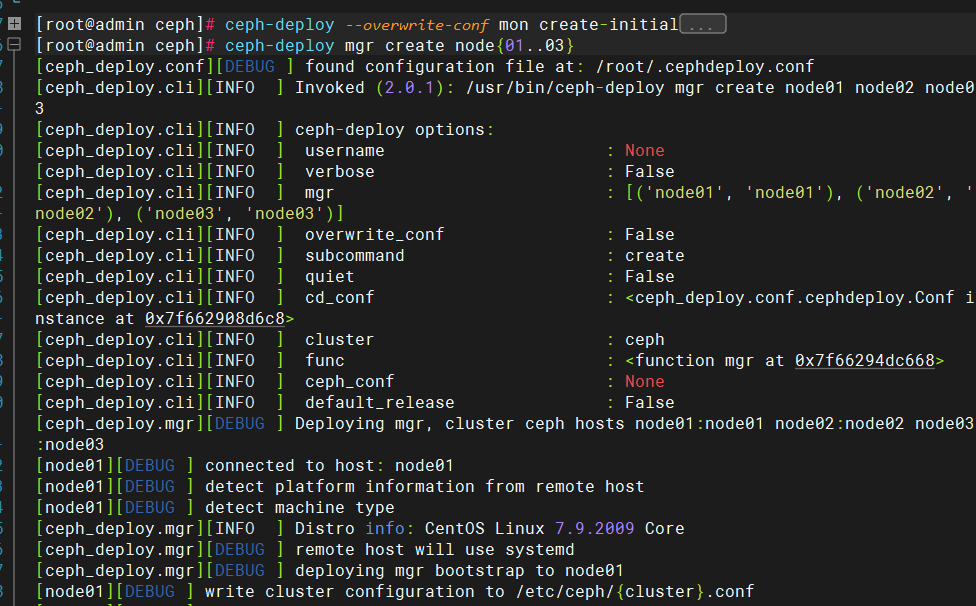

部署mgr
ceph-deploy mgr create node{01..03}
AI运行代码

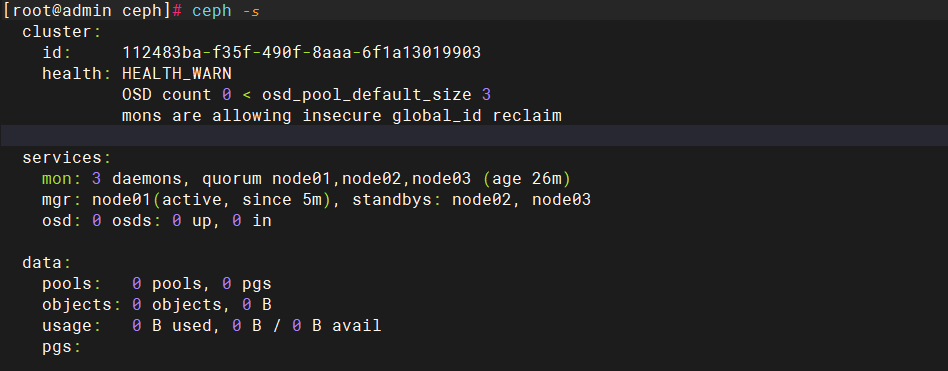

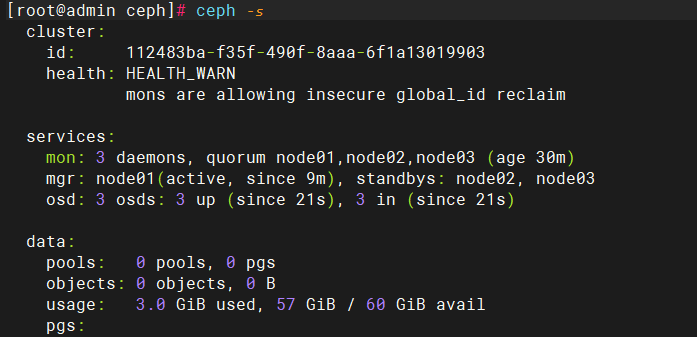

查看ceph集群状态
查看 mon 集群选举的情况
ceph quorum_status --format json-pretty | grep leader
AI运行代码

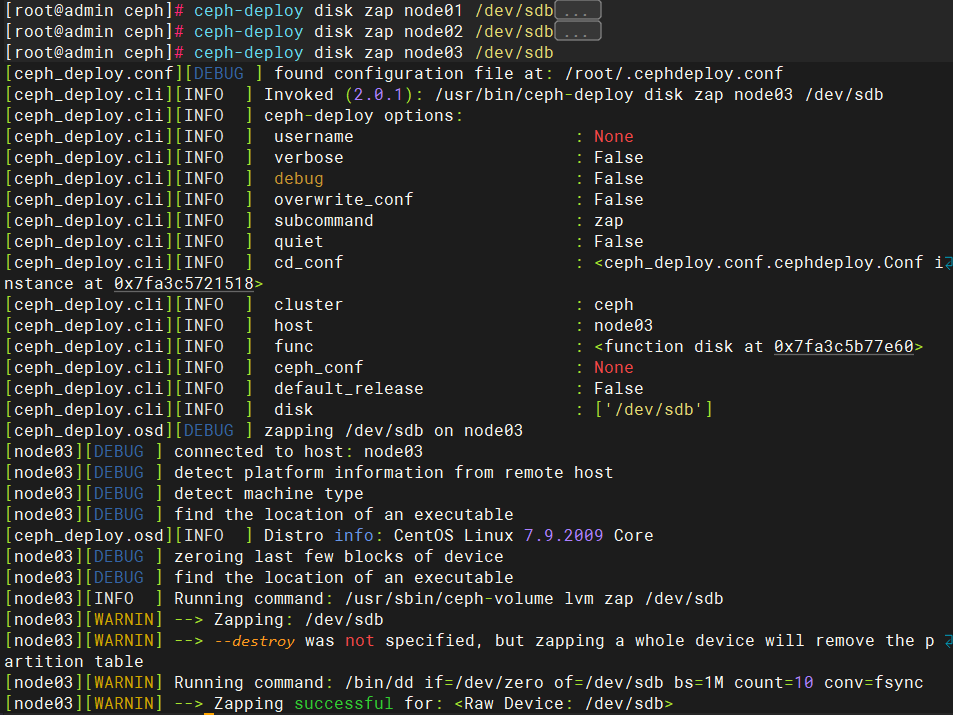

擦净（删除分区表）磁盘
-
ceph-deploy disk zap node01 /dev/sdb
-
ceph-deploy disk zap node02 /dev/sdb
-
ceph-deploy disk zap node03 /dev/sdb
AI运行代码
添加osd节点
-

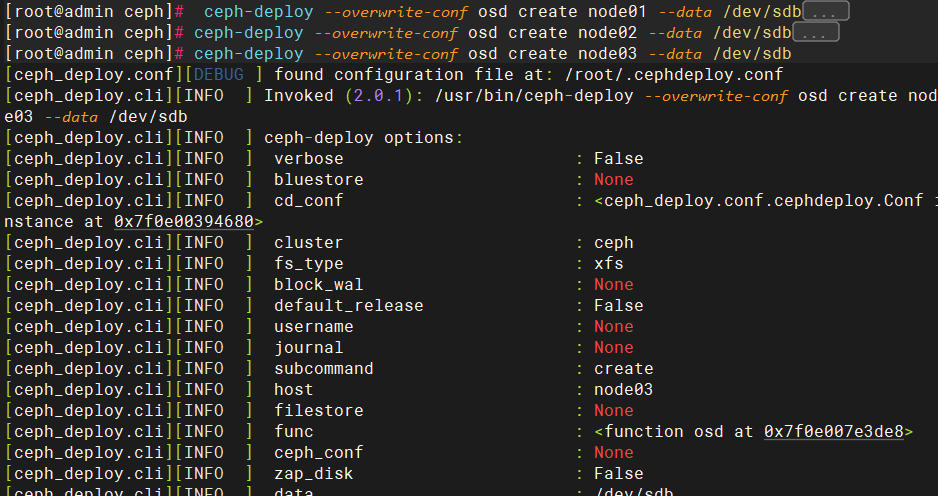

ceph-deploy --overwrite-conf osd create node01 --data /dev/sdb
-
ceph-deploy --overwrite-conf osd create node02 --data /dev/sdb
-
ceph-deploy --overwrite-conf osd create node03 --data /dev/sdb
AI运行代码

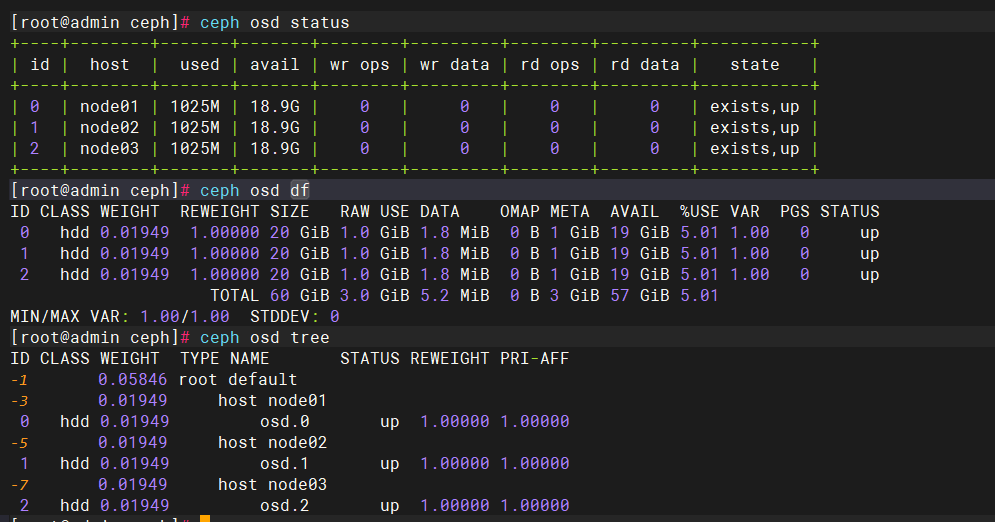

查看状态

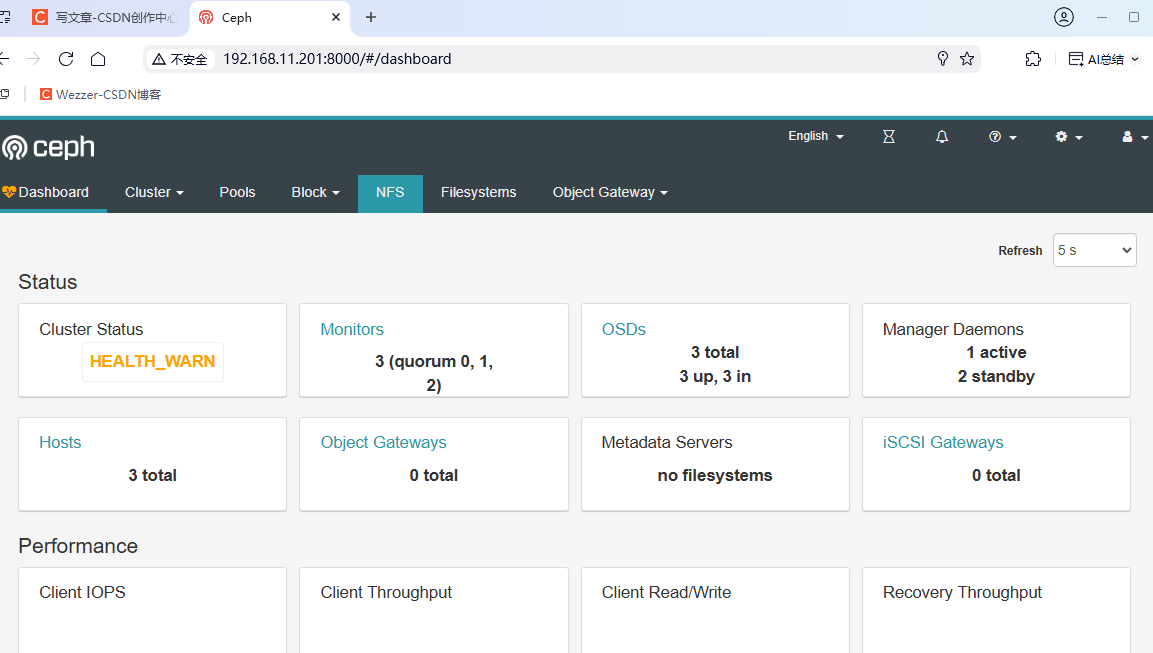

开启监控模块
查看主节点
ceph -s | grep mgr
AI运行代码
在主节点上执行

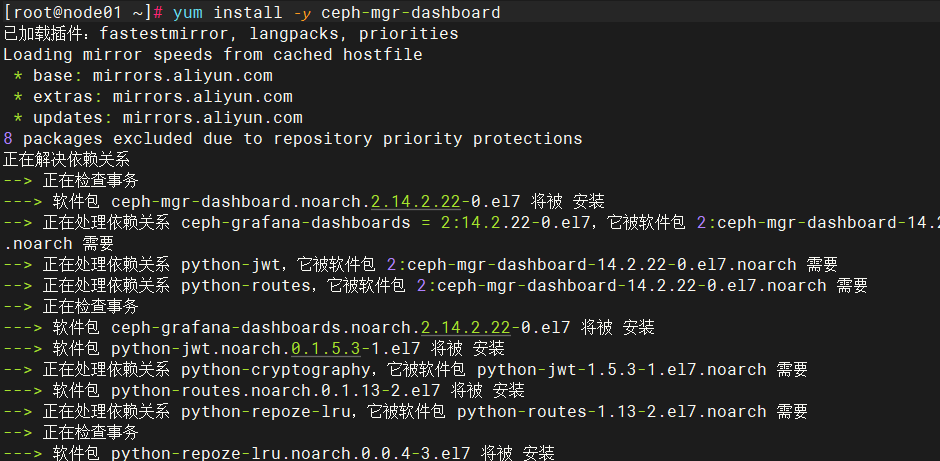

yum install -y ceph-mgr-dashboardAI运行代码
-

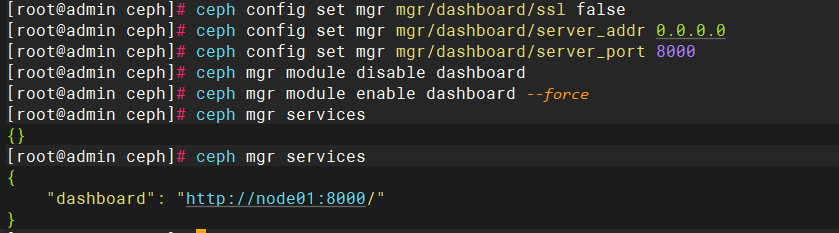

[root@admin ceph]# ceph config set mgr mgr/dashboard/ssl false
-
[root@admin ceph]# ceph config set mgr mgr/dashboard/server_addr 0.0.0.0
-
[root@admin ceph]# ceph config set mgr mgr/dashboard/server_port 8000
-
-
[root@admin ceph]# ceph mgr module disable dashboard
-
[root@admin ceph]# ceph mgr module enable dashboard --force
-
[root@admin ceph]# ceph mgr services
AI运行代码

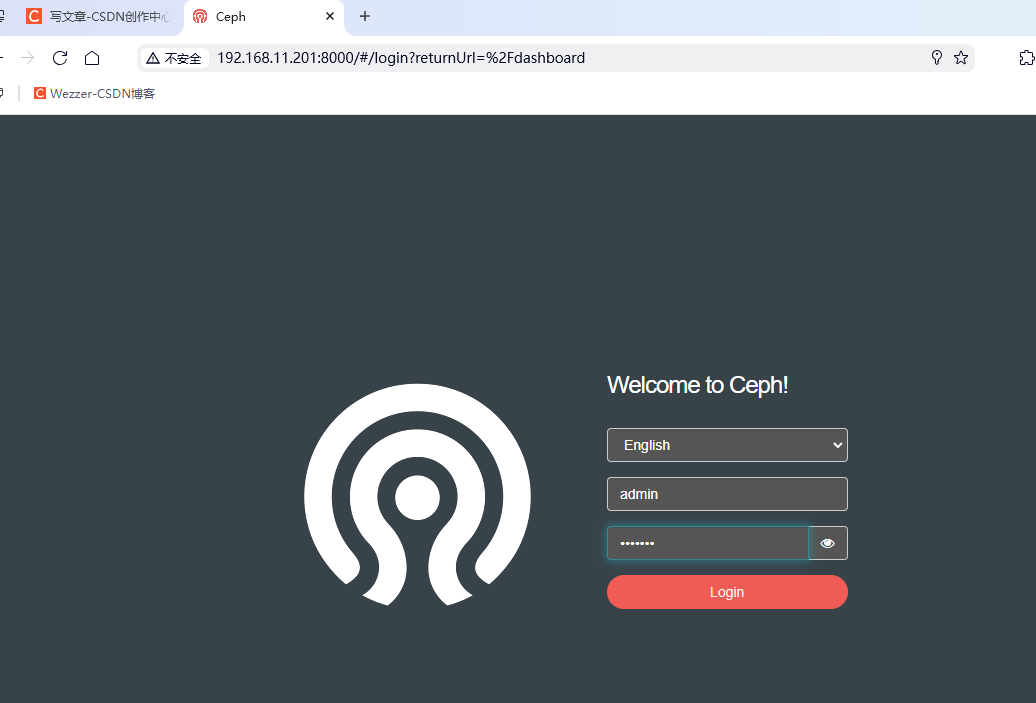

设置密码与用户
-

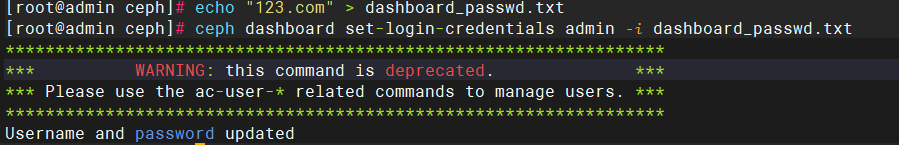

[root@admin ceph]# echo "123.com" > dashboard_passwd.txt
-
[root@admin ceph]# ceph dashboard set-login-credentials admin -i dashboard_passwd.txt
AI运行代码
资源池 Pool 管理
创建pool，作为数据池

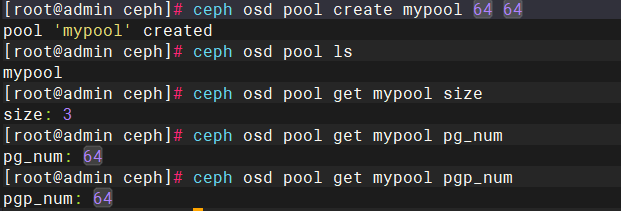

ceph osd pool create mypool 64 64
AI运行代码

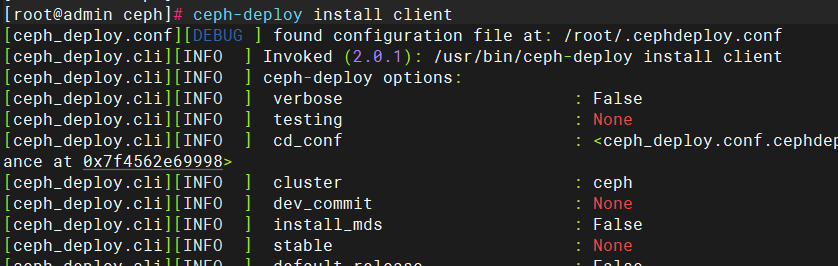

安装客户工具
ceph-deploy install clientAI运行代码
客户端使用ceph

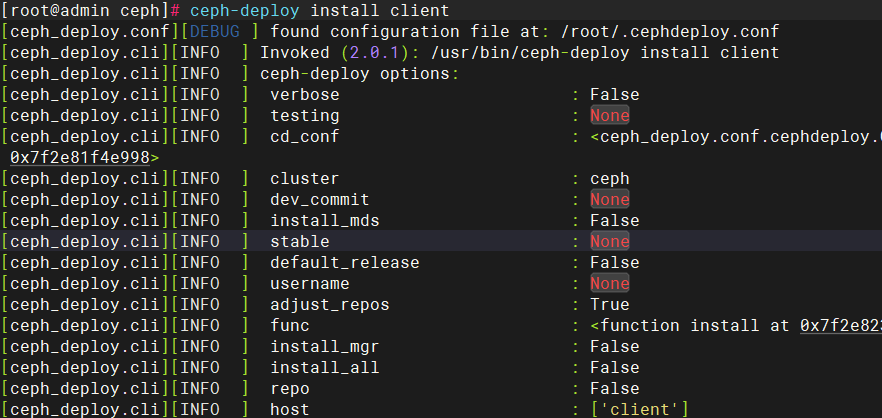

admin节点操作，安装客户端工具
[root@admin ceph]# ceph-deploy install client
AI运行代码

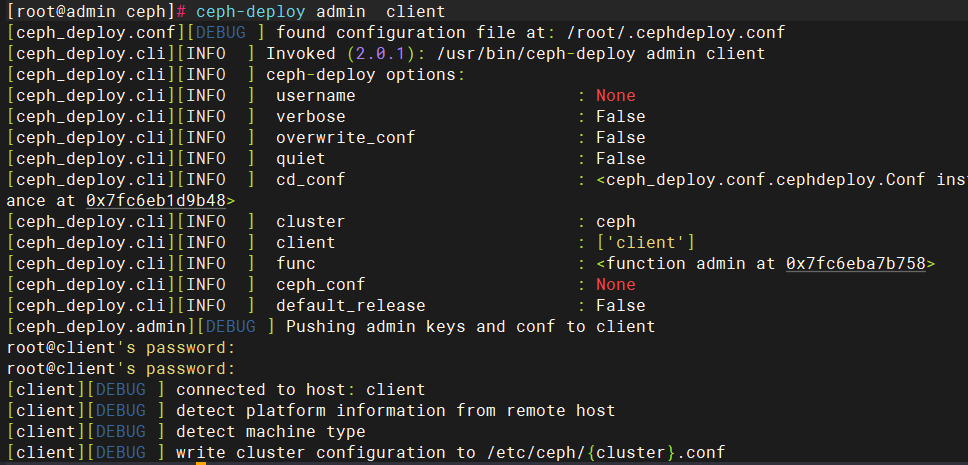

admin节点操作，同步管理信息
ceph-deploy admin clientAI运行代码

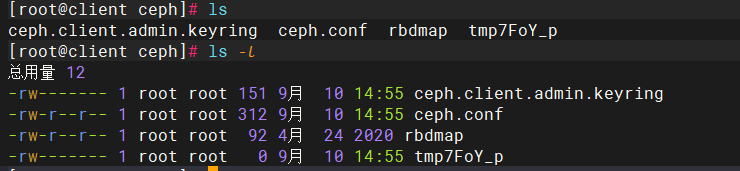

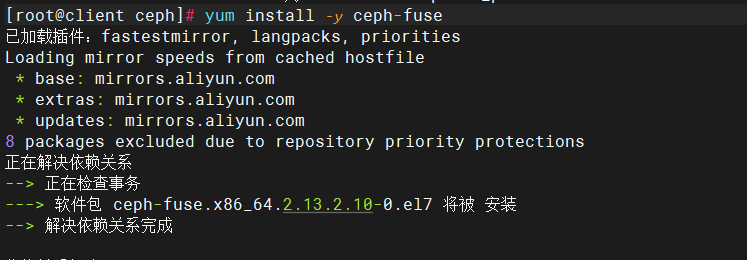

在client节点操作，安装客户端工具
创建 元数据池
-
ceph osd pool create cephfs_meta 64
-
-
ceph osd pool application enable cephfs_meta cephfs
AI运行代码
使用 资源池与 元资源池 关联 创建 cephfs
使用 2个pool 一个作为资源池 （大容量）一个作为 元资源池 （小容量）
-
ceph fs new cephfs cephfs_meta mypool
-
ceph fs new <文件系统名称> <元数据池名称> <数据池名称>
AI运行代码

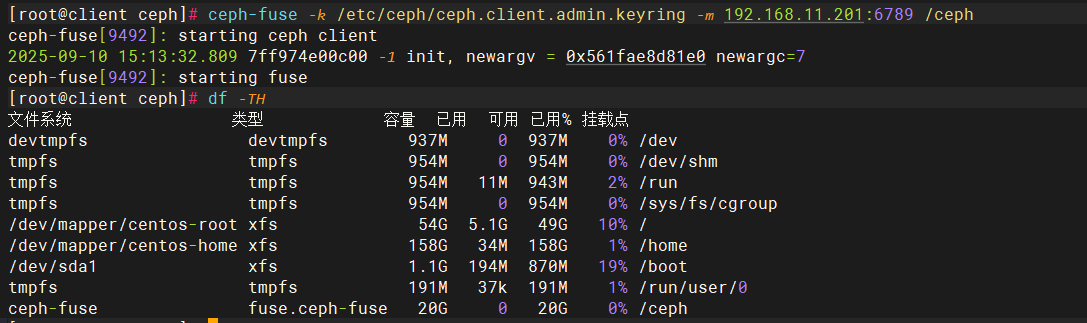

挂载文件
ceph-fuse -k /etc/ceph/ceph.client.admin.keyring -m 192.168.11.201:6789 /ceph
AI运行代码
