1. httpd简介

httpd是Apache超文本传输协议（HTTP）服务器的主程序。被设计为一个独立运行的后台进程，它会建立一个处理请求的子进程或线程的池。

通常，httpd不应该被直接调用，而应该在类Unix系统中由apachectl调用，在Windows中作为服务运行。

2. httpd版本

主要介绍httpd的两大版本，分别为httpd-2.2和httpd-2.4。

• CentOS6系列的版本默认提供的是httpd-2.2版本的rpm包

• CentOS7系列的版本默认提供的是httpd-2.4版本的rpm包

2.1 httpd的特性

httpd有很多特性，下面就分别来说说httpd-2.2版本和httpd-2.4版本各自的特性。

2.2 httpd-2.4新增的模块

httpd-2.4在之前的版本基础上新增了几大模块，下面就几个常用的来介绍一下。

3. httpd基础

3.1 httpd自带的工具程序

3.2 rpm包安装的httpd程序环境

mpm：以DSO机制提供，配置文件为/etc/httpd/conf.modules.d/00-mpm.conf

3.3 web相关的命令

3.3.1 curl命令

curl是基于URL语法在命令行方式下工作的文件传输工具，它支持FTP，FTPS，HTTP，HTTPS，GOPHER，TELNET，DICT，FILE及LDAP等协议。

curl支持以下功能：

• https认证

• http的POST/PUT等方法

• ftp上传

• kerberos认证

• http上传

• 代理服务器

• cookies

• 用户名/密码认证

• 下载文件断点续传

• socks5代理服务器

• 通过http代理服务器上传文件到ftp服务器

//语法：curl [options] [URL ...]
//常用的options：
    -A/--user-agent <string>    //设置用户代理发送给服务器
    -basic              //使用Http基本认证
    --tcp-nodelay       //使用TCP_NODELAY选项
    -e/--referer <URL>      //来源网址
    --cacert <file>     //CA证书（SSL）
    --compressed        //要求返回时压缩的格式
    -H/--header <line>  //自定义请求首部信息传递给服务器
    -I/--head           //只显示响应报文首部信息
    --limit-rate <rate>     //设置传输速度
    -u/--user <user[:password]>     //设置服务器的用户和密码
    -0/--http1      //使用http 1.0版本，默认使用1.1版本。这个选项是数字0而不是字母o
    -o/--output     //把输出写到文件中
    -#/--progress-bar       //进度条显示当前的传送状态

[root@localhost ~]# ls
anaconda-ks.cfg
[root@localhost ~]# curl -o myblog.html http://blog.51cto.com/itchentao
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100   312  100   312    0     0   1399      0 --:--:-- --:--:-- --:--:--  1399
[root@localhost ~]# ls
anaconda-ks.cfg  myblog.html
​

3.3.2 httpd命令

//语法：httpd [options]
//常用的options：
    -l      //查看静态编译的模块，列出核心中编译了哪些模块。 \
            //它不会列出使用LoadModule指令动态加载的模块
    -M      //输出一个已经启用的模块列表，包括静态编译在服务 \
            //器中的模块和作为DSO动态加载的模块
    -v      //显示httpd的版本，然后退出
    -V      //显示httpd和apr/apr-util的版本和编译参数，然后退出
    -X      //以调试模式运行httpd。仅启动一个工作进程，并且 \
            //服务器不与控制台脱离
    -t      //检查配置文件是否有语法错误

[root@localhost ~]# httpd -M
AH00558: httpd: Could not reliably determine the server's fully qualified domain name, using localhost.localdomain. Set the 'ServerName' directive globally to suppress this message
Loaded Modules:
 core_module (static)
 so_module (static)
 http_module (static)
 access_compat_module (shared)
 actions_module (shared)
 alias_module (shared)
 allowmethods_module (shared)
 auth_basic_module (shared)
 auth_digest_module (shared)
 authn_anon_module (shared)
 authn_core_module (shared)
 authn_dbd_module (shared)
 authn_dbm_module (shared)
......
......
[root@localhost ~]# httpd -v
Server version: Apache/2.4.37 (centos)
Server built:   Apr  6 2022 14:54:37
[root@localhost ~]# httpd -V
Server version: Apache/2.4.37 (centos)
Server built:   Apr  6 2022 14:54:37
Server's Module Magic Number: 20120211:83
Server loaded:  APR 1.6.3, APR-UTIL 1.6.1
Compiled using: APR 1.6.3, APR-UTIL 1.6.1
Architecture:   64-bit
Server MPM:     event
  threaded:     yes (fixed thread count)
    forked:     yes (variable process count)
Server compiled with....
 -D APR_HAS_SENDFILE
 -D APR_HAS_MMAP
 -D APR_HAVE_IPV6 (IPv4-mapped addresses enabled)
 -D APR_USE_SYSVSEM_SERIALIZE
 -D APR_USE_PTHREAD_SERIALIZE
 -D SINGLE_LISTEN_UNSERIALIZED_ACCEPT
 -D APR_HAS_OTHER_CHILD
 -D AP_HAVE_RELIABLE_PIPED_LOGS
 -D DYNAMIC_MODULE_LIMIT=256
 -D HTTPD_ROOT="/etc/httpd"
 -D SUEXEC_BIN="/usr/sbin/suexec"
 -D DEFAULT_PIDLOG="run/httpd.pid"
 -D DEFAULT_SCOREBOARD="logs/apache_runtime_status"
 -D DEFAULT_ERRORLOG="logs/error_log"
 -D AP_TYPES_CONFIG_FILE="conf/mime.types"
 -D SERVER_CONFIG_FILE="conf/httpd.conf"
​

4. 编译安装httpd-2.4

4.1准备环境

[root@localhost ~]# dnf groups mark install "Development Tools"
Failed to set locale, defaulting to C.UTF-8
Last metadata expiration check: 20:00:54 ago on Tue Jul 12 22:42:38 2022.
Dependencies resolved.
================================================================================================================
 Package                   Architecture             Version                     Repository                 Size
================================================================================================================
Installing Groups:
 Development Tools
​
Transaction Summary
================================================================================================================
​
Is this ok [y/N]: y
Complete!
[root@localhost ~]# useradd -rMs /sbin/nologin apache
[root@localhost ~]# id apache
uid=994(apache) gid=991(apache) groups=991(apache)
[root@localhost ~]# dnf -y install wget
[root@localhost ~]# dnf -y install openssl-devel pcre-devel expat-devel libtool libxml2-devel
[root@localhost ~]# dnf -y install gcc gcc-c++
[root@localhost ~]# dnf -y install make
​

4.2下载apr apr-util httpd

[root@localhost ~]# wget http://mirrors.aliyun.com/apache/apr/apr-1.7.0.tar.gz
--2022-07-13 21:25:33--  http://mirrors.aliyun.com/apache/apr/apr-1.7.0.tar.gz
Resolving mirrors.aliyun.com (mirrors.aliyun.com)... 223.76.170.217, 223.76.171.227, 111.48.71.116, ...
Connecting to mirrors.aliyun.com (mirrors.aliyun.com)|223.76.170.217|:80... connected.
HTTP request sent, awaiting response... 200 OK
Length: 1093896 (1.0M) [application/octet-stream]
Saving to: ‘apr-1.7.0.tar.gz’
​
apr-1.7.0.tar.gz                  100%[===========================================================>]   1.04M   132KB/s    in 7.9s
​
2022-07-13 21:25:42 (135 KB/s) - ‘apr-1.7.0.tar.gz’ saved [1093896/1093896]
​
​
[root@localhost ~]# wget https://mirrors.aliyun.com/apache/apr/apr-util-1.6.1.tar.gz
--2022-07-13 21:28:27--  https://mirrors.aliyun.com/apache/apr/apr-util-1.6.1.tar.gz
Resolving mirrors.aliyun.com (mirrors.aliyun.com)... 111.48.71.115, 111.48.71.112, 111.48.71.113, ...
Connecting to mirrors.aliyun.com (mirrors.aliyun.com)|111.48.71.115|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 554301 (541K) [application/octet-stream]
Saving to: ‘apr-util-1.6.1.tar.gz’
​
apr-util-1.6.1.tar.gz             100%[===========================================================>] 541.31K   128KB/s    in 4.2s
​
2022-07-13 21:28:32 (129 KB/s) - ‘apr-util-1.6.1.tar.gz’ saved [554301/554301]
​
​
[root@localhost ~]# wget https://mirrors.aliyun.com/apache/httpd/httpd-2.4.54.tar.gz
--2022-07-13 21:29:02--  https://mirrors.aliyun.com/apache/httpd/httpd-2.4.54.tar.gz
Resolving mirrors.aliyun.com (mirrors.aliyun.com)... 111.48.71.115, 223.76.171.226, 223.76.170.217, ...
Connecting to mirrors.aliyun.com (mirrors.aliyun.com)|111.48.71.115|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 9743277 (9.3M) [application/octet-stream]
Saving to: ‘httpd-2.4.54.tar.gz’
​
httpd-2.4.54.tar.gz               100%[===========================================================>]   9.29M   130KB/s    in 80s
​
2022-07-13 21:30:22 (119 KB/s) - ‘httpd-2.4.54.tar.gz’ saved [9743277/9743277]
​

4.3解压apr apr-util httpd

[root@localhost ~]# tar -xf apr-util-1.6.1.tar.gz -C /usr/local/src/
[root@localhost ~]# tar -xf httpd-2.4.54.tar.gz -C /usr/local/src/
[root@localhost ~]# tar -xf apr-1.7.0.tar.gz -C /usr/local/src/
[root@localhost ~]# ls /usr/local/src/
apr-1.7.0  apr-util-1.6.1  httpd-2.4.54
​

4.4安装apr apr-util httpd

安装apr

[root@localhost ~]# cd /usr/local/src/apr-1.7.0/
[root@localhost apr-1.7.0]# vi configure
[root@localhost apr-1.7.0]#
cfgfile=${ofile}T
    trap "$RM \"$cfgfile\"; exit 1" 1 2 15
    #$RM "$cfgfile"         //注释这行,在$RM前加上'#'
[root@localhost apr-1.7.0]# ./configure --prefix=/usr/local/apr
checking build system type... x86_64-pc-linux-gnu
checking host system type... x86_64-pc-linux-gnu
checking target system type... x86_64-pc-linux-gnu
Configuring APR library
Platform: x86_64-pc-linux-gnu
checking for working mkdir -p... yes
APR Version: 1.7.0
......省略
[root@localhost apr-1.7.0]# make && make install
make[1]: Entering directory '/usr/local/src/apr-1.7.0'
/bin/sh /usr/local/src/apr-1.7.0/libtool --silent --mode=compile gcc -g -O2 -pthread   -DHAVE_CONFIG_H  -DLINUX -D_REENTRANT -D_GNU_SOURCE   -I./include -I/usr/local/src/apr-1.7.0/include/arch/unix -I./include/arch/unix -I/usr/local/src/apr-1.7.0/include/arch/unix -I/usr/local/src/apr-1.7.0/include -I/usr/local/src/apr-1.7.0/include/private -I/usr/local/src/apr-1.7.0/include/private  -o encoding/apr_encode.lo -c encoding/apr_encode.c && touch encoding/apr_encode.lo
/usr/local/src/apr-1.7.0/build/mkdir.sh tools
/bin/sh /usr/local/src/apr-1.7.0/libtool --silent --mode=compile gcc -g -O2 -pthread   -DHAVE_CONFIG_H  -DLINUX -D_REENTRANT -D_GNU_SOURCE   -I./include -I/usr/local/src/apr-1.7.0/include/arch/unix -I./include/arch/unix -I/usr/local/src/apr-1.7.0/include/arch/unix -I/usr/local/src/apr-1.7.0/include -I/usr/local/src/apr-1.7.0/include/private -I/usr/local/src/apr-1.7.0/include/private  -o tools/gen_test_char.lo -c tools/gen_test_char.c && touch tools/gen_test_char.lo
......省略
[root@localhost apr-1.7.0]# ls /usr/local/apr/
bin  build-1  include  lib
[root@localhost apr-1.7.0]#
​

安装apr-util

[root@localhost ~]# cd /usr/local/src/apr-util-1.6.1/
[root@localhost apr-util-1.6.1]# ./configure --prefix=/usr/local/apr-util --with-apr=/usr/local/apr/
checking build system type... x86_64-pc-linux-gnu
checking host system type... x86_64-pc-linux-gnu
checking target system type... x86_64-pc-linux-gnu
checking for a BSD-compatible install... /usr/bin/install -c
checking for working mkdir -p... yes
APR-util Version: 1.6.1
......省略
[root@localhost apr-util-1.6.1]# make && make install
make[1]: Entering directory '/usr/local/src/apr-util-1.6.1'
/bin/sh /usr/local/apr/build-1/libtool --silent --mode=compile gcc -g -O2 -pthread   -DHAVE_CONFIG_H  -DLINUX -D_REENTRANT -D_GNU_SOURCE   -I/usr/local/src/apr-util-1.6.1/include -I/usr/local/src/apr-util-1.6.1/include/private  -I/usr/local/apr/include/apr-1    -o buckets/apr_brigade.lo -c buckets/apr_brigade.c && touch buckets/apr_brigade.lo
/bin/sh /usr/local/apr/build-1/libtool --silent --mode=compile gcc -g -O2 -pthread   -DHAVE_CONFIG_H  -DLINUX -D_REENTRANT -D_GNU_SOURCE   -I/usr/local/src/apr-util-1.6.1/include -I/usr/local/src/apr-util-1.6.1/include/private  -I/usr/local/apr/include/apr-1    -o buckets/apr_buckets.lo -c buckets/apr_buckets.c && touch buckets/apr_buckets.lo
......省略
[root@localhost apr-util-1.6.1]# ls /usr/local/apr-util/
bin  include  lib
[root@localhost apr-util-1.6.1]#
​

安装httpd

[root@localhost apr-util-1.6.1]# cd /usr/local/src/httpd-2.4.54/
[root@localhost httpd-2.4.54]# ./configure --prefix=/usr/local/apache --enable-so --enable-ssl --enable-cgi --enable-rewrite --with-zlib --with-pcre --with-apr=/usr/local/apr --with-apr-util=/usr/local/apr-util/ --enable-modules=most --enable-mpms-shared=all --with-rpm=prefork
checking for chosen layout... Apache
checking for working mkdir -p... yes
checking for grep that handles long lines and -e... /usr/bin/grep
checking for egrep... /usr/bin/grep -E
checking build system type... x86_64-pc-linux-gnu
checking host system type... x86_64-pc-linux-gnu
checking target system type... x86_64-pc-linux-gnu
configure:
configure: Configuring Apache Portable Runtime library...
configure:
checking for APR... yes
......省略
[root@localhost httpd-2.4.54]# make && make install
......省略
mkdir /usr/local/apache/man
mkdir /usr/local/apache/man/man1
mkdir /usr/local/apache/man/man8
mkdir /usr/local/apache/manual
make[1]: Leaving directory '/usr/local/src/httpd-2.4.54'
[root@localhost httpd-2.4.54]# ls /usr/local/apache/
bin  build  cgi-bin  conf  error  htdocs  icons  include  logs  man  manual  modules
[root@localhost httpd-2.4.54]#
​

4.5配置环境变量

[root@localhost ~]# echo 'export PATH=/usr/local/apache/bin:$PATH' > /etc/profile.d/apache.sh
[root@localhost ~]# source /etc/profile.d/apache.sh
[root@localhost ~]# which apachectl
/usr/local/apache/bin/apachectl
[root@localhost ~]# ll /usr/include/ | grep apache
lrwxrwxrwx.  1 root root     26 Jul 13 21:50 apache -> /usr/local/apache/include/
[root@localhost ~]# vi /etc/man_db.conf
# every automatically generated MANPATH includes these fields
#
#MANDATORY_MANPATH                      /usr/src/pvm3/man
#
MANDATORY_MANPATH                       /usr/man
MANDATORY_MANPATH                       /usr/share/man
MANDATORY_MANPATH                       /usr/local/share/man
MANDATORY_MANPATH                       /usr/local/apache/man //添加此行
​

4.6关闭防火墙和seLinux服务

[root@localhost ~]# systemctl stop firewalld
[root@localhost ~]# systemctl disable firewalld
Removed /etc/systemd/system/multi-user.target.wants/firewalld.service.
Removed /etc/systemd/system/dbus-org.fedoraproject.FirewallD1.service.
[root@localhost ~]# setenforce 0
[root@localhost ~]# vi /etc/selinux/config
# This file controls the state of SELinux on the system.
# SELINUX= can take one of these three values:
#     enforcing - SELinux security policy is enforced.
#     permissive - SELinux prints warnings instead of enforcing.
#     disabled - No SELinux policy is loaded.
SELINUX=disabled  //更改此行
​

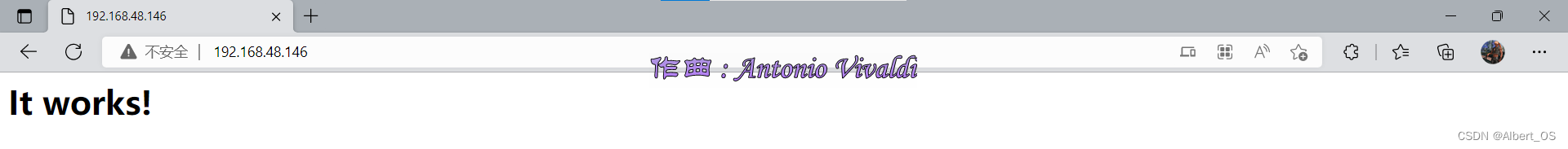

4.7打开apache服务，并测试能否访问

[root@localhost ~]# apachectl start
AH00558: httpd: Could not reliably determine the server's fully qualified domain name, using localhost.localdomain. Set the 'ServerName' directive globally to suppress this message
[root@localhost ~]# ss -anltup | grep httpd
tcp   LISTEN 0      128                 *:80               *:*    users:(("httpd",pid=70759,fd=4),("httpd",pid=70757,fd=4),("httpd",pid=70755,fd=4),("httpd",pid=70753,fd=4))
[root@localhost ~]#
​​编辑
​​​​​​​http常用配置

MPM（编辑/etc/httpd/conf.modules.d/00-mpm.conf文件）：

//LoadModule mpm_NAME_module modules/mod_mpm_NAME.so
//NAME有三种，分别是：
prefork
event
worker

[root@localhost ~]# cd /etc/httpd/conf.modules.d/
[root@localhost conf.modules.d]# ls
00-base.conf  00-lua.conf  00-optional.conf  00-systemd.conf  10-h2.conf        README
00-dav.conf   00-mpm.conf  00-proxy.conf     01-cgi.conf      10-proxy_h2.conf
[root@localhost conf.modules.d]# vim 00-mpm.com
-bash: vim: command not found
[root@localhost conf.modules.d]# vi 00-mpm.com
[root@localhost conf.modules.d]# cat 00-mpm.conf
# Select the MPM module which should be used by uncommenting exactly
# one of the following LoadModule lines.  See the httpd.conf(5) man
# page for more information on changing the MPM.
​
# prefork MPM: Implements a non-threaded, pre-forking web server
# See: http://httpd.apache.org/docs/2.4/mod/prefork.html
#
# NOTE: If enabling prefork, the httpd_graceful_shutdown SELinux
# boolean should be enabled, to allow graceful stop/shutdown.
#
#LoadModule mpm_prefork_module modules/mod_mpm_prefork.so
​
# worker MPM: Multi-Processing Module implementing a hybrid
# multi-threaded multi-process web server
# See: http://httpd.apache.org/docs/2.4/mod/worker.html
#
#LoadModule mpm_worker_module modules/mod_mpm_worker.so
​
# event MPM: A variant of the worker MPM with the goal of consuming
# threads only for connections with active processing
# See: http://httpd.apache.org/docs/2.4/mod/event.html
#
LoadModule mpm_event_module modules/mod_mpm_event.so //CentOS8默认使用的event
​

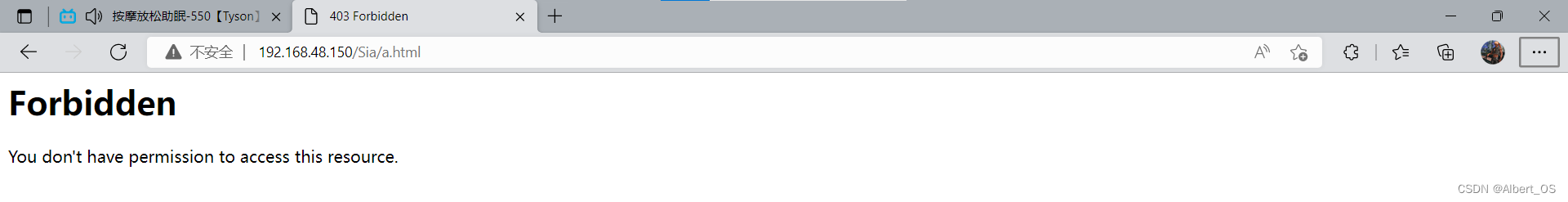

访问控制法则：

注意：httpd-2.4版本默认是拒绝所有主机访问的，所以安装以后必须做显示授权访问

[root@localhost ~]# vi /etc/httpd/conf/httpd.conf
<Directory "/var/www/html/Sia">
        <RequireALL>
        require not ip 192.168.48.1
        Require all granted
        </requireALL>
</Directory>
[root@localhost ~]# httpd -t
Syntax OK
[root@129 ~]# systemctl restart httpd
[root@localhost html]# curl http://192.168.48.150/Sia/a.html
hello Sia

虚拟主机

虚拟主机有三类：

• 相同IP不同端口

• 不同IP相同端口

• 相同IP相同端口不同域名

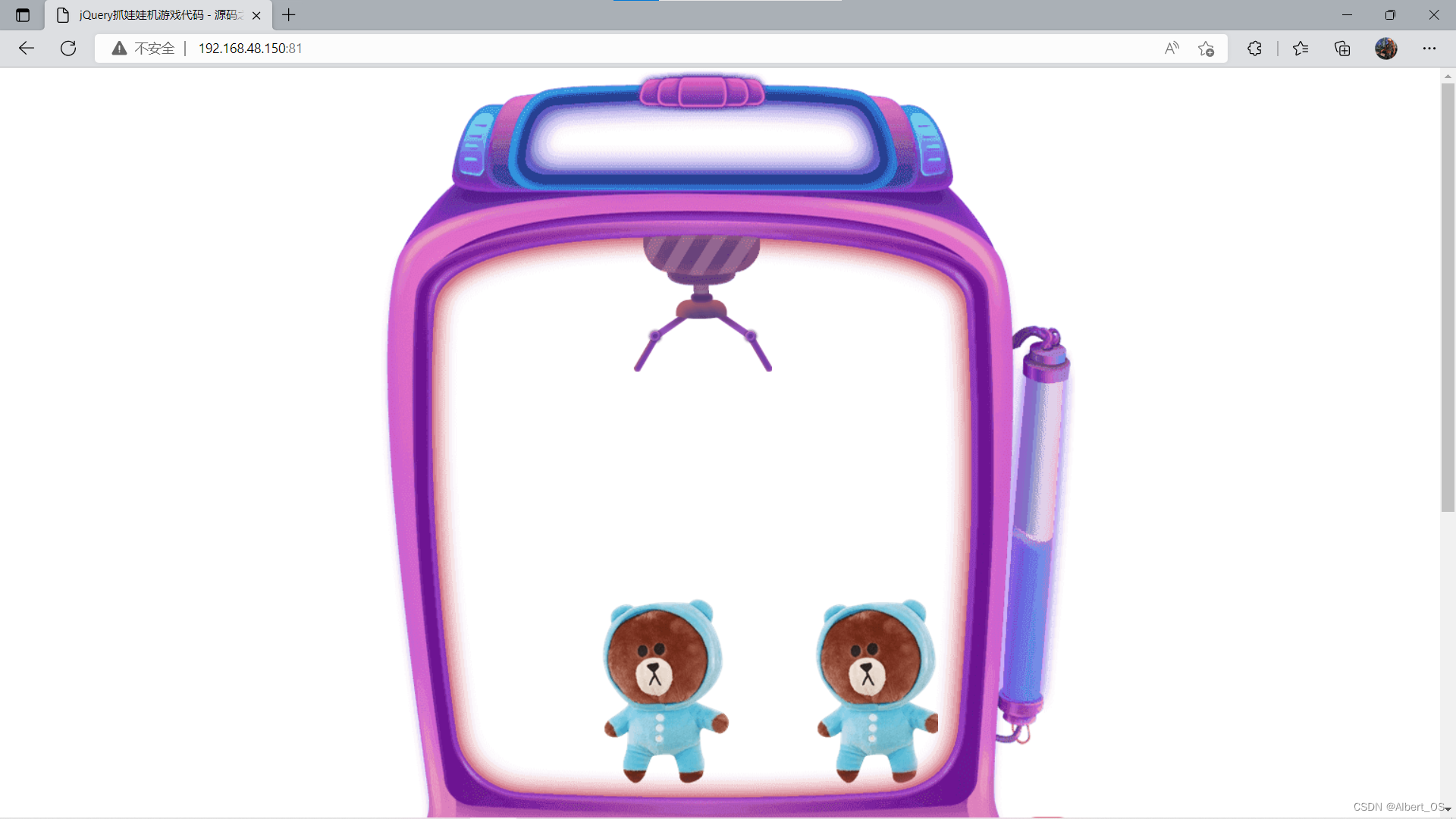

1.相同IP不同端口

[root@localhost ~]# find / -name *vhosts.conf
/usr/share/doc/httpd/httpd-vhosts.conf
[root@localhost ~]# cd /etc/httpd/
[root@localhost httpd]# ls
conf  conf.d  conf.modules.d  logs  modules  run  state
#conf主配置文件 conf.d 辅助配置文件，一般编写的都在写在辅助 conf.modules.d模块
[root@localhost httpd]# cd conf.d
[root@localhost conf.d]# ls
README  autoindex.conf  userdir.conf  welcome.conf
[root@localhost conf.d]# cp /usr/share/doc/httpd/httpd-vhosts.conf  .
[root@localhost conf.d]# ls
README  autoindex.conf  httpd-vhosts.conf  userdir.conf  welcome.conf
​
[root@localhost conf.d]# vim httpd-vhosts.conf #里面有两个虚拟机配置
# match a ServerName or ServerAlias in any <VirtualHost> block.
#
<VirtualHost *:80>
    DocumentRoot "/var/www/html/feijidazhan"
    ServerName www.feijidazhan.com
    ErrorLog "/var/log/httpd/www.feijidazhan.com-error_log"
    CustomLog "/var/log/httpd/www.feijidazhan.com-access_log" common
</VirtualHost>
​
Lisren 81
<VirtualHost *:81>
    DocumentRoot "/var/www/html/zhuawawa"
    ServerName www.zhuawawa.com
    ErrorLog "/var/log/httpd/www.zhuawawa.com-error_log"
    CustomLog "/var/log/httpd/www.zhuawawa.com-access_log" common
</VirtualHost>
​
#更改完虚拟机配置之后记得创建自己所配置的文件“feijidazhan ，zhuawawa”
[root@localhost conf.d]# cd /var/www/html/
[root@localhost html]# ls
Sia  index.html
[root@localhost html]# mkdir feijidazhan zhuawawa
[root@localhost html]# ls
Sia  feijidazhan  index.html  zhuawawa
[root@localhost html]# cd feijidazhan
[root@localhost feijidazhan]# ls
feijiedazhan.zip
#从主机中把所选的小游戏移动到虚拟机目录中
​
[root@localhost feijidazhan]# dnf -y install zip*
......
 Installing       : unzip-6.0-46.el8.x86_64                                               1/2
  Installing       : zip-3.0-23.el8.x86_64                                                 2/2
  Running scriptlet: zip-3.0-23.el8.x86_64                                                 2/2
  Verifying        : unzip-6.0-46.el8.x86_64                                               1/2
  Verifying        : zip-3.0-23.el8.x86_64                                                 2/2
​
Installed:
  unzip-6.0-46.el8.x86_64                         zip-3.0-23.el8.x86_64
​
Complete!
#飞机大战
[root@localhost feijidazhan]# unzip feijiedazhan.zip
[root@localhost feijidazhan]# ls
HTML5#U5168#U6c11#U98de#U673a#U5927#U6218#U5c0f#U6e38#U620f  feijiedazhan.zip
[root@localhost feijidazhan]# mv HTML5#U5168#U6c11#U98de#U673a#U5927#U6218#U5c0f#U6e38#U620f/ feijidazhan
[root@localhost feijidazhan]# ls
feijidazhan  feijiedazhan.zip
[root@localhost feijidazhan]# rm -rf feijidazhan.zip
[root@localhost feijidazhan]# ls
feijidazhan
​
[root@localhost feijidazhan]# mv 'feijidazhan'/*  .
[root@localhost feijidazhan]# ls
css  feijidazhan  img  index.html  js
[root@localhost feijidazhan]#
[root@localhost feijidazhan]# rm -rf feijidazhan/
[root@localhost feijidazhan]# ls
css  img  index.html  js
[root@localhost feijidazhan]#
​
#抓娃娃
[root@localhost html]# cd zhuawawa/
[root@localhost zhuawawa]# unzip zhuawawa.zip
unzip:  cannot find or open zhuawawa.zip, zhuawawa.zip.zip or zhuawawa.zip.ZIP.
[root@localhost zhuawawa]# ls
zhuawawaji.zip
[root@localhost zhuawawa]# unzip zhuawawaji.zip
[root@localhost zhuawawa]# rm -rf zhuawawaji.zip
[root@localhost zhuawawa]# ls
jQuery#U6293#U5a03#U5a03#U673a#U6e38#U620f#U4ee3#U7801
[root@localhost zhuawawa]# mv jQuery#U6293#U5a03#U5a03#U673a#U6e38#U620f#U4ee3#U7801/ zhuawawa
[root@localhost zhuawawa]# ls
zhuawawa
[root@localhost zhuawawa]# mv 'zhuawawa'/*  .
[root@localhost zhuawawa]# ls
images  img  index.html  js  zhuawawa
[root@localhost zhuawawa]# rm -rf zhuawawa/
[root@localhost zhuawawa]# ls
images  img  index.html  js
[root@localhost zhuawawa]# cd ..
[root@localhost html]# ls
Sia  feijidazhan  index.html  zhuawawa
[root@localhost conf.d]# httpd -t
Syntax OK
​

[root@localhost ~]# ss -anlt
State     Recv-Q     Send-Q         Local Address:Port         Peer Address:Port    Process
LISTEN    0          128                  0.0.0.0:22                0.0.0.0:*
LISTEN    0          128                     [::]:22                   [::]:*
LISTEN    0          128                        *:80                      *:*
LISTEN    0          128                        *:81                      *:*

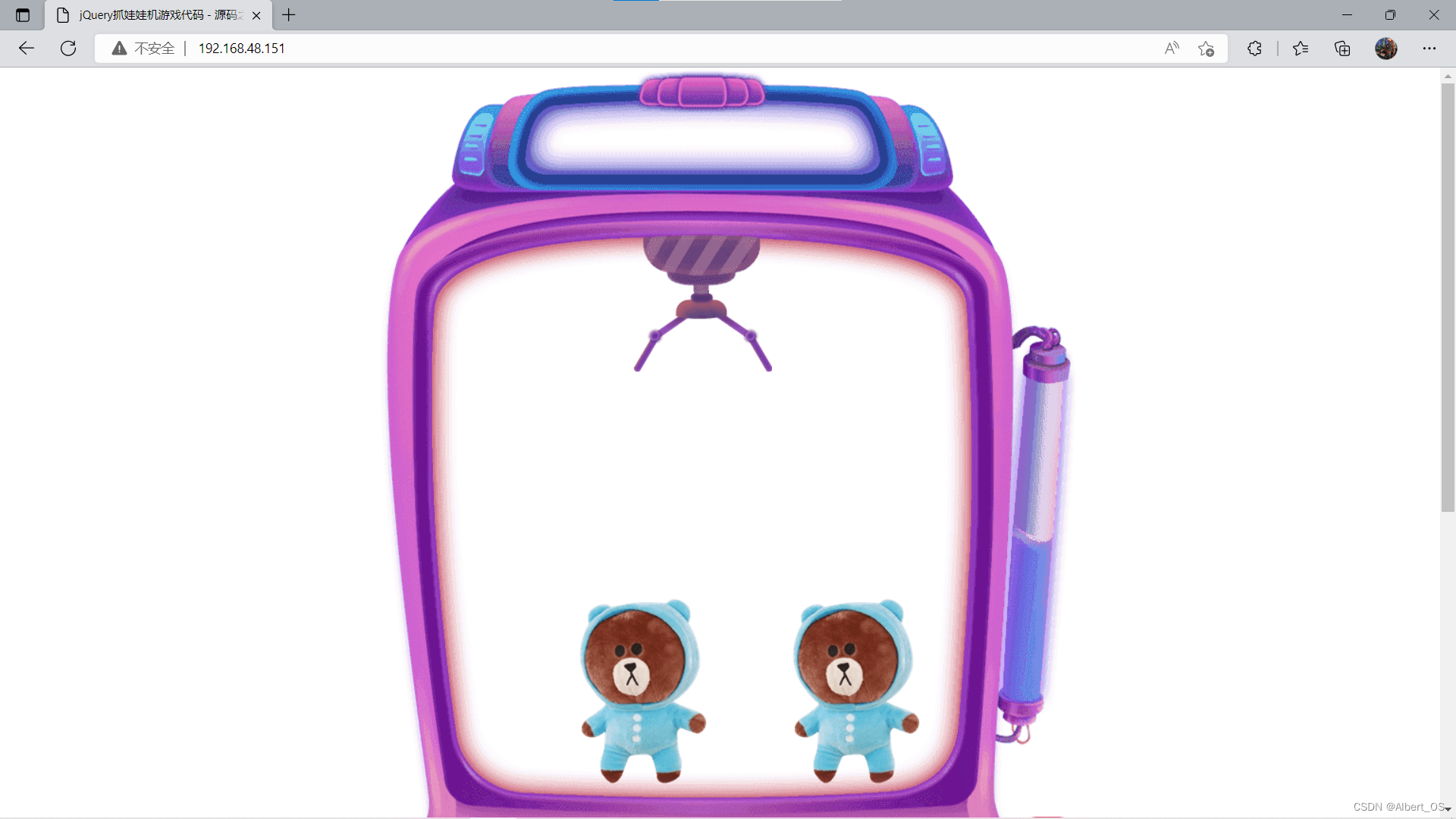

2.不同IP相同端口

[root@localhost conf.d]# vim httpd-vhosts.conf
......
# match a ServerName or ServerAlias in any <VirtualHost> block.
#
<VirtualHost 192.168.48.150:80>
    DocumentRoot "/var/www/html/feijidazhan"
    ServerName www.feijidazhan.com
    DocumentRoot "/var/www/html/feijidazhan"
    ServerName www.feijidazhan.com
    ErrorLog "/var/log/httpd/www.feijidazhan.com-error_log"
    CustomLog "/var/log/httpd/www.feijidazhan.com-access_log" common
</VirtualHost>
​
<VirtualHost 192.168.48.151:80>
    DocumentRoot "/var/www/html/zhuawawa"
    ServerName www.zhuawawa.com
......
[root@localhost conf.d]# ip a
......
 ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 00:0c:29:39:ef:7e brd ff:ff:ff:ff:ff:ff
    inet 192.168.48.150/24 brd 192.168.48.255 scope global dynamic noprefixroute ens33
......
#在'ens33'中添加一个临时ip "192.168.48.151"
[root@localhost conf.d]# ip addr add 192.168.48.151/24 dev ens33
[root@localhost conf.d]# ip a
......
 ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP group default qlen 1000
    link/ether 00:0c:29:39:ef:7e brd ff:ff:ff:ff:ff:ff
    inet 192.168.48.150/24 brd 192.168.48.255 scope global dynamic noprefixroute ens33
       valid_lft 1669sec preferred_lft 1669sec
    inet 192.168.48.151/24 scope global secondary ens33
......
[root@localhost conf.d]# ping 192.168.48.151
64 bytes from 192.168.48.151: icmp_seq=25 ttl=64 time=0.041 ms
64 bytes from 192.168.48.151: icmp_seq=26 ttl=64 time=0.031 ms
--- 192.168.48.151 ping statistics ---
26 packets transmitted, 26 received, 0% packet loss, time 25622ms
rtt min/avg/max/mdev = 0.026/0.044/0.093/0.018 ms
[root@localhost conf.d]# httpd -t
Syntax OK
[root@localhost conf.d]# systemctl restart httpd
​

3.相同IP相同端口不同域名

[root@localhost conf.d]# dnf -y install bind-utils
......  bind-license-32:9.11.36-3.el8.noarch           bind-utils-32:9.11.36-3.el8.x86_64
  fstrm-0.6.1-2.el8.x86_64                       geolite2-city-20180605-1.el8.noarch
  geolite2-country-20180605-1.el8.noarch         libmaxminddb-1.2.0-10.el8.x86_64
  protobuf-c-1.3.0-6.el8.x86_64                  python3-bind-32:9.11.36-3.el8.noarch
  python3-ply-3.9-9.el8.noarch
​
Complete!
​
<VirtualHost 192.168.48.150:80>
    DocumentRoot "/var/www/html/feijidazhan"
    ServerName www.feijidazhan.com
    ErrorLog "/var/log/httpd/www.feijidazhan.com-error_log"
    CustomLog "/var/log/httpd/www.feijidazhan.com-access_log" common
</VirtualHost>
​
<VirtualHost 192.168.48.150:80>
    DocumentRoot "/var/www/html/zhuawawa"
    ServerName www.zhuawawa.com
    ErrorLog "/var/log/httpd/www.zhuawawa.com-error_log"
    CustomLog "/var/log/httpd/www.zhuawawa.com-access_log" common
</VirtualHost>
​

在C盘中找到hosts文件添加虚拟机网址及其域名

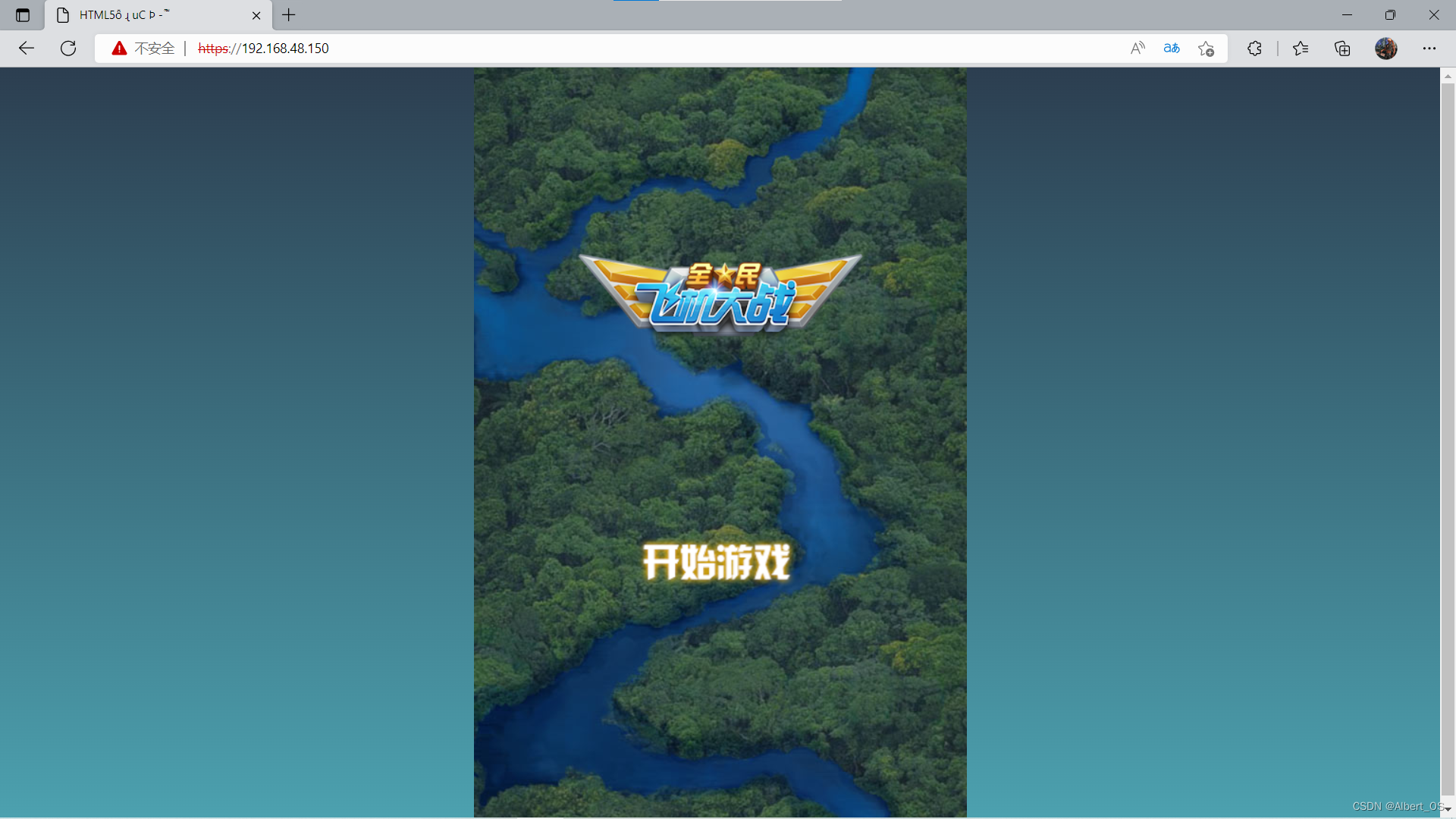

ssl

启用模块：编辑/etc/httpd/conf.modules.d/00-base.conf文件，添加下面这行，如果已经有了但是注释了，则取消注释即可0

LoadModule ssl_module modules/mod_ssl.so

配置https步骤：

• 生成证书(参考博客linux运维系列第6章)

• 配置httpd.conf，取消以下内容的注释

    LoadModule ssl_module modules/mod_ssl.so
    Include /etc/httpd24/extra/httpd-vhosts.conf
    Include /etc/httpd24/extra/httpd-ssl.conf

先检查一下有没有ssl模块，没有列出任何文件就没有安装ssl模块

[root@localhost ~]# httpd -M | grep ssl

安装ssl模块后重启服务，查到有ssl模块

[root@localhost ~]# httpd -M | grep ssl
[root@localhost ~]# systemctl restart httpd
[root@localhost ~]# httpd -t
Syntax OK
[root@localhost ~]# httpd -M |grep ssl
 ssl_module (shared)

CA生成一对密钥

[root@localhost ~]# cd /etc/pki/
[root@localhost pki]# ls
ca-trust  java  rpm-gpg  rsyslog  tls
[root@localhost pki]# mkdir CA
[root@localhost pki]# cd CA/
[root@localhost CA]# pwd
/etc/pki/CA
[root@localhost CA]# mkdir private
[root@localhost CA]# (umask 077;openssl genrsa -out private/cakey.pem 2048)
Generating RSA private key, 2048 bit long modulus (2 primes)
.............+++++
..................................................................................+++++
e is 65537 (0x010001)
[root@localhost CA]# openssl rsa -in private/cakey.pem -pubout
writing RSA key
-----BEGIN PUBLIC KEY-----
MIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEA14G8RhnuUxIA7zsI9Nz4
oRkM6Hu/W92LDMyLf2D9DPktKnS9DewwerA/9hfrbkJqLxIjD6xByVLr9R3qFvEv
RsXWYznWw42YmusyrorJeIxEAV4nnjK6QB4BCHq7CtvNG6pmi9qL+CTEw1EpXN/i
wHAPYFtOPzAqtoxpLWem8sLWRRF40mLcFQM7tWKcE//kpuS8vqgw2o07wRIBdtw7
GpPTTieRyN3p6bUJhXvqQFAQkFP0VcEoJTE/lob3xJqNcMLqPqnrA5pVEmh01uwU
0DWlPx6glCXc9F8PVYiMsmseKIR27OgjAKjvWuUUfRIrZ8X6bJpJwtSbwTNQj/FR
rQIDAQAB
-----END PUBLIC KEY-----

CA生成自签署证书

[root@localhost CA]# openssl req -new -x509 -key private/cakey.pem -out cacert.pem -days 365
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [XX]:cn
State or Province Name (full name) []:hb
Locality Name (eg, city) [Default City]:wh
Organization Name (eg, company) [Default Company Ltd]:runtime
Organizational Unit Name (eg, section) []:peixun
Common Name (eg, your name or your server's hostname) []:www.Sia.com
Email Address []:1@2.com
[root@localhost CA]# openssl x509 -text -in cacert.pem
[root@localhost CA]# mkdir certs newcerts crl
[root@localhost CA]# touch index.txt && echo 01 > serial
[root@localhost CA]# ls
cacert.pem  certs  crl  index.txt  newcerts  private  serial
[root@localhost CA]# cat serial
01
​

客户端生成密钥

[root@localhost CA]# cd /etc/httpd && mkdir ssl && cd ssl
[root@localhost ssl]# pwd
/etc/httpd/ssl
[root@localhost ssl]# (umask 077;openssl genrsa -out httpd.key 2048)
Generating RSA private key, 2048 bit long modulus (2 primes)
............................................................................................................+++++
....+++++
e is 65537 (0x010001)
[root@localhost ssl]# ls
httpd.key
​

客户端生成证书签署请求

[root@localhost ssl]# openssl req -new -key httpd.key -days 365 -out httpd.csr
Ignoring -days; not generating a certificate
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [XX]:
string is too long, it needs to be no more than 2 bytes long
Country Name (2 letter code) [XX]:cn
State or Province Name (full name) []:hb
Locality Name (eg, city) [Default City]:wu
Organization Name (eg, company) [Default Company Ltd]:runtime
Organizational Unit Name (eg, section) []:peixun
Common Name (eg, your name or your server's hostname) []:www.Sia.com
Email Address []:1@2.com
​
Please enter the following 'extra' attributes
to be sent with your certificate request
A challenge password []:
An optional company name []:
[root@localhost ssl]# ls
httpd.csr  httpd.key
​

CA签署客户端提交上来的证书

[root@localhost ssl]# openssl ca -in ./httpd.csr -out httpd.crt -days 365
Using configuration from /etc/pki/tls/openssl.cnf
Check that the request matches the signature
Signature ok
Certificate Details:
        Serial Number: 1 (0x1)
        Validity
            Not Before: Jul 24 10:16:31 2022 GMT
            Not After : Jul 24 10:16:31 2023 GMT
        Subject:
            countryName               = cn
            stateOrProvinceName       = hb
            organizationName          = runtime
            organizationalUnitName    = peixun
            commonName                = www.Sia.com
            emailAddress              = 1@2.com
        X509v3 extensions:
            X509v3 Basic Constraints:
                CA:FALSE
            Netscape Comment:
                OpenSSL Generated Certificate
            X509v3 Subject Key Identifier:
                69:0C:EE:F8:38:DA:2B:17:26:4E:7D:57:0A:02:B4:33:AC:DB:0D:C9
            X509v3 Authority Key Identifier:
                keyid:88:59:A9:2A:B6:67:D7:A4:7B:FB:74:4B:46:72:9C:1F:47:32:39:4A
​
Certificate is to be certified until Jul 24 10:16:31 2023 GMT (365 days)
Sign the certificate? [y/n]:y
​
​
1 out of 1 certificate requests certified, commit? [y/n]y
Write out database with 1 new entries
Data Base Updated
​

修改ssl.conf配置文件

[root@localhost ssl]# pwd
/etc/httpd/ssl
[root@localhost ssl]# cd /etc/httpd/conf.d/
[root@localhost conf.d]# ls
autoindex.conf  httpd-vhosts.conf  README  ssl.conf  userdir.conf  welcome.conf
[root@localhost conf.d]# vim ssl.conf
​
<VirtualHost _default_:443>
​
# General setup for the virtual host, inherited from global configuration
DocumentRoot "/var/www/html/zhuawawaji"
ServerName www.zhuawawaji.com:443
​
SSLCertificateFile /etc/httpd/ssl/httpd.crt     //修改位置
SSLCertificateKeyFile /etc/httpd/ssl/httpd.key  //修改位置
[root@localhost conf.d]# httpd -t
Syntax OK
[root@localhost conf.d]# systemctl restart httpd
[root@localhost conf.d]# ss -anlt | grep 443
LISTEN 0      128                *:443             *:*

查看效果

​​​​​​​

​​​​​​​
