P2P,MGRE网络实验

发布于:2022-11-13 ⋅ 阅读:(680) ⋅ 点赞:(0)

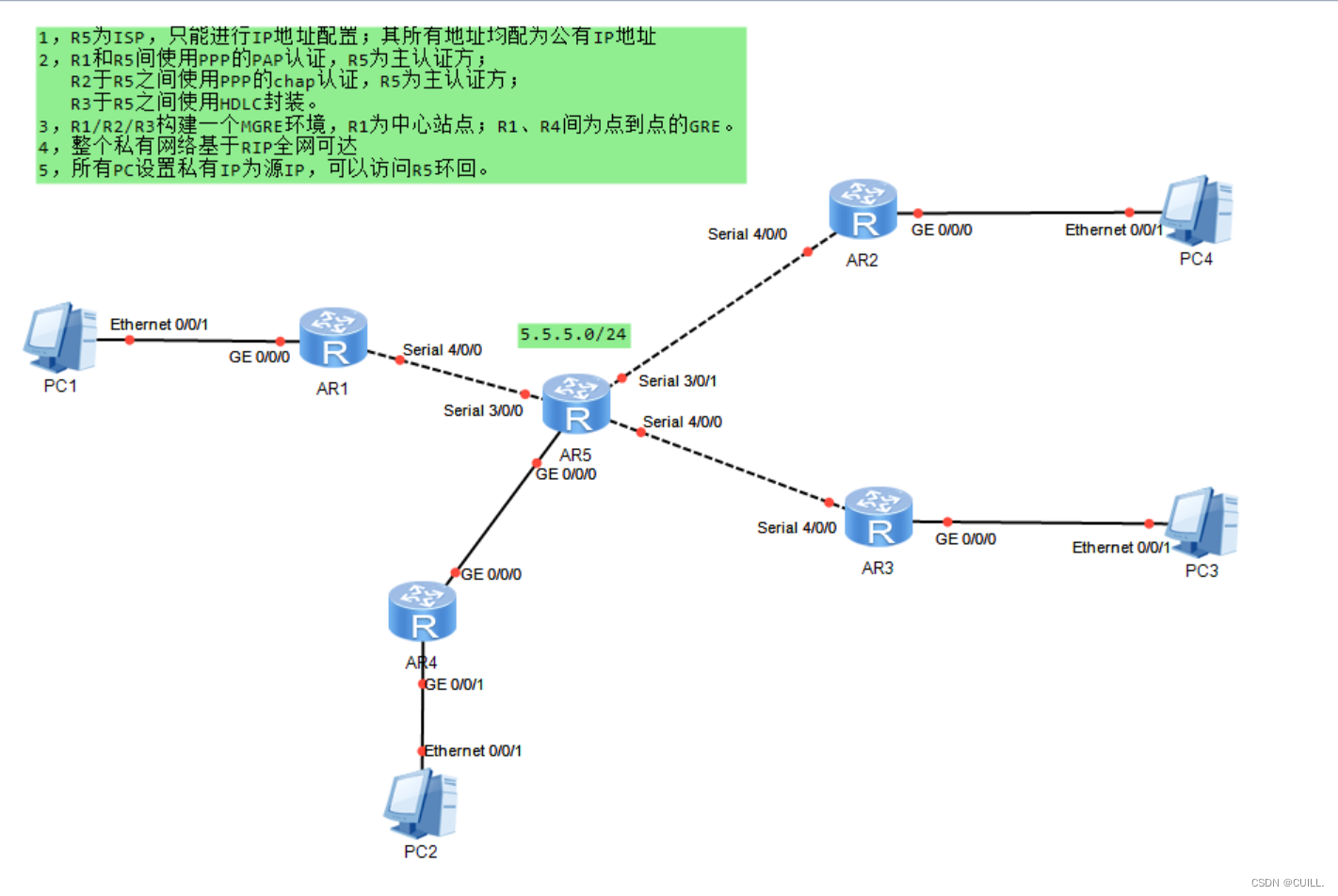

一、实验环境

 二、实验目的

1,R5为isp,只能进行IP地址配置;其所有地址均配为公有IP地址。

2,R1和R5间使用PPP的PAP认证,R5为主认证方;

        R2与R5之间使用PPP的CHAP认证,R5为主认证方;

        R3与R5之间使用HDLC封装。

3,R1/R2/R3构建一个MGRE环境,R1为中心站点;R1、R4间为点到点的GRE。

4,整个私有网络基于RIP全网可达。

5,所有PC设置私有IP,可以访问R5的环回。


三、实验步骤

1、划分网段

R1 - R5之间划分的网段为----- 15.0.0.0/24

R2 - R5之间划分的网段为----- 25.0.0.0/24

R3 - R5之间划分的网段为----- 35.0.0.0/24

R4 - R5之间划分的网段为----- 45.0.0.0/24

R1 - R4的私有网段划分为:192.168.1.0/24;192.168.2.0/24;192.168.3.0/24;192.168.4.0/24

R5的环回接口为:5.5.5.5/24


2、配置ip

R1

[r1]int Serial 4/0/0
[r1-Serial4/0/0]ip address 15.0.0.1 24

[r1]int g0/0/0
[r1-GigabitEthernet0/0/0]ip address 192.168.1.1 24

R2

[r2]int s4/0/0
[r2-Serial4/0/0]ip address 25.0.0.1 24
[r2]int g0/0/0
[r2-GigabitEthernet0/0/0]ip address 192.168.2.1 24

R3

[r3]int s4/0/0
[r3-Serial4/0/0]ip address 35.0.0.1 24
[r3]interface g0/0/0
[r3-GigabitEthernet0/0/0]ip address 192.168.3.1 24

R4

[r4]int g0/0/0
[r4-GigabitEthernet0/0/0]ip address 45.0.0.1 24
[r4]int g0/0/1
[r4-GigabitEthernet0/0/1]ip address 192.168.4.1 24

R5

[Huawei]sys isp
[isp]int s3/0/0
[isp-Serial3/0/0]ip address 15.0.0.2 24
[isp]int s3/0/1
[isp-Serial3/0/1]ip ad 25.0.0.2 24
[isp]int s4/0/0
[isp-Serial4/0/0]ip address 35.0.0.2 24
[isp]int g0/0/0
[isp-GigabitEthernet0/0/0]ip address 45.0.0.2 24

[isp]int LoopBack 0
[isp-LoopBack0]ip address 5.5.5.5 24
[isp-LoopBack0]q

3、配置缺省路由指向isp

[r1]ip route-static 0.0.0.0 0 15.0.0.2
[r2]ip route-static 0.0.0.0 0 25.0.0.2
[r3]ip route-static 0.0.0.0 0 35.0.0.2

[r4]ip route-static 0.0.0.0 0 45.0.0.2

4、R1的公网接口地址使用PPP的PAP认证获取

主认证方R5的配置

[isp]aaa
[isp-aaa]
[isp-aaa]local-user r1 password cipher 123456
Info: Add a new user.
[isp-aaa]local-user r1 service-type ppp
[isp]int s3/0/0
[isp-Serial3/0/0]ppp authentication-mode pap

 被认证方R1的配置

[r1]int s 4/0/0
[r1-Serial4/0/0]
[r1-Serial4/0/0]ppp pap local-user r1 password cipher 123456

 5、R2的公网接口地址使用CHAP的认证获取

主认证方R5的配置

[isp]aaa
[isp-aaa]local-user r2 password cipher 123456
Info: Add a new user.

[isp-aaa]local-user r2 service-type ppp
[isp]
[isp]int s3/0/1
[isp-Serial3/0/1]
[isp-Serial3/0/1]ppp authentication-mode chap


 被认证方R2的配置

 [r2]int s 4/0/0
[r2-Serial4/0/0]
[r2-Serial4/0/0]ppp chap user r2
[r2-Serial4/0/0]
[r2-Serial4/0/0]ppp chap password cipher 123456

6.R3与R5之间使用HDLC封装

R3接口的配置

[r3]int s 4/0/0
[r3-Serial4/0/0]

[r3-Serial4/0/0]link-protocol hdlc
Warning: The encapsulation protocol of the link will be changed. Continue? [Y/N]
:y

R5接口的配置

[isp]int s4/0/0
[isp-Serial4/0/0]
[isp-Serial4/0/0]link-protocol hdlc
Warning: The encapsulation protocol of the link will be changed. Continue? [Y/N]
:y

 7、构建MGRE环境

 R1的配置

[r1]int t 0/0/0
[r1-Tunnel0/0/0]ip address 192.168.5.1 24
[r1-Tunnel0/0/0]tunnel-protocol gre p2mp
[r1-Tunnel0/0/0]source 15.0.0.1

[r1-Tunnel0/0/0]nhrp network-id 100

[r1-Tunnel0/0/0]nhrp entry multicast dynamic

R2的配置

[r2]int t 0/0/0

[r2-Tunnel0/0/0]ip address 192.168.5.2 24

[r2-Tunnel0/0/0]tunnel-protocol gre p2mp

[r2-Tunnel0/0/0]source Serial 4/0/0

[r2-Tunnel0/0/0]nhrp network-id 100

[r2-Tunnel0/0/0]nhrp entry 192.168.5.1 15.0.0.1 register

R3的配置

[r3]int t 0/0/0

[r3-Tunnel0/0/0]ip address 192.168.5.3 24

[r3-Tunnel0/0/0]tunnel-protocol gre p2mp

[r3-Tunnel0/0/0]source Serial 4/0/0

[r3-Tunnel0/0/0]nhrp network-id 100

[r3-Tunnel0/0/0]nhrp entry 192.168.5.1 15.0.0.1 register

 8.构建GRE环境

 R1的配置

[r1]int t 0/0/1
[r1-Tunnel0/0/1]
[r1-Tunnel0/0/1]ip address 192.168.6.1 24
[r1-Tunnel0/0/1]tunnel-protocol gre
[r1-Tunnel0/0/1]source 15.0.0.1
[r1-Tunnel0/0/1]destination 45.0.0.1

 R4的配置

[r4]int t 0/0/0
[r4-Tunnel0/0/0]
[r4-Tunnel0/0/0]ip address 192.168.6.2 24
[r4-Tunnel0/0/0]tunnel-protocol gre
[r4-Tunnel0/0/0]source 45.0.0.1
[r4-Tunnel0/0/0]destination 15.0.0.1

 9、RIP全网可达

R1的RIP路由

[r1]rip
[r1-rip-1]v 2
[r1-rip-1]network 192.168.1.0
[r1-rip-1]network 192.168.5.0
[r1-rip-1]network 192.168.6.0

R2的RIP路由

[r2]rip
[r2-rip-1]v 2

[r2-rip-1]network 192.168.2.0
[r2-rip-1]network 192.168.5.0

R3的RIP路由

[r3]rip
[r3-rip-1]v 2
[r3-rip-1]network 192.168.3.0
[r3-rip-1]network 192.168.5.0

R4的RIP路由

[r4]rip
[r4-rip-1]v 2
[r4-rip-1]network 192.168.4.0
[r4-rip-1]network 192.168.6.0

 10.所有PC设置私有IP,可以访问R5的环回

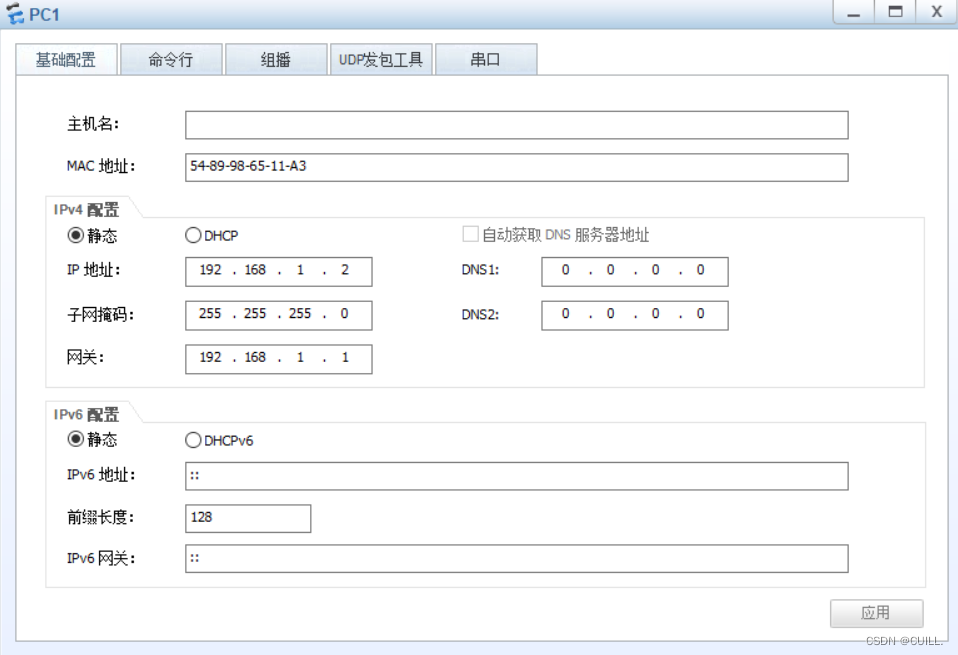

PC1

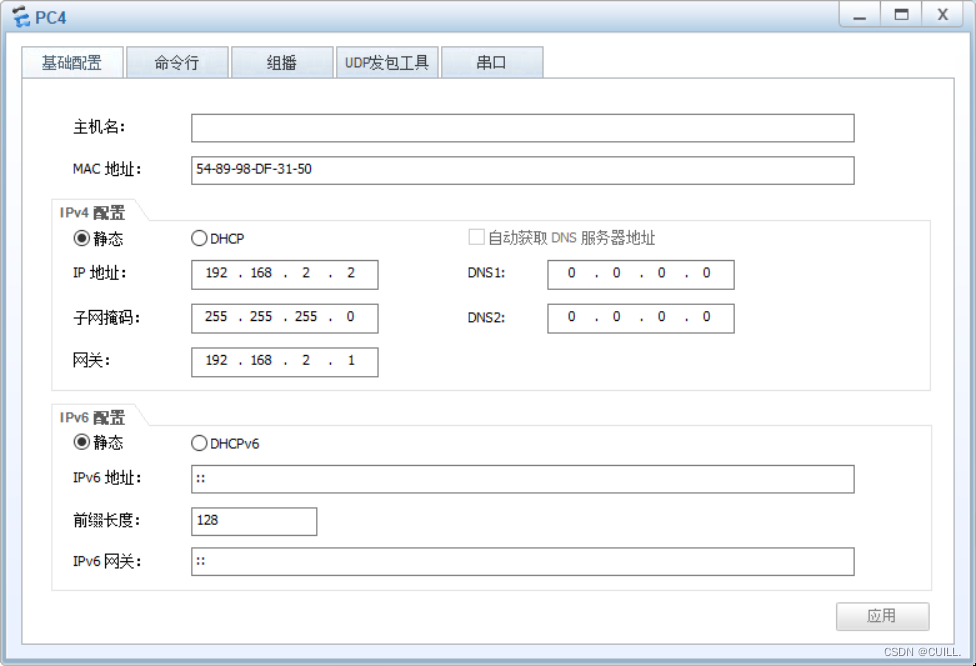

 PC4



 PC3



 PC2

访问R5环回需要用nat进行配置

R1的配置

[r1]acl 2000
[r1-acl-basic-2000]
[r1-acl-basic-2000]rule permit source 192.168.1.0 0.0.0.255
[r1-acl-basic-2000]q
[r1-Serial4/0/0]nat outbound 2000

同理,R2,R3,R4均配置acl

最后,互相ping通即可完成本次实验
