前言
在上一节我们准备好日志收集环境 6-4 搭建ELK及Kafka日志收集环境。
其中日志源可以通过node节点收集，或者使用sidecar容器收集，它们主要区别为：
node节点收集，基于daemonset部署日志收集进程，实现json-file类型(标准输出/dev/stdout、错误输 出/dev/stderr)日志收集，即应用程序产生的标准输出和错误输出的日志。
使用sidecar容器(一个pod多容器)收集当前pod内一个或者多个业务容器的日志(通常基于emptyDir实现业务容器与sidcar之间的日志共享)。
Daemonset收集日志
制作镜像
FROM logstash:7.12.1
USER root
WORKDIR /usr/share/logstash
ADD logstash.yml /usr/share/logstash/config/logstash.yml
ADD logstash.conf /usr/share/logstash/pipeline/logstash.conf
nerdctl build -t easzlab.io.local:5000/myhub/logstash:v7.12.1-json-file-log-v1 .
nerdctl push easzlab.io.local:5000/myhub/logstash:v7.12.1-json-file-log-v1
部署DaemonSet
apiVersion: apps/v1
kind: DaemonSet
metadata:
name: logstash-elasticsearch
namespace: kube-system
labels:
k8s-app: logstash-logging
spec:
selector:
matchLabels:
name: logstash-elasticsearch
template:
metadata:
labels:
name: logstash-elasticsearch
spec:
# master节点也采集日志
tolerations:
- key: node-role.kubernetes.io/master
operator: Exists
effect: NoSchedule
containers:
- name: logstash-elasticsearch
image: easzlab.io.local:5000/myhub/logstash:v7.12.1-json-file-log-v1
env:
# kafka集群连接
- name: "KAFKA_SERVER"
value: "192.168.100.175:9092,192.168.100.176:9092,192.168.100.177:9092"
- name: "TOPIC_ID"
value: "jsonfile-log-topic"
- name: "CODEC"
value: "json"
volumeMounts:
- name: varlog #定义宿主机系统日志挂载路径
mountPath: /var/log #宿主机系统日志挂载点
- name: varlibdockercontainers #定义容器日志挂载路径,和logstash配置文件中的收集路径保持一直
mountPath: /var/log/pods #containerd挂载路径,此路径与logstash的日志收集路径必须一致
readOnly: false
terminationGracePeriodSeconds: 30
volumes:
- name: varlog
hostPath:
path: /var/log #宿主机系统日志
- name: varlibdockercontainers
hostPath:
path: /var/log/pods #containerd的宿主机日志路径
在每个节点，包括master，部署了logstash pod。
kubectl get pod -A
kube-system logstash-elasticsearch-28p4n 1/1 Running 0 33s
kube-system logstash-elasticsearch-57vhq 1/1 Running 0 33s
kube-system logstash-elasticsearch-8hx7l 1/1 Running 0 33s
kube-system logstash-elasticsearch-kppzk 1/1 Running 0 33s
kube-system logstash-elasticsearch-mtxzl 1/1 Running 0 33s
kube-system logstash-elasticsearch-xpc6x 1/1 Running 0 33s
在es集群查看系统日志与应用日志：

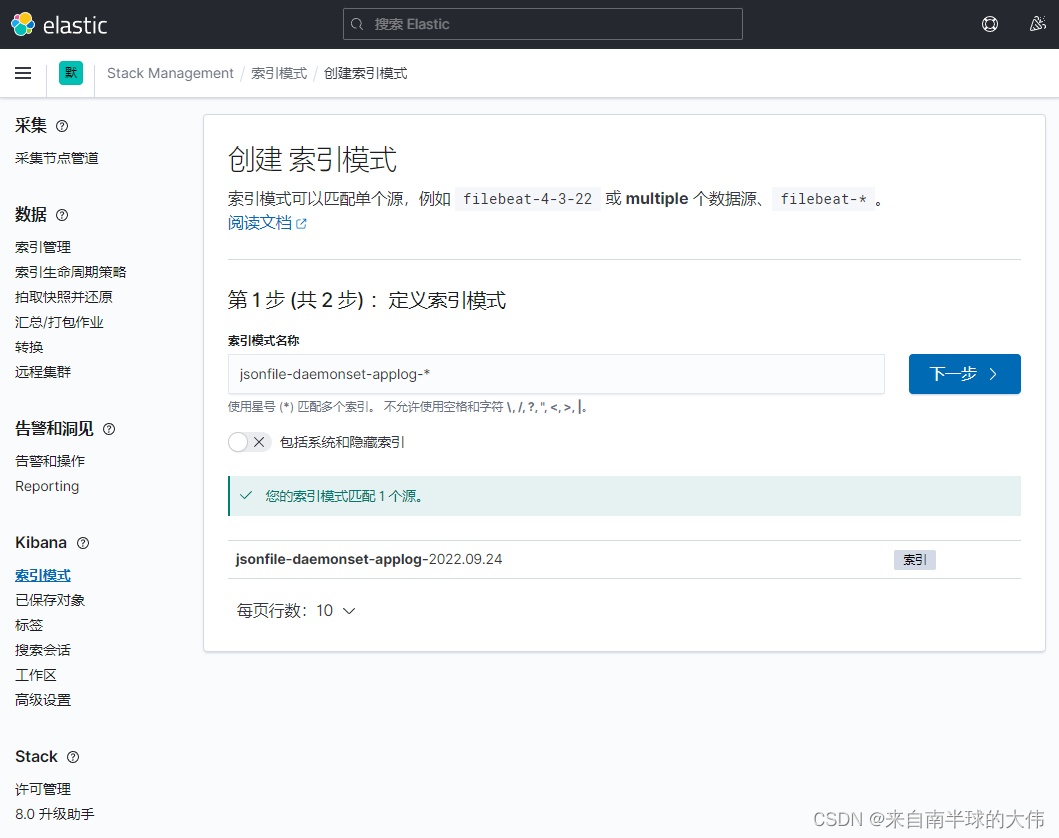

在kibana添加索引模式为 jsonfile-daemonset-syslog-* 与 jsonfile-daemonset-applog-*
在kibana的discover选项查看图形化日志：
Sidecar收集日志
制作镜像
Dockerfile和damonset一样，配置文件不同。
vim logstash.conf
input {
file {
# catalina日志
path => "/var/log/applog/catalina.out"
start_position => "beginning"
type => "app1-sidecar-catalina-log"
}
file {
# 访问日志
path => "/var/log/applog/localhost_access_log.*.txt"
start_position => "beginning"
type => "app1-sidecar-access-log"
}
}
output {
if [type] == "app1-sidecar-catalina-log" {
kafka {
# 环境变量将在部署pod时赋值
bootstrap_servers => "${KAFKA_SERVER}"
topic_id => "${TOPIC_ID}"
batch_size => 16384 #logstash每次向ES传输的数据量大小,单位为字节
codec => "${CODEC}"
} }
if [type] == "app1-sidecar-access-log" {
kafka {
bootstrap_servers => "${KAFKA_SERVER}"
topic_id => "${TOPIC_ID}"
batch_size => 16384
codec => "${CODEC}"
}}
}
生成边车镜像：
nerdctl build -t easzlab.io.local:5000/myhub/logstash:v7.12.1-sidecar .
nerdctl push easzlab.io.local:5000/myhub/logstash:v7.12.1-sidecar
部署Sidecar
部署Deployment和Service，内含tomcat web容器，sidecar容器。
---
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
app: myserver-tomcat-app1-deployment-label
name: myserver-tomcat-app1-deployment
namespace: myserver
spec:
replicas: 3
selector:
matchLabels:
app: myserver-tomcat-app1-selector
template:
metadata:
labels:
app: myserver-tomcat-app1-selector
spec:
containers:
- name: sidecar-container
image: easzlab.io.local:5000/myhub/logstash:v7.12.1-sidecar
imagePullPolicy: IfNotPresent
env:
- name: "KAFKA_SERVER"
value: "192.168.100.175:9092,192.168.100.176:9092,192.168.100.177:9092"
- name: "TOPIC_ID"
value: "tomcat-app1-topic"
- name: "CODEC"
value: "json"
volumeMounts:
- name: applogs
mountPath: /var/log/applog
- name: myserver-tomcat-app1-container
image: easzlab.io.local:5000/myhub/tomcat-app1:v2
imagePullPolicy: IfNotPresent
ports:
- containerPort: 8080
protocol: TCP
name: http
volumeMounts:
- name: applogs
mountPath: /apps/tomcat/logs
startupProbe:
httpGet:
path: /myapp/index.html
port: 8080
initialDelaySeconds: 5 #首次检测延迟5s
failureThreshold: 3 #从成功转为失败的次数
periodSeconds: 3 #探测间隔周期
readinessProbe:
httpGet:
path: /myapp/index.html
port: 8080
initialDelaySeconds: 5
periodSeconds: 3
timeoutSeconds: 5
successThreshold: 1
failureThreshold: 3
livenessProbe:
httpGet:
path: /myapp/index.html
port: 8080
initialDelaySeconds: 5
periodSeconds: 3
timeoutSeconds: 5
successThreshold: 1
failureThreshold: 3
volumes:
- name: applogs #定义通过emptyDir实现业务容器与sidecar容器的日志共享，以让sidecar收集业务容器中的日志
emptyDir: {}
---
kind: Service
apiVersion: v1
metadata:
labels:
app: myserver-tomcat-app1-service-label
name: myserver-tomcat-app1-service
namespace: myserver
spec:
type: NodePort
ports:
- name: http
port: 80
protocol: TCP
targetPort: 8080
nodePort: 30080
selector:
app: myserver-tomcat-app1-selector
在logstash服务器192.168.100.170，添加新的配置文件：
vim /etc/logstash/conf.d/sidecar.conf
input {
kafka {
bootstrap_servers => "192.168.100.175:9092,192.168.100.176:9092,192.168.100.177:9092"
topics => ["tomcat-app1-topic"]
codec => "json"
}
}
output {
if [type] == "app1-sidecar-access-log" {
elasticsearch {
hosts => ["192.168.100.171:9200","192.168.100.172:9200","192.168.100.173:9200"]
index => "sidecar-app1-accesslog-%{+YYYY.MM.dd}"
}
}
if [type] == "app1-sidecar-catalina-log" {
elasticsearch {
hosts => ["192.168.100.171:9200","192.168.100.172:9200","192.168.100.173:9200"]
index => "sidecar-app1-catalinalog-%{+YYYY.MM.dd}"
}
}
}
systemctl daemon-reload
systemctl restart logstash.service
在Kafka客户端offset explorer查看tomcat相关日志：

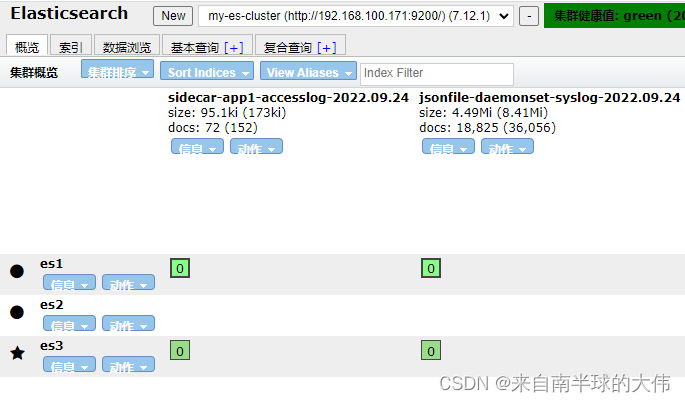

在es集群插件查看sidecar相关数据：

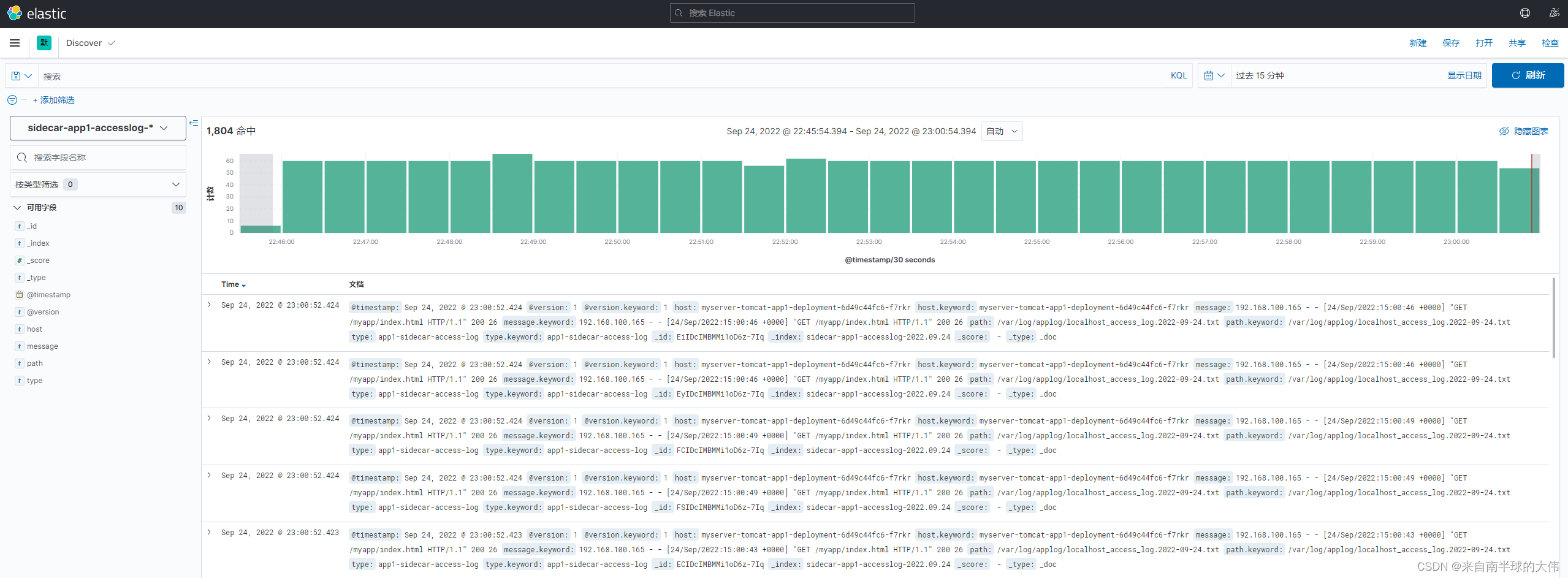

在kibana查看图形化日志数据：
