图形验证码认证因素插件功能介绍

图形验证码认证因素插件对用户认证凭证表单进行扩充，插入图形验证码并实现相关验证功能,是 IDaaS 一账通 ArkID 系统内置功能插件之一。
注意：图形验证码认证因素不具有认证/注册/修改密码等功能，仅对其他认证因素进行凭证元素扩充
普通用户：在 “登录” 页面实现向指定表单插入图形验证码
在这里插入图片描述

图形验证码认证因配置流程

01 插件租赁

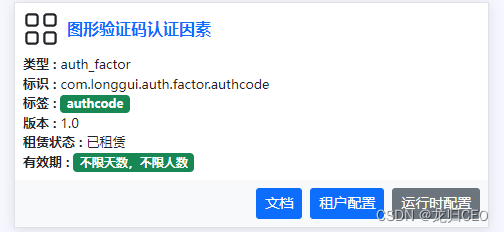

经由左侧菜单栏依次进入【租户管理】->【插件管理】，在插件租赁页面中找到图形验证码认证因素插件卡片，点击租赁
在这里插入图片描述
02 租户配置

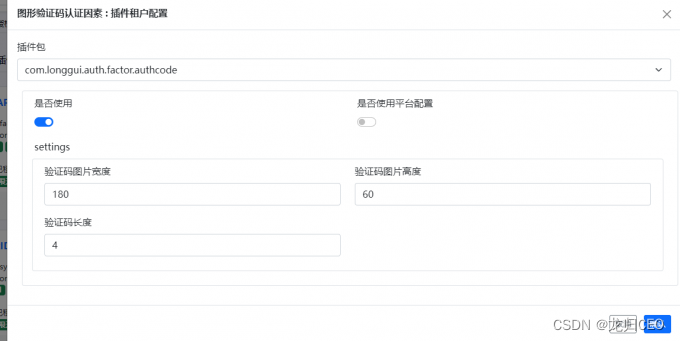

租赁完成后，进入已租赁列表，找到图形验证码认证因素插件卡片，点击租户配置，配置相关数据

03 认证因素配置

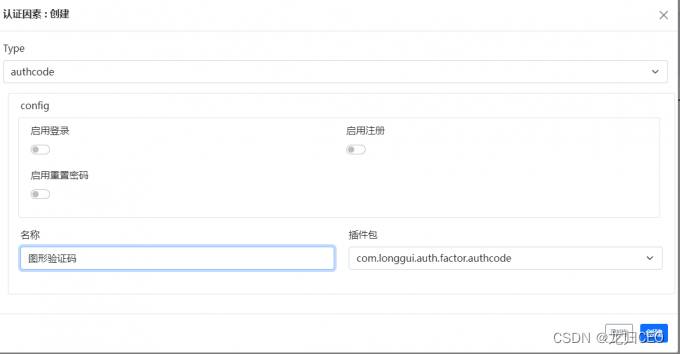

经由左侧菜单栏依次进入【认证管理】-> 【认证因素】,点击创建按钮，类型选择"authcode"，无须配置相关参数，至此配置完成
在这里插入图片描述

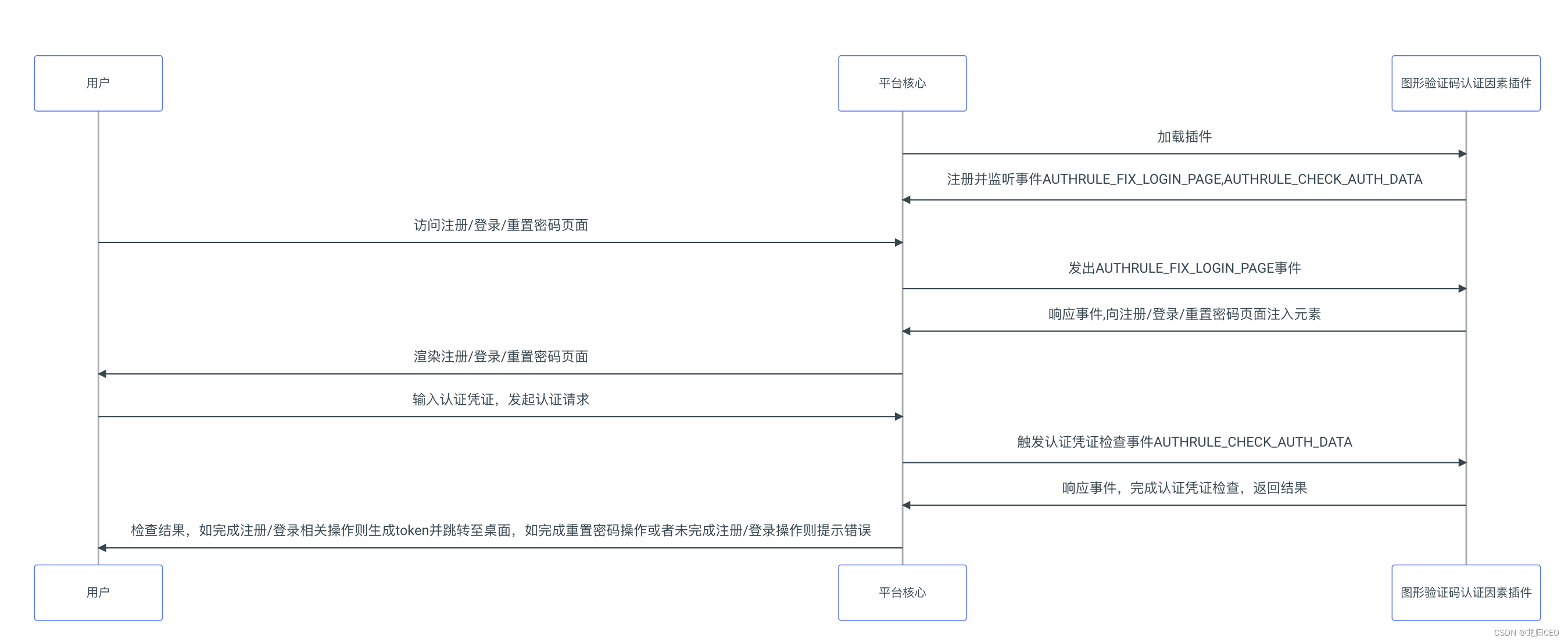

实现思路

普通用户：图形验证码：
在这里插入图片描述
抽象方法实现
load
authenticate
register
reset_password
create_login_page
create_register_page
create_password_page
create_other_page
create_auth_manage_page
check_auth_data
fix_login_page

代码

图形验证码认证因素插件

class AuthCodeAuthFactorExtension(AuthFactorExtension):
    """图形验证码认证因素插件
    """
    def load(self):
        """加载插件
        """
        self.create_extension_config_schema()
        self.create_extension_settings_schema()
        self.register_extension_api()

        super().load()

        # 初始化部分配置数据
        tenant = Tenant.platform_tenant()
        if self.get_settings(tenant):
            settings = {
                "width": 180,
                "height": 60,
                "auth_code_length": 4
            }

            self.update_or_create_settings(tenant, settings, True, False)

        if not self.get_tenant_configs(tenant):
            config = {
                "login_enabled": False,
                "register_enabled": False,
                "reset_password_enabled": False
            }

            self.create_tenant_config(tenant, config, "图形验证码", "authcode")

    def authenticate(self, event, **kwargs):
        pass

    @transaction.atomic()
    def register(self, event, **kwargs):
        pass

    def reset_password(self, event, **kwargs):
        pass

    def create_login_page(self, event, config, config_data):
        pass

    def fix_login_page(self, event, **kwargs):
        items = [
            {
                "type": "text",
                "name": "authcode",
                "append":{
                    "type": "image",
                    "http": {
                        "url": self.generate_code_path,
                        "method": "get",
                    },
                },
                "placeholder":_("图形验证码")
            },
            {
                "type": "hidden",
                "name": "authcode_key",
            },
        ]
        for login_pages,ext in event.data["login_pages"]:
            for config_id,login_page in login_pages.items():
                if config_id == uuid.UUID(event.data["main_auth_factor_id"]).hex:
                    for form in login_page[self.LOGIN]["forms"]:
                        form["items"].extend(items)

    def check_auth_data(self, event, **kwargs):
        """ 响应检查认证凭证事件

        Args:
            event: 事件
        """
        tenant = event.tenant
        request = event.request

        data = request.POST or json.load(request.body)

        authcode = data.get('authcode')
        authcode_key = data.get('authcode_key')

        if not self.check_authcode(event.tenant,authcode,authcode_key):

            settings = self.get_settings(tenant)
            key, code, image = self.get_authcode_picture(
                settings.settings.get("auth_code_length",4),
                settings.settings.get("width",180),
                settings.settings.get("height",60)
            )

            cache.set(event.tenant,key,code,expired=settings.settings.get("expired",10)*60)
            rs = self.error(ErrorCode.AUTHCODE_NOT_MATCH)
            rs["data"] = {
                "image": str(image, 'utf8'),
                "authcode_key": key
            }

            return False,rs
        return True,None

    def create_register_page(self, event, config, config_data):
        pass

    def create_password_page(self, event, config, config_data):
        pass

    def create_other_page(self, event, config, config_data):
        pass

    def create_auth_manage_page(self):
        pass

    def create_extension_config_schema(self):
        """创建插件运行时配置schema描述
        """
        AuthCodeAuthFactorSchema = create_extension_schema(
            'AuthCodeAuthFactorSchema',
            __file__,
            [
                (
                    'login_enabled',
                    bool,
                    Field(
                        default=False,
                        title=_('login_enabled', '启用登录'),
                        readonly=True
                    )
                ),
                (
                    'register_enabled',
                    bool,
                    Field(
                        default=False,
                        title=_('register_enabled', '启用注册'),
                        readonly=True
                    )
                ),
                (
                    'reset_password_enabled',
                    bool,
                    Field(
                        default=False,
                        title=_('reset_password_enabled', '启用重置密码'),
                        readonly=True
                    )
                ),
            ],
            BaseAuthFactorSchema,
        )
        self.register_auth_factor_schema(AuthCodeAuthFactorSchema, 'authcode')

    def create_extension_settings_schema(self):
        """创建租户配置schama
        """
        AuthCodeAuthFactorSettingsSchema = create_extension_schema(
            'AuthCodeAuthFactorSettingsSchema',
            __file__,
            [
                ('width', int, Field(title=_("验证码图片宽度"),default=180)),
                ('height',  int, Field(title=_("验证码图片高度"),default=60)),
                ('auth_code_length',  int, Field(title=_("验证码长度"),default=4)),
                (
                    'expired',
                    Optional[int],
                    Field(
                        title=_('expired', '有效期/分钟'),
                        default=10,
                    )
                ),
            ]
        )

        self.register_settings_schema(AuthCodeAuthFactorSettingsSchema)

    def get_random_char(self,auth_code_length=4)->str:
        """获取随机字符组合

        Args:
            auth_code_length (int, optional): 图形验证码长度. Defaults to 4.

        Returns:
            str: 随机字符串
        """
        chr_all = string.ascii_letters + string.digits
        str_random = ''.join(random.sample(chr_all, auth_code_length))
        return str_random

    def get_random_color(self, low, high):
        """获取随机颜色

        Args:
            low (int): 下限
            high (int): 上限

        Returns:
            tuple(int,int,int): RGB
        """
        return (
            random.randint(low, high),
            random.randint(low, high),
            random.randint(low, high),
        )

    def get_authcode_picture(self,auth_code_length=4,width=180,height=60):
        """制作验证码图片

        Args:
            auth_code_length (int, optional): 验证码长度. Defaults to 4.
            width (int, optional): 图形宽度. Defaults to 180.
            height (int, optional): 图形高度. Defaults to 60.

        Returns:
            tuple(str,str,image): 缓存key,图形验证码,图片
        """
        # 创建空白画布
        image = Image.new('RGB', (width, height), self.get_random_color(20, 100))
        # 验证码的字体
        font = ImageFont.truetype(
            os.path.join(
                os.path.dirname(
                    os.path.abspath(
                        __file__
                    )
                ),
                'assets/stxinwei.ttf'
            ),
            40
        )
        # 创建画笔
        draw = ImageDraw.Draw(image)
        # 获取验证码
        char_4 = self.get_random_char(auth_code_length)
        # 向画布上填写验证码
        for i in range(auth_code_length):
            draw.text(
                (40 * i + 10, 0),
                char_4[i],
                font=font,
                fill=self.get_random_color(100, 200),
            )
        # 绘制干扰点
        for x in range(random.randint(200, 600)):
            x = random.randint(1, width - 1)
            y = random.randint(1, height - 1)
            draw.point((x, y), fill=self.get_random_color(50, 150))
        # 模糊处理
        image = image.filter(ImageFilter.BLUR)
        key = self.generate_key()
        buf = BytesIO()
        # 将图片保存在内存中，文件类型为png
        image.save(buf, 'png')
        byte_data = buf.getvalue()
        base64_str = base64.b64encode(byte_data)
        return key, char_4, base64_str

    def generate_key(self):
        """生成随机key

        Returns:
            str: 随机key
        """
        key = '{}'.format(uuid.uuid4().hex)
        return key

    @operation(GenrateAuthCodeOut, roles=[TENANT_ADMIN, PLATFORM_ADMIN, NORMAL_USER])
    def get_authcode(self, request, tenant_id: str):
        """ 获取图形验证码
        """
        tenant = Tenant.active_objects.get(id=tenant_id)
        settings = self.get_settings(tenant)
        key, code, image = self.get_authcode_picture(
            settings.settings.get("auth_code_length",4),
            settings.settings.get("width",180),
            settings.settings.get("height",60)
        )

        cache.set(request.tenant,key,code,expired=settings.settings.get("expired",10)*60)
        return {
            "data": {
                "image": str(image, 'utf8'),
                "authcode_key": key
            }
        }

    @operation(CheckAuthCodeOut, roles=[TENANT_ADMIN, PLATFORM_ADMIN, NORMAL_USER])
    def check_auth_code(self,request,tenant_id:str,data:CheckAuthCodeIn):
        """ 校验图形验证码
        """
        if self.check_authcode(request.tenant,data.authcode, data.authcode_key):
            return self.success()
        else:
            return self.error(
                ErrorCode.AUTHCODE_NOT_MATCH
            )

    def check_authcode(self,tenant,authcode,authcode_key):
        """校验图形验证码
        """
        return authcode_key and cache.get(tenant,authcode_key).lower() == authcode.lower()

    def register_extension_api(self):
        """注册插件API
        """
        self.generate_code_path = self.register_api(
            '/auth_code/',
            'GET',
            self.get_authcode,
            tenant_path=True,
            auth=None,
            response=GenrateAuthCodeOut,
        )

        self.check_code_path = self.register_api(
            '/auth_code/',
            'POST',
            self.check_auth_code,
            tenant_path=True,
            auth=None,
            response=CheckAuthCodeOut,
        )

authenticate(self, event, **kwargs)
抽象方法:认证
Parameters:

Name	Type	Description	Default
event	Event	认证事件	required

Source code in extension_root/com_longgui_auth_factor_authcode/init.py

check_auth_code(self, request, tenant_id, data)

校验图形验证码

@operation(CheckAuthCodeOut, roles=[TENANT_ADMIN, PLATFORM_ADMIN, NORMAL_USER])
def check_auth_code(self,request,tenant_id:str,data:CheckAuthCodeIn):
    """ 校验图形验证码
    """
    if self.check_authcode(request.tenant,data.authcode, data.authcode_key):
        return self.success()
    else:
        return self.error(
            ErrorCode.AUTHCODE_NOT_MATCH
        )

check_auth_data(self, event, **kwargs)
响应检查认证凭证事件
Parameters:

Name	Type	Description	Default
event		事件	required

def check_auth_data(self, event, **kwargs):
    """ 响应检查认证凭证事件

    Args:
        event: 事件
    """
    tenant = event.tenant
    request = event.request

    data = request.POST or json.load(request.body)

    authcode = data.get('authcode')
    authcode_key = data.get('authcode_key')

    if not self.check_authcode(event.tenant,authcode,authcode_key):

        settings = self.get_settings(tenant)
        key, code, image = self.get_authcode_picture(
            settings.settings.get("auth_code_length",4),
            settings.settings.get("width",180),
            settings.settings.get("height",60)
        )

        cache.set(event.tenant,key,code,expired=settings.settings.get("expired",10)*60)
        rs = self.error(ErrorCode.AUTHCODE_NOT_MATCH)
        rs["data"] = {
            "image": str(image, 'utf8'),
            "authcode_key": key
        }

        return False,rs
    return True,None

check_authcode(self, tenant, authcode, authcode_key)
校验图形验证码

def check_authcode(self,tenant,authcode,authcode_key):
    """校验图形验证码
    """
    return authcode_key and cache.get(tenant,authcode_key).lower() == authcode.lower()

create_auth_manage_page(self)

认证管理页面描述

def create_auth_manage_page(self):
    pass

create_extension_config_schema(self)
创建插件运行时配置schema描述

def create_extension_settings_schema(self):
    """创建租户配置schama
    """
    AuthCodeAuthFactorSettingsSchema = create_extension_schema(
        'AuthCodeAuthFactorSettingsSchema',
        __file__,
        [
            ('width', int, Field(title=_("验证码图片宽度"),default=180)),
            ('height',  int, Field(title=_("验证码图片高度"),default=60)),
            ('auth_code_length',  int, Field(title=_("验证码长度"),default=4)),
            (
                'expired',
                Optional[int],
                Field(
                    title=_('expired', '有效期/分钟'),
                    default=10,
                )
            ),
        ]
    )

    self.register_settings_schema(AuthCodeAuthFactorSettingsSchema)

create_login_page(self, event, config, config_data)
抽象方法：组装登录页面表单
Parameters:

Name	Type	Description	Default
event	event	Event	CREATE_LOGIN_PAGE_AUTH_FACTOR事件
config	TenantExtensionConfig	插件运行时配置	required
config_data	dict	运行时配置数据	required

def create_login_page(self, event, config, config_data):
    pass

create_other_page(self, event, config, config_data)
抽象方法：组装登录页上其他操作表单

Parameters:

Name	Type	Description	Default
event	Event	CREATE_LOGIN_PAGE_AUTH_FACTOR事件	required
config	TenantExtensionConfig	插件运行时配置	required
config_data	dict	运行时配置数据	required

def create_other_page(self, event, config, config_data):
    pass

create_password_page(self, event, config, config_data) #
抽象方法：组装重置密码页面表单

Parameters:

Name	Type	Description	Default
event	Event	CREATE_LOGIN_PAGE_AUTH_FACTOR事件	required
config	TenantExtensionConfig	插件运行时配置	required
config_data	dict	运行时配置数据	required

create_register_page(self, event, config, config_data)
抽象方法：组装注册页面表单
Parameters:

Name	Type	Description	Default
event	Event	CREATE_LOGIN_PAGE_AUTH_FACTOR事件	required
config	TenantExtensionConfig	插件运行时配置	required
config_data	dict	运行时配置数据	required

def create_register_page(self, event, config, config_data):
 pass

fix_login_page(self, event, **kwargs)
向login_pages填入认证元素

Parameters:

Name	Type	Description	Default
event		AUTHRULE_FIX_LOGIN_PAGE事件	required

def fix_login_page(self, event, **kwargs):
    items = [
        {
            "type": "text",
            "name": "authcode",
            "append":{
                "type": "image",
                "http": {
                    "url": self.generate_code_path,
                    "method": "get",
                },
            },
            "placeholder":_("图形验证码")
        },
        {
            "type": "hidden",
            "name": "authcode_key",
        },
    ]
    for login_pages,ext in event.data["login_pages"]:
        for config_id,login_page in login_pages.items():
            if config_id == uuid.UUID(event.data["main_auth_factor_id"]).hex:
                for form in login_page[self.LOGIN]["forms"]:
                    form["items"].extend(items)

generate_key(self)
生成随机key
Returns:

Type	Description
str	随机key

def generate_key(self):
    """生成随机key

    Returns:
        str: 随机key
    """
    key = '{}'.format(uuid.uuid4().hex)
    return key

get_authcode(self, request, tenant_id)

获取图形验证码

@operation(GenrateAuthCodeOut, roles=[TENANT_ADMIN, PLATFORM_ADMIN, NORMAL_USER])
def get_authcode(self, request, tenant_id: str):
    """ 获取图形验证码
    """
    tenant = Tenant.active_objects.get(id=tenant_id)
    settings = self.get_settings(tenant)
    key, code, image = self.get_authcode_picture(
        settings.settings.get("auth_code_length",4),
        settings.settings.get("width",180),
        settings.settings.get("height",60)
    )

    cache.set(request.tenant,key,code,expired=settings.settings.get("expired",10)*60)
    return {
        "data": {
            "image": str(image, 'utf8'),
            "authcode_key": key
        }
    }

get_authcode_picture(self, auth_code_length=4, width=180, height=60)

制作验证码图片

Parameters:

Name	Type	Description	Default
auth_code_length	int	验证码长度. Defaults to 4.	4
width	int	图形宽度. Defaults to 180.	180
height	int	图形高度. Defaults to 60.	60

Returns:

Type	Description
tuple(str,str,image)	缓存key,图形验证码,图片

def get_authcode_picture(self,auth_code_length=4,width=180,height=60):
    """制作验证码图片

    Args:
        auth_code_length (int, optional): 验证码长度. Defaults to 4.
        width (int, optional): 图形宽度. Defaults to 180.
        height (int, optional): 图形高度. Defaults to 60.

    Returns:
        tuple(str,str,image): 缓存key,图形验证码,图片
    """
    # 创建空白画布
    image = Image.new('RGB', (width, height), self.get_random_color(20, 100))
    # 验证码的字体
    font = ImageFont.truetype(
        os.path.join(
            os.path.dirname(
                os.path.abspath(
                    __file__
                )
            ),
            'assets/stxinwei.ttf'
        ),
        40
    )
    # 创建画笔
    draw = ImageDraw.Draw(image)
    # 获取验证码
    char_4 = self.get_random_char(auth_code_length)
    # 向画布上填写验证码
    for i in range(auth_code_length):
        draw.text(
            (40 * i + 10, 0),
            char_4[i],
            font=font,
            fill=self.get_random_color(100, 200),
        )
    # 绘制干扰点
    for x in range(random.randint(200, 600)):
        x = random.randint(1, width - 1)
        y = random.randint(1, height - 1)
        draw.point((x, y), fill=self.get_random_color(50, 150))
    # 模糊处理
    image = image.filter(ImageFilter.BLUR)
    key = self.generate_key()
    buf = BytesIO()
    # 将图片保存在内存中，文件类型为png
    image.save(buf, 'png')
    byte_data = buf.getvalue()
    base64_str = base64.b64encode(byte_data)
    return key, char_4, base64_str

get_random_char(self, auth_code_length=4)

获取随机字符组合

Parameters:

Name	Type	Description	Default
auth_code_length	int	图形验证码长度. Defaults to 4.	4

Returns:

Type	Description
str	随机字符串

def get_random_char(self,auth_code_length=4)->str:
    """获取随机字符组合

    Args:
        auth_code_length (int, optional): 图形验证码长度. Defaults to 4.

    Returns:
        str: 随机字符串
    """
    chr_all = string.ascii_letters + string.digits
    str_random = ''.join(random.sample(chr_all, auth_code_length))
    return str_random

get_random_color(self, low, high)
获取随机颜色
Parameters:

Name	Type	Description	Default
low	int	下限	required
high	int	上限	required

Returns:

Type	Description
tuple(int,int,int)	RGB

def get_random_color(self, low, high):
    """获取随机颜色

    Args:
        low (int): 下限
        high (int): 上限

    Returns:
        tuple(int,int,int): RGB
    """
    return (
        random.randint(low, high),
        random.randint(low, high),
        random.randint(low, high),
    )

load(self)
加载插件

def load(self):
    """加载插件
    """
    self.create_extension_config_schema()
    self.create_extension_settings_schema()
    self.register_extension_api()

    super().load()

    # 初始化部分配置数据
    tenant = Tenant.platform_tenant()
    if self.get_settings(tenant):
        settings = {
            "width": 180,
            "height": 60,
            "auth_code_length": 4
        }

        self.update_or_create_settings(tenant, settings, True, False)

    if not self.get_tenant_configs(tenant):
        config = {
            "login_enabled": False,
            "register_enabled": False,
            "reset_password_enabled": False
        }

        self.create_tenant_config(tenant, config, "图形验证码", "authcode")

register_extension_api(self)
注册插件API

def register_extension_api(self):
    """注册插件API
    """
    self.generate_code_path = self.register_api(
        '/auth_code/',
        'GET',
        self.get_authcode,
        tenant_path=True,
        auth=None,
        response=GenrateAuthCodeOut,
    )

    self.check_code_path = self.register_api(
        '/auth_code/',
        'POST',
        self.check_auth_code,
        tenant_path=True,
        auth=None,
        response=CheckAuthCodeOut,
    )

reset_password(self, event, **kwargs) #
抽象方法：响应重置密码事件

Parameters:

Name	Type	Description	Default
event	Event	重置密码事件	required

def reset_password(self, event, **kwargs):
    pass

ArkID方舟一账通

一款插件化、多租户、云原生的开源统一身份认证授权管理解决方案/身份云管理平台，采用AGPL-3.0 开源协议;支持多种标准协议(LDAP, OAuth2, SAML, OpenID)，细粒度权限控制，完整的WEB管理功能，钉钉、企业微信集成等。ArkID 既可以作为企业终端客户资产统一管理 CIAM，可作为企业内部雇员、外部伙伴统一身份管理平台 EIAM；助企业构建标准化的用户身份体系。如果希望快速的了解系统的基本使用，可以访问官方IDaaS注册账号后创建自己的租户，即可使用系统的大部分功能。如果希望体验超级管理员，安装配置插件等，推荐使用私有化部署的方式。

IDaaS 系统 ArkID 一账通内置插件：图形验证码认证因素的配置流程

图形验证码认证因素插件功能介绍

图形验证码认证因配置流程

ArkID方舟一账通

网站公告

今日签到

热门文章

最新发布
