java实现二叉树遍历
之前由于只知道二叉树的遍历有前序、中序和后序,但是却不知道用如何用java去实现它,那么以下就是通过java去实现二叉树的前序、中序和后序
在实现之前还是要了解一下什么是二叉树????😊
二叉树的究竟是个啥呀????

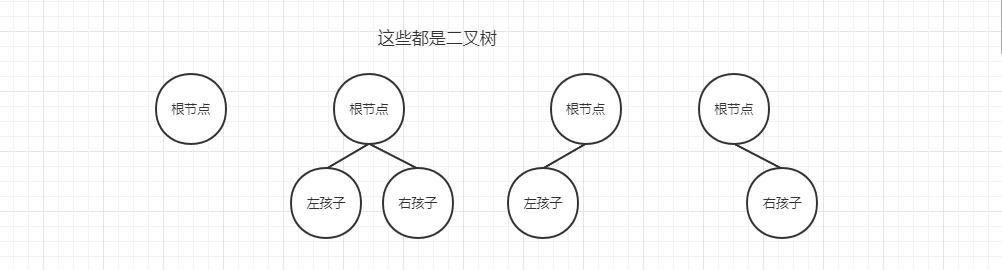

二叉树其实是树形结构的一个重要类型,它包括了根结点,而每个根结点的子节点只有两个,用专业术语捏就称为度,二叉树每个结点的度都不能超过两个哟
二叉树中满二叉树和完全二叉树又是啥呀?有啥区别呀?

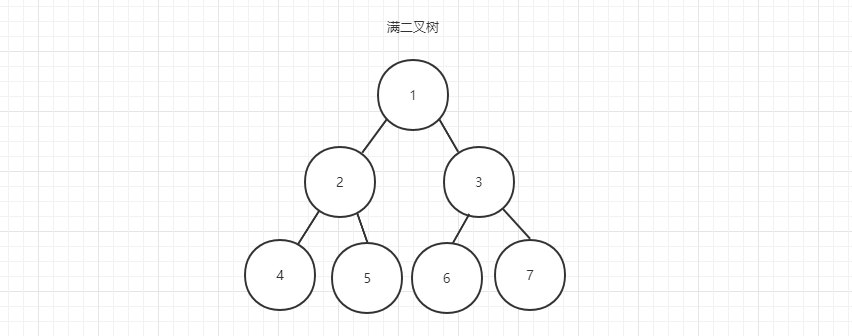

满二叉树:那顾名思义辣,就是很满的二叉树😝,即每个结点的度都是2,如下图昂

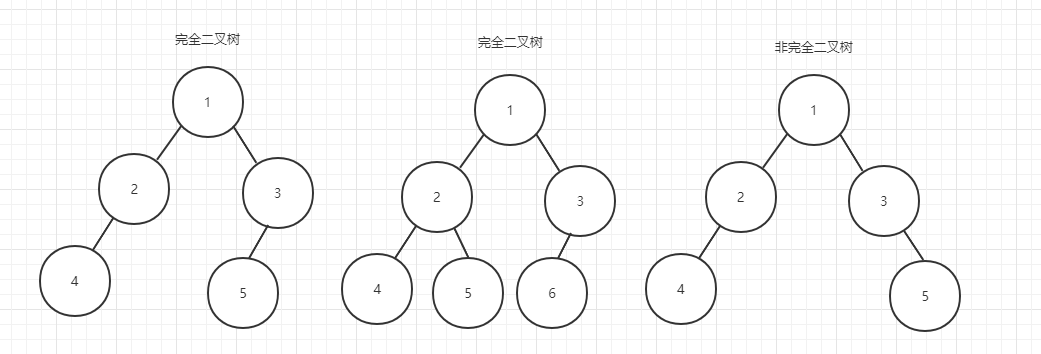

完全二叉树:所有节点集中在树左边的二叉树,就是说除了叶节点,每个节点都只有左节点或者有两个节点,而没有只有右节点情况,在画个图就非常清晰啦✌
最后结个小尾吧~~
满二叉树一定是完全二叉树,但完全二叉树不一定是满二叉树哟
了解完二叉树是什么之后,再来了解一下二叉树的前序、中序、后序的是如何遍历的???😊

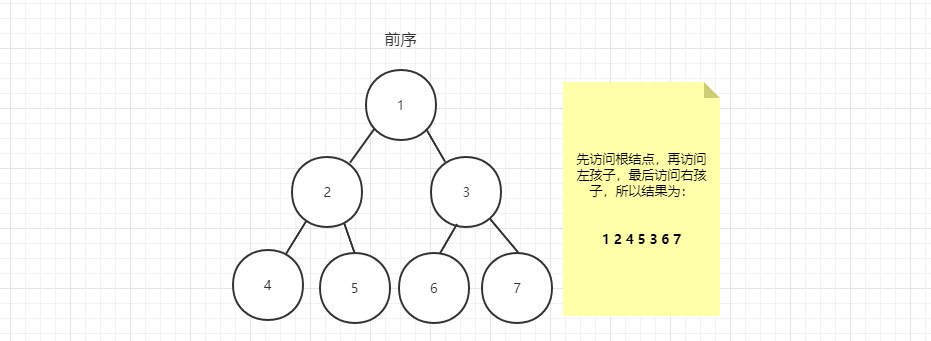

前序:根结点 -> 左孩子 -> 右孩子

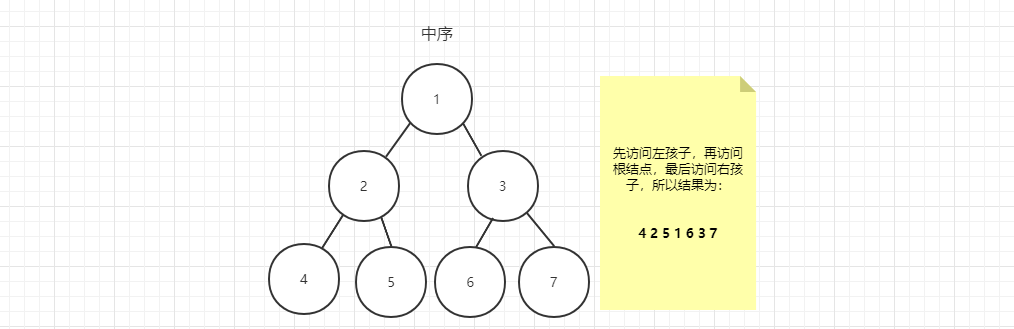

中序:左孩子 -> 根结点 -> 右孩子

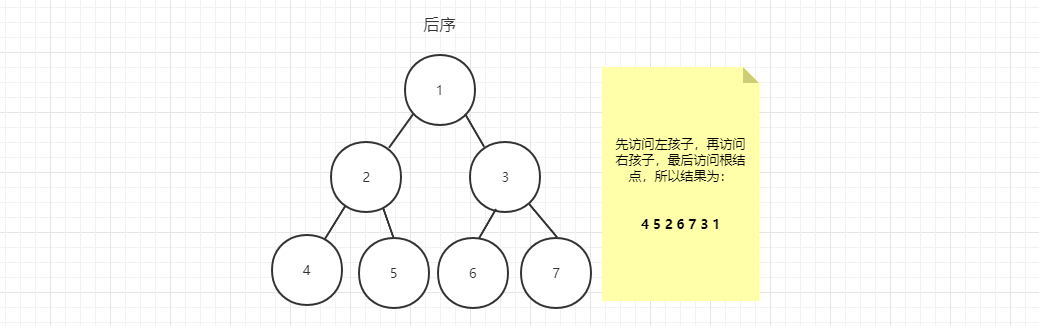

后序:左孩子 -> 右孩子 -> 根结点
是不是觉得很简单很简单很简单👏👏👏👏👏👏👏
是不是以为结束啦!还没有呢,接下来进入正题-用java实现三种遍历🚀
上面我们了解了二叉树的概念和二叉树前中后序的遍历,现在我们来用java实现这三种遍历吧,三种遍历的实现主要分为递归方法和非递归方法,二话不说我直接贴代码了,大家可以自己debug更容易了解哦
前序
递归方式
public static List<Integer> inorderFirstTraversal(TreeNode root) {
// 递归的方式
// 二叉树前序遍历
if (null != root) {
System.out.print(root.val + "->");
inorderFirstTraversal(root.left);
inorderFirstTraversal(root.right);
}
}
非递归方式:
public static List<Integer> inorderFirstTraversal(TreeNode root) {
// 非递归的方式
LinkedList<TreeNode> linkedList = new LinkedList<>();
TreeNode node = root;
while (null != node || linkedList.size() > 0) {
if( null != node ){
System.out.print(node.val + "->");
linkedList.push(node);
node = node.getLeft();
}else{
TreeNode pop = linkedList.pop();
node = pop.getRight();
}
}
return null;
}
中序
递归方式:
public static List<Integer> inorderMediumTraversal(TreeNode root) {
// 二叉树中序遍历
if (null != root) {
inorderMediumTraversal(root.left);
System.out.print(root.val + "->");
inorderMediumTraversal(root.right);
}
}
非递归方式:
public static List<Integer> inorderMediumTraversal(TreeNode root) {
// 非递归中序遍历
LinkedList<TreeNode> linkedList = new LinkedList<>();
TreeNode node = root;
while (null != node || linkedList.size() > 0) {
if( null != node ){
linkedList.push(node);
node = node.getLeft();
}else{
TreeNode pop = linkedList.pop();
System.out.print(pop.val + "->");
node = pop.getRight();
}
}
return null;
}
后序
递归方式:
public static List<Integer> inorderLastTraversal(TreeNode root) {
// 二叉树后序遍历
if (null != root) {
inorderMediumTraversal(root.left);
inorderMediumTraversal(root.right);
System.out.print(root.val + "->");
}
}
非递归方式:
public static List<Integer> inorderLastTraversal(TreeNode root) {
// 非递归后序遍历
LinkedList<TreeNode> linkedList = new LinkedList<>();
TreeNode cur, pre = null;
linkedList.push(root);
while ( linkedList.size() > 0 ) {
cur = linkedList.peek();
if ((cur.left == null && cur.right == null) || (pre != null && (pre == cur.left || pre == cur.right))) {
System.out.print(cur.val + "->");
linkedList.pop();
pre = cur;
} else {
if (cur.right != null)
linkedList.push(cur.right);
if (cur.left != null)
linkedList.push(cur.left);
}
}
return null;
}
还有一个TreeNode类:
public class TreeNode {
int val;
TreeNode left;
TreeNode right;
TreeNode() {}
TreeNode(int val) { this.val = val; }
TreeNode(int val, TreeNode left, TreeNode right) {
this.val = val;
this.left = left;
this.right = right;
}
public int getVal() {
return val;
}
public TreeNode getLeft() {
return left;
}
public TreeNode getRight() {
return right;
}
@Override
public String toString() {
return "TreeNode{" +
"val=" + val +
", left=" + left +
", right=" + right +
'}';
}
}
创作不易,希望大家能点个赞给我继续创作下去的动力,让我们共同进步吧💪
