1.1 ROS初探

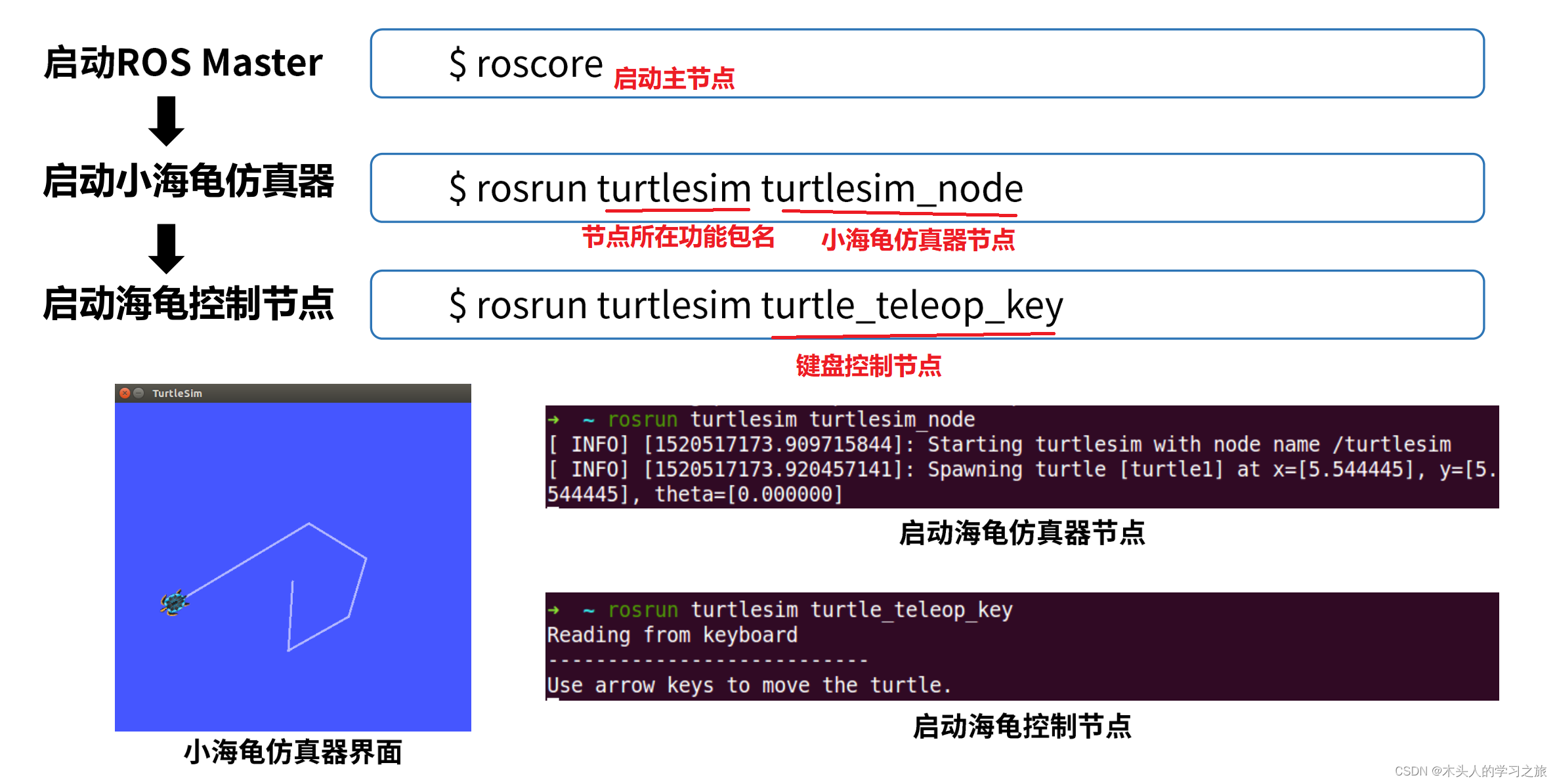

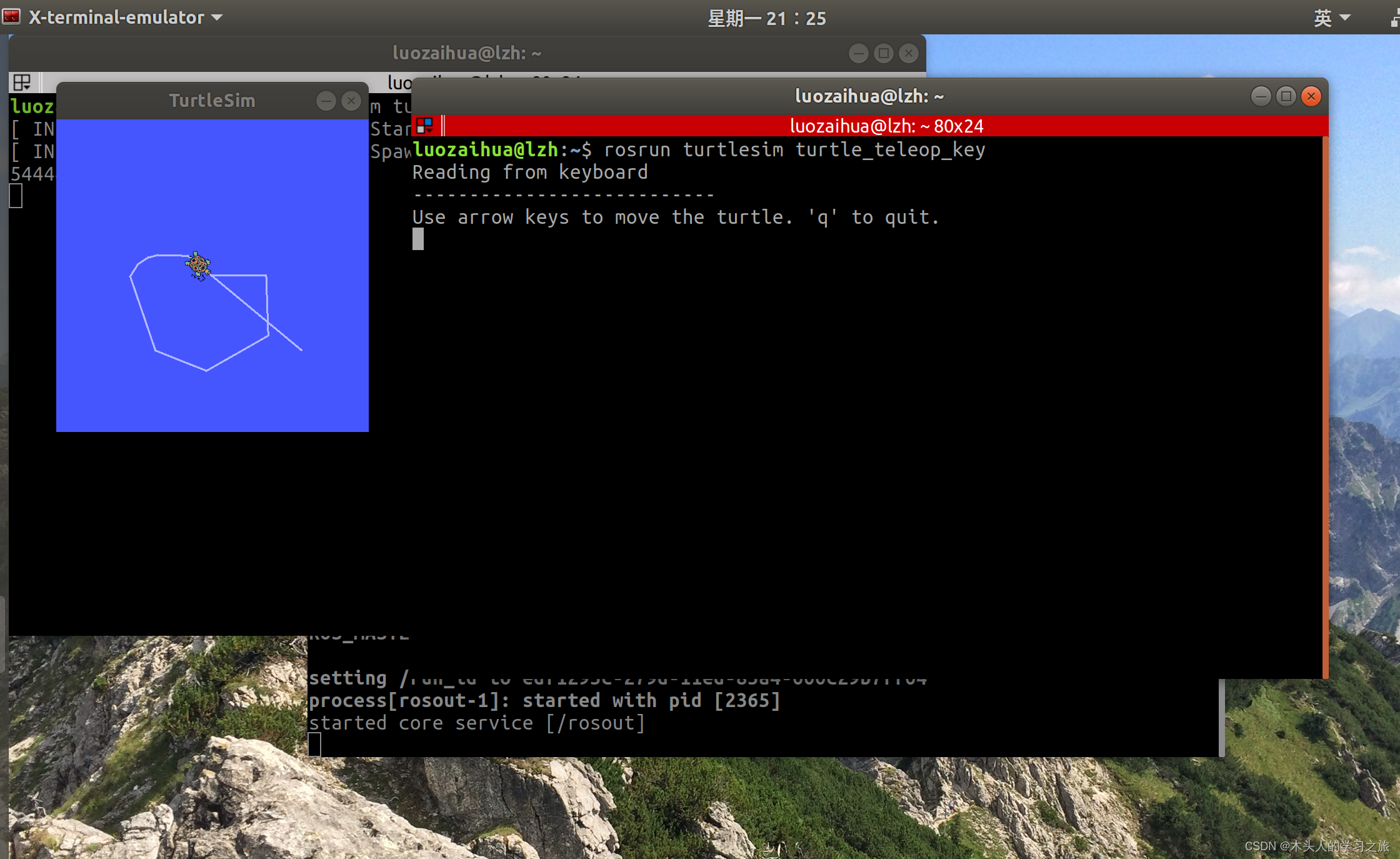

• 小海龟模拟：

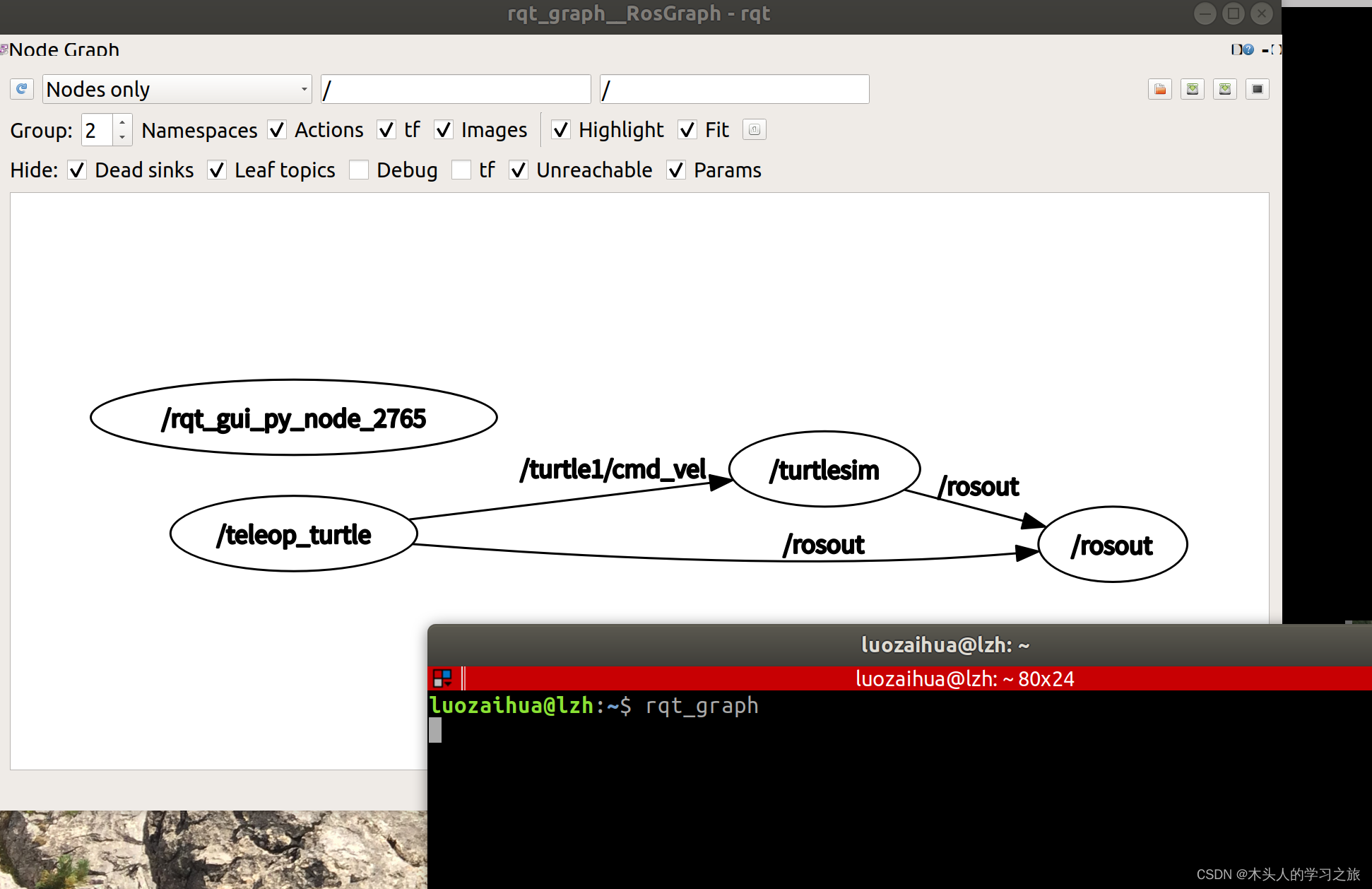

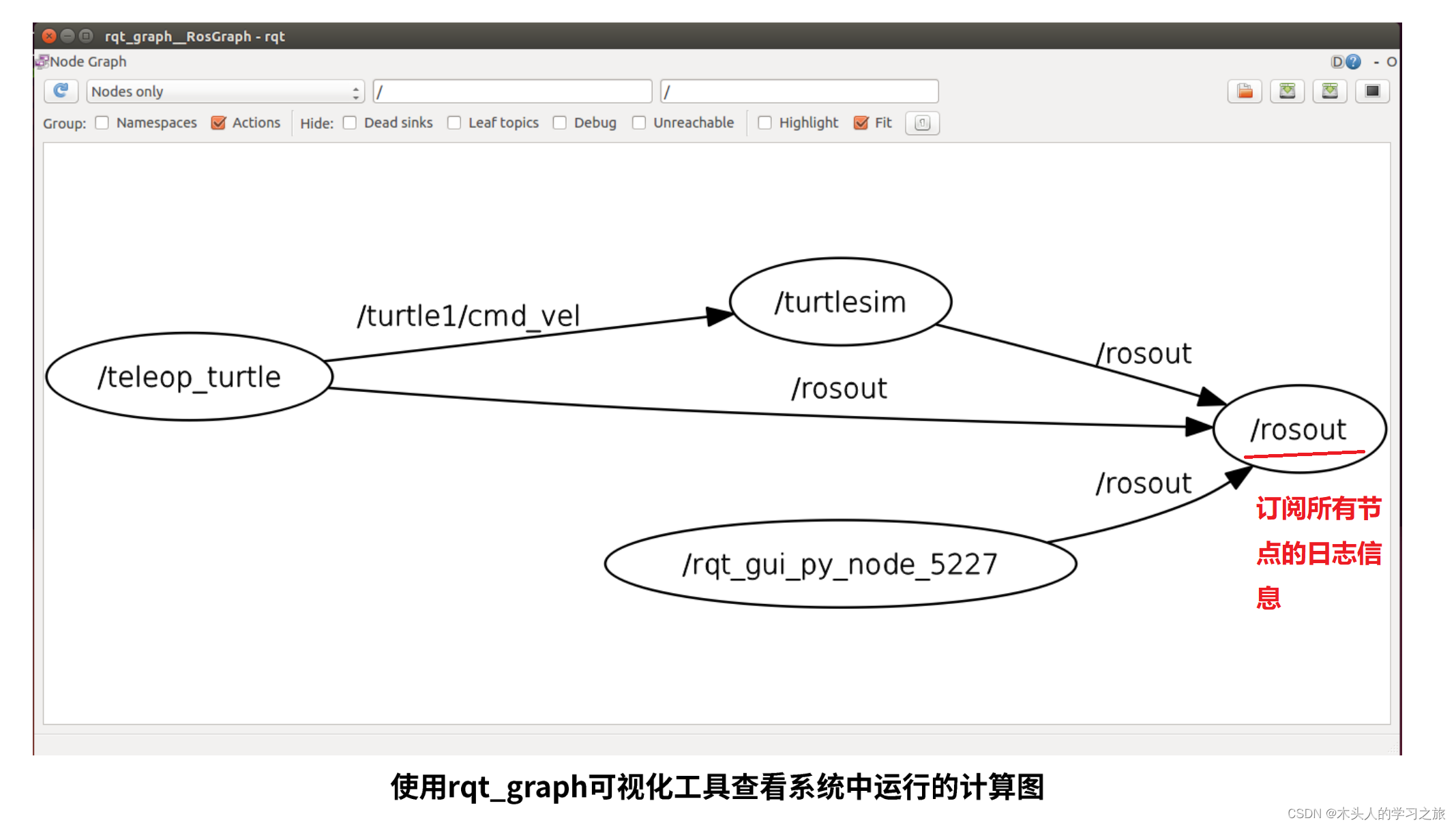

1.2 rqt_graph可视化工具

1.3 一些常用命令行

（1）rosnode

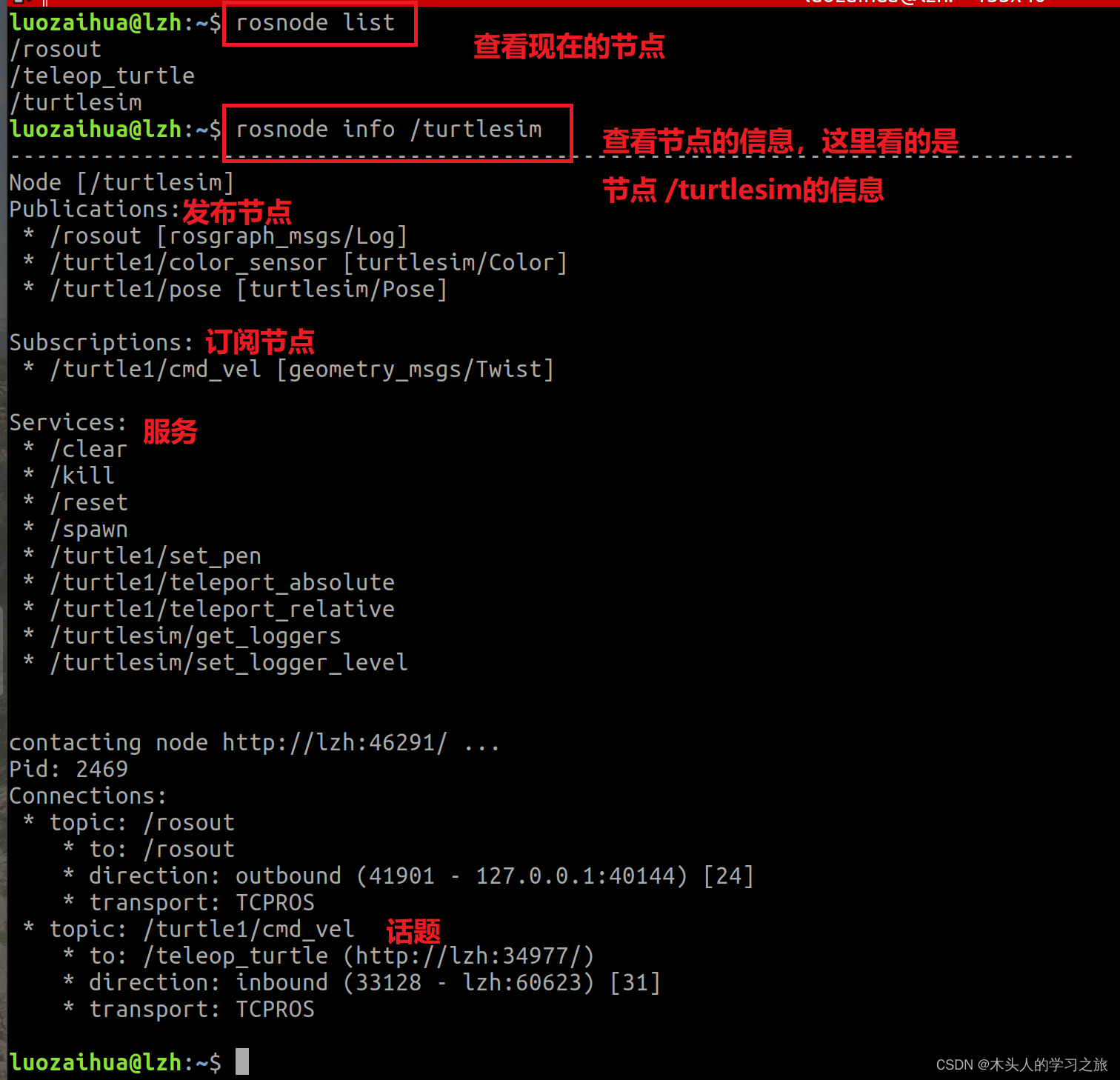

rosnode list
rosnode info /turtlesim

（2）rostopic

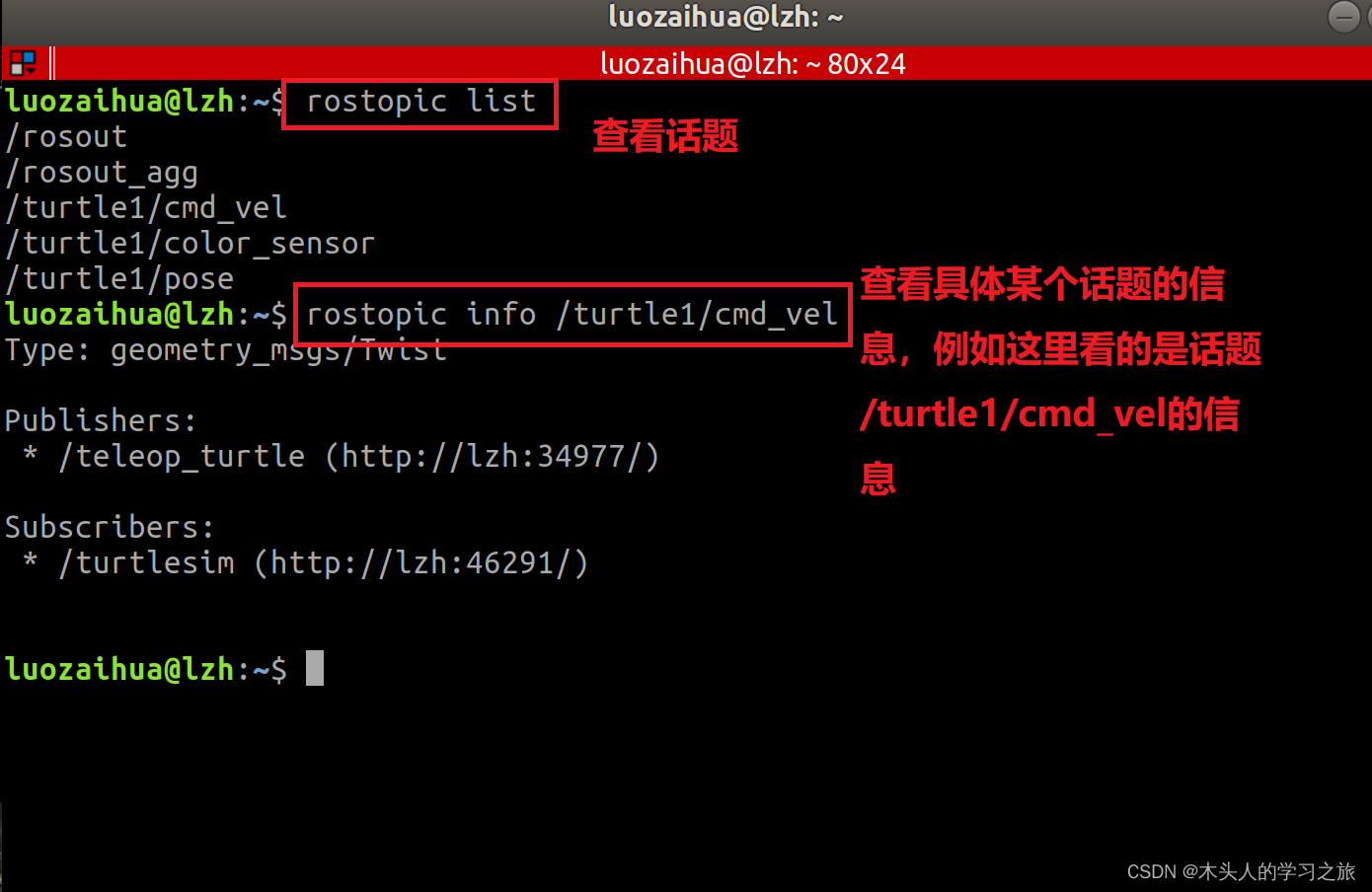

rostopic list
rostopic info /turtle1/cmd_vel

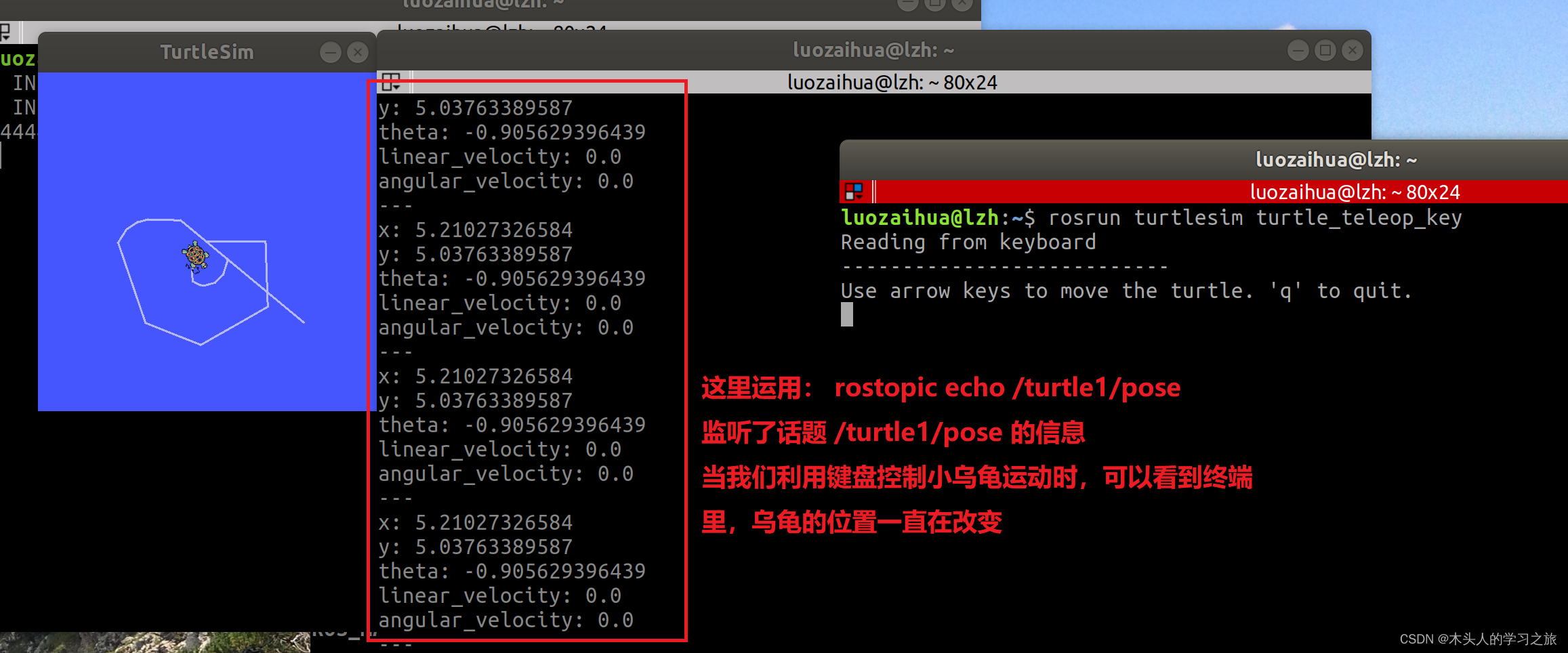

rostopic echo /turtle1/pose

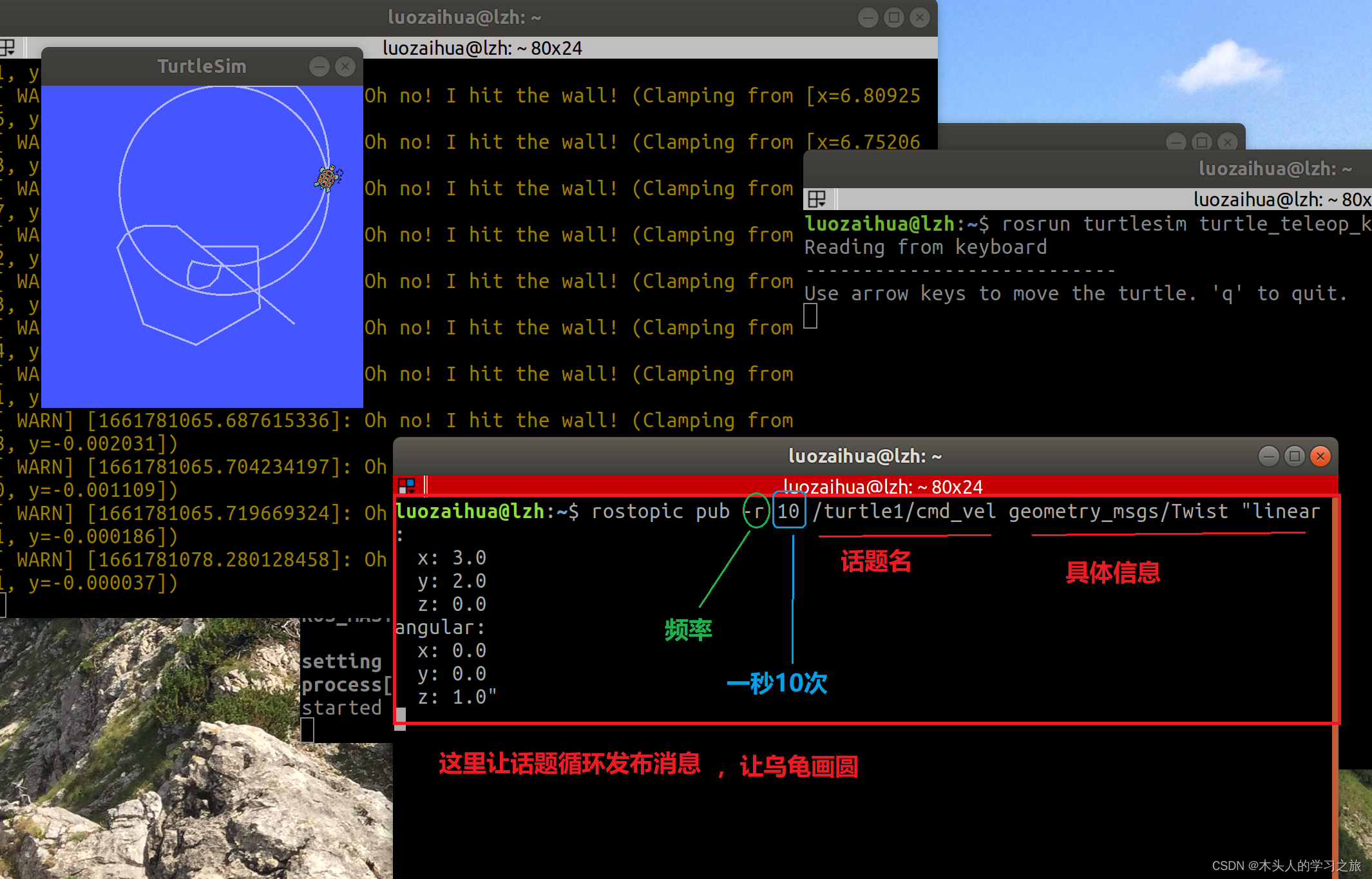

rostopic pub -r 10 /turtle1/cmd_vel geometry_msgs/Twist "linear:
  x: 3.0
  y: 2.0
  z: 0.0
angular:
  x: 0.0
  y: 0.0
  z: 1.0"

（3）rosservice

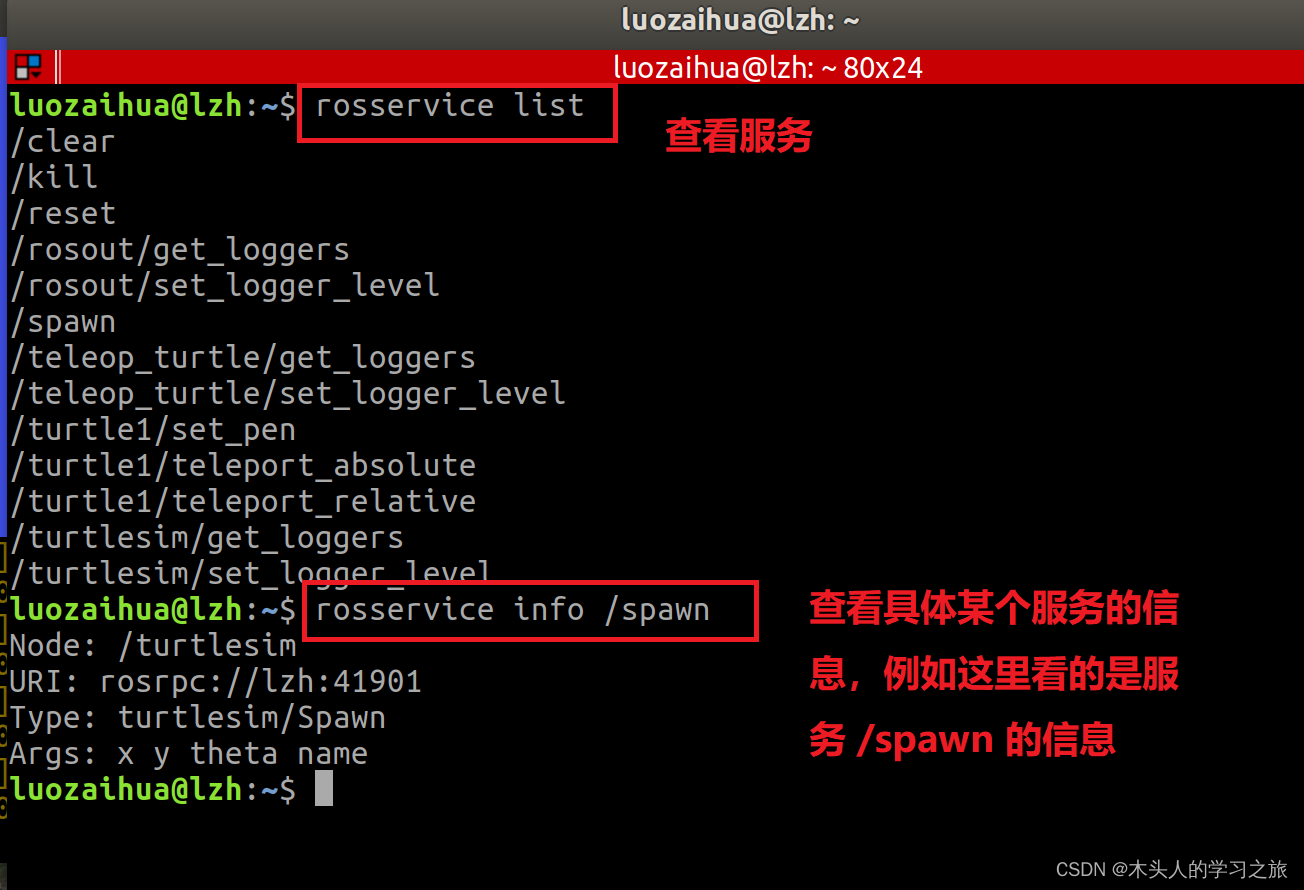

rosservice list
rosservice info /spawn

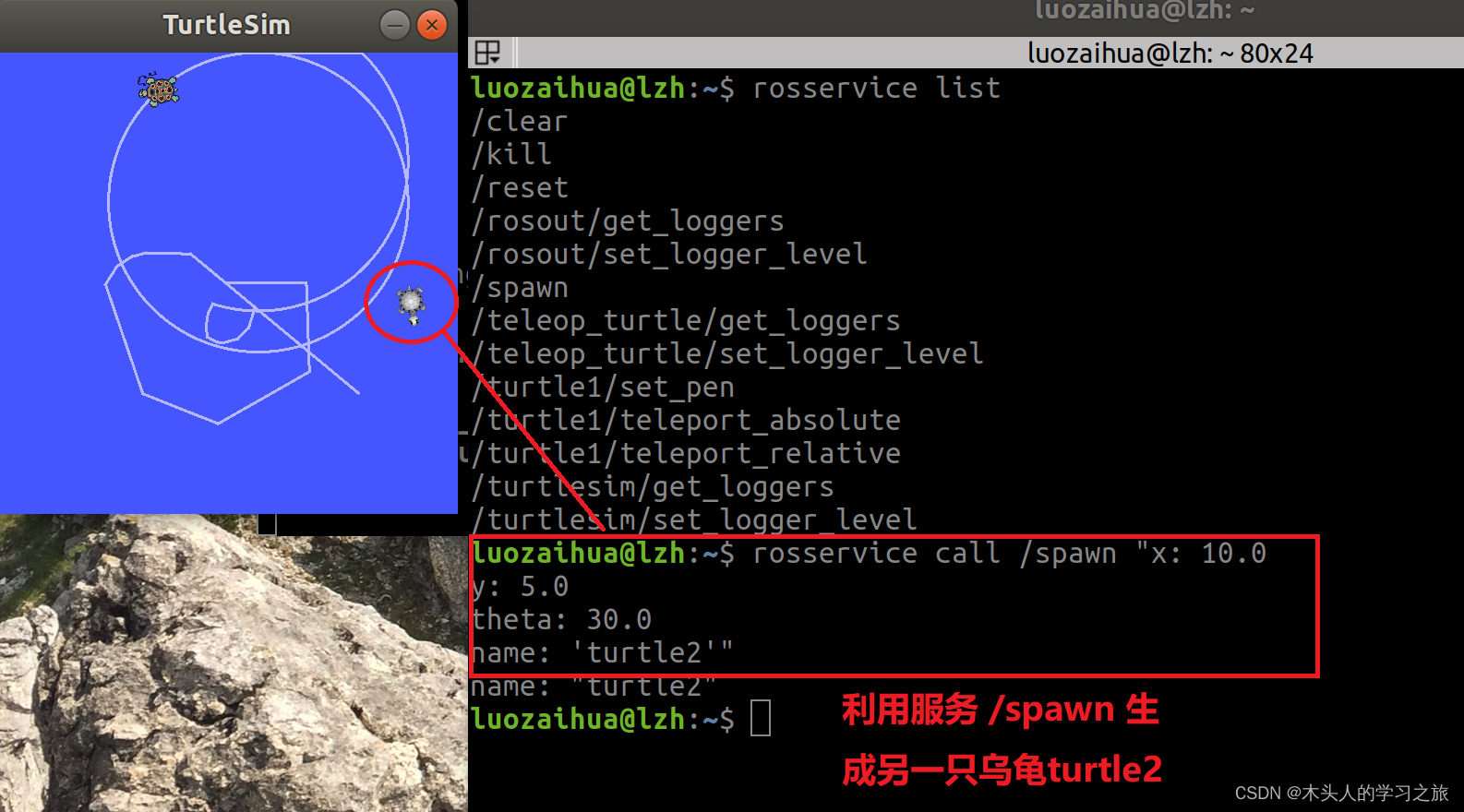

rosservice call /spawn "x: 10.0
y: 5.0
theta: 30.0
name: 'turtle2'"
