RabbitMQ
文章目录
一、RabbitMQ介绍
1.1 现存问题

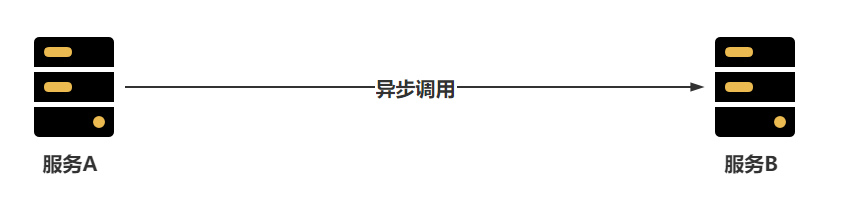

服务异步调用：服务A如何保证异步请求一定能被服务B接收到并处理
服务异步调用
削峰：海量请求，如何实现削峰的效果，将请求全部放到一个队列中，慢慢的消费，这个队列怎么实现？
削峰  |
Erlang：Erlang是一种通用的面向并发的编程语言，Erlang充分发挥CPU的性能，延迟特别低，相比其他的MQ（Kafka，RocketMQ）延迟是最低的。
RabbitMQ支持多种语言通讯：Java，Python…………都有响应的API
RabbitMQ支持海量的插件去实现一些特殊功能，RabbitMQ自带了一款图形化界面，操作异常的简单。
二、RabbitMQ安装
2.1 Docker安装RabbitMQ
docker-compose.yml文件
version: "3.1"
services:
rabbitmq:
image: daocloud.io/library/rabbitmq:3.8.5
container_name: rabbitmq
restart: always
volumes:
- ./data/:/var/lib/rabbitmq/
ports:
- 5672:5672
- 15672:15672
在Linux内部执行：curl localhost:5672

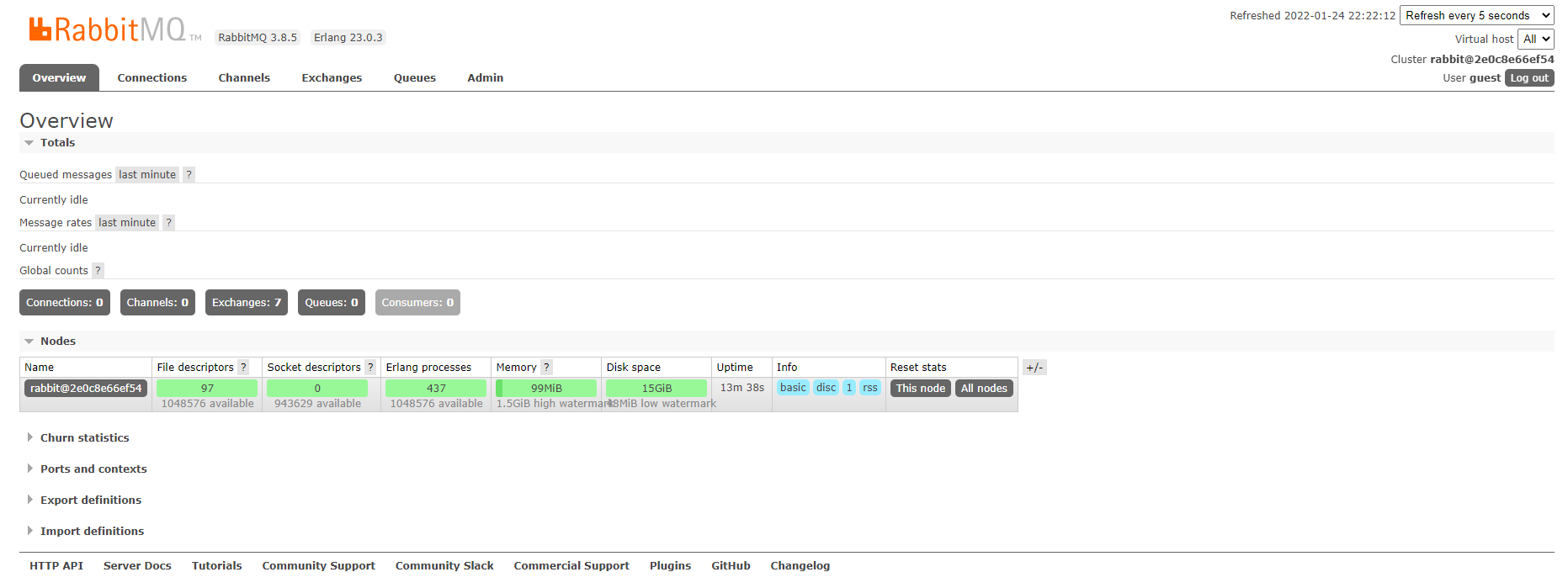

2.2 启动图形化界面
| 启动图形化界面 |
|---|
|  |
三、RabbitMQ架构

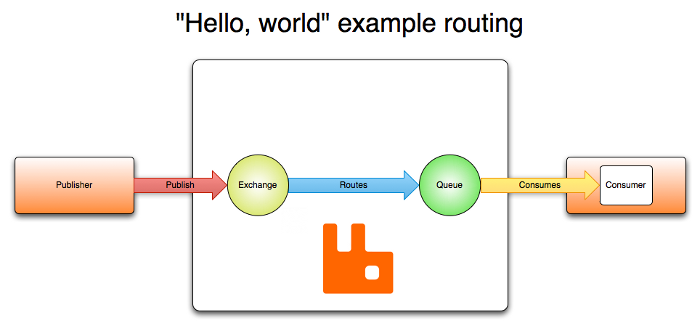

| 完整架构 |
|---|
 |
四、RabbitMQ通讯方式
4.1 RabbitMQ提供的通讯方式
Hello World!：为了入门操作！
Work queues：一个队列被多个消费者消费
Publish/Subscribe：手动创建Exchange（FANOUT）
Routing：手动创建Exchange（DIRECT）
Topics：手动创建Exchange（TOPIC）
RPC：RPC方式
Publisher Confirms：保证消息可靠性
4.2 构建Connection工具类
导入依赖：amqp-client，junit
<dependencies> <dependency> <groupId>com.rabbitmq</groupId> <artifactId>amqp-client</artifactId> <version>5.9.0</version> </dependency> <dependency> <groupId>junit</groupId> <artifactId>junit</artifactId> <version>4.12</version> </dependency> </dependencies>构建工具类：
import com.rabbitmq.client.Connection; import com.rabbitmq.client.ConnectionFactory; import java.io.IOException; import java.util.concurrent.TimeoutException; public class RabbitMQConnectionUtil { public static final String RABBITMQ_HOST = "192.168.11.32"; public static final int RABBITMQ_PORT = 5672; public static final String RABBITMQ_USERNAME = "guest"; public static final String RABBITMQ_PASSWORD = "guest"; public static final String RABBITMQ_VIRTUAL_HOST = "/"; /** * 构建RabbitMQ的连接对象 * @return */ public static Connection getConnection() throws Exception { //1. 创建Connection工厂 ConnectionFactory factory = new ConnectionFactory(); //2. 设置RabbitMQ的连接信息 factory.setHost(RABBITMQ_HOST); factory.setPort(RABBITMQ_PORT); factory.setUsername(RABBITMQ_USERNAME); factory.setPassword(RABBITMQ_PASSWORD); factory.setVirtualHost(RABBITMQ_VIRTUAL_HOST); //3. 返回连接对象 Connection connection = factory.newConnection(); return connection; } }
4.3 Hello World

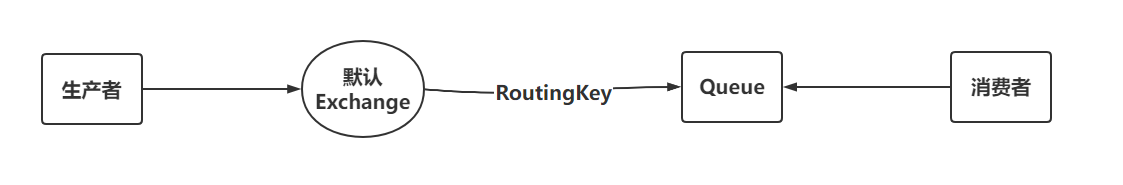

| 通讯方式 |
|---|
 |
生产者：
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import org.junit.Test;
public class Publisher {
public static final String QUEUE_NAME = "hello";
@Test
public void publish() throws Exception {
//1. 获取连接对象
Connection connection = RabbitMQConnectionUtil.getConnection();
//2. 构建Channel
Channel channel = connection.createChannel();
//3. 构建队列
channel.queueDeclare(QUEUE_NAME,false,false,false,null);
//4. 发布消息
String message = "Hello World!";
channel.basicPublish("",QUEUE_NAME,null,message.getBytes());
System.out.println("消息发送成功！");
}
}
消费者：
import com.rabbitmq.client.*;
import org.junit.Test;
import java.io.IOException;
public class Consumer {
@Test
public void consume() throws Exception {
//1. 获取连接对象
Connection connection = RabbitMQConnectionUtil.getConnection();
//2. 构建Channel
Channel channel = connection.createChannel();
//3. 构建队列
channel.queueDeclare(Publisher.QUEUE_NAME,false,false,false,null);
//4. 监听消息
DefaultConsumer callback = new DefaultConsumer(channel){
@Override
public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
System.out.println("消费者获取到消息：" + new String(body,"UTF-8"));
}
};
channel.basicConsume(Publisher.QUEUE_NAME,true,callback);
System.out.println("开始监听队列");
System.in.read();
}
}
4.4 Work Queues

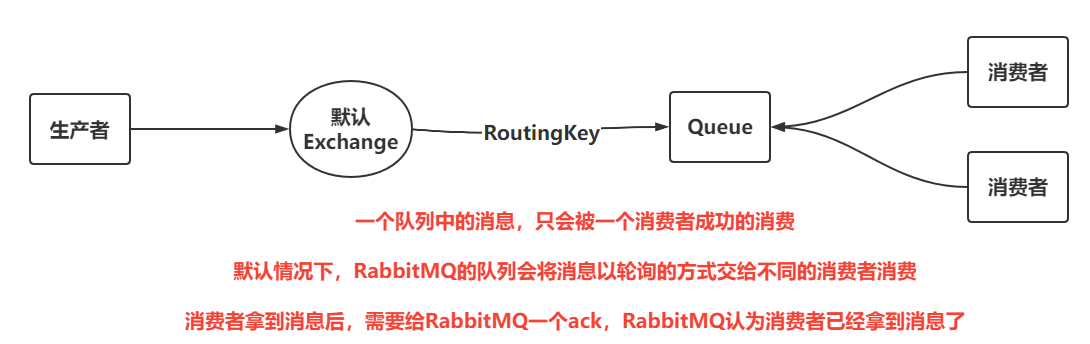

| WorkQueues需要学习的内容 |
|---|
 |
生产者：生产者和Hello World的形式是一样的，都是将消息推送到默认交换机。
消费者：让消费者关闭自动ack，并且设置消息的流控，最终实现消费者可以尽可能去多消费消息
import com.rabbitmq.client.*; import org.junit.Test; import java.io.IOException; public class Consumer { @Test public void consume1() throws Exception { //1. 获取连接对象 Connection connection = RabbitMQConnectionUtil.getConnection(); //2. 构建Channel Channel channel = connection.createChannel(); //3. 构建队列 channel.queueDeclare(Publisher.QUEUE_NAME,false,false,false,null); //3.5 设置消息的流控 channel.basicQos(3); //4. 监听消息 DefaultConsumer callback = new DefaultConsumer(channel){ @Override public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException { try { Thread.sleep(100); } catch (InterruptedException e) { e.printStackTrace(); } System.out.println("消费者1号-获取到消息：" + new String(body,"UTF-8")); channel.basicAck(envelope.getDeliveryTag(),false); } }; channel.basicConsume(Publisher.QUEUE_NAME,false,callback); System.out.println("开始监听队列"); System.in.read(); } @Test public void consume2() throws Exception { //1. 获取连接对象 Connection connection = RabbitMQConnectionUtil.getConnection(); //2. 构建Channel Channel channel = connection.createChannel(); //3. 构建队列 channel.queueDeclare(Publisher.QUEUE_NAME,false,false,false,null); channel.basicQos(3); //4. 监听消息 DefaultConsumer callback = new DefaultConsumer(channel){ @Override public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException { try { Thread.sleep(1000); } catch (InterruptedException e) { e.printStackTrace(); } System.out.println("消费者2号-获取到消息：" + new String(body,"UTF-8")); channel.basicAck(envelope.getDeliveryTag(),false); } }; channel.basicConsume(Publisher.QUEUE_NAME,false,callback); System.out.println("开始监听队列"); System.in.read(); } }
4.5 Publish/Subscribe

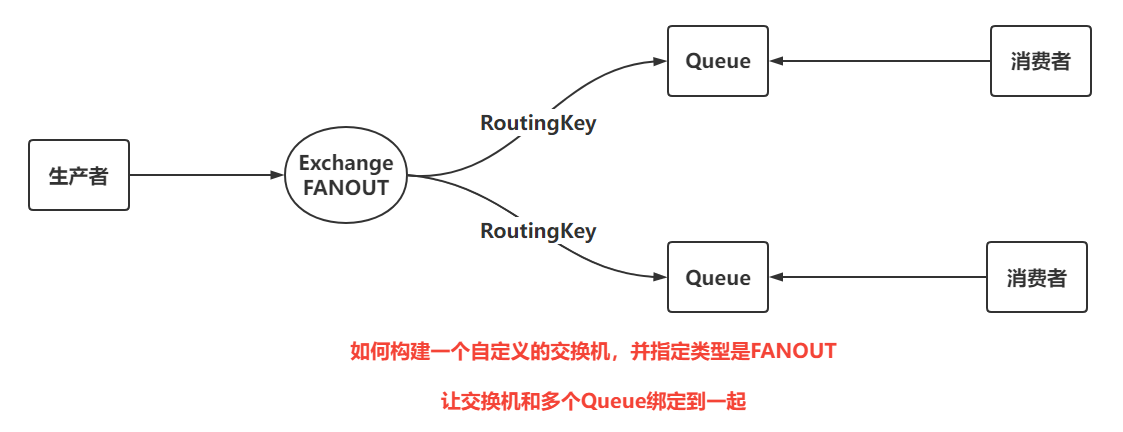

| 自定义一个交换机 |
|---|
 |
生产者：自行构建Exchange并绑定指定队列（FANOUT类型）
import com.rabbitmq.client.BuiltinExchangeType;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import org.junit.Test;
public class Publisher {
public static final String EXCHANGE_NAME = "pubsub";
public static final String QUEUE_NAME1 = "pubsub-one";
public static final String QUEUE_NAME2 = "pubsub-two";
@Test
public void publish() throws Exception {
//1. 获取连接对象
Connection connection = RabbitMQConnectionUtil.getConnection();
//2. 构建Channel
Channel channel = connection.createChannel();
//3. 构建交换机
channel.exchangeDeclare(EXCHANGE_NAME, BuiltinExchangeType.FANOUT);
//4. 构建队列
channel.queueDeclare(QUEUE_NAME1,false,false,false,null);
channel.queueDeclare(QUEUE_NAME2,false,false,false,null);
//5. 绑定交换机和队列，使用的是FANOUT类型的交换机，绑定方式是直接绑定
channel.queueBind(QUEUE_NAME1,EXCHANGE_NAME,"");
channel.queueBind(QUEUE_NAME2,EXCHANGE_NAME,"");
//6. 发消息到交换机
channel.basicPublish(EXCHANGE_NAME,"45jk6h645jk",null,"publish/subscribe!".getBytes());
System.out.println("消息成功发送！");
}
}
4.6 Routing

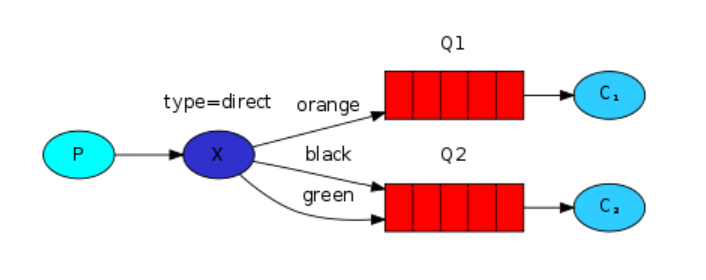

| DIRECT类型Exchange |
|---|
 |
生产者：在绑定Exchange和Queue时，需要指定好routingKey，同时在发送消息时，也指定routingKey，只有routingKey一致时，才会把指定的消息路由到指定的Queue
import com.rabbitmq.client.BuiltinExchangeType;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import org.junit.Test;
public class Publisher {
public static final String EXCHANGE_NAME = "routing";
public static final String QUEUE_NAME1 = "routing-one";
public static final String QUEUE_NAME2 = "routing-two";
@Test
public void publish() throws Exception {
//1. 获取连接对象
Connection connection = RabbitMQConnectionUtil.getConnection();
//2. 构建Channel
Channel channel = connection.createChannel();
//3. 构建交换机
channel.exchangeDeclare(EXCHANGE_NAME, BuiltinExchangeType.DIRECT);
//4. 构建队列
channel.queueDeclare(QUEUE_NAME1,false,false,false,null);
channel.queueDeclare(QUEUE_NAME2,false,false,false,null);
//5. 绑定交换机和队列
channel.queueBind(QUEUE_NAME1,EXCHANGE_NAME,"ORANGE");
channel.queueBind(QUEUE_NAME2,EXCHANGE_NAME,"BLACK");
channel.queueBind(QUEUE_NAME2,EXCHANGE_NAME,"GREEN");
//6. 发消息到交换机
channel.basicPublish(EXCHANGE_NAME,"ORANGE",null,"大橙子！".getBytes());
channel.basicPublish(EXCHANGE_NAME,"BLACK",null,"黑布林大狸子".getBytes());
channel.basicPublish(EXCHANGE_NAME,"WHITE",null,"小白兔！".getBytes());
System.out.println("消息成功发送！");
}
}
4.7 Topic

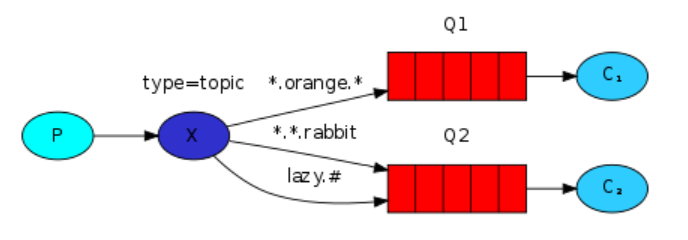

| Topic模式 |
|---|
 |
生产者：TOPIC类型可以编写带有特殊意义的routingKey的绑定方式
import com.rabbitmq.client.BuiltinExchangeType;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import org.junit.Test;
public class Publisher {
public static final String EXCHANGE_NAME = "topic";
public static final String QUEUE_NAME1 = "topic-one";
public static final String QUEUE_NAME2 = "topic-two";
@Test
public void publish() throws Exception {
//1. 获取连接对象
Connection connection = RabbitMQConnectionUtil.getConnection();
//2. 构建Channel
Channel channel = connection.createChannel();
//3. 构建交换机
channel.exchangeDeclare(EXCHANGE_NAME, BuiltinExchangeType.TOPIC);
//4. 构建队列
channel.queueDeclare(QUEUE_NAME1,false,false,false,null);
channel.queueDeclare(QUEUE_NAME2,false,false,false,null);
//5. 绑定交换机和队列，
// TOPIC类型的交换机在和队列绑定时，需要以aaa.bbb.ccc..方式编写routingkey
// 其中有两个特殊字符：*（相当于占位符），#（相当通配符）
channel.queueBind(QUEUE_NAME1,EXCHANGE_NAME,"*.orange.*");
channel.queueBind(QUEUE_NAME2,EXCHANGE_NAME,"*.*.rabbit");
channel.queueBind(QUEUE_NAME2,EXCHANGE_NAME,"lazy.#");
//6. 发消息到交换机
channel.basicPublish(EXCHANGE_NAME,"big.orange.rabbit",null,"大橙兔子！".getBytes());
channel.basicPublish(EXCHANGE_NAME,"small.white.rabbit",null,"小白兔".getBytes());
channel.basicPublish(EXCHANGE_NAME,"lazy.dog.dog.dog.dog.dog.dog",null,"懒狗狗狗狗狗狗".getBytes());
System.out.println("消息成功发送！");
}
}
4.8 RPC（了解）
因为两个服务在交互时，可以尽量做到Client和Server的解耦，通过RabbitMQ进行解耦操作
需要让Client发送消息时，携带两个属性：
- replyTo告知Server将相应信息放到哪个队列
- correlationId告知Server发送相应消息时，需要携带位置标示来告知Client响应的信息

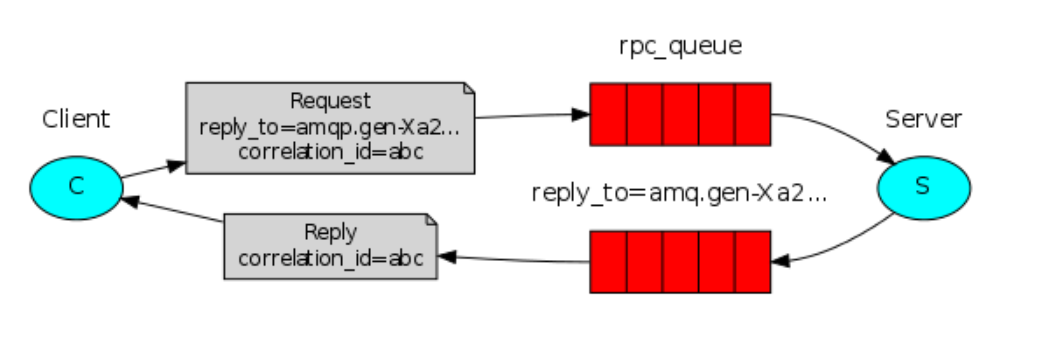

| RPC方式 |
|---|
 |
客户端：
import com.rabbitmq.client.*;
import org.junit.Test;
import java.io.IOException;
import java.util.UUID;
public class Publisher {
public static final String QUEUE_PUBLISHER = "rpc_publisher";
public static final String QUEUE_CONSUMER = "rpc_consumer";
@Test
public void publish() throws Exception {
//1. 获取连接对象
Connection connection = RabbitMQConnectionUtil.getConnection();
//2. 构建Channel
Channel channel = connection.createChannel();
//3. 构建队列
channel.queueDeclare(QUEUE_PUBLISHER,false,false,false,null);
channel.queueDeclare(QUEUE_CONSUMER,false,false,false,null);
//4. 发布消息
String message = "Hello RPC!";
String uuid = UUID.randomUUID().toString();
AMQP.BasicProperties props = new AMQP.BasicProperties()
.builder()
.replyTo(QUEUE_CONSUMER)
.correlationId(uuid)
.build();
channel.basicPublish("",QUEUE_PUBLISHER,props,message.getBytes());
channel.basicConsume(QUEUE_CONSUMER,false,new DefaultConsumer(channel){
@Override
public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
String id = properties.getCorrelationId();
if(id != null && id.equalsIgnoreCase(uuid)){
System.out.println("接收到服务端的响应：" + new String(body,"UTF-8"));
}
channel.basicAck(envelope.getDeliveryTag(),false);
}
});
System.out.println("消息发送成功！");
System.in.read();
}
}
服务端：
import com.rabbitmq.client.*;
import org.junit.Test;
import java.io.IOException;
public class Consumer {
public static final String QUEUE_PUBLISHER = "rpc_publisher";
public static final String QUEUE_CONSUMER = "rpc_consumer";
@Test
public void consume() throws Exception {
//1. 获取连接对象
Connection connection = RabbitMQConnectionUtil.getConnection();
//2. 构建Channel
Channel channel = connection.createChannel();
//3. 构建队列
channel.queueDeclare(QUEUE_PUBLISHER,false,false,false,null);
channel.queueDeclare(QUEUE_CONSUMER,false,false,false,null);
//4. 监听消息
DefaultConsumer callback = new DefaultConsumer(channel){
@Override
public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
System.out.println("消费者获取到消息：" + new String(body,"UTF-8"));
String resp = "获取到了client发出的请求，这里是响应的信息";
String respQueueName = properties.getReplyTo();
String uuid = properties.getCorrelationId();
AMQP.BasicProperties props = new AMQP.BasicProperties()
.builder()
.correlationId(uuid)
.build();
channel.basicPublish("",respQueueName,props,resp.getBytes());
channel.basicAck(envelope.getDeliveryTag(),false);
}
};
channel.basicConsume(QUEUE_PUBLISHER,false,callback);
System.out.println("开始监听队列");
System.in.read();
}
}
五、SpringBoot操作RabbitMQ
5.1 SpringBoot声明信息
创建项目
导入依赖
<dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-amqp</artifactId> </dependency>配置RabbitMQ信息
spring: rabbitmq: host: 192.168.11.32 port: 5672 username: guest password: guest virtual-host: /声明交换机&队列
import org.springframework.amqp.core.*; import org.springframework.context.annotation.Bean; import org.springframework.context.annotation.Configuration; @Configuration public class RabbitMQConfig { public static final String EXCHANGE = "boot-exchange"; public static final String QUEUE = "boot-queue"; public static final String ROUTING_KEY = "*.black.*"; @Bean public Exchange bootExchange(){ // channel.DeclareExchange return ExchangeBuilder.topicExchange(EXCHANGE).build(); } @Bean public Queue bootQueue(){ return QueueBuilder.durable(QUEUE).build(); } @Bean public Binding bootBinding(Exchange bootExchange,Queue bootQueue){ return BindingBuilder.bind(bootQueue).to(bootExchange).with(ROUTING_KEY).noargs(); } }
5.2 生产者操作
import org.junit.jupiter.api.Test;
import org.springframework.amqp.AmqpException;
import org.springframework.amqp.core.Message;
import org.springframework.amqp.core.MessagePostProcessor;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
@SpringBootTest
public class PublisherTest {
@Autowired
public RabbitTemplate rabbitTemplate;
@Test
public void publish(){
rabbitTemplate.convertAndSend(RabbitMQConfig.EXCHANGE,"big.black.dog","message");
System.out.println("消息发送成功");
}
@Test
public void publishWithProps(){
rabbitTemplate.convertAndSend(RabbitMQConfig.EXCHANGE, "big.black.dog", "messageWithProps", new MessagePostProcessor() {
@Override
public Message postProcessMessage(Message message) throws AmqpException {
message.getMessageProperties().setCorrelationId("123");
return message;
}
});
System.out.println("消息发送成功");
}
}
5.3 消费者操作
import com.rabbitmq.client.Channel;
import org.junit.jupiter.api.Test;
import org.springframework.amqp.core.Message;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.context.annotation.Configuration;
import org.springframework.stereotype.Component;
import java.io.IOException;
@Component
public class ConsumeListener {
@RabbitListener(queues = RabbitMQConfig.QUEUE)
public void consume(String msg, Channel channel, Message message) throws IOException {
System.out.println("队列的消息为：" + msg);
String correlationId = message.getMessageProperties().getCorrelationId();
System.out.println("唯一标识为：" + correlationId);
channel.basicAck(message.getMessageProperties().getDeliveryTag(),false);
}
}
六、RabbitMQ保证消息可靠性
6.1 保证消息一定送达到Exchange
Confirm机制
可以通过Confirm效果保证消息一定送达到Exchange，官方提供了三种方式，选择了对于效率影响最低的异步回调的效果
//4. 开启confirms
channel.confirmSelect();
//5. 设置confirms的异步回调
channel.addConfirmListener(new ConfirmListener() {
@Override
public void handleAck(long deliveryTag, boolean multiple) throws IOException {
System.out.println("消息成功的发送到Exchange！");
}
@Override
public void handleNack(long deliveryTag, boolean multiple) throws IOException {
System.out.println("消息没有发送到Exchange，尝试重试，或者保存到数据库做其他补偿操作！");
}
});
6.2 保证消息可以路由到Queue
Return机制
为了保证Exchange上的消息一定可以送达到Queue
//6. 设置Return回调，确认消息是否路由到了Queue
channel.addReturnListener(new ReturnListener() {
@Override
public void handleReturn(int replyCode, String replyText, String exchange, String routingKey, AMQP.BasicProperties properties, byte[] body) throws IOException {
System.out.println("消息没有路由到指定队列，做其他的补偿措施！！");
}
});
//7. 在发送消息时，将basicPublish方法参数中的mandatory设置为true，即可开启Return机制，当消息没有路由到队列中时，就会执行return回调
6.3 保证Queue可以持久化消息
DeliveryMode设置消息持久化
DeliveryMode设置为2代表持久化，如果设置为1，就代表不会持久化。
//7. 设置消息持久化
AMQP.BasicProperties props = new AMQP.BasicProperties()
.builder()
.deliveryMode(2)
.build();
//7. 发布消息
channel.basicPublish("","confirms",true,props,message.getBytes());
6.4 保证消费者可以正常消费消息
详情看WorkQueue模式
6.5 SpringBoot实现上述操作
6.5.1 Confirm
编写配置文件开启Confirm机制
spring: rabbitmq: publisher-confirm-type: correlated # 新版本 publisher-confirms: true # 老版本在发送消息时，配置RabbitTemplate
@Test public void publishWithConfirms() throws IOException { rabbitTemplate.setConfirmCallback(new RabbitTemplate.ConfirmCallback() { @Override public void confirm(CorrelationData correlationData, boolean ack, String cause) { if(ack){ System.out.println("消息已经送达到交换机！！"); }else{ System.out.println("消息没有送达到Exchange，需要做一些补偿操作！！retry！！！"); } } }); rabbitTemplate.convertAndSend(RabbitMQConfig.EXCHANGE,"big.black.dog","message"); System.out.println("消息发送成功"); System.in.read(); }
6.5.2 Return
编写配置文件开启Return机制
spring: rabbitmq: publisher-returns: true # 开启Return机制在发送消息时，配置RabbitTemplate
@Test public void publishWithReturn() throws IOException { // 新版本用 setReturnsCallback ，老版本用setReturnCallback rabbitTemplate.setReturnsCallback(new RabbitTemplate.ReturnsCallback() { @Override public void returnedMessage(ReturnedMessage returned) { String msg = new String(returned.getMessage().getBody()); System.out.println("消息：" + msg + "路由队列失败！！做补救操作！！"); } }); rabbitTemplate.convertAndSend(RabbitMQConfig.EXCHANGE,"big.black.dog","message"); System.out.println("消息发送成功"); System.in.read(); }
6.5.3 消息持久化
@Test
public void publishWithBasicProperties() throws IOException {
rabbitTemplate.convertAndSend(RabbitMQConfig.EXCHANGE, "big.black.dog", "message", new MessagePostProcessor() {
@Override
public Message postProcessMessage(Message message) throws AmqpException {
// 设置消息的持久化！
message.getMessageProperties().setDeliveryMode(MessageDeliveryMode.PERSISTENT);
return message;
}
});
System.out.println("消息发送成功");
}
七、RabbitMQ死信队列&延迟交换机
7.1 什么是死信

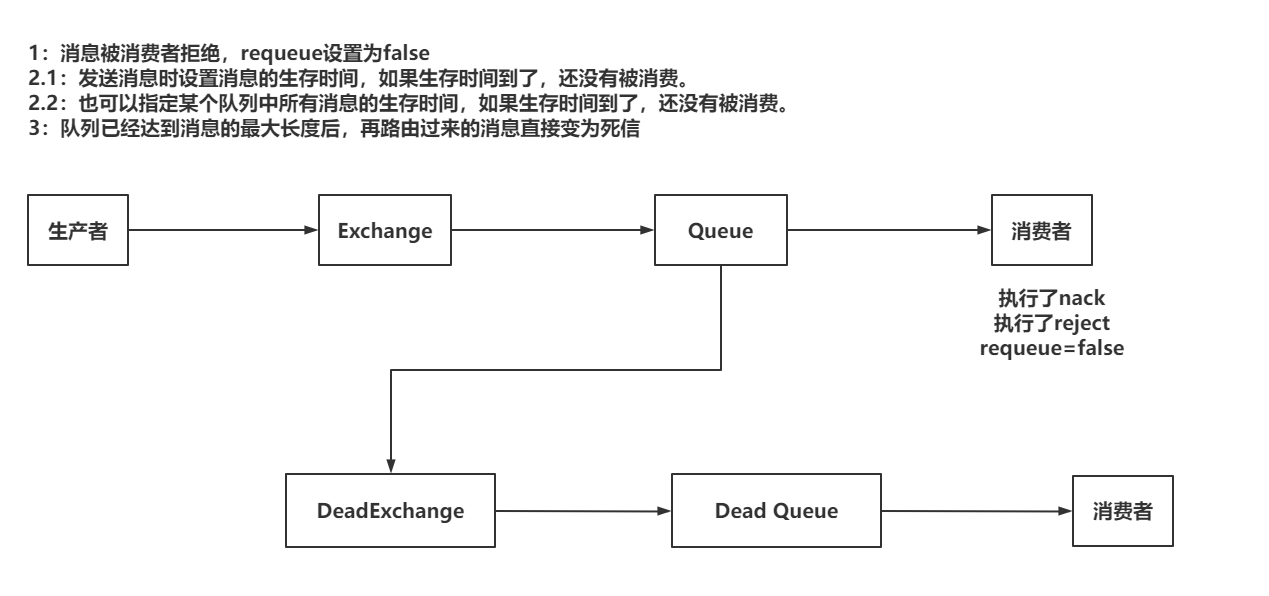

| 死信&死信队列 |
|---|
 |
死信队列的应用：
- 基于死信队列在队列消息已满的情况下，消息也不会丢失
- 实现延迟消费的效果。比如：下订单时，有15分钟的付款时间
7.2 实现死信队列
7.2.1 准备Exchange&Queue
import org.springframework.amqp.core.*;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
@Configuration
public class DeadLetterConfig {
public static final String NORMAL_EXCHANGE = "normal-exchange";
public static final String NORMAL_QUEUE = "normal-queue";
public static final String NORMAL_ROUTING_KEY = "normal.#";
public static final String DEAD_EXCHANGE = "dead-exchange";
public static final String DEAD_QUEUE = "dead-queue";
public static final String DEAD_ROUTING_KEY = "dead.#";
@Bean
public Exchange normalExchange(){
return ExchangeBuilder.topicExchange(NORMAL_EXCHANGE).build();
}
@Bean
public Queue normalQueue(){
return QueueBuilder.durable(NORMAL_QUEUE).deadLetterExchange(DEAD_EXCHANGE).deadLetterRoutingKey("dead.abc").build();
}
@Bean
public Binding normalBinding(Queue normalQueue,Exchange normalExchange){
return BindingBuilder.bind(normalQueue).to(normalExchange).with(NORMAL_ROUTING_KEY).noargs();
}
@Bean
public Exchange deadExchange(){
return ExchangeBuilder.topicExchange(DEAD_EXCHANGE).build();
}
@Bean
public Queue deadQueue(){
return QueueBuilder.durable(DEAD_QUEUE).build();
}
@Bean
public Binding deadBinding(Queue deadQueue,Exchange deadExchange){
return BindingBuilder.bind(deadQueue).to(deadExchange).with(DEAD_ROUTING_KEY).noargs();
}
}
7.2.2 实现效果
基于消费者进行reject或者nack实现死信效果
import com.rabbitmq.client.Channel; import org.springframework.amqp.core.Message; import org.springframework.amqp.rabbit.annotation.RabbitListener; import org.springframework.stereotype.Component; import java.io.IOException; @Component public class DeadListener { @RabbitListener(queues = DeadLetterConfig.NORMAL_QUEUE) public void consume(String msg, Channel channel, Message message) throws IOException { System.out.println("接收到normal队列的消息：" + msg); channel.basicReject(message.getMessageProperties().getDeliveryTag(),false); channel.basicNack(message.getMessageProperties().getDeliveryTag(),false,false); } }消息的生存时间
给消息设置生存时间
@Test public void publishExpire(){ String msg = "dead letter expire"; rabbitTemplate.convertAndSend(DeadLetterConfig.NORMAL_EXCHANGE, "normal.abc", msg, new MessagePostProcessor() { @Override public Message postProcessMessage(Message message) throws AmqpException { message.getMessageProperties().setExpiration("5000"); return message; } }); }给队列设置消息的生存时间
@Bean public Queue normalQueue(){ return QueueBuilder.durable(NORMAL_QUEUE) .deadLetterExchange(DEAD_EXCHANGE) .deadLetterRoutingKey("dead.abc") .ttl(10000) .build(); }
设置Queue中的消息最大长度
@Bean public Queue normalQueue(){ return QueueBuilder.durable(NORMAL_QUEUE) .deadLetterExchange(DEAD_EXCHANGE) .deadLetterRoutingKey("dead.abc") .maxLength(1) .build(); }只要Queue中已经有一个消息，如果再次发送一个消息，这个消息会变为死信！
7.3 延迟交换机
下载地址：https://github.com/rabbitmq/rabbitmq-delayed-message-exchange/releases/tag/3.8.9
死信队列实现延迟消费时，如果延迟时间比较复杂，比较多，直接使用死信队列时，需要创建大量的队列还对应不同的时间，可以采用延迟交换机来解决这个问题。
构建延迟交换机
import org.springframework.amqp.core.*; import org.springframework.context.annotation.Bean; import org.springframework.context.annotation.Configuration; import java.util.HashMap; import java.util.Map; @Configuration public class DelayedConfig { public static final String DELAYED_EXCHANGE = "delayed-exchange"; public static final String DELAYED_QUEUE = "delayed-queue"; public static final String DELAYED_ROUTING_KEY = "delayed.#"; @Bean public Exchange delayedExchange(){ Map<String, Object> arguments = new HashMap<>(); arguments.put("x-delayed-type","topic"); Exchange exchange = new CustomExchange(DELAYED_EXCHANGE,"x-delayed-message",true,false,arguments); return exchange; } @Bean public Queue delayedQueue(){ return QueueBuilder.durable(DELAYED_QUEUE).build(); } @Bean public Binding delayedBinding(Queue delayedQueue,Exchange delayedExchange){ return BindingBuilder.bind(delayedQueue).to(delayedExchange).with(DELAYED_ROUTING_KEY).noargs(); } }发送消息
import org.junit.jupiter.api.Test; import org.springframework.amqp.AmqpException; import org.springframework.amqp.core.Message; import org.springframework.amqp.core.MessagePostProcessor; import org.springframework.amqp.rabbit.core.RabbitTemplate; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.boot.test.context.SpringBootTest; @SpringBootTest public class DelayedPublisherTest { @Autowired private RabbitTemplate rabbitTemplate; @Test public void publish(){ rabbitTemplate.convertAndSend(DelayedConfig.DELAYED_EXCHANGE, "delayed.abc", "xxxx", new MessagePostProcessor() { @Override public Message postProcessMessage(Message message) throws AmqpException { message.getMessageProperties().setDelay(30000); return message; } }); } }
八、RabbitMQ的集群
RabbitMQ的镜像模式

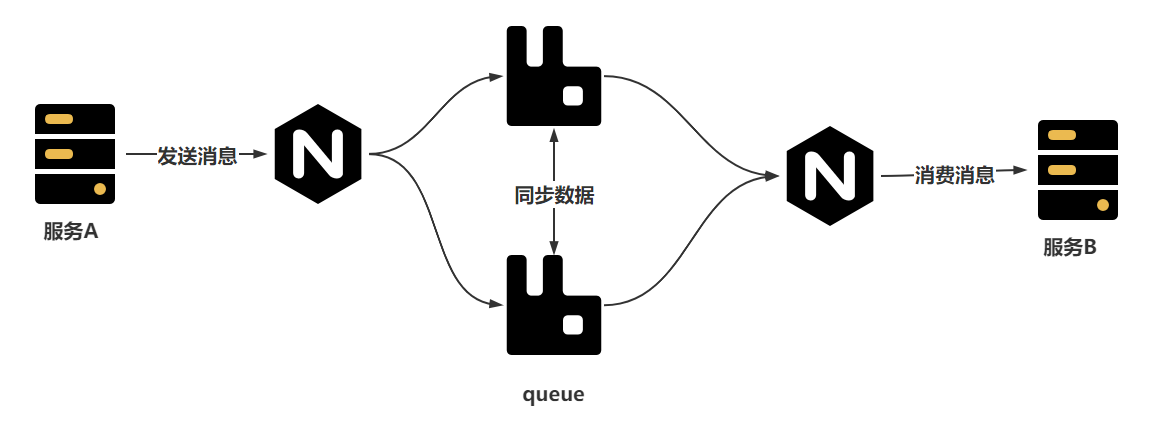

| RabbitMQ的集群 |
|---|
 |
高可用
提升RabbitMQ的效率
搭建RabbitMQ集群
准备两台虚拟机（克隆）
准备RabbitMQ的yml文件
rabbitmq1：
version: '3.1' services: rabbitmq1: image: rabbitmq:3.8.5-management-alpine container_name: rabbitmq1 hostname: rabbitmq1 extra_hosts: - "rabbitmq1:192.168.11.32" - "rabbitmq2:192.168.11.33" environment: - RABBITMQ_ERLANG_COOKIE=SDJHFGDFFS ports: - 5672:5672 - 15672:15672 - 4369:4369 - 25672:25672rabbitmq2：
version: '3.1' services: rabbitmq2: image: rabbitmq:3.8.5-management-alpine container_name: rabbitmq2 hostname: rabbitmq2 extra_hosts: - "rabbitmq1:192.168.11.32" - "rabbitmq2:192.168.11.33" environment: - RABBITMQ_ERLANG_COOKIE=SDJHFGDFFS ports: - 5672:5672 - 15672:15672 - 4369:4369 - 25672:25672准备完毕之后，启动两台RabbitMQ

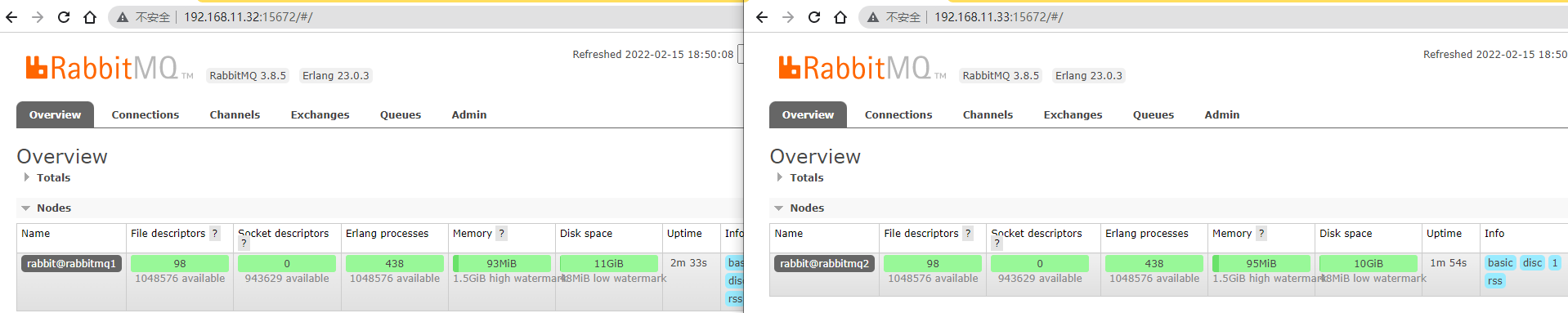

启动效果
让RabbitMQ服务实现join操作
需要四个命令完成join操作
让rabbitmq2 join rabbitmq1，需要进入到rabbitmq2的容器内部，去执行下述命令
rabbitmqctl stop_app rabbitmqctl reset rabbitmqctl join_cluster rabbit@rabbitmq1 rabbitmqctl start_app执行成功后：

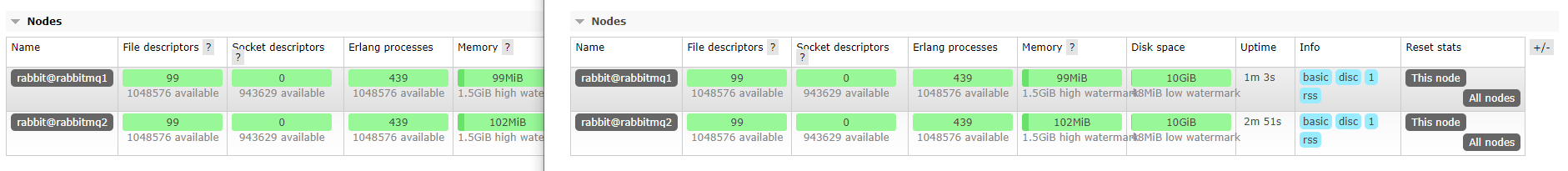

执行成功后
设置镜像模式
在指定的RabbitMQ服务中设置好镜像策略即可
镜像模式
九、RabbitMQ其他内容
9.1 Headers类型Exchange
headers就是一个基于key-value的方式，让Exchange和Queue绑定的到一起的一种规则
相比Topic形式，可以采用的类型更丰富。

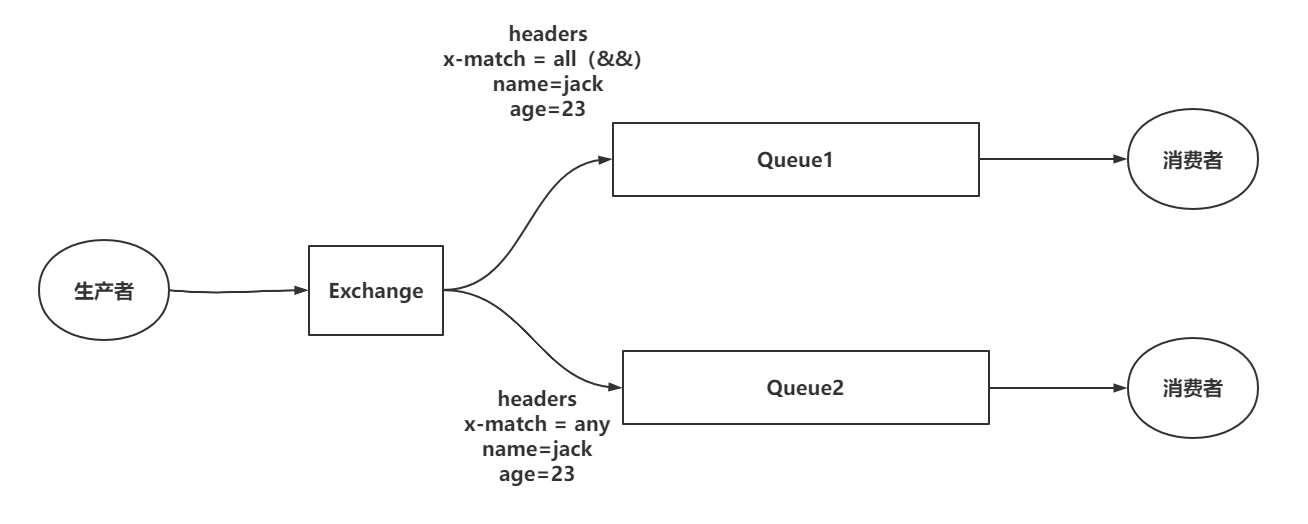

| headers绑定方式 |
|---|
 |
具体实现方式
import com.rabbitmq.client.AMQP;
import com.rabbitmq.client.BuiltinExchangeType;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import org.junit.Test;
import java.util.HashMap;
import java.util.Map;
public class Publisher {
public static final String HEADER_EXCHANGE = "header_exchange";
public static final String HEADER_QUEUE = "header_queue";
@Test
public void publish()throws Exception{
//1. 获取连接对象
Connection connection = RabbitMQConnectionUtil.getConnection();
//2. 构建Channel
Channel channel = connection.createChannel();
//3. 构建交换机和队列并基于header的方式绑定
channel.exchangeDeclare(HEADER_EXCHANGE, BuiltinExchangeType.HEADERS);
channel.queueDeclare(HEADER_QUEUE,true,false,false,null);
Map<String,Object> args = new HashMap<>();
// 多个header的key-value只要可以匹配上一个就可以
// args.put("x-match","any");
// 多个header的key-value要求全部匹配上！
args.put("x-match","all");
args.put("name","jack");
args.put("age","23");
channel.queueBind(HEADER_QUEUE,HEADER_EXCHANGE,"",args);
//4. 发送消息
String msg = "header测试消息！";
Map<String, Object> headers = new HashMap<>();
headers.put("name","jac");
headers.put("age","2");
AMQP.BasicProperties props = new AMQP.BasicProperties()
.builder()
.headers(headers)
.build();
channel.basicPublish(HEADER_EXCHANGE,"",props,msg.getBytes());
System.out.println("发送消息成功，header = " + headers);
}
}
