WPF-依赖属性和附加属性《十》

非常重要

依赖属性和附加属性，两者是有关系的，也是有些区别的，很多时候，可能会把两者混淆了。

依赖属性（Dependency property）

        就是一种自己没有值，并能通过使用Binding从数据源获取值，也就是依赖别人身上的属性，拥有依赖属性的对象，称为依赖对象。

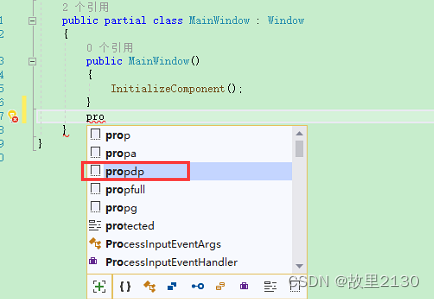

1.首先看一下依赖属性怎么建立的，输入propdp，点击tab按钮2次，就会自动出现

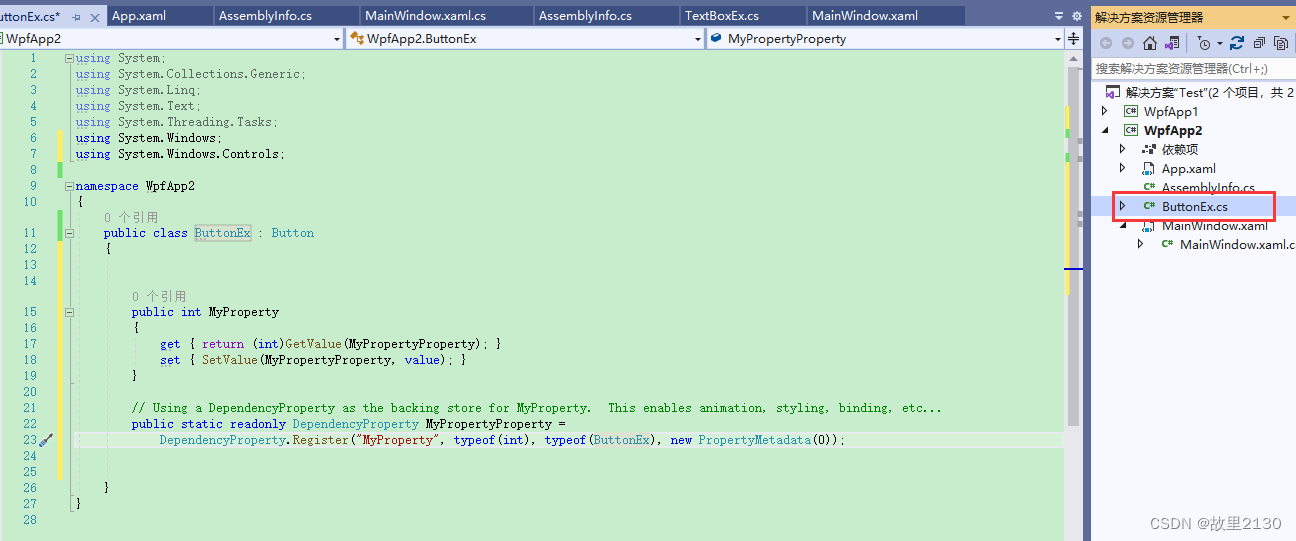

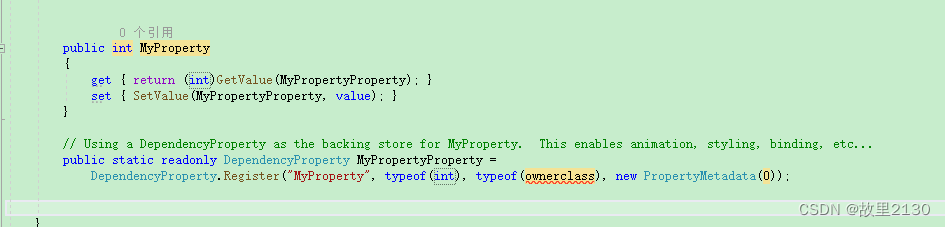

 2.建立一个默认的依赖属性

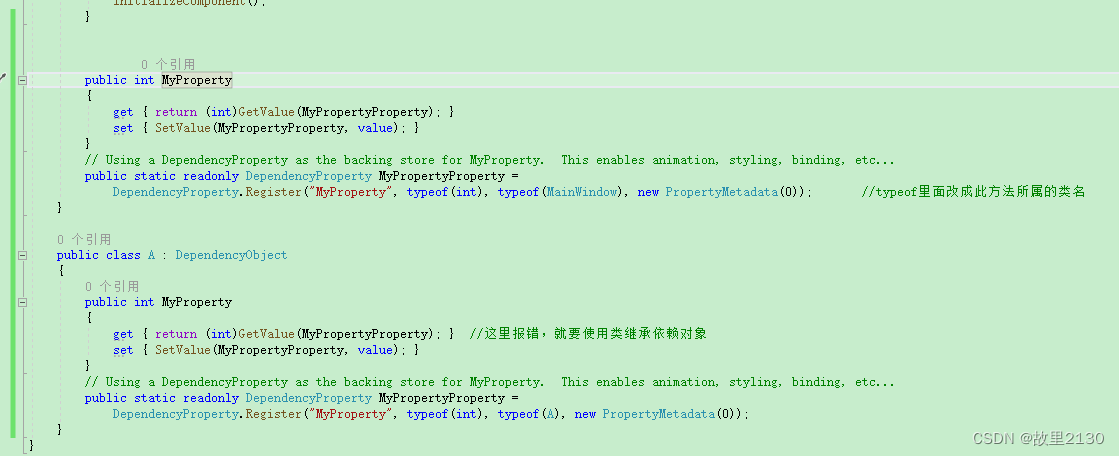

补充：如果建立一个类报错的话

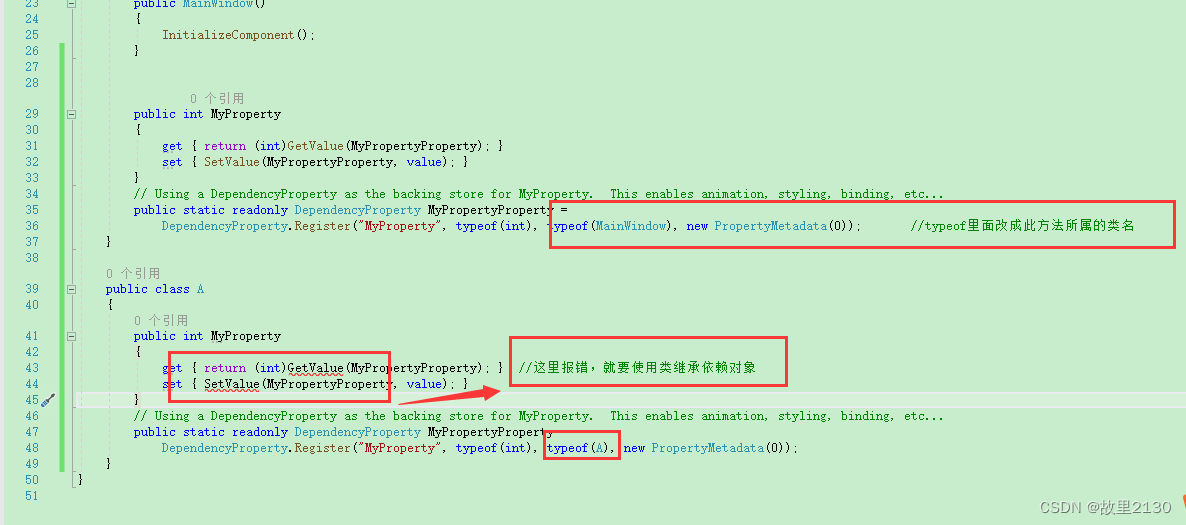

 继承依赖对象就没有报错了，上面继承的Windows其实也是继承了依赖对象，所以不会报错

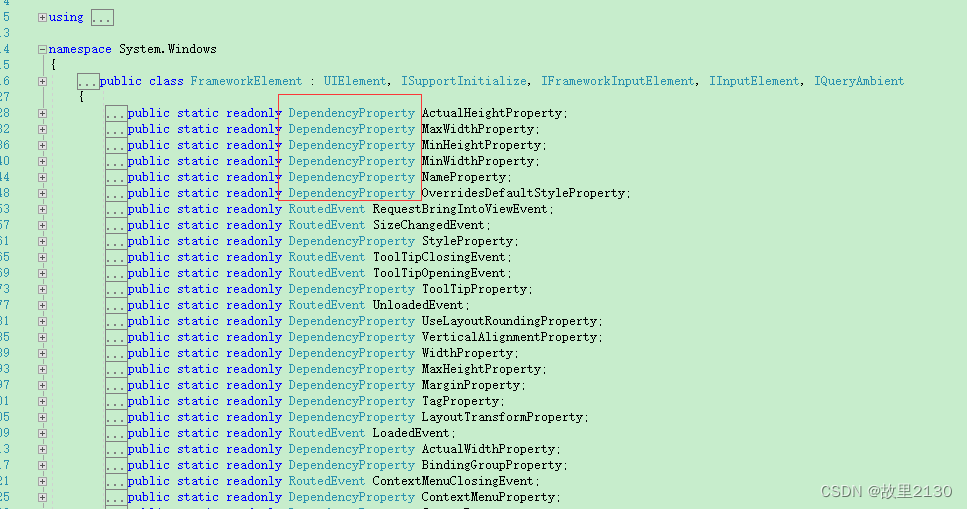

 其实点击任意一个控件，看里面的属性，都含有依赖属性

3. 使用依赖属性给Button增加鼠标划过显示颜色，建立一个类，继承Button

4.使用快捷键propdp建立完成，代码如下

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows;
using System.Windows.Controls;

namespace WpfApp2
{
    public class ButtonEx : Button
    {
        static ButtonEx()
        {
            DefaultStyleKeyProperty.OverrideMetadata(typeof(ButtonEx), new FrameworkPropertyMetadata(typeof(ButtonEx)));//使ButtonEx去读取ButtonEx类型的样式，而不是去读取Button的样式
        }
        public int MyButtonEx
        {
            get { return (int)GetValue(ButtonExProperty); }
            set { SetValue(ButtonExProperty, value); }
        }

        // Using a DependencyProperty as the backing store for MyProperty.  This enables animation, styling, binding, etc...
        public static readonly DependencyProperty ButtonExProperty =
            DependencyProperty.Register("MyButtonEx", typeof(int), typeof(ButtonEx), new PropertyMetadata(0));
                                    //依赖属性名称，依赖属性数据类型，所属哪个类中，属性的元数据
    }
}

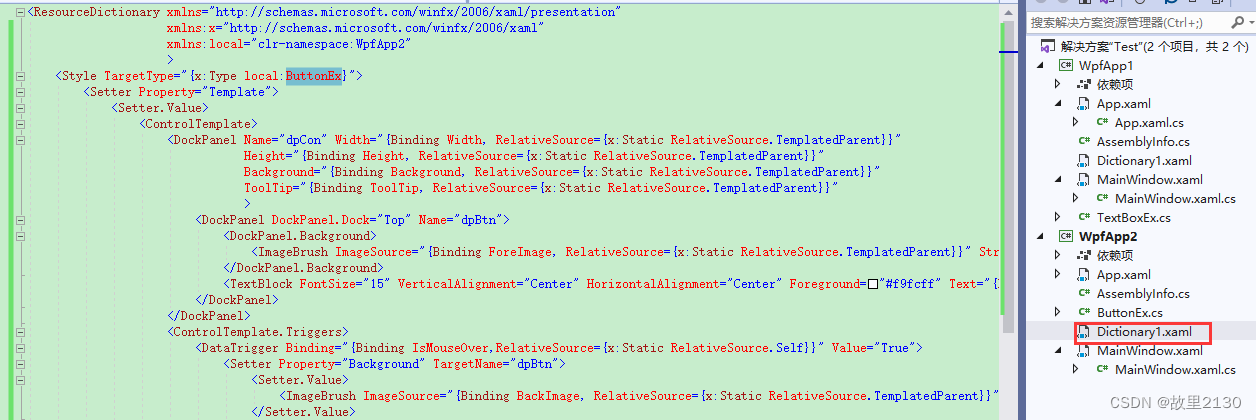

5.建立ButtonEx的样式，建立资源字典Dictionary1.xaml

6.增加样式

<ResourceDictionary xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
                    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
                    xmlns:local="clr-namespace:WpfApp2"
                    >
    <Style TargetType="{x:Type local:ButtonEx}">
        <Setter Property="Template">
            <Setter.Value>
                <ControlTemplate>
                    <DockPanel Name="dpCon" Width="{Binding Width, RelativeSource={x:Static RelativeSource.TemplatedParent}}"
                               Height="{Binding Height, RelativeSource={x:Static RelativeSource.TemplatedParent}}"
                               Background="{Binding Background, RelativeSource={x:Static RelativeSource.TemplatedParent}}"
                               ToolTip="{Binding ToolTip, RelativeSource={x:Static RelativeSource.TemplatedParent}}"
                               >
                        <DockPanel DockPanel.Dock="Top" Name="dpBtn">
                            <DockPanel.Background>
                                <ImageBrush ImageSource="{Binding ForeImage, RelativeSource={x:Static RelativeSource.TemplatedParent}}" Stretch="{Binding Stretch,RelativeSource={x:Static RelativeSource.TemplatedParent}}"/>
                            </DockPanel.Background>
                            <TextBlock FontSize="15" VerticalAlignment="Center" HorizontalAlignment="Center" Foreground="#f9fcff" Text="{Binding Content, RelativeSource={x:Static RelativeSource.TemplatedParent}}"></TextBlock>
                        </DockPanel>
                    </DockPanel>
                    <ControlTemplate.Triggers>
                        <DataTrigger Binding="{Binding IsMouseOver,RelativeSource={x:Static RelativeSource.Self}}" Value="True">
                            <Setter Property="Background" TargetName="dpBtn">
                                <Setter.Value>
                                    <ImageBrush ImageSource="{Binding BackImage, RelativeSource={x:Static RelativeSource.TemplatedParent}}" Stretch="{Binding Stretch,RelativeSource={x:Static RelativeSource.TemplatedParent}}"/>
                                </Setter.Value>
                            </Setter>
                            <Setter Property="Background" TargetName="dpCon" Value="{Binding MouseOverBackColor, RelativeSource={x:Static RelativeSource.TemplatedParent}}"></Setter>
                        </DataTrigger>
                        <Trigger Property="IsEnabled" Value="true"/>
                        <Trigger Property="IsEnabled" Value="false">
                            <Setter Property="Foreground" Value="Gray"/>
                        </Trigger>
                    </ControlTemplate.Triggers>
                </ControlTemplate>
            </Setter.Value>
        </Setter>
    </Style>
</ResourceDictionary>

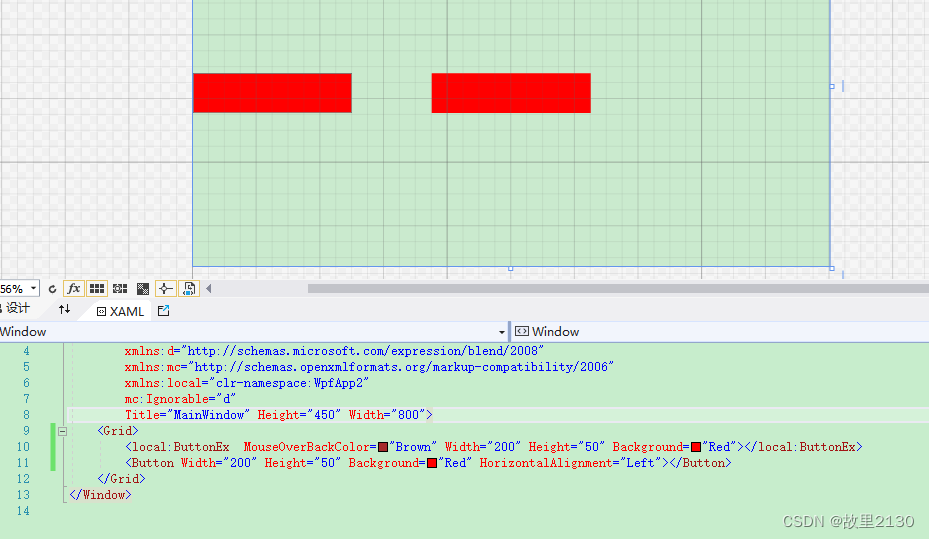

7.前台界面

可见，经过依赖属性之后，ButtonEx按钮就带了MouseOverBackColor属性，可以对其进行设置颜色。  依赖修改的比附加更多。依赖是整体都修改了，而附加是用哪个再附加哪个。

附加属性（DependencyProperty）

        顾名思义，就是附加上面的属性，自身是没有的，别人附加上面的，就变成了自己的属性，就可以使用点. 点击 出来。比如说，wpf中PasswordBox控件是不能进行绑定数据的，但是你把它绑定一个密码，那么就是附加属性了。附加属性，也属于一种依赖属性。

1.附加属性建立，输入propa，点击tab按钮2次

2.修改对应的参数

        public static string GetPassword(DependencyObject obj)
        {
            return (string)obj.GetValue(MyPassword);
        }

        public static void SetPassword(DependencyObject obj, string value)
        {
            obj.SetValue(MyPassword, value);
        }

        // Using a DependencyProperty as the backing store for MyProperty.  This enables animation, styling, binding, etc...
        public static readonly DependencyProperty MyPassword =
            DependencyProperty.RegisterAttached("Password", typeof(string), typeof(MainWindow), new PropertyMetadata(null));

3.前端进行调用

<Window x:Class="WpfApp2.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:WpfApp2"
        mc:Ignorable="d"
        Title="MainWindow" Height="450" Width="800">
    <Grid>
        <PasswordBox local:MainWindow.Password="{Binding PW}" HorizontalAlignment="Left" Margin="416,183,0,0" VerticalAlignment="Top" Width="120"/>

    </Grid>
</Window>

4.写调用方法

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Imaging;
using System.Windows.Navigation;
using System.Windows.Shapes;

namespace WpfApp2
{
    /// <summary>
    /// Interaction logic for MainWindow.xaml
    /// </summary>
    public partial class MainWindow : Window
    {
        public MainWindow()
        {
            InitializeComponent();
            PW = "123456";
            this.DataContext = this;
        }

        public static string GetPassword(DependencyObject obj)
        {
            return (string)obj.GetValue(MyPassword);
        }

        public static void SetPassword(DependencyObject obj, string value)
        {
            obj.SetValue(MyPassword, value);
        }

        // Using a DependencyProperty as the backing store for MyProperty.  This enables animation, styling, binding, etc...
        public static readonly DependencyProperty MyPassword =
            DependencyProperty.RegisterAttached("Password", typeof(string), typeof(MainWindow), new PropertyMetadata((s,e)=>
            {
                var pw = s as PasswordBox;
                pw.Password = e.NewValue.ToString();
            }));   //这里和xaml中建立关系

        public string PW { get; set; }
    }
}
