一、效果展示

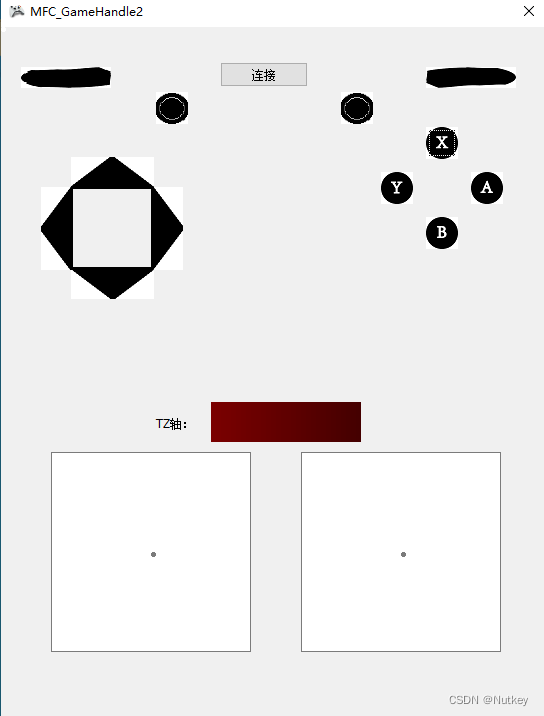

        直接上效果图：

二、利用XInput实现获取XBox游戏手柄数据

        在网上搜寻了很久，发现方法可以对游戏手柄进行测试，但是MFC版本以及完全版的很少有比较完全的资料，因此作为新手的我，正在攻克这方面，写的不足请多包含！

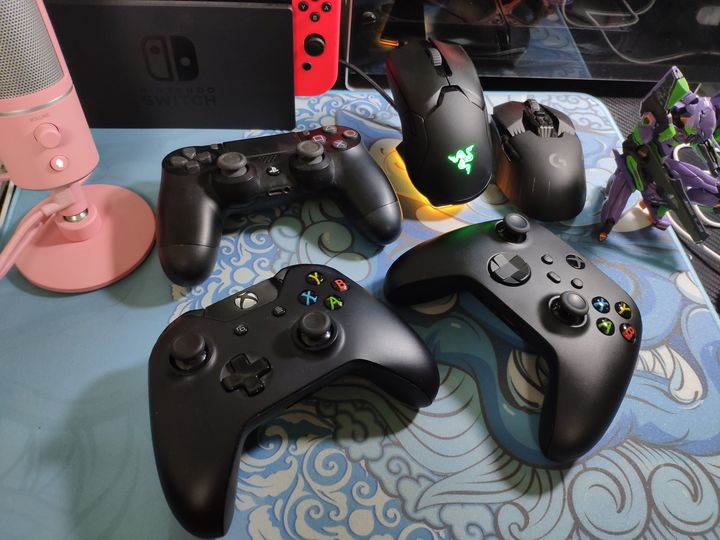

1.  首先我实验的版本是如图所示的游戏手柄：



2. 开始读取游戏手柄的数据，在.cpp文件中创建一个线程，代码如下：

   //读取游戏手柄的线程
   UINT _cdecl CMFC_GameHandle2Dlg::ReadJoystickThread(LPVOID lpParm)
   {
   	CMFC_GameHandle2Dlg *dlg = (CMFC_GameHandle2Dlg*)lpParm;
   	XINPUT_GAMEPAD gamepad;
   	CString temp;

       //识别游戏手柄是否插入，并读取数据
   	while (XInputGetState(0,&(dlg->m_ControllerState)) == ERROR_SUCCESS )
   	{
   		LastLxDataLX = LxDataLX;
   		LastLxDataLY = LxDataLY;

   		LastLxDataRX = LxDataRX;
   		LastLxDataRY = LxDataRY;

   		gamepad = dlg->m_ControllerState.Gamepad;

           //上下左右按键
   		(gamepad.wButtons & XINPUT_GAMEPAD_DPAD_UP) ? (dlg->IsPressed_upT()): (dlg->IsPressed_upF());
   		(gamepad.wButtons & XINPUT_GAMEPAD_DPAD_DOWN) ? (dlg->IsPressed_downT()): (dlg->IsPressed_downF());
   		(gamepad.wButtons & XINPUT_GAMEPAD_DPAD_LEFT)?(dlg->IsPressed_leftT()): (dlg->IsPressed_leftF());
   		(gamepad.wButtons & XINPUT_GAMEPAD_DPAD_RIGHT)?(dlg->IsPressed_rightT()): (dlg->IsPressed_rightF());
   		(gamepad.wButtons & XINPUT_GAMEPAD_START)?(dlg->IsPressed_StartT()):(dlg->IsPressed_StartF());
   		(gamepad.wButtons & XINPUT_GAMEPAD_BACK)?(dlg->IsPressed_BackT()):(dlg->IsPressed_BackF());
   		(gamepad.wButtons & XINPUT_GAMEPAD_LEFT_SHOULDER)?(dlg->IsPressed_RLT()):(dlg->IsPressed_RLF());
   		(gamepad.wButtons & XINPUT_GAMEPAD_RIGHT_SHOULDER)?(dlg->IsPressed_RRT()):(dlg->IsPressed_RRF());
   		if(gamepad.wButtons & XINPUT_GAMEPAD_A)
   		{
   			dlg->IsPressed_AT();
   		}
   		else
   		{
   			dlg->IsPressed_AF();
   		}
   		(gamepad.wButtons & XINPUT_GAMEPAD_B)?(dlg->IsPressed_BT()):(dlg->IsPressed_BF());
   		(gamepad.wButtons & XINPUT_GAMEPAD_X)?(dlg->IsPressed_XT()):(dlg->IsPressed_XF());
   		(gamepad.wButtons & XINPUT_GAMEPAD_Y)?(dlg->IsPressed_YT()):(dlg->IsPressed_YF());

           //TZ轴，也是就是游戏手柄最上的两个按钮
   		{
   			LxDataTZ  =(gamepad.bRightTrigger)/1.7-(gamepad.bLeftTrigger)/1.7+360;


   			dlg->DrawGradientColor1(210,LxDataTZ);


   			dlg->ClearDrawGradientColor(510,LxDataTZ);
   		}

   		//摇杆
   		{
   			{
   				LxDataLX = gamepad.sThumbLX/345 + 150;
   				LxDataLY = (-gamepad.sThumbLY)/345 + 525;    //gamepad.sThumbLY:32767

   				LxDataRX = gamepad.sThumbRX/345 + 400;
   				LxDataRY = (-gamepad.sThumbRY)/345 + 525;

   				if(LxDataRX > 500 && LxDataRY > 625 )
   				{
   					LxDataRX = 470;
   					LxDataRY = 620;
   				}
   				if(LxDataRX < 0 && LxDataRY < 0)
   				{
   					LxDataRX = 400;
   					LxDataRY = 525;
   				}

   				dlg->ClearSmartEclise(LastLxDataLX ,LastLxDataLY);	  //150,525
   				dlg->ClearSmartEclise(LastLxDataRX ,LastLxDataRY);	 //400,525

   				dlg->SetSmartEclise(LxDataLX  ,LxDataLY );	    //75,525
   				dlg->SetSmartEclise(LxDataRX ,LxDataRY);	    //400,525

   			}
   		}
   	}
   	return 0;
   }

3. A、X、Y、B等一些按键我是通过重绘CButton类进行贴图按钮


三、 附带注意事项

1、在.h文件中需要添加一些条件：

#include "resource.h"		// 主符号
#include <XInput.h>
#include "afxwin.h"
#pragma comment(lib, "XInput.lib")  //添加依赖库

 2、因为我这边采取的是直接按照我的页面进行的数值设置，所以一些需要进行数值微型调整！

四、附带代码下载

(1条消息) MFC识别XBox游戏手柄，并进行UI界面开发-单片机文档类资源-CSDN文库
