1.问题环境
硬件环境 |
机型 |
QEMU KVM Virtual Machine 虚拟机 |
整机类型/架构 |
arm |
固件版本 |
BIOS 0.0.0 02/06/2015 |
软件环境 |
具体操作系统版本 |
Kylin Linux Advanced Server release V10 (Tercel) |
内核版本 |
4.19.90-23.8.v2101.ky10.aarch64 |
2.问题描述
2022年9月20日下午15点左右，系统运行时发生宕机。
3.问题分析
3.1.分析 vmcore-dmesg.txt日志
[8559662.187756] Unable to handle kernel NULL pointer dereference at virtual address 0000000000000080
[8559662.188245] Mem abort info:
[8559662.188408] ESR = 0x96000006
[8559662.188580] Exception class = DABT (current EL), IL = 32 bits
[8559662.188909] SET = 0, FnV = 0
[8559662.189082] EA = 0, S1PTW = 0
[8559662.189261] Data abort info:
[8559662.189427] ISV = 0, ISS = 0x00000006
[8559662.189730] CM = 0, WnR = 0
[8559662.189955] user pgtable: 64k pages, 48-bit VAs, pgdp = 000000008e382035
[8559662.190297] [0000000000000080] pgd=00000005b0170003, pud=00000005b0170003, pmd=0000000000000000
[8559662.190748] Internal error: Oops: 96000006 [#1] SMP
[8559662.191004] Modules linked in: ppp_mppe arc4 ppp_async ppp_generic slhc fuse nfsv3 nfs_acl rpcsec_gss_krb5 auth_rpcgss nfsv4 dns_resolver nfs lockd grace fscache rfkill binfmt_misc sunrpc vfat fat aes_ce_blk crypto_simd cryptd aes_ce_cipher crct10dif_ce ofpart ghash_ce cmdlinepart sha2_ce sha256_arm64 cfi_cmdset_0001 sha1_ce cfi_probe cfi_util gen_probe physmap_of chipreg mtd uio_pdrv_genirq uio sch_fq_codel ip_tables sr_mod cdrom virtio_scsi virtio_net virtio_console net_failover failover bochs_drm
[8559662.193156] Process pool-11-thread- (pid: 1747398, stack limit = 0x00000000fd966dc6)
[8559662.193556] CPU: 1 PID: 1747398 Comm: pool-11-thread- Kdump: loaded Not tainted 4.19.90-23.8.v2101.ky10.aarch64 #1
[8559662.194061] Hardware name: QEMU KVM Virtual Machine, BIOS 0.0.0 02/06/2015
[8559662.194409] pstate: 60400005 (nZCv daif +PAN -UAO)
[8559662.194680] pc : nfs_updatepage+0x4fc/0x8c0 [nfs]
[8559662.194929] lr : (null)
[8559662.195119] sp : ffff80057dd2fb90
[8559662.195304] x29: ffff80057dd2fb90 x28: 0000000000000000
[8559662.195581] x27: 00000000000000d4 x26: ffff800065347eb0
[8559662.195862] x25: 0000000000000080 x24: ffff800065347d40
[8559662.196135] x23: ffff80056903d4c0 x22: 00000000000009de
[8559662.196408] x21: ffff80056903d480 x20: ffff7fe001301140
[8559662.196681] x19: 00000000000000d4 x18: 0000000000000000
[8559662.196972] x17: 0000000000000000 x16: 0000000000000000
[8559662.197245] x15: 0000000000000000 x14: 355b656d69742070
[8559662.197517] x13: 614d6c616544746e x12: ffffffffffffffb8
[8559662.197790] x11: ffffffffffffffb8 x10: 0000000000000040
[8559662.198068] x9 : 0000000000000000 x8 : ffff80056903d500
[8559662.198361] x7 : 0000000000000000 x6 : 000000000000003f
[8559662.198720] x5 : 0000000000000040 x4 : 0000000000000000
[8559662.199126] x3 : 0000000000000000 x2 : 0000000000000001
[8559662.199491] x1 : 0000000000000000 x0 : 0000000000000080
[8559662.199873] Call trace:
[8559662.200077] nfs_updatepage+0x4fc/0x8c0 [nfs]
[8559662.200390] nfs_write_end+0x70/0x320 [nfs]
[8559662.200726] generic_perform_write+0xfc/0x188
[8559662.201043] nfs_file_write+0xb8/0x230 [nfs]
[8559662.201355] new_sync_write+0xcc/0x130
[8559662.201641] __vfs_write+0x74/0x80
[8559662.201892] vfs_write+0xac/0x1c0
[8559662.202143] ksys_write+0x5c/0xc8
[8559662.202390] __arm64_sys_write+0x24/0x30
[8559662.202679] el0_svc_common+0x78/0x130
[8559662.202951] el0_svc_handler+0x38/0x78
[8559662.203222] el0_svc+0x8/0x1b0
[8559662.203451] Code: d2800001 aa1903e0 d2800022 2a0103fe (88fe7f22)
[8559662.203884] SMP: stopping secondary CPUs
[8559662.204851] Starting crashdump kernel...
[8559662.205149] Bye! |
nfs_updatepage+0x4fc/0x8c0 [nfs],0x4fc表示出错函数中的偏移位置，0x8c0表示函数大小。
[root@localhost vmcore]# gcc-nm /usr/lib/debug/usr/lib/modules/4.19.90-23.8.v2101.ky10.aarch64/kernel/fs/nfs/nfs.ko.debug | grep nfs_updatepage
0000000000019c58 T nfs_updatepage |
通过gcc-nm得到0000000000019c58 ，加入偏移0x4fc，得00000000001A154。
[root@localhost vmcore]# addr2line -e /usr/lib/debug/usr/lib/modules/4.19.90-23.8.v2101.ky10.aarch64/kernel/fs/nfs/nfs.ko.debug 00000000001A154
/usr/src/debug/kernel-4.19.90/linux-4.19.90-23.8.v2101.ky10.aarch64/./arch/arm64/include/asm/atomic_lse.h:479 |
3.2. 分析vmcore
发现寄存器信息已经改变了。
This GDB was configured as "aarch64-unknown-linux-gnu"...
KERNEL: /usr/lib/debug/usr/lib/modules/4.19.90-23.8.v2101.ky10.aarch64/vmlinux
DUMPFILE: vmcore [PARTIAL DUMP]
CPUS: 8
DATE: Tue Sep 20 15:00:09 CST 2022
UPTIME: 99 days, 01:41:17
LOAD AVERAGE: 0.39, 0.23, 0.20
TASKS: 1564
NODENAME: localhost.localdomain
RELEASE: 4.19.90-23.8.v2101.ky10.aarch64
VERSION: #1 SMP Mon May 17 17:07:38 CST 2021
MACHINE: aarch64 (unknown Mhz)
MEMORY: 24 GB
PANIC: "Unable to handle kernel NULL pointer dereference at virtual address 0000000000000080"
PID: 1747398
COMMAND: "pool-11-thread-"
TASK: ffff800527400000 [THREAD_INFO: ffff800527400000]
CPU: 1
STATE: TASK_RUNNING (PANIC)
crash> bt
PID: 1747398 TASK: ffff800527400000 CPU: 1 COMMAND: "pool-11-thread-"
#0 [ffff80057dd2f5e0] machine_kexec at ffff0000080a2e24
#1 [ffff80057dd2f640] __crash_kexec at ffff0000081aecb8
#2 [ffff80057dd2f7b0] crash_kexec at ffff0000081aedc0
#3 [ffff80057dd2f7e0] die at ffff00000808f754
#4 [ffff80057dd2f820] die_kernel_fault at ffff0000080aa8cc
#5 [ffff80057dd2f850] __do_kernel_fault at ffff0000080aa59c
#6 [ffff80057dd2f880] do_page_fault at ffff000008bf7294
#7 [ffff80057dd2f970] do_translation_fault at ffff000008bf778c
#8 [ffff80057dd2f9a0] do_mem_abort at ffff000008081284
#9 [ffff80057dd2fb80] el1_ia at ffff00000808310c
#10 [ffff80057dd2fb90] nfs_updatepage at ffff0000024aa150 [nfs]
#11 [ffff80057dd2fbf0] nfs_write_end at ffff000002497abc [nfs]
#12 [ffff80057dd2fc40] generic_perform_write at ffff000008270bf0
#13 [ffff80057dd2fcc0] nfs_file_write at ffff0000024984a4 [nfs]
#14 [ffff80057dd2fd00] new_sync_write at ffff0000083268e0
#15 [ffff80057dd2fd90] __vfs_write at ffff000008329268
#16 [ffff80057dd2fdc0] vfs_write at ffff000008329478
#17 [ffff80057dd2fe00] ksys_write at ffff0000083297a8
#18 [ffff80057dd2fe40] __arm64_sys_write at ffff000008329838
#19 [ffff80057dd2fe60] el0_svc_common at ffff00000809834c
#20 [ffff80057dd2fea0] el0_svc_handler at ffff00000809843c
#21 [ffff80057dd2fff0] el0_svc at ffff000008084084
PC: 0000fffe2b802570 LR: 0000fffe2b802558 SP: 0000fffdd900bde0
X29: 0000fffdd900bde0 X28: 0000fffe1c0d7640 X27: 0000fffdd900bea8
X26: 0000fffdd900bea8 X25: 0000000000000042 X24: 0000fffdd900deb0
X23: 0000fffe2a2d0fe0 X22: 0000000000000091 X21: 0000fffdd900bea8
X20: 00000000000000d4 X19: 0000000000000091 X18: 000000008262ccb8
X17: 0000fffe2b802500 X16: 0000fffe2a2cfba0 X15: 00000000820d8fc0
X14: 0000000000000008 X13: 355b656d69742070 X12: 614d6c616544746e
X11: 0a205d305b657a69 X10: 73202c5d355b656d X9: 69742070614d6c61
X8: 0000000000000040 X7: 0000000000000091 X6: 0000000000000000
X5: 0000fffdd900f0e0 X4: 00000000ffffffbb X3: 0000000000000000
X2: 00000000000000d4 X1: 0000fffdd900bea8 X0: 0000000000000091
ORIG_X0: 0000000000000091 SYSCALLNO: 40 PSTATE: 80001000 |
0xffff0000024aa138 <nfs_updatepage+1248>: add x23, x21, #0x40
/usr/src/debug/kernel-4.19.90/linux-4.19.90-23.8.v2101.ky10.aarch64/./include/asm-generic/bitops/atomic.h: 38
0xffff0000024aa13c <nfs_updatepage+1252>: tbz w0, #0, 0xffff0000024aa268 <nfs_updatepage+1552>
/usr/src/debug/kernel-4.19.90/linux-4.19.90-23.8.v2101.ky10.aarch64/./include/linux/spinlock.h: 180
0xffff0000024aa140 <nfs_updatepage+1256>: add x25, x3, #0x80
/usr/src/debug/kernel-4.19.90/linux-4.19.90-23.8.v2101.ky10.aarch64/./arch/arm64/include/asm/atomic_lse.h: 479
0xffff0000024aa144 <nfs_updatepage+1260>: mov x1, #0x0 // #0
0xffff0000024aa148 <nfs_updatepage+1264>: mov x0, x25
0xffff0000024aa14c <nfs_updatepage+1268>: mov x2, #0x1 // #1
0xffff0000024aa150 <nfs_updatepage+1272>: mov w30, w1
0xffff0000024aa154 <nfs_updatepage+1276>: .inst 0x88fe7f22 ; undefined
0xffff0000024aa158 <nfs_updatepage+1280>: mov w0, w30 |
crash> sym 0xffff0000024aa154
ffff0000024aa154 (T) nfs_updatepage+1276 [nfs] /usr/src/debug/kernel-4.19.90/linux-4.19.90-23.8.v2101.ky10.aarch64/./arch/arm64/include/asm/atomic_lse.h: 479 |

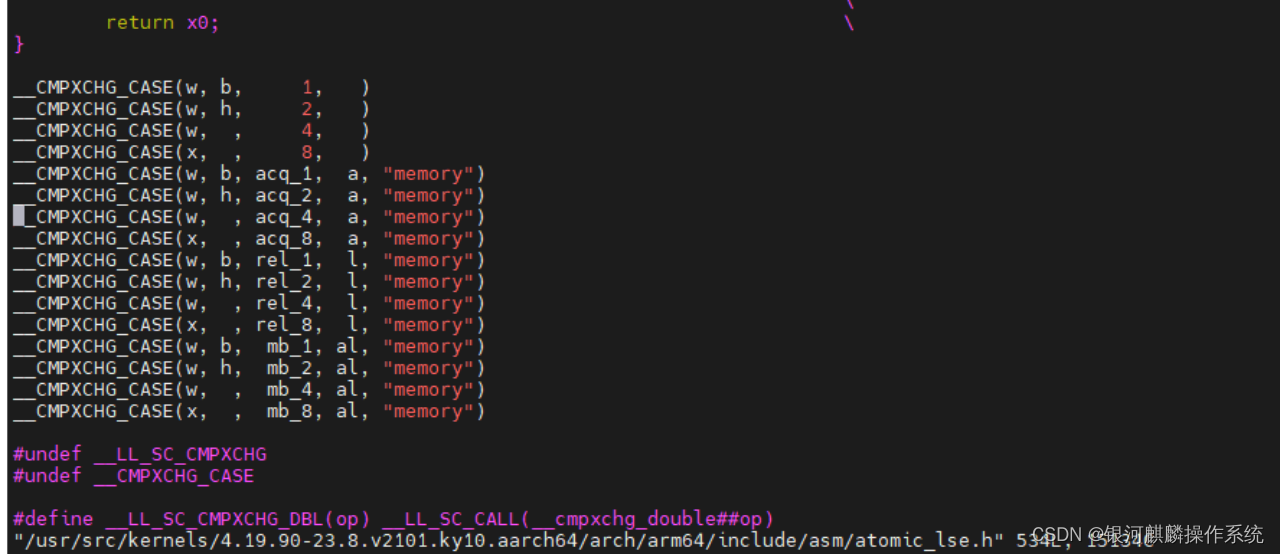

vim /usr/src/kernels/4.19.90-23.8.v2101.ky10.aarch64/arch/arm64/include/asm/atomic_lse.h +479 |
3.3.资料查找
从网上的资料查看，有类似的堆栈信息，不知道当前内核是否已修复下面的问题。
RHEL7: Kernel crash at nfs_readpage_async+0x43 or nfs_updatepage+0x1b9 - Red Hat Customer Portal
201705 – Oops when copying large file from xfs to nfs, happens every time
nfs_page_async_flush returning 0 for fatal errors on writeback - Calum Mackay
4.问题总结
0x80的地址是通过x3寄存器加上0x80得到的
[8559662.199126] x3 : 0000000000000000 x2 : 0000000000000001
[8559662.199491] x1 : 0000000000000000 x0 : 0000000000000080
从问题发生时候打印出来的寄存器的值也可以知道x3寄存器变成0
有可能是个used_after_free的情况。
根据研发分析和该bug一致：
nfs_page_async_flush returning 0 for fatal errors on writeback - Calum Mackay
5.问题处理
升级当前最新内核
