YOLOv5配置
使用conda创建新的虚拟环境并激活
conda create -n openmmlab python=3.8 -y
conda activate openmmlabpytorch安装
CPU:
conda install pytorch==1.13.1 torchvision==0.14.1 torchaudio==0.13.1 cpuonly -c pytorchNvidia显卡且CUDA>=11.6:
conda install pytorch==1.13.1 torchvision==0.14.1 torchaudio==0.13.1 pytorch-cuda=11.6 -c pytorch -c nvidia其他的pytorch版本没测试
下载mmyolo-0.5.0，进入mmyolo-0.5.0目录下
cd path # 这里的path就是上面复制的路径，用你自己的路径替换path
# --------------进入到目录中后直接复制下面的命令并执行-------------------------
pip install chardet
pip install -U openmim
mim install -r requirements/mminstall.txt
# Install albumentations
pip install -r requirements/albu.txt
# Install MMYOLO，使用可编辑模式安装，以后编辑这个文件夹下的代码会对整个环境生效
mim install -v -e .YOLOv5训练
进入yolov5文件夹目录
cd [path_to_yolov5] 数据集格式
在yolov5目录下新建文件夹dataset
road #(数据集名字)
├── images
├── train
├── xx.jpg
├── val
├── xx.jpg
├── labels
├── train
├── xx.txt
├── val
├── xx.txt 在yolov5/data文件夹下新建road.yaml
内容如下所示：
# Train/val/test sets as 1) dir: path/to/imgs, 2) file: path/to/imgs.txt, or 3) list: [path/to/imgs1, path/to/imgs2, ..]
path: /opt/data/private/zyx/yolov5/dataset/road8802 # dataset root dir
train: images/train # train images (relative to 'path')
val: images/val # val images (relative to 'path')
test: # test images (optional)
# Classes
nc: 5 # number of classes
names: ['VT', 'VC', 'RS', 'VR','LN'] # class names其中：
path：数据集的根目录
train：训练集与path的相对路径
val：验证集与path的相对路径
nc：类别数量，因为这个数据集只有一个类别（fire），nc即为1。
names：类别名字。
训练
python train.py --weights yolov5s.pt --data data/road.yaml --epochs 200 --workers 1 --batch-size 64推理
模型训练完成后，将runs/exp/weights下的模型（best.pt）复制在yolov5文件夹下
python detect.py --weights best.onnx --source ../yolov5/dataset/road7190/images/val --data data/road.yaml pt->onnx
python export.py --weights best.pt --data data/road.yaml --include onnx完成后会在目录下看到best.onnx文件
ATC转OM文件
创建python3.7.5的虚拟环境和安装python依赖
conda create -n v3onnx python=3.7.5pip3 install attrs numpy decorator sympy cffi pyyaml pathlib2 psutil protobuf scipy requests absl-py下载CANN的两个包
在昇腾社区官网上下载CANN的两个包：toolkit和nnrt包
一定要根据推理时使用的cann版本下载对应版本的包
这是我的镜像：model_convert_cann7.0_aarch64_910b_py310:v6.0
可以看到cann时7.0版本
Ascend-cann-nnrt_7.0.1_linux-x86_64.run
Ascend-cann-toolkit_7.0.1_linux-x86_64.run
安装包
将包下载好放入虚拟环境中，开始安装：
chmod +x Ascend-cann-nnrt_7.0.1_linux-x86_64.run
chmod +x Ascend-cann-toolkit_7.0.1_linux-x86_64.run
#赋予权限
./Ascend-cann-nnrt_7.0.1_linux-x86_64.run --check
./Ascend-cann-toolkit_7.0.1_linux-x86_64.run --check
#检查安装包完整性
./Ascend-cann-nnrt_7.0.1_linux-x86_64.run --install
./Ascend-cann-toolkit_7.0.1_linux-x86_64.run --install
配置ATC运行环境
由于环境未配置，哪怕我们安装了CANN包也无法使用atc命令，因此我们需要配置环境
vi ~/.bashrc
export ASCEND_TOOLKIT_HOME=/usr/local/Ascend/ascend-toolkit/latest
export LD_LIBRARY_PATH=${ASCEND_TOOLKIT_HOME}/lib64:${ASCEND_TOOLKIT_HOME}/lib64/plugin/opskernel:${ASCEND_TOOLKIT_HOME}/lib64/plugin/nnengine:/usr/local/Ascend/ascend-toolkit/latest/x86_64-linux/devlib/:$LD_LIBRARY_PATH
export PYTHONPATH=${ASCEND_TOOLKIT_HOME}/python/site-packages:${ASCEND_TOOLKIT_HOME}/opp/op_impl/built-in/ai_core/tbe:$PYTHONPATH
export PATH=${ASCEND_TOOLKIT_HOME}/bin:${ASCEND_TOOLKIT_HOME}/compiler/ccec_compiler/bin:$PATH
export ASCEND_AICPU_PATH=${ASCEND_TOOLKIT_HOME}
export ASCEND_OPP_PATH=${ASCEND_TOOLKIT_HOME}/opp
export TOOLCHAIN_HOME=${ASCEND_TOOLKIT_HOME}/toolkit
export ASCEND_HOME_PATH=${ASCEND_TOOLKIT_HOME}
source ~/.bashrcexport后点击Esc，然后输入:wq来保存退出
然后即可使用atc命令
使用ATC命令
atc --model=best.onnx --framework=5 --output=best --input_format=NCHW --soc_version=Ascend910B2--soc_version这个参数一定要通过查看npu-smi info来看，一定要一模一样，不能忽略后面的数字
然后即可生成best.om文件，之后就可以在昇腾910B上推理
910B推理
代码编写

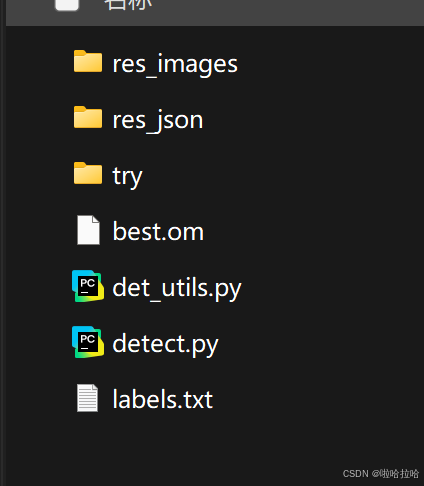

新建一个文件夹om_infer：
新建detect.py、det_utils.py、labels.txt；将转换好的om模型复制到文件夹中；try保存原始的推理图片

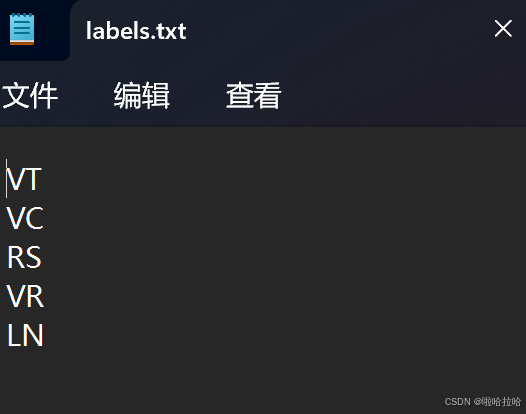

填充labels.txt
一个类别一行
编写detect.py(检测)和det_util.py(后处理)
det_utils.py
import cv2
import numpy as np
def letterbox(img, new_shape=(640, 640), color=(114, 114, 114), auto=False, scaleFill=False, scaleup=True):
# Resize image to a 32-pixel-multiple rectangle https://github.com/ultralytics/yolov3/issues/232
shape = img.shape[:2] # current shape [height, width]
if isinstance(new_shape, int):
new_shape = (new_shape, new_shape)
# Scale ratio (new / old)
r = min(new_shape[0] / shape[0], new_shape[1] / shape[1])
if not scaleup: # only scale down, do not scale up (for better test mAP)
r = min(r, 1.0)
# Compute padding
ratio = r, r # width, height ratios
new_unpad = int(round(shape[1] * r)), int(round(shape[0] * r))
dw, dh = new_shape[1] - new_unpad[0], new_shape[0] - new_unpad[1] # wh padding
if auto: # minimum rectangle
dw, dh = np.mod(dw, 64), np.mod(dh, 64) # wh padding
elif scaleFill: # stretch
dw, dh = 0.0, 0.0
new_unpad = (new_shape[1], new_shape[0])
ratio = new_shape[1] / shape[1], new_shape[0] / shape[0] # width, height ratios
dw /= 2 # divide padding into 2 sides
dh /= 2
if shape[::-1] != new_unpad: # resize
img = cv2.resize(img, new_unpad, interpolation=cv2.INTER_LINEAR)
top, bottom = int(round(dh - 0.1)), int(round(dh + 0.1))
left, right = int(round(dw - 0.1)), int(round(dw + 0.1))
img = cv2.copyMakeBorder(img, top, bottom, left, right, cv2.BORDER_CONSTANT, value=color) # add border
return img, ratio, (dw, dh)
def xyxy2xywh(x):
# Convert nx4 boxes from [x1, y1, x2, y2] to [x, y, w, h] where xy1=top-left, xy2=bottom-right
y = np.copy(x)
#y = x.clone() if isinstance(x, torch.Tensor) else np.copy(x)
y[:, 0] = (x[:, 0] + x[:, 2]) / 2 # x center
y[:, 1] = (x[:, 1] + x[:, 3]) / 2 # y center
y[:, 2] = x[:, 2] - x[:, 0] # width
y[:, 3] = x[:, 3] - x[:, 1] # height
return y
def xywh2xyxy(x):
# Convert nx4 boxes from [x, y, w, h] to [x1, y1, x2, y2] where xy1=top-left, xy2=bottom-right
y = np.copy(x)
#y = x.clone() if isinstance(x, torch.Tensor) else np.copy(x)
y[:, 0] = x[:, 0] - x[:, 2] / 2 # top left x
y[:, 1] = x[:, 1] - x[:, 3] / 2 # top left y
y[:, 2] = x[:, 0] + x[:, 2] / 2 # bottom right x
y[:, 3] = x[:, 1] + x[:, 3] / 2 # bottom right y
return y
def numpy_nms(predictions, conf_thres=0.25, iou_thres=0.45):
"""修正后的NMS函数"""
# 处理输入维度
if predictions.ndim == 3:
predictions = predictions.squeeze(0)
# 过滤低置信度预测
mask = predictions[:, 4] >= conf_thres
predictions = predictions[mask]
if predictions.shape[0] == 0:
return np.empty((0, 6))
# 转换坐标格式
boxes = xywh2xyxy(predictions[:, :4])
# 获取类别ID（关键修正）
class_scores = predictions[:, 5:]
class_ids = np.argmax(class_scores, axis=1).astype(int) # 强制转换为整数
# 组合最终结果 [x1, y1, x2, y2, conf, class_id]
detections = np.concatenate([
boxes,
predictions[:, 4:5], # 置信度
class_ids[:, None].astype(int) # 确保整数类型
], axis=1)
return _nms_boxes(detections, iou_thres)
def _nms_boxes(detections, iou_threshold):
"""修正后的NMS核心函数"""
if detections.size == 0:
return np.empty((0, 6))
x1 = detections[:, 0]
y1 = detections[:, 1]
x2 = detections[:, 2]
y2 = detections[:, 3]
scores = detections[:, 4]
areas = (x2 - x1 + 1) * (y2 - y1 + 1)
order = scores.argsort()[::-1]
keep = []
while order.size > 0:
i = order[0]
keep.append(i)
xx1 = np.maximum(x1[i], x1[order[1:]])
yy1 = np.maximum(y1[i], y1[order[1:]])
xx2 = np.minimum(x2[i], x2[order[1:]])
yy2 = np.minimum(y2[i], y2[order[1:]])
w = np.maximum(0.0, xx2 - xx1 + 1)
h = np.maximum(0.0, yy2 - yy1 + 1)
inter = w * h
ovr = inter / (areas[i] + areas[order[1:]] - inter)
inds = np.where(ovr <= iou_threshold)[0]
order = order[inds + 1]
return detections[keep]
def scale_coords(img1_shape, coords, img0_shape, ratio_pad=None):
# Rescale coords (xyxy) from img1_shape to img0_shape
if ratio_pad is None: # calculate from img0_shape
gain = min(img1_shape[0] / img0_shape[0], img1_shape[1] / img0_shape[1]) # gain = old / new
pad = (img1_shape[1] - img0_shape[1] * gain) / 2, (img1_shape[0] - img0_shape[0] * gain) / 2 # wh padding
else:
gain = ratio_pad[0][0]
pad = ratio_pad[1]
coords[:, [0, 2]] -= pad[0] # x padding
coords[:, [1, 3]] -= pad[1] # y padding
coords[:, :4] /= gain
clip_coords(coords, img0_shape)
return coords
def clip_coords(boxes, shape):
# Clip bounding xyxy bounding boxes to image shape (height, width)
boxes[:, [0, 2]] = boxes[:, [0, 2]].clip(0, shape[1])
boxes[:, [1, 3]] = boxes[:, [1, 3]].clip(0, shape[0])
return boxes
def nms(box_out, conf_thres=0.4, iou_thres=0.5):
return numpy_nms(box_out, conf_thres=conf_thres, iou_thres=iou_thres)
#try:
# boxout = non_max_suppression(box_out, conf_thres=conf_thres, iou_thres=iou_thres, multi_label=True)
#except:
# boxout = non_max_suppression(box_out, conf_thres=conf_thres, iou_thres=iou_thres)
#return boxout
detect.py
#python detect.py --input ./test --img_output ./res_images --json_output ./res_json
import json
import cv2
import numpy as np
import glob
import os
from det_utils import letterbox, nms, scale_coords
from ais_bench.infer.interface import InferSession
from time import time
import argparse
model_path = "./best.om" # om格式模型文件
label_path = './labels.txt' # 标签
def calculate_iou(box1, boxes):
"""计算单个框与多个框的IoU"""
# 计算交集区域
x1 = np.maximum(box1[0, 0], boxes[:, 0])
y1 = np.maximum(box1[0, 1], boxes[:, 1])
x2 = np.minimum(box1[0, 2], boxes[:, 2])
y2 = np.minimum(box1[0, 3], boxes[:, 3])
intersection = np.maximum(0, x2 - x1) * np.maximum(0, y2 - y1)
# 计算面积
area_box1 = (box1[0, 2] - box1[0, 0]) * (box1[0, 3] - box1[0, 1])
area_boxes = (boxes[:, 2] - boxes[:, 0]) * (boxes[:, 3] - boxes[:, 1])
union = area_box1 + area_boxes - intersection
return intersection / union
def preprocess_image(image, cfg, bgr2rgb=True): # 图片预处理
img, scale_ratio, pad_size = letterbox(image, new_shape=cfg['input_shape']) # image尺度不定，故需调整尺寸适配模型输入
if bgr2rgb:
img = img[:, :, ::-1]
img = img.transpose(2, 0, 1) # HWC2CHW
img = np.ascontiguousarray(img, dtype=np.float32) # 将输入数组转换为连续存储数组，加速运算效率
return img, scale_ratio, pad_size
def draw_bbox(bbox, img0, wt, names):
"""绘制不同颜色的预测框"""
# 定义5种类别对应的BGR颜色（可根据需要修改）
color_palette = [
(0, 255, 0), # 绿色 - 类别0
(255, 0, 0), # 蓝色 - 类别1
(0, 0, 255), # 红色 - 类别2
(0, 255, 255), # 黄色 - 类别3
(255, 0, 255) # 粉色 - 类别4
]
det_result_str = ''
for idx, class_id in enumerate(bbox[:, 5]):
# 确保类别ID是整数
class_id = int(round(float(class_id)))
if class_id >= len(color_palette) or class_id < 0:
print(f"Warning: 无效的类别ID {class_id}，使用默认颜色")
color = (255, 255, 255) # 白色作为默认
else:
color = color_palette[class_id] # 根据类别选择颜色
if float(bbox[idx][4]) < 0.05:
continue
# 绘制边界框
x1, y1 = int(bbox[idx][0]), int(bbox[idx][1])
x2, y2 = int(bbox[idx][2]), int(bbox[idx][3])
img0 = cv2.rectangle(img0, (x1, y1), (x2, y2), color, wt)
# 绘制类别标签（黑色背景白字）
label = f"{names.get(class_id, 'unknown')} {bbox[idx][4]:.2f}"
(tw, th), _ = cv2.getTextSize(label, cv2.FONT_HERSHEY_SIMPLEX, 0.5, 1)
# 标签背景
img0 = cv2.rectangle(img0, (x1, y1 - 20), (x1 + tw, y1), color, -1)
# 标签文字
img0 = cv2.putText(img0, label, (x1, y1 - 5),
cv2.FONT_HERSHEY_SIMPLEX, 1, (255, 255, 255), 2)
return img0
def get_labels_from_txt(path):
"""从txt文件获取图片标签"""
labels_dict = dict()
with open(path) as f:
for cat_id, label in enumerate(f.readlines()):
labels_dict[cat_id] = label.strip()
return labels_dict
def detect_img(model, detect_path, img_output_dir, json_output_dir, conf_thres=0.4, iou_thres=0.5):
raw_img = cv2.imread(detect_path) # 载入原始图片
img_height, img_width = raw_img.shape[:2]# 获取图片原始尺寸
labels = get_labels_from_txt(label_path)
# 预处理
cfg = {
'conf_thres': conf_thres, # 模型置信度阈值，阈值越低，得到的预测框越多
'iou_thres': iou_thres, # IOU阈值，重叠率过低的框会被过滤
'input_shape': [640, 640], # 输入尺寸
}
img, scale_ratio, pad_size = preprocess_image(raw_img, cfg)
img = img / 255.0 # 训练模型时将0~255值域转化为了0~1，故推理阶段也需同样处理
# 检测
t1 = time()
output = model.infer([img])[0]
#output = torch.tensor(output)
# 使用numpy实现的nms
boxout = nms(output, conf_thres=cfg["conf_thres"], iou_thres=cfg["iou_thres"])
if len(boxout) > 0:
pred_all = boxout[0] if isinstance(boxout, list) else boxout
scale_coords(cfg['input_shape'], pred_all[:, :4], raw_img.shape, ratio_pad=(scale_ratio, pad_size))
else:
pred_all = np.empty((0, 6))
# 非极大值抑制后处理
#boxout = nms(output, conf_thres=cfg["conf_thres"], iou_thres=cfg["iou_thres"])
#pred_all = boxout[0].numpy()
# 预测坐标转换
#scale_coords(cfg['input_shape'], pred_all[:, :4], raw_img.shape, ratio_pad=(scale_ratio, pad_size))
t2 = time()
print("detect time: %fs" % (t2 - t1))
# 准备JSON数据结构
json_data = {
"file_name": os.path.basename(detect_path),
"detections": [],
"image_size": {
"width": img_width,
"height": img_height
}
}
# 结果绘制
if pred_all.size > 0:
draw_bbox(pred_all, raw_img,2, labels)
for det in pred_all:
x_min, y_min, x_max, y_max = map(int, det[:4])
confidence = float(det[4])
class_id = int(det[5])
json_data["detections"].append({
"disease_class": labels.get(class_id, "unknown"),
"confidence": round(confidence, 4),
"bbox": {
"x_min": x_min,
"y_min": y_min,
"x_max": x_max,
"y_max": y_max
}
})
# 保存JSON到独立目录
os.makedirs(json_output_dir, exist_ok=True)
json_filename = os.path.basename(detect_path).rsplit('.', 1)[0] + ".json"
json_path = os.path.join(json_output_dir, json_filename)
with open(json_path, 'w') as f:
json.dump(json_data, f, indent=2)
# 保存图片到图片目录
os.makedirs(img_output_dir, exist_ok=True)
img_filename = "res_" + os.path.basename(detect_path)
img_output_path = os.path.join(img_output_dir, img_filename)
cv2.imwrite(img_output_path, raw_img, [int(cv2.IMWRITE_JPEG_QUALITY), 95])
def batch_detect(model, input_dir, img_output_dir, json_output_dir, conf_thres=0.4, iou_thres=0.5):
"""带参数传递的批量推理函数"""
os.makedirs(json_output_dir, exist_ok=True) # 自动创建JSON目录
os.makedirs(img_output_dir, exist_ok=True) # 自动创建图片目录
# 扩展支持更多图像格式
image_extensions = ['*.jpg', '*.jpeg', '*.png', '*.bmp', '*.tiff']
image_paths = []
for ext in image_extensions:
image_paths.extend(sorted(glob.glob(os.path.join(input_dir, ext))))
print(f"Found {len(image_paths)} pictures")
for img_path in image_paths:
detect_img(
model=model,
detect_path=img_path,
img_output_dir=img_output_dir,
json_output_dir=json_output_dir,
conf_thres=conf_thres,
iou_thres=iou_thres
)
if __name__ == "__main__":
# 创建参数解析器
parser = argparse.ArgumentParser(description='目标检测批量推理脚本')
parser.add_argument('--input', type=str, required=True, help='输入图片目录路径，支持jpg/png/bmp格式')
parser.add_argument('--img_output', type=str, required=True, help='图片输出目录')
parser.add_argument('--json_output', type=str, required=True, help='JSON输出目录')
parser.add_argument('--conf', type=float, default=0.4, help='置信度阈值 (默认: 0.4)')
parser.add_argument('--iou', type=float, default=0.5, help='IOU阈值 (默认: 0.5)')
# 解析参数
args = parser.parse_args()
# 初始化模型
model = InferSession(0, model_path)
# 执行批量推理
batch_detect(
model=model,
input_dir=args.input,
img_output_dir=args.img_output,
json_output_dir=args.json_output,
conf_thres=args.conf,
iou_thres=args.iou
)
print('检测完成！\n图片结果保存在: {}\nJSON结果保存在: {}'.format(os.path.abspath(args.img_output),os.path.abspath(args.json_output)))
示例命令：
python detect.py \
--input ./try \
--img_output ./res_images \
--json_output ./res_json
