需求

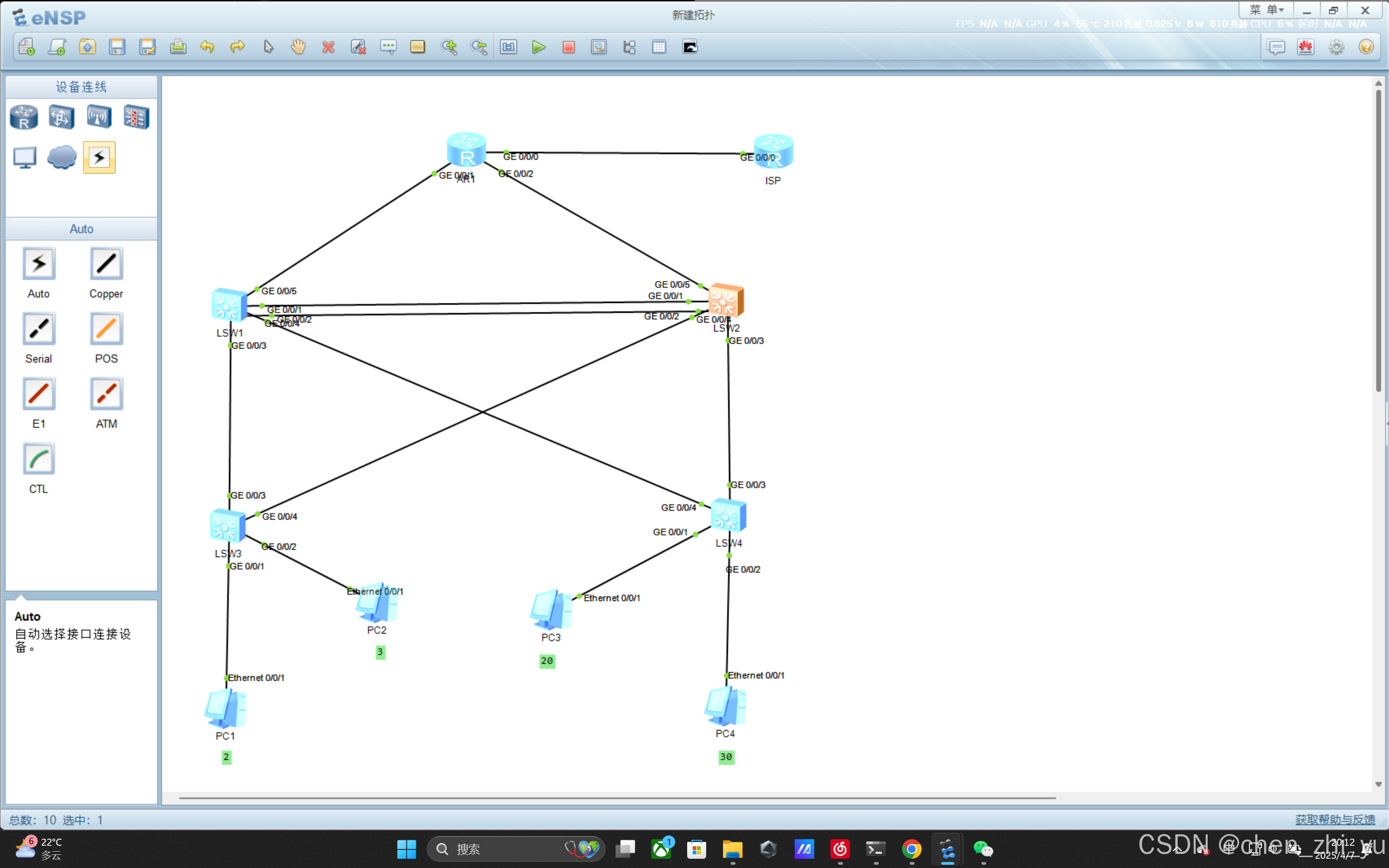

1、按照图示的VLAN及IP地址需求，完成相关配需G日0/013
2、要求sW1为VLAN 2/3的主根及主网关SW2为vlan 20/30的主根及主网关SW1和SW2互为备份
3、上层通过静态路由协议完成数据通信过程
4、AR1为企业出口路由器
5、0/0/36、要求全网可达
<Huawei>system-view
[Huawei]sysname sw3
[sw3]display cu
[sw3]vlan batch 2 3 20 30
[sw3-GigabitEthernet0/0/1]port link-type access
[sw3-GigabitEthernet0/0/1]port default vlan 2
[sw3-GigabitEthernet0/0/2]port link-type access
[sw3-GigabitEthernet0/0/2]port default vlan 3
[sw3-GigabitEthernet0/0/2]int g0/0/3
[sw3-GigabitEthernet0/0/3]port link-type trunk
[sw3-GigabitEthernet0/0/3]port trunk allow-pass vlan 2 3 20 30
[sw3-GigabitEthernet0/0/3]int g0/0/4
[sw3-GigabitEthernet0/0/4]port link-type trunk
[sw3-GigabitEthernet0/0/4]port trunk allow-pass vlan 2 3 20 30
[sw3-GigabitEthernet0/0/4]quit[Huawei]sysname sw4
[sw4]vlan batch 2 3 20 30
[sw4]interface g0/0/1
[sw4-GigabitEthernet0/0/1]port link-type access
[sw4-GigabitEthernet0/0/1]port default vlan 20
[sw4-GigabitEthernet0/0/1]int g0/0/2
[sw4-GigabitEthernet0/0/2]port link-type access
[sw4-GigabitEthernet0/0/2]port default vlan 30
[sw4-GigabitEthernet0/0/2]int g0/0/3
[sw4-GigabitEthernet0/0/3]port link-type trunk
[sw4-GigabitEthernet0/0/3]port trunk allow-pass vlan 2 3 20 30
[sw4-GigabitEthernet0/0/3]int g0/0/4
[sw4-GigabitEthernet0/0/4]port link-type trunk
[sw4-GigabitEthernet0/0/4]port trunk allow-pass vlan 2 3 20 30
[sw2]vlan batch 2 3 20 30
[sw2]int Eth-Trunk 0
[sw2-Eth-Trunk0]trunkport GigabitEthernet 0/0/1 to 0/0/2
[sw2-Eth-Trunk0]q
[sw2]int g0/0/3
[sw2-GigabitEthernet0/0/3]port link-type trunk
[sw2-GigabitEthernet0/0/3]port trunk allow-pass vlan 2 3 20 30
[sw2-GigabitEthernet0/0/3]int g0/0/4
[sw2-GigabitEthernet0/0/4]port link-type trunk
[sw2-GigabitEthernet0/0/4]port trunk allow-pass vlan 2 3 20 30[sw1]vlan batch 2 3 20 30
[sw1]int Eth-Trunk 0
[sw1-Eth-Trunk0]trunkport GigabitEthernet 0/0/1 to 0/0/2
[sw1-Eth-Trunk0]port link-type trunk
[sw1-Eth-Trunk0]port trunk allow-pass vlan 2 3 20 30
[sw1-Eth-Trunk0]q
[sw1]int g0/0/3
[sw1-GigabitEthernet0/0/3]port link-type trunk
[sw1-GigabitEthernet0/0/3]port trunk allow-pass vlan 2 3 20 30
[sw1-GigabitEthernet0/0/3]int g0/0/4
[sw1-GigabitEthernet0/0/4]port link-type trunk
[sw1-GigabitEthernet0/0/4]port trunk allow-pass vlan 2 3 20 30
[sw1-GigabitEthernet0/0/4]q[sw3]stp enable
[sw3]stp mode mstp
[sw3]stp region-configuration
[sw3-mst-region]region-name aa
[sw3-mst-region]revision-level 100
[sw3-mst-region]instance 1 vlan 2 3
[sw3-mst-region]instance 2 vlan 20 30
[sw3-mst-region]active region-configuration [sw1]stp enable
[sw1]stp mode mstp
[sw1]stp region-configuration
[sw1-mst-region] region-name aa
[sw1-mst-region] revision-level 100
[sw1-mst-region] instance 1 vlan 2 to 3
[sw1-mst-region] instance 2 vlan 20 30
[sw1-mst-region] active region-configuration
[sw2]stp enable
[sw2]stp mode mstp
[sw2]stp region-configuration
[sw2-mst-region] region-name aa
[sw2-mst-region] revision-level 100
[sw2-mst-region] instance 1 vlan 2 to 3
[sw2-mst-region] instance 2 vlan 20 30
[sw2-mst-region] active region-configuration
[sw4]stp enable
[sw4]stp mode mstp
[sw4]stp region-configuration
[sw4-mst-region] region-name aa
[sw4-mst-region] revision-level 100
[sw4-mst-region] instance 1 vlan 2 to 3
[sw4-mst-region] instance 2 vlan 20 30
[sw4-mst-region] active region-configuration
[sw1]stp instance 1 root primary
[sw1]stp instance 2 root secondary [sw2]stp instance 1 root secondary
[sw2]stp instance 2 root primary [sw1]interface Eth-Trunk 0
[sw1-Eth-Trunk0]q
[sw1]int g0/0/3
[sw1-GigabitEthernet0/0/3]stp root-protection [sw3-GigabitEthernet0/0/1]stp ed
[sw3-GigabitEthernet0/0/1]stp edged-port e
[sw3-GigabitEthernet0/0/1]stp edged-port enable
[sw1]interface Vlanif 2
[sw1-Vlanif2]ip address 10.0.2.1 24
[sw1-Vlanif2]vrrp vrid 1 virtual-ip 10.0.2.254
更改vrrp的优先级
[sw1-Vlanif2]vrrp vrid 1 priority 120
配置强制延时vrp
[sw1-Vlanif2]vrrp vrid 1 preempt-mode timer delay 20
上行链路监控
[sw1-Vlanif2]vrrp vrid 1 track interface GigabitEthernet 0/0/5 reduced 30
SW1中对vlan3的相关配置
[sw1]interface Vlanif 3
[sw1-Vlanif3]ip address 10.0.3.1 24
[sw1-Vlanif3]vrrp vrid 1 virtual-ip 10.0.3.254
更改vrrp的优先级
[sw1-Vlanif3]vrrp vrid 1 priority 120
配置强制延时vrp
[sw1-Vlanif3]vrrp vrid 1 preempt-mode timer delay 20
上行链路监控
[sw1-Vlanif3]vrrp vrid 1 track interface GigabitEthernet 0/0/5 reduced 30
配置备用vlan
[sw1]interface Vlanif 20
[sw1-Vlanif20]ip address 10.0.20.1 24
[sw1-Vlanif20]vrrp vrid 1 virtual-ip 10.0.20.254
[sw1]int Vlanif 30
[sw1-Vlanif30]ip address 10.0.30.1 24
[sw1-Vlanif30]vrrp vrid 1 virtual-ip 10.0.30.254
SW2与SW1的配置将完全相反
SW2上对vlan2和3的配置
[sw2]interface Vlanif 2
[sw2-Vlanif2]ip address 10.0.2.2 24
[sw2-Vlanif2]vrrp vrid 1 virtual-ip 10.0.2.254
[sw2]interface Vlanif 3
[sw2-Vlanif3]ip address 10.0.3.2 24
[sw2-Vlanif3]vrrp vrid 1 virtual-ip 10.0.3.254
SW2上对vlan20和30的配置
[sw2]interface Vlanif 20
[sw2-Vlanif20]ip address 10.0.20.2 24
[sw2-Vlanif20]vrrp vrid 1 virtual-ip 10.0.20.254
[sw2-Vlanif20]vrrp vrid 1 priority 120
[sw2-Vlanif20]vrrp vrid 1 preempt-mode timer delay 20
[sw2-Vlanif20]vrrp vrid 1 track interface GigabitEthernet 0/0/5 reduced 30
[sw2]interface Vlanif 30
[sw2-Vlanif30]ip address 10.0.30.2 24
[sw2-Vlanif30]vrrp vrid 1 virtual-ip 10.0.30.254
[sw2-Vlanif30]vrrp vrid 1 priority 120
[sw2-Vlanif30]vrrp vrid 1 preempt-mode timer delay 20
[sw2-Vlanif30]vrrp vrid 1 track interface GigabitEthernet 0/0/5 reduced 30[sw1]dhcp enable
[sw1]ip pool vlan2
[sw1-ip-pool-vlan2]network 10.0.2.0 mask 24
配置虚拟网关和缺省路由
[sw1-ip-pool-vlan2]gateway-list 10.0.2.254
[sw1-ip-pool-vlan2]dns-list 8.8.8.8
为了后面其他PC不重复获取同一地址，排除一部分地址
[sw1-ip-pool-vlan2]excluded-ip-address 10.0.2.1 10.0.2.128
[sw1]interface Vlanif 2
[sw1-Vlanif2]dhcp select global
[sw1]interface Vlanif 3
[sw1-Vlanif3]dhcp select global
[sw1]interface Vlanif 20
[sw1-Vlanif20]dhcp select global
[sw1]interface Vlanif 30
[sw1-Vlanif30]dhcp select global [sw1]vlan 11
[sw1-vlan11]q
[sw1]interface g0/0/5
[sw1-GigabitEthernet0/0/5]port link-type access
[sw1-GigabitEthernet0/0/5]port default vlan 11
为vlan11配置IP
[sw1]interface Vlanif 11
[sw1-Vlanif11]ip address 10.0.11.1 30[sw2]vlan 12
[sw2]int g0/0/5
[sw2-GigabitEthernet0/0/5]port link-type access
[sw2-GigabitEthernet0/0/5]port default vlan 12
[sw2-GigabitEthernet0/0/5]q
[sw2]interface Vlanif 12
[sw2-Vlanif12]ip address 10.0.12.1 30[AR1]int g0/0/1
[AR1-GigabitEthernet0/0/1]ip ad
[AR1-GigabitEthernet0/0/1]ip address 10.0.11.2 30
[AR1-GigabitEthernet0/0/1]int g0/0/2
[AR1-GigabitEthernet0/0/2]ip ad
[AR1-GigabitEthernet0/0/2]ip address 10.0.12.2 30[sw1]ospf 1
[sw1-ospf-1]a
[sw1-ospf-1]area 0
[sw1-ospf-1-area-0.0.0.0]network 10.0.2.1 0.0.0.0
[sw1-ospf-1-area-0.0.0.0]network 10.0.3.1 0.0.0.0
[sw1-ospf-1-area-0.0.0.0]network 10.0.3.1 0.0.0.0
[sw1-ospf-1-area-0.0.0.0]network 10.0.11.1 0.0.0.0
[sw1-ospf-1-area-0.0.0.0]network 10.0.20.1 0.0.0.0
[sw1-ospf-1-area-0.0.0.0]network 10.0.30.1 0.0.0.0[sw2]ospf
[sw2-ospf-1]a
[sw2-ospf-1]area
[sw2-ospf-1-area-0.0.0.0]network 10.0.2.2 0.0.0.0
[sw2-ospf-1-area-0.0.0.0]network 10.0.3.2 0.0.0.0
[sw2-ospf-1-area-0.0.0.0]network 10.0.20.2 0.0.0.0
[sw2-ospf-1-area-0.0.0.0]network 10.0.30.2 0.0.0.0
[sw2-ospf-1-area-0.0.0.0]network 10.0.12.1 0.0.0.0[AR1]ospf
[AR1-ospf-1]area 0
[AR1-ospf-1-area-0.0.0.0]network 10.0.11.2 0.0.0.0
[AR1-ospf-1-area-0.0.0.0]network 10.0.12.2 0.0.0.0[sw1]ospf 1
[sw1-ospf-1]silent-interface v
[sw1-ospf-1]silent-interface Vlanif 2
[sw1-ospf-1]silent-interface Vlanif 3
[sw1-ospf-1]silent-interface Vlanif 20
[sw1-ospf-1]silent-interface Vlanif 30
[sw2]ospf 1
[sw2-ospf-1]silent-interface Vlanif 2
[sw2-ospf-1]silent-interface Vlanif 3
[sw2-ospf-1]silent-interface Vlanif 20
[sw2-ospf-1]silent-interface Vlanif 30
创建vlan13
[sw1]vlan 13
[sw2]vlan 13
[sw1]int Eth-Trunk 0
[sw1-Eth-Trunk0]port trunk allow-pass vlan 13
[sw2]int Eth-Trunk 0
[sw2-Eth-Trunk0]port trunk allow-pass vlan 13[sw1-Vlanif13]ip address 10.0.13.1 30
[sw2-Vlanif13]ip address 10.0.13.2 30[sw1]ospf 1
[sw1-ospf-1]a 0
[sw1-ospf-1-area-0.0.0.0]ne
[sw1-ospf-1-area-0.0.0.0]network 10.0.13.1 0.0.0.0[sw2]ospf 1
[sw2-ospf-1]a 0
[sw2-ospf-1-area-0.0.0.0]network 10.0.13.2 0.0.0.0[sw1]stp instance 0 r
[sw1]stp instance 0 root p
[sw1]stp instance 0 root primary [sw2]stp instance 0 r
[sw2]stp instance 0 root s
[sw2]stp instance 0 root secondary [AR1]int g0/0/0
[AR1-GigabitEthernet0/0/0]ip ad
[AR1-GigabitEthernet0/0/0]ip address 202.1.1.1 30[ISP]int g0/0/0
[ISP-GigabitEthernet0/0/0]ip ad
[ISP-GigabitEthernet0/0/0]ip address 202.1.1.2 30
[ISP-GigabitEthernet0/0/0]q
[ISP]interface l
[ISP]interface LoopBack 0
[ISP-LoopBack0]ip ad
[ISP-LoopBack0]ip address 100.100.100.100 32[AR1]ip route-static 0.0.0.0 0 202.1.1.2
AR1启用ospf协议
[AR1]ospf 1
[AR1-ospf-1]default-route-advertise
为了让ISP信息可以传回来，运用acl 和nat技术
[AR1]acl 2000
[AR1-acl-basic-2000]ru
[AR1-acl-basic-2000]rule p
[AR1-acl-basic-2000]rule permit s
[AR1-acl-basic-2000]rule permit source 10.0.0.0 0.0.255.255
[AR1-acl-basic-2000]q
[AR1]int
[AR1]interface g0/0/0
[AR1-GigabitEthernet0/0/0]n
[AR1-GigabitEthernet0/0/0]nat ou
[AR1-GigabitEthernet0/0/0]nat outbound 2000
