实验5-p150虚拟防火墙配置
做不出来可以把项目删掉再新建。
实验六多加几步配置静态路由表就行。
1. 实验目的
通过该实验掌握PIX虚拟防火墙的配置。
2. 实验任务
- 配置两个虚拟防火墙。
- 验证防火墙的不同安全策略。
3. 实验设备
防火墙一台，CISCO交换机、路由器c3725若干台，控制线若干，网络连接线若干。

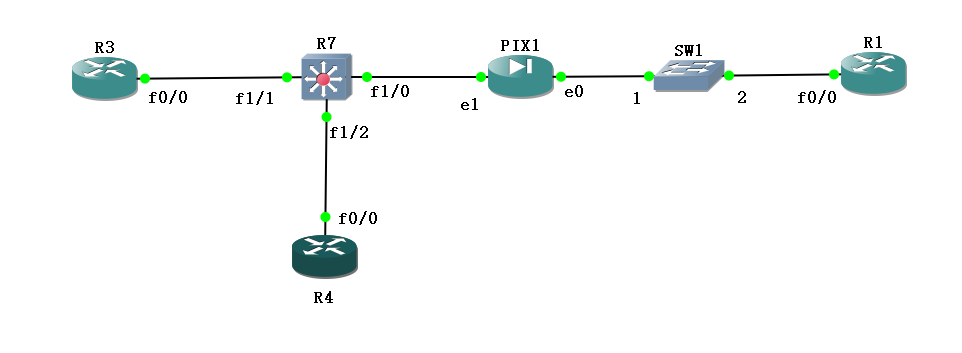

4. 实验拓扑图和设备接口
根据实验任务设计以下网络拓扑图
防火墙接口信息
可以理解为把一个防火墙拆成了管理上下文，负责监控R4流量的CXTA防火墙和负责监控R3流量的CXTB防火墙。
| 名称 | outside(e0) | inside(e1) | VLAN | R7接入口 | 检测 |
|---|---|---|---|---|---|
| admin | 192.168.9.5 | 10.9.1.3 | 20 | ||
| CXTA | 192.168.9.3 | 10.9.9.3 | 30 | f1/2 | R4流量 |
| CXTB | 192.168.9.13 | 10.9.5.3 | 40 | f1/1 | R3流量 |
本实验构建了三个安全上下文：一个管理上下文和两个用户上下文。防火墙安全上下文的配置信息
| 序号 | 上下文 | interface | Type | nameif | Security level | IP address |
|---|---|---|---|---|---|---|
| 1 | admin | e0 | physical | outside | 0 | 192.168.9.5 |
| 2 | CXTB | e0 | physical | outside | 0 | 192.168.9.13 |
| 3 | CXTA | e0 | physical | outside | 0 | 192.168.9.3 |
| 4 | admin | e1.2 | logical | inside | 100 | 10.9.1.3 |
| 5 | CXTB | e1.4 | logical | inside | 100 | 10.9.5.3 |
| 6 | CXTA | e1.3 | logical | inside | 100 | 10.9.9.3 |
以太交换路由器R7是用来模拟交换机实现VLAN，位于防火墙内部区域的路由器R7的配置如下
| 序号 | interface | VLAN |
|---|---|---|
| 1 | f1/0 | trunk |
| 2 | f1/1 | VLAN 40 |
| 3 | f1/2 | VLAN 30 |
位于防火墙外部区域的路由器R1的配置如下
| 序号 | interface | IP Address |
|---|---|---|
| 1 | f0/0 | 192.168.9.1 |
位于防火墙内部区域的路由器R3的配置如下
| 序号 | interface | IP Address |
|---|---|---|
| 1 | f0/0 | 10.9.5.1 |
位于防火墙内部区域的路由器R4的配置如下
| 序号 | interface | IP Address |
|---|---|---|
| 1 | f0/0 | 10.9.9.1 |
5. 实验命令与步骤
1. 连线与配置
完成连线
路由器R1配置
R1#conf t
Enter configuration commands, one per line. End with CNTL/Z.
R1(config)#line vty 0 4
R1(config-line)#no login
R1(config-line)#exit
R1(config)#int f0/0
R1(config-if)#ip add 192.168.9.1 255.255.255.0
R1(config-if)#no sh
R1(config-if)#ip route 10.9.5.0 255.255.255.0 192.168.9.3
R1(config)#ip route 10.9.5.0 255.255.255.0 192.168.9.3
R1(config)#end
R1#wr
路由器R3配置
R3#conf t
Enter configuration commands, one per line. End with CNTL/Z.
R3(config)#line vty 0 4
R3(config-line)#no login
R3(config-line)#exit
R3(config)#int f0/0
R3(config-if)#ip add 10.9.5.1 255.255.255.0
R3(config-if)#no sh
R3(config-if)#ip route 192.168.9.0 255.255.255.0 10.9.5.3
R3(config)#end
R3#wr
路由器R4配置
R4#conf t
Enter configuration commands, one per line. End with CNTL/Z.
R4(config)#line vty 0 4
R4(config-line)#no login
R4(config-line)#exit
R4(config)#int f0/0
R4(config-if)#ip add 10.9.9.1 255.255.255.0
R4(config-if)#no sh
R4(config-if)#ip route 192.168.9.0 255.255.255.0 10.9.9.3
R4(config)#exit
R4#wr
路由器R7配置
R7-SW#conf t
Enter configuration commands, one per line. End with CNTL/Z.
R7-SW(config)#int f1/0
R7-SW(config-if)#switchport mode trunk
#将接口 f1/0 配置为 Trunk 模式，允许该接口传输多个 VLAN 的流量
R7-SW(config-if)#exit
R7-SW(config)#int f1/1
R7-SW(config-if)#switchport access vlan 40
% Access VLAN does not exist. Creating vlan 40
#尝试将接口 f1/1 分配到 VLAN 40。由于 VLAN 40 不存在，系统自动创建了 VLAN 40
R7-SW(config-if)#switchport access vlan 40
#再次确认将接口 f1/1 分配到 VLAN 40
R7-SW#conf t
Enter configuration commands, one per line. End with CNTL/Z.
R7-SW(config)#int f1/2
R7-SW(config-if)#switchport access vlan 30
% Access VLAN does not exist. Creating vlan 30
R7-SW(config-if)#switchport access vlan 30
R7-SW(config-if)#end
R7-SW#conf t
Enter configuration commands, one per line. End with CNTL/Z.
R7-SW(config)#vlan 20,30,40
#创建 VLAN 20、30 和 40
R7-SW(config-vlan)#ex
#退出 VLAN 配置模式
R7-SW(config)#int f1/1
R7-SW(config-if)#sw mo acc
#switchport mode access的缩写，将接口 f1/1 配置为 Access 模式
R7-SW(config-if)#switchport access vlan 40
R7-SW(config-if)#int f1/2
R7-SW(config-if)#switchport mode access
R7-SW(config-if)#switchport access vlan 30
R7-SW(config-if)#int f1/0
R7-SW(config-if)#switchport mode trunk
R7-SW(config-if)#switchport trunk encap
R7-SW(config-if)#switchport trunk encapsulation dot1q
#配置 Trunk 封装的封装类型为 dot1q（IEEE 802.1Q）
R7-SW(config-if)#end
R7-SW#wr
Building configuration...
[OK]
防火墙配置
#1.先激活防火墙高级功能
pixfirewall> en
Password:
pixfirewall# activation-key 0xa94b7db5 0x17d768ea 0x63f6e081 0x6d9fadd5
The following features available in flash activation key are NOT
available in new activation key:
Failover is different.
flash activation key: Restricted(R)
new activation key: Unrestricted(UR)
Proceed with update flash activation key? [confirm]
The following features available in running activation key are NOT
available in new activation key:
Failover is different.
running activation key: Restricted(R)
new activation key: Unrestricted(UR)
WARNING: The running activation key was not updated with the requested key.
The flash activation key was updated with the requested key, and will
become active after the next reload.
#2.然后手动关闭再重启防火墙
pixfirewall> show ver
Cisco PIX Security Appliance Software Version 8.0(2)
Compiled on Fri 15-Jun-07 18:25 by builders
System image file is "Unknown, monitor mode tftp booted image"
Config file at boot was "startup-config"
pixfirewall up 16 secs
Hardware: PIX-525, 128 MB RAM, CPU Pentium II 1 MHz
Flash E28F128J3 @ 0xfff00000, 16MB
BIOS Flash AM29F400B @ 0xfffd8000, 32KB
0: Ext: Ethernet0 : address is 00ab.bffb.c400, irq 9
1: Ext: Ethernet1 : address is 00ab.bffb.c401, irq 11
2: Ext: Ethernet2 : address is 0000.abb6.c002, irq 11
3: Ext: Ethernet3 : address is 0000.ab80.0c03, irq 11
4: Ext: Ethernet4 : address is 0000.ab75.9304, irq 11
Licensed features for this platform:
Maximum Physical Interfaces : 10
Maximum VLANs : 100
Inside Hosts : Unlimited
Failover : Active/Active
VPN-DES : Disabled
VPN-3DES-AES : Disabled
Cut-through Proxy : Enabled
Guards : Enabled
URL Filtering : Enabled
Security Contexts : 2
GTP/GPRS : Disabled
VPN Peers : Unlimited
This platform has an Unrestricted (UR) license.
Serial Number: 480220956
Running Activation Key: 0xa94b7db5 0x17d768ea 0x63f6e081 0x6d9fadd5
Configuration has not been modified since last system restart.
#3.切换防火墙模式为多模式
pixfirewall> en
Password:
pixfirewall# conf t
pixfirewall(config)# mode multiple
WARNING: This command will change the behavior of the device
WARNING: This command will initiate a Reboot
Proceed with change mode? [confirm]
Convert the system configuration? [confirm]
!
The old running configuration file will be written to flash
The admin context configuration will be written to flash
The new running configuration file was written to flash
Security context mode: multiple
***
*** --- SHUTDOWN NOW ---
***
*** Message to all terminals:
***
*** change mode
Rebooting....
#4.通常会重启失败，我们手动关一下防火墙再启动
pixfirewall(config)# dir
Directory of flash:/
9 -rw- 1337 14:53:29 Mar 20 2025 old_running.cfg
10 -rw- 732 14:53:29 Mar 20 2025 admin.cfg
16128000 bytes total (16121344 bytes free)
pixfirewall(config)# show run context #查看当前安全上下文
admin-context admin
context admin
config-url flash:/admin.cfg
!

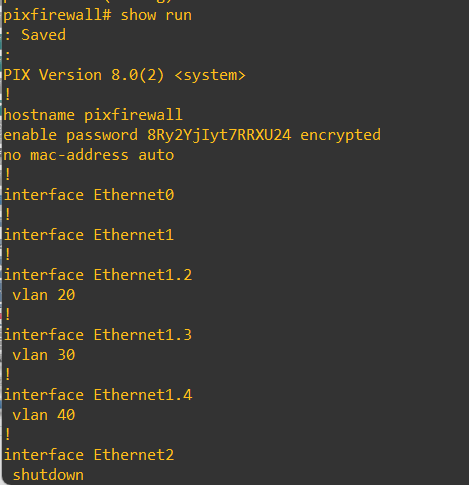

#5.现在配置一下防火墙接口VLAN
pixfirewall(config)# changeto context system
#切换到系统上下文
pixfirewall(config)# int e1
pixfirewall(config-if)# int e1.2
#创建并进入子接口e1.2的配置模式
pixfirewall(config-subif)# vlan 20
#将子接口e1.2与VLAN 20关联。这意味着该子接口将处理VLAN 20的流量
pixfirewall(config-subif)# exit
pixfirewall(config)# int e1
pixfirewall(config-if)# int e1.3
pixfirewall(config-subif)# vlan 30
pixfirewall(config-subif)# exit
pixfirewall(config)# int e1
pixfirewall(config-if)# int e1.4
pixfirewall(config-subif)# vlan 40
pixfirewall(config-subif)# exit
#6.创建用户上下文A
pixfirewall(config)# context CXTA
#创建一个名为CXTA的用户上下文。
Creating context 'CXTA'... Done. (2)
pixfirewall(config-ctx)# allocate-interface E0 INTF0
#将物理接口E0分配给用户上下文CXTA，并在该上下文中将其命名为INTF0
pixfirewall(config-ctx)# allocate-interface E1.3 INTF1
#将子接口E1.3（之前配置为VLAN 30）分配给用户上下文CXTA，并在该上下文中将其命名为INTF1
pixfirewall(config-ctx)# config-url flash:/CXTA.cfg
#指定用户上下文CXTA的配置文件路径为flash:/CXTA.cfg
WARNING: Could not fetch the URL flash:/CXTA.cfg
INFO: Creating context with default config
pixfirewall(config-ctx)# show run context
admin-context admin
context admin
config-url flash:/admin.cfg
!
context CXTA
allocate-interface Ethernet0 INTF0
allocate-interface Ethernet1.3 INTF1
config-url flash:/CXTA.cfg
!
#7.创建用户上下文B和admin
pixfirewall(config-ctx)# exit
pixfirewall(config)# context CXTB
Creating context 'CXTB'... Done. (3)
pixfirewall(config-ctx)# allocate-interface E0 INTF0
pixfirewall(config-ctx)# allocate-interface E1.4 INTF1
pixfirewall(config-ctx)# config-url flash:/CXTB.cfg
WARNING: Could not fetch the URL flash:/CXTB.cfg
INFO: Creating context with default config
pixfirewall(config-ctx)# exit
pixfirewall(config)# context admin
#创建一个名为 admin 的安全上下文（Security Context）
pixfirewall(config-ctx)# allocate-interface Ethernet0
#将物理接口 Ethernet0 分配给 admin 上下文
pixfirewall(config-ctx)# allocate-interface Ethernet1.2
pixfirewall(config-ctx)# show run context
admin-context admin
context admin
allocate-interface Ethernet0
allocate-interface Ethernet1.2
config-url flash:/admin.cfg
!
context CXTA
allocate-interface Ethernet0 INTF0
allocate-interface Ethernet1.3 INTF1
config-url flash:/CXTA.cfg
!
context CXTB
allocate-interface Ethernet0 INTF0
allocate-interface Ethernet1.4 INTF1
config-url flash:/CXTB.cfg
!
#8.创建用户上下文C
#会失败，因为用户的上下文个数超过了license支持的数量。
pixfirewall(config)# context CXTC
Creating context 'CXTC'...
Cannot create context 'CXTC': Exceeded licensed limit on maximum number of security contexts...
ERROR: Creation for context 'CXTC' failed

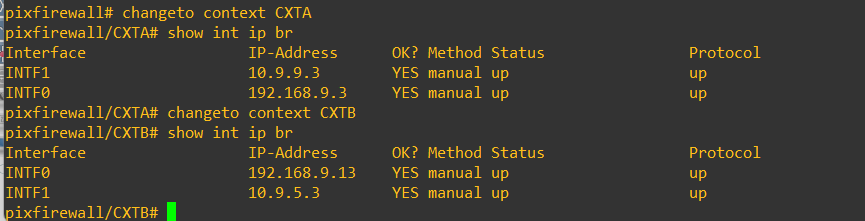

#9.配置用户上下文A
pixfirewall(config)# changeto context CXTA
pixfirewall/CXTA(config)# int intf0
pixfirewall/CXTA(config-if)# ip add 192.168.9.3 255.255.255.0
pixfirewall/CXTA(config-if)# no sh
pixfirewall/CXTA(config-if)# nameif outside
INFO: Security level for "outside" set to 0 by default.
pixfirewall/CXTA(config-if)# exit
pixfirewall/CXTA(config)# int intf1
pixfirewall/CXTA(config-if)# ip add 10.9.9.3 255.255.255.0
pixfirewall/CXTA(config-if)# no sh
pixfirewall/CXTA(config-if)# nameif inside
INFO: Security level for "inside" set to 100 by default.
pixfirewall/CXTA(config-if)# exit
pixfirewall/CXTA(config)# nat (inside) 11 0.0.0.0 0.0.0.0
pixfirewall/CXTA(config)# global (outside) 11 192.168.9.111
INFO: Global 192.168.9.111 will be Port Address Translated
pixfirewall/CXTA(config)# wr
Building configuration...
Cryptochecksum: 32e0b6f6 402b26c6 0e7cb5f1 c235917a
1517 bytes copied in 0.220 secs
[OK]
#10.配置用户上下文B
pixfirewall/CXTA(config)# changeto context CXTB
pixfirewall/CXTB(config)# int intf0
pixfirewall/CXTB(config-if)# ip add 192.168.9.13 255.255.255.0
pixfirewall/CXTB(config-if)# no sh
pixfirewall/CXTB(config-if)# nameif outside
INFO: Security level for "outside" set to 0 by default.
pixfirewall/CXTB(config-if)# exit
pixfirewall/CXTB(config)# int intf1
pixfirewall/CXTB(config-if)# ip add 10.9.5.3 255.255.255.0
pixfirewall/CXTB(config-if)# no sh
pixfirewall/CXTB(config-if)# nameif inside
INFO: Security level for "inside" set to 100 by default.
pixfirewall/CXTB(config-if)# exit
pixfirewall/CXTB(config)# nat (inside) 1 0 0
pixfirewall/CXTB(config)# global (outside) 1 192.168.9.11
INFO: Global 192.168.9.11 will be Port Address Translated
pixfirewall/CXTB(config)# exit
pixfirewall/CXTB# conf t
pixfirewall/CXTB(config)# wr
Building configuration...
Cryptochecksum: c620349b 58e45f58 291a613a 18d45013
1515 bytes copied in 0.240 secs
[OK]
pixfirewall/CXTB(config)# exit
pixfirewall/CXTB# changeto context system
#可以检查一下配置more CXTA.cfg
pixfirewall# conf t
pixfirewall(config)# int e0
pixfirewall(config-if)# no sh
pixfirewall(config-if)# exit
pixfirewall(config)# int e1
pixfirewall(config-if)# no sh
pixfirewall(config-if)# exit
pixfirewall(config)# write memory all
2. 实验验证

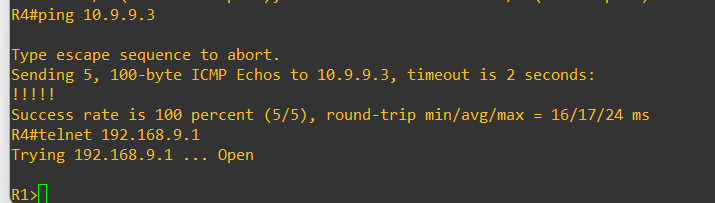

R4测试虚拟防火墙CXTA配置
R4#ping 10.9.9.3
R4#telnet 192.168.9.1

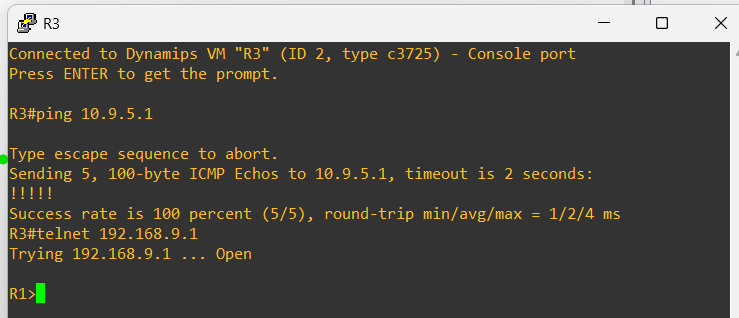

R3测试虚拟防火墙CXTB配置
R3#ping 10.9.5.1
R3#telnet 192.168.9.1
查看上下文接口信息
pixfirewall# show run
查看CXTA和CXTB接口信息
pixfirewall# changeto context CXTA
pixfirewall/CXTA# show int ip br
pixfirewall/CXTA# changeto context CXTB
pixfirewall/CXTB# show int ip br
虚拟防火墙CXTA配置ACL策略
pixfirewall/CXTB# changeto context CXTA
pixfirewall/CXTA# conf t
pixfirewall/CXTA(config)# access-list 101 permit icmp any any echo-reply
pixfirewall/CXTA(config)# access-group 101 in interface outside
pixfirewall/CXTA(config)# wr
R3执行ping命令，访问R1，属于VLAN 40流量，由防火墙CXTB处理，出站流量默认放行，由于没配置入站的ACL策略，R1发送的ICMP回显数据包无法穿越CXTB，所以R3无法ping通R1。

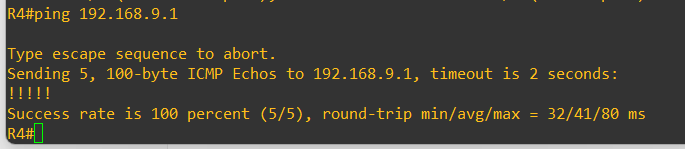

R4执行ping命令，访问R1，属于VLAN 30流量，由防火墙CXTA处理，出站流量默认放行，由于CXTA的outside接口做了放行echo-reply的ACL策略，路由器R1发送的ICMP回显数据包可以入站，所以R4可以ping通R1。

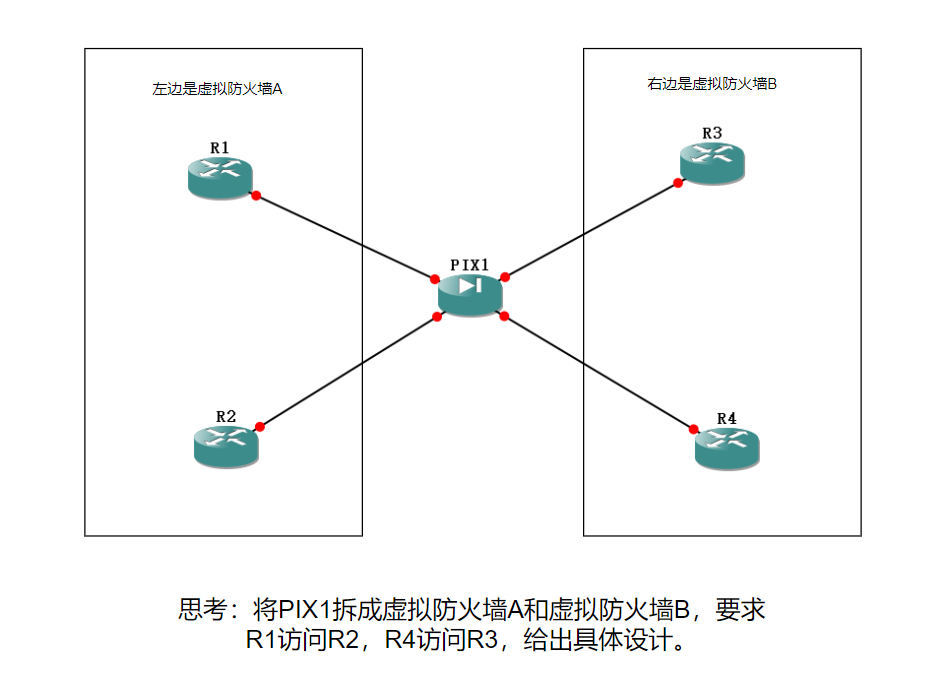

思考题
