SpringBoot整合MQTT实战：基于EMQX实现双向设备通信（附源码）

简言：

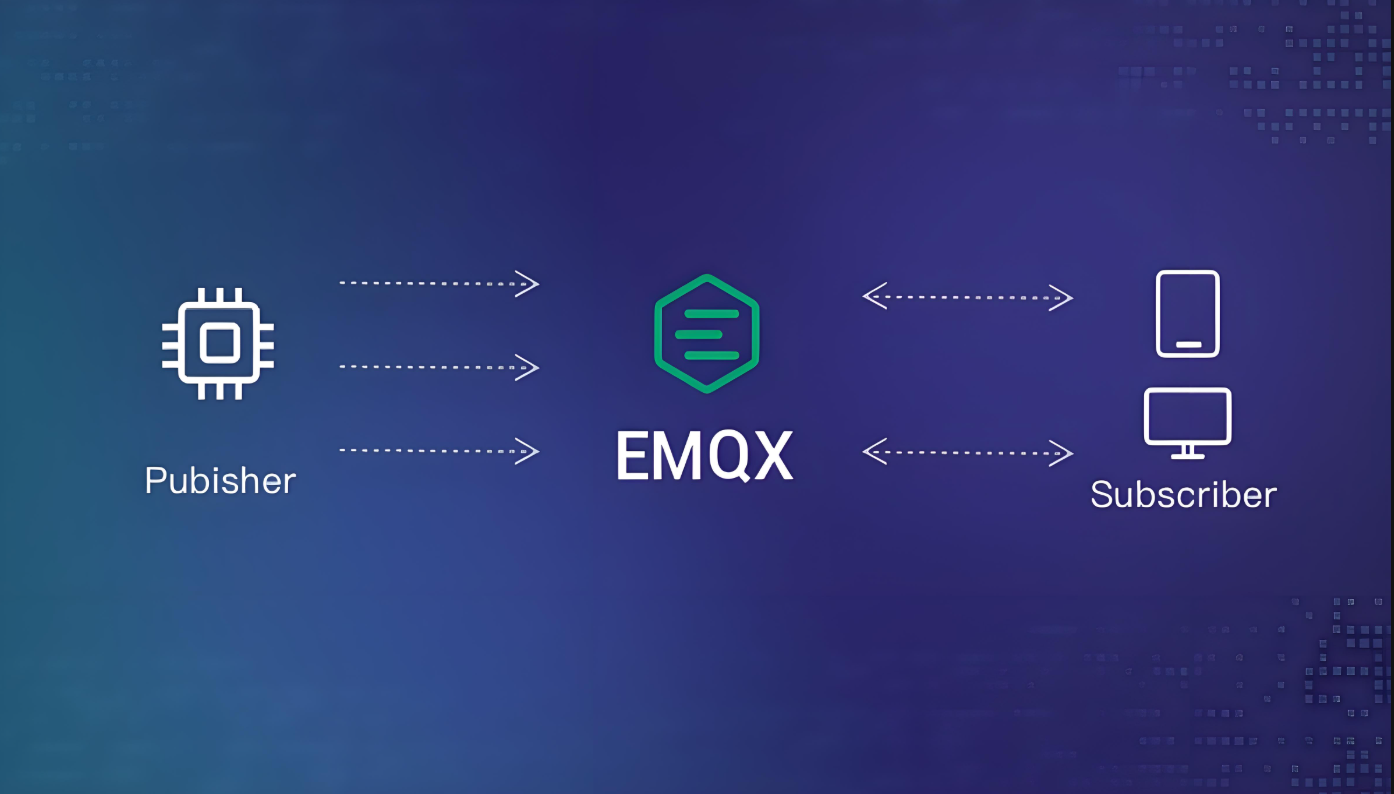

在万物互联的时代，MQTT协议凭借其轻量级、高效率的特性，已成为物联网通信的事实标准。本教程将带领您在Ubuntu系统上搭建EMQX 5.9.0消息服务器，并使用Spring Boot快速实现两个客户端的高效通信。通过本指南，您将掌握：

✅ 企业级MQTT消息中间件的部署

✅ Spring Boot与MQTT协议的深度集成

✅ 双向实时通信的完整实现方案

✅ 生产级应用的最佳实践建议

源码地址：https://gitcode.com/Var_ya/mqtt_viteClient

参考文档：

1. 在 Ubuntu 上安装 EMQX：https://docs.emqx.com/zh/emqx/latest/deploy/install-ubuntu.html
2. MQTTX 下载：https://mqttx.app/zh/downloads

一、🛠️ 搭建魔法邮局（EMQX服务器）

扩展：在安装EMQX前记得先更新先软件包

apt update

1. 安装EMQX企业版
在Ubuntu终端输入以下咒语：

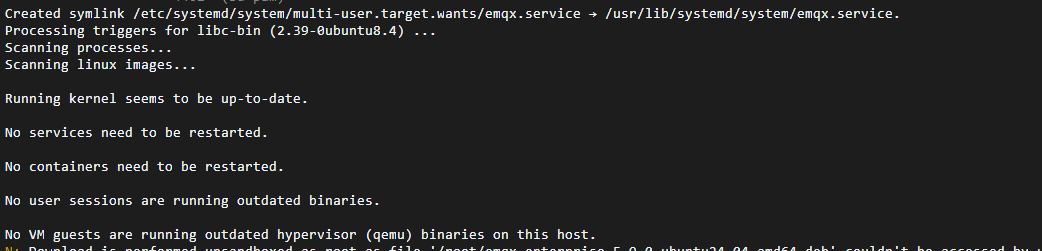

# 下载魔法卷轴（安装包）
wget https://www.emqx.com/zh/downloads/enterprise/5.9.0/emqx-enterprise-5.9.0-ubuntu24.04-amd64.deb

# 解开卷轴封印
sudo dpkg -i emqx-enterprise-5.9.0-ubuntu20.04-amd64.deb

# 启动邮局服务
sudo systemctl start emqx

2. 打开魔法管理台

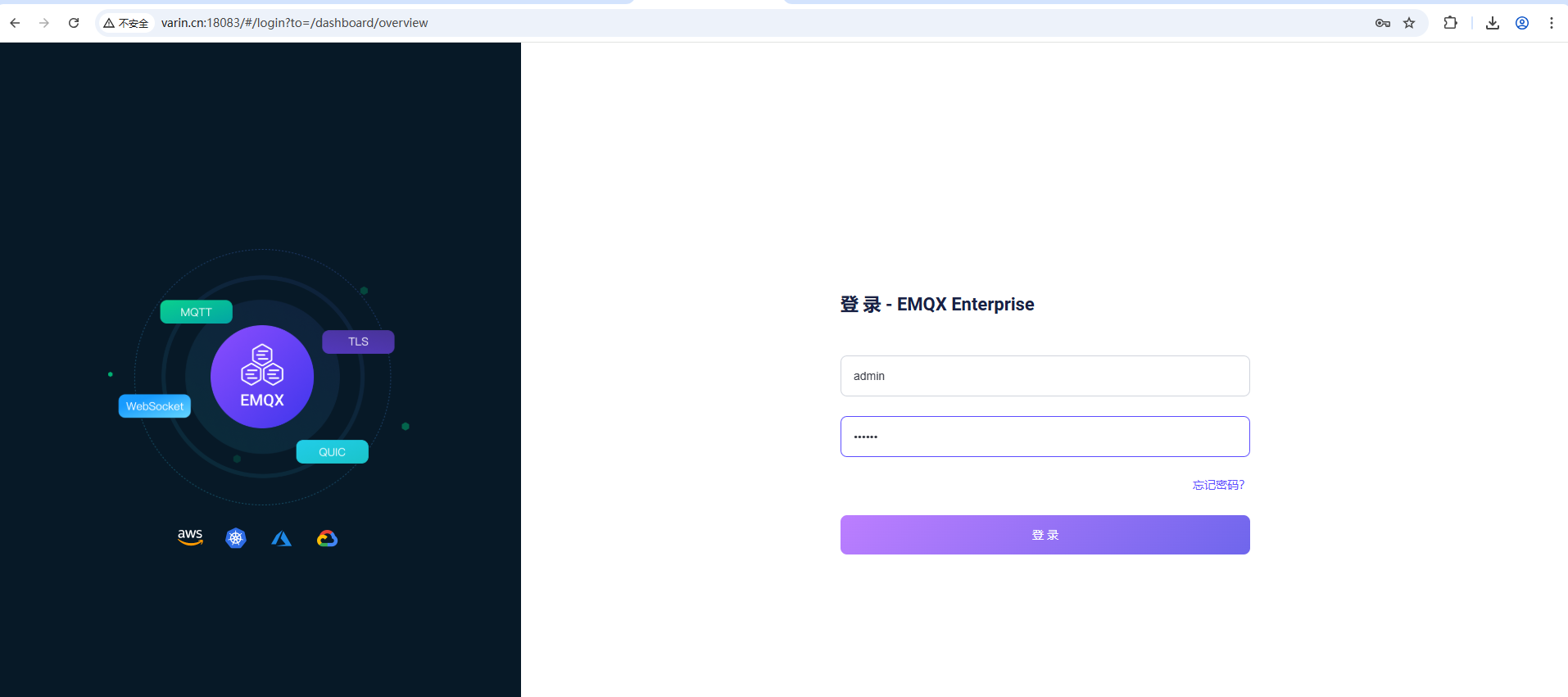

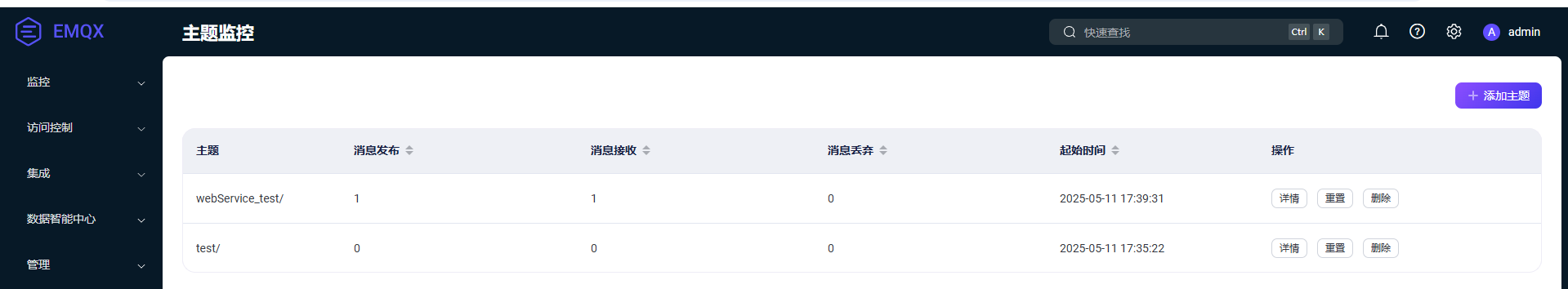

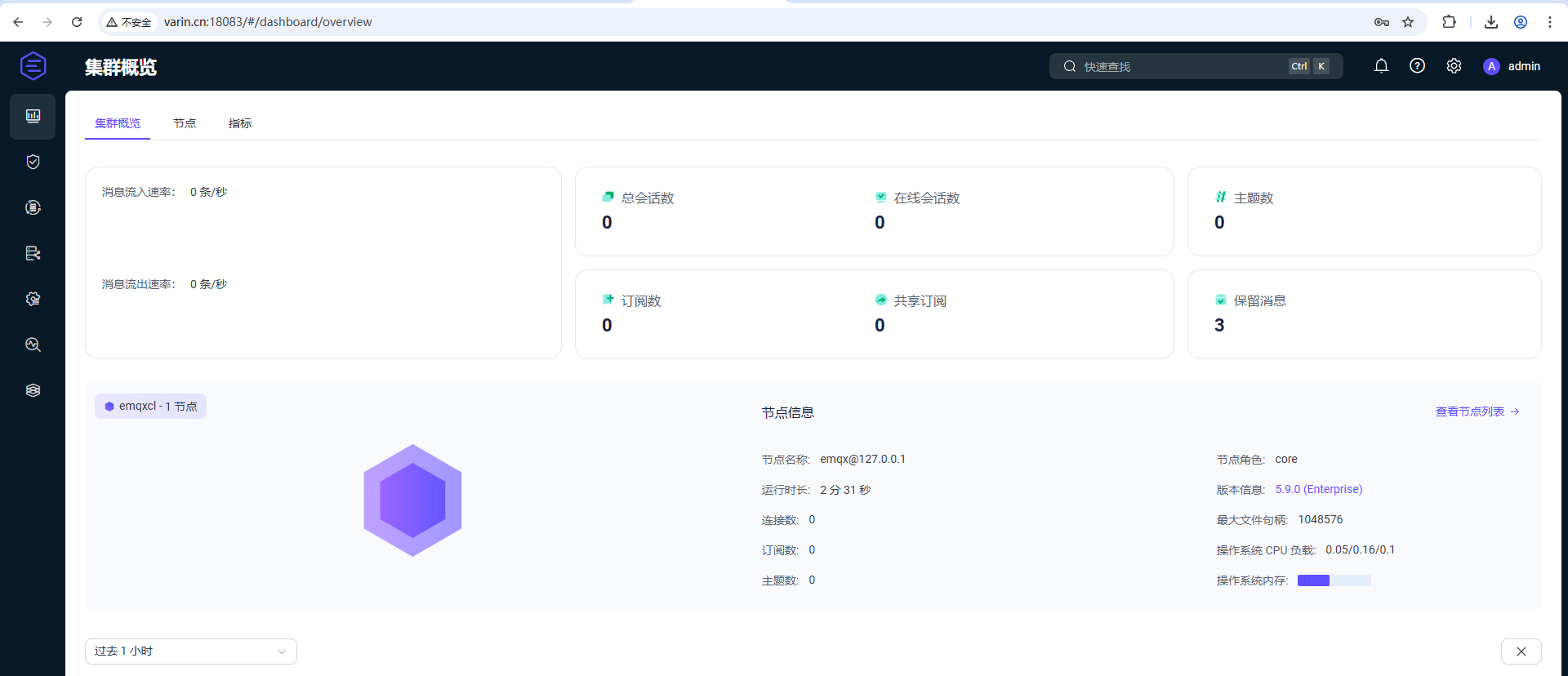

浏览器访问 http://localhost:18083，默认账号admin/public，你将看到：

二、📱 准备第一个信使（MQTTX客户端）

安装MQTTX桌面版

安装地址：https://mqttx.app/zh/downloads

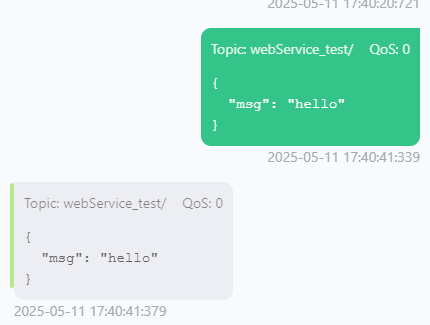

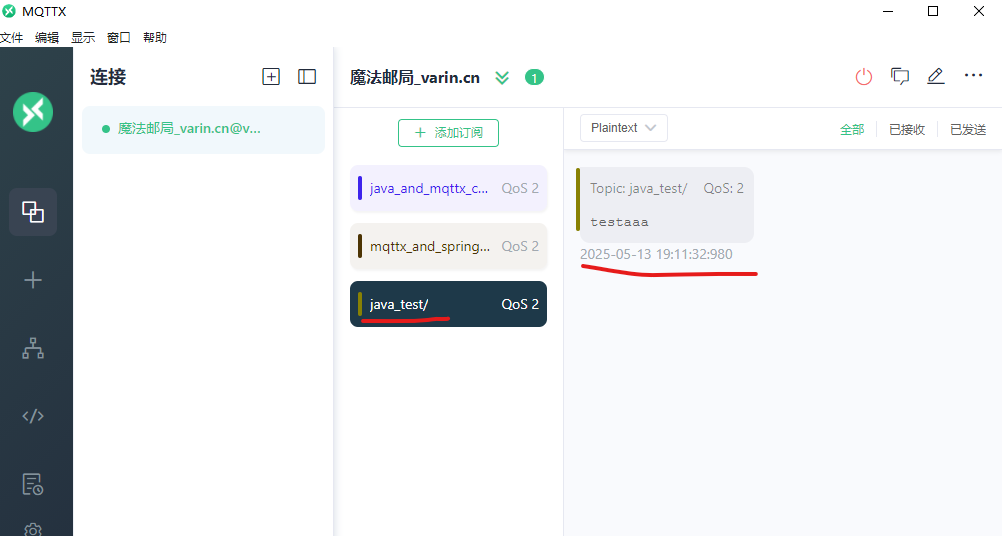

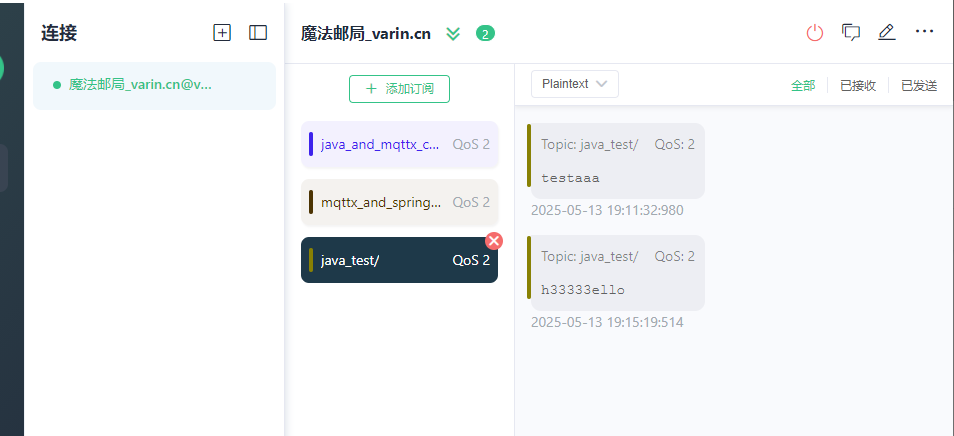

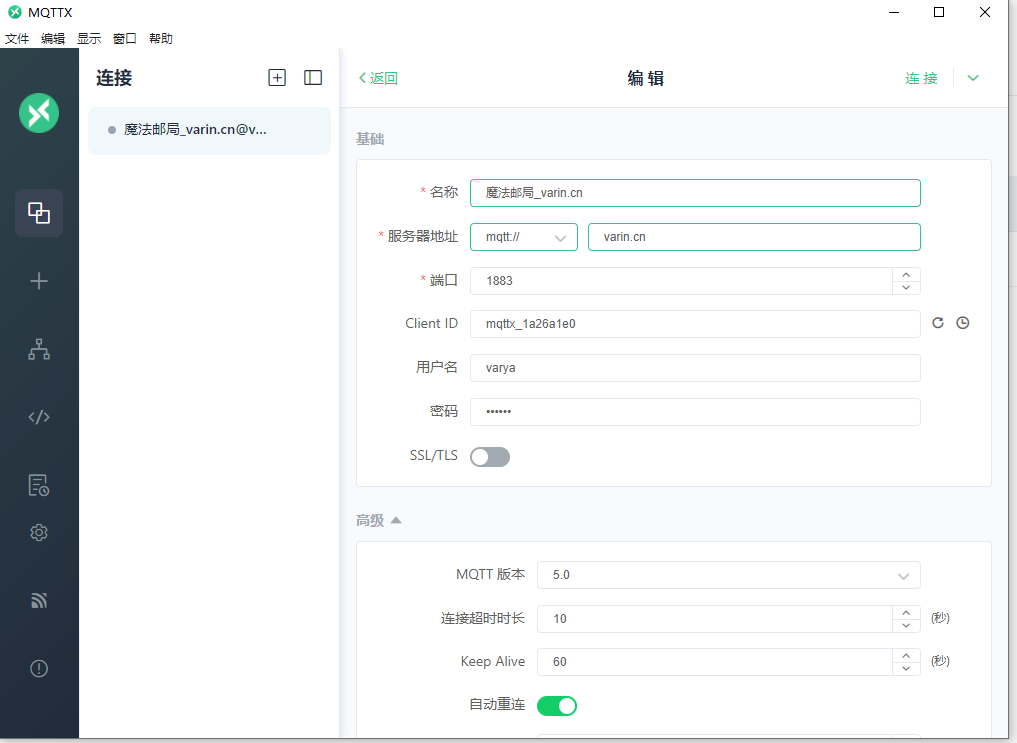

打开后新建连接：

• 名称：魔法邮箱_varin.cn
• 服务器：varin:1883

🔍 让我们用Spring Boot的魔法升级Java程序！ 把魔杖（原生Java）换成自动施法的魔法书（Spring Boot）~

✨ 三、Spring Boot的核心初始化

1. 创建魔法卷轴（Spring Boot项目）

用Spring Initializr生成项目，勾选：

• Spring Web (发送HTTP咒语)
• Spring Integration (MQTT魔法核心)

2. 添加飞天扫帚驱动（POM依赖）

<!--        消息中间件-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-integration</artifactId>
        </dependency>
<!--        流消息-->
        <dependency>
            <groupId>org.springframework.integration</groupId>
            <artifactId>spring-integration-stream</artifactId>
        </dependency>
<!--   核心依赖：     mqtt客户端-->
        <dependency>
            <groupId>org.springframework.integration</groupId>
            <artifactId>spring-integration-mqtt</artifactId>
            <version>5.5.5</version>
        </dependency>

3.设置application.yml内容

spring:
  application:
    name: mqtt-client-api

  mqtt:
    username: varya
    password: 123456
    url: tcp://varin.cn:1883
    subClientId: sub_client_id_varya
    subTopic: mqttx_and_springboot_client/,
    pubClientId: pub_client_id_vay
server:
  port: 9999

# knife4j的增强配置，不需要增强可以不配
knife4j:
  enable: true    # 开启knife4j,无需添加@EnableKnife4j注解
  setting:
    language: zh_cn   #中文
  #  swagger-model-name: 实体列表   #默认为: Swagger Models
  basic: # 开启Swagger的Basic认证功能,默认是false
    enable: false
    username: varya
    password: varya

3.建立读取mqtt关于application.yml文件实体

package cn.varin.mqttclientapi.entity;

import lombok.Data;
import org.springframework.boot.context.properties.ConfigurationProperties;

/**
 * mqtt配置属性实体类
 */
@Data
@ConfigurationProperties(prefix = "spring.mqtt") // 读取yml文件中的配置

public class MqttConfigProperties {
    private String username;
    private String password;
    private String url;
    private String subClientId;
    private String subTopic;
    private String pubClientId;
}

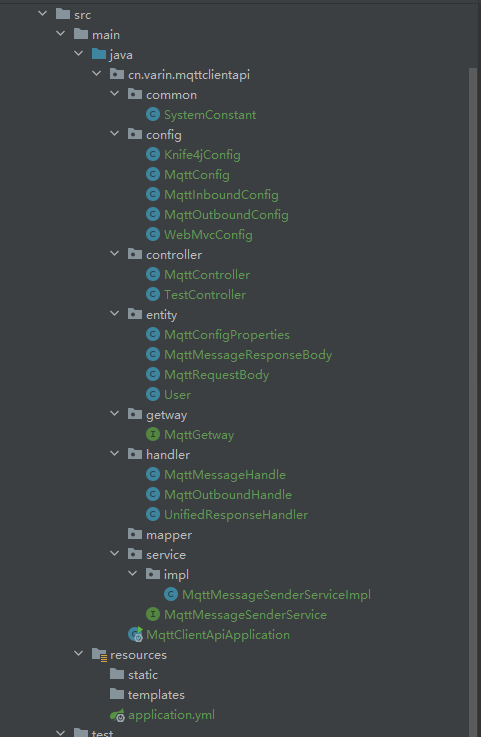

4. 参考文件目录设置

（注：该代码已上传gitcode代码仓库，欢迎阅读，下载）

🧙♂️ 四、Mqtt核心基础配置（代码篇）

1. MqttConfig（mqtt配置类）

package cn.varin.mqttclientapi.config;

import cn.varin.mqttclientapi.entity.MqttConfigProperties;
import org.eclipse.paho.client.mqttv3.MqttConnectOptions;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.integration.mqtt.core.DefaultMqttPahoClientFactory;
import org.springframework.integration.mqtt.core.MqttPahoClientFactory;

@Configuration
public class MqttConfig {
    // yml获取配置内容
    @Autowired
    private MqttConfigProperties mqttConfigProperties;
//    连接工厂建立
    @Bean
    public MqttPahoClientFactory mqttPahoClientFactory (){
        // 建立默认工程
        DefaultMqttPahoClientFactory defaultMqttPahoClientFactory = new DefaultMqttPahoClientFactory();
        // 设置连接选项内容
        MqttConnectOptions mqttConnectOptions = new MqttConnectOptions();
        mqttConnectOptions.setCleanSession(true);
        mqttConnectOptions.setUserName(mqttConfigProperties.getUsername());
        mqttConnectOptions.setPassword(mqttConfigProperties.getPassword().toCharArray());
        mqttConnectOptions.setServerURIs(new String[]{mqttConfigProperties.getUrl()});

        defaultMqttPahoClientFactory.setConnectionOptions(mqttConnectOptions );
        return  defaultMqttPahoClientFactory;
    }
}

****

🧙♂️ 五、Mqtt入站信息配置（代码篇）

1. MqttConfig（mqtt配置类）

package cn.varin.mqttclientapi.config;

import cn.varin.mqttclientapi.entity.MqttConfigProperties;
import cn.varin.mqttclientapi.handler.MqttMessageHandle;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.integration.annotation.ServiceActivator;
import org.springframework.integration.channel.DirectChannel;
import org.springframework.integration.core.MessageProducer;
import org.springframework.integration.handler.AbstractMessageHandler;
import org.springframework.integration.mqtt.core.MqttPahoClientFactory;
import org.springframework.integration.mqtt.inbound.MqttPahoMessageDrivenChannelAdapter;
import org.springframework.integration.mqtt.support.DefaultPahoMessageConverter;
import org.springframework.messaging.Message;
import org.springframework.messaging.MessageChannel;
import org.springframework.messaging.MessageHandler;
/**
 *
 * 配饰入站消息配置
 */

@Configuration
public class MqttInboundConfig {
    @Autowired
    private MqttConfigProperties mqttConfigProperties;
    @Autowired
    private MqttPahoClientFactory mqttPahoClientFactory;

    // 建立入站通道
    @Bean
    public  MessageChannel messageInboundChannel(){
        return  new DirectChannel();
    }
    // 配置入站适配器
    @Bean
    public MessageProducer messageProducer(){
        MqttPahoMessageDrivenChannelAdapter mqttPahoMessageDrivenChannelAdapter = new MqttPahoMessageDrivenChannelAdapter(
                mqttConfigProperties.getUrl(),
                mqttConfigProperties.getSubClientId(),
                mqttPahoClientFactory,
                mqttConfigProperties.getSubTopic().split(",")
        );
        mqttPahoMessageDrivenChannelAdapter.setQos(2);
        mqttPahoMessageDrivenChannelAdapter.setConverter(new DefaultPahoMessageConverter());
        // 设置通道
        mqttPahoMessageDrivenChannelAdapter.setOutputChannel( messageInboundChannel());

        return mqttPahoMessageDrivenChannelAdapter;
    }
    // 设置接收消息处理器

//    @Bean
//    @ServiceActivator(inputChannel = "messageInboundChannel")
//    public MessageHandler messageHandler (){
//        return new MqttMessageHandle();
//    }


}

2. 建立入站信息处理器（MqttMessageHandle）

package cn.varin.mqttclientapi.handler;

import cn.varin.mqttclientapi.entity.MqttMessageResponseBody;
import com.alibaba.fastjson.JSON;
import com.alibaba.fastjson.JSONObject;
import io.swagger.v3.core.util.Json;
import org.springframework.context.annotation.Configuration;
import org.springframework.integration.annotation.ServiceActivator;
import org.springframework.integration.handler.AbstractMessageHandler;
import org.springframework.messaging.Message;
import org.springframework.messaging.MessageHandler;
import org.springframework.messaging.MessageHeaders;
import org.springframework.messaging.MessagingException;
import org.springframework.stereotype.Component;
/**
 *
 * 接收消息处理器
 *
 */

@Component

public class MqttMessageHandle implements MessageHandler {


   @ServiceActivator(inputChannel = "messageInboundChannel") // 用于指定通道
    @Override
    public void handleMessage(Message<?> message) throws MessagingException {
       System.out.println("=================");

       MessageHeaders headers = message.getHeaders();
       String mqtt_receivedTopic = headers.get("mqtt_receivedTopic").toString();
       System.out.println(mqtt_receivedTopic);
       System.out.println("=================");
    }
}

🧙♂️ 六、Mqtt出站信息配置（代码篇）

1. MqttOutboundConfig（mqtt出站信息配置类）

package cn.varin.mqttclientapi.config;

import cn.varin.mqttclientapi.entity.MqttConfigProperties;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.integration.annotation.ServiceActivator;
import org.springframework.integration.channel.DirectChannel;
import org.springframework.integration.mqtt.core.MqttPahoClientFactory;
import org.springframework.integration.mqtt.outbound.MqttPahoMessageHandler;
import org.springframework.messaging.MessageChannel;
import org.springframework.messaging.MessageHandler;

@Configuration
public class MqttOutboundConfig {
    @Autowired
    private MqttConfigProperties mqttConfigProperties;
    @Autowired
    private MqttPahoClientFactory mqttPahoClientFactory;

    // 建立出站通道
    @Bean
    public MessageChannel messageOutboundChannel(){
        return new DirectChannel();
    }
    // 建立发送消息配置

    @ServiceActivator(inputChannel = "messageOutboundChannel")
    @Bean
    public MessageHandler messageOutboundHandle(){
        MqttPahoMessageHandler messageHandler = new MqttPahoMessageHandler(
        mqttConfigProperties.getUrl(),
        mqttConfigProperties.getPubClientId(),
        mqttPahoClientFactory
        );
        messageHandler.setDefaultQos(2);
        messageHandler.setDefaultTopic("default");
        messageHandler.setAsync(true);
        return messageHandler;

    }
}

2. 建立发送消息网关（MqttGetway）

package cn.varin.mqttclientapi.getway;


import org.springframework.integration.annotation.MessagingGateway;
import org.springframework.integration.mqtt.support.MqttHeaders;
import org.springframework.messaging.handler.annotation.Header;

@MessagingGateway(defaultRequestChannel = "messageOutboundChannel")
public interface MqttGetway {

    void send(@Header(value = MqttHeaders.TOPIC) String topic, String payload);
    void send(@Header(value = MqttHeaders.TOPIC) String topic, @Header(value = MqttHeaders.QOS) Integer qos, String payload);
}

2. 建立mqtt发送消息服务

package cn.varin.mqttclientapi.service;

public interface MqttMessageSenderService {

    void send(String topic, String payload);
    void send(String topic, Integer qos, String payload);
}

package cn.varin.mqttclientapi.service.impl;

import cn.varin.mqttclientapi.getway.MqttGetway;
import cn.varin.mqttclientapi.service.MqttMessageSenderService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

@Service
public class MqttMessageSenderServiceImpl  implements MqttMessageSenderService {
    @Autowired
    private MqttGetway mqttGetway;
    @Override
    public void send(String topic, String payload) {
        mqttGetway.send(topic,payload);
    }

    @Override
    public void send(String topic, Integer qos, String payload) {
        mqttGetway.send(topic,qos,payload);
    }
}

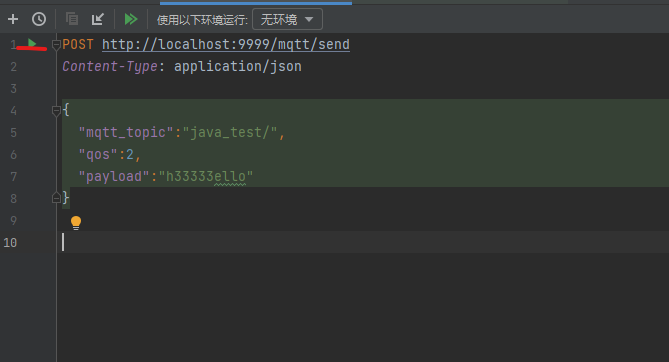

🧙♂️ 七、Mqtt消息发送Controller（代码篇）

package cn.varin.mqttclientapi.controller;


import cn.varin.mqttclientapi.entity.MqttRequestBody;
import cn.varin.mqttclientapi.handler.UnifiedResponseHandler;
import cn.varin.mqttclientapi.service.MqttMessageSenderService;
import cn.varin.mqttclientapi.service.impl.MqttMessageSenderServiceImpl;
import io.swagger.v3.oas.annotations.Operation;
import io.swagger.v3.oas.annotations.tags.Tag;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;

@Tag(name = "MQTT服务接口")
@RestController
@RequestMapping("/mqtt")
public class MqttController {

    @Autowired
    private MqttMessageSenderServiceImpl mqttMessageSenderService;

    @Operation(summary = "发送消息，")
    @PostMapping("/send,有qos")
    public UnifiedResponseHandler.Result send(@RequestBody MqttRequestBody mqttRequestBody){
            System.out.println(mqttRequestBody.toString());
        mqttMessageSenderService.send(mqttRequestBody.getMqtt_topic(),mqttRequestBody.getQos(),mqttRequestBody.getPayload());
        return new UnifiedResponseHandler.Result(200,"success",null);
    }
    @Operation(summary = "发送消息,无qos")
    @PostMapping("/send")
    public UnifiedResponseHandler.Result send2(@RequestBody MqttRequestBody mqttRequestBody){
        System.out.println(mqttRequestBody.toString());
        mqttMessageSenderService.send(mqttRequestBody.getMqtt_topic(),mqttRequestBody.getPayload());
        return new UnifiedResponseHandler.Result(200,"success",null);
    }

}

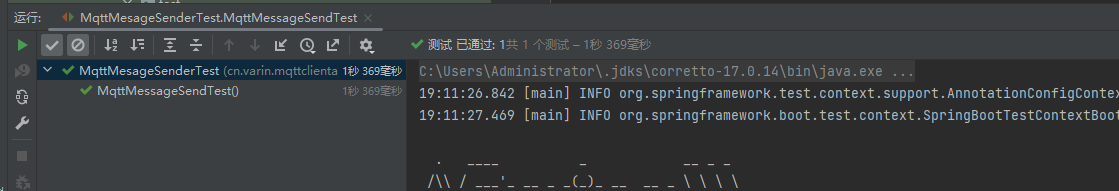

🧙♂️ 八、MqttTest测试文件（代码篇）

1. 参考目录

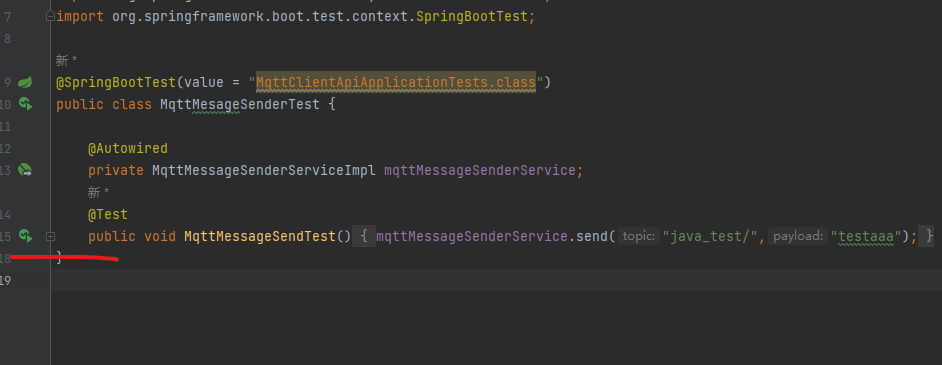

2. 建立test启动类

package cn.varin.mqttclientapi;

import org.junit.jupiter.api.Test;
import org.springframework.boot.test.context.SpringBootTest;

@SpringBootTest
class MqttClientApiApplicationTests {

    @Test
    void contextLoads() {
    }

}

3. 测试代码

package cn.varin.mqttclientapi.test;


import cn.varin.mqttclientapi.service.impl.MqttMessageSenderServiceImpl;
import org.junit.jupiter.api.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;

@SpringBootTest(value = "MqttClientApiApplicationTests.class")
public class MqttMesageSenderTest {

    @Autowired
    private MqttMessageSenderServiceImpl mqttMessageSenderService;
    @Test
    public void MqttMessageSendTest(){
        // 实际业务
        mqttMessageSenderService.send("java_test/","testaaa");
    }
}

🌌🚀 九、通信魔法测试大赏

场景1：使用Test测试类测试

1. 点击启动按钮（画红线的绿色按钮）

2. 显示测试结果

场景2：HTTP请求测试（使用idea自带的http接口测试插件）

1. 在MQTTX发送：

POST http://localhost:9999/mqtt/send
Content-Type: application/json

{
  "mqtt_topic":"java_test/",
  "qos":2,
  "payload":"h33333ello"
}

(点击红线上的绿色按钮)

2. 测试结果：

3. Spring Boot控制台会：

升级完毕！ 现在你的MQTT程序拥有了Spring Boot的自动施法能力，就像拥有了老魔杖+隐形斗篷+复活石的组合！快去征服分布式魔法世界吧~ 🎩

常见问题排查

通过本方案，您已经构建了一个基于Spring Boot的企业级MQTT通信系统。这种架构可广泛应用于物联网设备管理、实时数据采集、远程控制等场景，为智能硬件与云端系统搭建了可靠的消息桥梁。
