如何用docker部署ELK？

发布于：2025-06-02 ⋅ 阅读:(25) ⋅ 点赞:(0)

环境：

ELK 8.8.0

Ubuntu20.04

问题描述：

如何用docker部署ELK？
在这里插入图片描述

解决方案：

一、环境准备

（一）主机设置

  1. 安装 Docker Engine ：版本需为 18.06.0 或更新。可通过命令 docker --version 检查版本。安装方式根据操作系统不同而有所差异，在 Linux 系统上可通过包管理工具安装，如在 Ubuntu 上使用 sudo apt-get install docker.io；在 CentOS 上使用 sudo yum install docker 。安装完成后，建议添加当前用户到 docker 用户组，以便无需 sudo 即可操作 Docker，执行命令 sudo usermod -aG docker ${USER}，然后重新登录使更改生效。

  2. 安装 Docker Compose ：版本要求 2.0.0 或更新。可使用 Python 的 pip 包管理工具安装，命令为 pip install -U docker-compose。此外，也可以从 Docker 的官方 GitHub 仓库下载二进制文件进行安装。在 Linux 上，可以通过以下命令安装指定版本的 Docker Compose：

    sudo curl -L "https://github.com/docker/compose/releases/download/$(DOCKER_COMPOSE_VERSION)/docker-compose-$(uname -s)-$(uname -m)" -o /usr/local/bin/docker-compose
sudo chmod +x /usr/local/bin/docker-compose

    将 $(DOCKER_COMPOSE_VERSION) 替换为所需的版本号，如 v2.21.0。

二、项目克隆与初始化

1.执行以下命令将 ELK 项目的仓库克隆到本地 Docker 主机：

git clone https://github.com/deviantony/docker-elk.git

2.进入项目目录：

cd docker-elk

新建.evn文件

touch .evn

设置下面相关密码

ELASTIC_VERSION=8.8.0
ELASTIC_PASSWORD=dff$#123e12
KIBANA_SYSTEM_PASSWORD=dff$#123e12
LOGSTASH_INTERNAL_PASSWORD=dff$#123e12
METRICBEAT_INTERNAL_PASSWORD=dff$#123e12Yor
FILEBEAT_INTERNAL_PASSWORD=dff$#123e12Your
HEARTBEAT_INTERNAL_PASSWORD=dff$#123e12urSt
MONITORING_INTERNAL_PASSWORD=dff$#123ePa
BEATS_SYSTEM_PASSWORD=dff$#123e12YoPas

按需更改配置文件

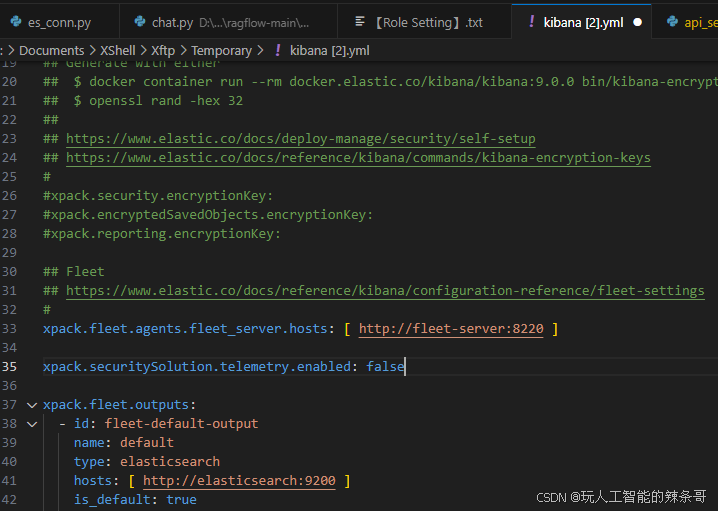

3.kibaba.yml新增下面内容

xpack.securitySolution.telemetry.enabled: false

在这里插入图片描述

4.编写docker-compose.yml信息

 nano docker-compose.yml

services:

  # The 'setup' service runs a one-off script which initializes users inside
  # Elasticsearch — such as 'logstash_internal' and 'kibana_system' — with the
  # values of the passwords defined in the '.env' file. It also creates the
  # roles required by some of these users.
  #
  # This task only needs to be performed once, during the *initial* startup of
  # the stack. Any subsequent run will reset the passwords of existing users to
  # the values defined inside the '.env' file, and the built-in roles to their
  # default permissions.
  #
  # By default, it is excluded from the services started by 'docker compose up'
  # due to the non-default profile it belongs to. To run it, either provide the
  # '--profile=setup' CLI flag to Compose commands, or "up" the service by name
  # such as 'docker compose up setup'.
  setup:
    profiles:
      - setup
    build:
      context: setup/
      args:
        ELASTIC_VERSION: ${ELASTIC_VERSION}
    init: true
    volumes:
      - ./setup/entrypoint.sh:/entrypoint.sh:ro,Z
      - ./setup/lib.sh:/lib.sh:ro,Z
      - ./setup/roles:/roles:ro,Z
    environment:
      ELASTIC_PASSWORD: ${ELASTIC_PASSWORD:-}
      LOGSTASH_INTERNAL_PASSWORD: ${LOGSTASH_INTERNAL_PASSWORD:-}
      KIBANA_SYSTEM_PASSWORD: ${KIBANA_SYSTEM_PASSWORD:-}
      METRICBEAT_INTERNAL_PASSWORD: ${METRICBEAT_INTERNAL_PASSWORD:-}
      FILEBEAT_INTERNAL_PASSWORD: ${FILEBEAT_INTERNAL_PASSWORD:-}
      HEARTBEAT_INTERNAL_PASSWORD: ${HEARTBEAT_INTERNAL_PASSWORD:-}
      MONITORING_INTERNAL_PASSWORD: ${MONITORING_INTERNAL_PASSWORD:-}
      BEATS_SYSTEM_PASSWORD: ${BEATS_SYSTEM_PASSWORD:-}
    networks:
      - elk
    depends_on:
      - elasticsearch

  elasticsearch:
    build:
      context: elasticsearch/
      args:
        ELASTIC_VERSION: ${ELASTIC_VERSION}
    volumes:
      - ./elasticsearch/config/elasticsearch.yml:/usr/share/elasticsearch/config/elasticsearch.yml:ro,Z
      - elasticsearch:/usr/share/elasticsearch/data:Z
    ports:
      - 9210:9200
      - 9310:9300
    environment:
      node.name: elasticsearch
      ES_JAVA_OPTS: -Xms512m -Xmx512m
      # Bootstrap password.
      # Used to initialize the keystore during the initial startup of
      # Elasticsearch. Ignored on subsequent runs.
      ELASTIC_PASSWORD: ${ELASTIC_PASSWORD:-}
      # Use single node discovery in order to disable production mode and avoid bootstrap checks.
      # see: https://www.elastic.co/docs/deploy-manage/deploy/self-managed/bootstrap-checks
      discovery.type: single-node
    networks:
      - elk
    restart: unless-stopped

  logstash:
    build:
      context: logstash/
      args:
        ELASTIC_VERSION: ${ELASTIC_VERSION}
    volumes:
      - ./logstash/config/logstash.yml:/usr/share/logstash/config/logstash.yml:ro,Z
      - ./logstash/pipeline:/usr/share/logstash/pipeline:ro,Z
    ports:
      - 5044:5044
      - 50000:50000/tcp
      - 50000:50000/udp
      - 9600:9600
    environment:
      LS_JAVA_OPTS: -Xms256m -Xmx256m
      LOGSTASH_INTERNAL_PASSWORD: ${LOGSTASH_INTERNAL_PASSWORD:-}
    networks:
      - elk
    depends_on:
      - elasticsearch
    restart: unless-stopped

  kibana:
    build:
      context: kibana/
      args:
        ELASTIC_VERSION: ${ELASTIC_VERSION}
    volumes:
      - ./kibana/config/kibana.yml:/usr/share/kibana/config/kibana.yml:ro,Z
    ports:
      - 7000:5601
    environment:
      KIBANA_SYSTEM_PASSWORD: ${KIBANA_SYSTEM_PASSWORD:-}
    networks:
      - elk
    depends_on:
      - elasticsearch
    restart: unless-stopped
    logging:
      driver: "json-file"
      options:
        max-size: "10m"
        max-file: "3"


networks:
  elk:
    driver: bridge

volumes:
  elasticsearch:

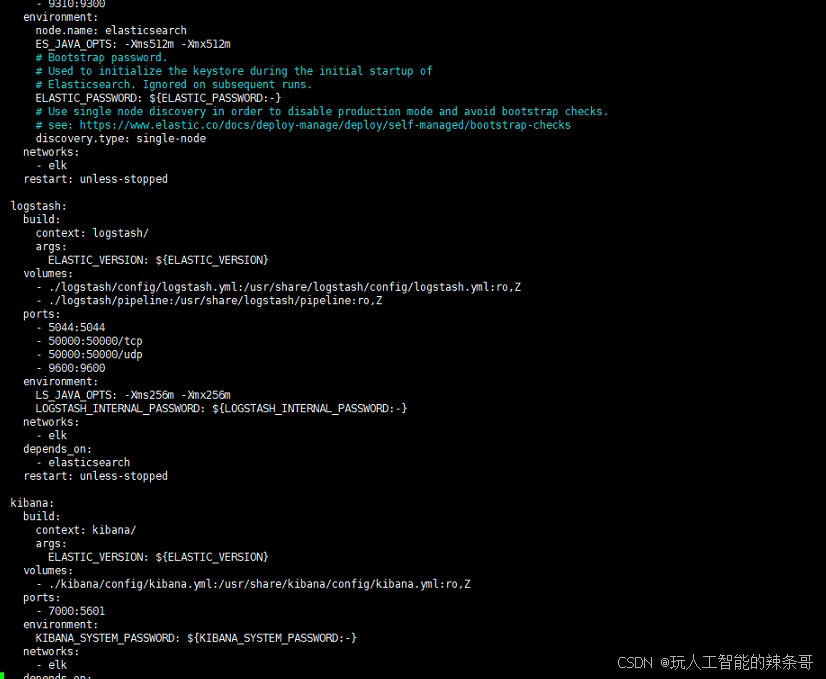

按需改默认端口
在这里插入图片描述

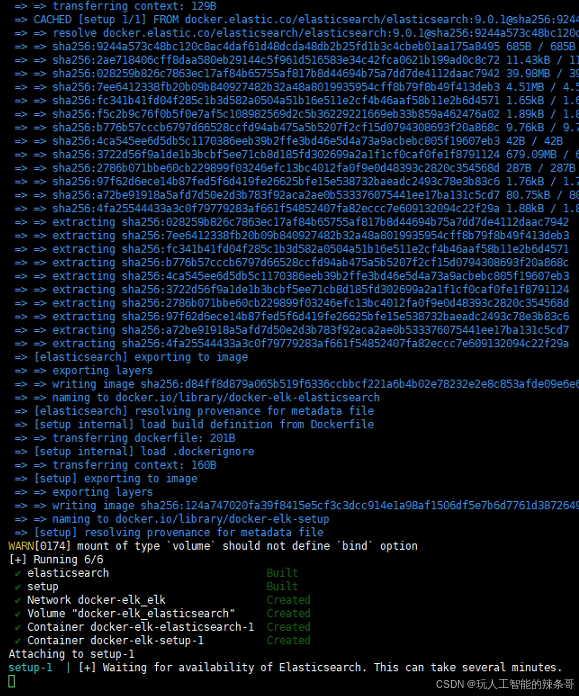

5.然后，初始化 Elasticsearch 用户和组，执行命令：

docker compose up setup

在这里插入图片描述

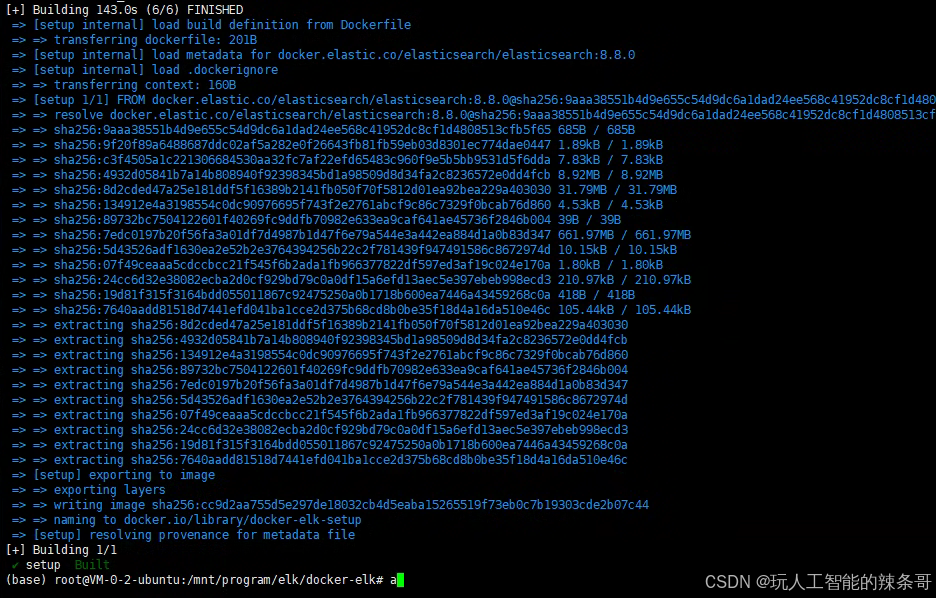

docker compose build setup

在这里插入图片描述

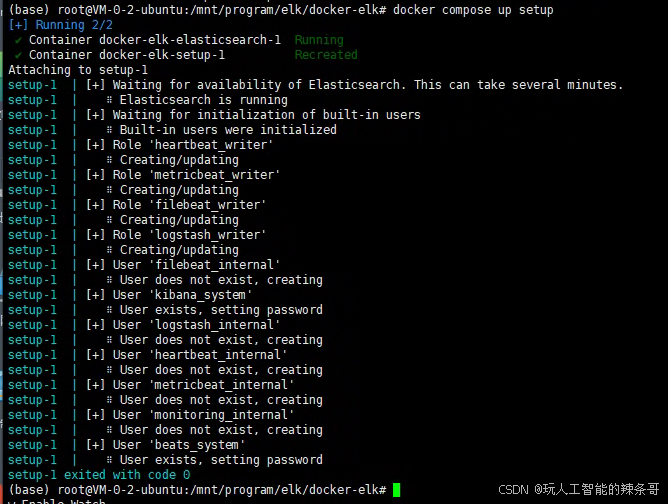

docker compose up setup
在这里插入图片描述

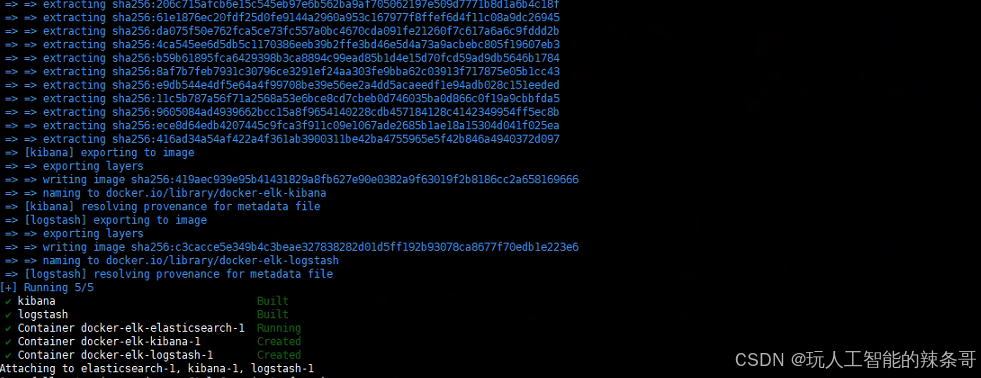

6.如果上述初始化过程顺利完成且无错误，接下来启动 ELK 堆栈的其他组件：

docker compose up

在这里插入图片描述

也可以在命令后加上 -d 标志，以背景模式（分离模式）运行所有服务（正式使用）：

docker compose up -d

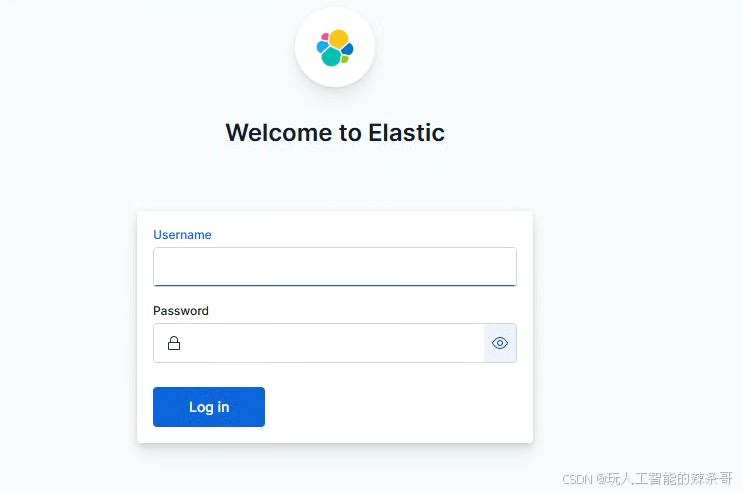

7.等待 Kibana 初始化完成（大约需要一分钟），通过浏览器访问 http://localhost:5601，使用上面你预设的用户名 elastic 和密码 changeme 登录。
在这里插入图片描述

禁用付费功能

可以在 Kibana 的许可证管理面板或使用 Elasticsearch 的 start_basic Licensing API 来取消正在进行的试用，从而恢复为基本许可证。需要指出的是，如果没有在试用到期日期之前将许可证切换到 basic 或进行升级，那么第二种方法是恢复对 Kibana 的访问权限的唯一途径。

二、配置使用

1.使用 Filebeat 采集本地 vllm.log
安装 Filebeat
如果尚未安装 Filebeat，可以参考如下命令（以 Ubuntu 为例）：

curl -L -O https://artifacts.elastic.co/downloads/beats/filebeat/filebeat-8.6.3-amd64.deb
sudo dpkg -i filebeat-9.0.1-amd64.deb

进入目标文件夹安装

cd/mnt/program/Qwen3


(base) root@VM-0-2-ubuntu:/mnt/program/Qwen3# sudo dpkg -i filebeat-9.0.1-amd64.deb
Selecting previously unselected package filebeat.
(Reading database ... 162166 files and directories currently installed.)
Preparing to unpack filebeat-9.0.1-amd64.deb ...
Unpacking filebeat (9.0.1) ...
Setting up filebeat (9.0.1) ...

2.启动服务

sudo systemctl start filebeat

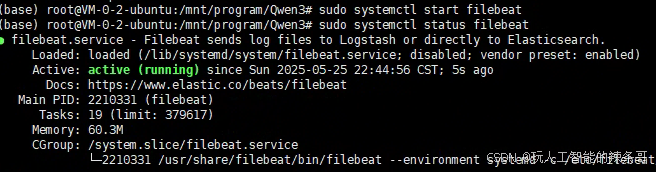

查看状态

sudo systemctl status filebeat

在这里插入图片描述
查看日志

sudo journalctl -u filebeat -f

或者通过 apt 安装：

sudo apt-get install filebeat

3.查看配置文件

(base) root@VM-0-2-ubuntu:/mnt/program/Qwen3# cat  /etc/filebeat/filebeat.yml
###################### Filebeat Configuration Example #########################

# This file is an example configuration file highlighting only the most common
# options. The filebeat.reference.yml file from the same directory contains all the
# supported options with more comments. You can use it as a reference.
#
# You can find the full configuration reference here:
# https://www.elastic.co/guide/en/beats/filebeat/index.html

# For more available modules and options, please see the filebeat.reference.yml sample
# configuration file.

# ============================== Filebeat inputs ===============================

filebeat.inputs:

# Each - is an input. Most options can be set at the input level, so
# you can use different inputs for various configurations.
# Below are the input-specific configurations.

# filestream is an input for collecting log messages from files.
#- type: filestream
- type: journald
 # seek: cursor
  # Unique ID among all inputs, an ID is required.
 # id: qwen-vllm-journal
  #include_matches:
   # - _SYSTEMD_UNIT=qwen-vllm.service
  # 可选，设置最大读取的日志条数
  #max_entries: 1000

  # Change to true to enable this input configuration.
  enabled: true
  units:
    - qwen-vllm.service
  # Paths that should be crawled and fetched. Glob based paths.
  #paths:
   # - /var/log/*.log
    #- c:\programdata\elasticsearch\logs\*

  # Exclude lines. A list of regular expressions to match. It drops the lines that are
  # matching any regular expression from the list.
  # Line filtering happens after the parsers pipeline. If you would like to filter lines
  # before parsers, use include_message parser.
  #exclude_lines: ['^DBG']

  # Include lines. A list of regular expressions to match. It exports the lines that are
  # matching any regular expression from the list.
  # Line filtering happens after the parsers pipeline. If you would like to filter lines
  # before parsers, use include_message parser.
  #include_lines: ['^ERR', '^WARN']

  # Exclude files. A list of regular expressions to match. Filebeat drops the files that
  # are matching any regular expression from the list. By default, no files are dropped.
  #prospector.scanner.exclude_files: ['.gz$']

  # Optional additional fields. These fields can be freely picked
  # to add additional information to the crawled log files for filtering
  #fields:
  #  level: debug
  #  review: 1

# journald is an input for collecting logs from Journald
#- type: journald

  # Unique ID among all inputs, if the ID changes, all entries
  # will be re-ingested
  #id: my-journald-id

  # The position to start reading from the journal, valid options are:
  #  - head: Starts reading at the beginning of the journal.
  #  - tail: Starts reading at the end of the journal.
  #    This means that no events will be sent until a new message is written.
  #  - since: Use also the `since` option to determine when to start reading from.
  #seek: head

  # A time offset from the current time to start reading from.
  # To use since, seek option must be set to since.
  #since: -24h

  # Collect events from the service and messages about the service,
  # including coredumps.
  #units:
    #- docker.service

# ============================== Filebeat modules ==============================

filebeat.config.modules:
  # Glob pattern for configuration loading
  path: ${path.config}/modules.d/*.yml

  # Set to true to enable config reloading
  reload.enabled: false

  # Period on which files under path should be checked for changes
  #reload.period: 10s

# ======================= Elasticsearch template setting =======================

setup.template.settings:
  index.number_of_shards: 1
  #index.codec: best_compression
  #_source.enabled: false


# ================================== General ===================================

# The name of the shipper that publishes the network data. It can be used to group
# all the transactions sent by a single shipper in the web interface.
#name:

# The tags of the shipper are included in their field with each
# transaction published.
#tags: ["service-X", "web-tier"]

# Optional fields that you can specify to add additional information to the
# output.
#fields:
#  env: staging

# ================================= Dashboards =================================
# These settings control loading the sample dashboards to the Kibana index. Loading
# the dashboards is disabled by default and can be enabled either by setting the
# options here or by using the `setup` command.
#setup.dashboards.enabled: false

# The URL from where to download the dashboard archive. By default, this URL
# has a value that is computed based on the Beat name and version. For released
# versions, this URL points to the dashboard archive on the artifacts.elastic.co
# website.
#setup.dashboards.url:

# =================================== Kibana ===================================

# Starting with Beats version 6.0.0, the dashboards are loaded via the Kibana API.
# This requires a Kibana endpoint configuration.
setup.kibana:
  host: "http://localhost:7000"
  # Kibana Host
  # Scheme and port can be left out and will be set to the default (http and 5601)
  # In case you specify and additional path, the scheme is required: http://localhost:5601/path
  # IPv6 addresses should always be defined as: https://[2001:db8::1]:5601
  #host: "localhost:5601"

  # Kibana Space ID
  # ID of the Kibana Space into which the dashboards should be loaded. By default,
  # the Default Space will be used.
  #space.id:

# =============================== Elastic Cloud ================================

# These settings simplify using Filebeat with the Elastic Cloud (https://cloud.elastic.co/).

# The cloud.id setting overwrites the `output.elasticsearch.hosts` and
# `setup.kibana.host` options.
# You can find the `cloud.id` in the Elastic Cloud web UI.
#cloud.id:

# The cloud.auth setting overwrites the `output.elasticsearch.username` and
# `output.elasticsearch.password` settings. The format is `<user>:<pass>`.
#cloud.auth:

# ================================== Outputs ===================================

# Configure what output to use when sending the data collected by the beat.

# ---------------------------- Elasticsearch Output ----------------------------
output.elasticsearch:
  # Array of hosts to connect to.
  hosts: ["localhost:9210"]
  username: "elastic"
  password: "dff$#123e12"
  # Performance preset - one of "balanced", "throughput", "scale",
  # "latency", or "custom".
  preset: balanced

  # Protocol - either `http` (default) or `https`.
  #protocol: "https"

  # Authentication credentials - either API key or username/password.
  #api_key: "id:api_key"
  #username: "elastic"
  #password: "changeme"

# ------------------------------ Logstash Output -------------------------------
#output.logstash:
  # The Logstash hosts
  #hosts: ["localhost:5044"]

  # Optional SSL. By default is off.
  # List of root certificates for HTTPS server verifications
  #ssl.certificate_authorities: ["/etc/pki/root/ca.pem"]

  # Certificate for SSL client authentication
  #ssl.certificate: "/etc/pki/client/cert.pem"

  # Client Certificate Key
  #ssl.key: "/etc/pki/client/cert.key"

# ================================= Processors =================================
processors:
  - add_host_metadata:
      when.not.contains.tags: forwarded
  - add_cloud_metadata: ~
  - add_docker_metadata: ~
  - add_kubernetes_metadata: ~

# ================================== Logging ===================================

# Sets log level. The default log level is info.
# Available log levels are: error, warning, info, debug
#logging.level: debug

# At debug level, you can selectively enable logging only for some components.
# To enable all selectors, use ["*"]. Examples of other selectors are "beat",
# "publisher", "service".
#logging.selectors: ["*"]

# ============================= X-Pack Monitoring ==============================
# Filebeat can export internal metrics to a central Elasticsearch monitoring
# cluster.  This requires xpack monitoring to be enabled in Elasticsearch.  The
# reporting is disabled by default.

# Set to true to enable the monitoring reporter.
#monitoring.enabled: false

# Sets the UUID of the Elasticsearch cluster under which monitoring data for this
# Filebeat instance will appear in the Stack Monitoring UI. If output.elasticsearch
# is enabled, the UUID is derived from the Elasticsearch cluster referenced by output.elasticsearch.
#monitoring.cluster_uuid:

# Uncomment to send the metrics to Elasticsearch. Most settings from the
# Elasticsearch outputs are accepted here as well.
# Note that the settings should point to your Elasticsearch *monitoring* cluster.
# Any setting that is not set is automatically inherited from the Elasticsearch
# output configuration, so if you have the Elasticsearch output configured such
# that it is pointing to your Elasticsearch monitoring cluster, you can simply
# uncomment the following line.
#monitoring.elasticsearch:

# ============================== Instrumentation ===============================

# Instrumentation support for the filebeat.
#instrumentation:
    # Set to true to enable instrumentation of filebeat.
    #enabled: false

    # Environment in which filebeat is running on (eg: staging, production, etc.)
    #environment: ""

    # APM Server hosts to report instrumentation results to.
    #hosts:
    #  - http://localhost:8200

    # API Key for the APM Server(s).
    # If api_key is set then secret_token will be ignored.
    #api_key:

    # Secret token for the APM Server(s).
    #secret_token:


# ================================= Migration ==================================

# This allows to enable 6.7 migration aliases
#migration.6_to_7.enabled: true

配置 Filebeat 采集 vllm.log
编辑 Filebeat 配置文件 /etc/filebeat/filebeat.yml，添加 vllm.log 的采集路径：

base) root@VM-0-2-ubuntu:/mnt/program/Qwen3# nano /etc/filebeat/filebeat.yml
(base) root@VM-0-2-ubuntu:/mnt/program/Qwen3# sudo filebeat test config
Config OK

sudo filebeat modules enable system

nano /etc/filebeat/modules.d/system.yml

# Module: system
# Docs: https://www.elastic.co/guide/en/beats/filebeat/main/filebeat-module-system.html

- module: system
  # Syslog
  syslog:
    enabled: true
    var.paths: ["/var/log/syslog*","/var/log/messages*"]
  journal:
    enabled: true
    var.include_matches:
      - _SYSTEMD_UNIT=qwen-vllm.service

    # Set custom paths for the log files. If left empty,
    # Filebeat will choose the paths depending on your OS.
    #var.paths:

    # Use journald to collect system logs
    #var.use_journald: false

  # Authorization logs
  auth:
    enabled: false

    # Set custom paths for the log files. If left empty,
    # Filebeat will choose the paths depending on your OS.
    #var.paths:

    # Use journald to collect auth logs
    #var.use_journald: false



filebeat.inputs:
- type: log
  enabled: true
  paths:
    - /path/to/vllm.log         # 替换为实际 vllm.log 文件路径
  fields:
    log_type: vllm
  fields_under_root: true
  multiline.pattern: '^\['      # 如果 vllm.log 是多行日志，例如异常堆栈，可以配置 multiline
  multiline.negate: true
  multiline.match: after

output.elasticsearch:
  hosts: ["localhost:9200"]      # Elasticsearch 地址，调整为您的地址
fields 可以自定义字段，方便 Kibana 过滤查询；

4.如果 ELK 通过 Logstash 处理日志，可以将输出改为 Logstash：

output.logstash:
  hosts: ["localhost:5044"]

启动并测试 Filebeat

sudo systemctl enable filebeat
sudo systemctl start filebeat
sudo tail -f /var/log/filebeat/filebeat

确认 Filebeat 正常采集并发送日志。

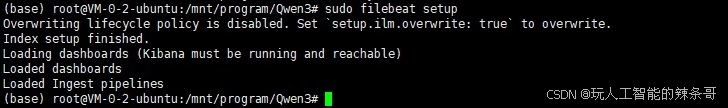

5.设置 Filebeat 并重启

sudo filebeat setup
sudo systemctl restart filebeat

在这里插入图片描述
验证是否正常采集日志

sudo journalctl -u qwen-vllm.service -f
sudo tail -f /var/log/filebeat/filebeat

观察 Filebeat 日志是否有采集到相关日志事件。

在这里插入图片描述

6.web配置

1. 创建 Data View

  1. 进入 Kibana：
    • 打开 Kibana 并登录。
  2. 进入 Data Views：
    • 在左侧导航栏中，点击 Kibana，然后选择 Data Views。
  3. 创建新的 Data View：
    • 点击 Create data view。
    • 在 Name 字段中，输入一个名称（例如：filebeat-logs）。
    • 在 Index pattern 字段中，输入索引名称（例如：.ds-filebeat-9.0.1-2025.05.25-000001 或 filebeat-*）。
    • 如果需要，选择时间字段（通常是 @timestamp）。
    • 点击 Save data view。

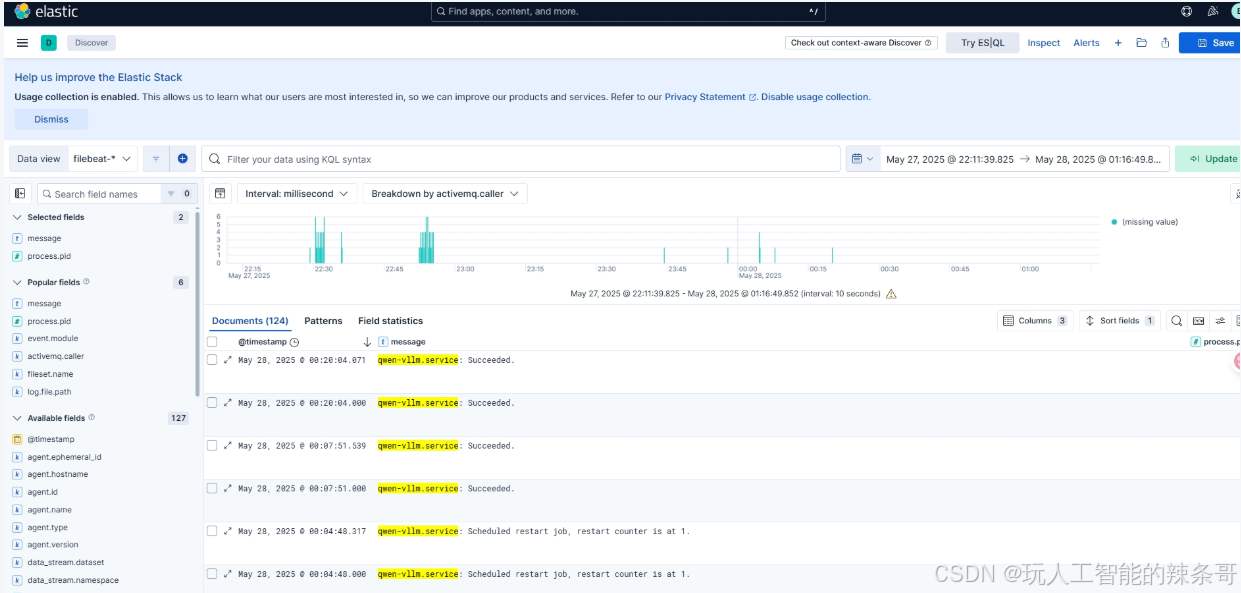

2. 查看日志数据

  1. 进入 Discover：
    • 在左侧导航栏中，点击 Discover。
  2. 选择 Data View：
    • 在左上角的下拉菜单中，选择刚刚创建的 Data View（例如：filebeat-logs）。
  3. 查看日志：
    • Kibana 会显示该索引中的日志数据。
    • 使用时间过滤器（右上角）和搜索栏（顶部）来筛选和搜索日志。
  4. 查看字段：
    • 在左侧的字段列表中，点击字段名称可以查看该字段的值分布。
    • 您可以通过点击字段名称旁边的 Add 按钮，将字段添加到日志表格中。

在这里插入图片描述

3. 使用过滤器

  1. 时间过滤器：
    • 在右上角的时间选择器中，选择要查看的时间范围（例如：最近 15 分钟、最近 1 小时等）。
  2. 字段过滤器：
    • 在日志表格中，点击某个字段的值，然后选择 Filter for value 或 Filter out value。
  3. 搜索栏：
    • 在顶部的搜索栏中，输入关键字或 Lucene 查询语法来过滤日志（例如：message: "error"）。

4. 保存和导出

  1. 保存搜索：
    • 在顶部点击 Save，可以将当前的搜索条件保存为一个视图，方便下次快速访问。
  2. 导出数据：
    • 在顶部点击 Share，然后选择 CSV Reports 或 Raw Documents，可以将日志数据导出为 CSV 或 JSON 文件。

5. 可视化日志数据

  1. 进入 Visualize Library：
    • 在左侧导航栏中，点击 Visualize Library。
  2. 创建可视化：
    • 点击 Create visualization，选择图表类型（如柱状图、饼图等）。
    • 选择数据源（如 filebeat-logs Data View）。
    • 配置 X 轴和 Y 轴，例如：按时间统计日志数量，或按字段值分组统计。
  3. 保存可视化：
    • 完成后，点击 Save 保存可视化。

在这里插入图片描述

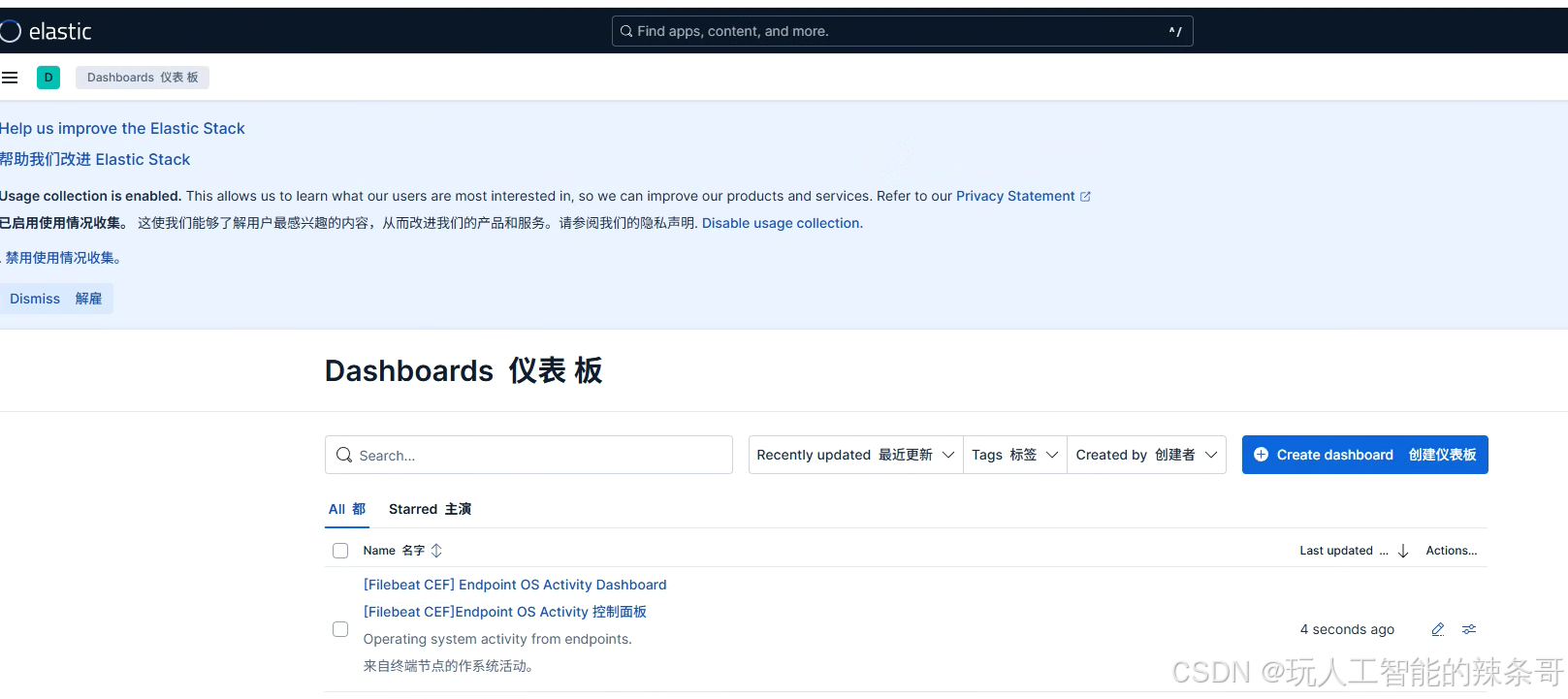

6. 使用 Dashboard

  1. 进入 Dashboard：
    • 在左侧导航栏中，点击 Dashboard。
  2. 创建仪表板：
    • 点击 Create dashboard。
    • 添加之前创建的可视化图表或保存的搜索视图。
  3. 保存仪表板：
    • 完成后，点击 Save 保存仪表板。

网站公告

今日签到

点亮在社区的每一天
去签到

热门文章

最新发布
