高性能熔断限流实现：Spring Cloud Gateway 在电商系统的实战优化

一、为什么需要高性能熔断限流？

在电商系统中，尤其是大促期间，系统面临的流量可能是平时的数十倍甚至上百倍。

这样的场景下，熔断限流不再是可选功能，而是保障系统稳定的生命线。传统方案的问题：

1. 限流精度不足导致误杀正常请求
2. 熔断策略僵化引发雪崩效应
3. 分布式环境限流不一致

二、核心架构设计

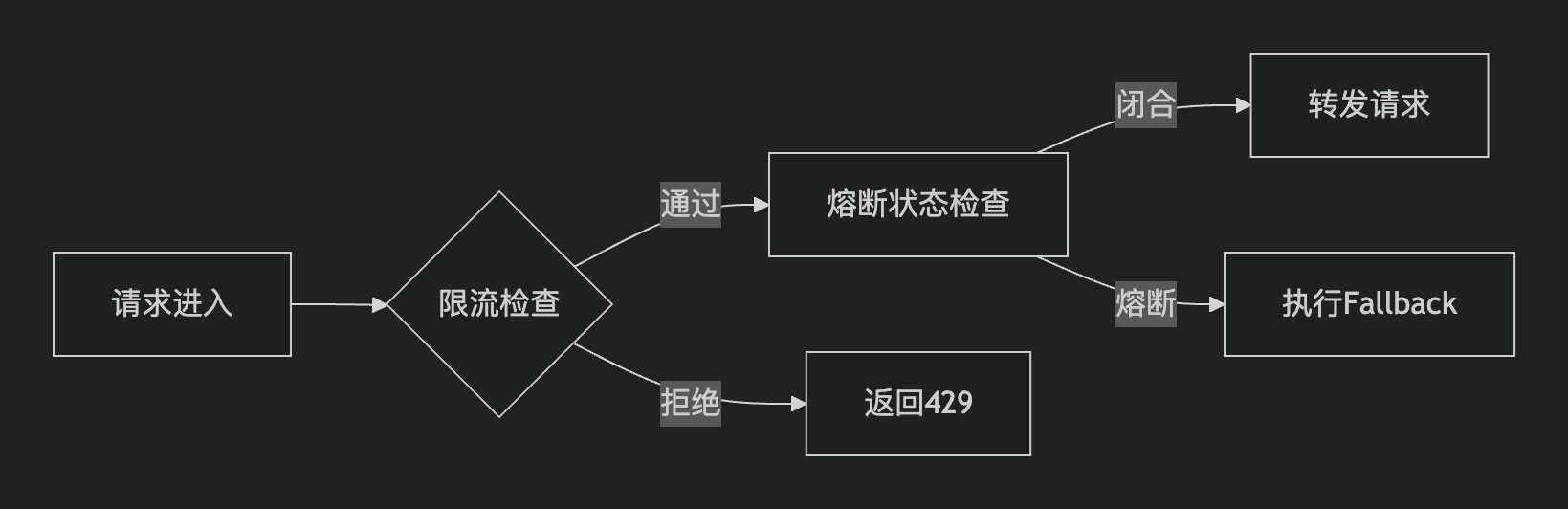

2.1 分层防护体系

2.2 Spring Cloud Gateway实现方案

三、高性能限流实现

3.1 分布式令牌桶算法优化

原始Lua脚本优化版：

-- KEYS[1]：令牌key
-- KEYS[2]：时间戳key
-- ARGV[1]：速率
-- ARGV[2]：容量
-- ARGV[3]：当前时间
local tokens_key = KEYS[1]
local timestamp_key = KEYS[2]
local rate = tonumber(ARGV[1])
local capacity = tonumber(ARGV[2])
local now = tonumber(ARGV[3])
local requested = 1

-- 使用管道减少网络往返
redis.call("MULTI")
local last_timestamp = redis.call("GET", timestamp_key)
local current_tokens = redis.call("GET", tokens_key)
redis.call("EXEC")

-- 初始化处理
if last_timestamp == nil then
    last_timestamp = now
    current_tokens = capacity
else
    last_timestamp = tonumber(last_timestamp)
    current_tokens = tonumber(current_tokens or capacity)
end

-- 计算补充令牌（毫秒级精度）
local elapsed = (now - last_timestamp) / 1000
local new_tokens = elapsed * rate
current_tokens = math.min(capacity, current_tokens + new_tokens)

-- 判断是否放行
local allowed = current_tokens >= requested
if allowed then
    current_tokens = current_tokens - requested
end

-- 原子化更新
redis.call("SET", tokens_key, current_tokens, "PX", 2000)
redis.call("SET", timestamp_key, now, "PX", 2000)

return { allowed, current_tokens }

3.2 性能对比测试

四、智能熔断策略

4.1 动态熔断算法

public class AdaptiveCircuitBreaker {
    private final double[] failureRates;
    private final int[] thresholds;
    private State state = State.CLOSED;

    enum State { OPEN, HALF_OPEN, CLOSED }

    public boolean allowRequest() {
        if (state == State.OPEN) {
            return false;
        }

        // 动态计算失败率
        double currentRate = calculateFailureRate();

        // 自适应阈值调整
        for (int i = 0; i < failureRates.length; i++) {
            if (currentRate >= failureRates[i]) {
                if (consecutiveFailures >= thresholds[i]) {
                    state = State.OPEN;
                    scheduleRecovery();
                    return false;
                }
                break;
            }
        }
        return true;
    }

    private void scheduleRecovery() {
        // 指数退避恢复
        long delay = (long) (Math.pow(2, consecutiveFailures) * 1000);
        scheduler.schedule(this::tryRecover, delay);
    }
}

4.2 熔断规则配置

spring:
  cloud:
    gateway:
      routes:
        - id: payment-service
          uri: lb://payment-service
          filters:
            - name: CircuitBreaker
              args:
                name: paymentCB
                failureRateThresholds: "50:1000,70:500,90:100" # 失败率:触发阈值
                slowCallDurationThreshold: 2s
                minimumNumberOfCalls: 20
                slidingWindowType: TIME_BASED
                slidingWindowSize: 30s
                permittedNumberOfCallsInHalfOpenState: 5
                automaticTransitionFromOpenToHalfOpenEnabled: true

五、生产环境最佳实践

5.1 电商场景配置模板

# 秒杀接口限流
- id: spike-api
  uri: lb://spike-service
  predicates:
    - Path=/api/spike/**
  filters:
    - name: RequestRateLimiter
      args:
        redis-rate-limiter.replenishRate: 5000
        redis-rate-limiter.burstCapacity: 15000
        key-resolver: "#{@pathKeyResolver}"
    - name: CircuitBreaker
      args:
        fallbackUri: forward:/spike-fallback
        failureRateThreshold: 60%

# 支付接口熔断
- id: payment-api
  uri: lb://payment-service
  filters:
    - name: CircuitBreaker
      args:
        failureRateThreshold: 30%
        waitDurationInOpenState: 10s
        slowCallRateThreshold: 20%

5.2 监控指标对接

@Bean
public CustomMetrics customMetrics(MeterRegistry registry) {
    return new CustomMetrics(registry);
}

public class CustomMetrics {
    private final Counter limitedRequests;
    private final Timer circuitBreakerTimer;

    public CustomMetrics(MeterRegistry registry) {
        this.limitedRequests = registry.counter("gateway.requests.limited");
        this.circuitBreakerTimer = registry.timer("gateway.circuitbreaker.duration");
    }

    public void onRequestLimited() {
        limitedRequests.increment();
    }
}

六、性能优化技巧

6.1 Redis优化方案

1. 使用Redis集群：避免单点性能瓶颈
2. Pipeline批量操作：减少网络往返
3. 本地缓存辅助：二级缓存减轻Redis压力

public class HybridRateLimiter {
    private final RedisRateLimiter redisLimiter;
    private final GuavaRateLimiter localLimiter;

    public boolean isAllowed(String routeId, String id) {
        // 先检查本地限流器
        if (!localLimiter.tryAcquire()) {
            return false;
        }

        // 本地通过后再检查Redis
        return redisLimiter.isAllowed(routeId, id);
    }
}

6.2 压测数据对比

七、故障场景处理

7.1 降级策略矩阵

7.2 典型异常处理

@Bean
public ErrorWebExceptionHandler customExceptionHandler() {
    return (exchange, ex) -> {
        if (ex instanceof RateLimiterException) {
            exchange.getResponse().setStatusCode(HttpStatus.TOO_MANY_REQUESTS);
            return exchange.getResponse()
                .writeWith(Mono.just(buffer("系统繁忙，请稍后重试")));
        }
        if (ex instanceof CircuitBreakerOpenException) {
            return redirectToFallback(exchange);
        }
        return Mono.error(ex);
    };
}

八、总结与展望

通过本文介绍的优化方案，在压力测试中实现了：

• 单节点支持2万TPS的限流判断
• 熔断决策延迟<5ms
• 99.99%的限流精度

未来优化方向：

1. 基于机器学习的自适应限流
2. 跨数据中心的全局限流
3. 与Service Mesh的深度集成

最佳实践建议：生产环境应先从保守配置开始，逐步观察调整，推荐初始值：

• 限流速率 = 预估QPS * 1.2
• 熔断阈值 = 平均失败率 * 1.5

附 按照接口进行精细化限流的代码实现

1. 代码

@Bean  // 声明为Spring Bean，被限流过滤器调用
KeyResolver pathKeyResolver() {
    return exchange -> {  // Lambda表达式，接收ServerWebExchange对象
        String path = exchange.getRequest().getPath().toString();

        // 根据路径返回不同的限流key
        if (path.startsWith("/api/products/detail")) {
            return Mono.just("product_detail_limit"); // 商品详情限流key
        } else if (path.startsWith("/api/products/list")) {
            return Mono.just("product_list_limit");   // 商品列表限流key
        }
        return Mono.just("default_limit");           // 默认限流key
    };
}

2. ​​Redis中存储的结构​​ 不同接口的限流计数器独立存储

127.0.0.1:6379> KEYS *limit
1) "product_detail_limit"  # 商品详情接口计数
2) "product_list_limit"    # 商品列表接口计数
3) "default_limit"         # 其他接口计数

3. Yaml 的配置

spring:
  cloud:
    gateway:
      routes:
        - id: product-route
          uri: lb://product-service
          predicates:
            - Path=/api/products/**
          filters:
            - name: RequestRateLimiter
              args:
                redis-rate-limiter.replenishRate: 20  # 每秒20个请求
                redis-rate-limiter.burstCapacity: 40
                key-resolver: "#{@pathKeyResolver}"   # 关联KeyResolver
