STM32中SystemCoreClockUpdate函数解读
system_stm32f4xx.c file
SystemCoreClock是一个全局变量(uint32_t 类型), 存储当前系统的核心时钟频率(即HCLK, AHB 总线时钟).
每当系统时钟配置发生变化(如切换时钟源、调整 PLL 分频系数)后, 必须调用此函数重新计算 SystemCoreClock, 否则基于该变量的所有配置(如 SysTick、定时器)将会出错.
函数说明翻译
/**
* @brief Update SystemCoreClock variable according to Clock Register Values.
* The SystemCoreClock variable contains the core clock (HCLK), it can
* be used by the user application to setup the SysTick timer or configure
* other parameters.
* 概要 根据时钟寄存器值更新SystemCoreClock变量.
* SystemCoreClock变量包含内核时钟(HCLK), 可用于用户应用程序设置SysTick定时器或配置内核时钟.
*
*
* @note Each time the core clock (HCLK) changes, this function must be called
* to update SystemCoreClock variable value. Otherwise, any configuration
* based on this variable will be incorrect.
*
* 注意 每次内核时钟(HCLK)发生变化时, 必须调用此函数以更新SystemCoreClock变量值, 否则任何基于该变量的配置都将是不正确的.
*
* @note - The system frequency computed by this function is not the real
* frequency in the chip. It is calculated based on the predefined
* constant and the selected clock source:
*
* 注意 - 此函数计算的系统频率并非芯片中的真实频率, 它是根据预定义常数和所选时钟源计算得出的:
*
* - If SYSCLK source is HSI, SystemCoreClock will contain the HSI_VALUE(*)
*
* - 如果SYSCLK源为HSI(内部高速时钟), SystemCoreClock将包含HSI_VALUE(*)
*
* - If SYSCLK source is HSE, SystemCoreClock will contain the HSE_VALUE(**)
*
* - 如果SYSCLK源为HSE(外部高速时钟), SYstemCOreClock将包含HSE_VALUE(**)
*
* - If SYSCLK source is PLL, SystemCoreClock will contain the HSE_VALUE(**)
* or HSI_VALUE(*) multiplied/divided by the PLL factors.
*
*
* - 如果SYSCLK源为PLL(锁相环), SystemCoreClock将包含HSE_VALUE(**)或HSI_VALUE(**)乘以/除以PLL因子.
* (*) HSI_VALUE is a constant defined in stm32f4xx_hal_conf.h file (default value
* 16 MHz) but the real value may vary depending on the variations
* in voltage and temperature.
*
* (*) HSI_VALUE时stm32f4xx_hal_conf.h文件中定义的常数 (默认值为 16MHz), 但实际值可能会因电压和温度的变化而变化.
*
* (**) HSE_VALUE is a constant defined in stm32f4xx_hal_conf.h file (its value
* depends on the application requirements), user has to ensure that HSE_VALUE
* is same as the real frequency of the crystal used. Otherwise, this function
* may have wrong result.
*
* (**) HSE_VALUE是stm32f4xx_hal_conf.h文件中定义的常数 (其值取决于应用要求), 用户必须确保HSE_VALUE与所用晶体的实际频率相同, 否则该函数可能会产生错误结果
*
* - The result of this function could be not correct when using fractional
* value for HSE crystal.
*
* - 当使用小数点后的HSE晶体值时, 该函数的结果可能不正确
*
* @param None
* @retval None
*/
上述代码注释描述的是STM32 HAL库中的SystemCoreClockUpdate()函数, 其作用是根据当前时钟配置更新系统主频变量 systemCoreClock, 该参数至关重要, 提供整个系统的的时钟频率基准, 影响延时函数、定时器配置、通信波特率等关键参数计算.
SystemCoreClockUpdate函数
void SystemCoreClockUpdate(void)
{
uint32_t tmp = 0, pllvco = 0, pllp = 2, pllsource = 0, pllm = 2;
/* 确定 SYSCLK系统时钟来源 */
/* Get SYSCLK source -------------------------------------------------------*/
tmp = RCC->CFGR & RCC_CFGR_SWS;
switch (tmp)
{
/* 内部高速时钟 */
case 0x00: /* HSI used as system clock source */
SystemCoreClock = HSI_VALUE;
break;
/* 外部高速时钟 */
case 0x04: /* HSE used as system clock source */
SystemCoreClock = HSE_VALUE;
break;
/* 锁相环 */
case 0x08: /* PLL used as system clock source */
/* 计算PLL输出频率 */
/* PLL_N 对分频后的时钟进行倍频 */
/* PLL_VCO = (HSE_VALUE or HSI_VALUE / PLL_M) * PLL_N
SYSCLK = PLL_VCO / PLL_P
*/
/* PLL输入源 */
pllsource = (RCC->PLLCFGR & RCC_PLLCFGR_PLLSRC) >> 22;
/* PLLM分频系数 对输入时钟进行分频 */
pllm = RCC->PLLCFGR & RCC_PLLCFGR_PLLM;
if (pllsource != 0)
{
/* HSE used as PLL clock source */
pllvco = (HSE_VALUE / pllm) * ((RCC->PLLCFGR & RCC_PLLCFGR_PLLN) >> 6);
}
else
{
/* HSI used as PLL clock source */
pllvco = (HSI_VALUE / pllm) * ((RCC->PLLCFGR & RCC_PLLCFGR_PLLN) >> 6);
}
/* PLLP分频系数 对PLL_VCO输出进行分频 */
pllp = (((RCC->PLLCFGR & RCC_PLLCFGR_PLLP) >>16) + 1 ) *2;
SystemCoreClock = pllvco/pllp;
break;
default:
SystemCoreClock = HSI_VALUE;
break;
}
/* 用用AHB预分频系统, 得到最终HCLK频率 */
/* Compute HCLK frequency --------------------------------------------------*/
/* Get HCLK prescaler */
tmp = AHBPrescTable[((RCC->CFGR & RCC_CFGR_HPRE) >> 4)];
/* HCLK frequency */
SystemCoreClock >>= tmp;
}
可在调试过程中查看该全局变量的值

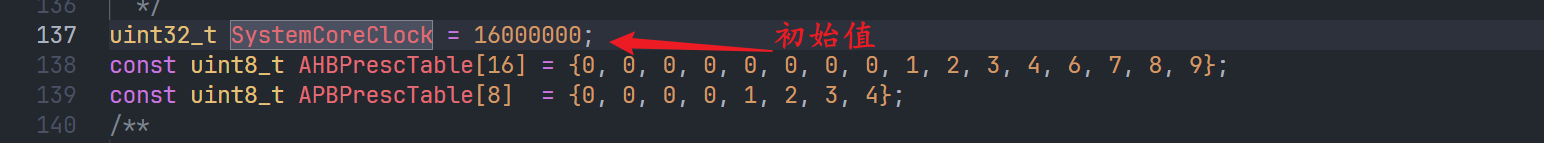

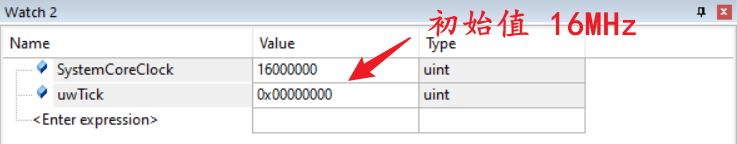

1. 初始值

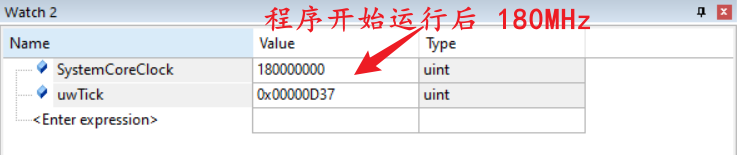

2. debug调试
