从MySQL到大数据平台：基于Spark的离线分析实战指南

引言

在当今数据驱动的商业环境中，企业业务数据通常存储在MySQL等关系型数据库中，但当数据量增长到千万级甚至更高时，直接在MySQL中进行复杂分析会导致性能瓶颈。本文将详细介绍如何将MySQL业务数据迁移到大数据平台，并通过Spark等工具实现高效的离线分析流程。

一、整体架构设计

1.1 技术栈选择

核心组件：

• 数据抽取：Sqoop、Flink CDC

• 数据存储：HDFS、Hive

• 计算引擎：Spark、Hive

• 调度系统：Airflow

• 可视化：Superset

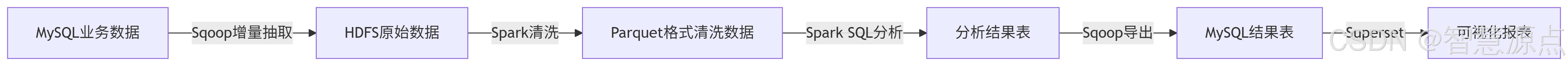

1.2 流程概览

二、数据抽取实战

2.1 Sqoop全量导入最佳实践

#!/bin/bash
# sqoop_full_import.sh

DB_URL="jdbc:mysql://mysql-host:3306/prod_db"
USERNAME="etl_user"
PASSWORD="secure_password"
TABLE_NAME="orders"
HDFS_PATH="/data/raw/${TABLE_NAME}_$(date +%Y%m%d)"

sqoop import \
  --connect $DB_URL \
  --username $USERNAME \
  --password $PASSWORD \
  --table $TABLE_NAME \
  --target-dir $HDFS_PATH \
  --compress \
  --compression-codec org.apache.hadoop.io.compress.SnappyCodec \
  --fields-terminated-by '\001' \
  --null-string '\\N' \
  --null-non-string '\\N' \
  --m 8

关键参数说明：

• --compress：启用压缩

• --fields-terminated-by '\001'：使用不可见字符作为分隔符

• --m 8：设置8个并行任务

2.2 增量同步方案对比

三、数据清洗与转换

3.1 Spark清洗标准化流程

import org.apache.spark.sql.*;

public class DataCleaningJob {

    public static void main(String[] args) {
        // 初始化SparkSession
        SparkSession spark = SparkSession.builder()
                .appName("JavaDataCleaning")
                .config("spark.sql.parquet.writeLegacyFormat", "true")
                .getOrCreate();

        // 1. 读取原始数据
        Dataset<Row> rawDF = spark.read()
                .format("parquet")
                .load("/data/raw/orders");

        // 2. 数据清洗转换
        Dataset<Row> cleanedDF = rawDF
                // 处理空值
                .na().fill(0.0, new String[]{"discount"})
                .na().fill(-1, new String[]{"user_id"})
                // 过滤无效记录
                .filter(functions.col("order_amount").gt(0))
                // 日期转换
                .withColumn("order_date",
                    functions.to_date(
                        functions.from_unixtime(
                            functions.col("create_timestamp")), "yyyy-MM-dd"))
                // 数据脱敏
                .withColumn("user_name",
                    functions.when(
                        functions.length(functions.col("user_name")).gt(0),
                        functions.expr("mask(user_name)"))
                    .otherwise("Anonymous"));

        // 3. 分区写入
        cleanedDF.write()
                .partitionBy("order_date")
                .mode(SaveMode.Overwrite)
                .parquet("/data/cleaned/orders");

        spark.stop();
    }
}

数据质量检查工具类

import org.apache.spark.sql.*;

public class DataQualityChecker {

    public static void checkNullValues(Dataset<Row> df) {
        System.out.println("=== Null Value Check ===");
        for (String colName : df.columns()) {
            long nullCount = df.filter(functions.col(colName).isNull()).count();
            System.out.printf("Column %s has %d null values%n", colName, nullCount);
        }
    }

    public static void checkValueRange(Dataset<Row> df, String colName) {
        Row stats = df.select(
                functions.mean(colName).alias("mean"),
                functions.stddev(colName).alias("stddev"))
                .first();

        double mean = stats.getDouble(0);
        double stddev = stats.getDouble(1);
        double upperBound = mean + 3 * stddev;
        double lowerBound = mean - 3 * stddev;

        System.out.printf("Column %s statistics:%n", colName);
        System.out.printf("Mean: %.2f, StdDev: %.2f%n", mean, stddev);
        System.out.printf("Normal range: %.2f ~ %.2f%n", lowerBound, upperBound);

        long outliers = df.filter(
                functions.col(colName).lt(lowerBound)
                .or(functions.col(colName).gt(upperBound)))
                .count();

        System.out.printf("Found %d outliers%n", outliers);
    }
}

四、高效存储策略

4.1 存储格式对比测试

我们对10GB订单数据进行了基准测试：

4.2 分区优化实践

动态分区配置：

SET hive.exec.dynamic.partition=true;
SET hive.exec.dynamic.partition.mode=nonstrict;
SET hive.exec.max.dynamic.partitions=1000;

CREATE TABLE orders_partitioned (
  order_id BIGINT,
  user_id INT,
  amount DECIMAL(10,2)
) PARTITIONED BY (dt STRING, region STRING)
STORED AS PARQUET;

五、离线计算模式

5.1 典型分析场景实现

场景1：RFM用户分群

import org.apache.spark.sql.*;
import org.apache.spark.sql.expressions.Window;
import static org.apache.spark.sql.functions.*;

public class RFMAnalysis {

    public static void main(String[] args) {
        SparkSession spark = SparkSession.builder()
                .appName("JavaRFMAnalysis")
                .enableHiveSupport()
                .getOrCreate();

        // 计算RFM基础指标
        Dataset<Row> rfmDF = spark.sql(
            "SELECT user_id, " +
            "DATEDIFF(CURRENT_DATE, MAX(order_date)) AS recency, " +
            "COUNT(DISTINCT order_id) AS frequency, " +
            "SUM(amount) AS monetary " +
            "FROM orders_cleaned " +
            "WHERE order_date >= DATE_SUB(CURRENT_DATE, 365) " +
            "GROUP BY user_id");

        // 使用窗口函数计算分位数
        WindowSpec recencyWindow = Window.orderBy(col("recency").desc());
        WindowSpec frequencyWindow = Window.orderBy(col("frequency").desc());
        WindowSpec monetaryWindow = Window.orderBy(col("monetary").desc());

        Dataset<Row> result = rfmDF
            .withColumn("r_score", ntile(5).over(recencyWindow))
            .withColumn("f_score", ntile(5).over(frequencyWindow))
            .withColumn("m_score", ntile(5).over(monetaryWindow))
            .withColumn("rfm", concat(
                col("r_score"), col("f_score"), col("m_score")));

        // 保存结果
        result.write().saveAsTable("user_rfm_analysis");

        spark.stop();
    }
}

5.2 漏斗分析

import org.apache.spark.sql.*;
import static org.apache.spark.sql.functions.*;

public class FunnelAnalysis {

    public static void main(String[] args) {
        SparkSession spark = SparkSession.builder()
                .appName("JavaFunnelAnalysis")
                .getOrCreate();

        String[] stages = {"view", "cart", "payment"};
        Dataset<Row> funnelDF = null;

        // 构建漏斗各阶段数据集
        for (int i = 0; i < stages.length; i++) {
            String stage = stages[i];
            Dataset<Row> stageDF = spark.table("user_behavior")
                    .filter(col("action").equalTo(stage))
                    .groupBy("user_id")
                    .agg(countDistinct("session_id").alias(stage + "_count"));

            if (i == 0) {
                funnelDF = stageDF;
            } else {
                funnelDF = funnelDF.join(stageDF, "user_id", "left_outer");
            }
        }

        // 计算转化率
        for (int i = 0; i < stages.length - 1; i++) {
            String fromStage = stages[i];
            String toStage = stages[i+1];

            double conversionRate = funnelDF.filter(col(fromStage + "_count").gt(0))
                    .select(avg(when(col(toStage + "_count").gt(0), 1).otherwise(0)))
                    .first().getDouble(0);

            System.out.printf("Conversion rate from %s to %s: %.2f%%%n",
                fromStage, toStage, conversionRate * 100);
        }

        spark.stop();
    }
}

六、生产环境优化

6.1 数据倾斜处理工具类

import org.apache.spark.sql.*;
import static org.apache.spark.sql.functions.*;

public class DataSkewHandler {

    public static Dataset<Row> handleSkew(Dataset<Row> df, String skewedColumn, Object skewedValue) {
        // 方法1：加盐处理
        Dataset<Row> saltedDF = df.withColumn("salt",
            when(col(skewedColumn).equalTo(skewedValue),
                floor(rand().multiply(10)))
            .otherwise(0));

        return saltedDF.repartition(col("salt"));
    }

    public static Dataset<Row> separateProcessing(
            Dataset<Row> df, String skewedColumn, Object skewedValue) {
        // 方法2：分离处理
        Dataset<Row> normalData = df.filter(col(skewedColumn).notEqual(skewedValue));
        Dataset<Row> skewedData = df.filter(col(skewedColumn).equalTo(skewedValue));

        // 对skewedData进行特殊处理...
        // 例如增加并行度
        skewedData = skewedData.repartition(20);

        return normalData.union(skewedData);
    }
}

七、完整案例：电商数据分析平台

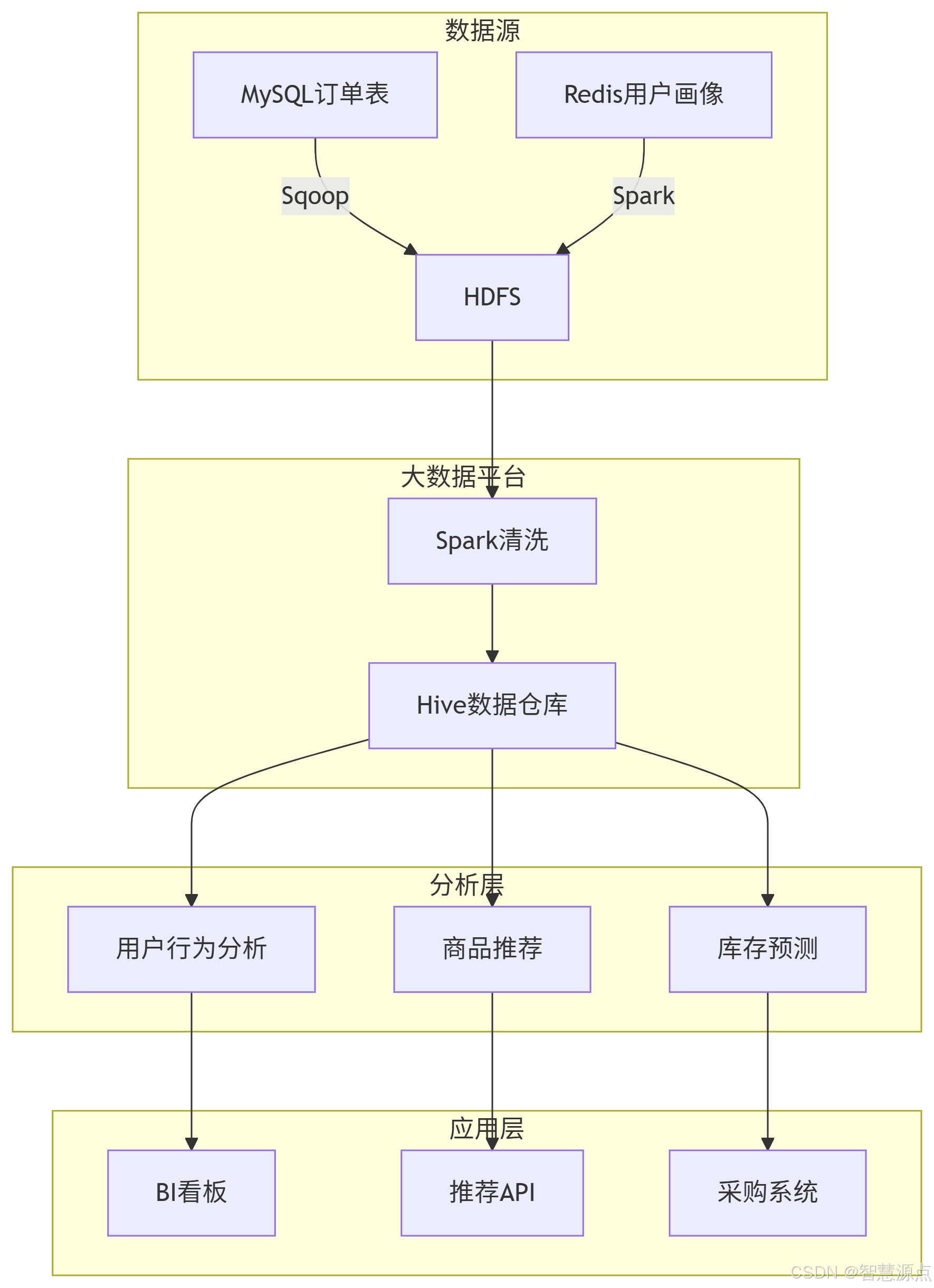

7.1 数据流设计

7.1 电商分析平台主程序

import org.apache.spark.sql.*;

public class ECommerceAnalysisPlatform {

    public static void main(String[] args) {
        // 初始化Spark
        SparkSession spark = SparkSession.builder()
                .appName("ECommerceAnalysis")
                .config("spark.sql.warehouse.dir", "/user/hive/warehouse")
                .enableHiveSupport()
                .getOrCreate();

        // 1. 数据抽取
        MySQLToHDFSExporter.exportTable("orders", "/data/raw/orders");

        // 2. 数据清洗
        new DataCleaningJob().run(spark);

        // 3. 分析任务
        new RFMAnalysis().run(spark);
        new FunnelAnalysis().run(spark);

        // 4. 日报生成
        generateDailyReport(spark);

        spark.stop();
    }

    private static void generateDailyReport(SparkSession spark) {
        // GMV周同比计算
        Dataset<Row> reportDF = spark.sql(
            "WITH current_week AS (" +
            "  SELECT SUM(amount) AS gmv, COUNT(DISTINCT user_id) AS uv " +
            "  FROM orders_cleaned " +
            "  WHERE dt BETWEEN DATE_SUB(CURRENT_DATE, 7) AND CURRENT_DATE" +
            "), last_week AS (" +
            "  SELECT SUM(amount) AS gmv, COUNT(DISTINCT user_id) AS uv " +
            "  FROM orders_cleaned " +
            "  WHERE dt BETWEEN DATE_SUB(CURRENT_DATE, 14) AND DATE_SUB(CURRENT_DATE, 7)" +
            ") " +
            "SELECT " +
            "  c.gmv AS current_gmv, " +
            "  l.gmv AS last_gmv, " +
            "  (c.gmv - l.gmv) / l.gmv AS gmv_yoy, " +
            "  c.uv AS current_uv, " +
            "  l.uv AS last_uv " +
            "FROM current_week c CROSS JOIN last_week l");

        // 保存到MySQL
        reportDF.write()
                .format("jdbc")
                .option("url", "jdbc:mysql://mysql-host:3306/report_db")
                .option("dbtable", "daily_gmv_report")
                .option("user", "report_user")
                .option("password", "report_password")
                .mode(SaveMode.Overwrite)
                .save();
    }
}

结语

构建完整的大数据离线分析管道需要综合考虑数据规模、时效性要求和业务需求。本文介绍的技术方案已在多个生产环境验证，可支持每日亿级数据的处理分析。随着业务发展，可逐步引入实时计算、特征仓库等更先进的架构组件。

最佳实践建议：

1. 始终保留原始数据副本

2. 建立完善的数据血缘追踪

3. 监控关键指标：任务耗时、数据质量、资源利用率

4. 定期优化分区和文件大小
