elasticsearch的高可用

发布于：2025-08-12 ⋅ 阅读:(22) ⋅ 点赞:(0)

1. 设计思路

1.1 架构目标

99.9%+ SLA：全年停机时间 < 8.76小时

自动故障转移：节点故障时30秒内恢复服务

数据零丢失：通过副本机制保证数据持久性

无缝扩展：支持在线添加节点

1.2 节点规划

节点角色

IP 地址

配置

资源建议

主节点 + 数据节点

192.168.88.11

node.master: true

node.data: true

4核8GB

主节点 + 数据节点

192.168.88.12

node.master: true

node.data: true

4核8GB

主节点 + 数据节点

192.168.88.13

node.master: true

node.data: true

4核8GB

工具建议：elasticsearch7.14.1、OpenJDK 11

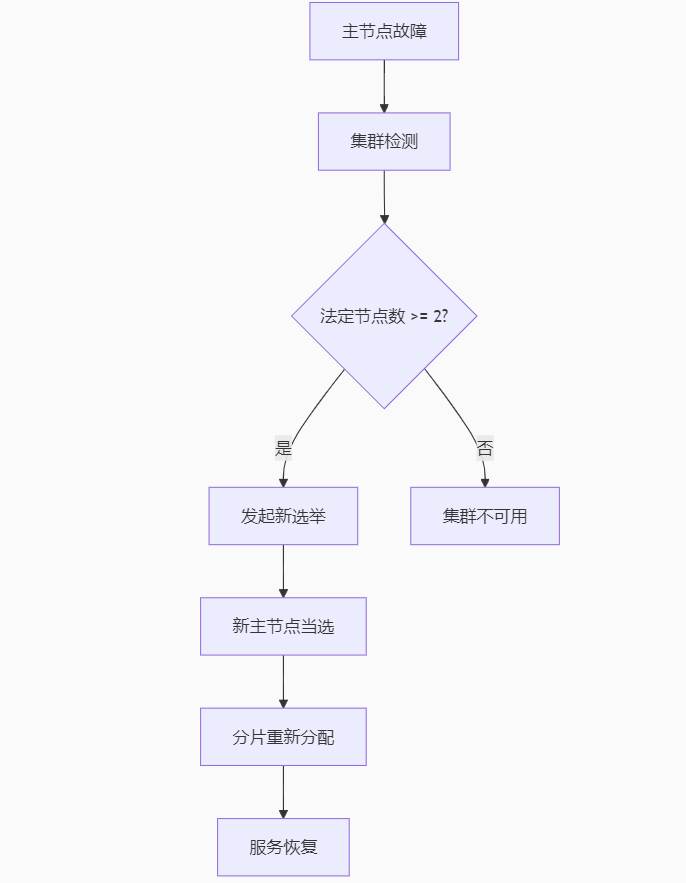

1.3 故障转移机制设计

2. 模块安装（三个节点）

2.1 安装 elasticsearch7.14.1

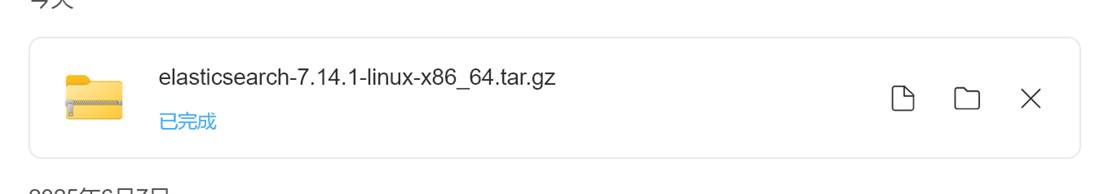

下载安装包：

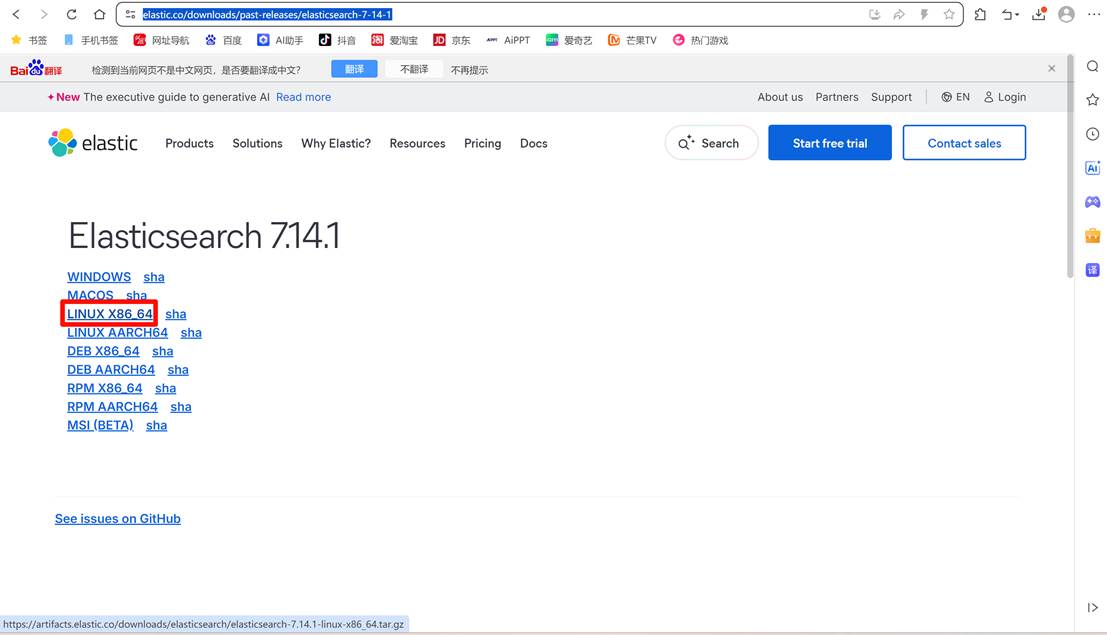

方法一：Elasticsearch 7.14.1 | Elastic

方法二：

yum install -y wget

wget https://artifacts.elastic.co/downloads/elasticsearch/elasticsearch-7.14.1-linux-x86_64.tar.gz

安装包解压：

sudo su – es

tar -zxvf elasticsearch-7.14.1-linux-x86_64.tar.gz

mv elasticsearch-7.14.1 elasticsearch

2.2 系统参数优化（三个节点）

2.2.1. 系统优化

# 修改文件描述符限制

sudo tee -a /etc/security/limits.conf <<EOF

* soft nofile 65535

* hard nofile 65535

es soft memlock unlimited

es hard memlock unlimited

EOF

# 修改虚拟内存限制

sudo tee -a /etc/sysctl.conf <<EOF

vm.max_map_count=655360

EOF

sudo sysctl -p

# 关闭透明大页

echo 'never' | sudo tee /sys/kernel/mm/transparent_hugepage/enabled

2.2.2. 创建专用用户

sudo useradd es -m -p $(openssl passwd -1 "es123")  # 设置密码

sudo usermod -aG wheel es  # 添加sudo权限

2.2.3. 安装 Java

sudo yum install -y java-11-openjdk

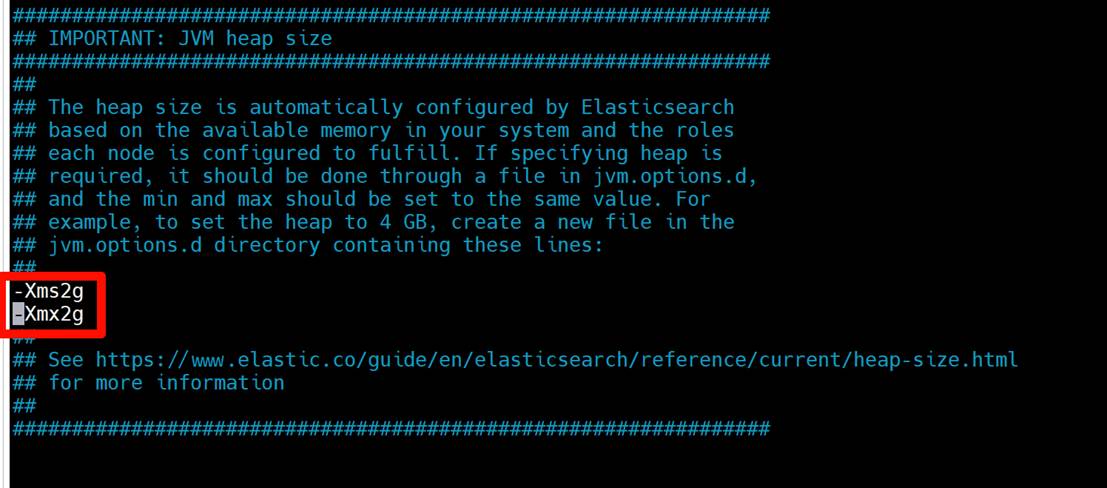

2.2.4配置jvm

cd elasticsearch/config

vim jvm.options

改为

-Xms2g

-Xmx2g

2.2.5 修改系统文件

vim /etc/security/limits.d/20-nproc.conf

改为:

* soft nofile 65536

* hard nofile 65536

* hard nproc 4096

3. 实现过程

3.1 副本集配置（高可用基础）

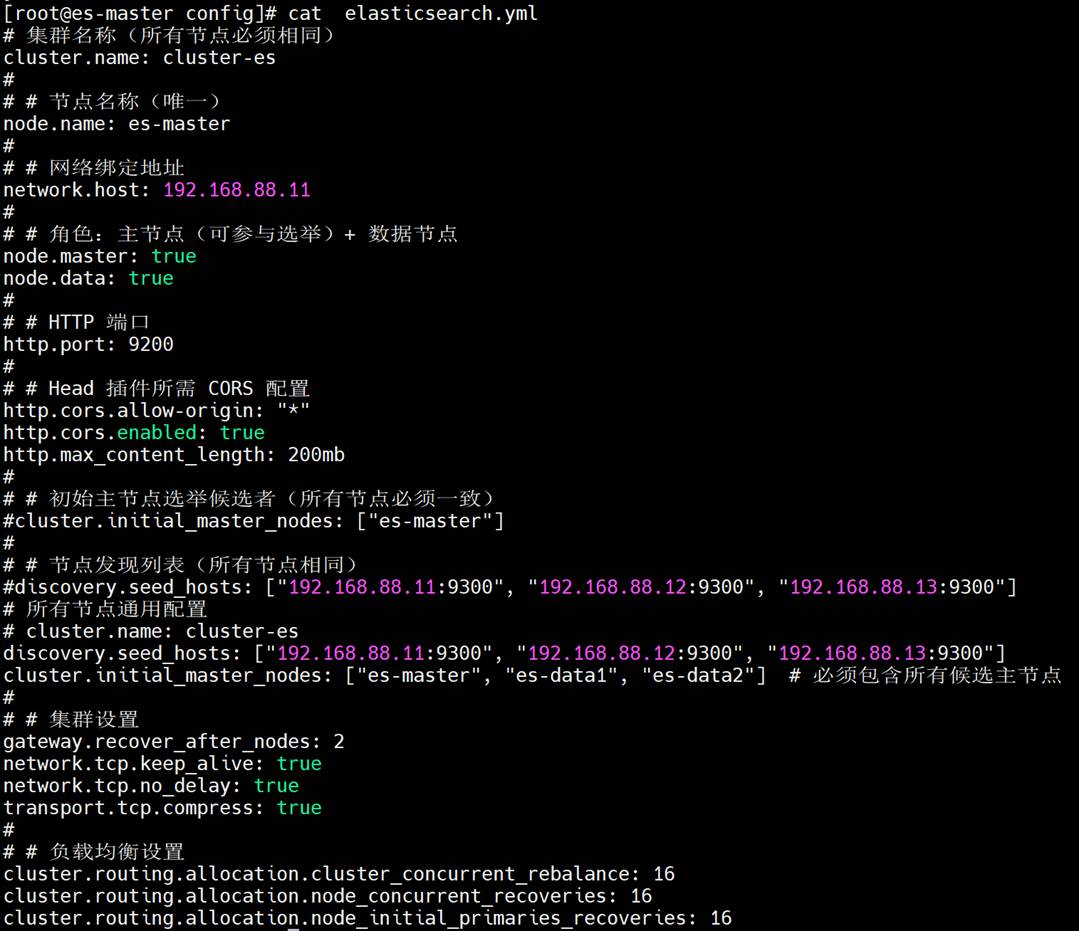

3.1.1 配置文件(elasticsearch.conf）(192.168.88.11节点)

cd /home/es/elasticsearch/config

# 集群名称（所有节点必须相同）

cluster.name: cluster-es

#

# # 节点名称（唯一）

node.name: es-master

#

# # 网络绑定地址

network.host: 192.168.88.11

#

# # 角色：主节点（可参与选举）+ 数据节点

node.master: true

node.data: true

#

# # HTTP 端口

http.port: 9200

#

# # Head 插件所需 CORS 配置

http.cors.allow-origin: "*"

http.cors.enabled: true

http.max_content_length: 200mb

#

# # 初始主节点选举候选者（所有节点必须一致）

#cluster.initial_master_nodes: ["es-master"]

#

# # 节点发现列表（所有节点相同）

#discovery.seed_hosts: ["192.168.88.11:9300", "192.168.88.12:9300", "192.168.88.13:9300"]

# 所有节点通用配置

# cluster.name: cluster-es

discovery.seed_hosts: ["192.168.88.11:9300", "192.168.88.12:9300", "192.168.88.13:9300"]

cluster.initial_master_nodes: ["es-master", "es-data1", "es-data2"]  # 必须包含所有候选主节点

#

# # 集群设置

gateway.recover_after_nodes: 2

network.tcp.keep_alive: true

network.tcp.no_delay: true

transport.tcp.compress: true

#

# # 负载均衡设置

cluster.routing.allocation.cluster_concurrent_rebalance: 16

cluster.routing.allocation.node_concurrent_recoveries: 16

cluster.routing.allocation.node_initial_primaries_recoveries: 16

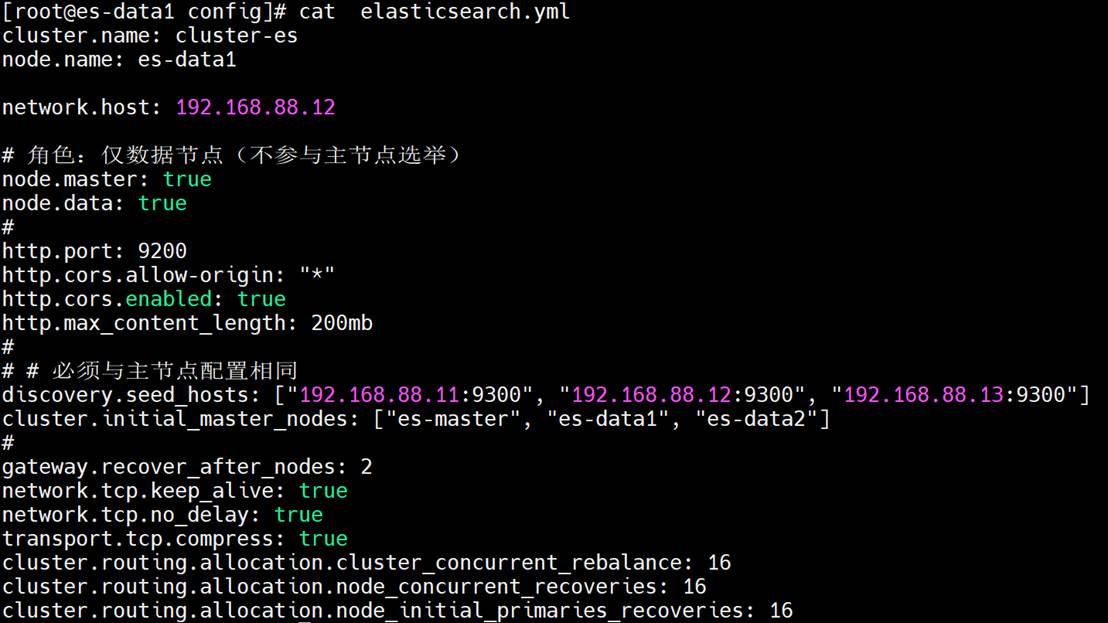

3.1.2 vim elasticsearch.yml(192.168.88.12节点)

cd /home/es/elasticsearch/config

cluster.name: cluster-es

node.name: es-data1

network.host: 192.168.88.12

# 角色：仅数据节点（不参与主节点选举）

node.master: true

node.data: true

#

http.port: 9200

http.cors.allow-origin: "*"

http.cors.enabled: true

http.max_content_length: 200mb

#

# # 必须与主节点配置相同

discovery.seed_hosts: ["192.168.88.11:9300", "192.168.88.12:9300", "192.168.88.13:9300"]

cluster.initial_master_nodes: ["es-master", "es-data1", "es-data2"]

#

gateway.recover_after_nodes: 2

network.tcp.keep_alive: true

network.tcp.no_delay: true

transport.tcp.compress: true

cluster.routing.allocation.cluster_concurrent_rebalance: 16

cluster.routing.allocation.node_concurrent_recoveries: 16

cluster.routing.allocation.node_initial_primaries_recoveries: 16

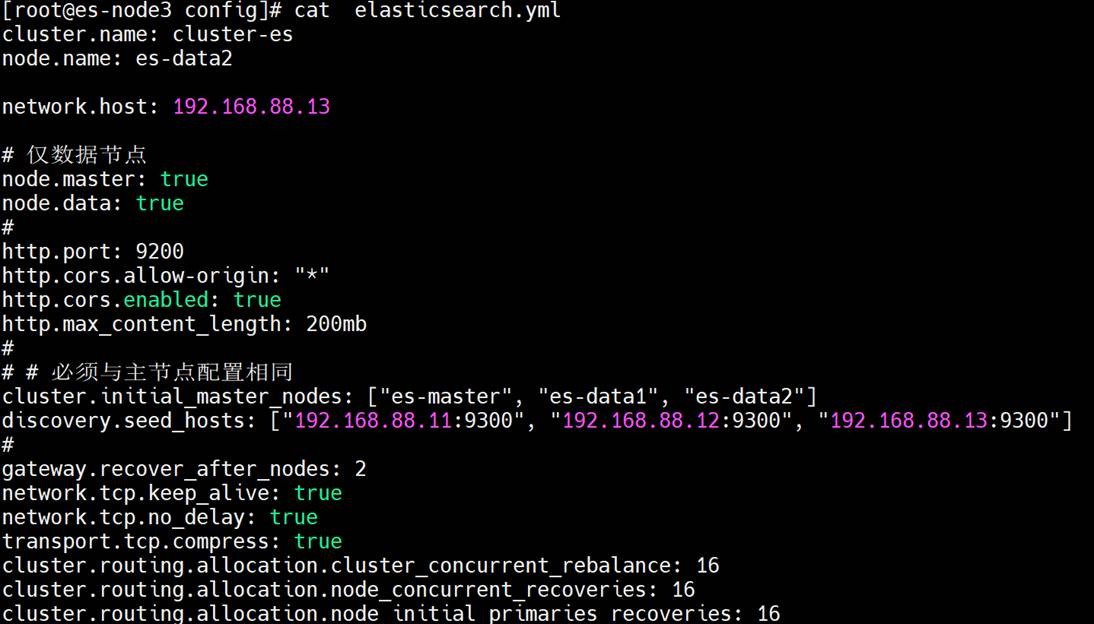

3.1.3 vim elasticsearch.yml(192.168.88.13节点)

cd /home/es/elasticsearch/config

cluster.name: cluster-es

node.name: es-data2

network.host: 192.168.88.13

# 仅数据节点

node.master: true

node.data: true

#

http.port: 9200

http.cors.allow-origin: "*"

http.cors.enabled: true

http.max_content_length: 200mb

#

# # 必须与主节点配置相同

cluster.initial_master_nodes: ["es-master", "es-data1", "es-data2"]

discovery.seed_hosts: ["192.168.88.11:9300", "192.168.88.12:9300", "192.168.88.13:9300"]

#

gateway.recover_after_nodes: 2

network.tcp.keep_alive: true

network.tcp.no_delay: true

transport.tcp.compress: true

cluster.routing.allocation.cluster_concurrent_rebalance: 16

cluster.routing.allocation.node_concurrent_recoveries: 16

cluster.routing.allocation.node_initial_primaries_recoveries: 16

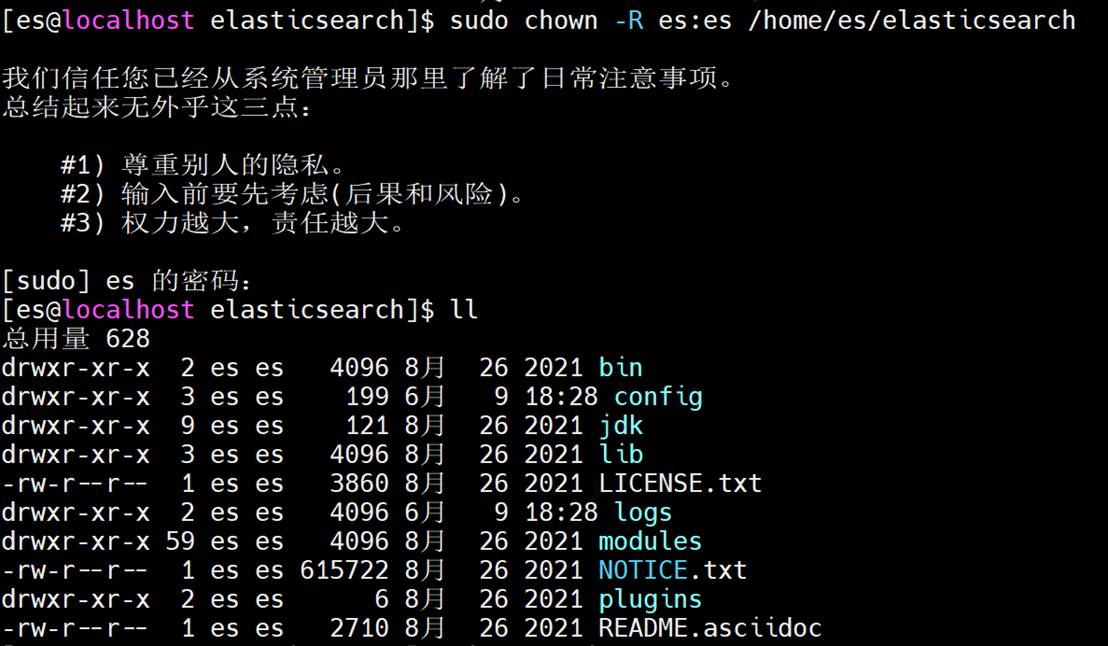

3.1.4给/home/es/elasticsearch/

sudo chown -R es:es /home/es/elasticsearch

ll #查看

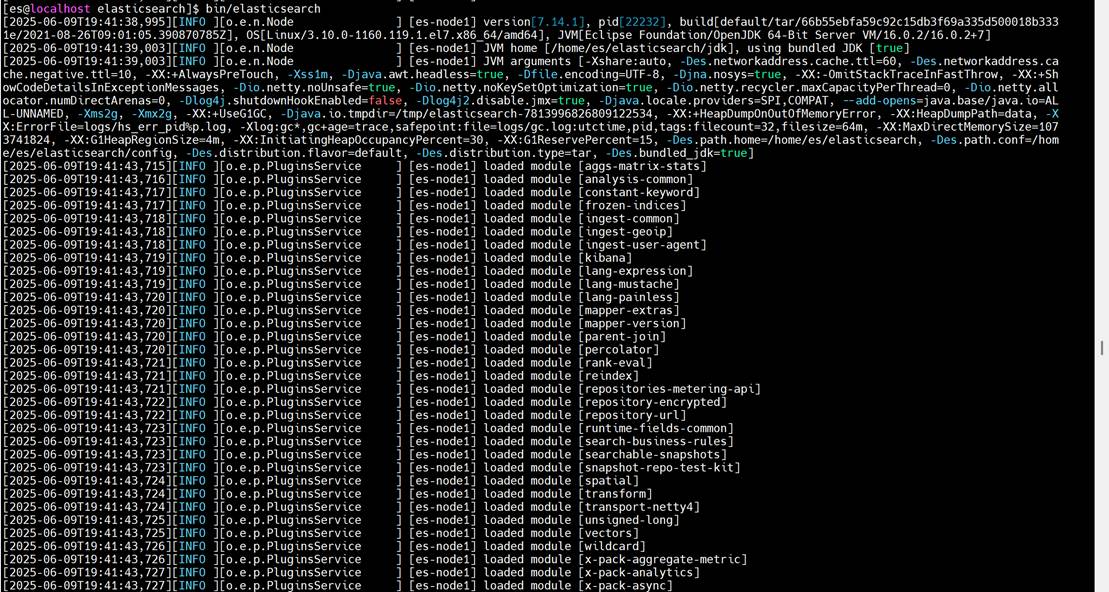

3.1.5执行

#首先在192.168.88.11：

bin/elasticsearch

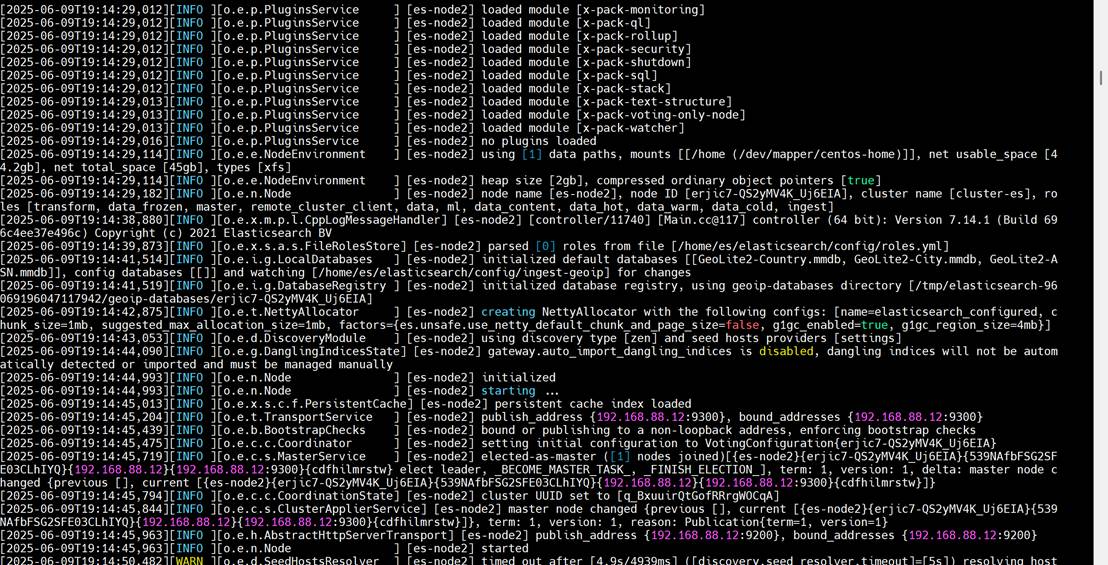

#然后再其它192.168.88.12/192.168.88.13

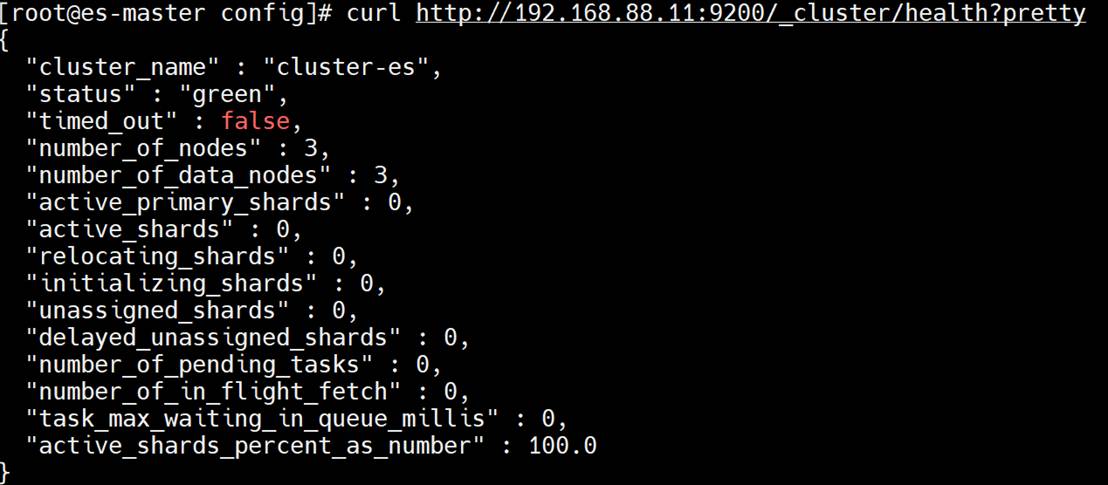

3.1.5查看集群的状态

curl http://192.168.88.11:9200/_cluster/health?pretty

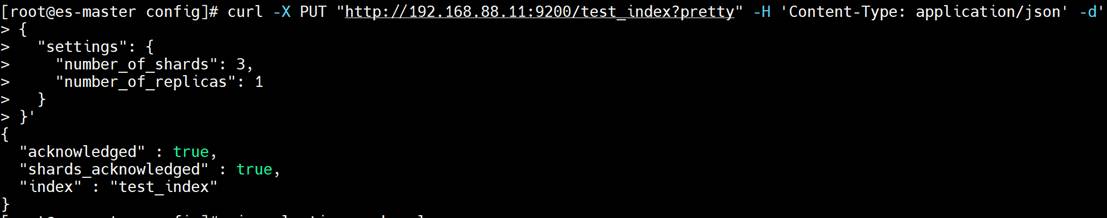

创建索引：curl -X PUT "http://192.168.88.11:9200/test_index?pretty" -H 'Content-Type: application/json' -d

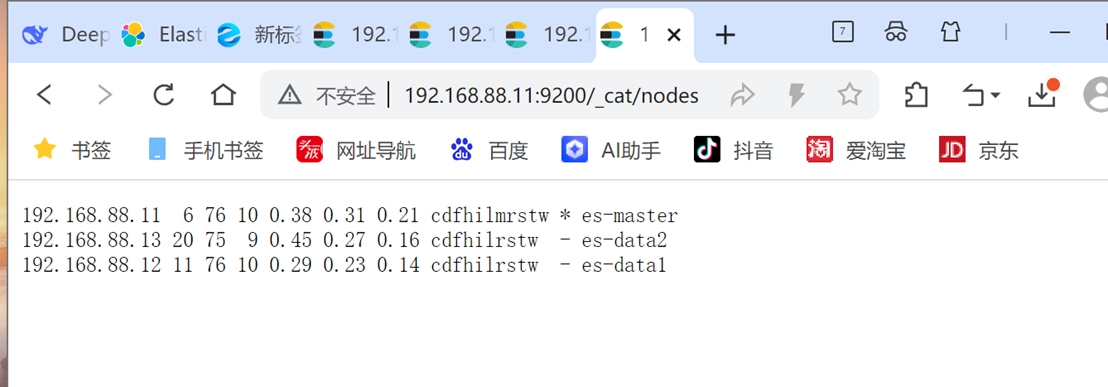

网页查看集群加入状态：

http://192.168.88.11:9200/_cat/nodes

4. 测试与验证

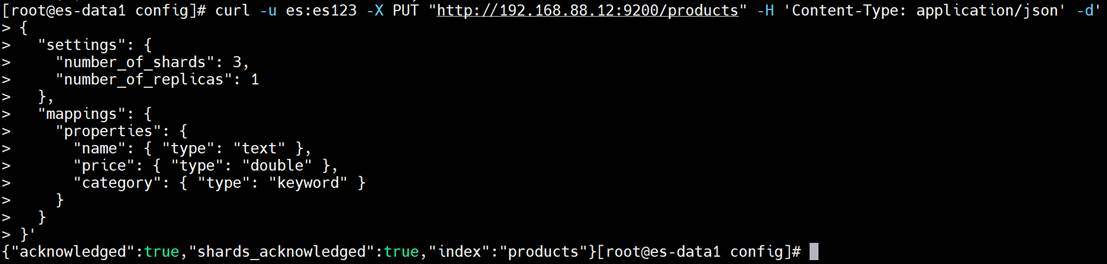

4.1 创建测试索引

curl -u es:es123 -X PUT "http://192.168.88.12:9200/products" -H 'Content-Type: application/json' -d'

{

  "settings": {

    "number_of_shards": 3,

    "number_of_replicas": 1

  },

  "mappings": {

    "properties": {

      "name": { "type": "text" },

      "price": { "type": "double" },

      "category": { "type": "keyword" }

    }

  }

}'

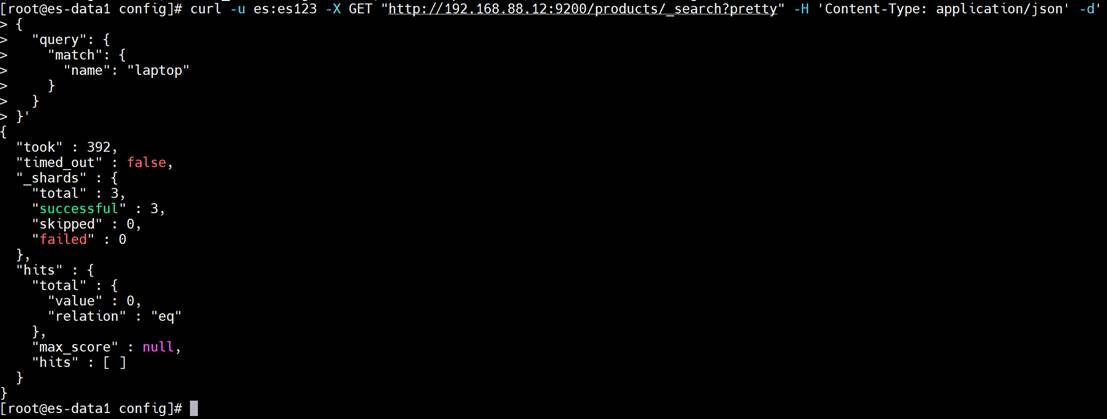

4.2 查询数据

curl -u es:es123 -X GET "http://192.168.88.12:9200/products/_search?pretty" -H 'Content-Type: application/json' -d'

{

  "query": {

    "match": {

      "name": "laptop"

    }

  }

}'

4.3故障转移：

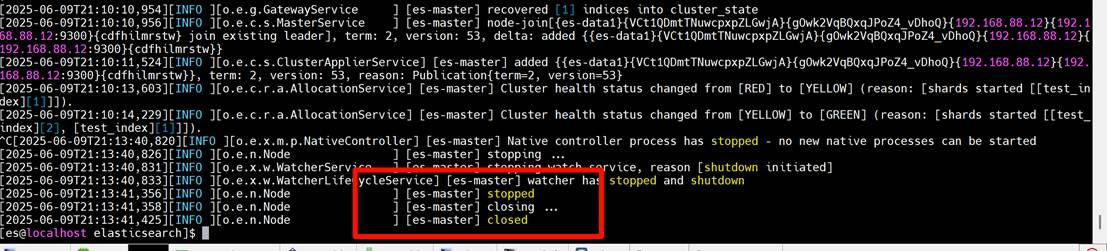

首先停掉192.168.88.11(ctrl+c)

查看节点状态

或者http://192.168.88.12:9200/_cat/nodes

可见该集群并没有因为主节点的宕机受影响

故障转移成功。
