SpringSecurity（二）JWT登录

（学习笔记）

SpringSecurity-JWT登录

Json Web Token

pom

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>3.5.4</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.sec</groupId>
    <artifactId>spring-security-demo</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>spring-security-demo</name>
    <description>spring-security-demo</description>
    <properties>
        <java.version>17</java.version>
        <hutool.version>5.8.39</hutool.version>
        <mybatis-plus.version>3.5.12</mybatis-plus.version>
        <druid.version>1.2.25</druid.version>
        <mysql.version>9.3.0</mysql.version>
        <jwt.version>0.11.5</jwt.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.thymeleaf.extras</groupId>
            <artifactId>thymeleaf-extras-springsecurity6</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.security</groupId>
            <artifactId>spring-security-test</artifactId>
            <scope>test</scope>
        </dependency>
        <!-- https://mvnrepository.com/artifact/cn.hutool/hutool-all -->
        <dependency>
            <groupId>cn.hutool</groupId>
            <artifactId>hutool-all</artifactId>
            <version>${hutool.version}</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/com.baomidou/mybatis-plus-spring-boot3-starter -->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-spring-boot3-starter</artifactId>
        </dependency>
        <!-- jdk 11+ 引入可选模块 -->
        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-jsqlparser</artifactId>
        </dependency>
        <!-- https://mvnrepository.com/artifact/com.alibaba/druid-spring-boot-3-starter -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid-spring-boot-3-starter</artifactId>
            <version>${druid.version}</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/com.mysql/mysql-connector-j -->
        <dependency>
            <groupId>com.mysql</groupId>
            <artifactId>mysql-connector-j</artifactId>
            <version>${mysql.version}</version>
        </dependency>
        <!-- JWT -->
        <dependency>
            <groupId>io.jsonwebtoken</groupId>
            <artifactId>jjwt-api</artifactId>
            <version>${jwt.version}</version>
        </dependency>
        <dependency>
            <groupId>io.jsonwebtoken</groupId>
            <artifactId>jjwt-impl</artifactId>
            <version>${jwt.version}</version>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>io.jsonwebtoken</groupId>
            <artifactId>jjwt-jackson</artifactId>
            <version>${jwt.version}</version>
            <scope>runtime</scope>
        </dependency>
    </dependencies>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>com.baomidou</groupId>
                <artifactId>mybatis-plus-bom</artifactId>
                <version>${mybatis-plus.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <configuration>
                    <annotationProcessorPaths>
                        <path>
                            <groupId>org.projectlombok</groupId>
                            <artifactId>lombok</artifactId>
                        </path>
                    </annotationProcessorPaths>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <configuration>
                    <excludes>
                        <exclude>
                            <groupId>org.projectlombok</groupId>
                            <artifactId>lombok</artifactId>
                        </exclude>
                    </excludes>
                </configuration>
            </plugin>
        </plugins>
    </build>

</project>

application.yml

spring:
  application:
    name: spring-security-demo
  datasource:
    type: com.alibaba.druid.pool.DruidDataSource
    driver-class-name: com.mysql.cj.jdbc.Driver
    url: jdbc:mysql://localhost:3306/demo?serverTimezone=UTC&useUnicode=true&characterEncoding=UTF-8&allowMultiQueries=true
    username: root
    password: root
    druid:
      initial-size: 5
      min-idle: 5
      max-active: 20
      max-wait: 60000
      time-between-eviction-runs-millis: 60000
      min-evictable-idle-time-millis: 30000
      validation-query: select 'x'
      test-while-idle: true
      test-on-borrow: false
      test-on-return: false
      #打开PSCache，并指定每个连接上PSCache的大小。oracle设为true，mysql设为false。分库分表较多推荐设置为false
      pool-prepared-statements: false
      filters: stat,wall,slf4j
      max-pool-prepared-statement-per-connection-size: -1
      use-global-data-source-stat: true
      web-stat-filter:
        enabled: true
        url-pattern: /*
        exclusions: /druid/*,*.js,*.gif,*.jpg,*.png,*.css,*.ico
      stat-view-servlet:
        enabled: true
        url-pattern: /druid/*
        reset-enable: false
        login-username: druid
        login-password: druid
        allow: 127.0.0.1

#mybatis plus
mybatis-plus:
  global-config:
    db-config:
      logic-delete-field: deleted # 全局逻辑删除字段名
      logic-delete-value: 1 # 逻辑已删除值。可选，默认值为 1
      logic-not-delete-value: 0 # 逻辑未删除值。可选，默认值为 0
  mapper-locations: classpath:mapper/*.xml
  type-aliases-package: com.sec.demo.entity
  configuration:
    log-impl: org.apache.ibatis.logging.stdout.StdOutImpl
    map-underscore-to-camel-case: true

# JWT配置
app:
  jwtSecret: jwtSecretKeyjwtSecretKeyjwtSecretKeyjwtSecretKeyjwtSecretKeyjwtSecretKey
  jwtExpirationMs: 86400000

1、jwt工具类

@Slf4j
@Getter
@Component
public class JwtUtil {

    @Value("${app.jwtSecret}")
    private String jwtSecret;

    //过期时间，毫秒
    @Value("${app.jwtExpirationMs}")
    private long jwtExpirationMs;

    // 创建签名密钥（使用HS512算法）
    private SecretKey getSigningKey() {
        byte[] keyBytes = jwtSecret.getBytes(StandardCharsets.UTF_8);
        return Keys.hmacShaKeyFor(keyBytes);
    }

    // 生成JWT令牌
    public String generateJwtToken(UserDetails userPrincipal) {

        return Jwts.builder()
                .setSubject(userPrincipal.getUsername())
                .setIssuedAt(new Date())
                .setExpiration(new Date(System.currentTimeMillis() + jwtExpirationMs))
                .signWith(getSigningKey(), SignatureAlgorithm.HS512)
                .compact();
    }

    // 从JWT令牌中获取用户名
    public String getUserNameFromJwtToken(String token) {
        return Jwts.parserBuilder()
                .setSigningKey(getSigningKey())
                .build()
                .parseClaimsJws(token)
                .getBody()
                .getSubject();
    }

    /**
     * jwt 距离 几分钟之前过期
     * @param token
     * @param minutes
     * @return
     */
    public boolean tokenWillExpireInMinutes(String token, long minutes){
        minutes = minutes == 0L ? 5 : minutes;
        Date expiration = Jwts.parserBuilder()
                .setSigningKey(getSigningKey())
                .build()
                .parseClaimsJws(token)
                .getBody()
                .getExpiration();
        long timeToExpiration = expiration.getTime() - new Date().getTime();
        // 如果剩余时间少于5分钟，则认为token将在5分钟内过期
        return timeToExpiration <= minutes * 60 * 1000;
    }

    // 验证JWT令牌
    public boolean validateJwtToken(String authToken) {
        try {
            Jwts.parserBuilder()
                    .setSigningKey(getSigningKey())
                    .build()
                    .parseClaimsJws(authToken);
            return true;
        } catch (io.jsonwebtoken.security.SignatureException e) { // 使用完全限定名避免冲突
            log.error("Invalid JWT signature: {}", e.getMessage());
        } catch (MalformedJwtException e) {
            log.error("Invalid JWT token: {}", e.getMessage());
        } catch (ExpiredJwtException e) {
            log.error("JWT token is expired: {}", e.getMessage());
        } catch (UnsupportedJwtException e) {
            log.error("JWT token is unsupported: {}", e.getMessage());
        } catch (IllegalArgumentException e) {
            log.error("JWT claims string is empty: {}", e.getMessage());
        }
        return false;
    }

    // 从请求中获取JWT令牌
    public String parseJwt(HttpServletRequest request) {
        String headerAuth = request.getHeader("Authorization");

        if (StringUtils.hasText(headerAuth) && headerAuth.startsWith("Bearer ")) {
            return headerAuth.substring(7);
        }

        return null;
    }
}

2、用户详情实现类

import com.fasterxml.jackson.annotation.JsonIgnore;
import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.core.userdetails.UserDetails;

import java.util.Collection;
import java.util.Map;

public class AuthUser implements UserDetails {
    /**
     * 用户名
     */
    private String username;
    /**
     * 密码
     */
    @JsonIgnore
    private String password;

    /**
     * 附加信息
     */
    private Map<String, Object> extra;

    /**
     * 权限
     */
    private Collection<? extends GrantedAuthority> authorities;

    public AuthUser() {
    }

    public AuthUser(String username, String password, Collection<? extends GrantedAuthority> authorities) {
        this.username = username;
        this.password = password;
        this.authorities = authorities;
    }


    @Override
    public Collection<? extends GrantedAuthority> getAuthorities() {
        return authorities;
    }

    @Override
    public String getPassword() {
        return password;
    }

    @Override
    public String getUsername() {
        return username;
    }

    @Override
    public boolean isAccountNonExpired() {
        //返回当前账户是否未过期
        return true;
    }

    @Override
    public boolean isAccountNonLocked() {
        //返回当前用户是否未锁定
        return true;
    }

    @Override
    public boolean isCredentialsNonExpired() {
        //返回当前账户凭证是否未过期
        return true;
    }

    @Override
    public boolean isEnabled() {
        //返回当前账户是否可用
        return true;
    }
}

3、实现UserDetailsService

import com.baomidou.mybatisplus.core.toolkit.Wrappers;
import com.sec.demo.entity.User;
import com.sec.demo.mapper.UserMapper;
import jakarta.annotation.Resource;
import org.springframework.security.core.authority.SimpleGrantedAuthority;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.stereotype.Service;

import java.util.HashSet;
import java.util.Set;

@Service
public class UserDetailsServiceImpl implements UserDetailsService {

    @Resource
    private UserMapper userMapper;

    @Override
    public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {

        User user = userMapper.selectOne(Wrappers.lambdaQuery(User.class).eq(User::getUsername, username));
        if (user == null) {
            throw new UsernameNotFoundException(String.format("%s.这个用户不存在", username));
        }
        //权限，todo
        Set<SimpleGrantedAuthority> authorities = new HashSet<>();
        return new AuthUser(user.getUsername(), user.getPassword(), authorities);
    }
}

4、创建 JWT 认证过滤器

import cn.hutool.core.util.StrUtil;
import com.sec.demo.util.JwtUtil;
import jakarta.annotation.Resource;
import jakarta.servlet.FilterChain;
import jakarta.servlet.ServletException;
import jakarta.servlet.http.HttpServletRequest;
import jakarta.servlet.http.HttpServletResponse;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.lang.NonNull;
import org.springframework.security.authentication.UsernamePasswordAuthenticationToken;
import org.springframework.security.core.context.SecurityContextHolder;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.web.authentication.WebAuthenticationDetailsSource;
import org.springframework.stereotype.Component;
import org.springframework.web.filter.OncePerRequestFilter;

import java.io.IOException;
import java.util.Calendar;

@Slf4j
@Component
public class JwtAuthenticationFilter extends OncePerRequestFilter {

    @Resource
    private JwtUtil jwtUtil;
    @Qualifier("userDetailsServiceImpl")
    @Resource
    private UserDetailsService userDetailsService;

    @Override
    protected void doFilterInternal(@NonNull HttpServletRequest request,
                                    @NonNull HttpServletResponse response,
                                    @NonNull FilterChain filterChain) throws ServletException, IOException {
        String jwt = jwtUtil.parseJwt(request);

        if (StrUtil.isBlankOrUndefined(jwt)){
            log.info("jwt is empty");
            filterChain.doFilter(request, response);
            return;
        }
        boolean validateJwtToken = jwtUtil.validateJwtToken(jwt);
        if (!validateJwtToken){
            log.error("jwt is invalid");
            return;
        }
        String username = jwtUtil.getUserNameFromJwtToken(jwt);
        UserDetails userDetails = userDetailsService.loadUserByUsername(username);
        if (null == userDetails){
            log.error("userDetails is empty");
            return;
        }
        if (!username.equals(userDetails.getUsername())){
            log.error("token和username不匹配");
            return;
        }
        //5分钟之后过期，刷新token
        if (jwtUtil.tokenWillExpireInMinutes(jwt, 5)){
            handleRefreshToken(userDetails,request, response, filterChain);
            return;
        }

        UsernamePasswordAuthenticationToken authentication =
                new UsernamePasswordAuthenticationToken(userDetails, null, userDetails.getAuthorities());
        authentication.setDetails(new WebAuthenticationDetailsSource().buildDetails(request));
        SecurityContextHolder.getContext().setAuthentication(authentication);
        filterChain.doFilter(request, response);
    }

    /**
     * 刷新token
     * @param request
     * @param response
     * @param filterChain
     */
    private void handleRefreshToken(UserDetails userDetails,HttpServletRequest request, HttpServletResponse response, FilterChain filterChain) throws ServletException, IOException {
        String token = jwtUtil.generateJwtToken(userDetails);
        long expireAt = Calendar.getInstance().getTimeInMillis() + jwtUtil.getJwtExpirationMs();
        response.addHeader("Authorization", token);
        response.addHeader("expireAt", String.valueOf(expireAt));
        UsernamePasswordAuthenticationToken usernamePasswordAuthenticationToken = new UsernamePasswordAuthenticationToken(userDetails,
                null, userDetails.getAuthorities());
        usernamePasswordAuthenticationToken.setDetails(new WebAuthenticationDetailsSource().buildDetails(request));
        SecurityContextHolder.getContext().setAuthentication(usernamePasswordAuthenticationToken);
        filterChain.doFilter(request, response);
    }
}

5、处理未授权访问

import cn.hutool.json.JSONUtil;
import jakarta.servlet.ServletException;
import jakarta.servlet.http.HttpServletRequest;
import jakarta.servlet.http.HttpServletResponse;
import org.springframework.security.core.AuthenticationException;
import org.springframework.security.web.AuthenticationEntryPoint;

import java.io.IOException;
import java.util.HashMap;
import java.util.Map;

public class MyAuthenticationEntryPoint implements AuthenticationEntryPoint {
    @Override
    public void commence(HttpServletRequest request, HttpServletResponse response,
                         AuthenticationException authException) throws IOException, ServletException {
        //获取错误信息: Full authentication is required to access this resource
//        String localizedMessage = authException.getLocalizedMessage();

        String localizedMessage = "请先登录后再访问";

        Map<String, Object> result = new HashMap<>();
        result.put("code", -1);
        result.put("message", localizedMessage);
        String json = JSONUtil.toJsonStr(result);
        response.setContentType("application/json;charset=utf-8");
        response.getWriter().write(json);
        response.getWriter().flush();
        response.getWriter().close();

    }
}

6、Spring Security 配置类

import com.sec.demo.security.JwtAuthenticationFilter;
import com.sec.demo.security.MyAuthenticationEntryPoint;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.Customizer;
import org.springframework.security.config.annotation.method.configuration.EnableMethodSecurity;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityCustomizer;
import org.springframework.security.config.annotation.web.configurers.AbstractHttpConfigurer;
import org.springframework.security.config.http.SessionCreationPolicy;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.security.web.SecurityFilterChain;
import org.springframework.security.web.authentication.UsernamePasswordAuthenticationFilter;

@Configuration
@EnableMethodSecurity
@EnableWebSecurity
public class WebSecurityConfig {

    @Bean
    public WebSecurityCustomizer webSecurityCustomizer() {
        // 配置哪些请求可以被忽略，不被Spring Security保护
        return web -> web.ignoring()
                .requestMatchers("/login",
                        "/logout",
                        "/doc.html",
                        "/webjars/**",
                        "/swagger-resources/**",
                        "/v2/api-docs/**",
                        "/favicon.ico",
                        "/error");
    }

    @Bean
    public SecurityFilterChain filterChain(HttpSecurity http) throws Exception {
        http.authorizeHttpRequests(authorize -> authorize
                .anyRequest().authenticated()
        );
        //关闭CSRF保护
        http.csrf(AbstractHttpConfigurer::disable)
                .exceptionHandling(exception -> exception.authenticationEntryPoint(new MyAuthenticationEntryPoint()))
                //采用无状态会话管理(SessionCreationPolicy.STATELESS)
                .sessionManagement(session -> session.sessionCreationPolicy(SessionCreationPolicy.STATELESS)
                );
        //添加jwt登录授权过滤
        http.addFilterBefore(jwtAuthenticationFilter(), UsernamePasswordAuthenticationFilter.class);
        //开启跨域
        http.cors(Customizer.withDefaults());
        return http.build();
    }

    @Bean
    public PasswordEncoder passwordEncoder() {
        return new BCryptPasswordEncoder();
    }

    @Bean
    public JwtAuthenticationFilter jwtAuthenticationFilter(){
        return new JwtAuthenticationFilter();
    }
}

7、创建Controller，处理登录请求

import com.sec.demo.util.JwtUtil;
import jakarta.annotation.Resource;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.http.ResponseEntity;
import org.springframework.security.authentication.UsernamePasswordAuthenticationToken;
import org.springframework.security.core.context.SecurityContextHolder;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.Calendar;
import java.util.HashMap;
import java.util.Map;

@RestController
public class LoginController {

    @Resource
    @Qualifier("userDetailsServiceImpl")
    private UserDetailsService userDetailsService;
    @Resource
    private PasswordEncoder passwordEncoder;
    @Resource
    private JwtUtil jwtUtil;

    @PostMapping("/login")
    public ResponseEntity<Map<String, Object>> login(String username, String password) {
        UserDetails userDetails = userDetailsService.loadUserByUsername(username);
        if (null == userDetails || !passwordEncoder.matches(password, userDetails.getPassword())) {
            return ResponseEntity
                    .badRequest()
                    .body(Map.of("message", "密码错误！"));
        }
        UsernamePasswordAuthenticationToken authenticationToken = new UsernamePasswordAuthenticationToken(userDetails,
                null, userDetails.getAuthorities());
        SecurityContextHolder.getContext().setAuthentication(authenticationToken);
        long expireAt = Calendar.getInstance().getTimeInMillis() + jwtUtil.getJwtExpirationMs();
        String token = jwtUtil.generateJwtToken(userDetails);
        Map<String, Object> result = new HashMap<>();
        result.put("token", token);
        result.put("expireAt", expireAt);
        result.put("username", username);
        result.put("message", "登录成功！");
        return ResponseEntity.ok(result);
    }
}

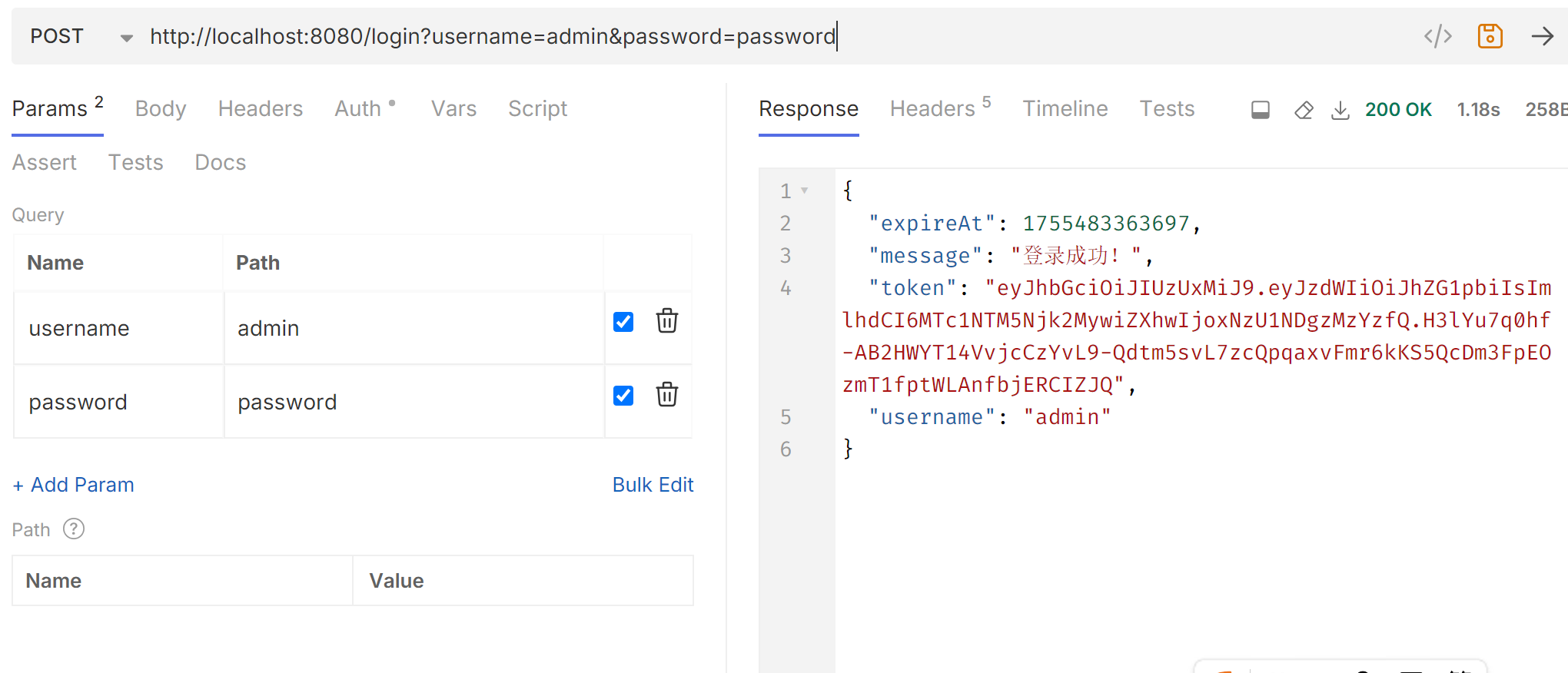

8、测试结果
