【java_wxid项目】【第七章】【Spring Cloud Security Oauth2集成】

发布于：2023-01-04 ⋅ 阅读:(459) ⋅ 点赞:(0)

主项目链接：https://gitee.com/java_wxid/java_wxid
项目架构及博文总结：

项目模块：
前期规划，实现部分

java_wxid
├── demo                                                            // 演示模块
│     └── 模块名称：apache-mybatis-demo模块                            //Apache Mybatis集成（已实现并有博文总结）
│     └── 模块名称：apache-shardingsphere-demo模块                     //Apache ShardingSphere集成（已实现并有博文总结）
│     └── 模块名称：design-demo模块                                    //设计模式实战落地（已实现并有博文总结）
│     └── 模块名称：elasticsearch-demo模块                             //ElasticSearch集成（已实现并有博文总结）
│     └── 模块名称：mongodb-demo模块                                   //MongoDB集成（已实现并有博文总结）
│     └── 模块名称：redis-demo模块                                     //Redis集成（已实现并有博文总结）
│     └── 模块名称：spring-boot-demo模块                               //Spring Boot快速构建应用（已实现并有博文总结）
│     └── 模块名称：spring-cloud-alibaba-nacos-demo模块                //Spring Cloud Alibaba Nacos集成（已实现并有博文总结）
│     └── 模块名称：spring-cloud-alibaba-seata-demo模块                //Spring Cloud Alibaba Seata集成（已实现并有博文总结）
│     └── 模块名称：spring-cloud-alibaba-sentinel-demo模块             //Spring Cloud Alibaba Sentinel集成（已实现并有博文总结）
│     └── 模块名称：spring-cloud-gateway-demo模块                      //Spring Cloud Gateway集成（已实现并有博文总结）
│     └── 模块名称：spring-cloud-hystrix-demo模块                      //Spring Cloud Hystrix集成（已实现并有博文总结）
│     └── 模块名称：spring-cloud-open-feign-demo模块                   //Spring Cloud Open Feign集成（已实现并有博文总结）
│     └── 模块名称：spring-cloud-ribbon-demo模块                       //Spring Cloud Ribbon集成（已实现并有博文总结）
│     └── 模块名称：spring-cloud-security-oauth2-demo模块              //Spring Cloud Security Oauth2集成（已实现并有博文总结）
│     └── 模块名称：spring-cloud-security-oauth2-sso-client-demo模块   //Spring Cloud Security Oauth2集成（已实现并有博文总结）
│     └── 模块名称：spring-cloud-skywalking-demo模块                   //Spring Cloud Skywalking集成（已实现并有博文总结）
│     └── 模块名称：spring-cloud-stream-demo模块                       //Spring Cloud Stream集成（已实现并有博文总结）
│     └── 模块名称：swagger-demo模块                                   //springfox-swagger2集成（已实现并有博文总结）
│     └── 模块名称：xxl-job模块                                        //xxl-job集成（已实现并有博文总结）
│     └── 模块名称：apache-spark-demo模块                              //Apache Spark集成
│     └── 模块名称：etl-hdfs-hive-hbase-demo模块                       //ETL、HDFS、Hive、Hbase集成
│     └── 模块名称：ddd-mode-demo模块                                  //DDD领域设计
│     └── 模块名称：netty-demo模块                                     //Netty集成
│     └── 模块名称：vue-demo模块                                       //前端vue集成
├── document                                                        // 文档
│     └── JavaKnowledgeDocument                                     //java知识点
│           └── java基础知识点.md
│           └── mq知识点.md
│           └── mysql知识点.md
│           └── redis知识点.md
│           └── springcould知识点.md
│           └── spring知识点.md
│     └── FounderDocument                                           //创始人
│           └── 创始人.md

系列文章：快速集成各种微服务相关的技术，帮助大家可以快速集成到自己的项目中，节约开发时间。
提示：系列文章还未全部完成，后续的文章，会慢慢补充进去的。

文章目录

创建spring-cloud-security-oauth2-demo项目

项目代码：https://gitee.com/java_wxid/java_wxid/tree/master/demo/spring-cloud-security-oauth2-demo

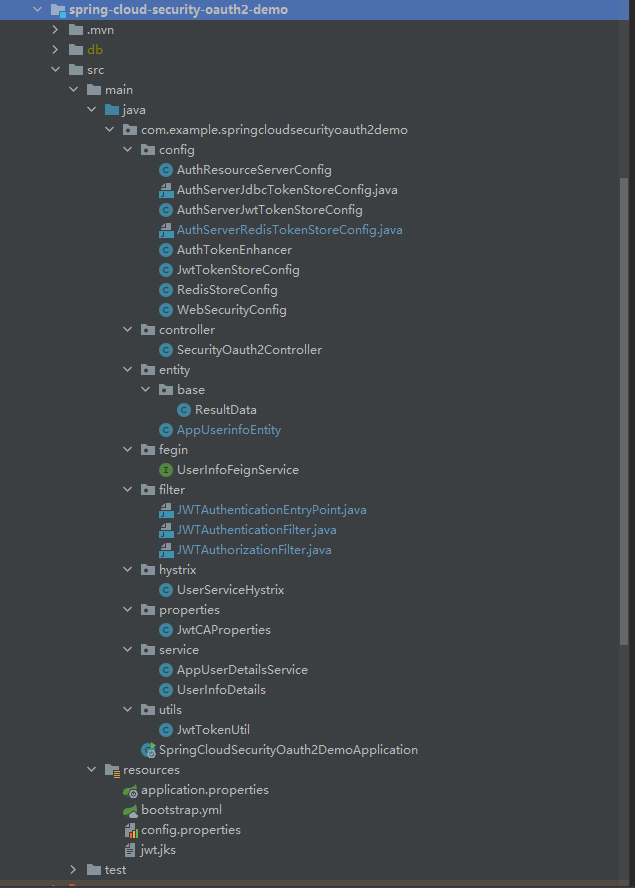

项目结构如下（示例）：
在这里插入图片描述

修改pom.xml

代码如下（示例）：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>


    <groupId>com.example</groupId>
    <artifactId>spring-cloud-security-oauth2-demo</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>spring-cloud-security-oauth2-demo</name>
    <description>Demo project for Spring Boot</description>
    <!--    属性配置-->
    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <java.version>1.8</java.version>
        <!--引入 Spring Boot、Spring Cloud、Spring Cloud Alibaba 三者 BOM 文件，进行依赖版本的管理，防止不兼容。
        在 https://dwz.cn/mcLIfNKt 文章中，Spring Cloud Alibaba 开发团队推荐了三者的依赖关系-->
        <spring.boot.version>2.3.12.RELEASE</spring.boot.version>
        <spring.cloud.version>Hoxton.SR12</spring.cloud.version>
        <spring.cloud.alibaba.version>2.2.7.RELEASE</spring.cloud.alibaba.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

        <!--代表web模块，在这个模块中含了许多JAR包，有spring相关的jar，内置tomcat服务器，jackson等，
        这些web项目中常用的的功能都会自动引入-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <!-- Alibaba Nacos 配置 -->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId>
        </dependency>
        <!--        在SpringBoot 2.4.x的版本之后，对于bootstrap.properties/bootstrap.yaml配置文件
        (我们合起来成为Bootstrap配置文件)的支持，其实这个jar包里什么都没有，就只有一个标识类Marker，
        用来标识要开启Bootstrap配置文件的支持，由于父类用了2.5.6版本需要导入如下的依赖-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-bootstrap</artifactId>
            <version>3.1.0</version>
        </dependency>

        <!-- spring security oauth2-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-oauth2</artifactId>
        </dependency>
        <!-- JWT依赖-->
        <dependency>
            <groupId>io.jsonwebtoken</groupId>
            <artifactId>jjwt</artifactId>
            <version>0.9.1</version>
        </dependency>
<!--        lombok插件-->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>RELEASE</version>
            <scope>compile</scope>
        </dependency>
<!--        commons-lang3工具包-->
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-lang3</artifactId>
            <version>3.10</version>
        </dependency>
        <!--openfeign客户端依赖-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-openfeign-core</artifactId>
            <version>2.2.6.RELEASE</version>
        </dependency>
        <!--引入HttpClient依赖-->
        <dependency>
            <groupId>io.github.openfeign</groupId>
            <artifactId>feign-httpclient</artifactId>
        </dependency>
        <!-- 引入Feign Slf4j -->
        <dependency>
            <groupId>com.netflix.feign</groupId>
            <artifactId>feign-slf4j</artifactId>
            <version>8.14.4</version>
        </dependency>

<!--        jdbc-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>

        <!-- redis -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-redis</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-pool2</artifactId>
        </dependency>
<!--        fastjson-->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.62</version>
        </dependency>
    </dependencies>


    <!--
        引入 Spring Boot、Spring Cloud、Spring Cloud Alibaba 三者 BOM 文件，进行依赖版本的管理，防止不兼容。
        在 https://dwz.cn/mcLIfNKt 文章中，Spring Cloud Alibaba 开发团队推荐了三者的依赖关系
     -->
    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-parent</artifactId>
                <version>${spring.boot.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring.cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-alibaba-dependencies</artifactId>
                <version>${spring.cloud.alibaba.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>


    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>2.4</version>
                <configuration>
                    <source>${java.version}</source>
                    <target>${java.version}</target>
                    <encoding>${project.build.sourceEncoding}</encoding>
                </configuration>
            </plugin>
        </plugins>

        <resources>
            <resource>
                <directory>src/main/resources</directory>
                <filtering>true</filtering>
                <excludes>
                    <exclude>**/*.jks</exclude>
                </excludes>
            </resource>
            <resource>
                <directory>src/main/resources</directory>
                <filtering>false</filtering>
                <includes>
                    <include>**/*.jks</include>
                </includes>
            </resource>
        </resources>
    </build>
</project>

创建bootstrap.yml文件

代码如下（示例）：

#bootstrap.yml优先级比application.yml优先级高
spring:
  #prefix−{spring.profile.active}.${file-extension}
  #nacos会根据当前环境去拼接配置名称查找相应配置文件，
  #示例：{spring.application.name}-{spring.profiles.active}-{spring.cloud.nacos.config.file-extension}
  #获取到值：nacos-autoconfig-service-dev.yml
  profiles:
    #开发环境dev，测试环境test，生产环境prod
    active: dev
  application:
    #配置应用的名称，用于获取配置
    name: security-oauth2
  main:
    allow-bean-definition-overriding: true
  cloud:
    nacos:
      discovery:
        # 服务注册地址
        server-addr: ip:8848
      config:
        #nacos配置中心地址
        server-addr: ip:8848
        #配置中心的命名空间id
        namespace: 9e50b6d9-6c3d-4e7a-b701-10f085e4b98d
        #配置分组，默认没有也可以
        group: DEFAULT_GROUP
        #配置文件后缀，用于拼接配置配置文件名称，目前只支持yaml和properties
        file-extension: yaml
        #配置自动刷新
        refresh-enabled: true
        #配置文件的前缀，默认是application.name的值，如果配了prefix，就取prefix的值
        #prefix: nacos-autoconfig-service-${spring.profile.active}
        # 配置编码
        encode: UTF-8
        username: nacos
        password: nacos
  datasource:
    driver-class-name: com.mysql.cj.jdbc.Driver
    url: jdbc:mysql://ip:3306/oauth2?useUnicode=true&characterEncoding=UTF-8&serverTimezone=GMT%2b8
    username: root
    password: ca0a997ee4770063
    hikari:
      minimum-idle: 5
      idle-timeout: 600000
      maximum-pool-size: 10
      auto-commit: true
      pool-name: MyHikariCP
      max-lifetime: 3000000  #连接最大存活时间,默认值30分钟.设置应该比mysql设置的超时时间短
      connection-timeout: 30000
      connection-test-query: SELECT 1 #连接测试查询
  redis:
    host: ip
    database: 0
    client-name: root
    password: ca0a997ee4770063
auth:
  jwt:
    keyPairName: jwt.jks
    keyPairAlias: jwt
    keyPairSecret: 123456
    keyPairStoreSecret: 123456

修改application.properties文件

server.port=8807

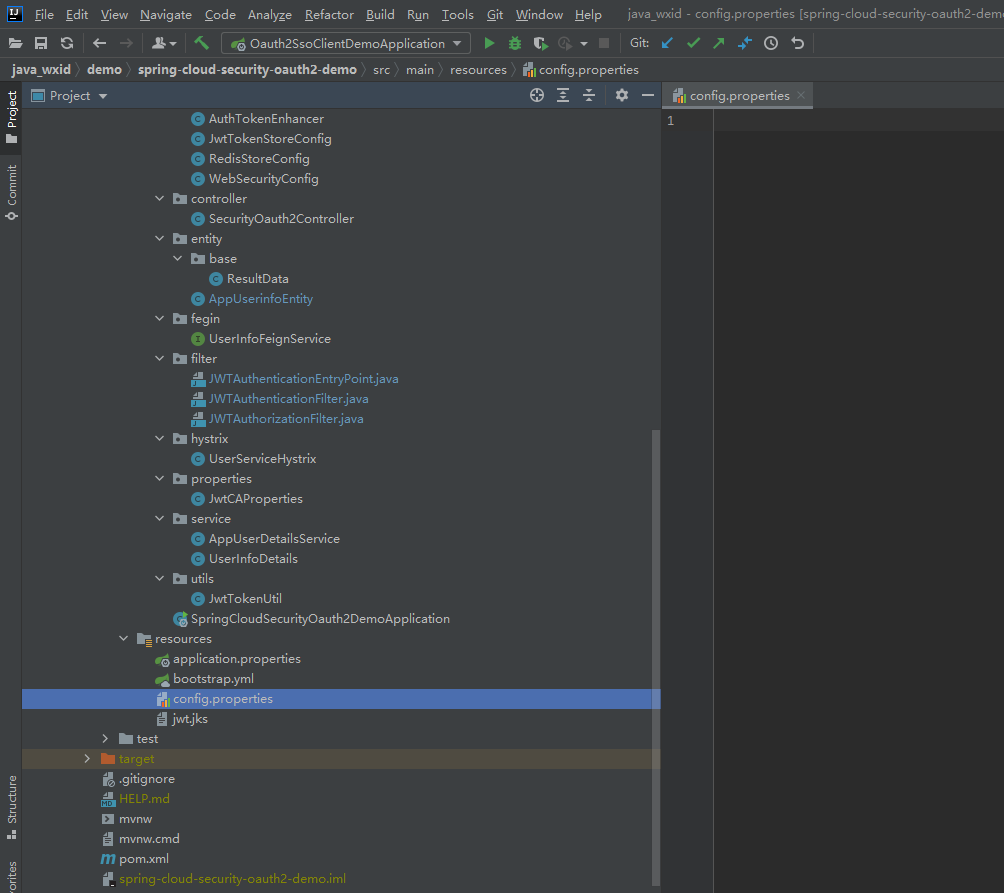

创建一个空的config.properties文件

在这里插入图片描述

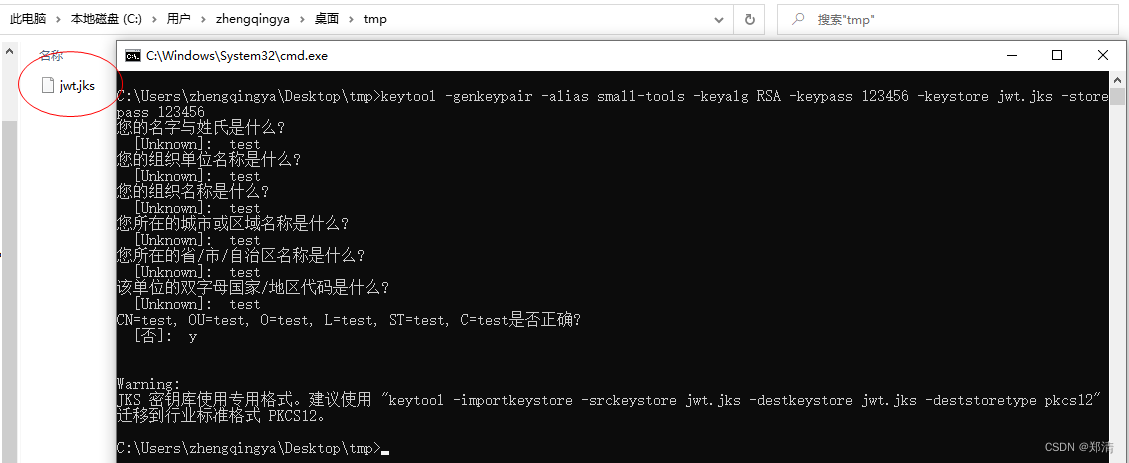

创建jwt.jks文件

在这里插入图片描述

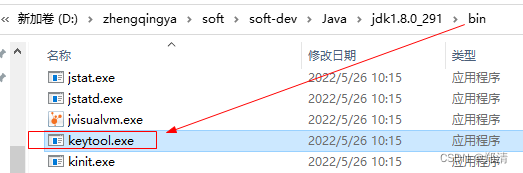

# Keytool 是一个java提供的证书管理工具
#    -alias：密钥的别名
#    -keyalg：使用的hash算法
#    -keypass：密钥的访问密码
#    -keystore：密钥库文件名，jwt.jks -> 生成的证书
#    -storepass：密钥库的访问密码
keytool -genkeypair -alias jwt -keyalg RSA -keypass 123456 -keystore jwt.jks -storepass 123456

# 查询证书
keytool -list -keystore jwt.jks

把生成的文件复制到项目的resource目录下面
在这里插入图片描述在这里插入图片描述

修改SpringCloudSecurityOauth2DemoApplication

代码如下（示例）：

package com.example.springcloudsecurityoauth2demo;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;

@EnableDiscoveryClient
@SpringBootApplication
public class SpringCloudSecurityOauth2DemoApplication {

    public static void main(String[] args) {
        SpringApplication.run(SpringCloudSecurityOauth2DemoApplication.class, args);
    }

}

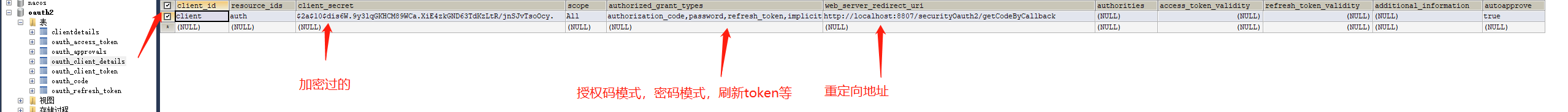

创建数据库表结构

代码如下（示例）：

#官方的sql: https://github.com/spring-projects/spring-security-oauth/blob/master/spring-security-oauth2/src/test/resources/schema.sql

CREATE TABLE `clientdetails` (
  `appId` varchar(128) NOT NULL,
  `resourceIds` varchar(255) DEFAULT NULL,
  `appSecret` varchar(255) DEFAULT NULL,
  `scope` varchar(255) DEFAULT NULL,
  `grantTypes` varchar(255) DEFAULT NULL,
  `redirectUrl` varchar(255) DEFAULT NULL,
  `authorities` varchar(255) DEFAULT NULL,
  `access_token_validity` int(11) DEFAULT NULL,
  `refresh_token_validity` int(11) DEFAULT NULL,
  `additionalInformation` varchar(4096) DEFAULT NULL,
  `autoApproveScopes` varchar(255) DEFAULT NULL,
  PRIMARY KEY (`appId`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

CREATE TABLE `oauth_access_token` (
  `token_id` varchar(255) DEFAULT NULL,
  `token` blob,
  `authentication_id` varchar(128) NOT NULL,
  `user_name` varchar(255) DEFAULT NULL,
  `client_id` varchar(255) DEFAULT NULL,
  `authentication` blob,
  `refresh_token` varchar(255) DEFAULT NULL,
  PRIMARY KEY (`authentication_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

CREATE TABLE `oauth_approvals` (
  `userId` varchar(255) DEFAULT NULL,
  `clientId` varchar(255) DEFAULT NULL,
  `scope` varchar(255) DEFAULT NULL,
  `status` varchar(10) DEFAULT NULL,
  `expiresAt` timestamp NULL DEFAULT NULL,
  `lastModifiedAt` timestamp NULL DEFAULT NULL
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

CREATE TABLE `oauth_client_details` (
  `client_id` varchar(128) NOT NULL,
  `resource_ids` varchar(255) DEFAULT NULL,
  `client_secret` varchar(255) DEFAULT NULL,
  `scope` varchar(255) DEFAULT NULL,
  `authorized_grant_types` varchar(255) DEFAULT NULL,
  `web_server_redirect_uri` varchar(255) DEFAULT NULL,
  `authorities` varchar(255) DEFAULT NULL,
  `access_token_validity` int(11) DEFAULT NULL,
  `refresh_token_validity` int(11) DEFAULT NULL,
  `additional_information` varchar(4096) DEFAULT NULL,
  `autoapprove` varchar(255) DEFAULT NULL,
  PRIMARY KEY (`client_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

CREATE TABLE `oauth_client_token` (
  `token_id` varchar(255) DEFAULT NULL,
  `token` blob,
  `authentication_id` varchar(128) NOT NULL,
  `user_name` varchar(255) DEFAULT NULL,
  `client_id` varchar(255) DEFAULT NULL,
  PRIMARY KEY (`authentication_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

CREATE TABLE `oauth_code` (
  `code` varchar(255) DEFAULT NULL,
  `authentication` blob
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

CREATE TABLE `oauth_refresh_token` (
  `token_id` varchar(255) DEFAULT NULL,
  `token` blob,
  `authentication` blob
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

插入语句

insert into `oauth_client_details` (`client_id`, `resource_ids`, `client_secret`, `scope`, `authorized_grant_types`, `web_server_redirect_uri`, `authorities`, `access_token_validity`, `refresh_token_validity`, `additional_information`, `autoapprove`) values('client','auth','$2a$10$dis6W.9y3lqGKHCM89WCa.XiE4zkGND63TdKzLtR/jnSJvTsoOcy.','All','authorization_code,password,refresh_token,implicit','http://localhost:8807/securityOauth2/getCodeByCallback',NULL,NULL,NULL,NULL,'true');

如下图（示例）：
在这里插入图片描述

创建AuthResourceServerConfig

代码如下（示例）：

package com.example.springcloudsecurityoauth2demo.config;

import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.oauth2.config.annotation.web.configuration.EnableResourceServer;
import org.springframework.security.oauth2.config.annotation.web.configuration.ResourceServerConfigurerAdapter;

/**
 * @Author: liaozhiwei
 * @Description: 资源服务配置
 * @Date: Created in 18:19 2022/8/23
 */
@Configuration
@EnableResourceServer
public class AuthResourceServerConfig  extends ResourceServerConfigurerAdapter {

    @Override
    public void configure(HttpSecurity http) throws Exception {
      //利用RequestMatcher对象来进行路径匹配了，调用了antMatchers方法来定义什么样的请求可以放过，什么样的请求需要验证
        http.authorizeRequests()
                .anyRequest().authenticated()
                .and().requestMatchers().antMatchers("/user/**");
    }
}

创建AuthServerJdbcTokenStoreConfig.java

这个是基于DB模式配置授权服务器存储第三方客户端的信息，由于DB/Jwt/Redis三种方式选择其中一个进行存储，目前测试过可行，所以注释了

代码如下（示例）：

//package com.example.springcloudsecurityoauth2demo.config;
//
//import com.example.springcloudsecurityoauth2demo.service.AppUserDetailsService;
//import org.springframework.beans.factory.annotation.Autowired;
//import org.springframework.context.annotation.Bean;
//import org.springframework.context.annotation.Configuration;
//import org.springframework.http.HttpMethod;
//import org.springframework.security.authentication.AuthenticationManager;
//import org.springframework.security.oauth2.config.annotation.configurers.ClientDetailsServiceConfigurer;
//import org.springframework.security.oauth2.config.annotation.web.configuration.AuthorizationServerConfigurerAdapter;
//import org.springframework.security.oauth2.config.annotation.web.configuration.EnableAuthorizationServer;
//import org.springframework.security.oauth2.config.annotation.web.configurers.AuthorizationServerEndpointsConfigurer;
//import org.springframework.security.oauth2.config.annotation.web.configurers.AuthorizationServerSecurityConfigurer;
//import org.springframework.security.oauth2.provider.ClientDetailsService;
//import org.springframework.security.oauth2.provider.client.JdbcClientDetailsService;
//import org.springframework.security.oauth2.provider.token.TokenEnhancer;
//import org.springframework.security.oauth2.provider.token.TokenEnhancerChain;
//import org.springframework.security.oauth2.provider.token.store.JdbcTokenStore;
//import org.springframework.security.oauth2.provider.token.store.JwtAccessTokenConverter;
//import javax.sql.DataSource;
//import java.util.ArrayList;
//import java.util.List;
//
///**
// * @Author: liaozhiwei
// * @Description: 第一种方式：基于DB模式配置授权服务器存储第三方客户端的信息
// * @Date: Created in 18:17 2022/8/23
// */
//@Configuration
//@EnableAuthorizationServer
//public class AuthServerJdbcTokenStoreConfig extends AuthorizationServerConfigurerAdapter {
//
//      //第一种方式：使用密码模式需要配置（使用jdbc的方式）
//    @Autowired
//    private DataSource dataSource;
//    @Bean
//    public JdbcTokenStore jdbcTokenStore(){
//        return new JdbcTokenStore(dataSource);
//    }
//    @Bean
//    public ClientDetailsService clientDetailsService(){
//        return new JdbcClientDetailsService(dataSource);
//    }
//
//    @Autowired
//    private JwtAccessTokenConverter jwtAccessTokenConverter;
//
//    @Autowired
//    private AppUserDetailsService userDetailService;
//
//    @Autowired
//    private AuthenticationManager authenticationManagerBean;
//
//    @Autowired
//    private AuthTokenEnhancer authTokenEnhancer;
//
//    /**
//     * @Description 第三方信息的存储
//     **/
//    @Override
//    public void configure(ClientDetailsServiceConfigurer clients) throws Exception {
//        /**
//         * 第一步
//         *授权码模式(安全级别最高)
//         *http://localhost:8807/oauth/authorize?response_type=code&client_id=client&redirect_uri=http://www.baidu.com&scope=all
//         *或者
//         *http://localhost:8807/oauth/authorize?response_type=code&client_id=client
//         *password模式
//         *http://localhost:8807/oauth/token?username=liaozhiwei&password=123456&grant_type=password&client_id=client&client_secret=client_secret&scope=all
//         *刷新令牌
//         *http://localhost:8080/oauth/token?grant_type=refresh_token&client_id=client&client_secret=client_secret&refresh_token=eyJhbGciOiJSUzI1NiIsInR5cCI6IkpXVCJ9.eyJ1c2VyX25hbWUiOiJsaWFvemhpd2VpIiwic2NvcGUiOlsiYWxsIl0sImF0aSI6IjJiYjg5NDY5LWIyNmYtNGQwNC05YTZjLTJjYmZkYjIzMDgyNyIsImV4cCI6MTY2MjE3ODkzMiwiYXV0aG9yaXRpZXMiOlsiYWRtaW4iXSwianRpIjoiNzBmOTc0NWItNGZmOS00ZTY5LThiOWMtNzY5ZGNkODc5NTcwIiwiY2xpZW50X2lkIjoiY2xpZW50In0.Uy6s5uIT2h_vv6DezssqzA1d7iNpqyfNReiAygmYrapPuc1Beyetoxbf3_zduD8BhZkKva7Qna_L9lFQKZuzzSx25RLgG07YzDZnuUPkCVYisxZ4bhmOuJYndKzrZmZBqmK2P9MQwLhasEgcpZoR5RJurV15fZOO5IvOI6xvgM0XkqalnEwYWf5e5JYLEEBqQqTpkEoP6wH3SSBsRFuH10l6qKqUXFd_nO37hO1p-d2uX-qMBTGPZ57xiaz97x5FLGxh2dbskmxyTnf-jAiTHlRdrfvIHDh312uW4iyENZpg8HEg3OjUHYc-7OY4U9UrHQx0YQbJ01SuKLCFEIx-aA
//         */
//        /**
//         * 第二步
//         * 获取access_token
//         * http://localhost:8807/oauth/token?grant_type=authorization_code&client_id=client&client_secret=client_secret&code=07Sn4f
//         */
//        // 第三方信息的存储   基于jdbc
//        clients.withClientDetails(clientDetailsService());
//    }
//
//    @Override
//    public void configure(AuthorizationServerEndpointsConfigurer endpoints) {
//        //配置JWT的内容增强器
//        TokenEnhancerChain enhancerChain = new TokenEnhancerChain();
//        List<TokenEnhancer> delegates = new ArrayList<>();
//        delegates.add(authTokenEnhancer);
//        delegates.add(jwtAccessTokenConverter);
//        enhancerChain.setTokenEnhancers(delegates);
//
//        //第一种：使用密码模式需要配置（使用jdbc的方式）
//        endpoints.authenticationManager(authenticationManagerBean)
//                .reuseRefreshTokens(false)  //refresh_token是否重复使用
//                .userDetailsService(userDetailService) //刷新令牌授权包含对用户信息的检查
//                .tokenStore(new JdbcTokenStore(dataSource))  //指定token存储策略是jwt,存储到mysql
//                .accessTokenConverter(jwtAccessTokenConverter)
//                .tokenEnhancer(enhancerChain) //配置tokenEnhancer
//                .allowedTokenEndpointRequestMethods(HttpMethod.GET,HttpMethod.POST,HttpMethod.DELETE,HttpMethod.PUT); //支持GET,POST请求,DELETE请求，PUT请求
//    }
//
//    /**
//     * 授权服务器安全配置
//     * @param security
//     * @throws Exception
//     */
//    @Override
//    public void configure(AuthorizationServerSecurityConfigurer security) {
//        //第三方客户端校验token需要带入 clientId 和clientSecret来校验
//        security.checkTokenAccess("isAuthenticated()")
//                .tokenKeyAccess("isAuthenticated()");//来获取我们的tokenKey需要带入clientId,clientSecret
//        //允许表单认证
//        security.allowFormAuthenticationForClients();
//    }
//}
//

创建AuthServerJwtTokenStoreConfig

这个是基于jwt.jks文件授权服务器存储第三方客户端的信息，由于DB/Jwt/Redis三种方式选择其中一个进行存储，目前测试过可行

代码如下（示例）：

package com.example.springcloudsecurityoauth2demo.config;

import com.example.springcloudsecurityoauth2demo.service.AppUserDetailsService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.context.annotation.Configuration;
import org.springframework.http.HttpMethod;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.security.oauth2.config.annotation.configurers.ClientDetailsServiceConfigurer;
import org.springframework.security.oauth2.config.annotation.web.configuration.AuthorizationServerConfigurerAdapter;
import org.springframework.security.oauth2.config.annotation.web.configuration.EnableAuthorizationServer;
import org.springframework.security.oauth2.config.annotation.web.configurers.AuthorizationServerEndpointsConfigurer;
import org.springframework.security.oauth2.config.annotation.web.configurers.AuthorizationServerSecurityConfigurer;
import org.springframework.security.oauth2.provider.token.TokenEnhancer;
import org.springframework.security.oauth2.provider.token.TokenEnhancerChain;
import org.springframework.security.oauth2.provider.token.TokenStore;
import org.springframework.security.oauth2.provider.token.store.JwtAccessTokenConverter;
import java.util.ArrayList;
import java.util.List;

/**
 * @Author: liaozhiwei
 * @Description: 第二种方式：基于jwt.jks文件授权服务器存储第三方客户端的信息
 * @Date: Created in 18:17 2022/8/23
 */
@Configuration
@EnableAuthorizationServer
public class AuthServerJwtTokenStoreConfig extends AuthorizationServerConfigurerAdapter {


     //第二种方式：使用密码模式需要配置（使用jwt文件的方式）
    @Autowired
    @Qualifier("jwtTokenStore")
    private TokenStore jwtTokenStore;


    @Autowired
    private JwtAccessTokenConverter jwtAccessTokenConverter;

    @Autowired
    private AppUserDetailsService userDetailService;

    @Autowired
    private AuthenticationManager authenticationManagerBean;

    @Autowired
    private AuthTokenEnhancer authTokenEnhancer;

    @Autowired
    private PasswordEncoder passwordEncoder;

    /**
     * @Description 第三方信息的存储
     **/
    @Override
    public void configure(ClientDetailsServiceConfigurer clients) throws Exception {
        /**
         * 第一种方式：授权码模式(安全级别最高)获取access_token
         * 第一步
         * http://127.0.0.1:8807/oauth/authorize?response_type=code&client_id=client&redirect_uri=http://www.baidu.com&scope=all
         *或者
         * http://127.0.0.1:8807/oauth/authorize?response_type=code&client_id=client

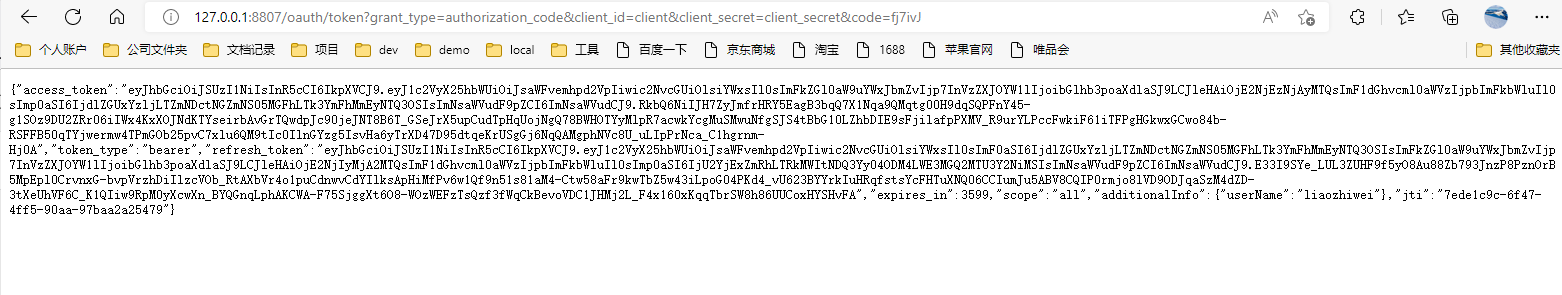

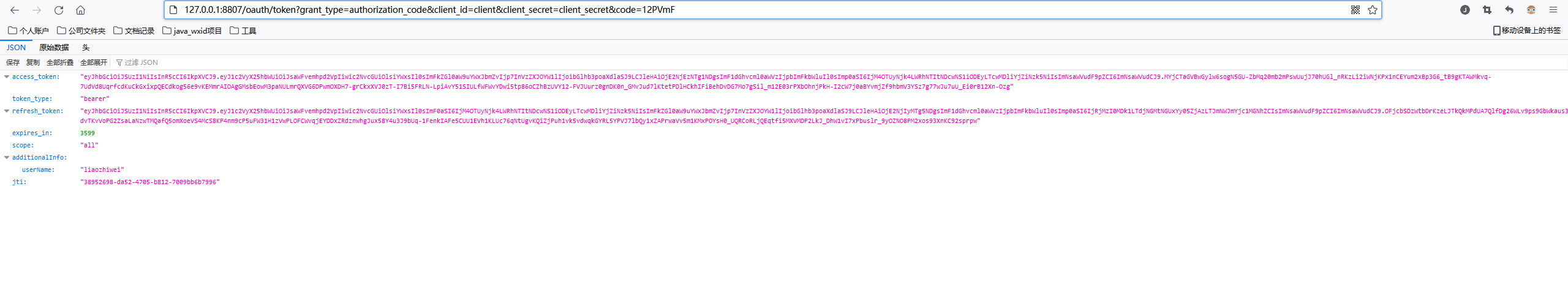

         * 第二步
         * 获取access_token
         * http://127.0.0.1:8807/oauth/token?grant_type=authorization_code&client_id=client&client_secret=client_secret&code=JQFXW7

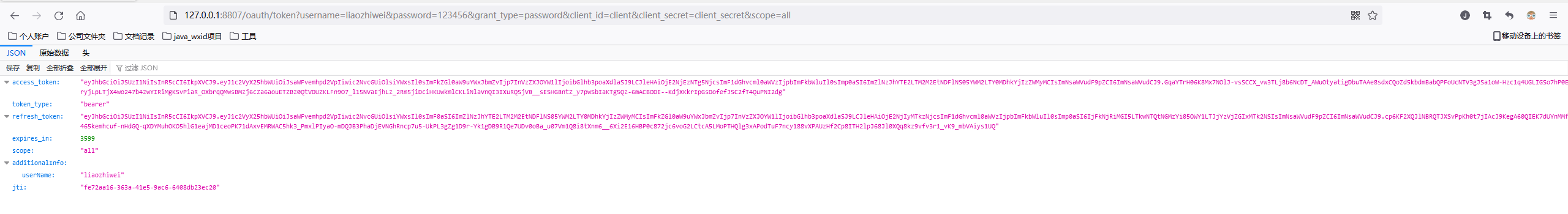

         * 第二种方式：password模式获取access_token
         * http://127.0.0.1:8807/oauth/token?username=liaozhiwei&password=123456&grant_type=password&client_id=client&client_secret=client_secret&scope=all
         * 刷新令牌获取access_token
         *http://127.0.0.1:8807/oauth/token?grant_type=refresh_token&client_id=client&client_secret=client_secret&refresh_token=         */

        /**

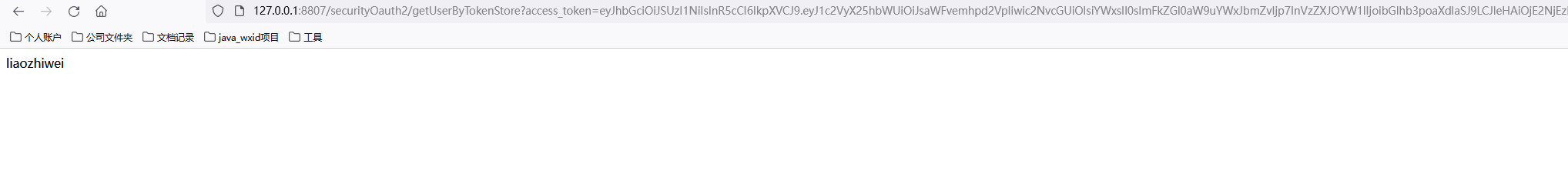

         * 其他服务发起请求使用access_token进行授权
         * http://127.0.0.1:8808/securityOauth2/getUserByTokenStore?access_token=
         * http://127.0.0.1:8808/securityOauth2/getUserByAuthentication?access_token=
         * http://127.0.0.1:8808/securityOauth2/getUserByRequest?access_token=
         * */

        clients.inMemory()
                //配置client_id
                .withClient("client")
                //配置client-secret
                .secret(passwordEncoder.encode("client_secret"))
                //配置访问token的有效期
                .accessTokenValiditySeconds(3600)
                //配置刷新token的有效期
                .refreshTokenValiditySeconds(864000)

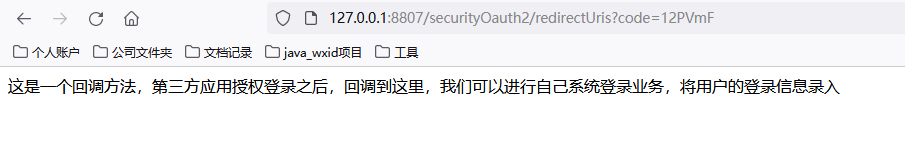

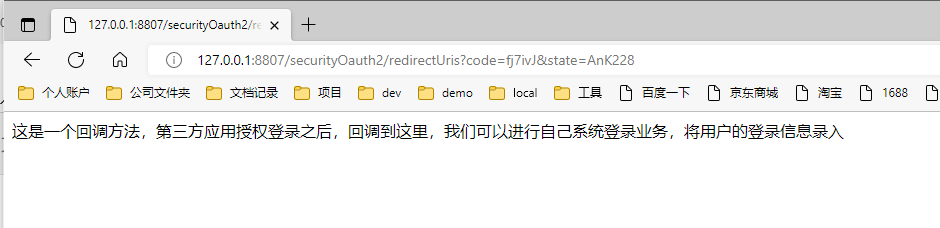

                //配置redirect_uri，用于授权成功后跳转,可以配置多个，例如：.redirectUris("http://localhost:8081/login","http://localhost:8082/login")
                .redirectUris("http://127.0.0.1:8807/securityOauth2/redirectUris")
                //自动授权配置
                .autoApprove(true)
                //配置申请的权限范围
                .scopes("all")
                /**
                 * 配置grant_type，表示授权类型
                 * authorization_code: 授权码
                 * password： 密码
                 * client_credentials: 客户端
                 * refresh_token: 更新令牌
                 */
                .authorizedGrantTypes("authorization_code","password","refresh_token");
    }

    @Override
    public void configure(AuthorizationServerEndpointsConfigurer endpoints) throws Exception {
        //配置JWT的内容增强器
        TokenEnhancerChain enhancerChain = new TokenEnhancerChain();
        List<TokenEnhancer> delegates = new ArrayList<>();
        delegates.add(authTokenEnhancer);
        delegates.add(jwtAccessTokenConverter);
        enhancerChain.setTokenEnhancers(delegates);

        //第二种：使用密码模式需要配置（使用jwt文件的方式）
        endpoints.authenticationManager(authenticationManagerBean) //使用密码模式需要配置
                .reuseRefreshTokens(false)  //refresh_token是否重复使用
                .userDetailsService(userDetailService) //刷新令牌授权包含对用户信息的检查
                .tokenStore(jwtTokenStore)  //配置存储令牌策略（使用jwt文件存储的方式）
                .accessTokenConverter(jwtAccessTokenConverter)
                .tokenEnhancer(enhancerChain) //配置tokenEnhancer
                .allowedTokenEndpointRequestMethods(HttpMethod.GET,HttpMethod.POST,HttpMethod.DELETE,HttpMethod.PUT); //支持GET,POST请求,DELETE请求，PUT请求

    }

    /**
     * 授权服务器安全配置
     * @param security
     * @throws Exception
     */
    @Override
    public void configure(AuthorizationServerSecurityConfigurer security) throws Exception {
        // 允许客户表单认证,不加的话/oauth/token无法访问
        security.allowFormAuthenticationForClients()
                // 对于CheckEndpoint控制器[框架自带的校验]的/oauth/token端点允许所有客户端发送器请求而不会被Spring-security拦截
                // 开启/oauth/token_key验证端口无权限访问
                .tokenKeyAccess("permitAll()")
                // 要访问/oauth/check_token必须设置为permitAll()，但这样所有人都可以访问了，设为isAuthenticated()又导致访问不了，这个问题暂时没找到解决方案
                // 开启/oauth/check_token验证端口认证权限访问
                .checkTokenAccess("permitAll()")
//                //第三方客户端校验token需要带入 clientId 和clientSecret来校验
                .checkTokenAccess("isAuthenticated()")
                .tokenKeyAccess("isAuthenticated()");//来获取我们的tokenKey需要带入clientId,clientSecret
        //允许客户表单认证,不加的话/oauth/token无法访问
        security.allowFormAuthenticationForClients();
    }


}

创建AuthServerRedisTokenStoreConfig.java

这个是基于Redis模式配置授权服务器存储第三方客户端的信息，由于DB/Jwt/Redis三种方式选择其中一个进行存储，目前测试过可行，所以注释掉了。
代码如下（示例）：

//package com.example.springcloudsecurityoauth2demo.config;
//
//import org.springframework.beans.factory.annotation.Qualifier;
//import org.springframework.security.crypto.password.PasswordEncoder;
//import org.springframework.security.oauth2.provider.token.TokenStore;
//import com.example.springcloudsecurityoauth2demo.service.AppUserDetailsService;
//import org.springframework.beans.factory.annotation.Autowired;
//import org.springframework.context.annotation.Configuration;
//import org.springframework.http.HttpMethod;
//import org.springframework.security.authentication.AuthenticationManager;
//import org.springframework.security.oauth2.config.annotation.configurers.ClientDetailsServiceConfigurer;
//import org.springframework.security.oauth2.config.annotation.web.configuration.AuthorizationServerConfigurerAdapter;
//import org.springframework.security.oauth2.config.annotation.web.configuration.EnableAuthorizationServer;
//import org.springframework.security.oauth2.config.annotation.web.configurers.AuthorizationServerEndpointsConfigurer;
//import org.springframework.security.oauth2.config.annotation.web.configurers.AuthorizationServerSecurityConfigurer;
//import org.springframework.security.oauth2.provider.token.TokenEnhancer;
//import org.springframework.security.oauth2.provider.token.TokenEnhancerChain;
//import org.springframework.security.oauth2.provider.token.store.JwtAccessTokenConverter;
//import java.util.ArrayList;
//import java.util.List;
//
///**
// * @Author: liaozhiwei
// * @Description: 第三种方式：基于Redis模式配置授权服务器存储第三方客户端的信息
// * @Date: Created in 18:17 2022/8/23
// */
//@Configuration
//@EnableAuthorizationServer
//public class AuthServerRedisTokenStoreConfig extends AuthorizationServerConfigurerAdapter {
//
//    //使用密码模式需要配置（使用redis的方式）
//    @Autowired
//    @Qualifier("redisTokenStore")
//    private TokenStore redisTokenStore;
//
//    @Autowired
//    private JwtAccessTokenConverter jwtAccessTokenConverter;
//
//    @Autowired
//    private AppUserDetailsService userDetailService;
//
//    @Autowired
//    private AuthenticationManager authenticationManagerBean;
//
//    @Autowired
//    private AuthTokenEnhancer authTokenEnhancer;
//
//    @Autowired
//    private PasswordEncoder passwordEncoder;
//
//    /**
//     * @Description 第三方信息的存储
//     **/
//    @Override
//    public void configure(ClientDetailsServiceConfigurer clients) throws Exception {
//        /**
//         *授权码模式
//         *http://localhost:8807/oauth/authorize?response_type=code&client_id=client&redirect_uri=http://www.baidu.com&scope=all
//         *或者
//         *http://localhost:8807/oauth/authorize?response_type=code&client_id=client
//         *password模式
//         *http://localhost:8807/oauth/token?username=liaozhiwei&password=123456&grant_type=password&client_id=client&client_secret=client-secret&scope=all
//         *刷新令牌
//         *http://localhost:8080/oauth/token?grant_type=refresh_token&client_id=client&client_secret=client-secret&refresh_token=eyJhbGciOiJSUzI1NiIsInR5cCI6IkpXVCJ9.eyJ1c2VyX25hbWUiOiJsaWFvemhpd2VpIiwic2NvcGUiOlsiYWxsIl0sImF0aSI6IjJiYjg5NDY5LWIyNmYtNGQwNC05YTZjLTJjYmZkYjIzMDgyNyIsImV4cCI6MTY2MjE3ODkzMiwiYXV0aG9yaXRpZXMiOlsiYWRtaW4iXSwianRpIjoiNzBmOTc0NWItNGZmOS00ZTY5LThiOWMtNzY5ZGNkODc5NTcwIiwiY2xpZW50X2lkIjoiY2xpZW50In0.Uy6s5uIT2h_vv6DezssqzA1d7iNpqyfNReiAygmYrapPuc1Beyetoxbf3_zduD8BhZkKva7Qna_L9lFQKZuzzSx25RLgG07YzDZnuUPkCVYisxZ4bhmOuJYndKzrZmZBqmK2P9MQwLhasEgcpZoR5RJurV15fZOO5IvOI6xvgM0XkqalnEwYWf5e5JYLEEBqQqTpkEoP6wH3SSBsRFuH10l6qKqUXFd_nO37hO1p-d2uX-qMBTGPZ57xiaz97x5FLGxh2dbskmxyTnf-jAiTHlRdrfvIHDh312uW4iyENZpg8HEg3OjUHYc-7OY4U9UrHQx0YQbJ01SuKLCFEIx-aA
//         */
//
//        clients.inMemory()
//                //配置client_id
//                .withClient("client")
//                //配置client-secret
//                .secret(passwordEncoder.encode("client-secret"))
//                //配置访问token的有效期
//                .accessTokenValiditySeconds(3600)
//                //配置刷新token的有效期
//                .refreshTokenValiditySeconds(864000)
//                //配置redirect_uri，用于授权成功后跳转,可以配置多个，例如：.redirectUris("http://localhost:8081/login","http://localhost:8082/login")
//                .redirectUris("http://www.baidu.com")
//                //配置申请的权限范围
//                .scopes("all")
//                //自动授权配置
//                .autoApprove(true)
//                /**
//                 * 配置grant_type，表示授权类型
//                 * authorization_code: 授权码
//                 * password： 密码
//                 * client_credentials: 客户端
//                 * refresh_token: 更新令牌
//                 * implicit：简化模式
//                 */
//                .authorizedGrantTypes("authorization_code","password","refresh_token");
//    }
//
//    @Override
//    public void configure(AuthorizationServerEndpointsConfigurer endpoints) throws Exception {
//        //配置JWT的内容增强器
//        TokenEnhancerChain enhancerChain = new TokenEnhancerChain();
//        List<TokenEnhancer> delegates = new ArrayList<>();
//        delegates.add(authTokenEnhancer);
//        delegates.add(jwtAccessTokenConverter);
//        enhancerChain.setTokenEnhancers(delegates);
//
//        //使用密码模式需要配置（使用redis的方式）
//        endpoints.authenticationManager(authenticationManagerBean) //使用密码模式需要配置
//                .reuseRefreshTokens(false)  //refresh_token是否重复使用
//                .userDetailsService(userDetailService) //刷新令牌授权包含对用户信息的检查
//                .tokenStore(redisTokenStore)  //指定token存储到redis
//                .accessTokenConverter(jwtAccessTokenConverter)
//                .allowedTokenEndpointRequestMethods(HttpMethod.GET,HttpMethod.POST,HttpMethod.DELETE,HttpMethod.PUT); //支持GET,POST请求,DELETE请求，PUT请求
//    }
//
//    /**
//     * 授权服务器安全配置
//     * @param security
//     * @throws Exception
//     */
//    @Override
//    public void configure(AuthorizationServerSecurityConfigurer security) throws Exception {
//        //第三方客户端校验token需要带入 clientId 和clientSecret来校验
//        security.checkTokenAccess("isAuthenticated()")
//                .tokenKeyAccess("isAuthenticated()");//来获取我们的tokenKey需要带入clientId,clientSecret
//        //允许表单认证
//        security.allowFormAuthenticationForClients();
//    }
//
//
//}
//

创建AuthTokenEnhancer

代码如下（示例）：

package com.example.springcloudsecurityoauth2demo.config;

import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.oauth2.common.DefaultOAuth2AccessToken;
import org.springframework.security.oauth2.common.OAuth2AccessToken;
import org.springframework.security.oauth2.provider.OAuth2Authentication;
import org.springframework.security.oauth2.provider.token.TokenEnhancer;
import java.util.HashMap;
import java.util.Map;

/**
 * @Author: liaozhiwei
 * @Description: TODO
 * @Date: Created in 18:20 2022/8/23
 */
public class AuthTokenEnhancer  implements TokenEnhancer {

    @Override
    public OAuth2AccessToken enhance(OAuth2AccessToken accessToken, OAuth2Authentication authentication) {
        UserDetails userinfoDetails = (UserDetails) authentication.getPrincipal();
        final Map<String, Object> additionalInfo = new HashMap<>();
        final Map<String, Object> retMap = new HashMap<>();
        //todo 这里暴露userId到Jwt的令牌中,后期可以根据自己的业务需要 进行添加字段
        additionalInfo.put("userName",userinfoDetails.getUsername());
        retMap.put("additionalInfo",additionalInfo);
        ((DefaultOAuth2AccessToken) accessToken).setAdditionalInformation(retMap);
        return accessToken;
    }
}

创建JwtTokenStoreConfig

代码如下（示例）：

package com.example.springcloudsecurityoauth2demo.config;

import com.example.springcloudsecurityoauth2demo.properties.JwtCAProperties;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.context.properties.EnableConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.io.ClassPathResource;
import org.springframework.security.oauth2.provider.token.store.JwtAccessTokenConverter;
import org.springframework.security.rsa.crypto.KeyStoreKeyFactory;
import java.security.KeyPair;
import org.springframework.security.oauth2.provider.token.TokenStore;
import org.springframework.security.oauth2.provider.token.store.JwtTokenStore;

/**
 * @Author: liaozhiwei
 * @Description: jwt.jks文件形式存储
 * @Date: Created in 19:09 2022/8/23
 */

@Configuration
@EnableConfigurationProperties(value = JwtCAProperties.class)
public class JwtTokenStoreConfig {

      //第二种方式：使用jwt文件的方式
    @Bean
    public TokenStore jwtTokenStore(){
        return new JwtTokenStore(jwtAccessTokenConverter());
    }

    @Bean
    public AuthTokenEnhancer authTokenEnhancer() {
        return new AuthTokenEnhancer();
    }

    @Autowired
    private JwtCAProperties jwtCAProperties;

    @Bean
    public KeyPair keyPair() {
        KeyStoreKeyFactory keyStoreKeyFactory = new KeyStoreKeyFactory(
                new ClassPathResource(jwtCAProperties.getKeyPairName()),
                jwtCAProperties.getKeyPairSecret().toCharArray());
        return keyStoreKeyFactory.getKeyPair(jwtCAProperties.getKeyPairAlias(),
                jwtCAProperties.getKeyPairStoreSecret().toCharArray());
    }

    @Bean
    public JwtAccessTokenConverter jwtAccessTokenConverter(){
        JwtAccessTokenConverter accessTokenConverter = new JwtAccessTokenConverter();
        //配置JWT使用的秘钥 非对称加密
        accessTokenConverter.setKeyPair(keyPair());
        return accessTokenConverter;
    }


}

创建RedisStoreConfig

代码如下（示例）：

package com.example.springcloudsecurityoauth2demo.config;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Configuration;
import org.springframework.data.redis.connection.RedisConnectionFactory;
import org.springframework.context.annotation.Bean;
import org.springframework.security.oauth2.provider.token.TokenStore;
import org.springframework.security.oauth2.provider.token.store.redis.RedisTokenStore;

/**
 * @Author: liaozhiwei
 * @Description: 第三种方式：redis存储
 * @Date: Created in 19:09 2022/8/23
 */
@Configuration
public class RedisStoreConfig {

    @Autowired
    private RedisConnectionFactory redisConnectionFactory;

     //第三种：使用密码模式需要配置（使用redis的方式）
//    @Bean
//    public TokenStore redisTokenStore(){
//        // access_token
//        return new RedisTokenStore(redisConnectionFactory);
//    }
}

创建WebSecurityConfig

代码如下（示例）：

package com.example.springcloudsecurityoauth2demo.config;

//import com.example.springcloudsecurityoauth2demo.filter.JWTAuthenticationEntryPoint;
//import com.example.springcloudsecurityoauth2demo.filter.JWTAuthenticationFilter;
//import com.example.springcloudsecurityoauth2demo.filter.JWTAuthorizationFilter;
import com.example.springcloudsecurityoauth2demo.service.AppUserDetailsService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.config.http.SessionCreationPolicy;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.web.cors.CorsConfiguration;
import org.springframework.web.cors.CorsConfigurationSource;
import org.springframework.web.cors.UrlBasedCorsConfigurationSource;

/**
 * @Author: liaozhiwei
 * @Description: 配置SpringSecurity，“将Spring Security与Spring Gateway一起使用时出现无法访问javax.servlet.Filter”错误”，
 *  * 把Spring Gateway和Spring Security放在一起，因为我想保护我的网关。但是在实现了以下扩展WebSecurityConfigurerAdapter的类之后，
 *  * 项目抛出java:无法访问javax.servlet.Filter
 *  * 从Spring Cloud Gateway文档中：Spring Cloud Gateway需要Spring Boot和Spring Webflux提供的Netty运行时。
 *  * 它不能在传统的Servlet容器中工作，也不能在构建为WAR时工作。扩展WebSecurityConfigurerAdapter是为了基于servlet的应用程序
 * @Date: Created in 18:11 2022/8/23
 */
@EnableWebSecurity
@Configuration
public class WebSecurityConfig extends WebSecurityConfigurerAdapter {

    @Autowired
    private AppUserDetailsService userDetailService;

    @Override
    protected void configure(AuthenticationManagerBuilder auth) throws Exception {
        auth.userDetailsService(userDetailService);
    }

    @Bean
    @Override
    public AuthenticationManager authenticationManagerBean() throws Exception {
        // oauth2 密码模式需要拿到这个bean
        return super.authenticationManagerBean();
    }

    /**
     * @Description 密码模式
     * @MethodReturnType org.springframework.security.crypto.password.PasswordEncoder
     * @Author zhiwei Liao
     * @Date 2021/8/17 15:46
     **/
    @Bean
    public PasswordEncoder passwordEncoder() {
        return new BCryptPasswordEncoder();
    }


    @Override
    protected void configure(HttpSecurity http) throws Exception {
        //第一种方式
        http.formLogin().permitAll()
                .and().authorizeRequests()
                .antMatchers("/oauth/**").permitAll()//不拦截
                .anyRequest()
                .authenticated()
                .and().logout().permitAll()//退出放行
                .and().csrf().disable();//关闭CSRF保护
        //第二种方式
/*        http.cors()
                .and().authorizeRequests()
                .antMatchers("/user/**").hasRole("admin")
                .anyRequest().permitAll()
                // 添加JWT登录拦截器
                .and().addFilter(new JWTAuthenticationFilter(authenticationManager()))
                // 添加JWT鉴权拦截器
                .addFilter(new JWTAuthorizationFilter(authenticationManager()))
                // 设置Session的创建策略为：Spring Security不创建HttpSession
                .sessionManagement().sessionCreationPolicy(SessionCreationPolicy.STATELESS)
                // 匿名用户访问无权限资源时的异常处理
                .and().exceptionHandling().authenticationEntryPoint(new JWTAuthenticationEntryPoint())
                .and().csrf().disable();//关闭CSRF保护*/
    }

    @Bean
    CorsConfigurationSource corsConfigurationSource(){
        final UrlBasedCorsConfigurationSource source = new UrlBasedCorsConfigurationSource();
        // 注册跨域配置
        source.registerCorsConfiguration("/**", new CorsConfiguration().applyPermitDefaultValues());
        return source;
    }
}

创建SecurityOauth2Controller

代码如下（示例）：

package com.example.springcloudsecurityoauth2demo.controller;

import io.jsonwebtoken.Jwts;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.core.Authentication;
import org.springframework.security.oauth2.provider.OAuth2Authentication;
import org.springframework.security.oauth2.provider.token.TokenStore;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

import javax.servlet.http.HttpServletRequest;
import java.nio.charset.StandardCharsets;

/**
 * @Author: liaozhiwei
 * @Description: 获取当前登录用户信息
 * @Date: Created in 09:24 2022/8/24
 */
@RestController
@RequestMapping("/securityOauth2")
public class SecurityOauth2Controller {


    /**
     * 根据重定向的返回地址获取授权码
     * @return
     */
    @RequestMapping("/getCodeByCallback")
    public Object getCodeByCallback() {
        return "这是一个回调方法（授权码模式：A网站提供一个链接，用户点击后就会跳转到B网站，用户跳转后，B网站会要求用户登录，然后询问是否同意给予A网站授权，用户表示同意，这时B网站就会跳回redirect_uri参数指定的网址，也就是当前这个接口，跳转时，会传回一个授权码";
    }

    /**
     * 回调方法
     * @return
     */
    @RequestMapping("/redirectUris")
    public Object redirectUris(HttpServletRequest request) {
        return "这是一个回调方法，第三方应用授权登录之后，回调到这里，我们可以进行自己系统登录业务，将用户的登录信息录入";
    }

    @Autowired
    private TokenStore tokenService;


    /**
     * 获取当前登录用户信息
     * @param token
     * @return
     */

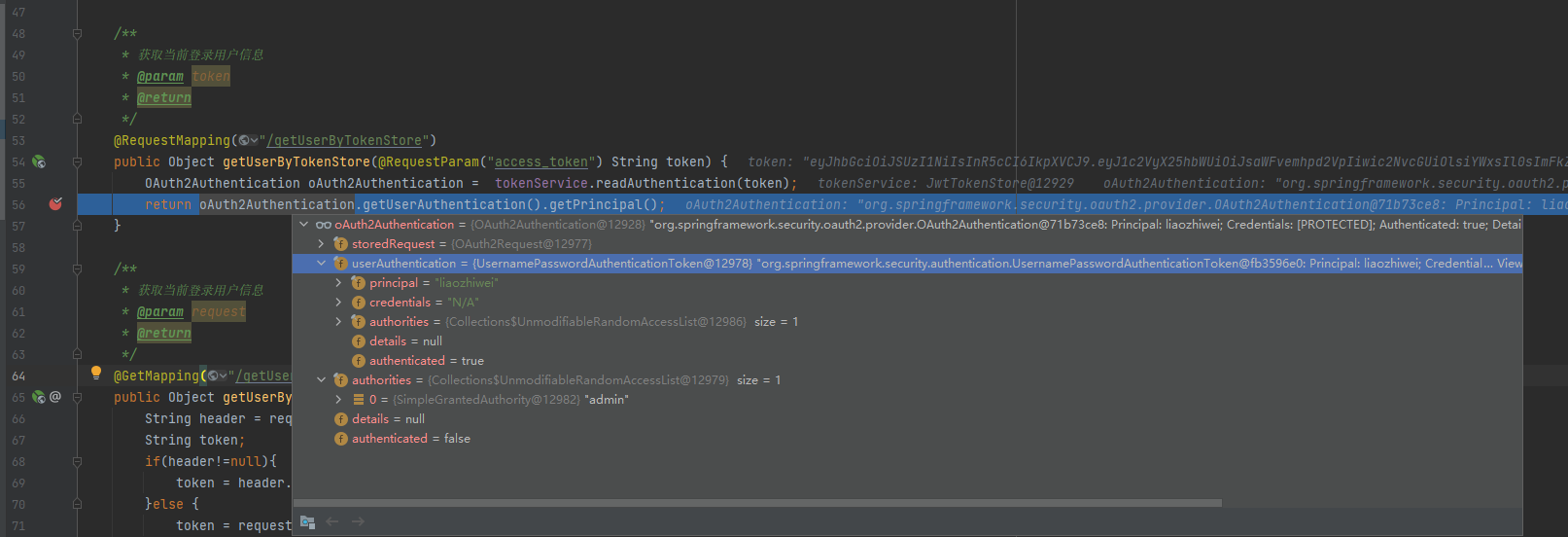

    @RequestMapping("/getUserByTokenStore")
    public Object getUserByTokenStore(@RequestParam("access_token") String token) {
        OAuth2Authentication oAuth2Authentication =  tokenService.readAuthentication(token);
        return oAuth2Authentication.getUserAuthentication().getPrincipal();
    }

    /**
     * 获取当前登录用户信息
     * @param request
     * @return
     */
    @GetMapping("/getUserByRequest")
    public Object getUserByRequest(HttpServletRequest request) {
        String header = request.getHeader("Authorization");
        String token;
        if(header!=null){
            token = header.substring(header.indexOf("bearer") + 7);
        }else {
            token = request.getParameter("access_token");
        }
        return Jwts.parser()
                .setSigningKey("123123".getBytes(StandardCharsets.UTF_8))
                .parseClaimsJws(token)
                .getBody();

    }

}

创建AppUserinfoEntity

代码如下（示例）：

package com.example.springcloudsecurityoauth2demo.entity;

import lombok.Getter;
import lombok.Setter;

/**
 * @Author: liaozhiwei
 * @Description: 用户的实体类
 * @Date: Created in 18:24 2022/8/23
 */
@Setter
@Getter
public class AppUserinfoEntity {

    private String userId;

    private String userName;

    private String userStatus;

    private String credential;
}

创建ResultData

代码如下（示例）：

package com.example.springcloudsecurityoauth2demo.entity.base;

/**
 * @Author: liaozhiwei
 * @Description: TODO
 * @Date: Created in 18:34 2022/8/23
 */

import lombok.Data;
import lombok.NoArgsConstructor;
import java.io.Serializable;

@Data
@NoArgsConstructor
public class ResultData<T> implements Serializable {
    /**
     * 状态码
     */
    public boolean status = true;

    /**
     * 状态码
     */
    private Integer code = 200;

    /**
     * 接口返回信息
     */
    private String msg;

    /**
     * 数据对象
     */
    private T data;

    /**
     * 初始化一个新创建的 ResultData 对象
     *
     * @param status 状态码
     * @param msg    返回内容
     */
    public ResultData(Boolean status, String msg) {
        this.status = status;
        this.msg = msg;
    }

    /**
     * 初始化一个新创建的 ResultData 对象
     *
     * @param status 状态码
     * @param msg    返回内容
     * @param data   数据对象
     */
    public ResultData(Boolean status, String msg, T data, Integer code) {
        this.status = status;
        this.msg = msg;
        this.data = data;
        this.code = code;
    }

    public ResultData(T data) {
        this.data = data;
    }


    /**
     * 返回成功消息
     *
     * @param msg  返回内容
     * @param data 数据对象
     * @return 成功消息
     */
    public static <T> ResultData<T> success(String msg, T data) {
        return new ResultData<T>(true, msg, data, 200);
    }

    /**
     * 返回成功消息
     *
     * @param msg 返回内容
     * @return 成功消息
     */
    public static <T> ResultData<T> success(String msg) {
        return ResultData.success(msg, null);
    }

    /**
     * 返回成功消息
     *
     * @return 成功消息
     */
    public static <T> ResultData<T> success() {
        return ResultData.success(null);
    }

    /**
     * 返回成功数据
     *
     * @return 成功消息
     */
    public static <T> ResultData<T> success(T data) {
        return ResultData.success(null, data);
    }

    /**
     * 返回错误消息
     *
     * @return
     */
    public static <T> ResultData<T> error() {
        return ResultData.error(null);
    }


    /**
     * 返回错误消息
     *
     * @param msg 返回内容
     * @return 警告消息
     */
    public static <T> ResultData<T> error(String msg) {
        return ResultData.error(msg, null);
    }

    /**
     * 返回错误消息
     *
     * @param code 状态码
     * @param msg  返回内容
     * @return 警告消息
     */
    public static <T> ResultData<T> error(Integer code, String msg) {
        return new ResultData<T>(false, msg, null, code);
    }


    /**
     * 返回错误消息
     *
     * @param msg  返回内容
     * @param data 数据对象
     * @return 警告消息
     */
    public static <T> ResultData<T> error(String msg, T data) {
        return new ResultData<T>(false, msg, data, 500);
    }
}

创建UserInfoFeignService

代码如下（示例）：

package com.example.springcloudsecurityoauth2demo.fegin;

import com.example.springcloudsecurityoauth2demo.entity.AppUserinfoEntity;
import com.example.springcloudsecurityoauth2demo.entity.base.ResultData;
import com.example.springcloudsecurityoauth2demo.hystrix.UserServiceHystrix;
import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.stereotype.Component;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestParam;

/**
 * @Author: liaozhiwei
 * @Description: TODO 远程调用用户模块的接口获取用户信息，这里就不写用户模块了
 * @Date: Created in 18:33 2022/8/23
 */
@Component
@FeignClient(name = "user", fallback = UserServiceHystrix.class, path = "/user")
public interface UserInfoFeignService {

    @GetMapping("/getUserinfoById")
    ResultData<AppUserinfoEntity> getUserinfoById(@RequestParam("userId") String userId);

    @GetMapping("/getUserByUserName")
    ResultData<AppUserinfoEntity> getUserByUserName(@RequestParam("username") String username);

}

创建JWTAuthenticationEntryPoint.java

代码如下（示例）：

//package com.example.springcloudsecurityoauth2demo.filter;
//
//import com.alibaba.fastjson.JSON;
//import org.springframework.security.core.AuthenticationException;
//import org.springframework.security.web.AuthenticationEntryPoint;
//import javax.servlet.ServletException;
//import javax.servlet.http.HttpServletRequest;
//import javax.servlet.http.HttpServletResponse;
//import java.io.IOException;
//
//
///**
// * @Author: liaozhiwei
// * @Description: 匿名用户访问资源时无权限的处理
// * @Date: Created in 11:13 2022/8/24
// */
//
//public class JWTAuthenticationEntryPoint implements AuthenticationEntryPoint {
//
//  @Override
//  public void commence(HttpServletRequest request, HttpServletResponse response,
//                       AuthenticationException authException) throws IOException, ServletException {
//    response.setCharacterEncoding("utf-8");
//    response.setContentType("text/javascript;charset=utf-8");
//    response.getWriter().print(JSON.toJSONString("未登录，没有访问权限"));
//  }
//}

创建JWTAuthenticationFilter.java

代码如下（示例）：

//package com.example.springcloudsecurityoauth2demo.filter;
//
//import com.alibaba.fastjson.JSON;
//import com.example.springcloudsecurityoauth2demo.utils.JwtTokenUtil;
//import org.springframework.security.authentication.*;
//import org.springframework.security.core.Authentication;
//import org.springframework.security.core.AuthenticationException;
//import org.springframework.security.core.GrantedAuthority;
//import org.springframework.security.core.userdetails.User;
//import org.springframework.security.web.authentication.UsernamePasswordAuthenticationFilter;
//import javax.servlet.FilterChain;
//import javax.servlet.ServletException;
//import javax.servlet.http.HttpServletRequest;
//import javax.servlet.http.HttpServletResponse;
//import java.io.IOException;
//import java.util.Collection;
//
///**
// * @Author: liaozhiwei
// * @Description: TODO
// * @Date: Created in 16:13 2022/8/24
// */
//
//public class JWTAuthenticationFilter extends UsernamePasswordAuthenticationFilter {
//
//    private AuthenticationManager authenticationManager;
//
//    public JWTAuthenticationFilter(AuthenticationManager authenticationManager) {
//        this.authenticationManager = authenticationManager;
//    }
//
//    @Override
//    public Authentication attemptAuthentication(HttpServletRequest request, HttpServletResponse response) throws AuthenticationException {
//        UsernamePasswordAuthenticationToken token = new UsernamePasswordAuthenticationToken(
//                request.getParameter("username"), request.getParameter("password"));
//        return authenticationManager.authenticate(token);
//    }
//
//    @Override
//    protected void successfulAuthentication(HttpServletRequest request, HttpServletResponse response, FilterChain chain, Authentication authResult) throws IOException, ServletException {
//        User user = (User) authResult.getPrincipal();
//        // 从User中获取权限信息
//        Collection<? extends GrantedAuthority> authorities = user.getAuthorities();
//        // 创建Token
//        String token = JwtTokenUtil.createToken(user.getUsername(), authorities.toString());
//        response.setCharacterEncoding("UTF-8");
//        response.setContentType("application/json; charset=utf-8");
//        // 在请求头里返回创建成功的token
//        // 设置请求头为带有"Bearer "前缀的token字符串
//        response.setHeader("token", JwtTokenUtil.TOKEN_PREFIX + token);
//        response.setContentType("text/json;charset=utf-8");
//        response.getWriter().write(JSON.toJSONString("登录成功"));
//    }
//
//    @Override
//    protected void unsuccessfulAuthentication(HttpServletRequest request, HttpServletResponse response, AuthenticationException failed) throws IOException, ServletException {
//        String returnData="";
//        if (failed instanceof AccountExpiredException) {
//            returnData="账号过期";
//        }else if (failed instanceof BadCredentialsException) {
//            returnData="密码错误";
//        }else if (failed instanceof CredentialsExpiredException) {
//            returnData="密码过期";
//        }else if (failed instanceof DisabledException) {
//            returnData="账号不可用";
//        }else if (failed instanceof LockedException) {
//            returnData="账号锁定";
//        }else if (failed instanceof InternalAuthenticationServiceException) {
//            returnData="用户不存在";
//        }else{
//            returnData="未知异常";
//        }
//
//        response.setContentType("text/json;charset=utf-8");
//        response.getWriter().write(JSON.toJSONString(returnData));
//    }
//}

创建JWTAuthorizationFilter.java

代码如下（示例）：

//package com.example.springcloudsecurityoauth2demo.filter;
//
//import com.example.springcloudsecurityoauth2demo.utils.JwtTokenUtil;
//import org.apache.commons.lang3.StringUtils;
//import org.springframework.security.authentication.AuthenticationManager;
//import org.springframework.security.authentication.UsernamePasswordAuthenticationToken;
//import org.springframework.security.core.authority.SimpleGrantedAuthority;
//import org.springframework.security.core.context.SecurityContextHolder;
//import org.springframework.security.web.authentication.www.BasicAuthenticationFilter;
//import javax.servlet.FilterChain;
//import javax.servlet.ServletException;
//import javax.servlet.http.HttpServletRequest;
//import javax.servlet.http.HttpServletResponse;
//import java.io.IOException;
//import java.util.ArrayList;
//import java.util.Collection;
//
///**
// * @Author: liaozhiwei
// * @Description: TODO
// * @Date: Created in 16:13 2022/8/24
// */
//
//public class JWTAuthorizationFilter extends BasicAuthenticationFilter {
//
//
//    public JWTAuthorizationFilter(AuthenticationManager authenticationManager) {
//        super(authenticationManager);
//    }
//
//    @Override
//    protected void doFilterInternal(HttpServletRequest request, HttpServletResponse response, FilterChain filterChain) throws ServletException, IOException {
//        String tokenHeader = request.getHeader(JwtTokenUtil.TOKEN_HEADER);
//        // 若请求头中没有Authorization信息 或是Authorization不以Bearer开头 则直接放行
//        if (tokenHeader == null || !tokenHeader.startsWith(JwtTokenUtil.TOKEN_PREFIX)){
//            filterChain.doFilter(request, response);
//            return;
//        }
//        // 若请求头中有token 则调用下面的方法进行解析 并设置认证信息
//        SecurityContextHolder.getContext().setAuthentication(getAuthentication(tokenHeader));
//        super.doFilterInternal(request, response, filterChain);
//    }
//
//    /*
//     * 从token中获取用户信息并新建一个token
//     * @param tokenHeader 字符串形式的Token请求头
//     * @return 带用户名和密码以及权限的Authentication
//     */
//    private UsernamePasswordAuthenticationToken getAuthentication(String tokenHeader) {
//        // 去掉前缀 获取Token字符串
//        String token = tokenHeader.replace(JwtTokenUtil.TOKEN_PREFIX, "");
//        // 从Token中解密获取用户名
//        String username = JwtTokenUtil.getUsername(token);
//        // 从Token中解密获取用户角色
//        String role = JwtTokenUtil.getUserRole(token);
//        // 将[ROLE_XXX,ROLE_YYY]格式的角色字符串转换为数组
//        String[] roles = StringUtils.strip(role, "[]").split(", ");
//        Collection<SimpleGrantedAuthority> authorities=new ArrayList<>();
//        for (String s:roles)
//        {
//            authorities.add(new SimpleGrantedAuthority(s));
//        }
//        if (username != null)
//        {
//            return new UsernamePasswordAuthenticationToken(username, null,authorities);
//        }
//        return null;
//    }
//}

创建UserServiceHystrix

代码如下（示例）：

package com.example.springcloudsecurityoauth2demo.hystrix;

/**
 * @Author: liaozhiwei
 * @Description: TODO
 * @Date: Created in 18:37 2022/8/23
 */
import com.example.springcloudsecurityoauth2demo.entity.AppUserinfoEntity;
import com.example.springcloudsecurityoauth2demo.entity.base.ResultData;
import com.example.springcloudsecurityoauth2demo.fegin.UserInfoFeignService;
import org.springframework.stereotype.Component;

/**
 * @author zhiwei Liao
 * @version 1.0
 * @Description
 * @Date 2021/8/17 15:25
 */

@Component
public class UserServiceHystrix implements UserInfoFeignService {


    @Override
    public ResultData<AppUserinfoEntity> getUserinfoById(String userId) {
        return null;
    }

    @Override
    public ResultData<AppUserinfoEntity> getUserByUserName(String username) {
        return null;
    }
}

创建JwtCAProperties

代码如下（示例）：

package com.example.springcloudsecurityoauth2demo.properties;

import lombok.Data;
import org.springframework.boot.context.properties.ConfigurationProperties;
/**
 * @Author: liaozhiwei
 * @Description: 读取配置文件中的属性配置
 * @Date: Created in 19:10 2022/8/23
 */

@Data
@ConfigurationProperties(prefix = "auth.jwt")
public class JwtCAProperties {

    /**
     * 证书名称
     */
    private String keyPairName;


    /**
     * 证书别名
     */
    private String keyPairAlias;

    /**
     * 证书私钥
     */
    private String keyPairSecret;

    /**
     * 证书存储密钥
     */
    private String keyPairStoreSecret;

}

创建AppUserDetailsService

代码如下（示例）：

package com.example.springcloudsecurityoauth2demo.service;

import com.example.springcloudsecurityoauth2demo.entity.AppUserinfoEntity;
import com.example.springcloudsecurityoauth2demo.entity.base.ResultData;
import com.example.springcloudsecurityoauth2demo.fegin.UserInfoFeignService;
import lombok.extern.slf4j.Slf4j;
import org.apache.commons.lang3.StringUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Lazy;
import org.springframework.security.core.authority.AuthorityUtils;
import org.springframework.security.core.userdetails.User;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.stereotype.Service;

/**
 * @Author: liaozhiwei
 * @Description: TODO
 * @Date: Created in 18:13 2022/8/23
 */
@Service
@Slf4j
public class AppUserDetailsService implements UserDetailsService {

    @Autowired
    @Lazy
    private PasswordEncoder passwordEncoder;

    @Override
    public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {
        //第一种方式：写死直接返回
        String password = passwordEncoder.encode("123456");
        System.out.println(password);
        return new User("liaozhiwei",password, AuthorityUtils.commaSeparatedStringToAuthorityList("admin"));//AuthorityUtils.commaSeparatedStringToAuthorityList("admin")用来为用户分配权限
/*        // 第二种方式：  查数据库获取用户信息   rpc调用
        // 加载用户信息
        if (StringUtils.isEmpty(username)) {
            log.warn("用户登陆用户名为空:{}", username);
            throw new UsernameNotFoundException("用户名不能为空");
        }
        AppUserinfoEntity userUserinfo = getByUserName(username);
        if (null == userUserinfo) {
            log.warn("根据用户名没有查询到对应的用户信息:{}", username);
        }
        log.info("根据用户名:{}获取用户登陆信息:{}", username, userUserinfo);

        // 用户信息的封装 implements UserDetails
        UserInfoDetails memberDetails = new UserInfoDetails(userUserinfo);
        return memberDetails;*/
    }

    @Autowired
    private UserInfoFeignService userInfoFeignService;

    public AppUserinfoEntity getByUserName(String username) {
        // fegin获取用户信息
        ResultData<AppUserinfoEntity> resultData = userInfoFeignService.getUserByUserName(username);
        return resultData.getData();
    }
}

创建UserInfoDetails

代码如下（示例）：

package com.example.springcloudsecurityoauth2demo.service;

/**
 * @Author: liaozhiwei
 * @Description: TODO
 * @Date: Created in 19:04 2022/8/23
 */
import com.example.springcloudsecurityoauth2demo.entity.AppUserinfoEntity;
import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.core.authority.SimpleGrantedAuthority;
import org.springframework.security.core.userdetails.UserDetails;
import java.util.Arrays;
import java.util.Collection;

/**
 * @Author: liaozhiwei
 * @Description: TODO
 * @Date: Created in 19:13 2022/8/23
 */
public class UserInfoDetails implements UserDetails {

    private AppUserinfoEntity userUserinfo;

    public UserInfoDetails(AppUserinfoEntity userUserinfo) {
        this.userUserinfo = userUserinfo;
    }

    @Override
    public Collection<? extends GrantedAuthority> getAuthorities() {
        //返回当前用户的权限  BRAC   user  role  authority
        return Arrays.asList(new SimpleGrantedAuthority("TEST"));
    }

    // 获取用户密码(凭证)
    @Override
    public String getPassword() {
        return userUserinfo.getCredential();
    }

    // 获取用户名
    @Override
    public String getUsername() {
        return userUserinfo.getUserName();
    }

    // 判断帐号是否已经过期
    @Override
    public boolean isAccountNonExpired() {
        return true;
    }

    // 判断帐号是否已被锁定
    @Override
    public boolean isAccountNonLocked() {
        return true;
    }

    // 判断用户凭证是否已经过期
    @Override
    public boolean isCredentialsNonExpired() {
        return true;
    }

    // 判断用户帐号是否已启用
    @Override
    public boolean isEnabled() {
        return !userUserinfo.getUserStatus().equals("FREEZE");
    }

    public AppUserinfoEntity getUserUserinfo() {
        return userUserinfo;
    }

}

创建JwtTokenUtil

代码如下（示例）：

package com.example.springcloudsecurityoauth2demo.utils;

import io.jsonwebtoken.Claims;
import io.jsonwebtoken.Jwts;
import io.jsonwebtoken.SignatureAlgorithm;
import java.util.Date;
import java.util.HashMap;
import java.util.Map;
/**
 * @Author: liaozhiwei
 * @Description: TODO
 * @Date: Created in 19:13 2022/8/24
 */
public class JwtTokenUtil {
    // Token请求头
    public static final String TOKEN_HEADER = "Authorization";
    // Token前缀
    public static final String TOKEN_PREFIX = "Bearer ";
    // 签名主题
    public static final String SUBJECT = "app";
    // 过期时间
    public static final long EXPIRITION =  24 * 60 * 60 ;
    // 应用密钥
    public static final String APPSECRET_KEY = "123123";
    // 角色权限声明
    private static final String ROLE_CLAIMS = "role";

    /**
     * 生成Token
     */
    public static String createToken(String username,String role) {
      Map<String,Object> map = new HashMap<>();
      map.put(ROLE_CLAIMS, role);

      String token = Jwts
          .builder()
          .setSubject(username)
          .setClaims(map)
          .claim("username",username)
          .setIssuedAt(new Date())
          .setExpiration(new Date(System.currentTimeMillis() + EXPIRITION))
          .signWith(SignatureAlgorithm.HS256, APPSECRET_KEY).compact();
      return token;
    }

    /**
     * 校验Token
     */
    public static Claims checkJWT(String token) {
      try {
        final Claims claims = Jwts.parser().setSigningKey(APPSECRET_KEY).parseClaimsJws(token).getBody();
        return claims;
      } catch (Exception e) {
        e.printStackTrace();
        return null;
      }
    }

    /**
     * 从Token中获取username
     */
    public static String getUsername(String token){
      Claims claims = Jwts.parser().setSigningKey(APPSECRET_KEY).parseClaimsJws(token).getBody();
      return claims.get("username").toString();
    }

    /**
     * 从Token中获取用户角色
     */
    public static String getUserRole(String token){
      Claims claims = Jwts.parser().setSigningKey(APPSECRET_KEY).parseClaimsJws(token).getBody();
      return claims.get("role").toString();
    }

    /**
     * 校验Token是否过期
     */
    public static boolean isExpiration(String token){
      Claims claims = Jwts.parser().setSigningKey(APPSECRET_KEY).parseClaimsJws(token).getBody();
      return claims.getExpiration().before(new Date());
    }
}

验证Spring Cloud Security Oauth2是否工作

首先要获取access_token，然后根据access_token认证授权

授权码模式

获取授权码

浏览器请求：http://127.0.0.1:8807/oauth/authorize?response_type=code&client_id=client
重定向为：http://127.0.0.1:8807/login
输入
用户名：liaozhiwei
密码：123456
如下图（示例）：
在这里插入图片描述

授权登录之后会进行回调获取授权码

如下图（示例）：
在这里插入图片描述

填入授权码code获取获取access_token

发起请求：http://127.0.0.1:8807/oauth/token?grant_type=authorization_code&client_id=client&client_secret=client_secret&code=12PVmF
如下图（示例）：
在这里插入图片描述

password模式

http://127.0.0.1:8807/oauth/token?username=liaozhiwei&password=123456&grant_type=password&client_id=client&client_secret=client_secret&scope=all
如下图（示例）：
在这里插入图片描述

刷新令牌获取access_token

http://127.0.0.1:8807/oauth/token?grant_type=refresh_token&client_id=client&client_secret=client_secret&refresh_token=
如下图（示例）：
在这里插入图片描述
请求（示例）：

http://127.0.0.1:8807/oauth/token?grant_type=refresh_token&client_id=client&client_secret=client_secret&refresh_token=eyJhbGciOiJSUzI1NiIsInR5cCI6IkpXVCJ9.eyJ1c2VyX25hbWUiOiJsaWFvemhpd2VpIiwic2NvcGUiOlsiYWxsIl0sImF0aSI6ImZlNzJhYTE2LTM2M2EtNDFlNS05YWM2LTY0MDhkYjIzZWMyMCIsImFkZGl0aW9uYWxJbmZvIjp7InVzZXJOYW1lIjoibGlhb3poaXdlaSJ9LCJleHAiOjE2NjIyMTkzNjcsImF1dGhvcml0aWVzIjpbImFkbWluIl0sImp0aSI6IjFkNjRiMGI5LTkwNTQtNGMzYi05OWY1LTJjYzVjZGIxMTk2NSIsImNsaWVudF9pZCI6ImNsaWVudCJ9.cp6KF2XQJlNBRQTJXSvPpKh0t7jIAcJ9KegA60QIEK7dUYnMMf9b9I5Zu8AlmcQAq0tGGNTTLm1Wo42fYOWCElotRYDx-465kemhcuf-nHdGQ-qXDYMuhOKO5hlG1eajMD1ceoPK71dAxvEMRWAC5hk3_PmxlPIyaO-mDQJB3PhaDjEVNGhRncp7u5-UkPL3gZg1D9r-Yk1gDB9R1Qe7UDv0oBa_u07Vm1Q8i8tXnm6__6Xi2E16HBP0c872jc6voG2LCtcA5LMoPTHQlg3xAPodTuF7ncy188vXPAUzHf2Cp8ITH2lpJ68Jl0XQq8kz9vfv3r1_vK9_mbVAiys1UQ

发起请求使用access_token进行授权获取登录用户信息

http://127.0.0.1:8807/securityOauth2/getUserByTokenStore?access_token=
如下图（示例）：
在这里插入图片描述在这里插入图片描述到这里其实已经可以验证我们通过授权码和密码模式获取access_token，然后通过access_token获取登录用户的消息了，当然还有更多的验证在代码里面已经实现了，这里我只对获取登录用户进行演示校验过程

创建spring-cloud-security-oauth2-sso-client-demo项目（实现单点登录）

项目代码：https://gitee.com/java_wxid/java_wxid/tree/master/demo/spring-cloud-security-oauth2-sso-client-demo
项目结构如下图（示例）：
在这里插入图片描述

修改pom.xml文件

如下（示例）：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.example</groupId>
    <artifactId>spring-cloud-security-oauth2-sso-client-demo</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>spring-cloud-security-oauth2-sso-client-demo</name>
    <description>Demo project for Spring Boot</description>

    <!--    属性配置-->
    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <java.version>1.8</java.version>
        <!--引入 Spring Boot、Spring Cloud、Spring Cloud Alibaba 三者 BOM 文件，进行依赖版本的管理，防止不兼容。
        在 https://dwz.cn/mcLIfNKt 文章中，Spring Cloud Alibaba 开发团队推荐了三者的依赖关系-->
        <spring.boot.version>2.3.12.RELEASE</spring.boot.version>
        <spring.cloud.version>Hoxton.SR12</spring.cloud.version>
        <spring.cloud.alibaba.version>2.2.7.RELEASE</spring.cloud.alibaba.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

        <!--        代表web模块，在这个模块中含了许多JAR包，有spring相关的jar，内置tomcat服务器，jackson等，这些web项目中常用的的功能都会自动引入-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <!-- Alibaba Nacos 配置 -->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId>
        </dependency>
        <!--        在SpringBoot 2.4.x的版本之后，对于bootstrap.properties/bootstrap.yaml配置文件(我们合起来成为Bootstrap配置文件)的支持，其实这个jar包里什么都没有，就只有一个标识类Marker，用来标识要开启Bootstrap配置文件的支持，由于父类用了2.5.6版本需要导入如下的依赖-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-bootstrap</artifactId>
            <version>3.1.0</version>
        </dependency>


        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-oauth2</artifactId>
        </dependency>

        <!--JWT依赖-->
        <dependency>
            <groupId>io.jsonwebtoken</groupId>
            <artifactId>jjwt</artifactId>
            <version>0.9.1</version>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

    </dependencies>

    <!--
    引入 Spring Boot、Spring Cloud、Spring Cloud Alibaba 三者 BOM 文件，进行依赖版本的管理，防止不兼容。
    在 https://dwz.cn/mcLIfNKt 文章中，Spring Cloud Alibaba 开发团队推荐了三者的依赖关系
 -->
    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-parent</artifactId>
                <version>${spring.boot.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring.cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-alibaba-dependencies</artifactId>
                <version>${spring.cloud.alibaba.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

创建bootstrap.yml文件

代码如下（示例）：

#bootstrap.yml优先级比application.yml优先级高
spring:
  #prefix−{spring.profile.active}.${file-extension}
  #nacos会根据当前环境去拼接配置名称查找相应配置文件，
  #示例：{spring.application.name}-{spring.profiles.active}-{spring.cloud.nacos.config.file-extension}
  #获取到值：nacos-autoconfig-service-dev.yml
  profiles:
    #开发环境dev，测试环境test，生产环境prod
    active: dev
  application:
    #配置应用的名称，用于获取配置
    name: security-oauth2-sso-client
  main:
    allow-bean-definition-overriding: true
  cloud:
    nacos:
      discovery:
        # 服务注册地址
        server-addr: ip:8848
      config:
        #nacos配置中心地址
        server-addr: ip:8848
        #配置中心的命名空间id
        namespace: 9e50b6d9-6c3d-4e7a-b701-10f085e4b98d
        #配置分组，默认没有也可以
        group: DEFAULT_GROUP
        #配置文件后缀，用于拼接配置配置文件名称，目前只支持yaml和properties
        file-extension: yaml
        #配置自动刷新
        refresh-enabled: true
        #配置文件的前缀，默认是application.name的值，如果配了prefix，就取prefix的值
        #prefix: nacos-autoconfig-service-${spring.profile.active}
        # 配置编码
        encode: UTF-8
        username: nacos
        password: nacos

修改application.properties文件

代码如下（示例）：

server.port=8808
server.servlet.session.cookie.name=OAUTH2-CLIENT-SESSIONID${server.port}
oauth2-server-url: http://127.0.0.1:8807
security.oauth2.client.client-id=client
security.oauth2.client.use-current-uri=false
security.oauth2.client.client-secret=client_secret
security.oauth2.client.user-authorization-uri=${oauth2-serverurl}/oauth/authorize
security.oauth2.client.access-token-uri=${oauth2-server-url}/oauth/token
security.oauth2.resource.jwt.key-uri=${oauth2-server-url}/oauth/token_key

修改SpringCloudSecurityOauth2SsoClientDemoApplication

代码如下（示例）：

package com.luban.oauth2ssoclientdemo;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.autoconfigure.security.oauth2.client.EnableOAuth2Sso;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;

@SpringBootApplication
/*@EnableOAuth2Sso单点登录的原理简单来说就是：标注有@EnableOAuth2Sso的OAuth2 Client应用在通过某种
OAuth2授权流程获取访问令牌后（一般是授权码流程），通过访问令牌访问userDetails用户明细这个受保护资源服务，
获取用户信息后，将用户信息转换为Spring Security上下文中的认证后凭证Authentication，从而完成标注有
@EnableOAuth2Sso的OAuth2 Client应用自身的登录认证的过程。整个过程是基于OAuth2的SSO单点登录*/
@EnableOAuth2Sso
@EnableDiscoveryClient
public class SpringCloudSecurityOauth2SsoClientDemoApplication {

    public static void main(String[] args) {
        SpringApplication.run(SpringCloudSecurityOauth2SsoClientDemoApplication.class, args);
    }

}

创建UserController

代码如下（示例）：

package com.luban.oauth2ssoclientdemo.controller;

import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

/**
 * @Author: liaozhiwei
 * @Description: TODO
 * @Date: Created in 09:24 2022/8/24
 */
@RestController
@RequestMapping("/user")
public class UserController {

    @RequestMapping("/testCallback")
    public Object testCallback() {
        return "";
    }
}

校验请求是否有到授权服务器进行授权

浏览器发起请求：http://localhost:8808/user/getUserByAuthentication
重定向到登录页面：
输入
用户名：liaozhiwei
密码：123456
如下图（示例）：
在这里插入图片描述

授权登录之会进行回调，返回授权码

如下图（示例）：
在这里插入图片描述

拿到授权码获取access_token

http://127.0.0.1:8807/oauth/token?grant_type=authorization_code&client_id=client&client_secret=client_secret&code=fj7ivJ
如下图（示例）：
在这里插入图片描述
到这里为止，可以发现单点登录也基本校验成功了

本文含有隐藏内容，请 开通VIP 后查看

网站公告

今日签到

点亮在社区的每一天
去签到

热门文章

最新发布
